JZA80L-AJFVZW (1993)
Toyota Supra
Production
May 1993
-
Jan 1996
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305-9601)6F

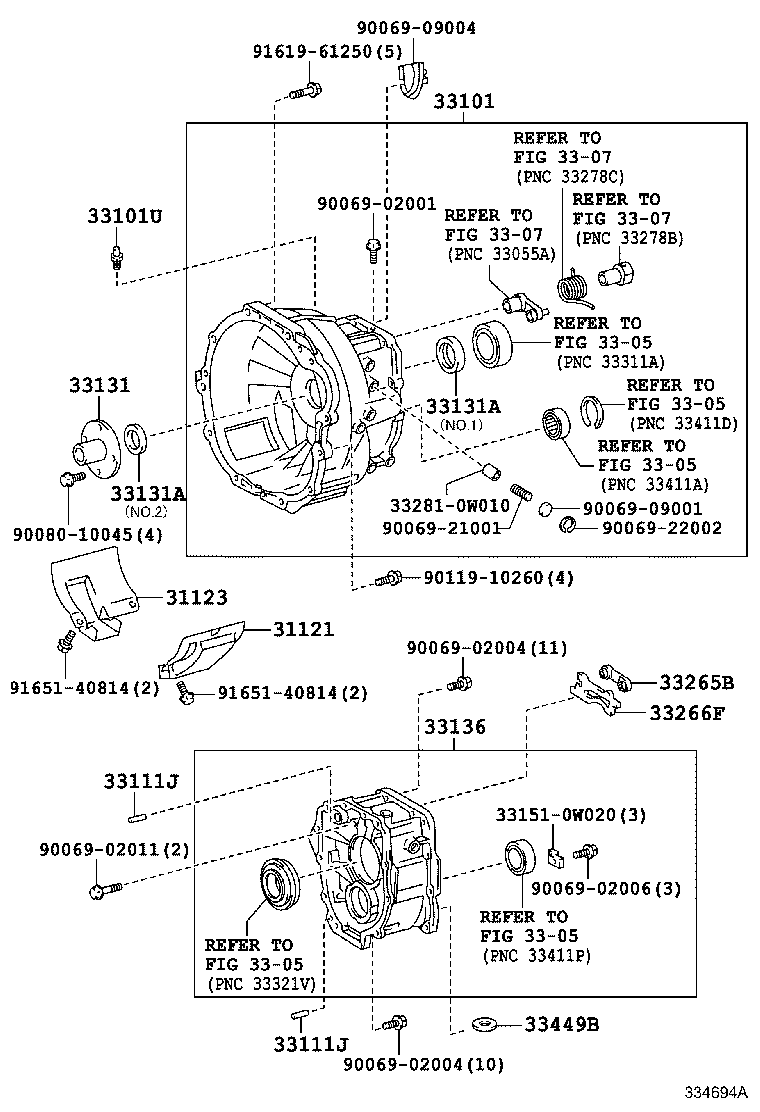

Click highlighted areas on diagram
V160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31101-14020 |
JZA80..6F |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31102-14020 |
JZA80..6F |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-0W040 |
JZA80..6F |
1 | ||
| 33101-0W041 |
JZA80..6F |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03114 |
JZA80..6F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90069-05001 |
JZA80..6F L=32,OD=10 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90069-05001 |
JZA80..6F L=32,OD=10 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-0W011 |
JZA80..6F |
1 | ||
| 33131-0W010 |
JZA80..6F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 90080-31027 |
JZA80..6F NO.2 |
1 | ||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 90080-31027 |
JZA80..6F NO.2 |
1 | ||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33136-0W030 |
JZA80..6F |
1 | ||
| 33265B - PIECE, SHIFT INTER LOCK PLATE | ||||
| 33265-0W010 |
JZA80..6F |
1 | ||
| 33266F - PLATE, SHIFT INTER LOCK | ||||
| 33266-0W010 |
JZA80..6F |
1 | ||
| 33298-0W010 |
JZA80..6F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-0W010 |
JZA80..6F |
1 | ||
| Common parts | ||||
| 33151-0W020 | ||||
| 33281-0W010 | ||||
| 90069-02001 | ||||
| 90069-02004 | ||||
| 90069-02006 | ||||
| 90069-02011 | ||||
| 90069-09001 | ||||
| 90069-09004 | ||||
| 90069-21001 | ||||
| 90069-22002 | ||||
| 90080-10045 | ||||
| 90119-10260 | ||||
| 91619-61250 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 3305 | ||||
| 3307 | ||||
(9305- )6F
Click highlighted areas on diagram
V160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31101-14020 |
JZA80..6F |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31102-14020 |
JZA80..6F |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-0W040 |
JZA80..6F |
1 | ||
| 33101-0W041 |
JZA80..6F |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03114 |
JZA80..6F |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90069-05001 |
JZA80..6F L=32,OD=10 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90069-05001 |
JZA80..6F L=32,OD=10 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-0W011 |
JZA80..6F |
1 | ||
| 33131-0W010 |
JZA80..6F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 90080-31027 |
JZA80..6F NO.2 |
1 | ||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 90080-31027 |
JZA80..6F NO.2 |
1 | ||
| 90069-08001 |
JZA80..6F NO.1 |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33136-0W030 |
JZA80..6F |
1 | ||
| 33265B - PIECE, SHIFT INTER LOCK PLATE | ||||
| 33265-0W010 |
JZA80..6F |
1 | ||
| 33266F - PLATE, SHIFT INTER LOCK | ||||
| 33266-0W010 |
JZA80..6F |
1 | ||
| 33298-0W010 |
JZA80..6F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-0W010 |
JZA80..6F |
1 | ||
| Common parts | ||||
| 33151-0W020 | ||||
| 33281-0W010 | ||||
| 90069-02001 | ||||
| 90069-02004 | ||||
| 90069-02006 | ||||
| 90069-02011 | ||||
| 90069-09001 | ||||
| 90069-09004 | ||||
| 90069-21001 | ||||
| 90069-22002 | ||||
| 90080-10045 | ||||
| 90119-10260 | ||||
| 91619-61250 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 3305 | ||||
| 3307 | ||||
