JZA80L-AJFVZA (1993)
Toyota Supra

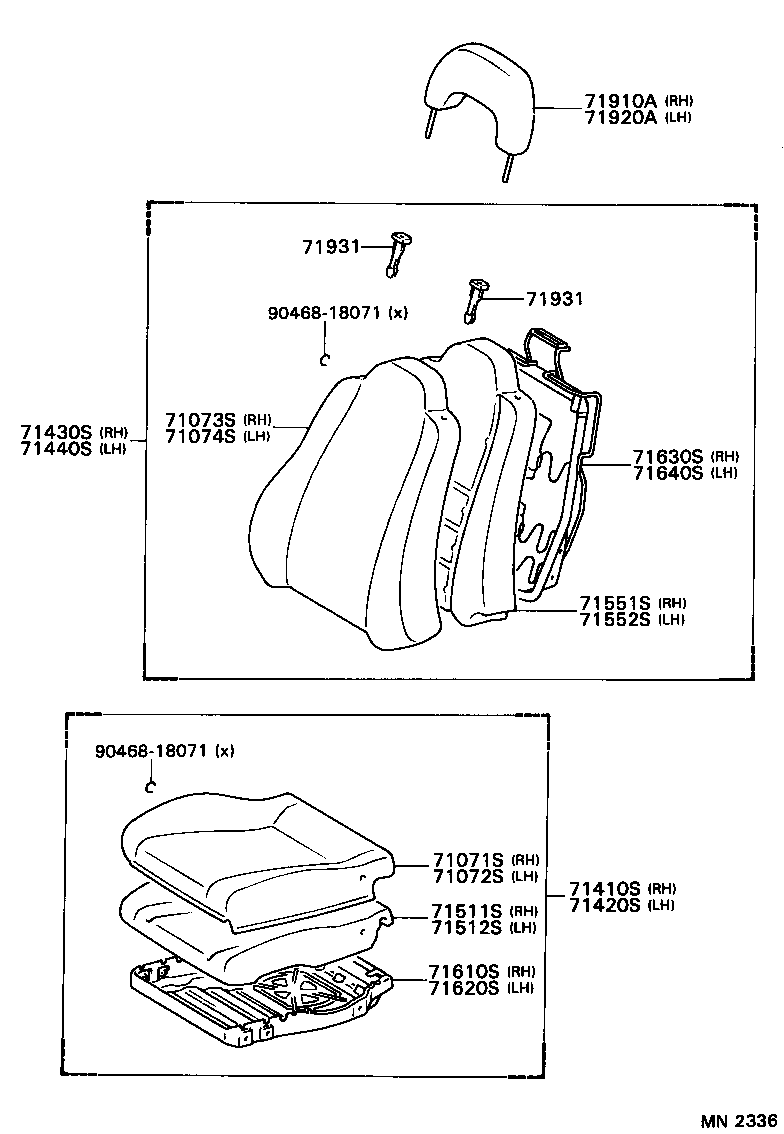

ILLUST NO. 1 OF 2(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-18071 | ||||

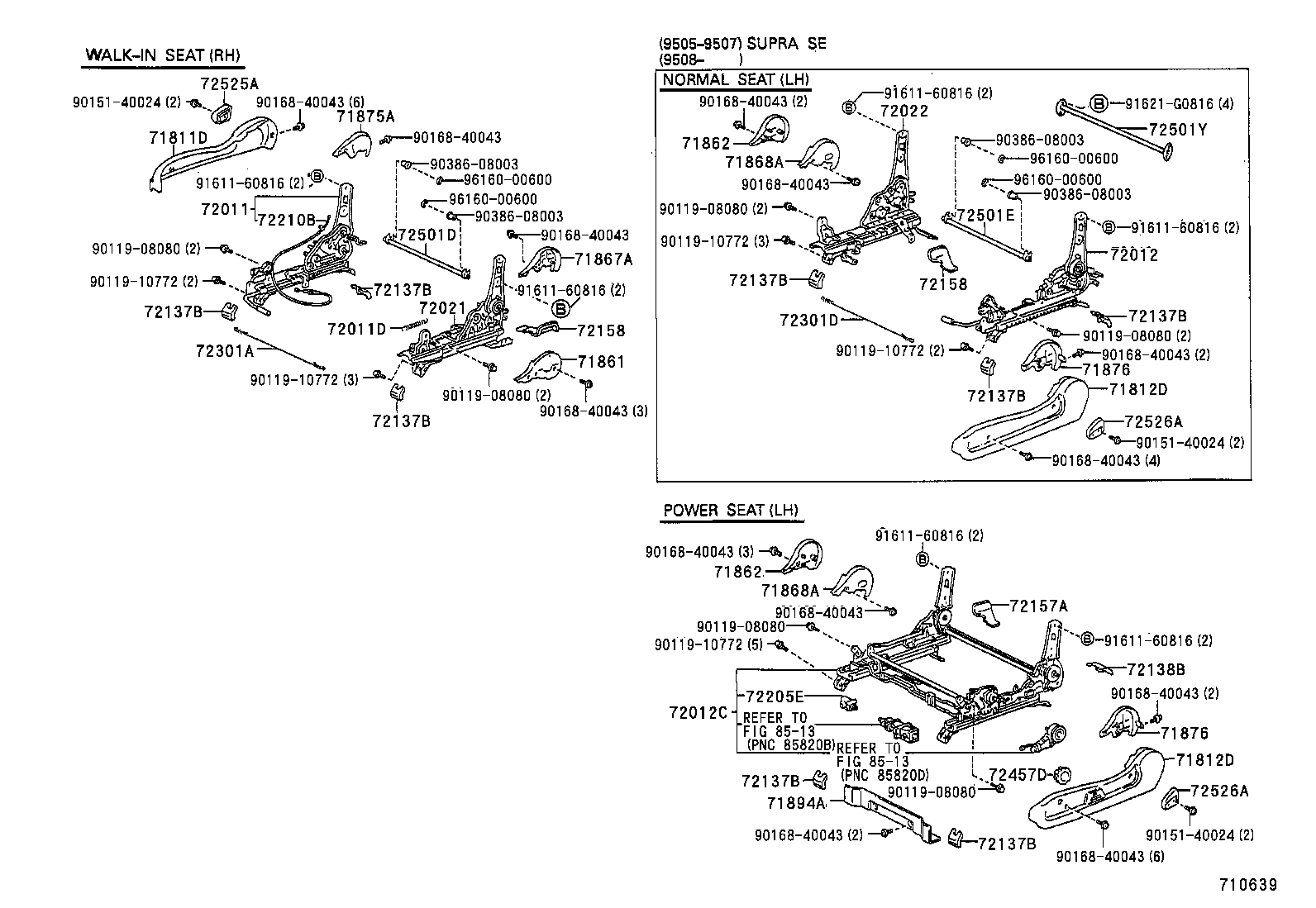

ILLUST NO. 2 OF 2(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-14100C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71811-14100A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-14130A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71812-14130C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71812-14120C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71812-14120C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-14130A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71812-14130C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71812-14120C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71812-14120C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71861-14040A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-14050A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71862-14050C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71862-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71862-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-14050A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71862-14050C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71862-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71862-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-14010A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 71867-14010C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71868-14030A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71868-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71868-14030C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71868-14030A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71868-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71868-14030C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-14030A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 71875-14030C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-14030C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71876-14030A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71876-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71876-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-14030C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71876-14030A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71876-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71876-14040C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71894A - SHIELD, POWER ADJUSTER, FRONT LH | ||||
| 71893-14030 |
JZA80 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-14060 |
JZA80 |
1 | ||
| 72011-14061 |
JZA80 |
1 | ||
| 72011-14060 |
JZA80 |
1 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
JZA80 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-14090 |
JZA80 |
1 | ||
| 72012-14091 |
JZA80 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-14370 |
JZA80 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-14031 |
JZA80 |
1 | ||
| 72021-14030 |
JZA80 |
1 | ||
| 72021-14030 |
JZA80 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-14041 |
JZA80 |
1 | ||
| 72022-14040 |
JZA80 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-24020C0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
10 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
5 | ||
| 72137-24020A2 |
JZA80..TWC;JZA80..6F..USA;JZA80..AET..4FC..TWT..USA W(LEATHER SEAT),IVORY,TRIM00 |
5 | ||
| 72137-2402008 |
JZA80 IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80..(4FC,6F)..USA BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80 IVORY,TRIM0# |
6 | ||
| 72137-24020A2 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020C0 |
JZA80 BLACK,TRIM2# |
6 | ||
| 72137-24020A2 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
5 | ||
| 72137-24020A2 |
JZA80..USA IVORY,TRIM00 |
6 | ||
| 72137-24020C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
5 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-14020A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72138-14020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-24030A2 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72157-2403008 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72157-24030A2 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72157-24030C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72157-24030A2 |
JZA80..USA IVORY,TRIM00 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-24020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72158-14010C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 72158-14010A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 72158-24020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-24020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72158-14010C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 72158-14010A0 |
JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 72158-24020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72205E - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-14010 |
JZA80 |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-14130 |
JZA80 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-14080 |
JZA80 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-14080 |
JZA80 |
1 | ||
| 72301-14080 |
JZA80 |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-16010A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72457-1601022 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-14010 |
JZA80 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-14010 |
JZA80 |
1 | ||
| 72501-14010 |
JZA80 |
1 | ||
| 72501Y - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-14020 |
JZA80 |
1 | ||
| 72501-14020 |
JZA80 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-14020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72525-14020A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-14020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72526-14020A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-14020C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 72526-14020A0 |
JZA80 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10772 | ||||
| 90151-40024 | ||||
| 90168-40043 | ||||
| 90386-08003 | ||||
| 91611-60816 | ||||
| 91621-G0816 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(9305- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 1 OF 2(9305-9607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1D450C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1D440C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D450A0 |
JZA80..CND;JZA80..LB..TWT;JZA80..AET..6F..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71071-1D440C2 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D480A1 |
JZA80 W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71071-1D580C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D450A1 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71071-1D530C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D560C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1D450C2 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1D560A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1D510C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71072-1D520A0 |
JZA80..CND;JZA80..LB..TWT;JZA80..AET..6F..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71072-1D570C1 |
JZA80..6F BLACK,TRIM21 |
1 | ||
| 71072-1D520C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1D520C2 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1D570C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 71072-1D590C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71072-1D550A1 |
JZA80 W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71072-1D610C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1D520A1 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71072-1D630C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71072-1D610A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1D040A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D030C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1D110C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1D041A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D040C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D210A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D150C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D041C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D170C0 |
JZA80 W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-1D210C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D150A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D190C4 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B870A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1B871A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D030C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1D110C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1B871C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D220A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D160A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D220C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1B870C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D160C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D180C0 |
JZA80 W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-1D190C4 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14220 |
JZA80 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-14030 |
JZA80 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14220 |
JZA80 |
1 | ||
| 71551-14230 |
JZA80 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14220 |
JZA80 |
1 | ||
| 71551-14230 |
JZA80 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14280 |
JZA80 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-14270 |
JZA80 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14250 |
JZA80 |
1 | ||
| 71630-14260 |
JZA80 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-14260 |
JZA80 |
1 | ||
| 71630-14250 |
JZA80 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-14761C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71910-14761A1 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71910-14760A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71910-14740C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71910-14761A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71910-14760C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-14110A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71920-14111A1 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71920-14111A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71920-14110C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71920-14111C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71920-14090C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007022 |
JZA80 W(LOCK),BLACK,TRIM0#,2# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007022 |
JZA80 W(LOCK),BLACK,TRIM0#,2# |
4 | ||

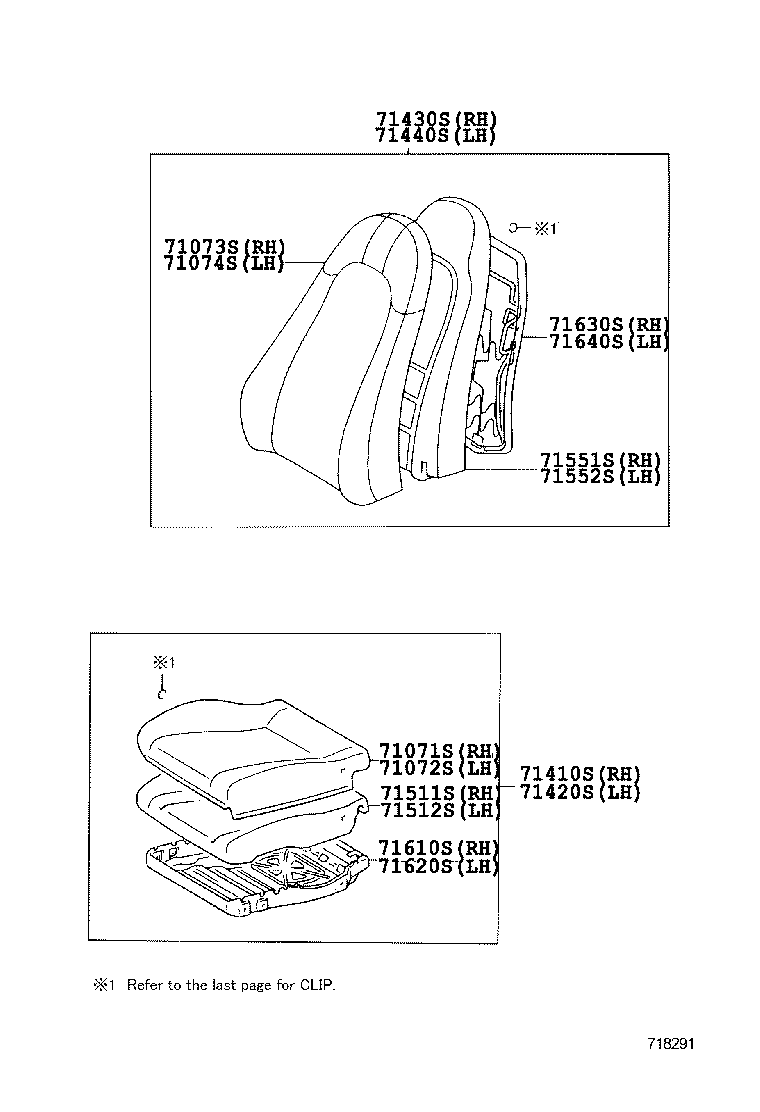

ILLUST NO. 1 OF 2(9607- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1D450C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1D440C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D450A0 |
JZA80..CND;JZA80..LB..TWT;JZA80..AET..6F..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71071-1D440C2 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D480A1 |
JZA80 W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71071-1D580C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D450A1 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71071-1D530C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71071-1D560C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1D450C2 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71071-1D560A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1D510C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71072-1D520A0 |
JZA80..CND;JZA80..LB..TWT;JZA80..AET..6F..USA W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71072-1D570C1 |
JZA80..6F BLACK,TRIM21 |
1 | ||
| 71072-1D520C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1D520C2 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1D570C0 |
JZA80 BLACK,TRIM0#,2# |
1 | ||
| 71072-1D590C0 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71072-1D550A1 |
JZA80 W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71072-1D610C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71072-1D520A1 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71072-1D630C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71072-1D610A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1D040A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D030C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1D110C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1D041A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D040C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D210A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D150C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D041C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D170C0 |
JZA80 W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-1D210C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D150A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D190C4 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B870A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1B871A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D030C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1D110C1 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71073-1B871C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D220A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D160A0 |
JZA80 W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71073-1D220C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1B870C1 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D160C0 |
JZA80 W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71073-1D180C0 |
JZA80 W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-1D190C4 |
JZA80 BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1D570A1 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71410-1D570C2 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71410-1D580A1 |
JZA80 ***,W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71410-1D680C0 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71410-1D680A0 |
JZA80 ***,IVORY,TRIM0# |
1 | ||
| 71410-1D700C1 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71410-1D650C0 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1D680C0 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71420-1D630A1 |
JZA80 ***,W(LEATHER SEAT & SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71420-1D720C1 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71420-1D620C2 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71420-1D700A0 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71420-1D620A1 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71420-1D700C0 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1D460C0 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71430-1D480A0 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71430-1D490C0 |
JZA80 ***,W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71040-14020C0 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71430-1D480C0 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71040-14010C4 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71040-14020A0 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1D490A0 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71430-1D460C0 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71440-1D500C0 |
JZA80 ***,W(LEATHER SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71070-14020A0 |
JZA80 ***,W(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71440-1D490C0 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71040-14010C4 |
JZA80 ***,BLACK,TRIM2# |
1 | ||
| 71070-14020C0 |
JZA80 ***,W(LEATHER SEAT),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14220 |
JZA80 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-14030 |
JZA80 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14220 |
JZA80 |
1 | ||
| 71551-14230 |
JZA80 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14220 |
JZA80 |
1 | ||
| 71551-14230 |
JZA80 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14280 |
JZA80 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-14270 |
JZA80 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14250 |
JZA80 |
1 | ||
| 71630-14260 |
JZA80 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-14260 |
JZA80 |
1 | ||
| 71630-14250 |
JZA80 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
