DB82R-ZSRW (2019)

Toyota Supra

Production Mar 2019 - Jun 2020
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

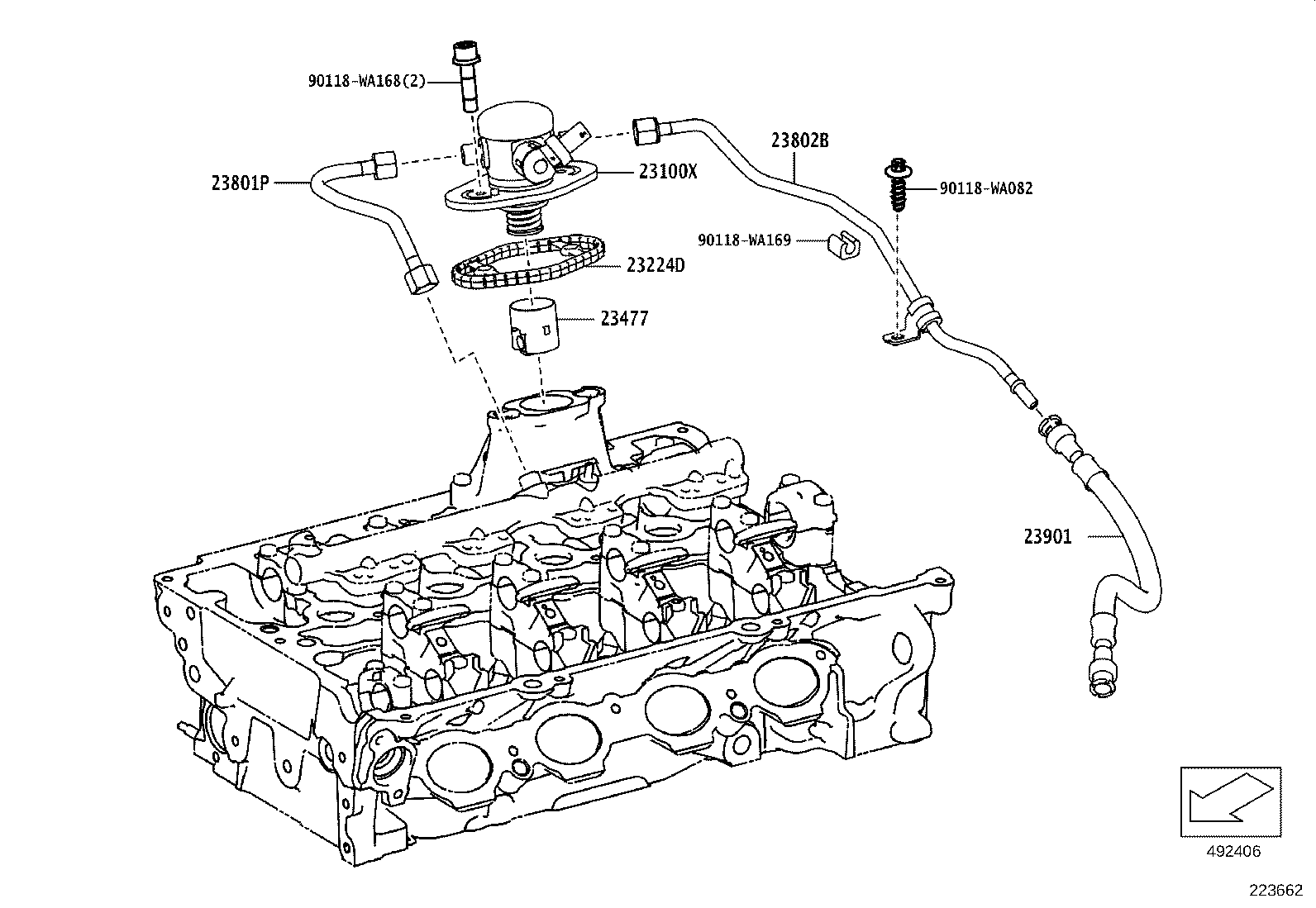

ILLUST NO. 1 OF 6(1903- )B48#

Click highlighted areas on diagram

diagram 23100X 23224D 23477 23801P 23802B 23901 90118WA082 90118WA168 90118WA169
Part # Description Qty Price
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23021-WAA01

B48#,B58..DB2#,4#,81

 1
23021-WAA01

B48L..DB82

 1
23224D - GASKET, FUEL PUMP SPACER
23224-WAA02

B48L..DB82

 1
23224-WAA01

B48#..DB2#,8#

 1
23477 - GUIDE, FUEL PUMP LIFTER
23470-WAA01

B48L..DB82

 1
23470-WAA01

B48#,B58..DB2#,4#,81

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-WAA01

B48L..DB82

 1
23802B - PIPE SUB-ASSY, FUEL, NO.2
23801-WAA04

B48L..DB82

 1
23801-WAA02

B48#,B58..DB2#,4#,8#

 1
23801-WAA04

B48#,B58..DB2#,4#,81

 1
23901 - TUBE SUB-ASSY, FUEL
23901-WAA01

B48L..DB82

 1
23901-WAA01

B48#,B58..DB2#,4#,81

 1
Common parts
90118-WA082
90118-WA168
90118-WA169

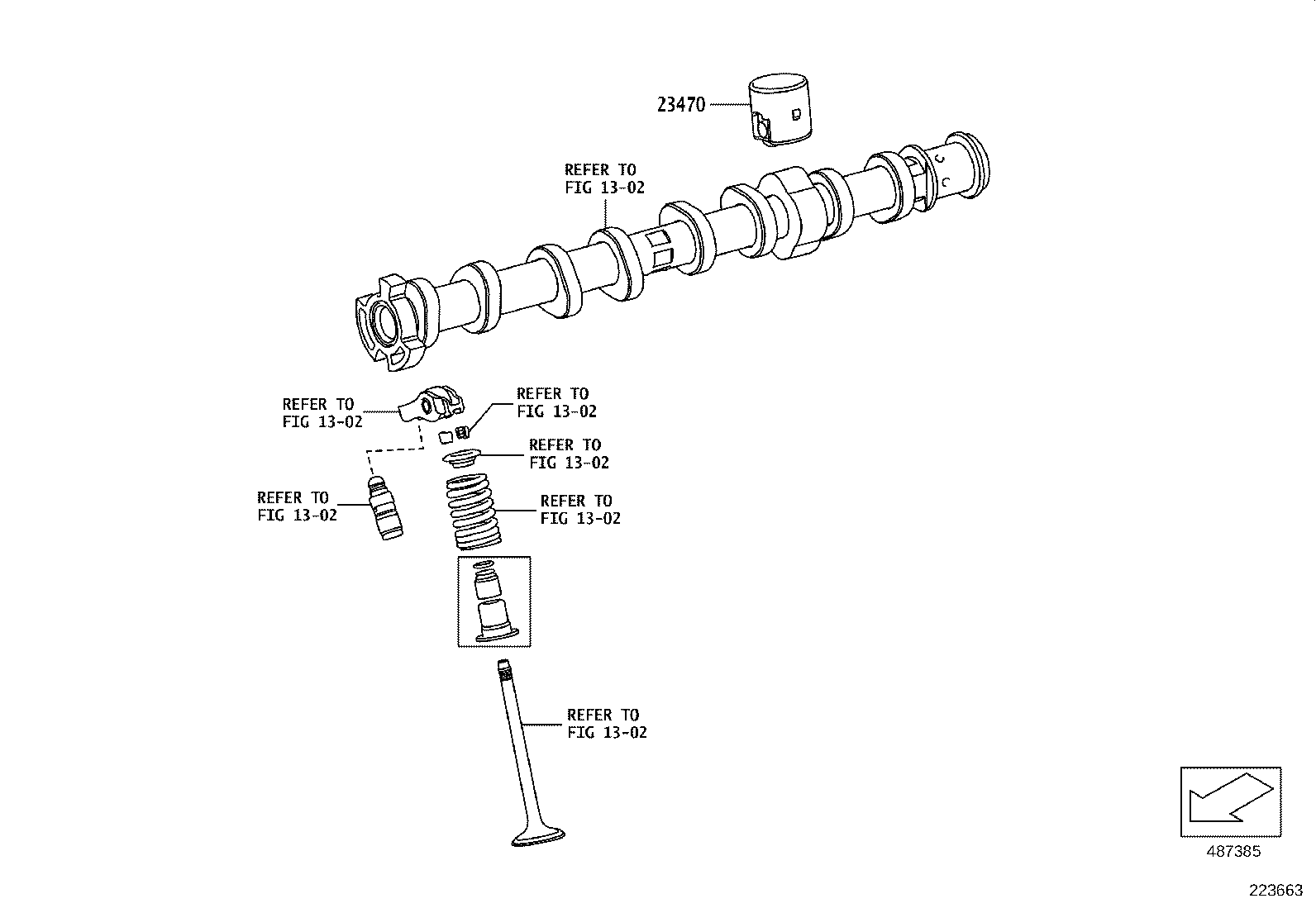

ILLUST NO. 2 OF 6(1903- )B48#

Click highlighted areas on diagram

diagram 1302 1302 1302 1302 1302 1302 1302 23470
Part # Description Qty Price
23470 - LIFTER ASSY, FUEL PUMP
23470-WAA01

B48L..DB82

 1
23470-WAA01

B48#,B58..DB2#,4#,81

 1
Linked diagrams
1302

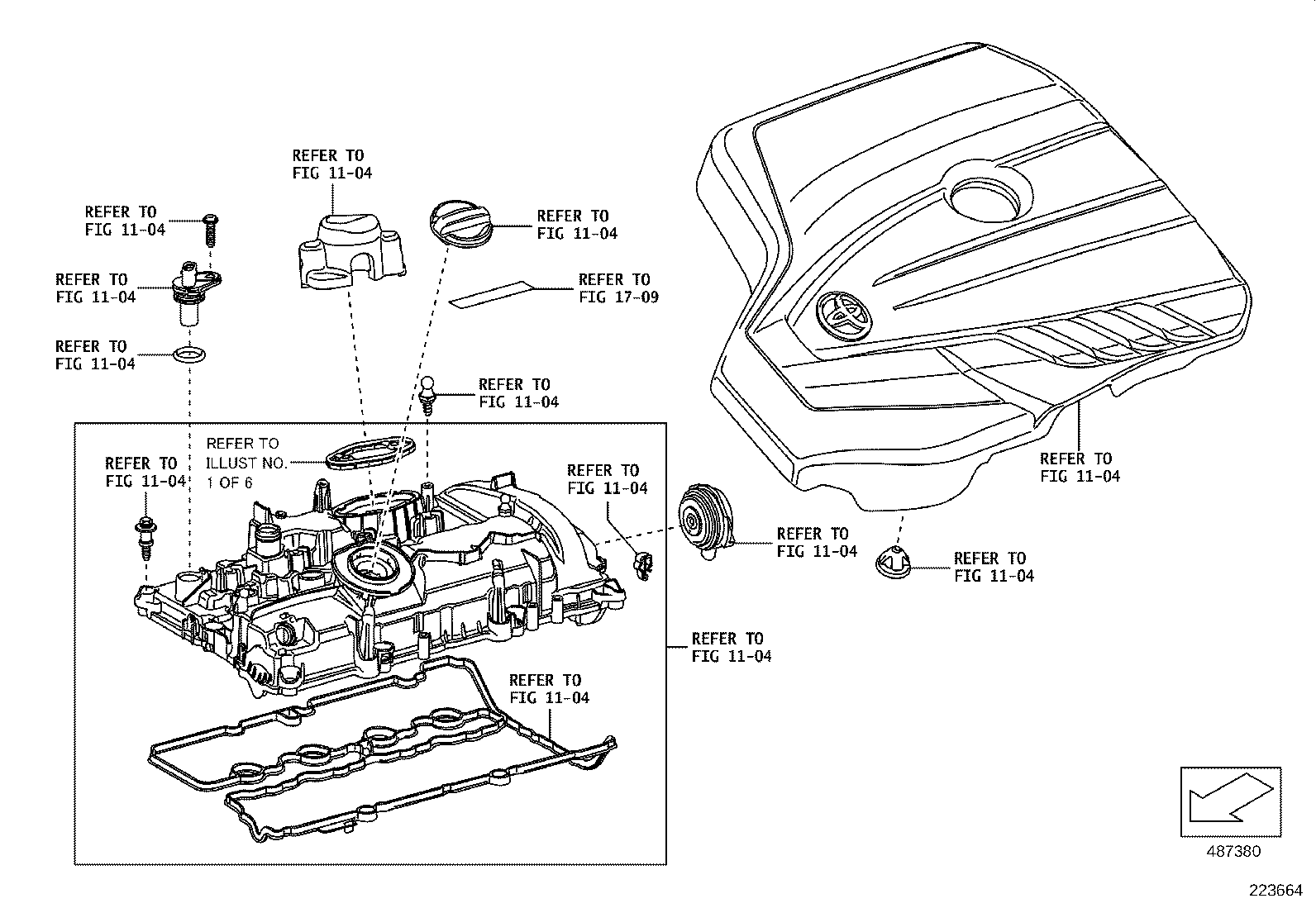

ILLUST NO. 3 OF 6(1903- )B48#

Click highlighted areas on diagram

diagram 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1104 1709
Part # Description Qty Price
Linked diagrams
1104
1709

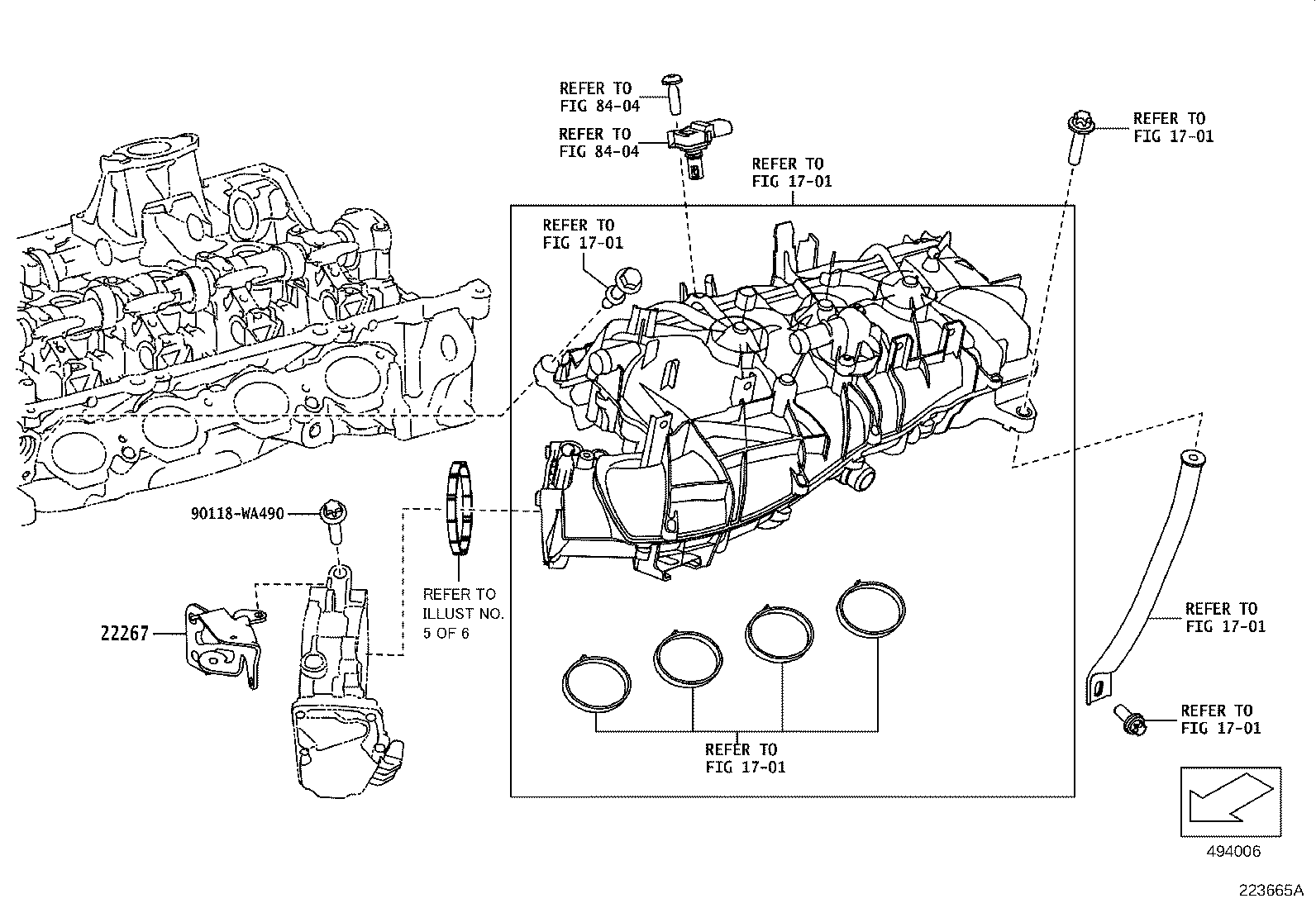

ILLUST NO. 4 OF 6(1903- )B48#

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 1701 1701 22267 8404 8404 90118WA490
Part # Description Qty Price
22267 - BRACKET, THROTTLE BODY
17138-WAA01

B48L..DB82

 1
Common parts
90118-WA490
Linked diagrams
1701
8404

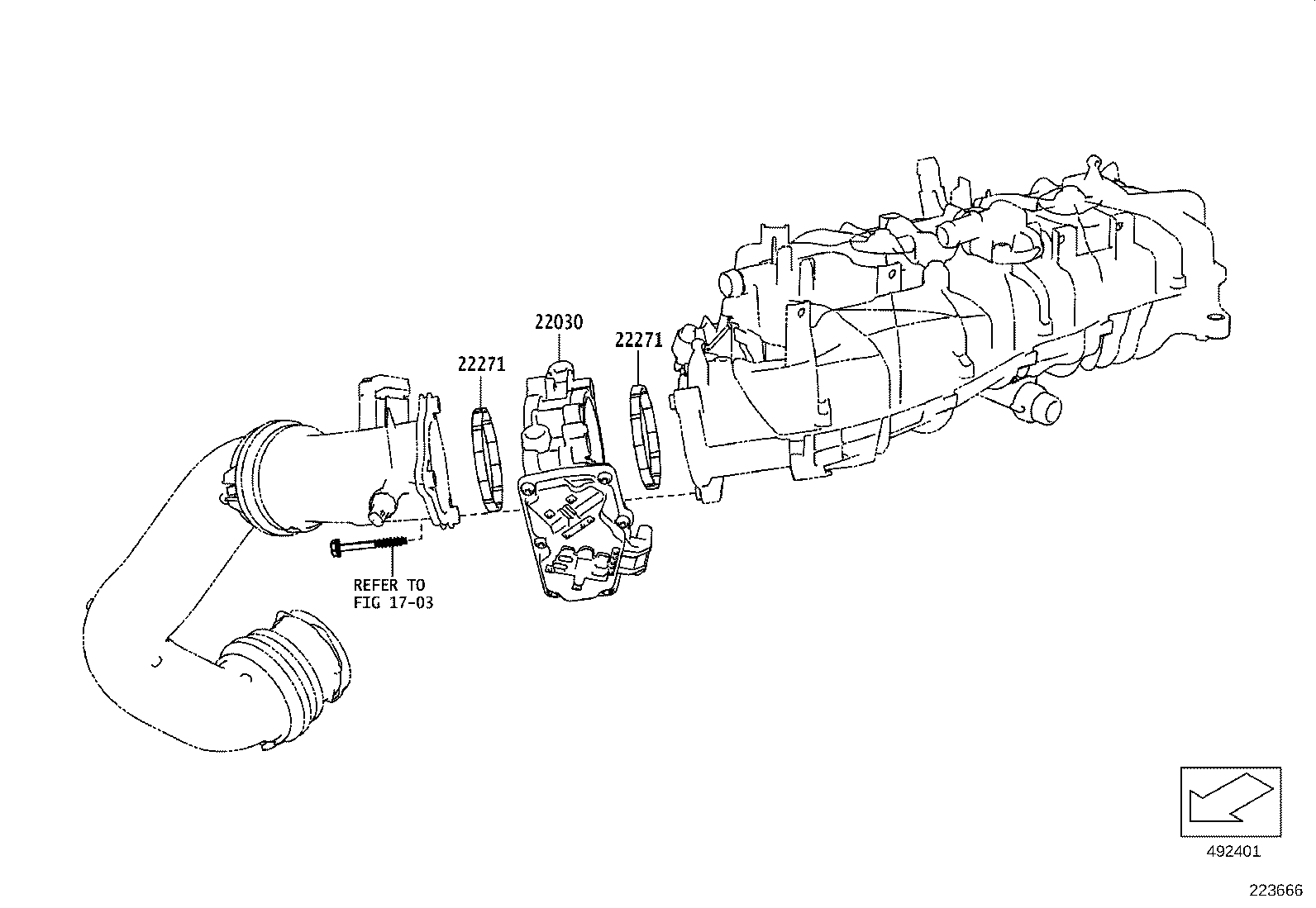

ILLUST NO. 5 OF 6(1903- )B48#

Click highlighted areas on diagram

diagram 1703 22030 22271 22271
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-WAA02

B48L..DB82

 1
22271 - GASKET, THROTTLE BODY
22271-WAA02

B48L..DB82

 2
22271 - GASKET, THROTTLE BODY
22271-WAA02

B48L..DB82

 2
Linked diagrams
1703

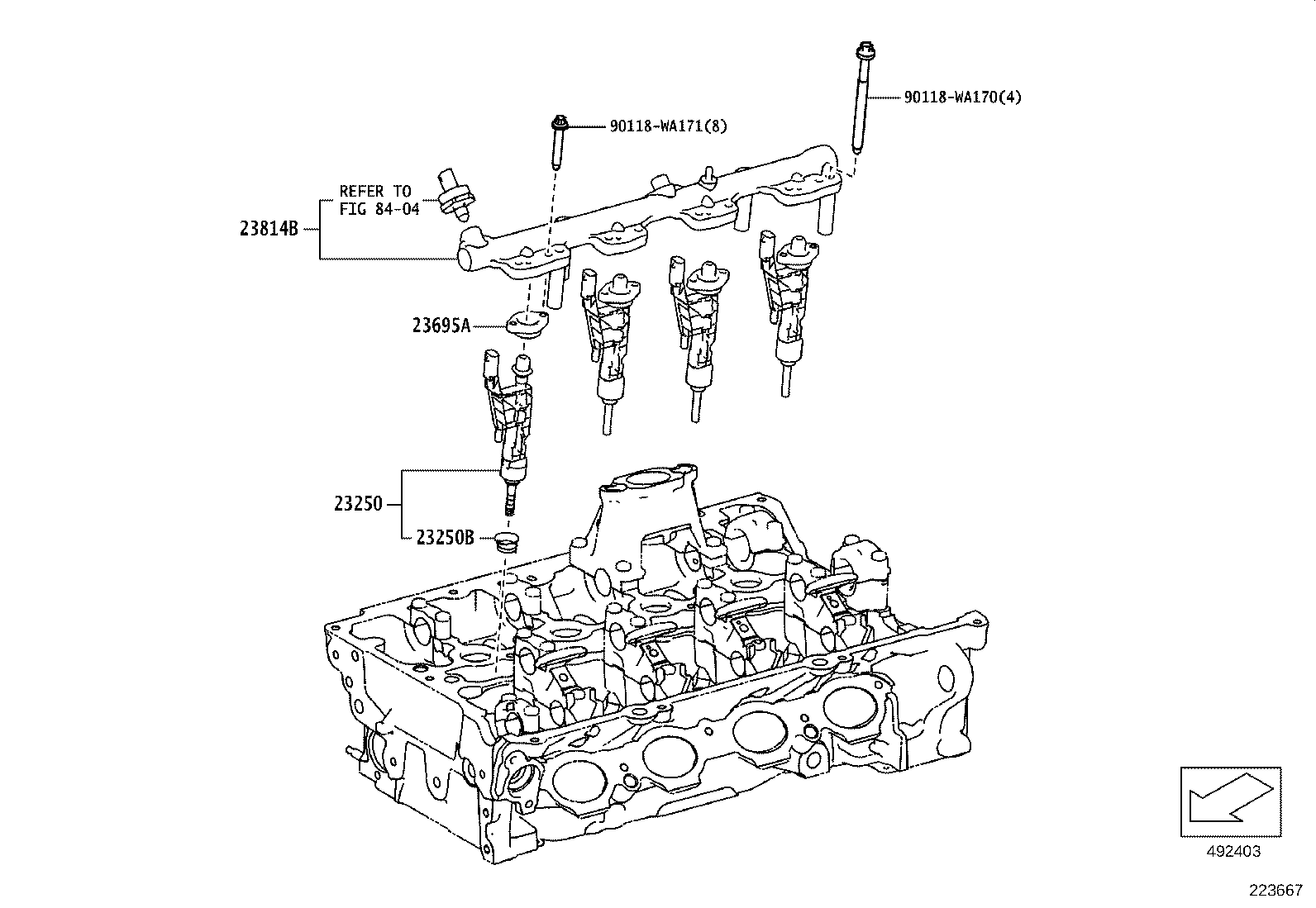

ILLUST NO. 6 OF 6(1903- )B48#

Click highlighted areas on diagram

diagram 23250 23250B 23695A 23814B 8404 90118WA170 90118WA171
Part # Description Qty Price
23250 - INJECTOR ASSY, FUEL
23209-WAA01

B48L..DB82

 4
23250B - RING, O(FOR FUEL INJECTOR)
23291-WAA01

B48#..DB2#,8#

 4
23291-WAA02

B48L..DB82

 4
23695A - CLAMP, NOZZLE HOLDER
23695-WAA01

B48L..DB82

 4
23814B - PIPE, FUEL DELIVERY
23800-WAA01

B48L..DB82

 1
Common parts
90118-WA170
90118-WA171
Linked diagrams
8404
