DB81L-ZSLW (2019)
Toyota Supra
Production
Mar 2019
-
Sep 9999
Engine
B48L
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

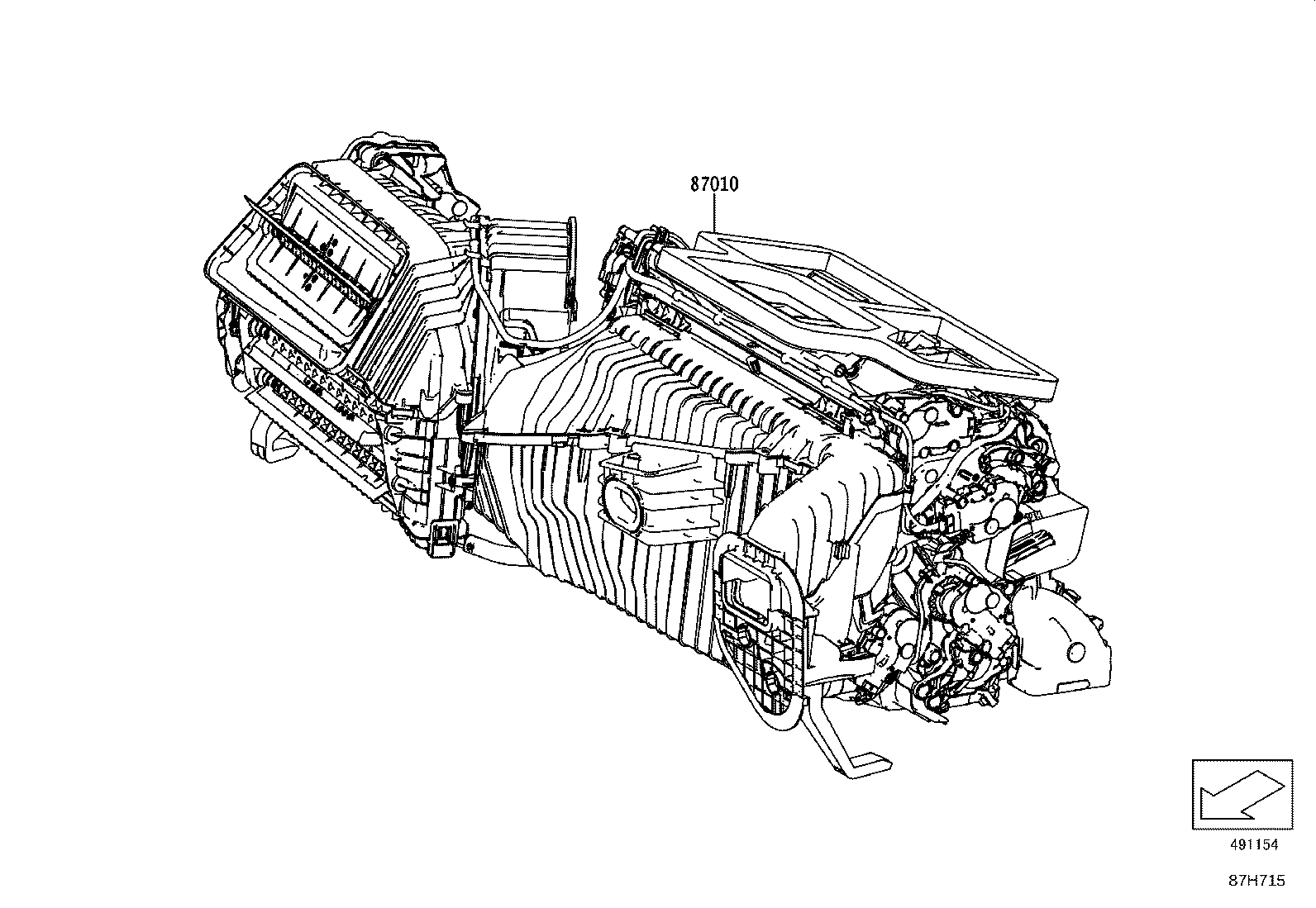

ILLUST NO. 1 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-WAA01 |
DB21,41,81 |
1 | ||

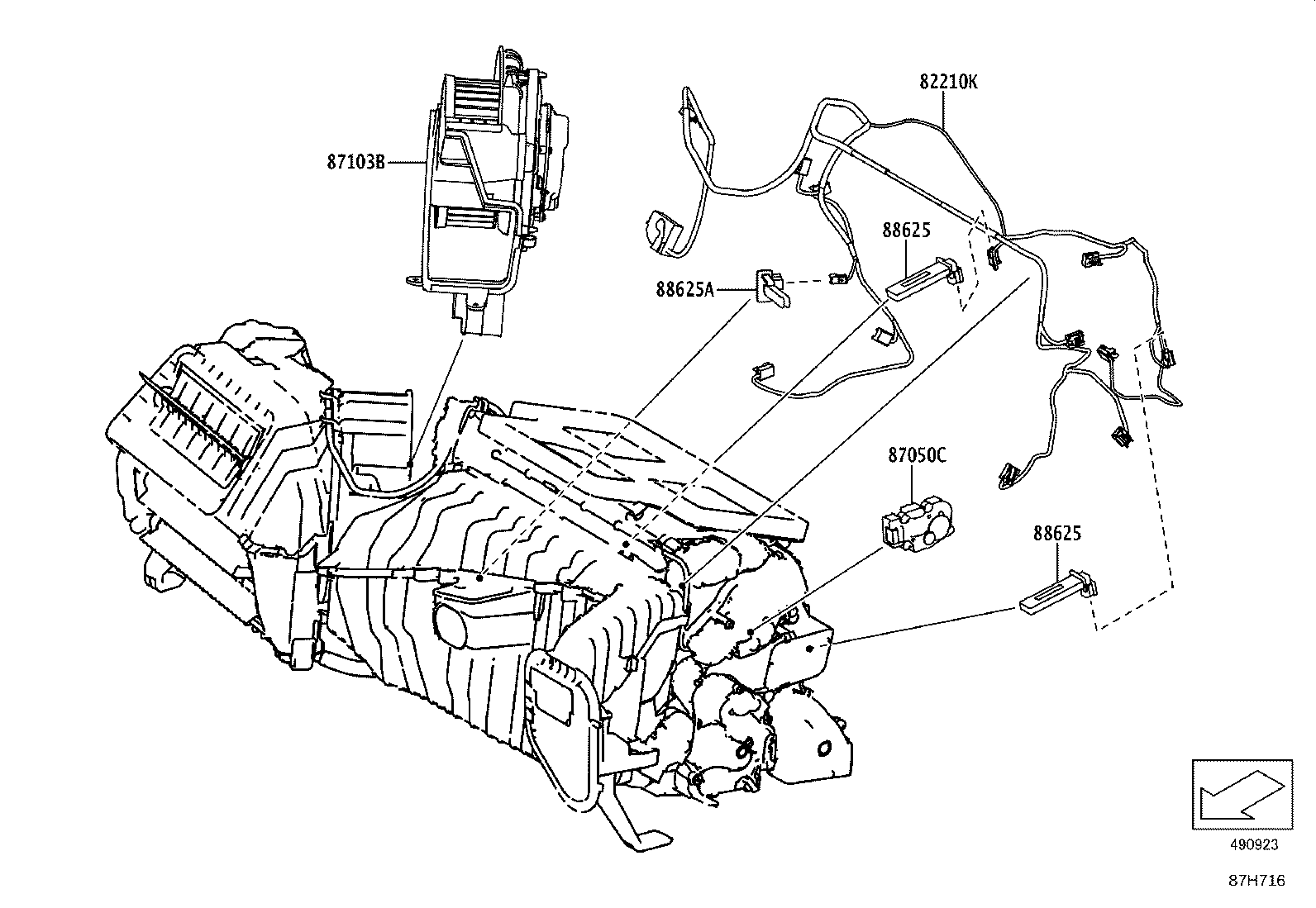

ILLUST NO. 2 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-WAA01 |
DB21,41,81 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-WAA01 |
DB2#,4#,81 |
8 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-WAA01 |
DB21,41,81 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-WAA03 |
DB2#,4#,81 |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-WAA03 |
DB2#,4#,81 |
2 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-WAA02 |
DB2#,4#,81 |
1 | ||

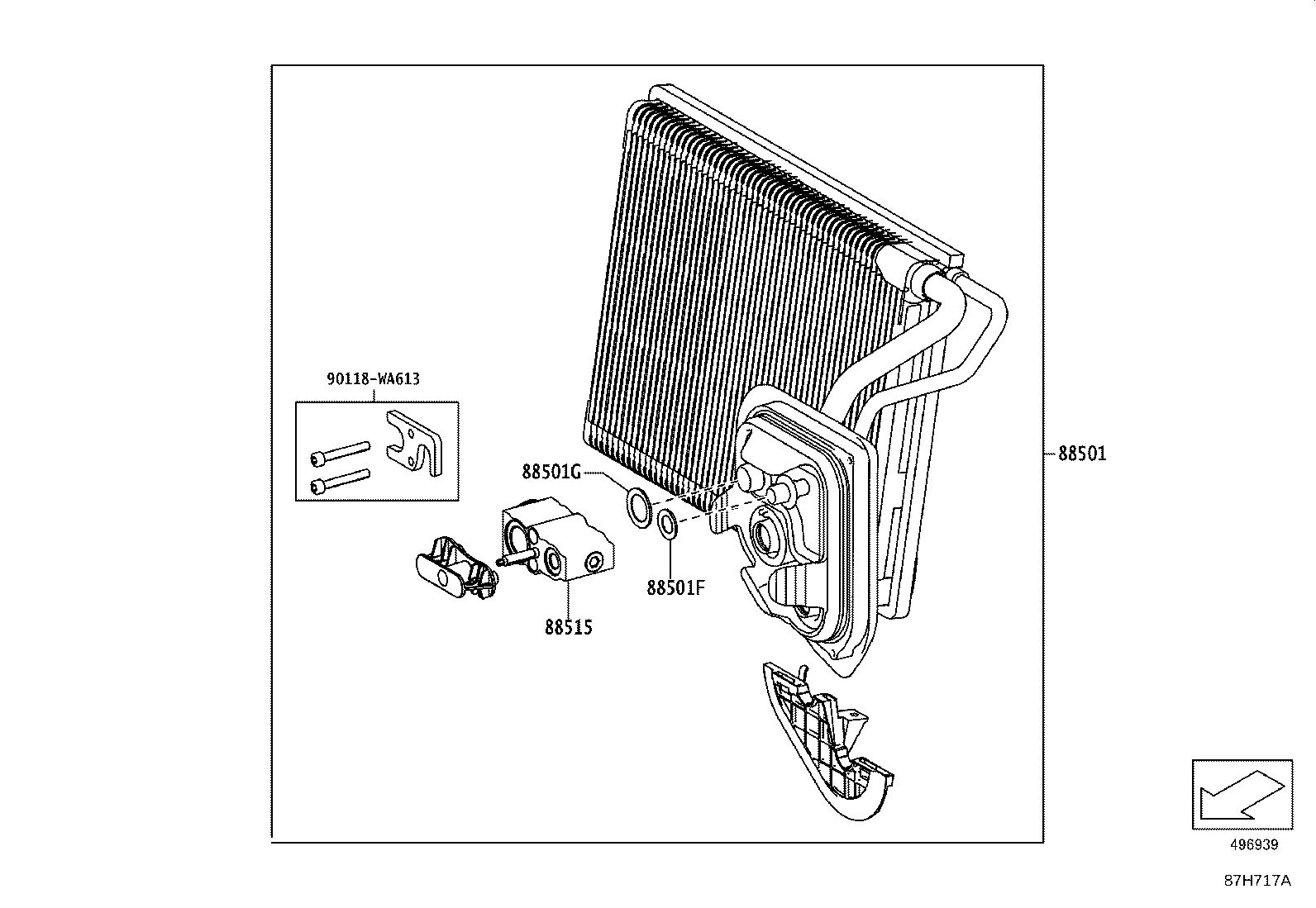

ILLUST NO. 3 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-WAA01 |
DB2#,4#,81 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90118-WA016 |
DB2#,4#,81 ID=11.2,OD=19.1 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90118-WA003 |
DB2#,4#,81 ID=17.2,OD=25.3 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA613 | ||||

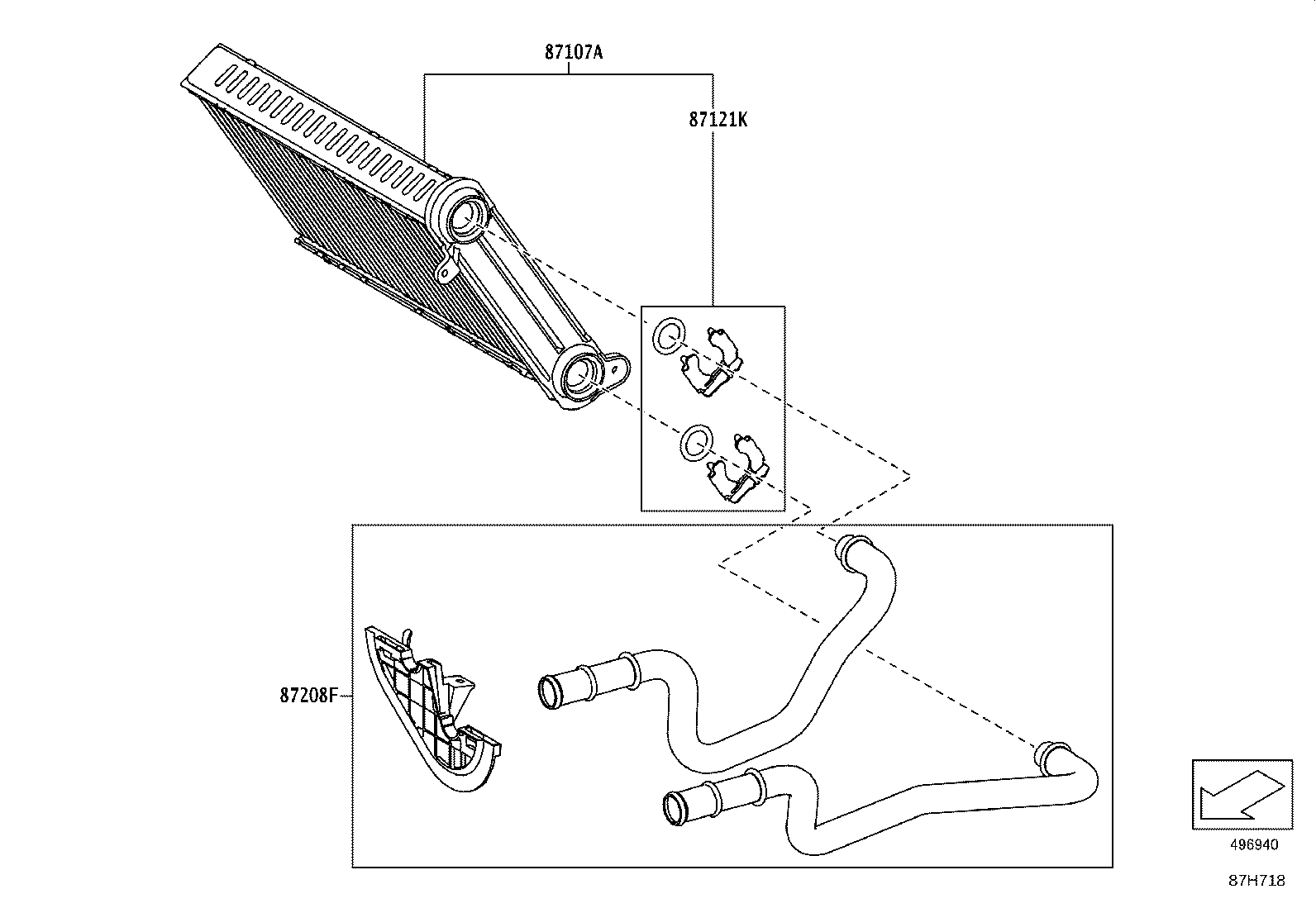

ILLUST NO. 4 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-WAA01 |
DB2#,4#,81 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-WAA01 |
DB2#,4#,81 |
1 | ||
| 87208F - PIPE SUB-ASSY, WATER | ||||
| 87248-WAA01 |
DB2#,4#,81 |
1 | ||

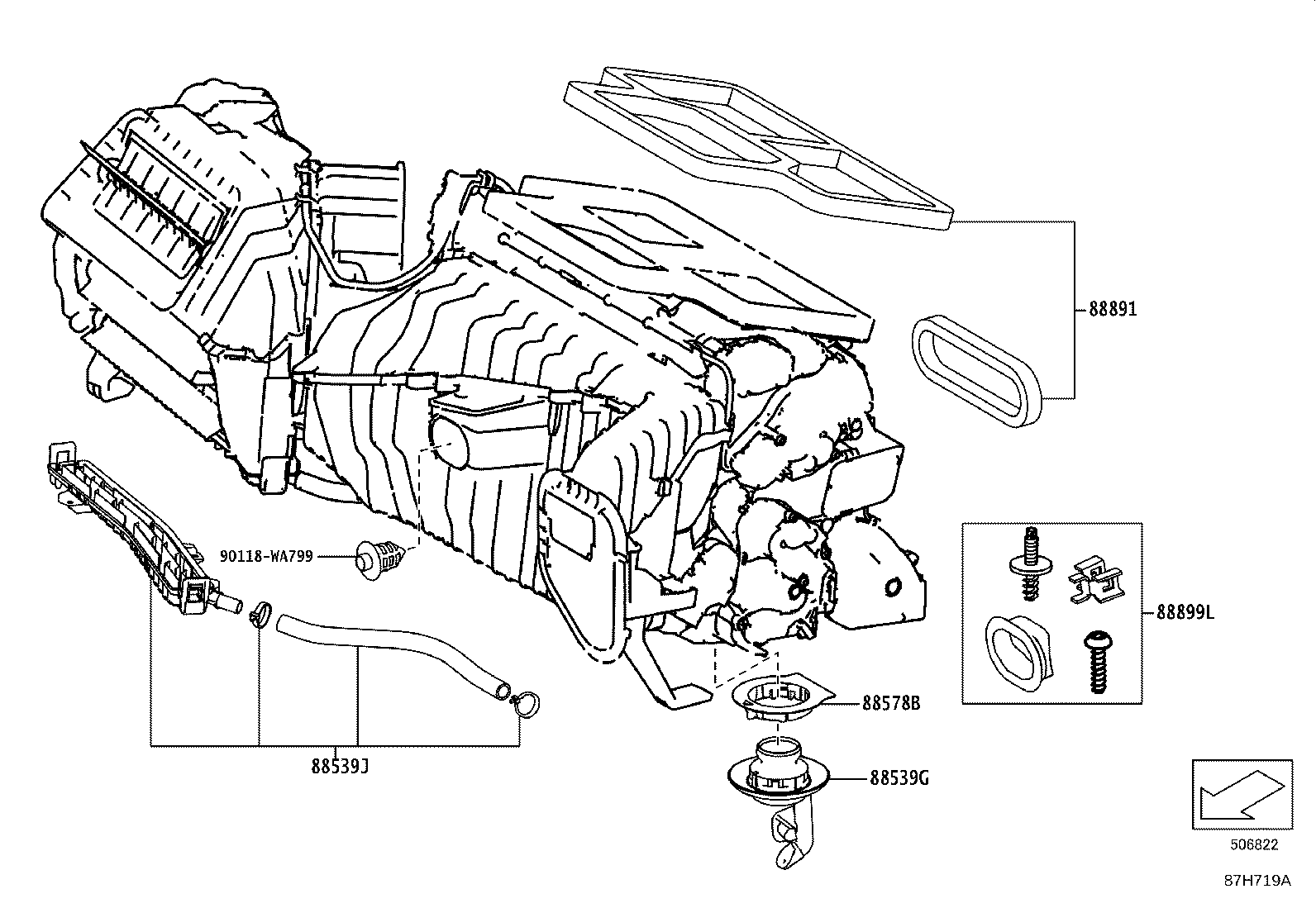

ILLUST NO. 5 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90118-WA592 |
DB2#,4#,81 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88899-WAA01 |
DB2#,4#,81 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88539-WAA01 |
DB2#,4#,81 |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88578-WAA01 |
DB2#,4#,81 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 90118-WA593 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA799 | ||||

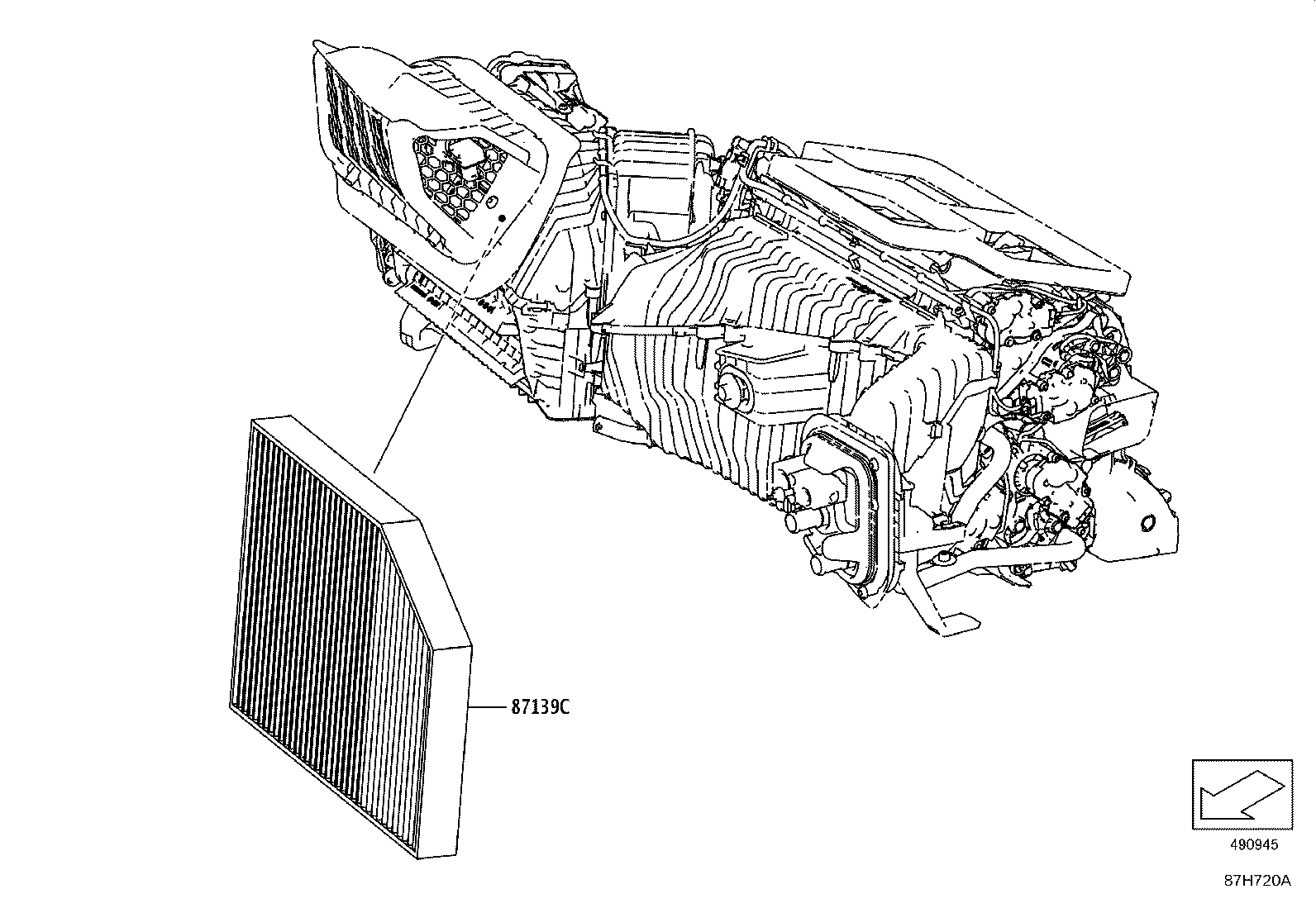

ILLUST NO. 6 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-WAA01 |
DB21,41,81 MICRO DUST FILTER,CHINA SPEC |
1 | ||
| 87139-WAA01 |
DB2#,4#,81 MICRO DUST FILTER |
1 | ||
| 87139-WAA02 |
DB2#,4#,81 STANDARD |
1 | ||

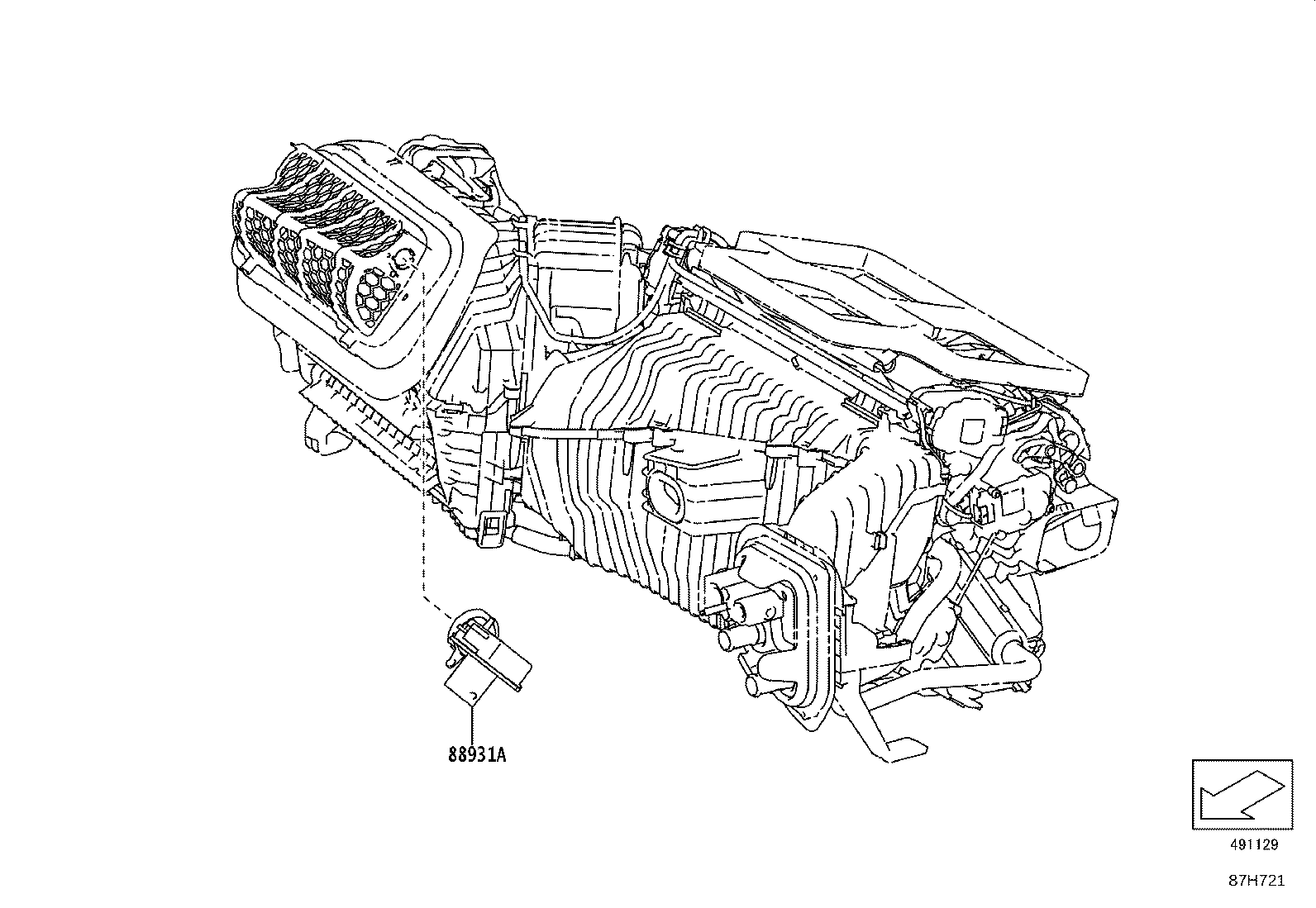

ILLUST NO. 7 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88931A - SENSOR, SMOKE | ||||
| 88898-WAA01 |
DB2#,4#,81 |
1 | ||
| 88898-WAA02 |
DB2#,4#,81 |
1 | ||

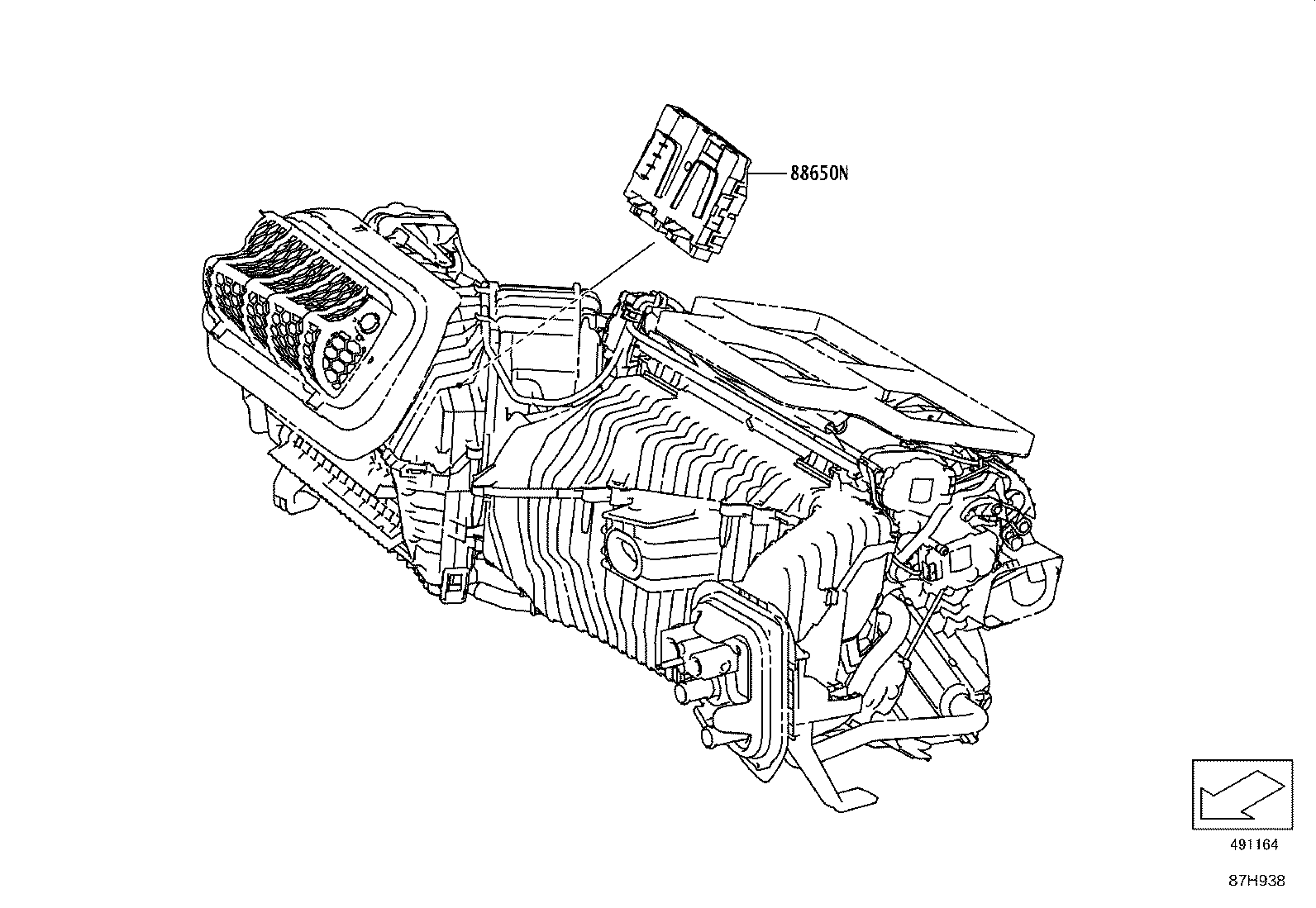

ILLUST NO. 8 OF 8(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-WAA01 |
DB2#,4#,8# |
1 | ||
| 88650-WAA04 |
DB2#,4#,81 |
1 | ||
| 88650-WAA02 |
DB2#,4#,8# |
1 | ||
| 88650-WAA07 |
DB2#,4#,81 |
1 | ||
| 88650-WAA03 |
DB2#,4#,8# |
1 | ||
| 88650-WAA05 |
DB2#,4#,81 |
1 | ||
| 88650-WAA06 |
DB2#,4#,81 |
1 | ||
