DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

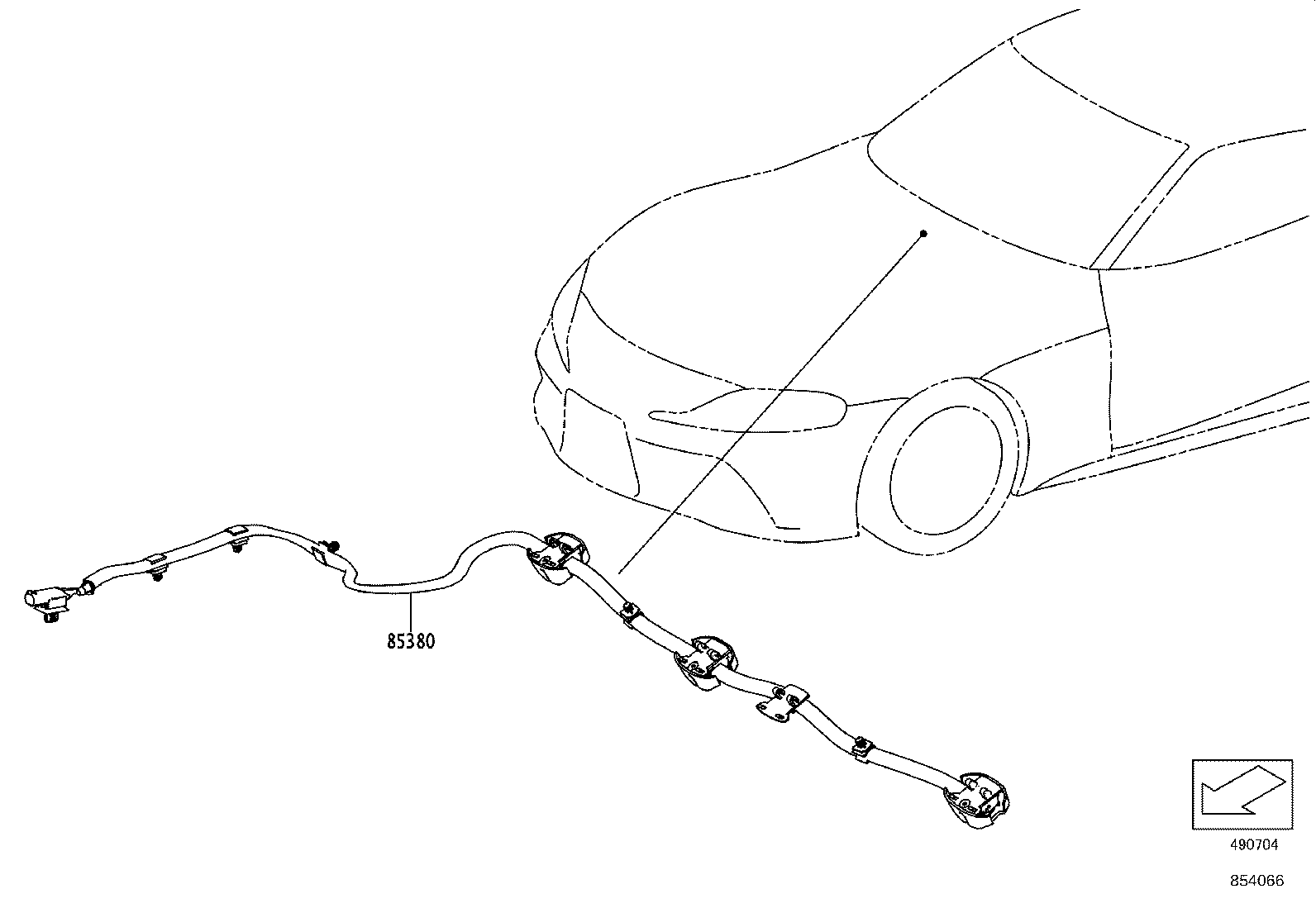

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 85380
Part # Description Qty Price
85380 - NOZZLE & HOSE ASSY, FR WASHER
85380-WAA01

DB21,41,81

 1

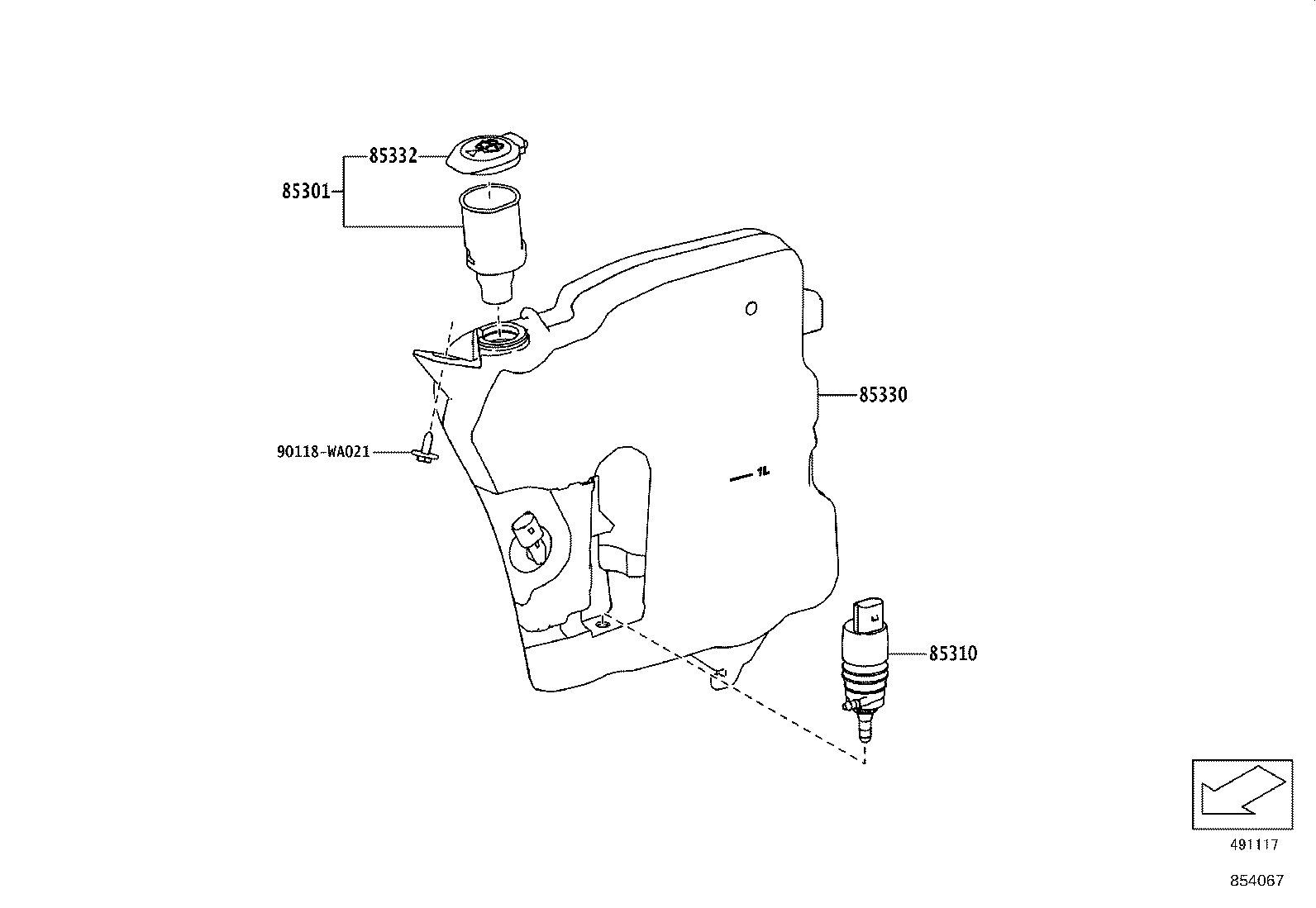

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

diagram 85301 85310 85330 85332 90118WA021
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-WAA01

DB2#,4#,81

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-WAA01

DB2#,4#,81

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-WAA01

DB2#,4#,81

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-WAA02

DB2#,4#,81

 1
85386-WAA03

DB2#,4#,81

 1
Common parts
90118-WA021
