DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

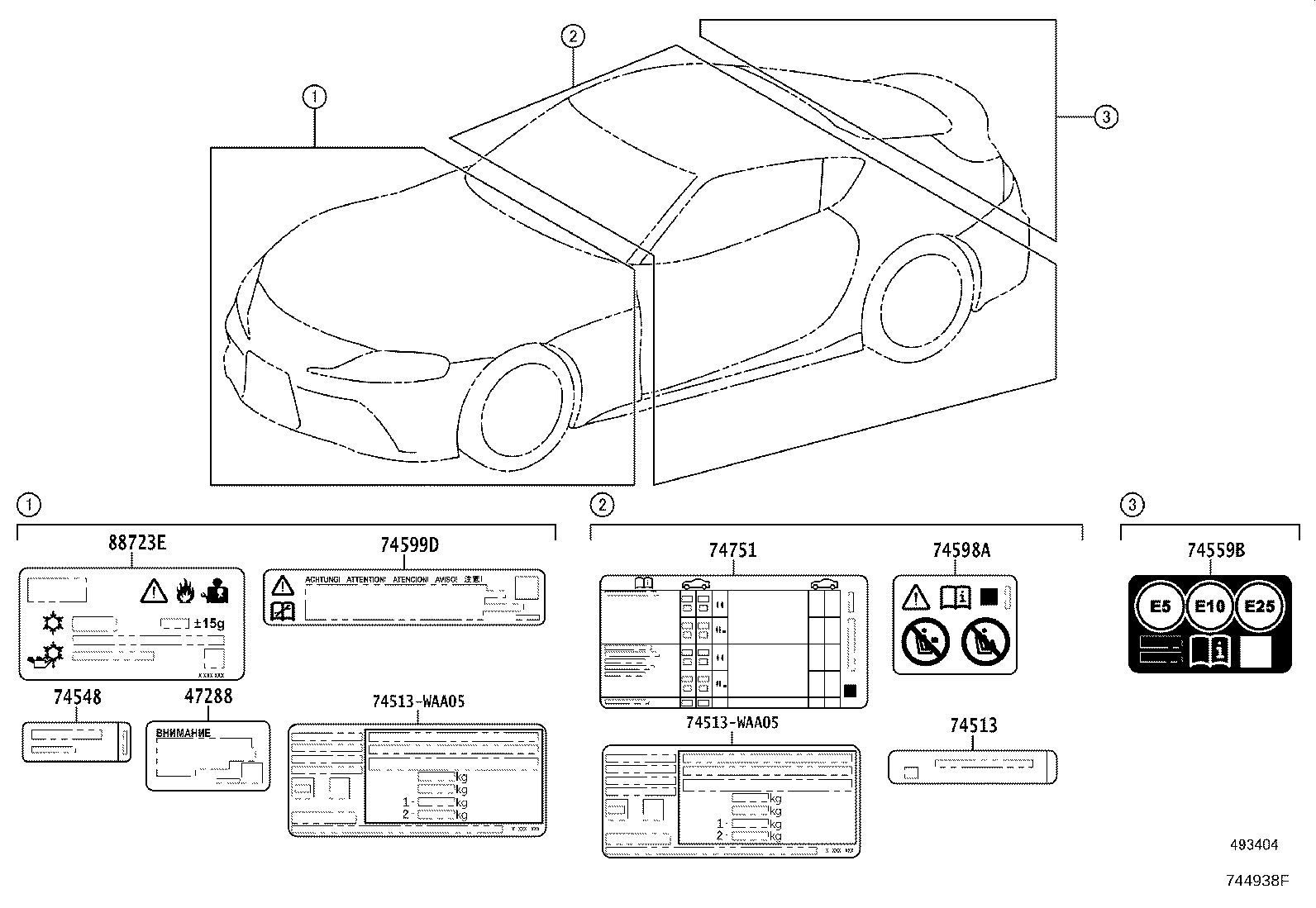

Click highlighted areas on diagram

diagram 47288 74513 74513WAA05 74513WAA05 74548 74559B 74598A 74599D 74751 88723E
Part # Description Qty Price
47288 - LABEL, BRAKE FLUID NOTICE
47287-WAA01

DB2#,4#,81

 1
47287-WAA02

DB21,41,81

RUSSIA SPEC

 1
47287-WAA03

DB21,41,81

TURKEY SPEC

 1
47287-WAA05

DB41,81

CHINA SPEC

 1
74513 - LABEL, IDENTIFICATION NUMBER INFORMATION
74513-WAA04

DB2#,4#,81

 1
74513-WAA03

DB2#,4#,81

ANTI-THEFT LABEL-WITH

 1
74548 - PLATE, BODY CAUTION
74541-WAA01

DB2#,4#,81

 1
74559B - LABEL, FUEL INFORMATION
74559-WAA02

DB2#,4#,81

 1
74559-WAA02

DB21,41,81

RUSSIA SPEC

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-WAA01

DB2#,4#,81

 1
74599D - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-WAA01

DB2#,4#,81

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-WAA01

DB81

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-WAA02

DB2#,4#,81

 1
88723-WAA03

DB2#,4#,81

REFRIGERANT CORRESPONDENCE-R1234YF

 1
Common parts
74513-WAA05
