DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

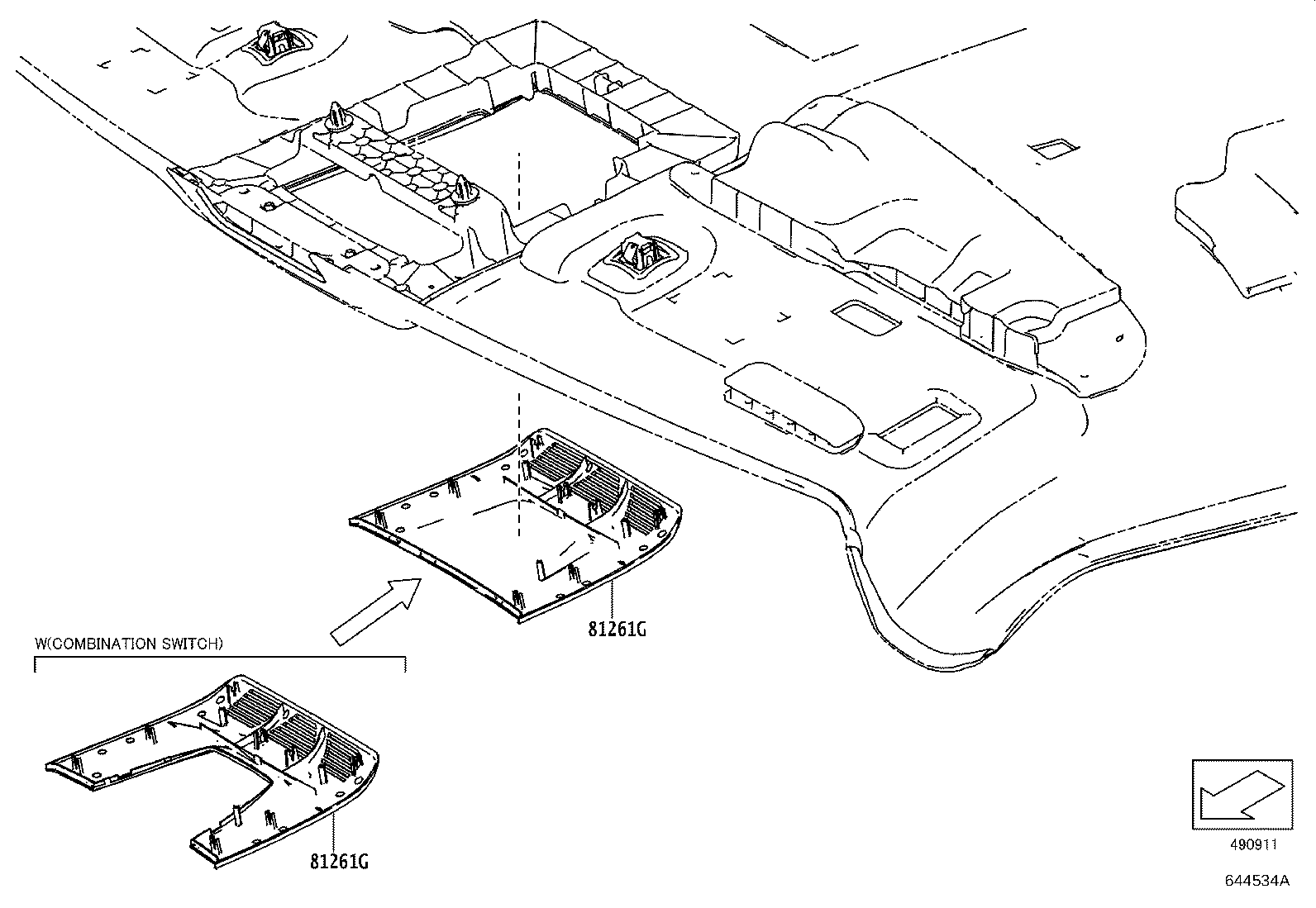

ILLUST NO. 1 OF 4(1903- )

Click highlighted areas on diagram

diagram 81261G 81261G
Part # Description Qty Price
81261G - COVER, ROOF CONSOLE BOX
81261-WAA02

DB2#,4#,81

DATA COMMUNICATION MODULE-WITH

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH&DATA COMMUNICATION MODULE-WITHOUT

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)&DATA COMMUNICATION MODULE-WITHOUT

 1
81261-WAA02

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN)

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA)&DATA COMMUNICATION MODULE-WITHOUT

 1
81261G - COVER, ROOF CONSOLE BOX
81261-WAA02

DB2#,4#,81

DATA COMMUNICATION MODULE-WITH

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH&DATA COMMUNICATION MODULE-WITHOUT

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)&DATA COMMUNICATION MODULE-WITHOUT

 1
81261-WAA02

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN)

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT

 1
81261-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA)&DATA COMMUNICATION MODULE-WITHOUT

 1

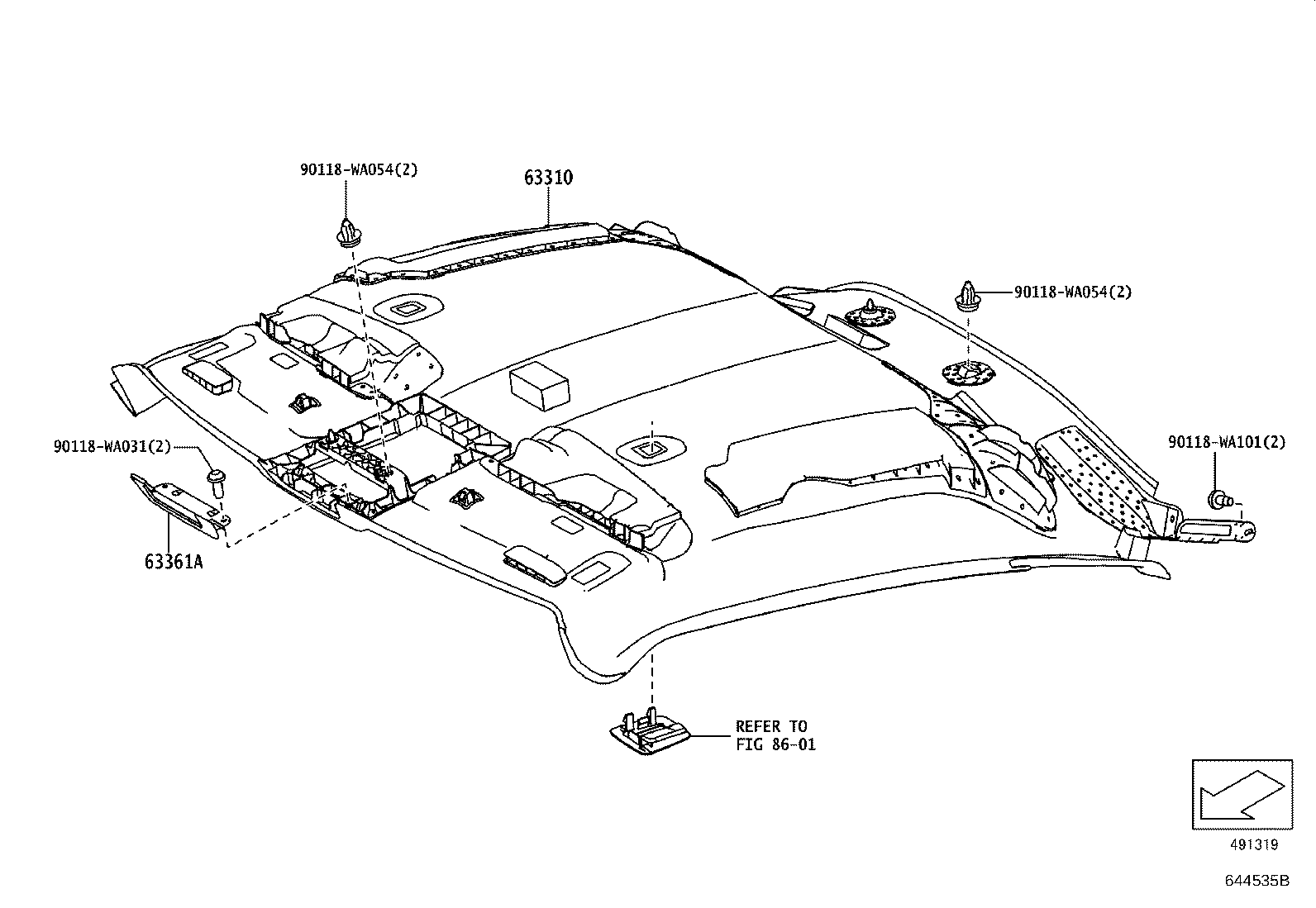

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

diagram 63310 63361A 8601 90118WA031 90118WA054 90118WA054 90118WA101
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-WAA02

DB2#,4#,81

 1
63361A - SUPPORT, ROOF HEADLINING
90118-WA398

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH

 1
90118-WA399

DB2#,4#,81

ACTIVE GUARD PACKAGE

 1
90118-WA399

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
90118-WA399

DB2#,4#,81

ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)

 1
Common parts
90118-WA031
90118-WA054
90118-WA101
Linked diagrams
8601

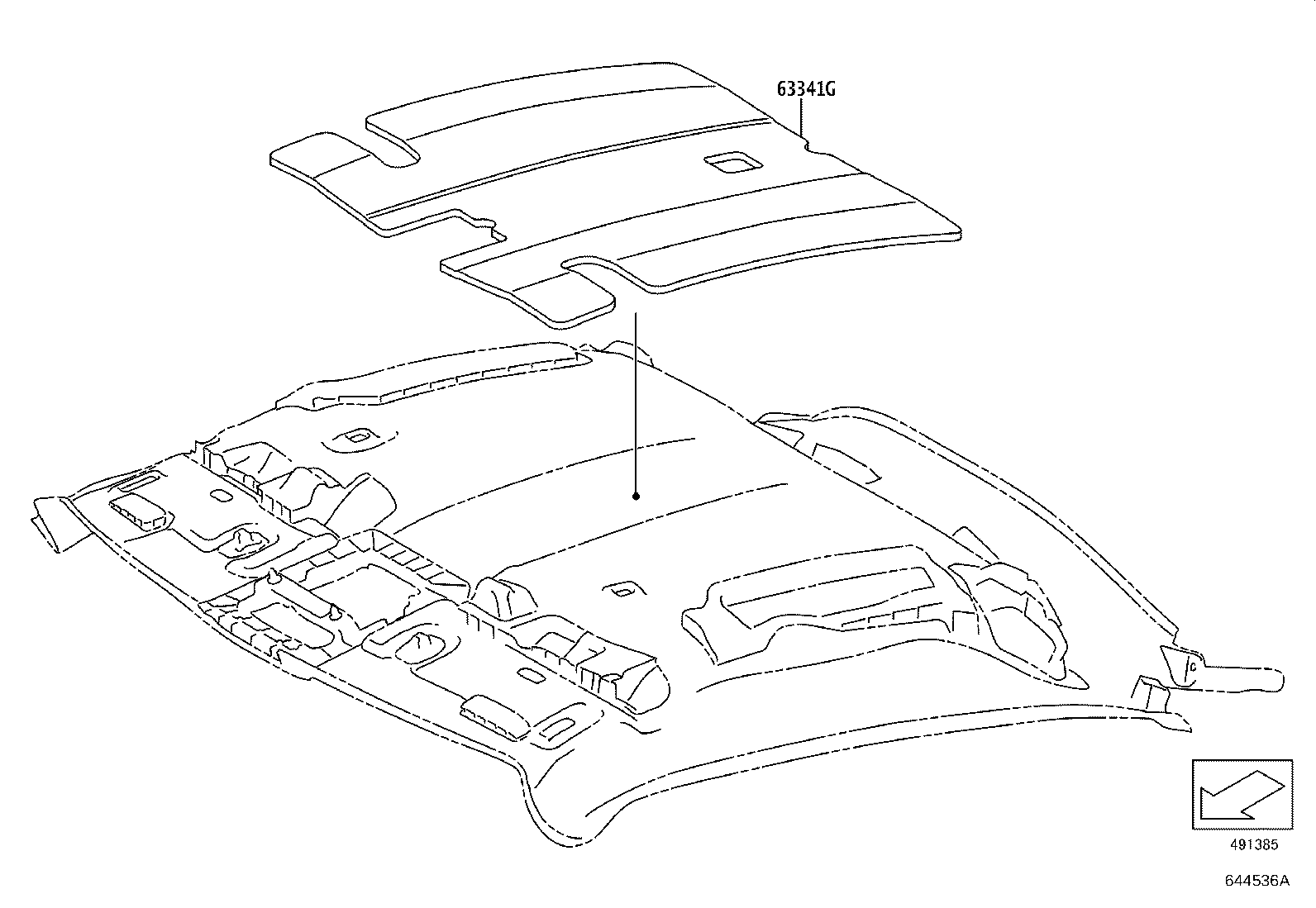

ILLUST NO. 4 OF 4(1903- )

Click highlighted areas on diagram

diagram 63341G
Part # Description Qty Price
63341G - PAD, ROOF SILENCER
63341-WAA01

DB2#,4#,81

 1

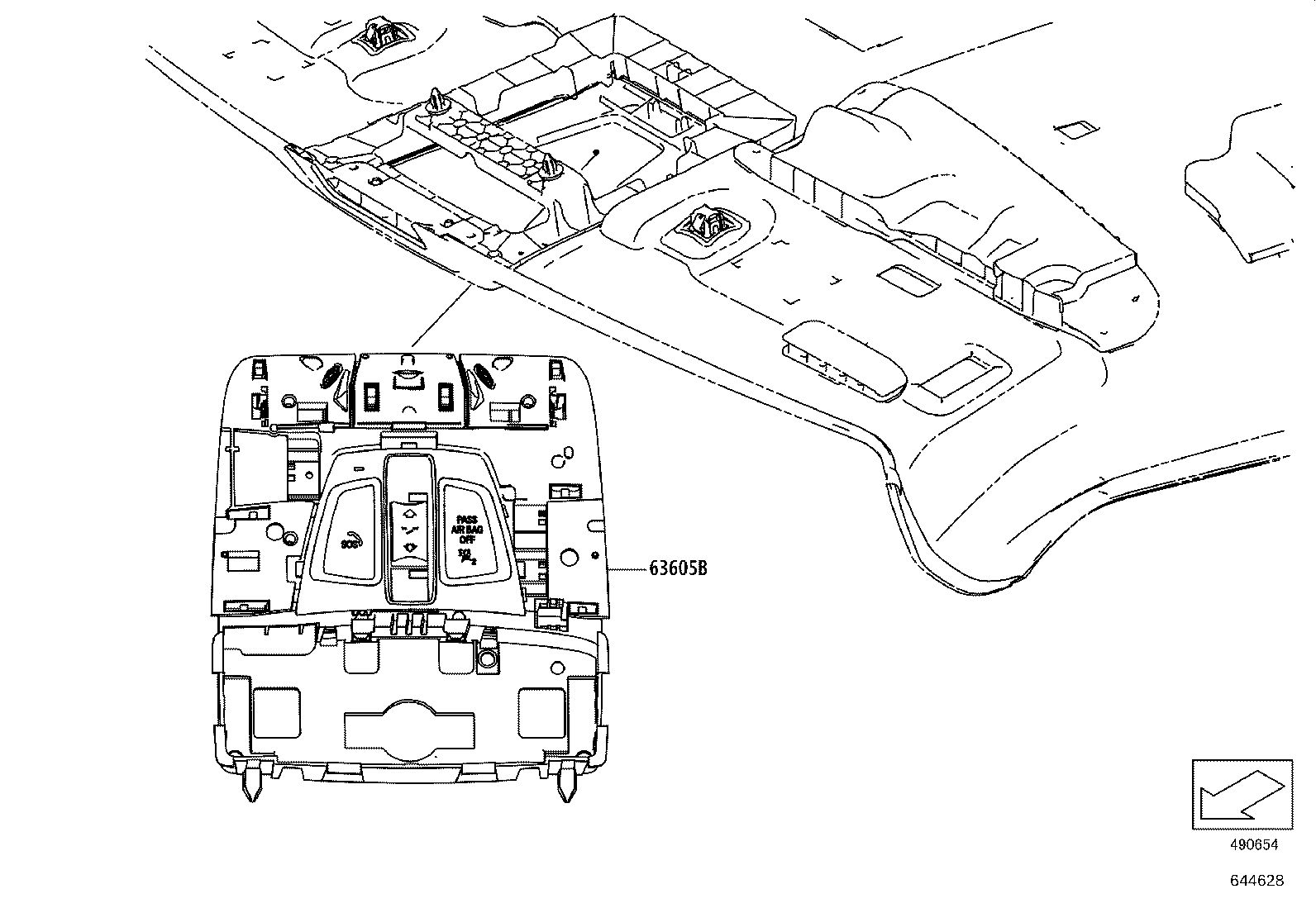

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

diagram 63605B
Part # Description Qty Price
63605B - BOX SUB-ASSY, ROOF CONSOLE
84970-WAA02

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN)

 1
84970-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA)&DATA COMMUNICATION MODULE-WITHOUT

 1
84970-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT

 1
84970-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)&DATA COMMUNICATION MODULE-WITHOUT

 1
84970-WAA01

DB2#,4#,81

EMV & NAVIGATION SYSTEM-WITH&DATA COMMUNICATION MODULE-WITHOUT

 1
84970-WAA02

DB2#,4#,81

DATA COMMUNICATION MODULE-WITH

 1
