DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )DB01,21,41,81

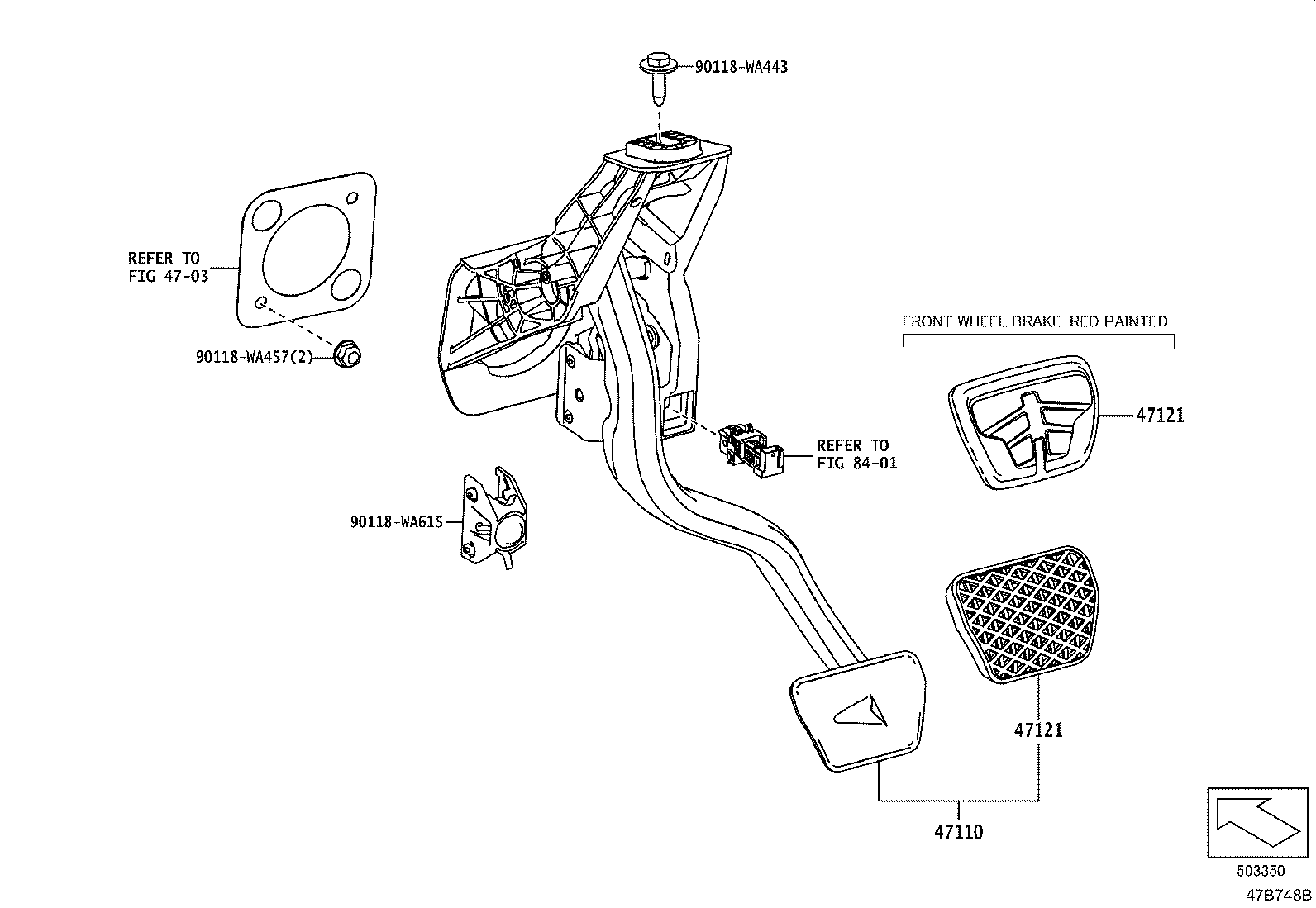

Click highlighted areas on diagram

diagram 4703 47110 47121 47121 8401 90118WA443 90118WA457 90118WA615
Part # Description Qty Price
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-WAA01

DB21,41,81

FRONT WHEEL BRAKE-RED PAINTED

 1
47110-WAA01

DB21,41,81

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47110-WAA01

DB21,41,81

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47110-WAA01

DB21,41,81

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47121 - PAD, BRAKE PEDAL
47121-WAA02

DB2#,4#,81

FRONT WHEEL BRAKE-RED PAINTED

 1
47121-WAA02

DB2#,4#,81

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47121-WAA01

DB2#,4#,81

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47121-WAA01

DB2#,4#,81

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
47121 - PAD, BRAKE PEDAL
47121-WAA02

DB2#,4#,81

FRONT WHEEL BRAKE-RED PAINTED

 1
47121-WAA02

DB2#,4#,81

FRONT WHEEL BRAKE-17OL RED WITH LOGO

 1
47121-WAA01

DB2#,4#,81

FRONT WHEEL BRAKE-17OL NO COLOR 348X36

 1
47121-WAA01

DB2#,4#,81

FRONT WHEEL BRAKE-17UL NO COLOR 330X24

 1
Common parts
90118-WA443
90118-WA457
90118-WA615
Linked diagrams
4703
8401
