DB81L-ZSLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48L
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

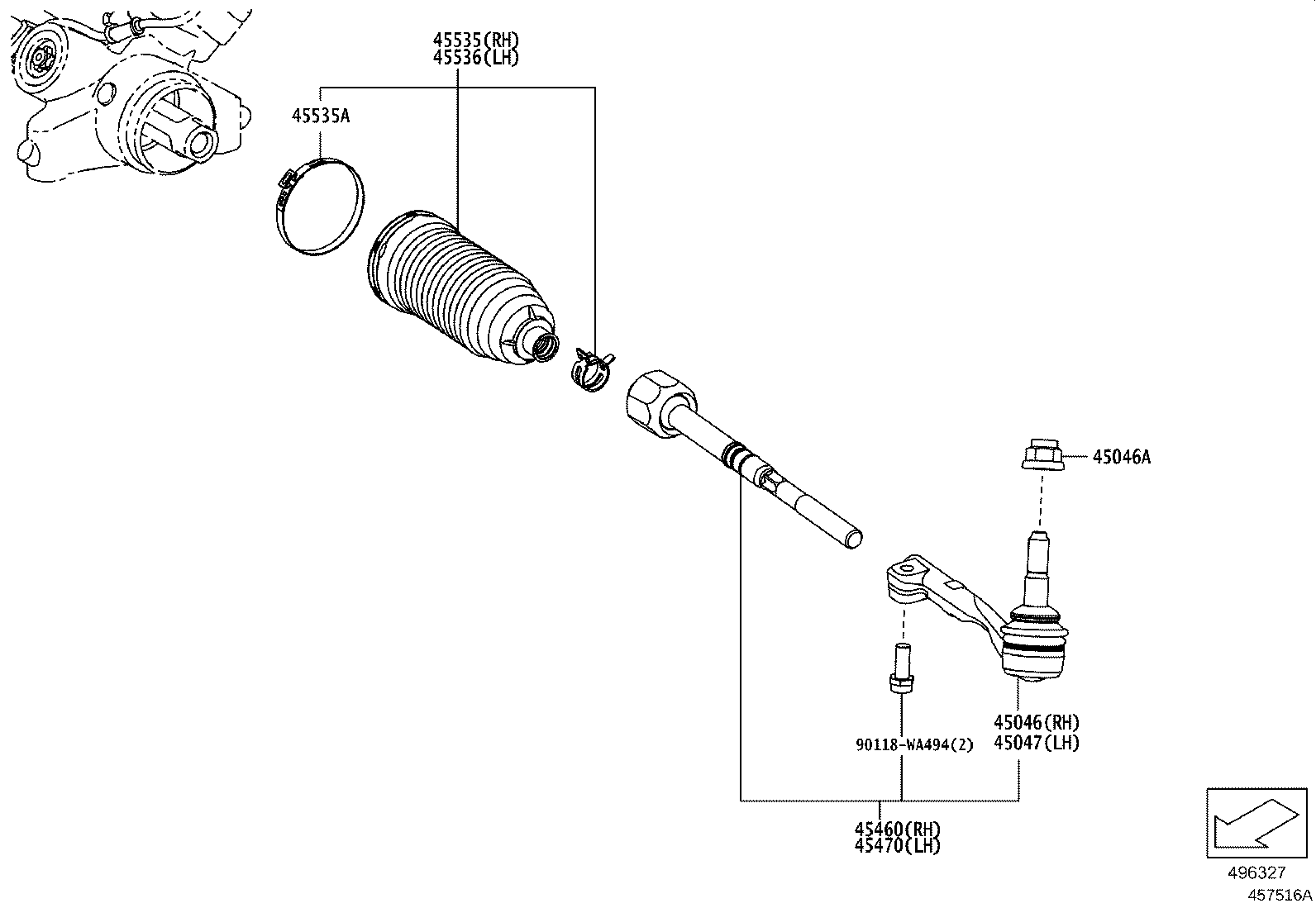

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

diagram 45046 45046A 45047 45460 45470 45535 45535A 45536 90118WA494
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-WAA01

DB2#,4#,81

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90118-WA199

DB2#,4#,81

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-WAA01

DB2#,4#,81

 1
45460 - ROD ASSY, TIE, RH
45460-WAA02

DB2#,4#,8#

 1
45460-WAA02

DB2#,4#,81

 1
45470 - ROD ASSY, TIE, LH
45470-WAA02

DB2#,4#,8#

 1
45470-WAA02

DB2#,4#,81

 1
45535 - BOOT, STEERING RACK, NO.1
45535-WAA01

DB2#,4#,81

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-WAA01

DB2#,4#,81

 2
45536 - BOOT, STEERING RACK, NO.2
45535-WAA01

DB2#,4#,81

 1
Common parts
90118-WA494

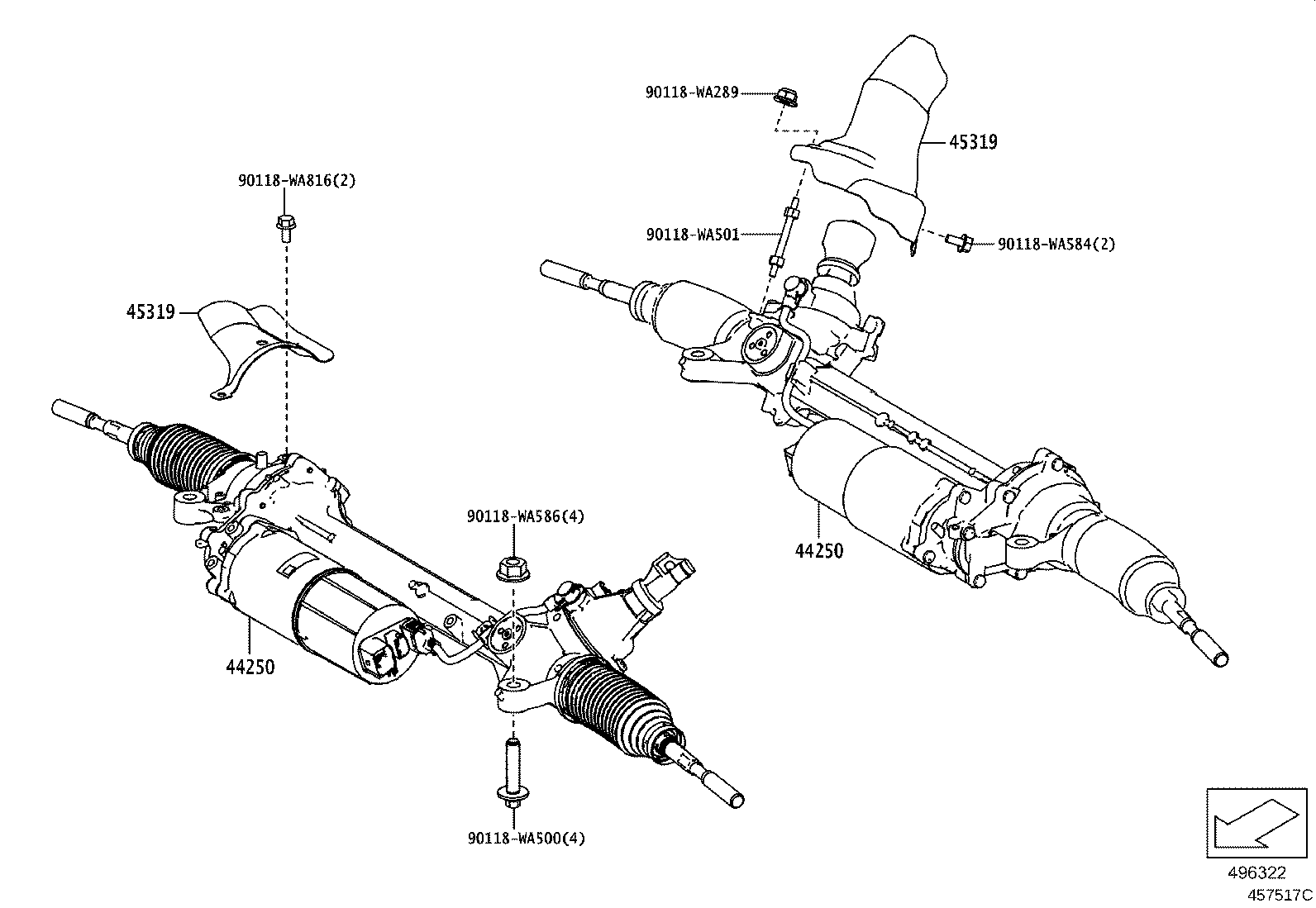

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 44250 44250 45319 45319 90118WA289 90118WA500 90118WA501 90118WA584 90118WA586 90118WA816
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-WAA08

DB21,41,81

 1
44250-WAA09

DB21,41,81

 1
44250-WAA10

DB21,41,81

 1
44250-WAA12

DB21,41,81

 1
44250-WAA01

DB21,41,81

 1
44250-WAA15

DB21,41,81

 1
44250-WAA17

DB21,41,81

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-WAA08

DB21,41,81

 1
44250-WAA09

DB21,41,81

 1
44250-WAA10

DB21,41,81

 1
44250-WAA12

DB21,41,81

 1
44250-WAA01

DB21,41,81

 1
44250-WAA15

DB21,41,81

 1
44250-WAA17

DB21,41,81

 1
Common parts
90118-WA289
90118-WA500
90118-WA501
90118-WA584
90118-WA586
90118-WA816
