DB42R-ZRRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

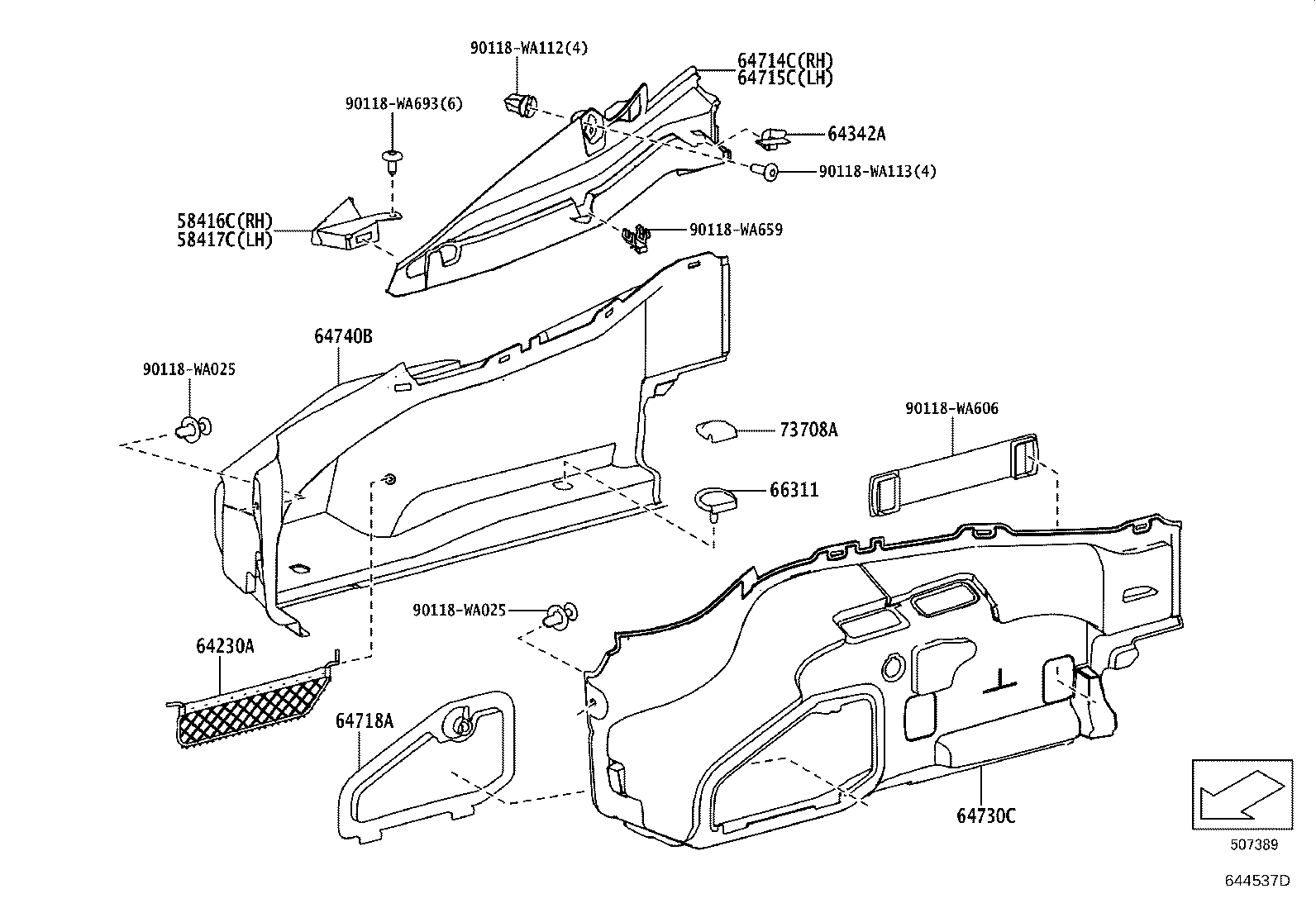

ILLUST NO. 1 OF 6(1903- )

Click highlighted areas on diagram

diagram 58416C 58417C 64230A 64342A 64714C 64715C 64718A 64730C 64740B 66311 73708A 90118WA025 90118WA025 90118WA112 90118WA113 90118WA606 90118WA659 90118WA693
Part # Description Qty Price
58416C - BRACKET, DECK BOARD, NO.1 RH
58416-WAA01

DB2#,4#,81

 1
58417C - BRACKET, DECK BOARD, NO.1 LH
58417-WAA02

DB2#,4#,81

 1
64230A - NET ASSY, ROOM PARTITION
64230-WAA01

DB2#,4#,81

STORAGE COMPARTMENT PACKAGE

 1
64342A - CLIP
90118-WA661

DB2#,4#,81

###

 1
90118-WA660

DB2#,4#,81

 1
64714C - COVER, DECK SIDE TRIM, RH
64714-WAA01

DB2#,4#,81

 1
64715C - COVER, DECK SIDE TRIM, LH
64715-WAA01

DB2#,4#,81

 1
64718A - COVER, DECK TRIM SERVICE HOLE
64718-WAA03

DB2#,4#,81

STORAGE COMPARTMENT PACKAGE

 1
64730C - BOARD, DECK TRIM SIDE, RH
64721-WAA01

DB2#,4#,81

STORAGE COMPARTMENT PACKAGE

 1
64740B - BOARD, DECK TRIM SIDE, LH
64722-WAA01

DB2#,4#,81

STORAGE COMPARTMENT PACKAGE

 1
66311 - HOOK, ROPE
66311-WAA01

DB2#,4#,81

STORAGE COMPARTMENT PACKAGE

 4
73708A - BRACKET SET, TETHER ANCHOR
73708-WAA01

DB2#,4#,81

STORAGE COMPARTMENT PACKAGE

 4
Common parts
90118-WA025
90118-WA112
90118-WA113
90118-WA606
90118-WA659
90118-WA693

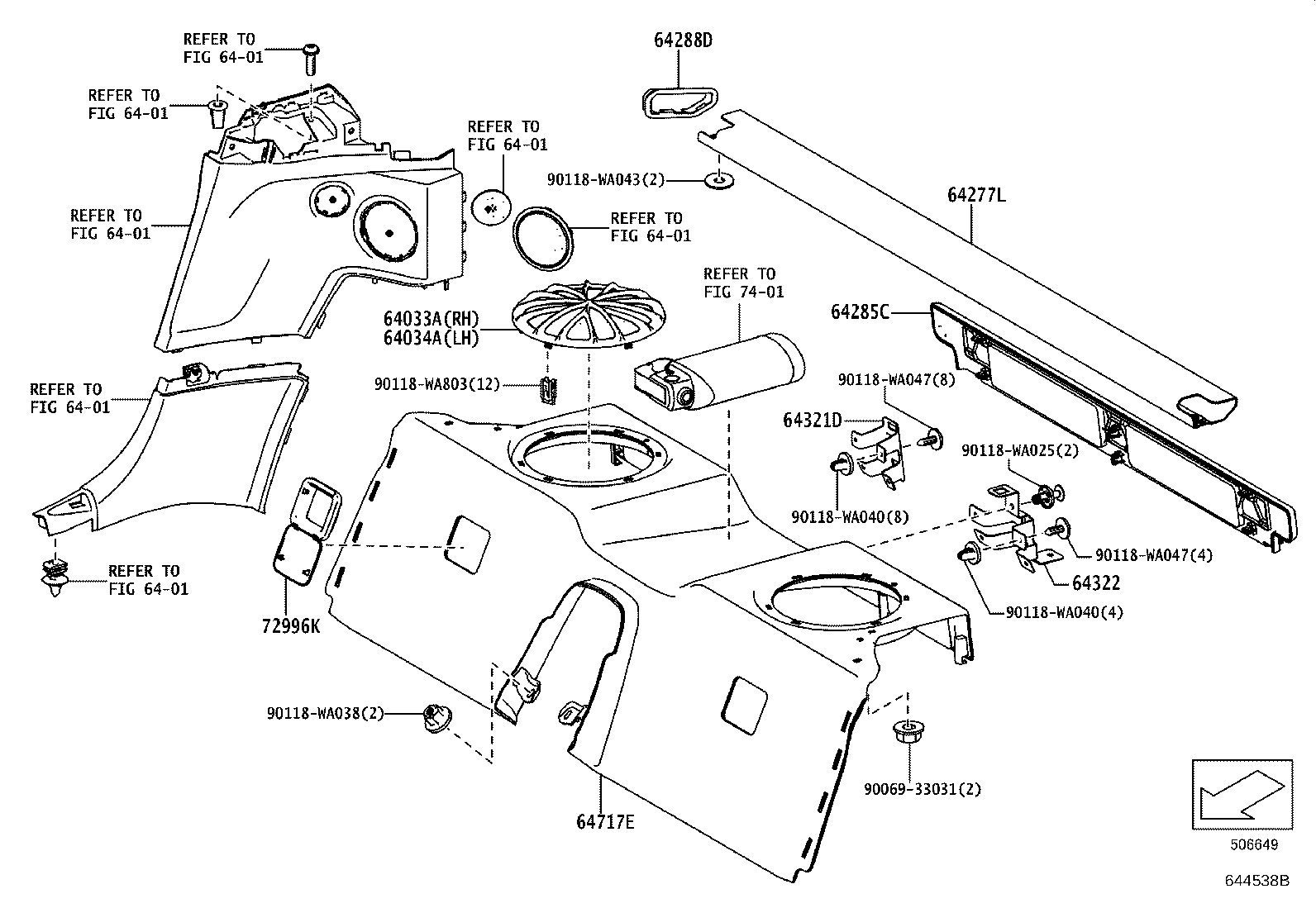

ILLUST NO. 2 OF 6(1903- )

Click highlighted areas on diagram

diagram 6401 6401 6401 6401 6401 6401 6401 64033A 64034A 64277L 64285C 64288D 64321D 64322 64717E 72996K 7401 9006933031 90118WA025 90118WA038 90118WA040 90118WA040 90118WA043 90118WA047 90118WA047 90118WA803
Part # Description Qty Price
64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH
67071-WAA01

DB2#,4#,81

 1
64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH
67071-WAA01

DB2#,4#,81

 1
64277L - PIPE, TRANSVERSE
64277-WAA01

DB2#,4#,81

 1
64285C - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64285-WAA01

DB2#,4#,81

 1
64288D - TRIM, TRANSVERSE PIPE
64287-WAA01

DB2#,4#,81

RH

 1
64288-WAA01

DB2#,4#,81

LH

 1
64321D - BRACKET, PACKAGE TRAY TRIM, RH
64751-WAA01

DB2#,4#,81

 2
64322 - BRACKET, PACKAGE TRAY TRIM, LH
64751-WAA02

DB2#,4#,81

 1
64717E - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-WAA01

DB2#,4#,81

EXTINGUISHER-WITHOUT

 1
64717-WAA02

DB2#,4#,81

EXTINGUISHER-WITH

 1
72996K - COVER, CHILD RESTRAINT SEAT
72996-WAA01

DB2#,4#,81

CHILD RESTRAINT SYSTEM-WITH(ISO FIX),RH

 1
72996-WAA02

DB2#,4#,81

CHILD RESTRAINT SYSTEM-WITHOUT

 2
72996-WAA02

DB2#,4#,81

CHILD RESTRAINT SYSTEM-WITH(ISO FIX),LH

 1
72996-WAA01

DB2#,4#,81

CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE),RH

 1
72996-WAA02

DB2#,4#,81

CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE),LH

 1
Common parts
90069-33031
90118-WA025
90118-WA038
90118-WA040
90118-WA043
90118-WA047
90118-WA803
Linked diagrams
6401
7401

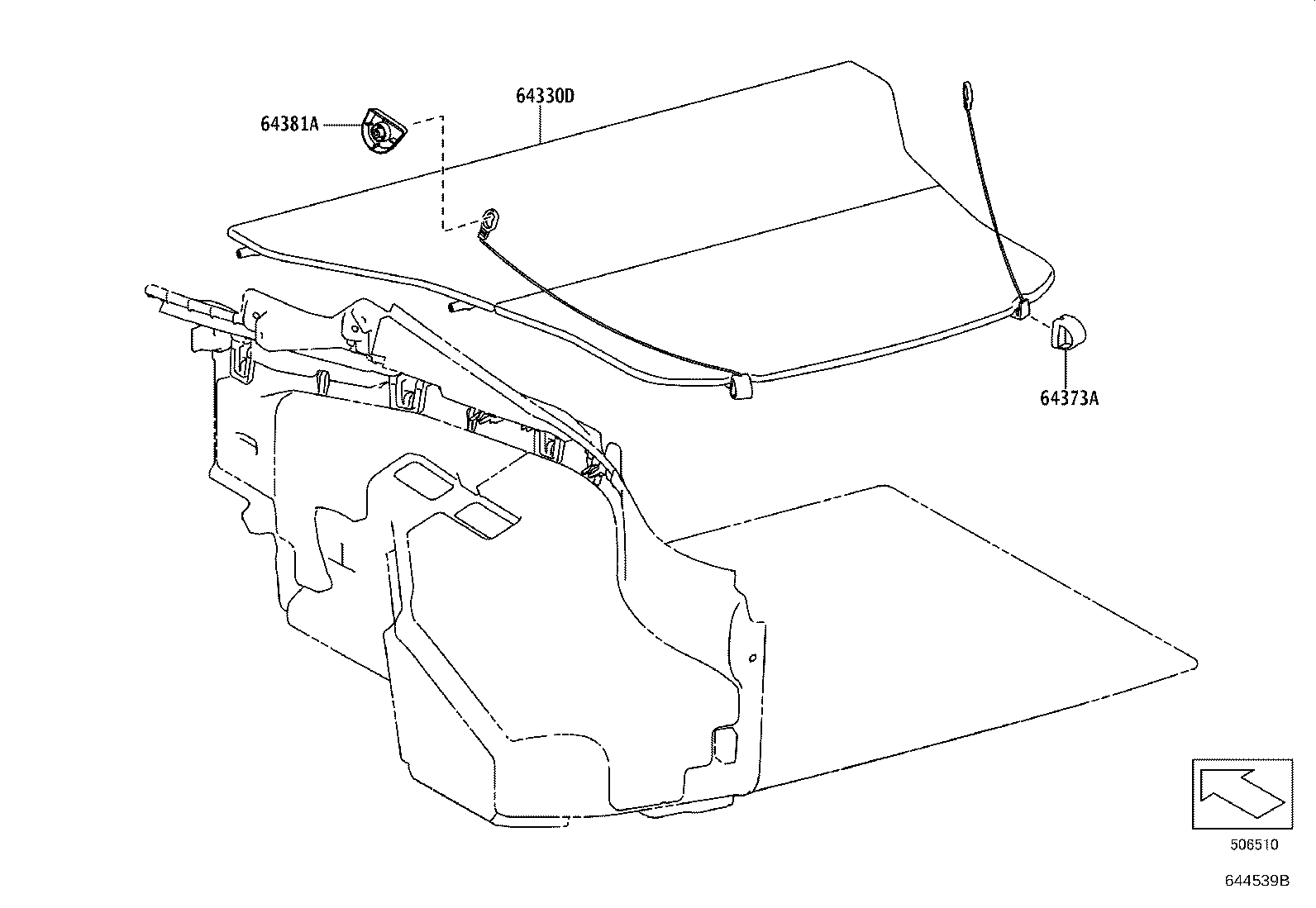

ILLUST NO. 3 OF 6(1903- )

Click highlighted areas on diagram

diagram 64330D 64373A 64381A
Part # Description Qty Price
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-WAA01

DB2#,4#,81

 1
64373A - STOPPER, PACKAGE TRAY TRIM
64376-WAA01

DB2#,4#,81

 2
64381A - HANGER, PACKAGE TRAY TRIM
64381-WAA01

DB2#,4#,81

 2

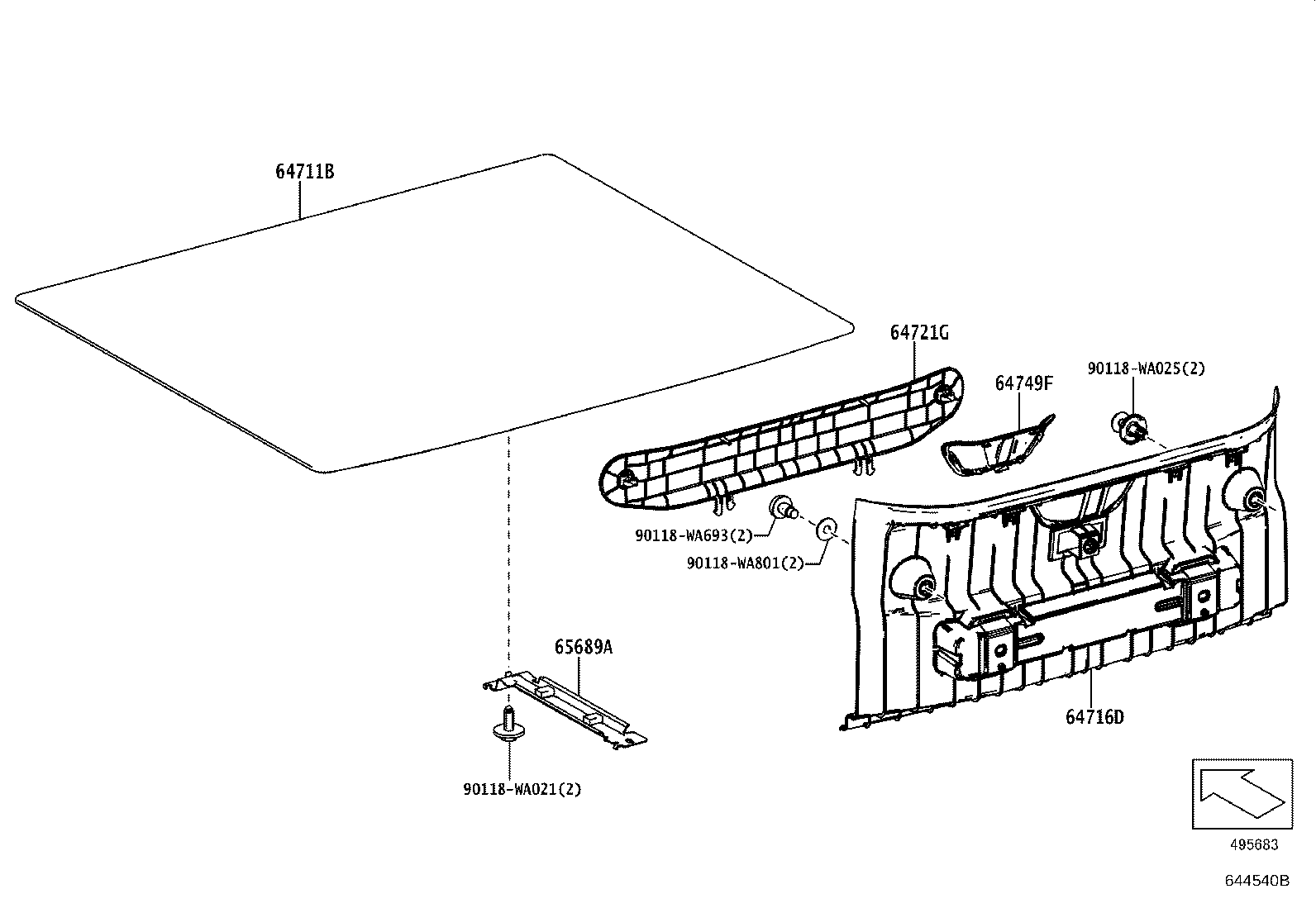

ILLUST NO. 4 OF 6(1903- )

Click highlighted areas on diagram

diagram 64711B 64716D 64721G 64749F 65689A 90118WA021 90118WA025 90118WA693 90118WA801
Part # Description Qty Price
64711B - BOARD ASSY, DECK
64711-WAA01

DB2#,4#,81

 1
64716D - COVER, DECK TRIM, REAR
64716-WAA01

DB2#,4#,81

 1
64721G - COVER, DECK TRIM, NO.1
58387-WAA01

DB2#,4#,81

 1
64749F - COVER, BACK DOOR STRIKER
64749-WAA01

DB2#,4#,81

 1
65689A - BRACKET
58417-WAA01

DB2#,4#,81

 1
Common parts
90118-WA021
90118-WA025
90118-WA693
90118-WA801

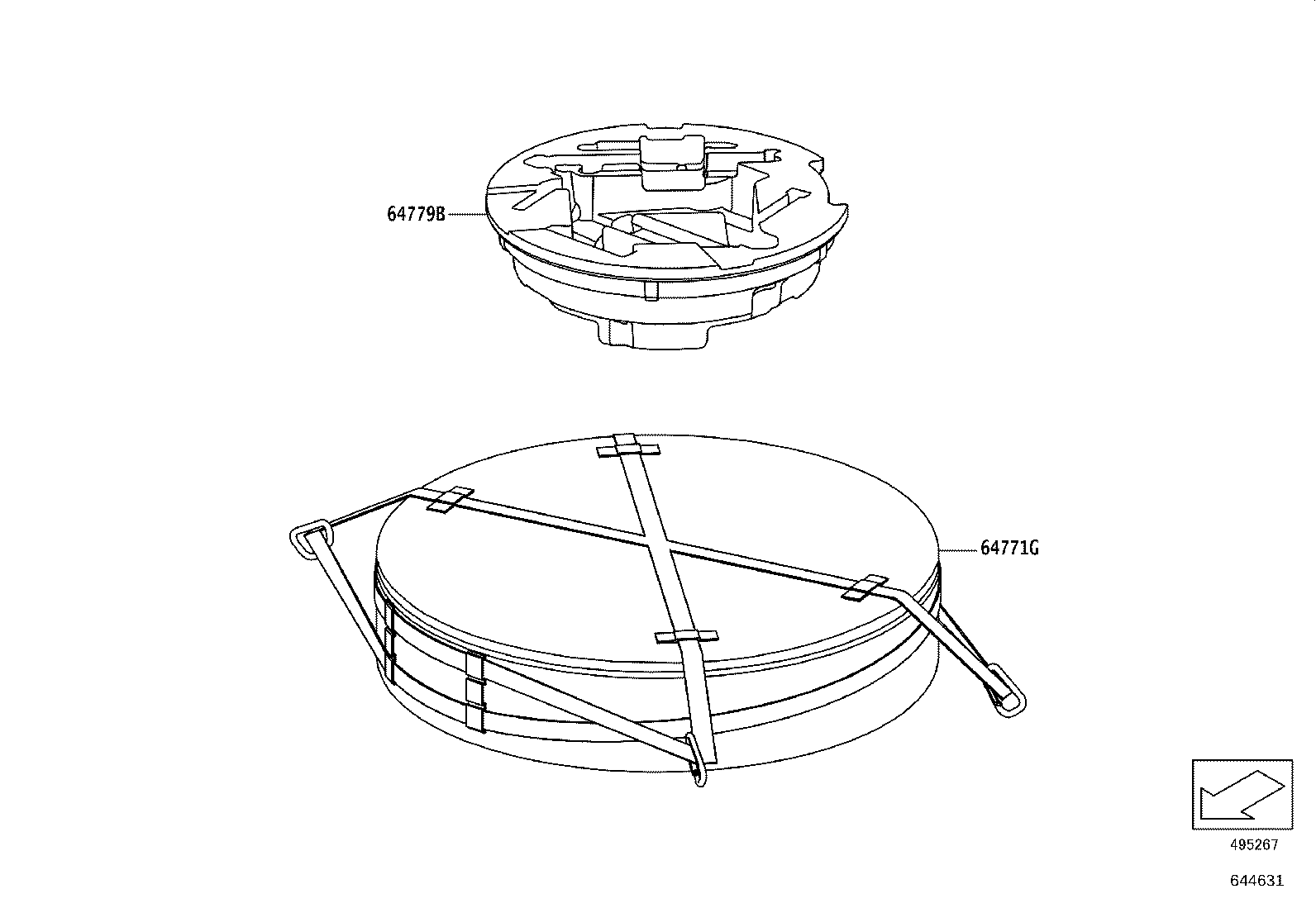

ILLUST NO. 6 OF 6(1903- )

Click highlighted areas on diagram

diagram 64771G 64779B
Part # Description Qty Price
64771G - COVER, SPARE WHEEL
64429-WAA01

DB21,4#

SPARE TIRE-T135/90R17, WITH(JACK)

 1
64779B - STOPPER, SPARE WHEEL COVER
64779-WAA01

DB21,4#

SPARE TIRE-T135/90R17, WITH(JACK)

 1

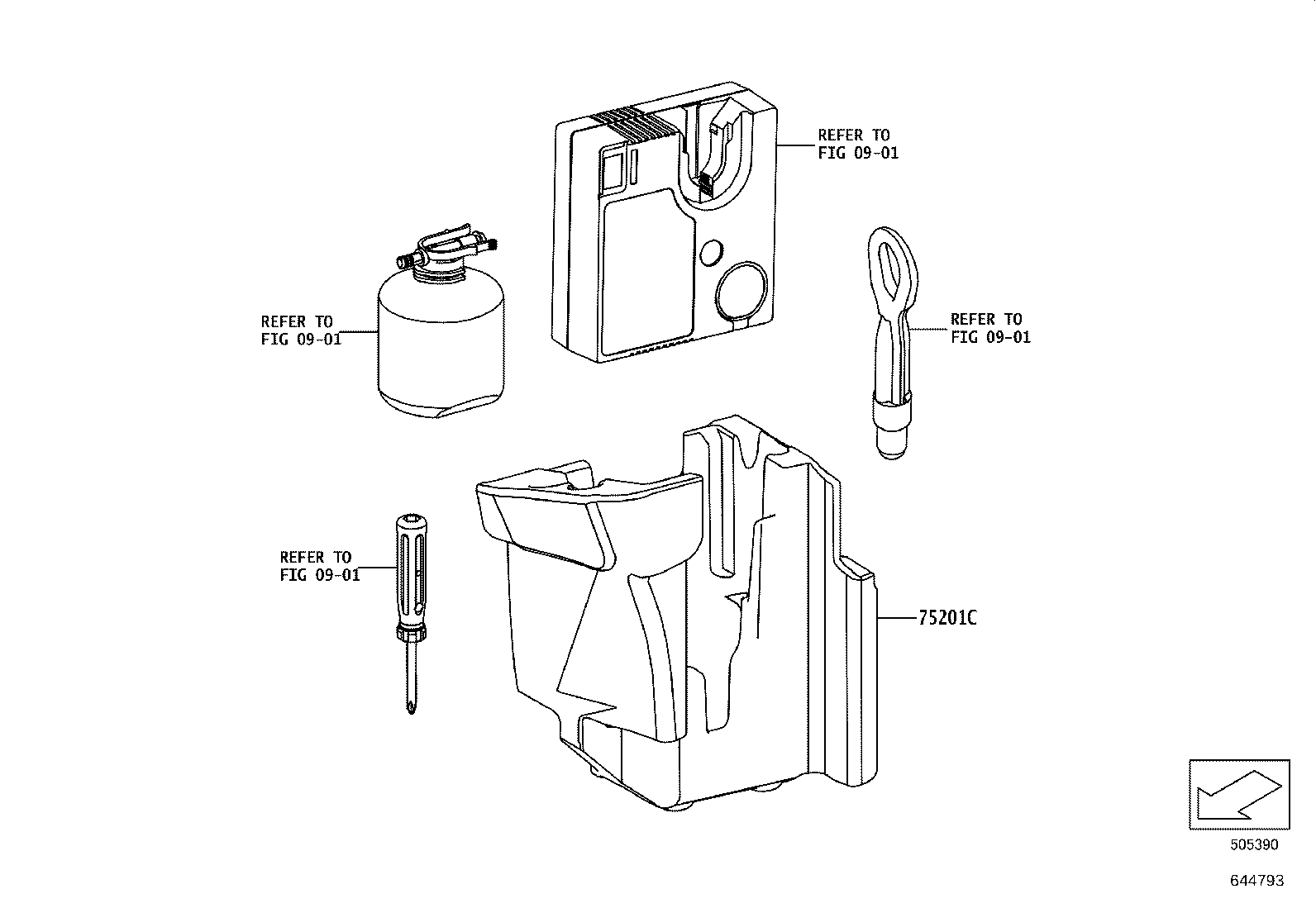

ILLUST NO. 5 OF 6(1903- )

Click highlighted areas on diagram

diagram 0901 0901 0901 0901 75201C
Part # Description Qty Price
75201C - BOX SUB-ASSY, TOOL, NO.1
75201-WAA01

DB2#,4#,81

 1
Linked diagrams
0901
