DB42R-ZRRW (2019)
Toyota Supra
ILLUST NO. 1 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 73900-WAA05 |
DB2#,42 SRS AIR BAG-WITH |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-WAA02 |
DB22,42 SRS AIR BAG-WITH |
1 | ||
| 55606-WAA02 |
DB22,42 JAPAN SPEC |
1 | ||
| 55606-WAA04 |
DB22,42 AUSTRALIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 INDONESIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 HONG KONG, MACAU SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 CANADA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 CANADA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 HONG KONG, MACAU SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 MEXICO SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 KUWAIT SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 KUWAIT SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 INDONESIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 BAHRAIN SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 MEXICO SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 DUBAI, SHARJAH SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 ABU DHABI SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 QATAR SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 BAHRAIN SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 DUBAI, SHARJAH SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 TURKEY SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 OMAN SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 ABU DHABI SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 RUSSIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SAUDI ARABIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 RUSSIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 OMAN SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 PHILIPPINES SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 QATAR SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 EAST AFRICAN COMMUNITY SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 TURKEY SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 SOUTH AFRICA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SAUDI ARABIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 PHILIPPINES SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 AUSTRALIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 REST ASIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SINGAPORE SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 NEW ZEALAND SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 EAST AFRICAN COMMUNITY SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 USA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 SOUTH AFRICA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 NEW ZEALAND SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 USA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SINGAPORE SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 CHINA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 REST ASIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 LEBANON SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 GUAM SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 CHINA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 GUAM SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 ISRAEL, PALESTINE SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 MIDDLE & NEAR EAST SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 LEBANON SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 TAIWAN SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 EAST EUROPE 1 SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 EAST EUROPE 2 SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 EAST EUROPE 2 SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 SRI LANKA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 ISRAEL, PALESTINE SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 TAIWAN SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 THAILAND SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 MIDDLE & NEAR EAST SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 THAILAND SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 AUSTRIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 MALAYSIA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SRI LANKA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 EAST EUROPE 1 SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 GERMANY SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 FRANCE SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 NETHERLAND SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 BELGIUM, LUXEMBOURG SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 MALAYSIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 AUSTRIA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 SPAIN SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 SWITZERLAND SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 FRANCE SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 WITHOUT(DESTINATION PACKAGE(ERP))&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 GERMANY SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 BELGIUM, LUXEMBOURG SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SPAIN SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 UNITED KINGDOM SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 ITALY SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 NETHERLAND SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 NORDIC SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 ICELAND SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 UNITED KINGDOM SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 WITHOUT(DESTINATION PACKAGE(ERP))&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 EU MEDITERRANEAN SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 ICELAND SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 PORTUGAL SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 KOREA SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 NORDIC SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 BALTIC SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 BALTIC SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 SWITZERLAND SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 REST EUROPE SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 PORTUGAL SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 ITALY SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 REST EUROPE SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 CENTRAL EAST EU SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55606-WAA04 |
DB22,42 KOREA SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 CENTRAL EAST EU SPEC&SRS AIR BAG-WITH(KNEE(*DRP) |
1 | ||
| 55606-WAA04 |
DB22,42 EU MEDITERRANEAN SPEC&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-WAA02 |
DB22,42 |
1 | ||
| 55636 - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55374-WAA02 |
DB22,42 |
1 | ||
| Common parts | ||||
| 90118-WA105 | ||||
| 90118-WA569 | ||||
| 90118-WA570 | ||||
| Linked diagrams | ||||
| 4501 | ||||

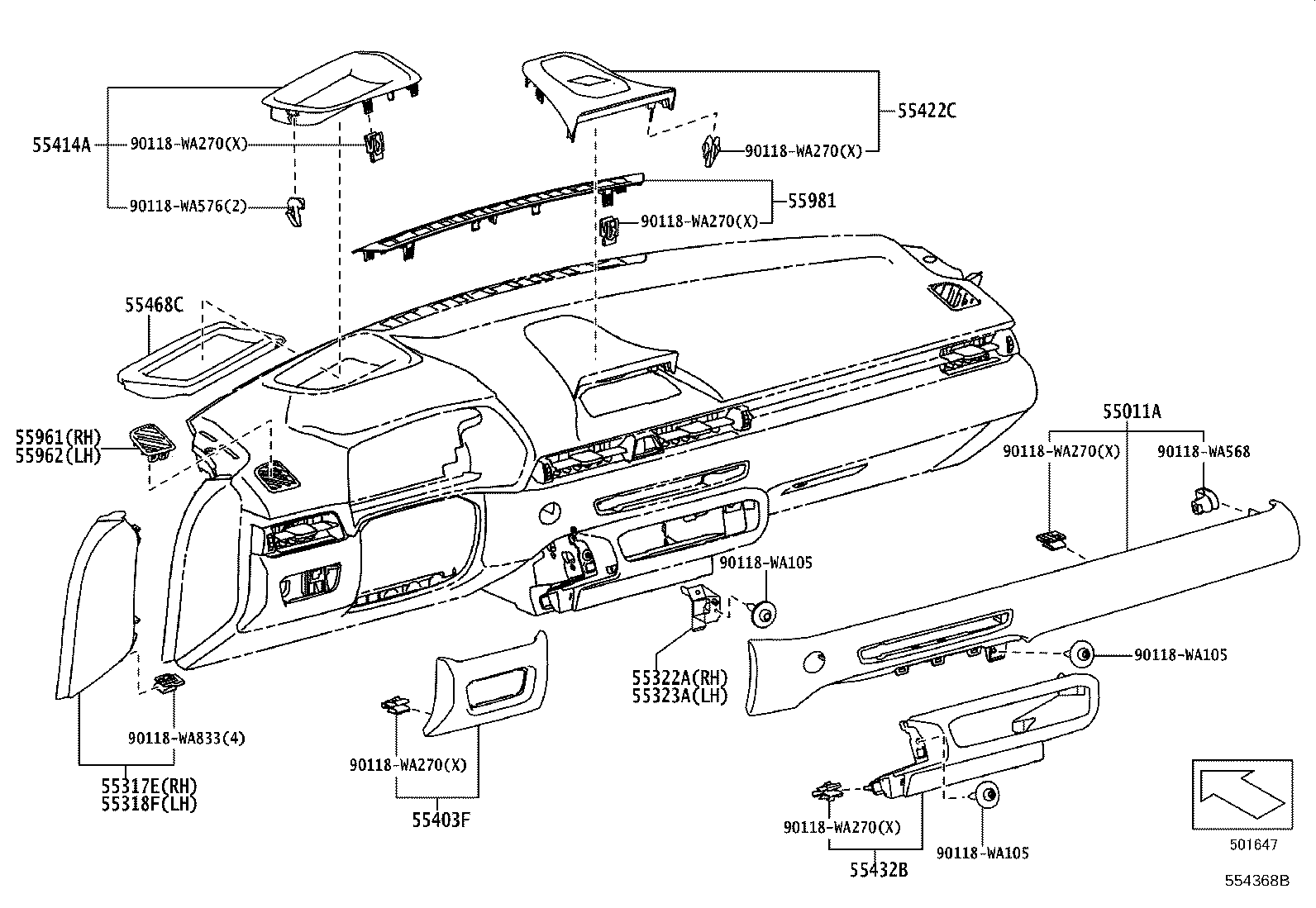

ILLUST NO. 2 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55480-WAA02 |
DB22,42 |
1 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-WAA01 |
DB22,42 CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 55317-WAA01 |
DB2#,4#,81 CHILD RESTRAINT SYSTEM-WITHOUT |
1 | ||
| 55317-WAA01 |
DB22,42 CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-WAA02 |
DB22,42 CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||
| 55318-WAA02 |
DB22,42 CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 55318-WAA01 |
DB2#,4# CHILD RESTRAINT SYSTEM-WITHOUT |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 90118-WA359 |
DB2#,4#,81 |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 90118-WA358 |
DB2#,4#,81 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55451-WAA02 |
DB22,42 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55401-WAA02 |
DB22,42 HEAD-UP DISPLAY-WITH |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55510-WAA02 |
DB4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55406-WAA02 |
DB22,42 |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55437-WAA02 |
DB22,42 HEAD-UP DISPLAY-WITH |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-WAA01 |
DB2#,4#,81 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-WAA01 |
DB2#,4#,81 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA105 | ||||
| 90118-WA270 | ||||
| 90118-WA568 | ||||
| 90118-WA576 | ||||
| 90118-WA833 | ||||

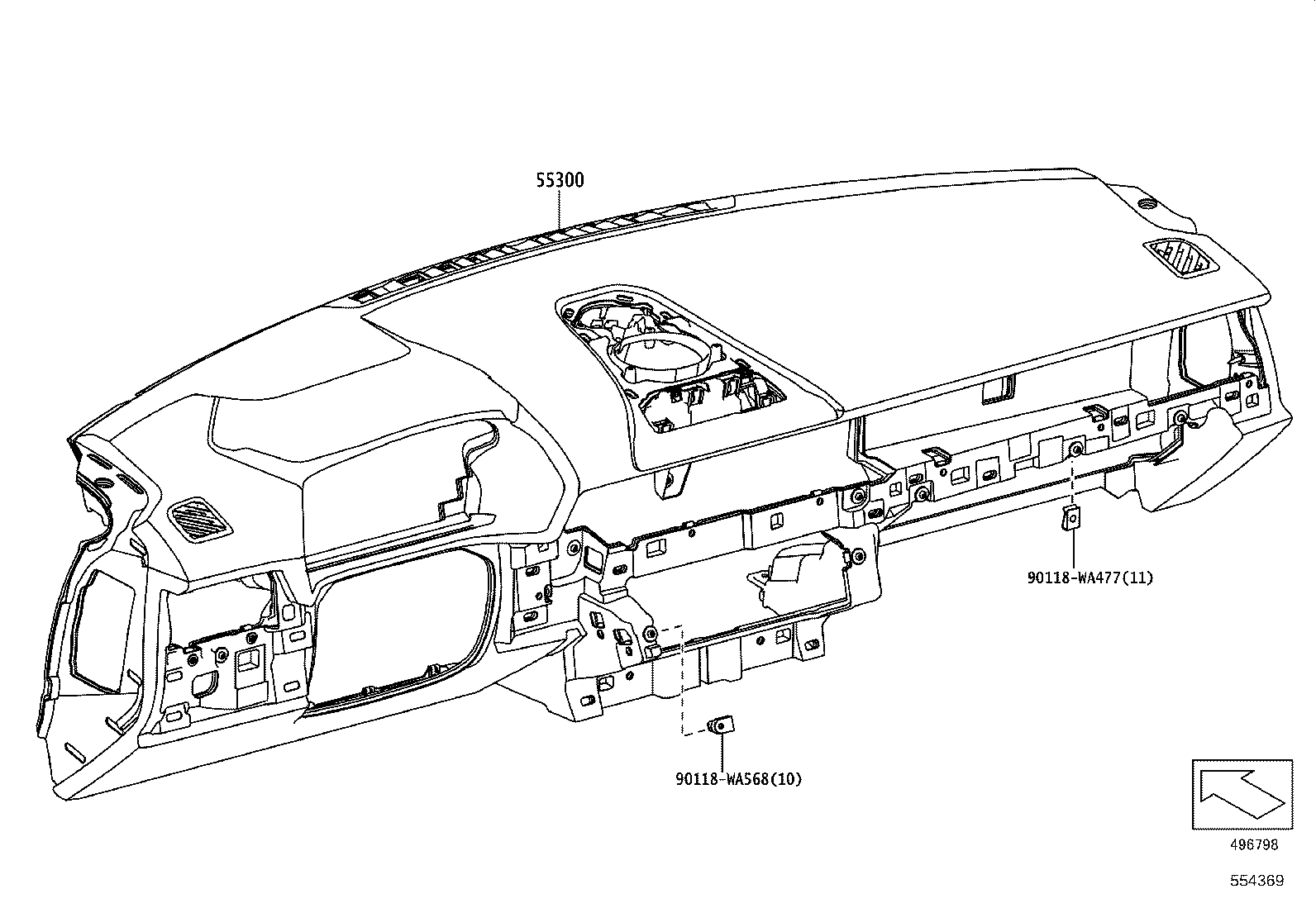

ILLUST NO. 3 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55400-WAA02 |
DB22,42 |
1 | ||
| 55400-WAA08 |
DB22,42 HEAD-UP DISPLAY-WITH,TRIM21 |
1 | ||
| 55400-WAA04 |
DB22,42 HEAD-UP DISPLAY-WITH |
1 | ||
| 55400-WAA06 |
DB22,42 TRIM21 |
1 | ||
| Common parts | ||||
| 90118-WA477 | ||||
| 90118-WA568 | ||||

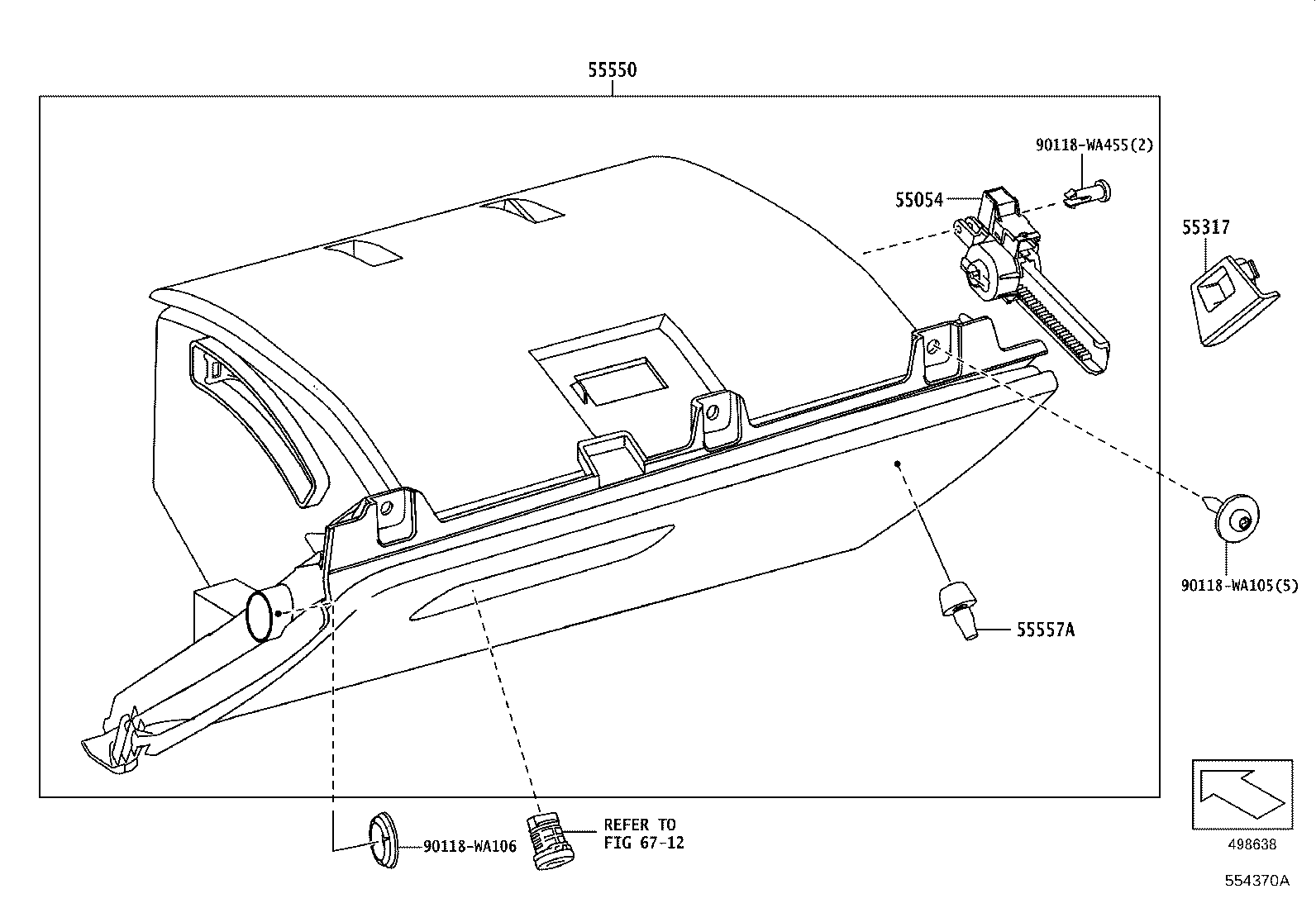

ILLUST NO. 4 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-WAA01 |
DB2#,4#,81 |
1 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55317-WAA04 |
DB2#,4#,81 INNER |
1 | ||
| 55317-WAA05 |
DB2#,4#,81 OUTER |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-WAA02 |
DB22,42 LIGHTS PACKAGE |
1 | ||
| 55550-WAA04 |
DB22,42 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 90118-WA108 |
DB2#,4#,81 |
2 | ||
| Common parts | ||||
| 90118-WA105 | ||||
| 90118-WA106 | ||||
| 90118-WA455 | ||||
| Linked diagrams | ||||
| 6712 | ||||

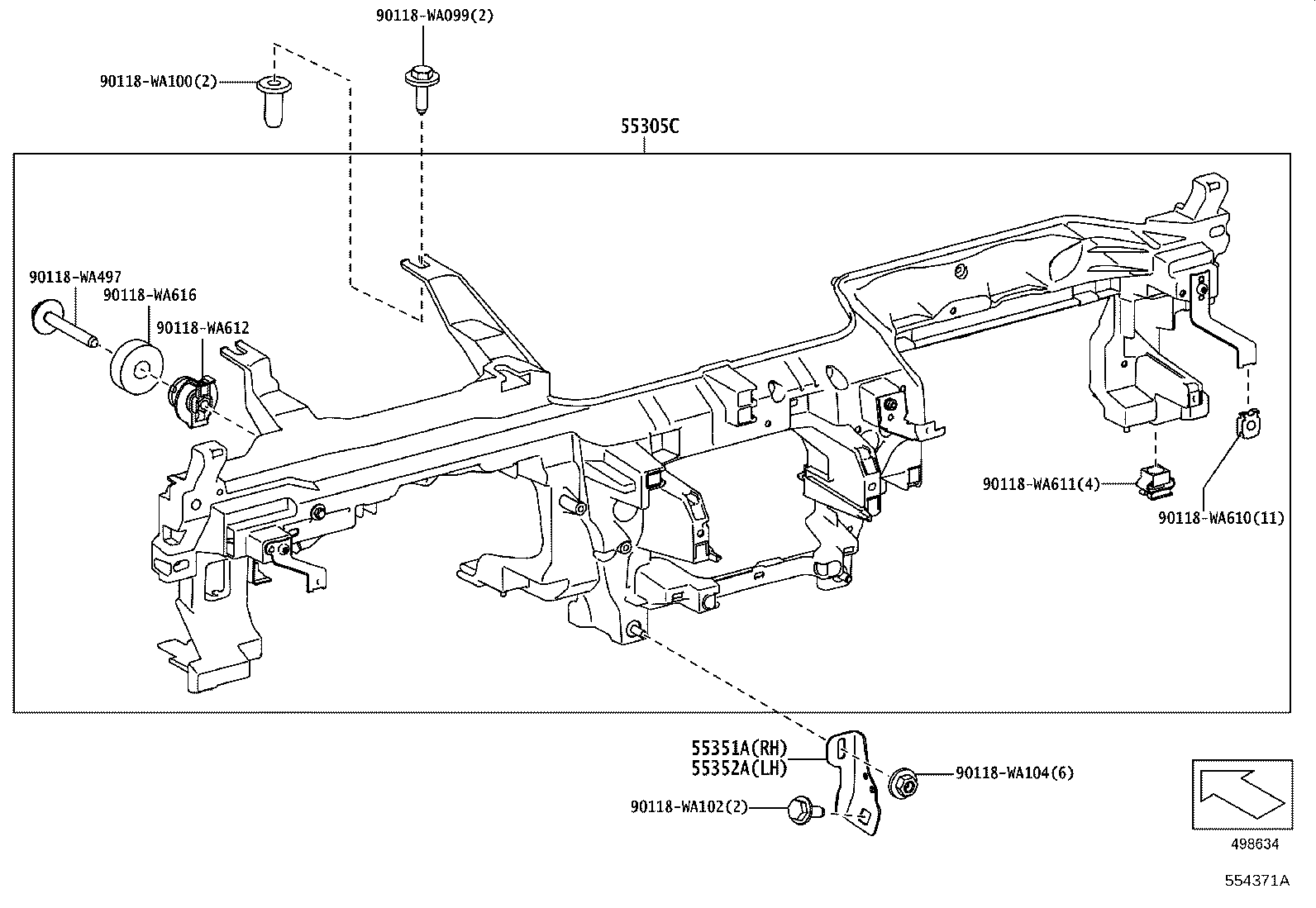

ILLUST NO. 5 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-WAA02 |
DB22,42 HEAD-UP DISPLAY-WITH |
1 | ||
| 55303-WAA02 |
DB22,42 |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-WAA01 |
DB2#,4#,81 |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA099 | ||||
| 90118-WA100 | ||||
| 90118-WA102 | ||||
| 90118-WA104 | ||||
| 90118-WA497 | ||||
| 90118-WA610 | ||||
| 90118-WA611 | ||||
| 90118-WA612 | ||||
| 90118-WA616 | ||||

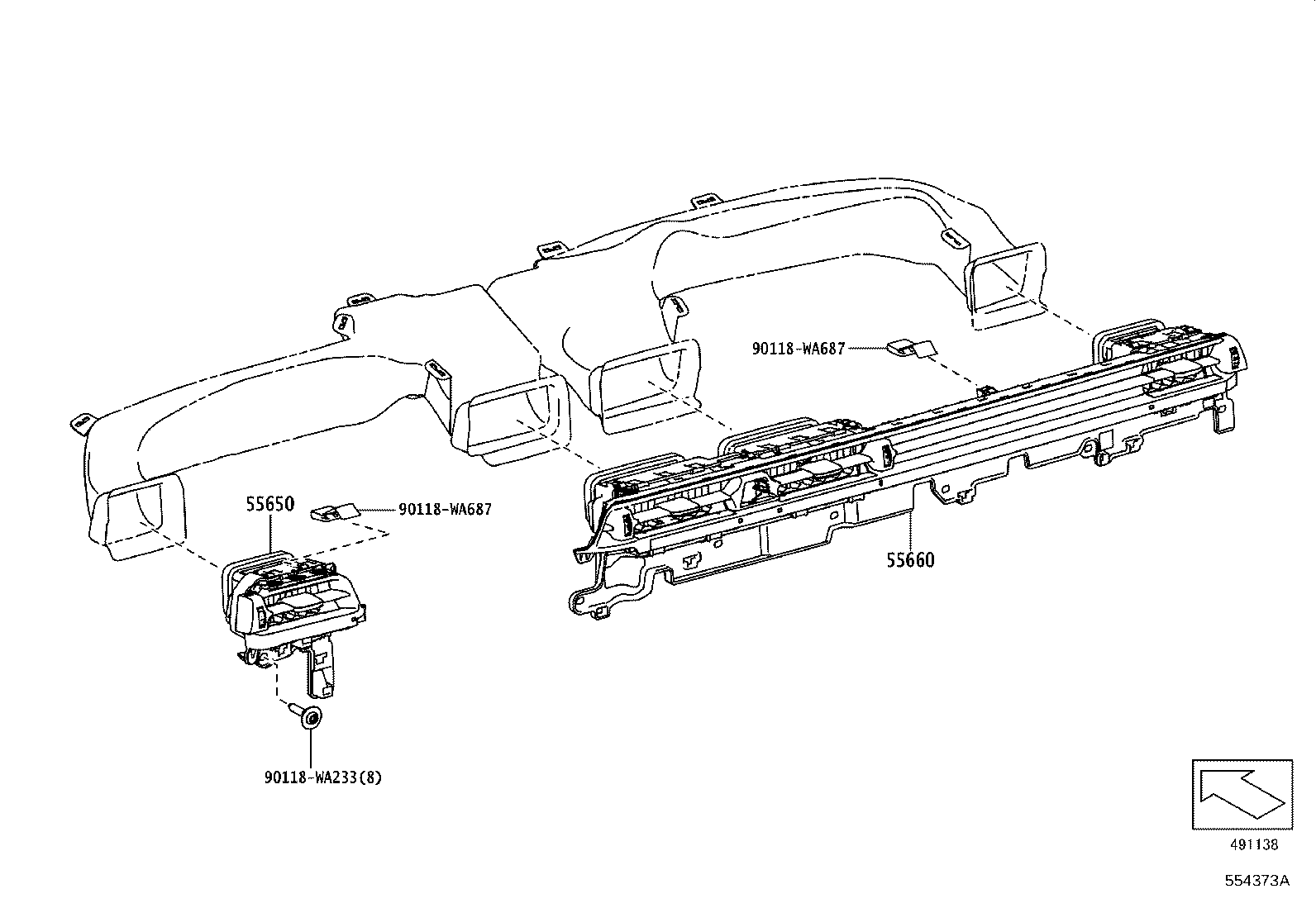

ILLUST NO. 7 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-WAA02 |
DB22,42 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55410-WAA02 |
DB22,42 |
1 | ||
| Common parts | ||||
| 90118-WA233 | ||||
| 90118-WA687 | ||||

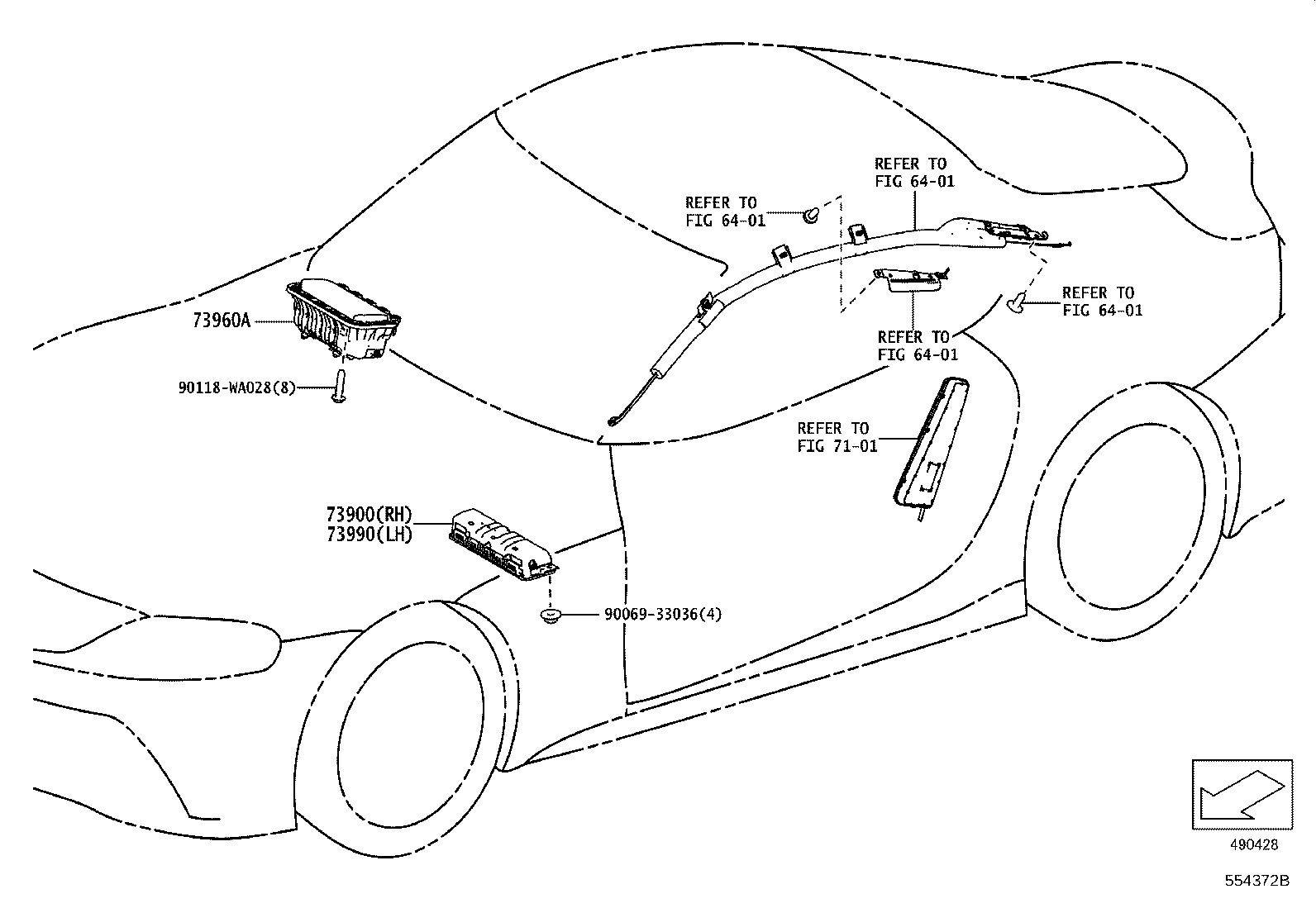

ILLUST NO. 6 OF 7(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-WAA02 |
DB22,42 SRS AIR BAG-WITH |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90069-33036 | ||||
| 90118-WA028 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 7101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
