DB41L-ZRLW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B58
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

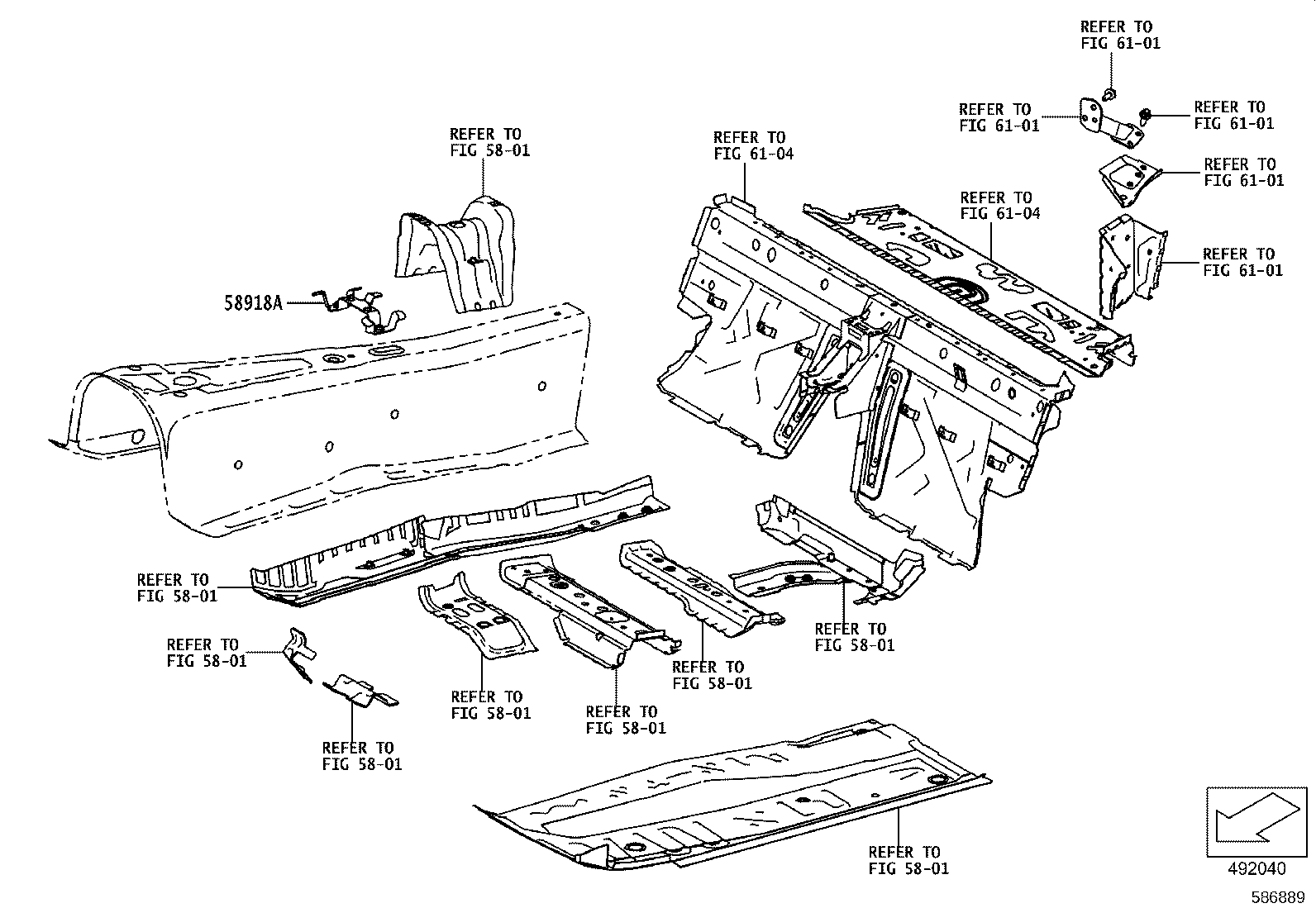

ILLUST NO. 1 OF 5(1903- )

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 5801 5801 5801 5801 58918A 6101 6101 6101 6101 6101 6104 6104
Part # Description Qty Price
58918A - BRACKET, BOX SUPPORT
58123-WAA01

DB2#,4#,81

 1
Linked diagrams
5801
6101
6104

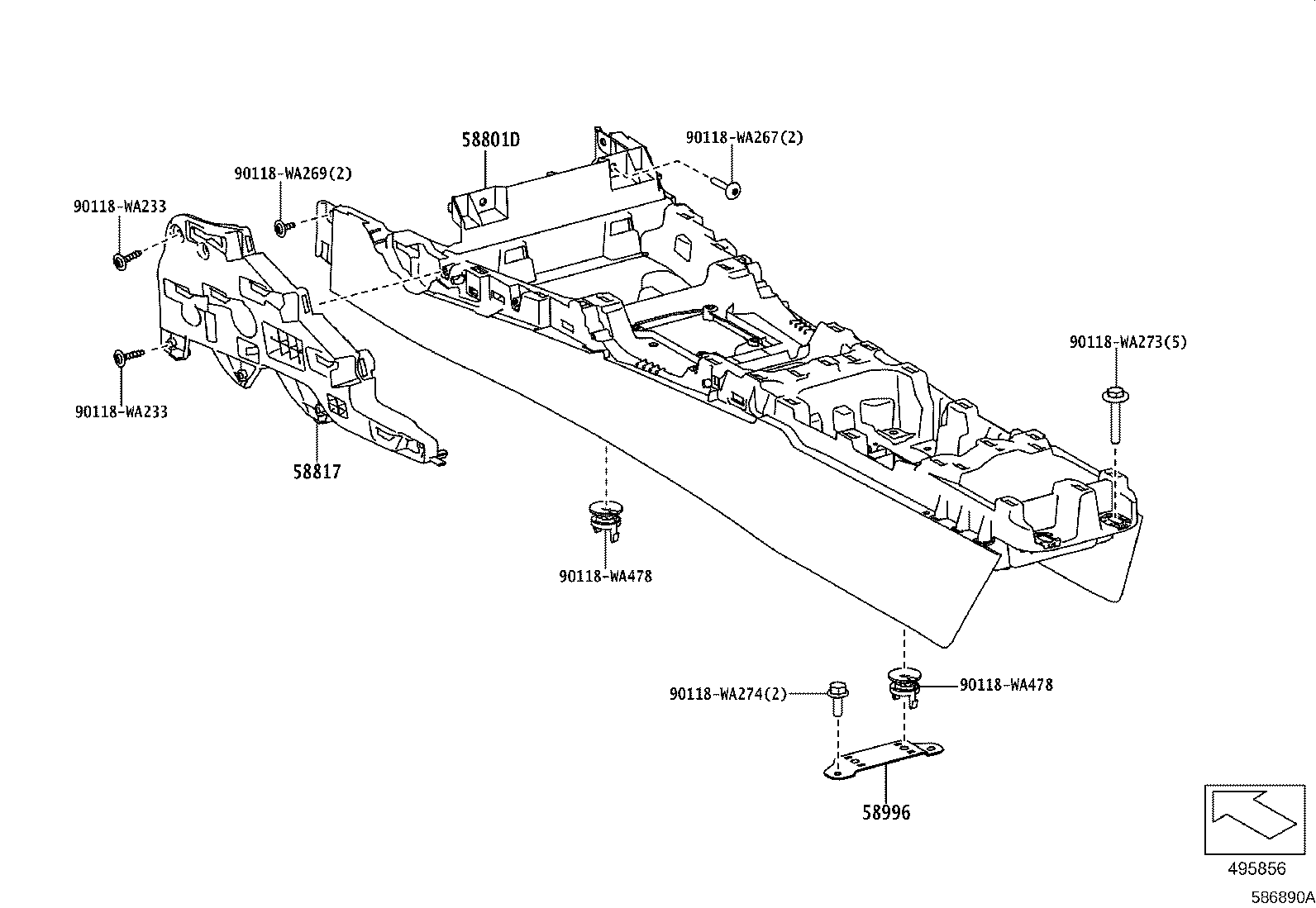

ILLUST NO. 2 OF 5(1903- )

Click highlighted areas on diagram

diagram 58801D 58817 58996 90118WA233 90118WA233 90118WA267 90118WA269 90118WA273 90118WA274 90118WA478 90118WA478
Part # Description Qty Price
58801D - BOX ASSY, CONSOLE
58801-WAA01

DB2#,4#,81

 1
58817 - RETAINER, CONSOLE PANEL
58817-WAA01

DB21,41,81

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-WAA01

DB2#,4#,81

 1
Common parts
90118-WA233
90118-WA267
90118-WA269
90118-WA273
90118-WA274
90118-WA478

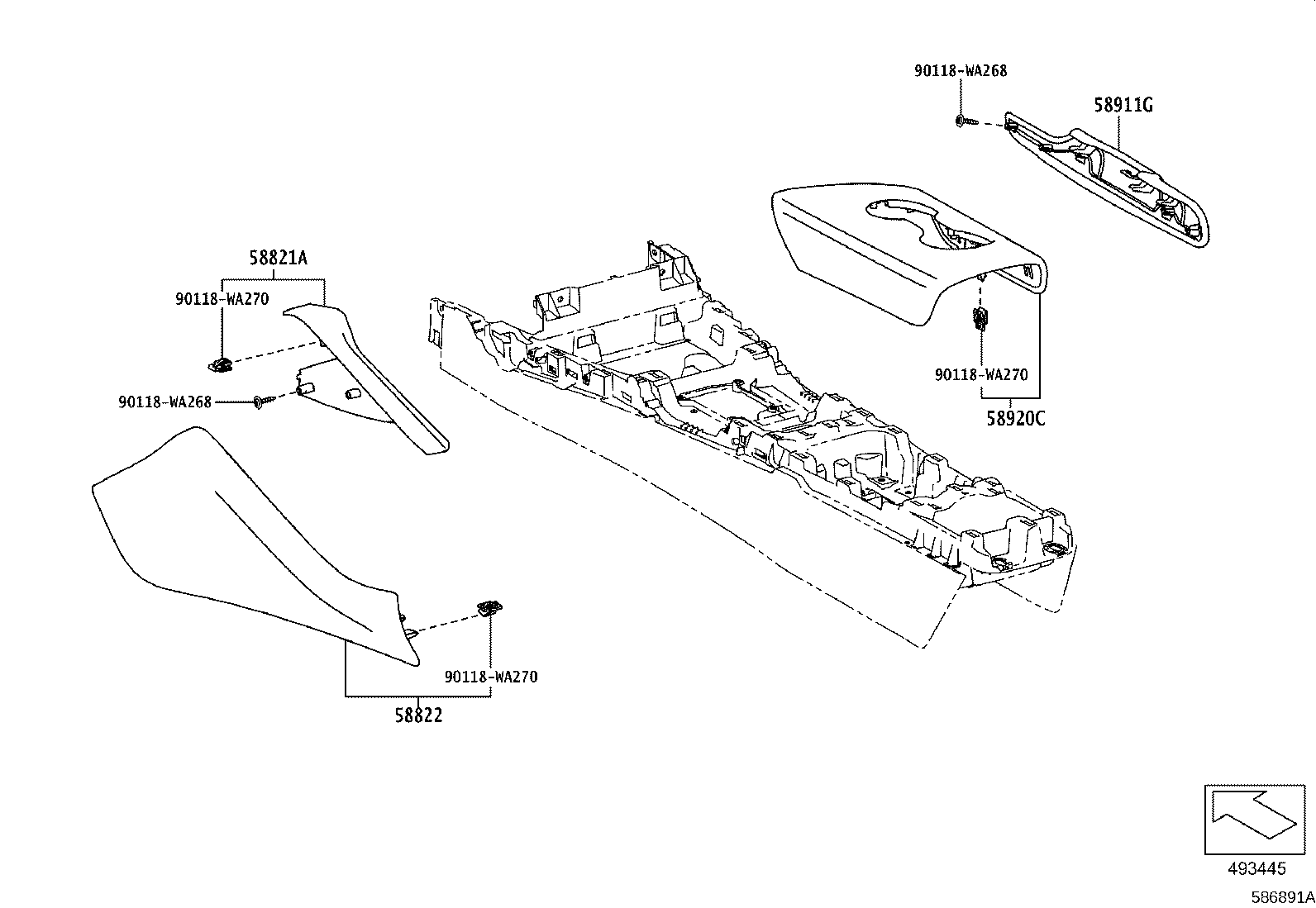

ILLUST NO. 3 OF 5(1903- )

Click highlighted areas on diagram

diagram 58821A 58822 58911G 58920C 90118WA268 90118WA268 90118WA270 90118WA270 90118WA270
Part # Description Qty Price
58821A - PANEL, CONSOLE
55436-WAA01

DB21,41,81

 1
58822 - PANEL, CONSOLE, SIDE
58912-WAA01

DB21,41,81

 1
58912-WAA04

DB21,41,81

TRIM30

 1
58911G - PANEL, BOX, NO.1
58911-WAA02

DB21,41,81

 1
58920C - ARMREST ASSY, FRONT CONSOLE
58920-WAA01

DB21,41,81

TRIM20

 1
58920-WAA03

DB21,41,81

 1
58920-WAA02

DB21,41,81

TRIM30

 1
58920-WAA07

DB21,41,81

TRIM21

 1
Common parts
90118-WA268
90118-WA270

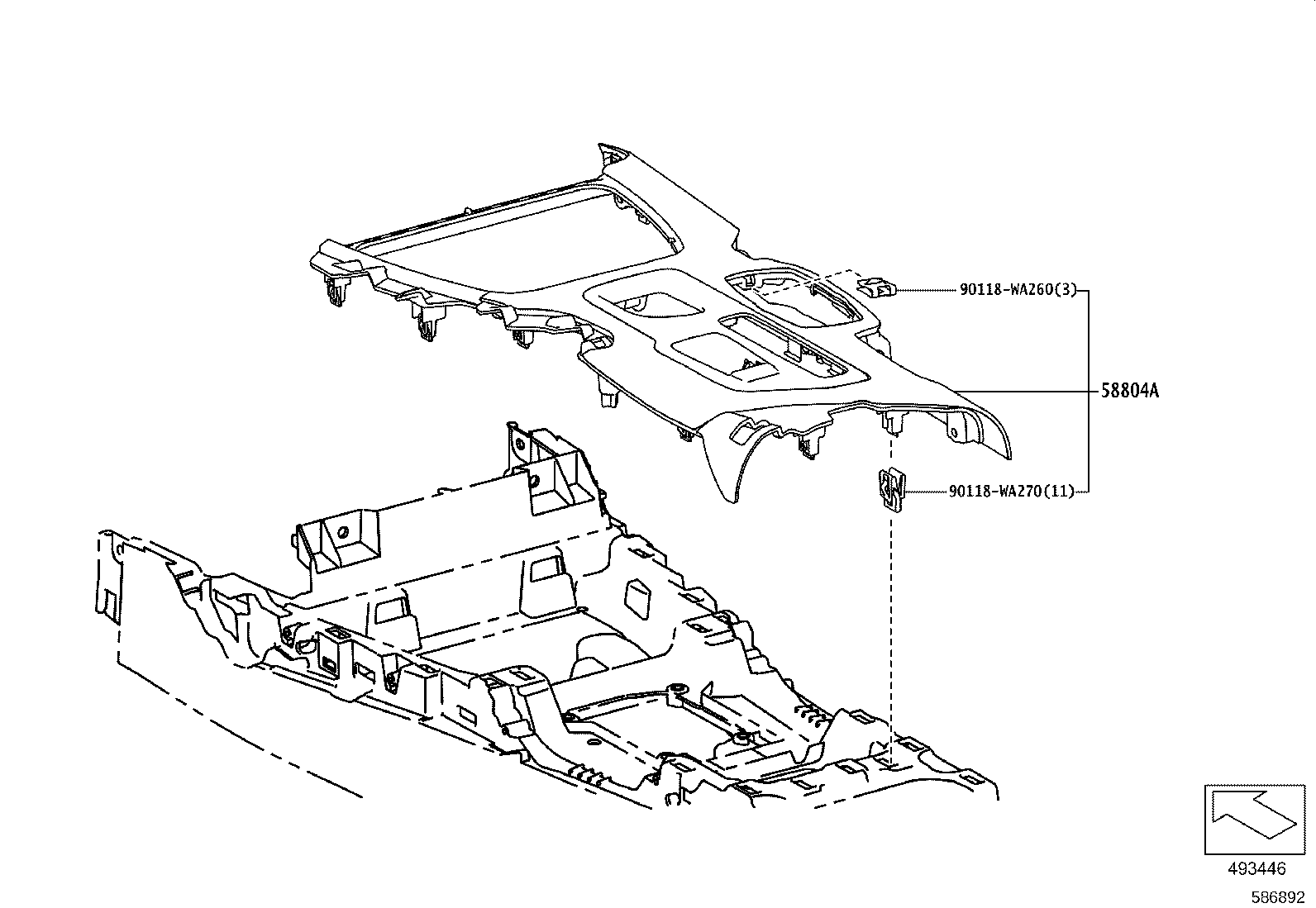

ILLUST NO. 4 OF 5(1903- )

Click highlighted areas on diagram

diagram 58804A 90118WA260 90118WA270
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-WAA03

DB21,41,81

INTERIOR CARBON PACKAGE

 1
58804-WAA01

DB21,41,81

INTERIOR SILVER PACKAGE

 1
Common parts
90118-WA260
90118-WA270

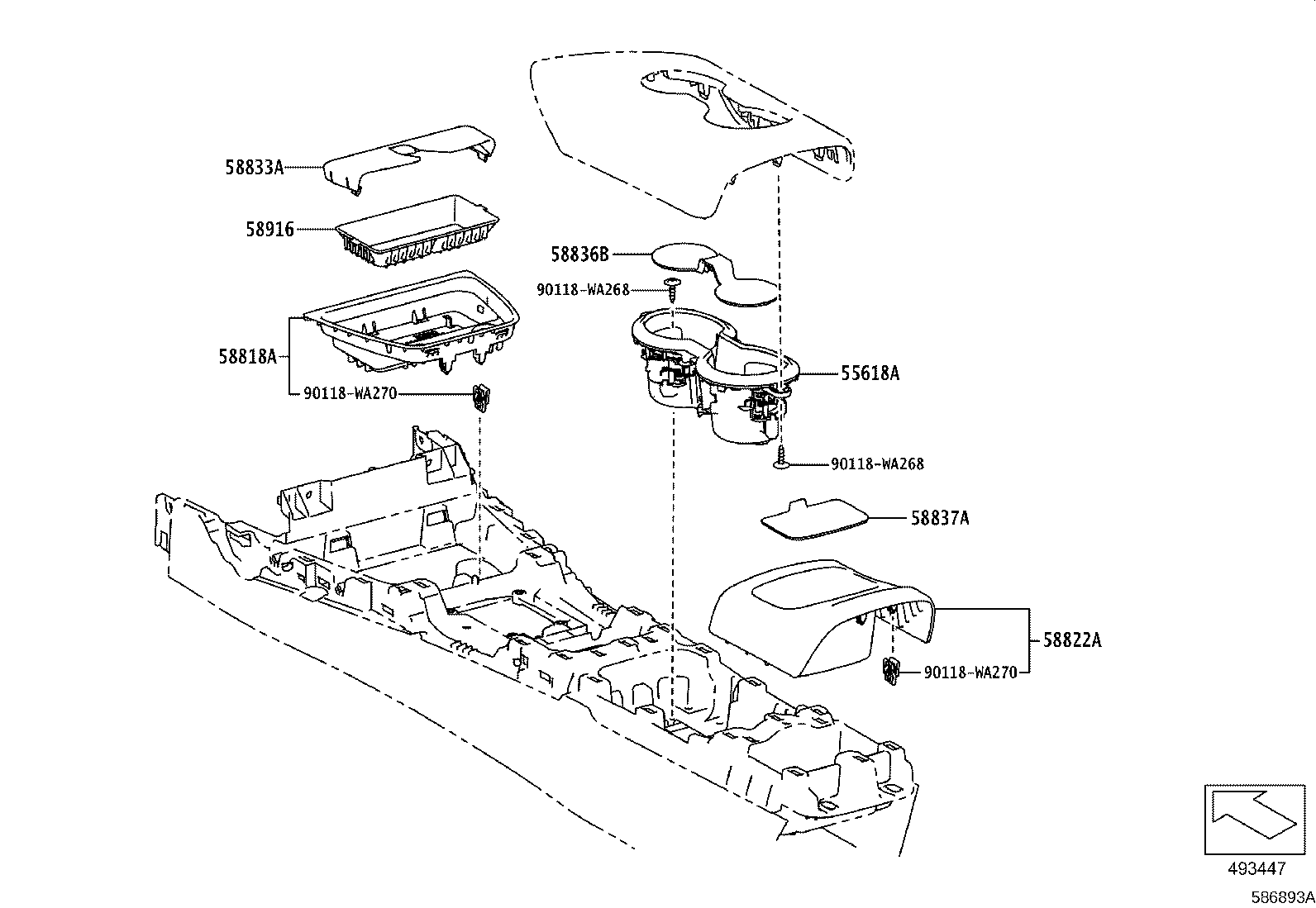

ILLUST NO. 5 OF 5(1903- )

Click highlighted areas on diagram

diagram 55618A 58818A 58822A 58833A 58836B 58837A 58916 90118WA268 90118WA268 90118WA270 90118WA270
Part # Description Qty Price
55618A - HOLDER, CONSOLE BOX CUP
55620-WAA01

DB2#,4#,81

 1
58818A - COVER, CONSOLE BOX, FR
58804-WAA05

DB2#,4#,81

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-WAA01

DB2#,4#,81

 1
58833A - COVER, CONSOLE, UPPER
58818-WAA01

DB2#,4#,81

WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)

 1
58818-WAA01

DB2#,4#,81

WIRELESS CHARGER-WITH

 1
58836B - PAD, CONSOLE BOX SILENCER, NO.1
58917-WAA01

DB2#,4#,81

 1
58837A - PAD, CONSOLE BOX SILENCER, NO.2
58833-WAA01

DB2#,4#,81

 1
58916 - MAT, BOX BOTTOM
58813-WAA01

DB2#,4#,81

WIRELESS CHARGER-WITHOUT

 1
Common parts
90118-WA268
90118-WA270
