DB22R-ZTRW (2019)
Toyota Supra

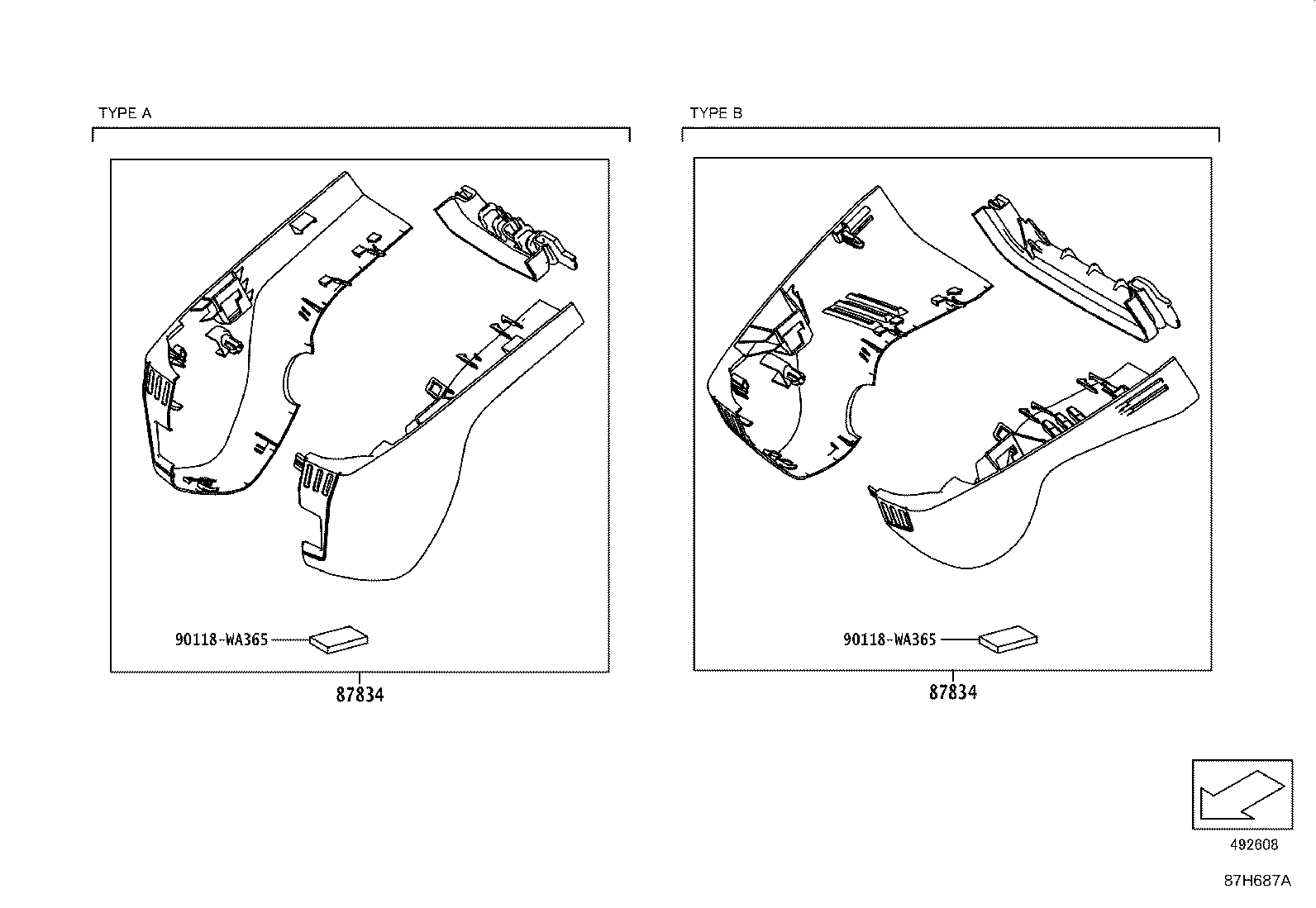

ILLUST NO. 3 OF 5(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 86466-WAA02 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 86466-WAA02 |
DB2#,4#,81 ACTIVE GUARD PACKAGE |
1 | ||
| 86466-WAA02 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC) |
1 | ||
| 86466-WAA01 |
DB2#,4#,81 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 86466-WAA02 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 86466-WAA02 |
DB2#,4#,81 ACTIVE GUARD PACKAGE |
1 | ||
| 86466-WAA02 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC) |
1 | ||
| 86466-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA365 | ||||

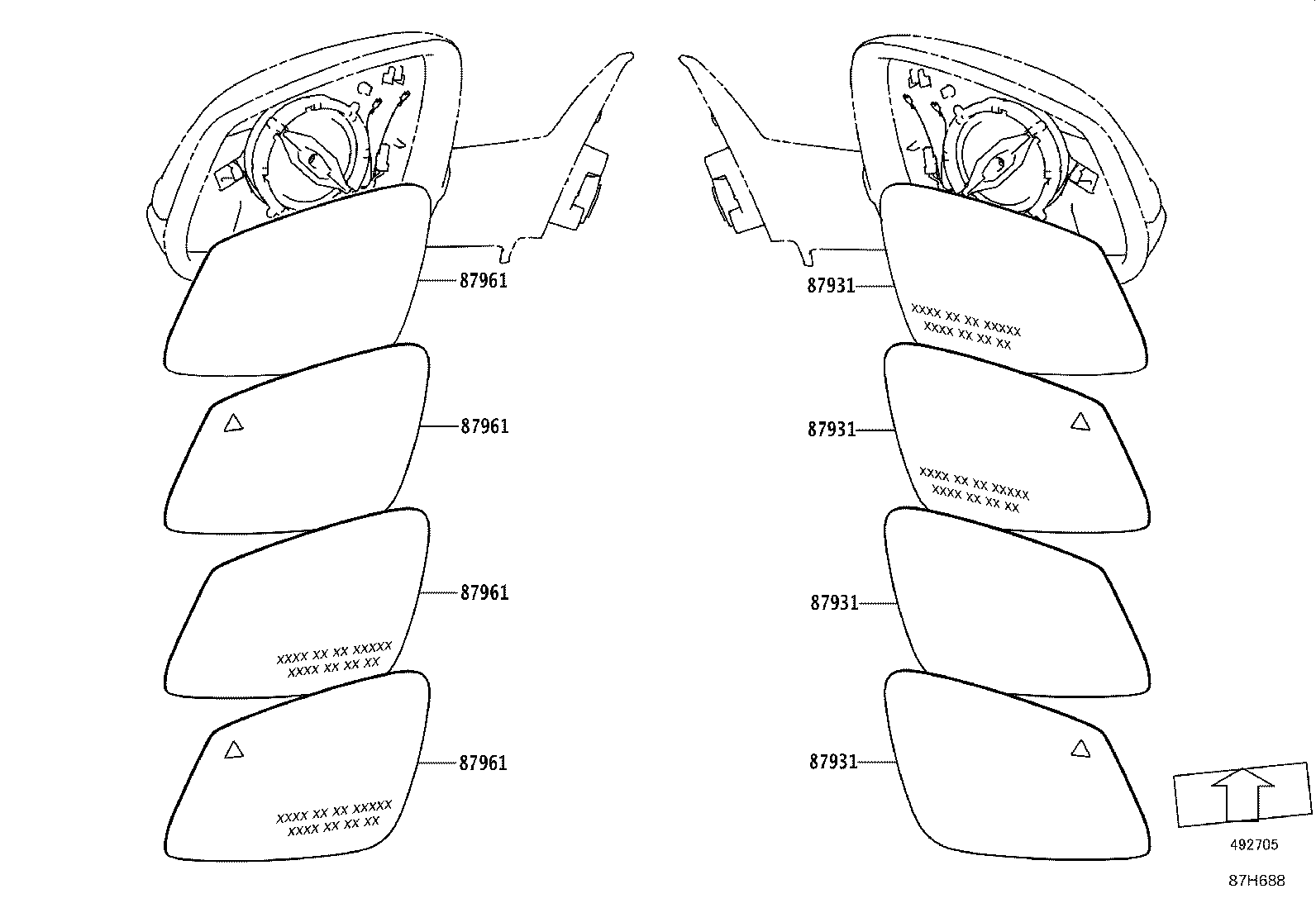

ILLUST NO. 2 OF 5(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87931 - OUTER MIRROR, RH | ||||
| 87931-WAA01 |
DB22,42 |
1 | ||
| 87931-WAA05 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-WAA01 |
DB22,42 |
1 | ||
| 87931-WAA05 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-WAA01 |
DB22,42 |
1 | ||
| 87931-WAA05 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-WAA01 |
DB22,42 |
1 | ||
| 87931-WAA05 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-WAA04 |
DB22,42 |
1 | ||
| 87961-WAA08 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-WAA04 |
DB22,42 |
1 | ||
| 87961-WAA08 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-WAA04 |
DB22,42 |
1 | ||
| 87961-WAA08 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-WAA04 |
DB22,42 |
1 | ||
| 87961-WAA08 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||

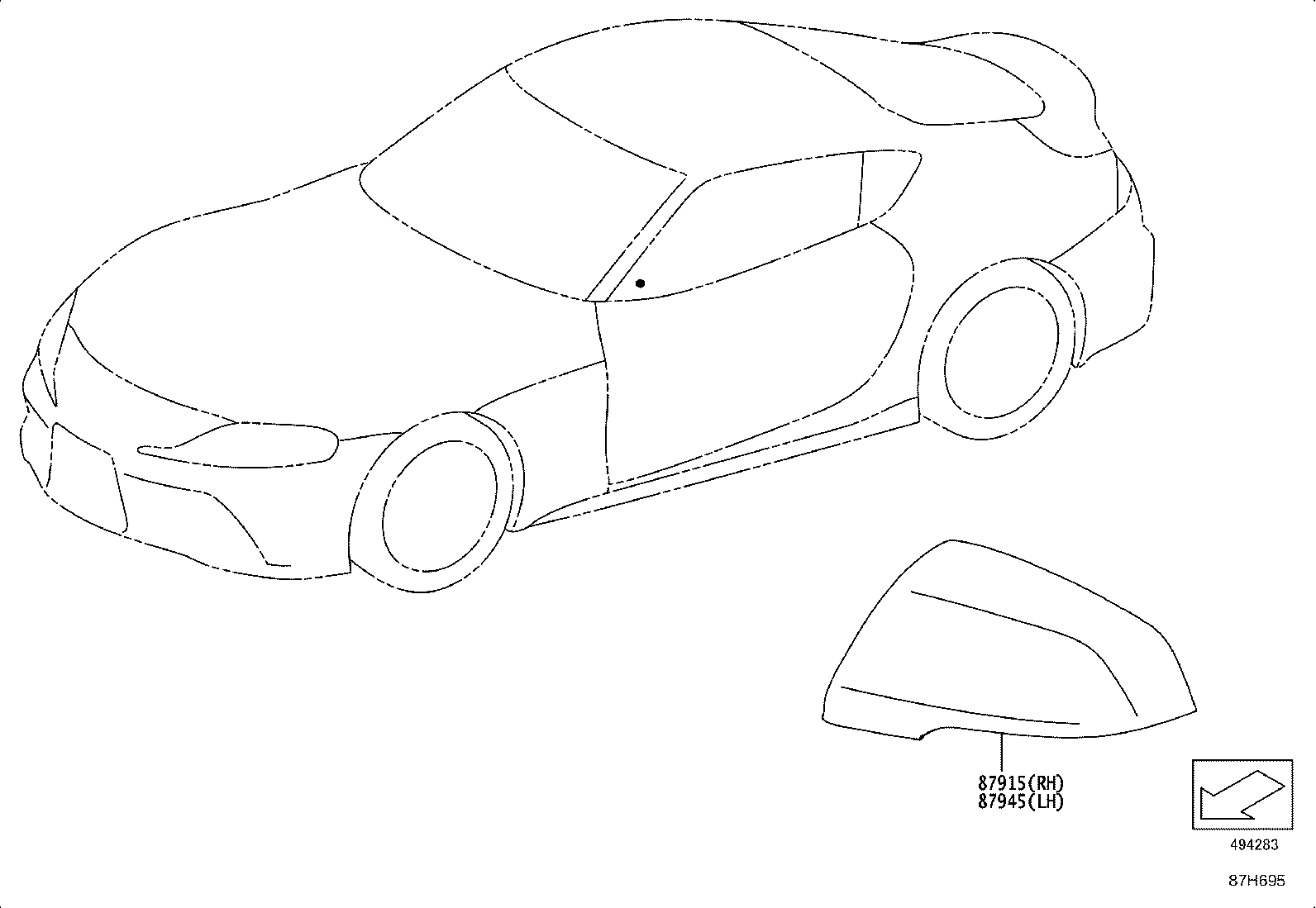

ILLUST NO. 4 OF 5(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-WAA14 |
DB2#,4#,81 |
1 | ||
| 87915-WAA15 |
DB2#,4#,81 LAUNCH EDITION RED MIRROR PACKAGE |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-WAA14 |
DB2#,4#,81 |
1 | ||
| 87945-WAA15 |
DB2#,4#,81 LAUNCH EDITION RED MIRROR PACKAGE |
1 | ||

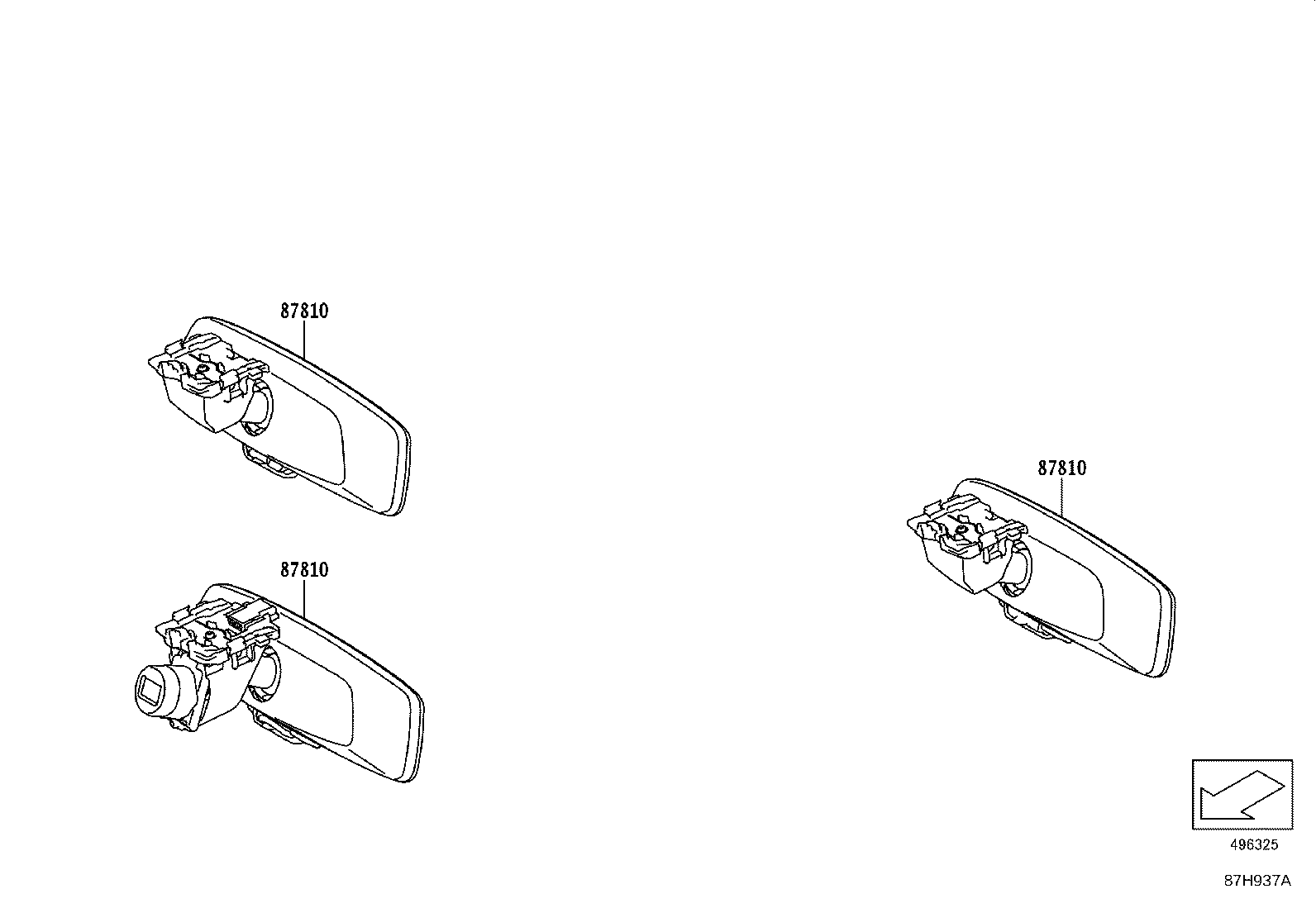

ILLUST NO. 5 OF 5(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-WAA05 |
DB2#,4#,81 GARAGE OPENER-WITH |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA01 |
DB21,4#,81 ANTI-THEFT SYSTEM-ALARM SYSTEM & IMMOBILIZER |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA06 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&GARAGE OPENER-WITHOUT |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-WAA05 |
DB2#,4#,81 GARAGE OPENER-WITH |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA01 |
DB21,4#,81 ANTI-THEFT SYSTEM-ALARM SYSTEM & IMMOBILIZER |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA06 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&GARAGE OPENER-WITHOUT |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-WAA05 |
DB2#,4#,81 GARAGE OPENER-WITH |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA01 |
DB21,4#,81 ANTI-THEFT SYSTEM-ALARM SYSTEM & IMMOBILIZER |
1 | ||
| 87810-WAA04 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&GARAGE OPENER-WITH |
1 | ||
| 87810-WAA06 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&GARAGE OPENER-WITHOUT |
1 | ||

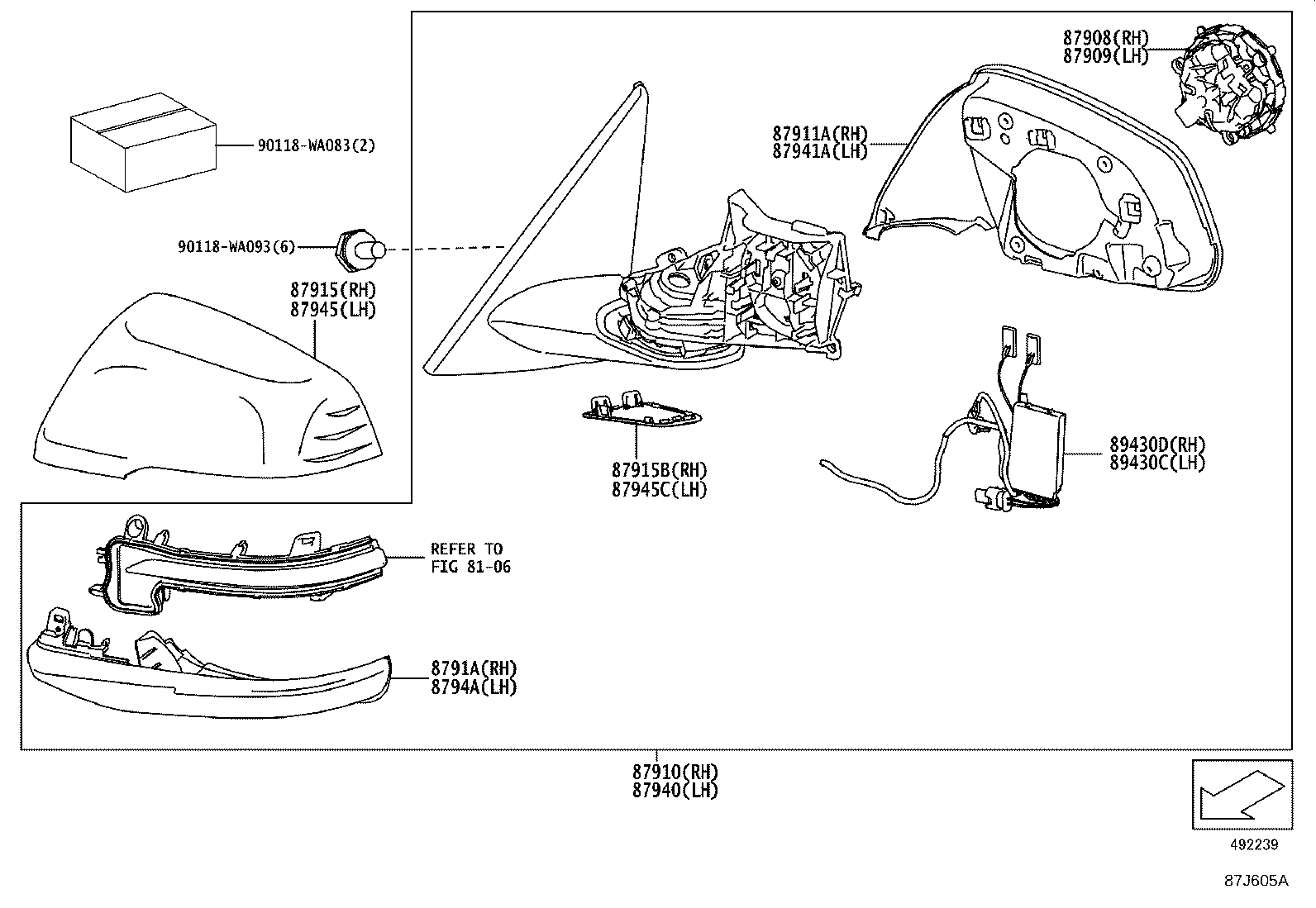

ILLUST NO. 1 OF 5(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-WAA02 |
DB2#,4#,81 |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87908-WAA02 |
DB2#,4#,81 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-WAA02 |
DB22 |
1 | ||
| 87910-WAA10 |
DB22 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87911A - VISOR, OUTER MIRROR, RH | ||||
| 87911-WAA01 |
DB2#,4#,81 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-WAA14 |
DB2#,4#,81 |
1 | ||
| 87915-WAA15 |
DB2#,4#,81 LAUNCH EDITION RED MIRROR PACKAGE |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87914-WAA01 |
DB2#,4#,81 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 87939-WAA02 |
DB2#,4#,81 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-WAA02 |
DB22 |
1 | ||
| 87940-WAA10 |
DB22 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 87941A - VISOR, OUTER MIRROR, LH | ||||
| 87941-WAA01 |
DB2#,4#,81 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-WAA14 |
DB2#,4#,81 |
1 | ||
| 87945-WAA15 |
DB2#,4#,81 LAUNCH EDITION RED MIRROR PACKAGE |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87944-WAA01 |
DB2#,4#,81 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 87948-WAA02 |
DB2#,4#,81 |
1 | ||
| 89430C - COMPUTER ASSY, OUTER MIRROR CONTROL, LH | ||||
| 89430-WAA13 |
DB22,42 |
1 | ||
| 89430-WAA21 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 89430D - COMPUTER ASSY, OUTER MIRROR CONTROL, RH | ||||
| 89430-WAA24 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 89430-WAA16 |
DB22,42 |
1 | ||
| Common parts | ||||
| 90118-WA083 | ||||
| 90118-WA093 | ||||
| Linked diagrams | ||||
| 8106 | ||||
