DB22R-ZTRW (2019)
Toyota Supra

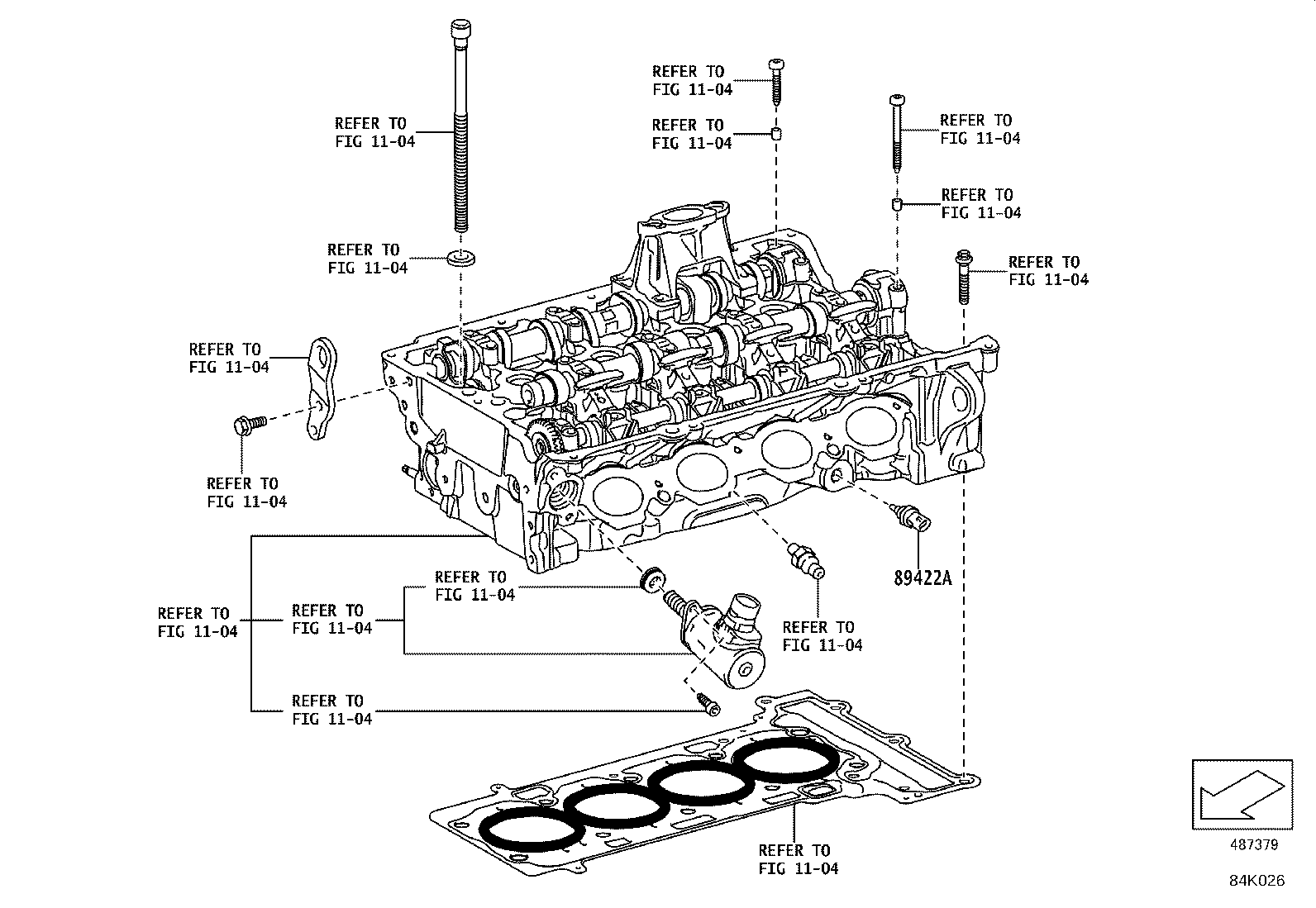

ILLUST NO. 4 OF41(1903- )DB2#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||

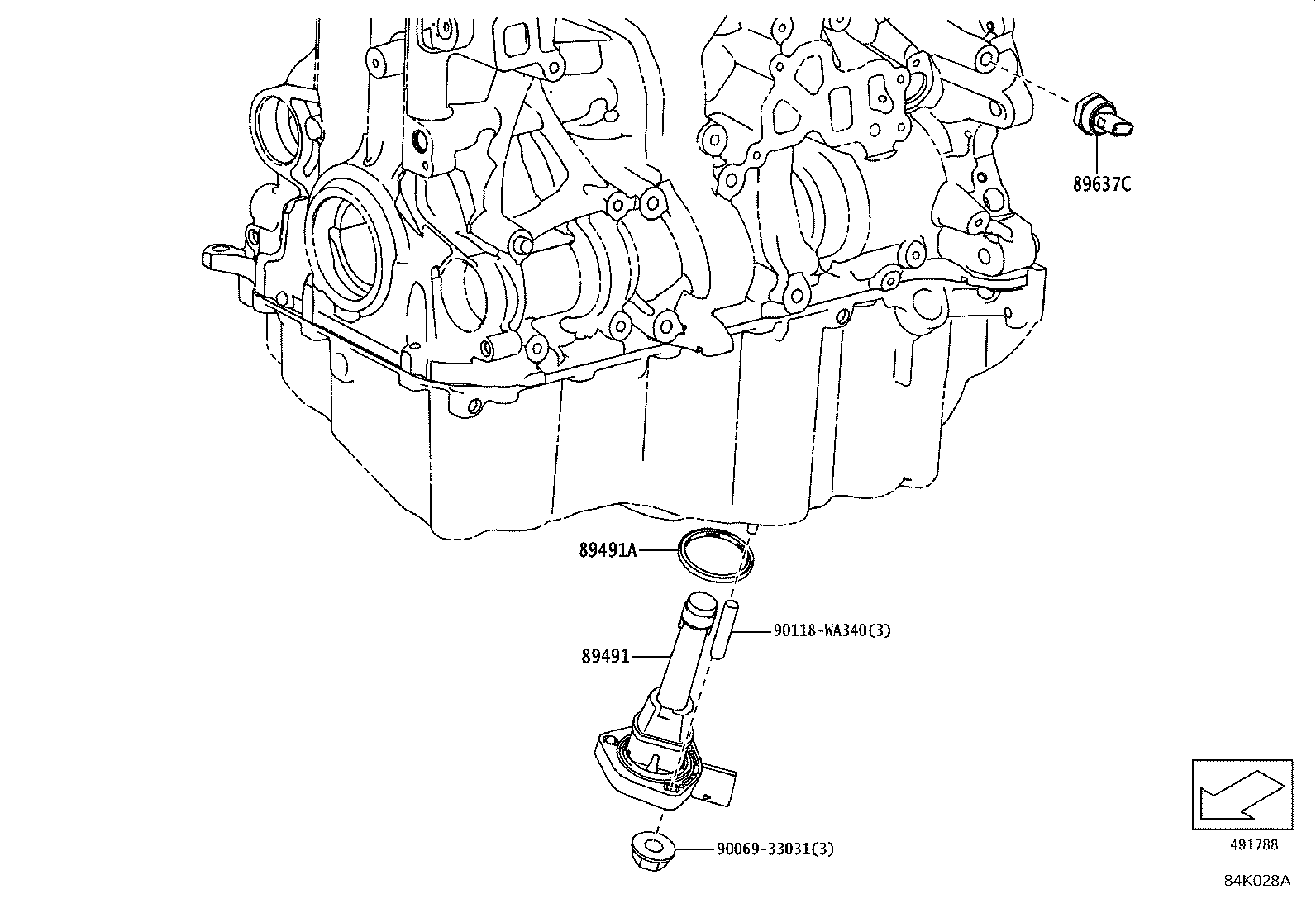

ILLUST NO. 5 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-WAA01 |
DB2#,4#,81 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-WAA02 |
DB2#,4#,8# |
1 | ||
| 89493-WAA03 |
DB2#,4#,81 |
1 | ||
| 89637C - SENSOR, OIL PRESSURE | ||||
| 89637-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90069-33031 | ||||
| 90118-WA340 | ||||

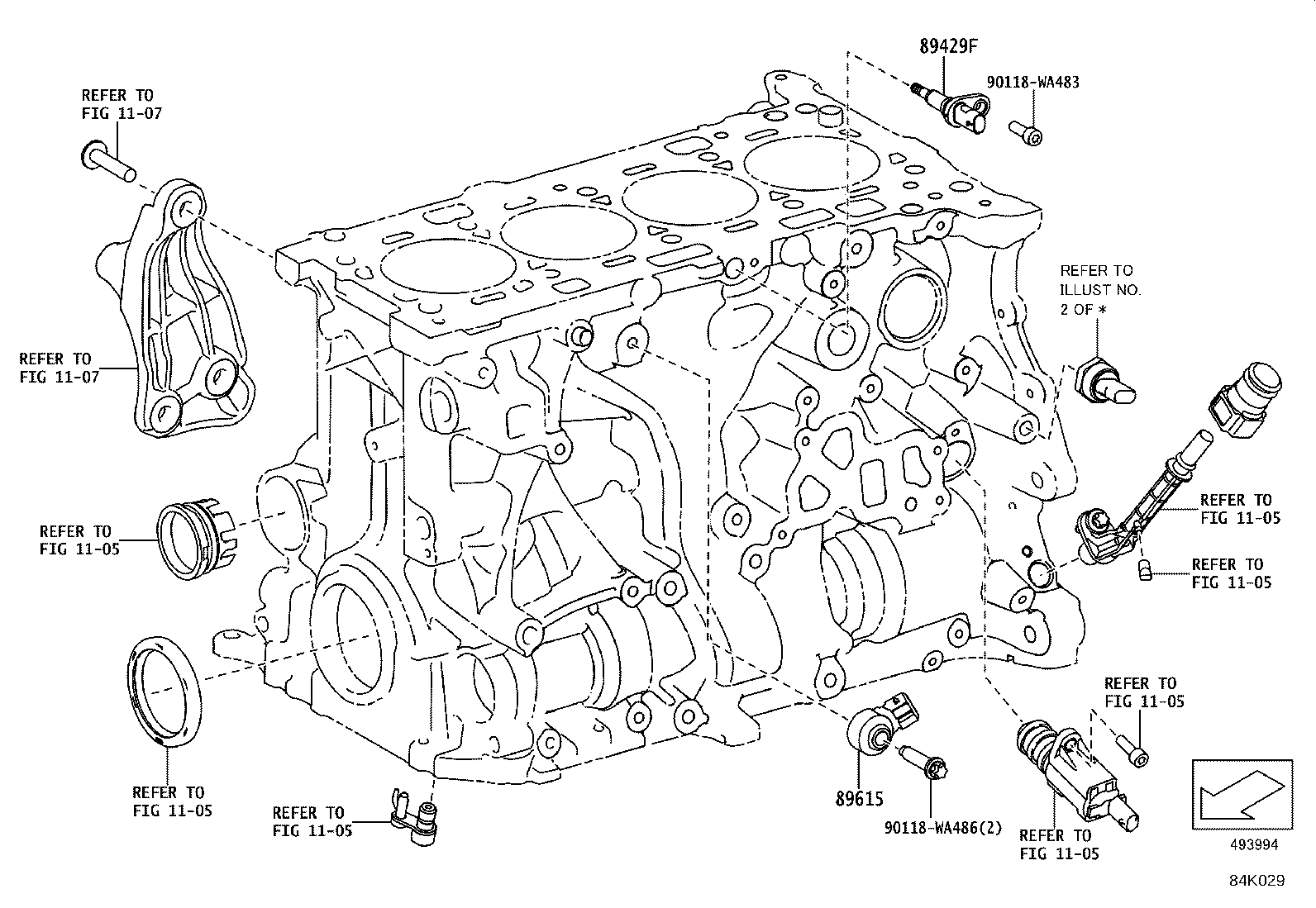

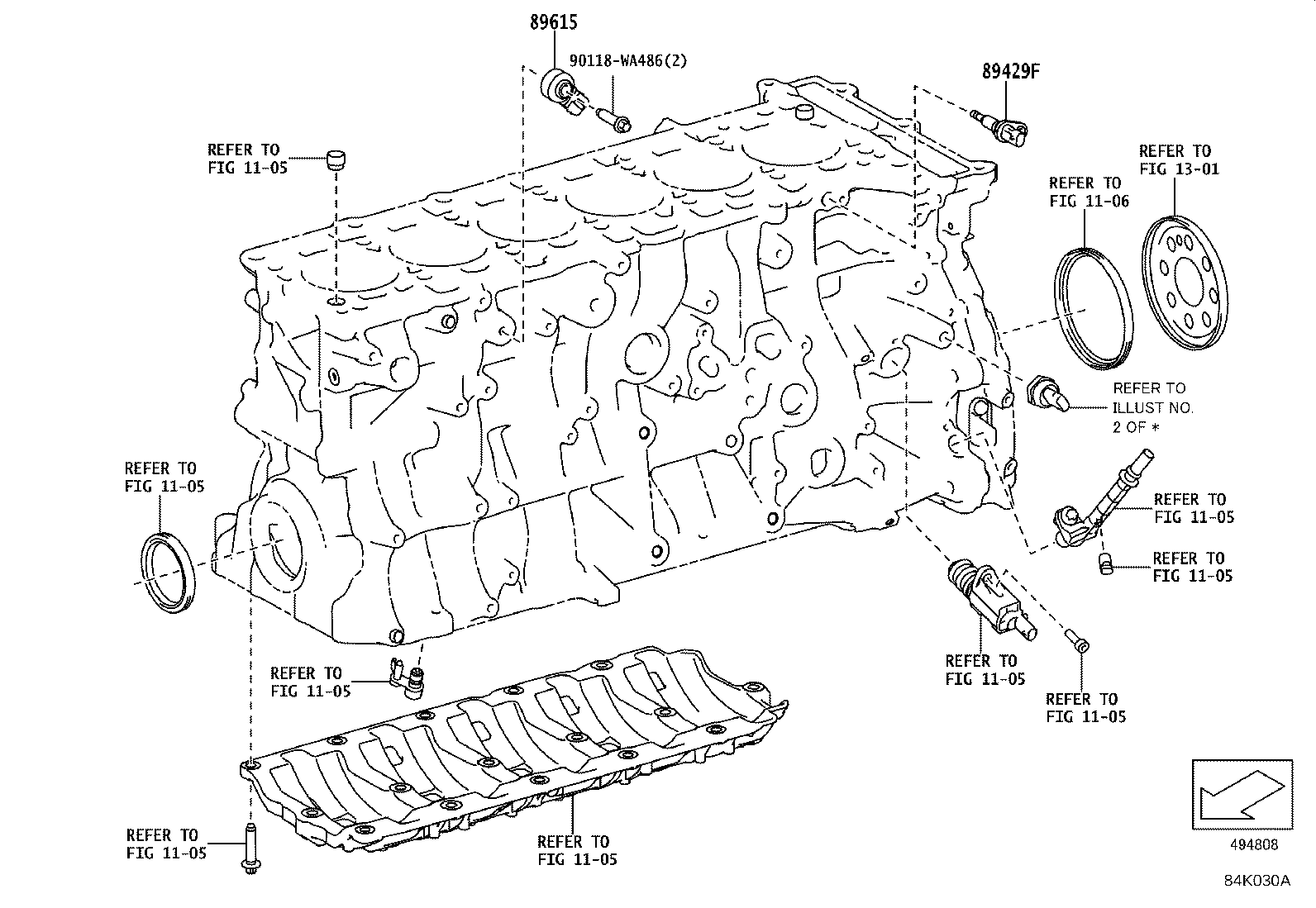

ILLUST NO. 6 OF41(1903- )DB2#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-WAA02 |
DB2#,4#,81 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-WAA01 |
DB2#,4#,81 |
2 | ||
| Common parts | ||||
| 90118-WA483 | ||||
| 90118-WA486 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1107 | ||||
ILLUST NO. 6 OF41(1903- )DB0#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-WAA02 |
DB2#,4#,81 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-WAA01 |
DB2#,4#,81 |
2 | ||
| Common parts | ||||
| 90118-WA486 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1301 | ||||

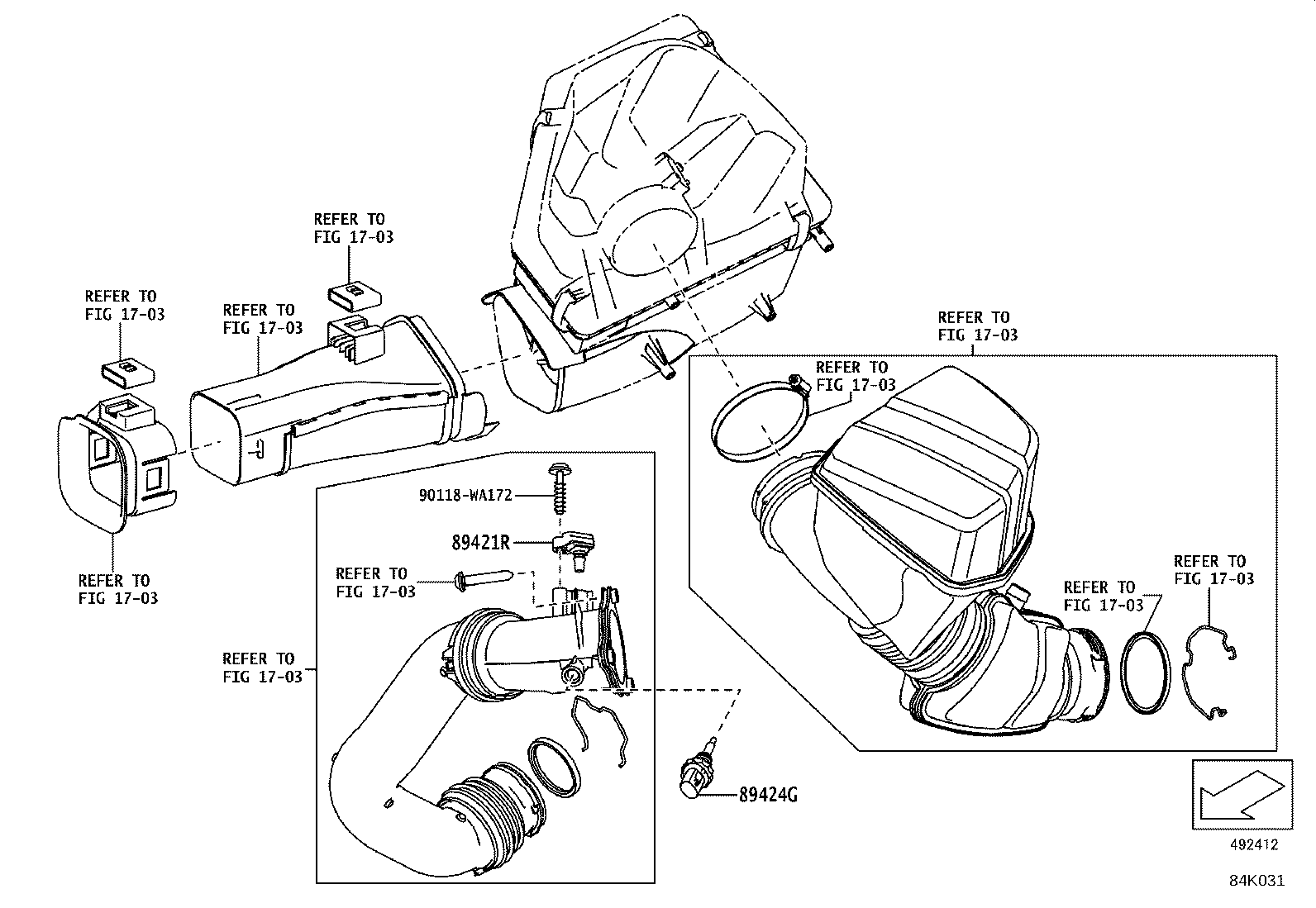

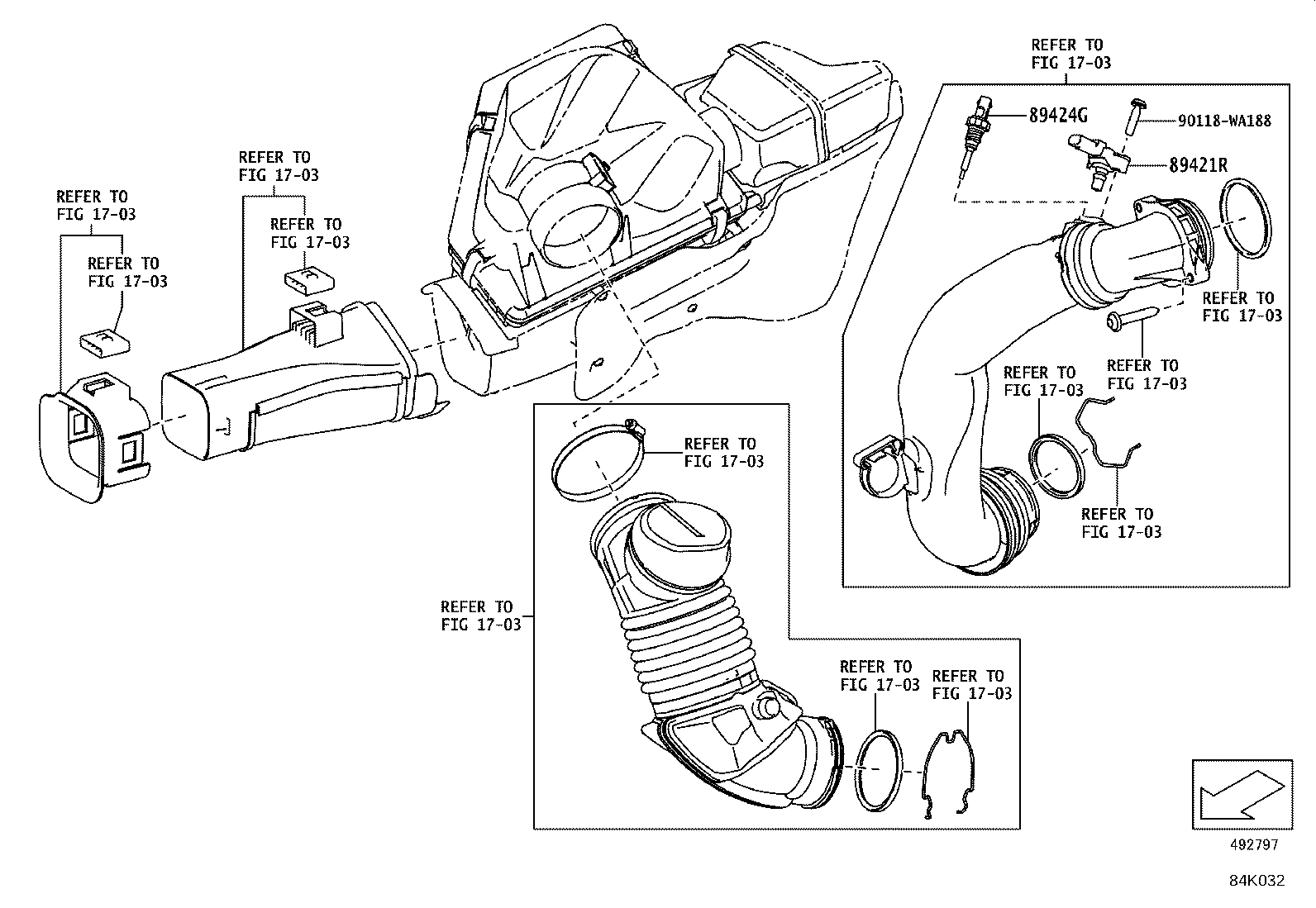

ILLUST NO. 7 OF41(1903- )DB2#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421R - SENSOR, AIR PRESSURE | ||||
| 89421-WAA01 |
DB2#,4#,81 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA172 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 7 OF41(1903- )DB0#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421R - SENSOR, AIR PRESSURE | ||||
| 89421-WAA01 |
DB2#,4#,81 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA188 | ||||
| Linked diagrams | ||||
| 1703 | ||||
ILLUST NO. 8 OF41(1903- )DB2#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

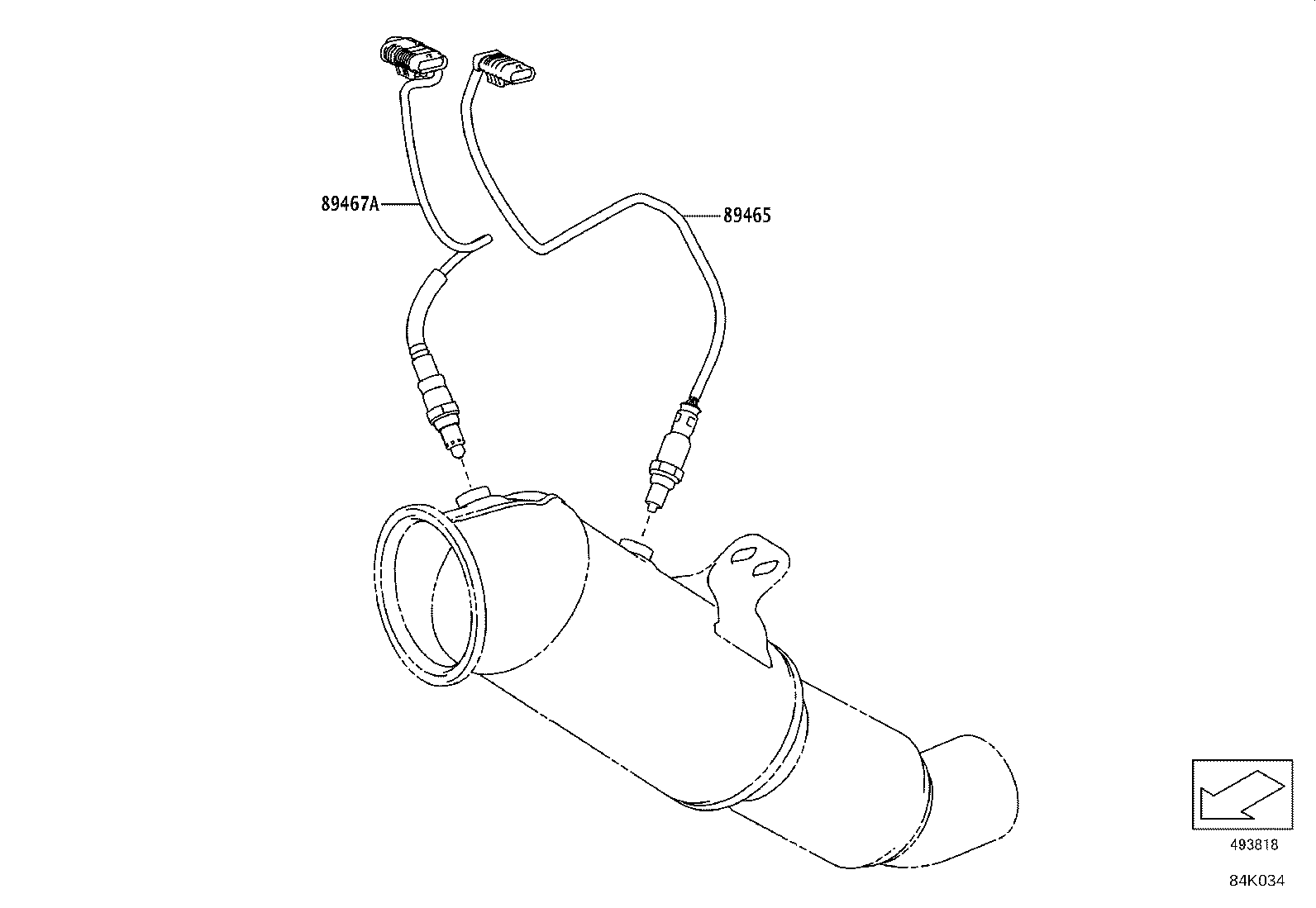

| 89465 - SENSOR, OXYGEN | ||||
| 89465-WAA01 |
DB2#,81 |
1 | ||
| 89467A - SENSOR, WIDE RANGE AIR FUEL RATIO | ||||
| 89467-WAA01 |
DB2#,81 |
1 | ||
| Common parts | ||||
| 90069-49015 | ||||

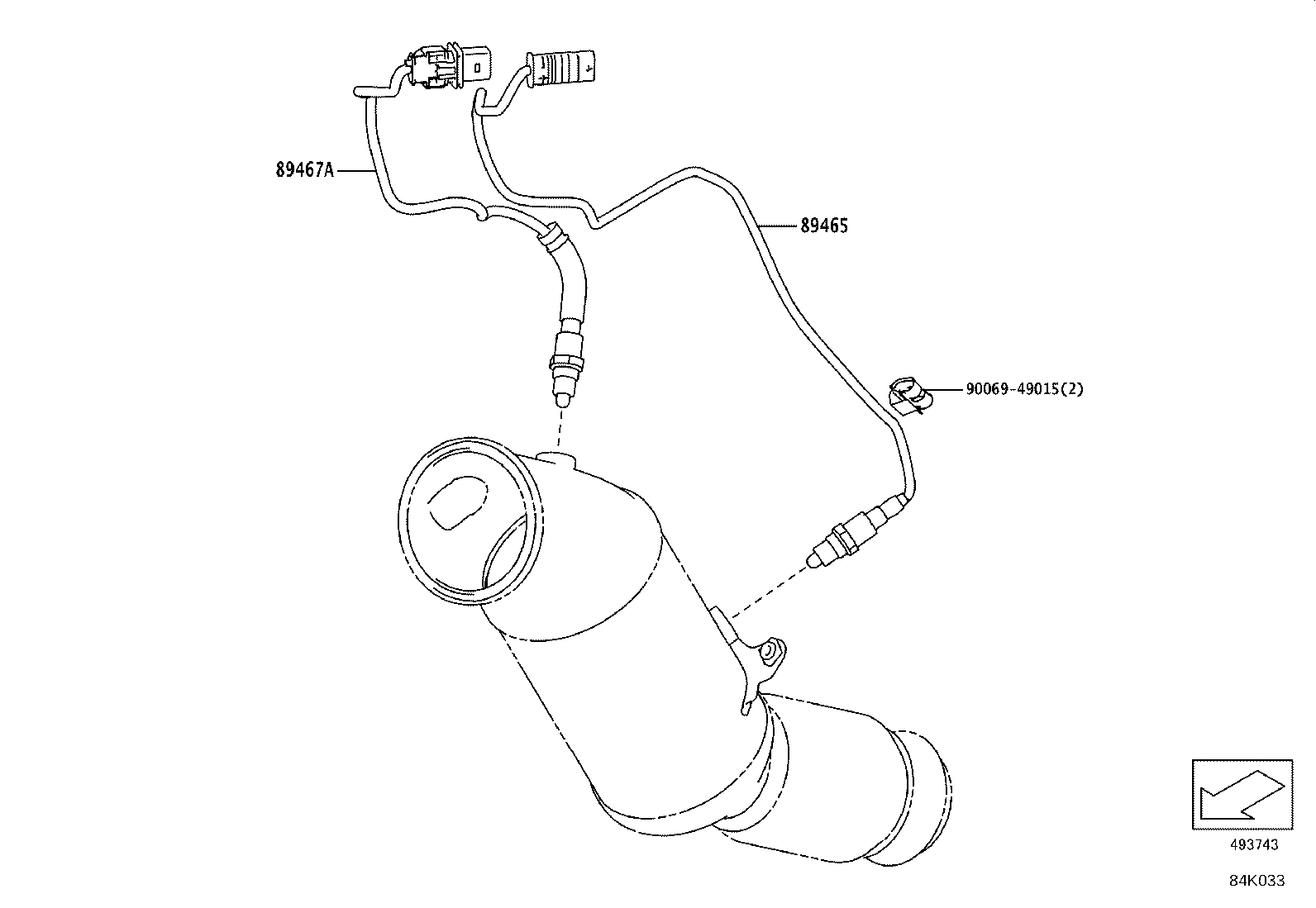

ILLUST NO. 8 OF41(1903- )DB0#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89465 - SENSOR, OXYGEN | ||||
| 89465-WAA01 |
DB2#,81 |
1 | ||
| 89467A - SENSOR, WIDE RANGE AIR FUEL RATIO | ||||
| 89467-WAA01 |
DB2#,81 |
1 | ||

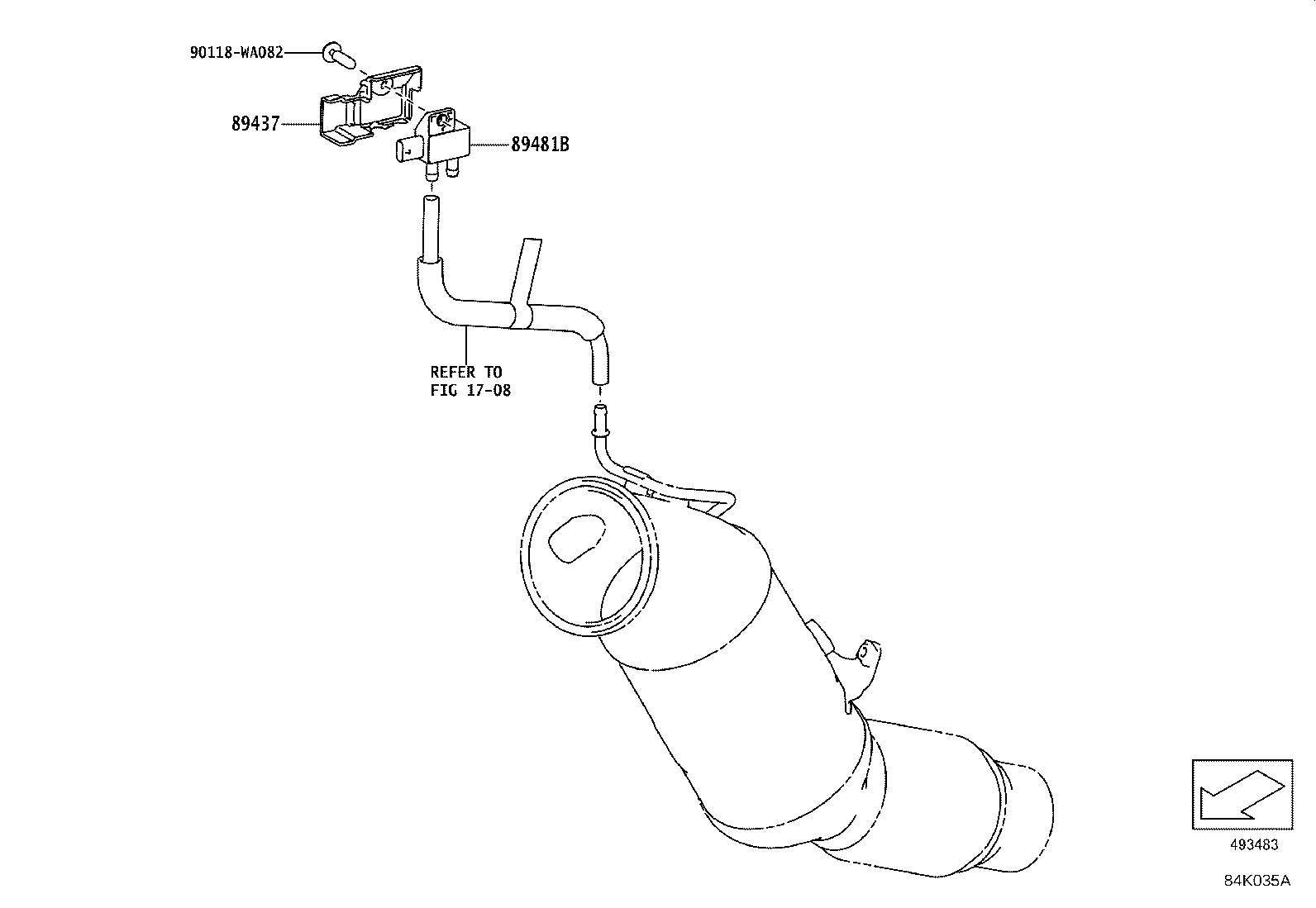

ILLUST NO. 9 OF41(1903- )DB2#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89437 - COVER, SENSOR | ||||
| 89437-WAA01 |
DB2#,81 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA082 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 9 OF41(1903- )DB0#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA082 | ||||
| Linked diagrams | ||||
| 1708 | ||||

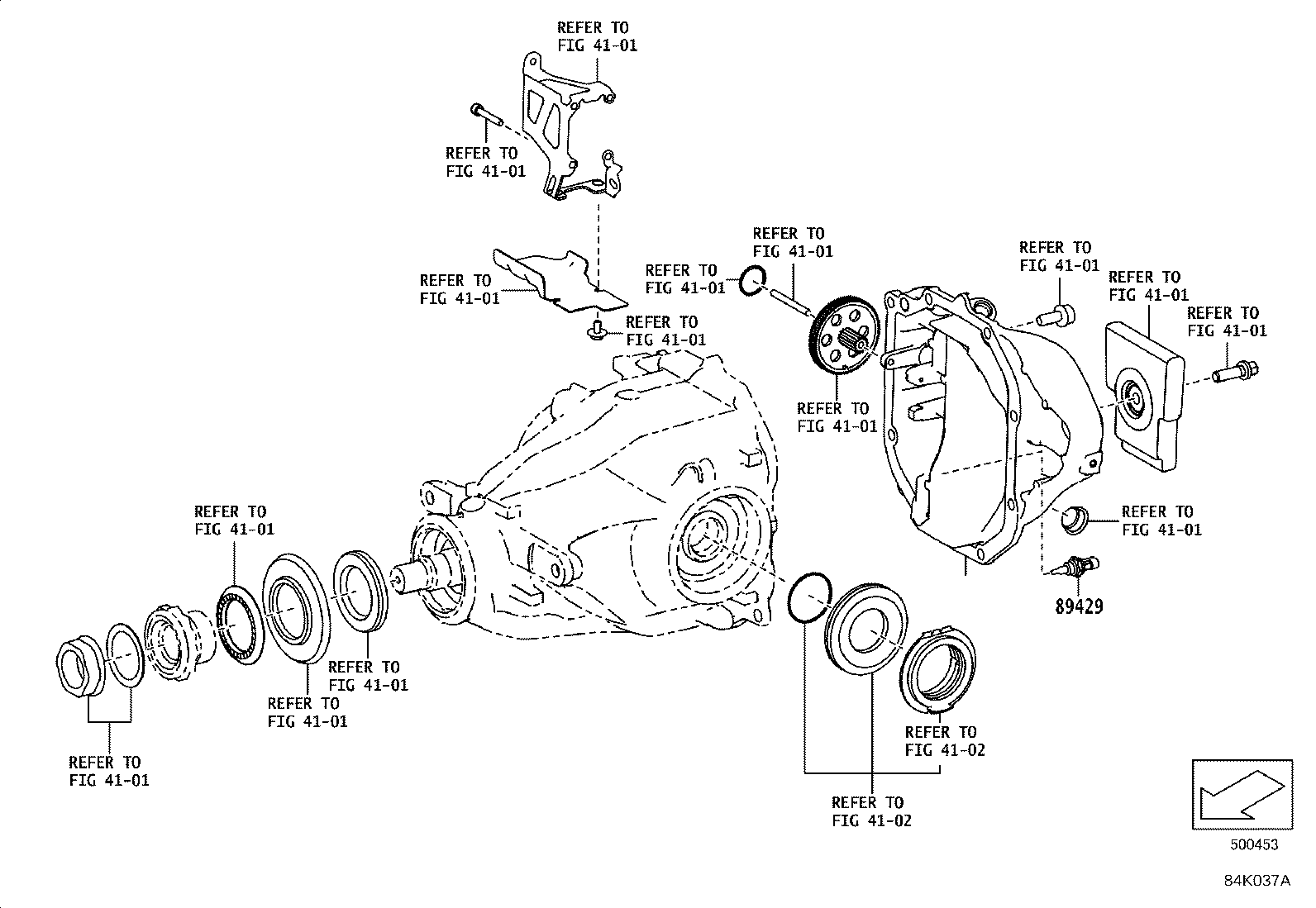

ILLUST NO.10 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89429-WAA01 |
DB2#,4# |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||
| 4102 | ||||
ILLUST NO.11 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA401 | ||||

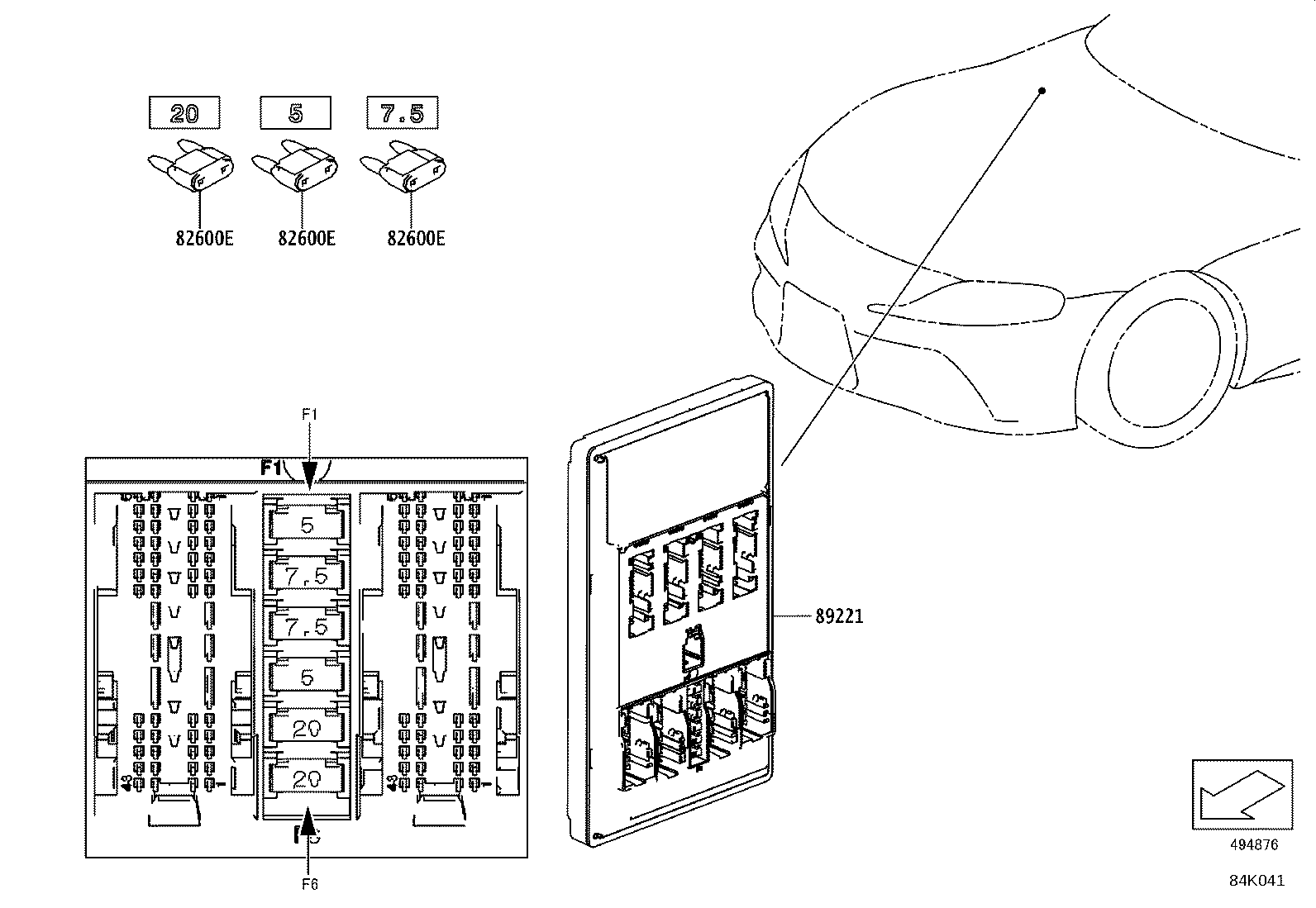

ILLUST NO.13 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600E - ENGINE ROOM FUSE | ||||
| 90118-WA363 |
DB2#,4#,81 20A |
2 | ||
| 90118-WA361 |
DB2#,4#,81 5A |
2 | ||
| 90118-WA362 |
DB2#,4#,81 7.5A |
2 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90118-WA363 |
DB2#,4#,81 20A |
2 | ||
| 90118-WA361 |
DB2#,4#,81 5A |
2 | ||
| 90118-WA362 |
DB2#,4#,81 7.5A |
2 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90118-WA363 |
DB2#,4#,81 20A |
2 | ||
| 90118-WA361 |
DB2#,4#,81 5A |
2 | ||
| 90118-WA362 |
DB2#,4#,81 7.5A |
2 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-WAA19 |
DB2#,4#,81 |
1 | ||

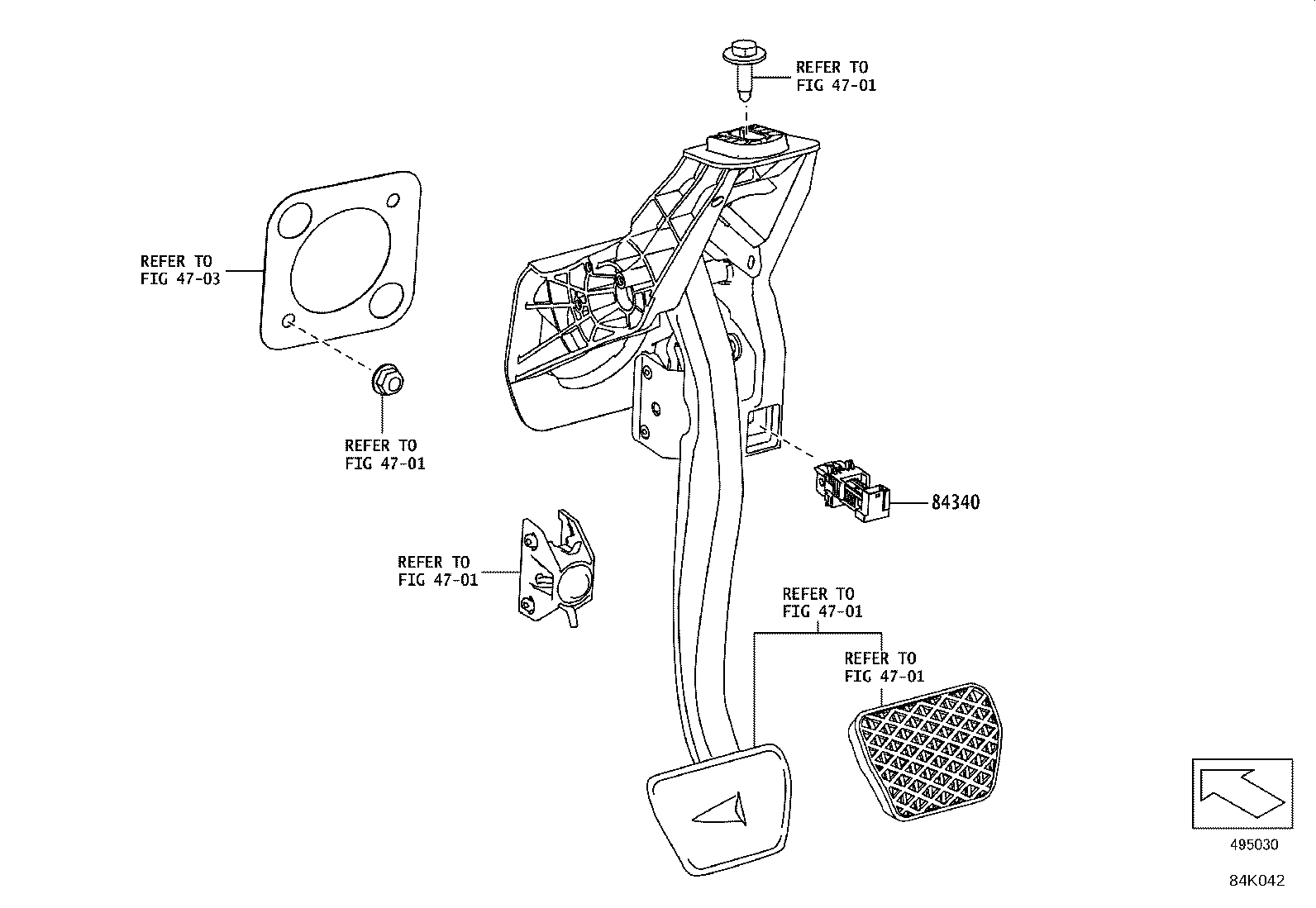

ILLUST NO.15 OF41(1903- )DB02,22,42,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

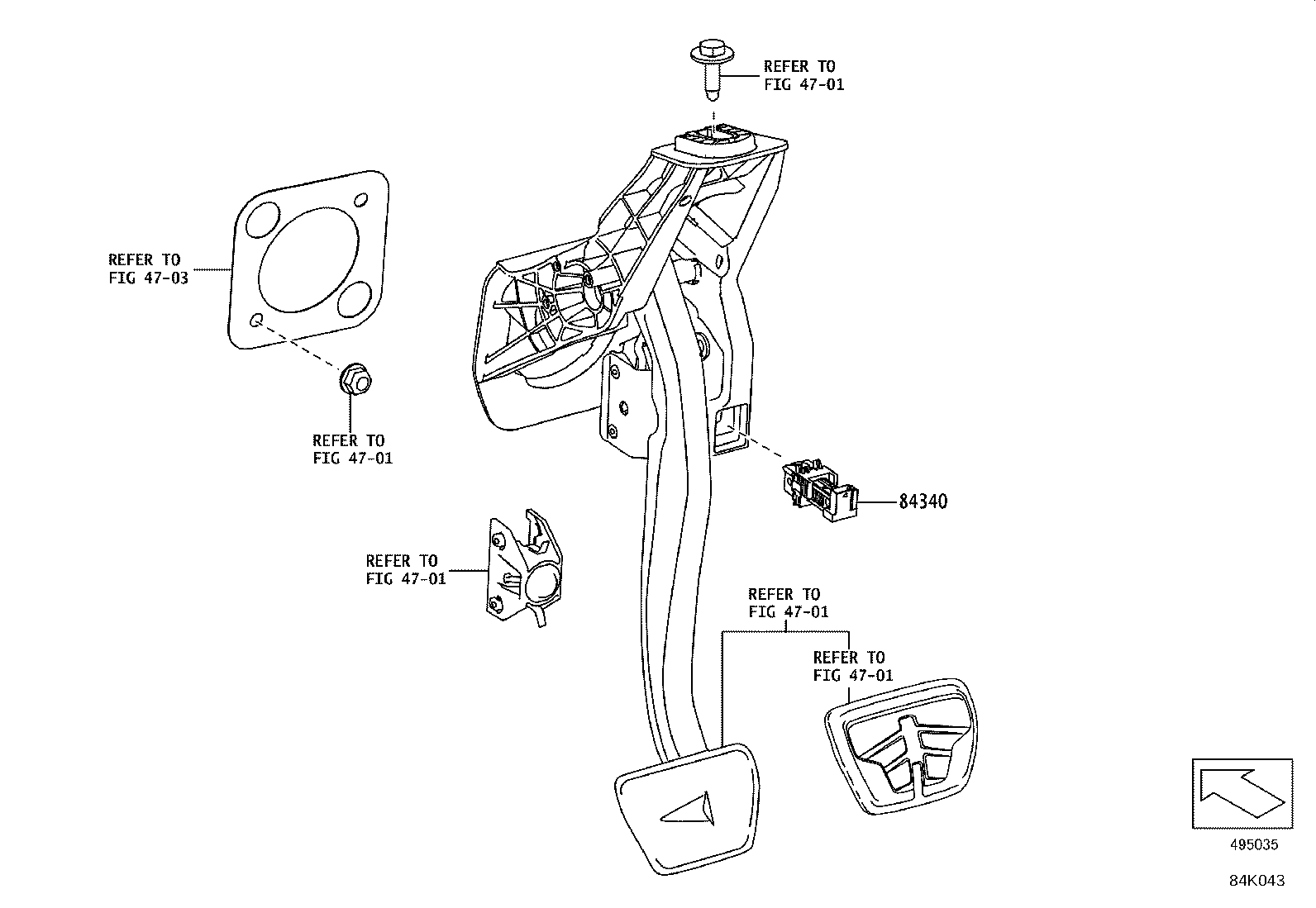

| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 4701 | ||||
| 4703 | ||||
ILLUST NO.16 OF41(1903- )DB02,22,42,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 4701 | ||||
| 4703 | ||||
ILLUST NO.17 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

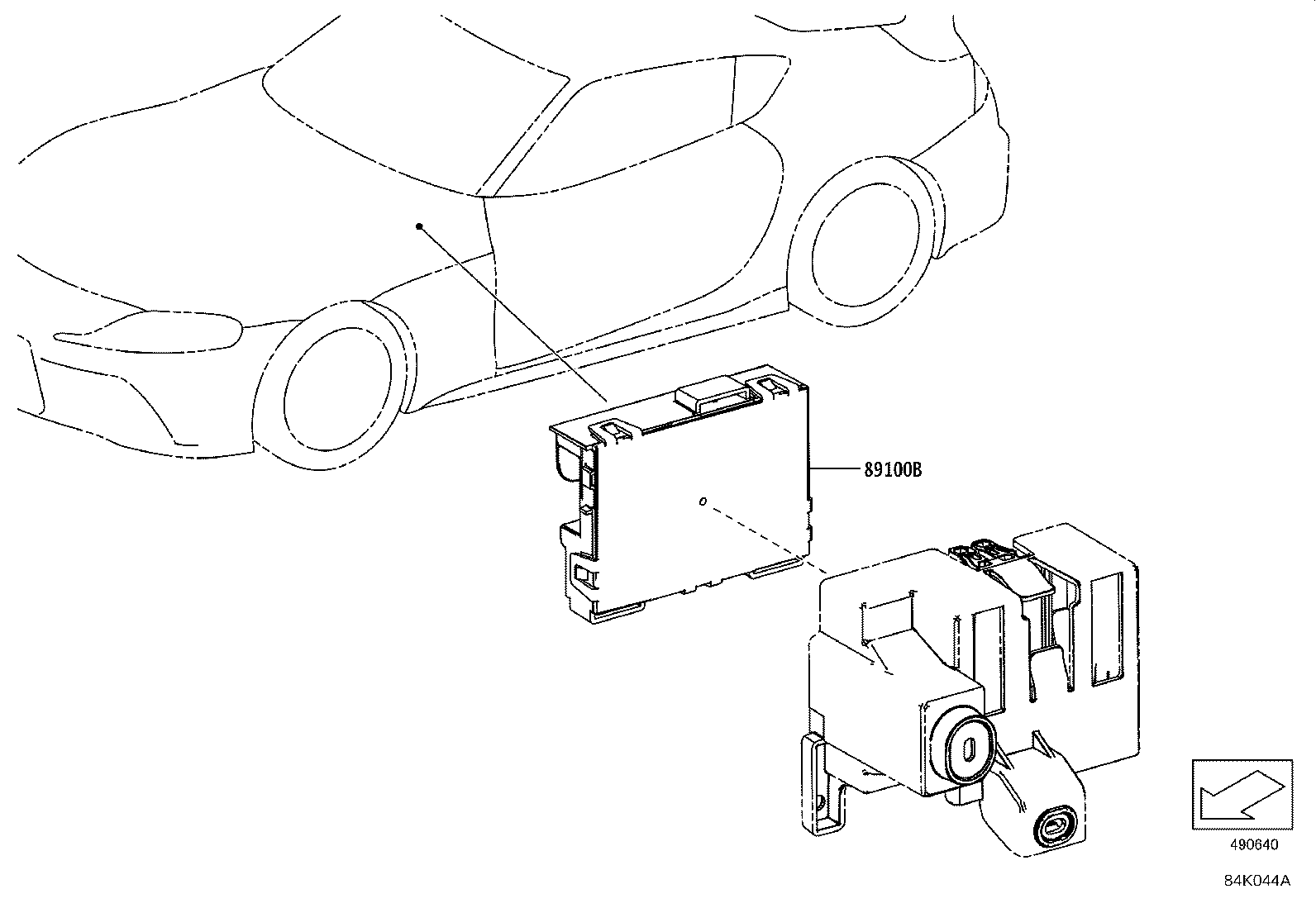

| 89100B - BOX, ETHERNET SWITCH | ||||
| 89100-WAA03 |
DB2#,4#,81 |
1 | ||

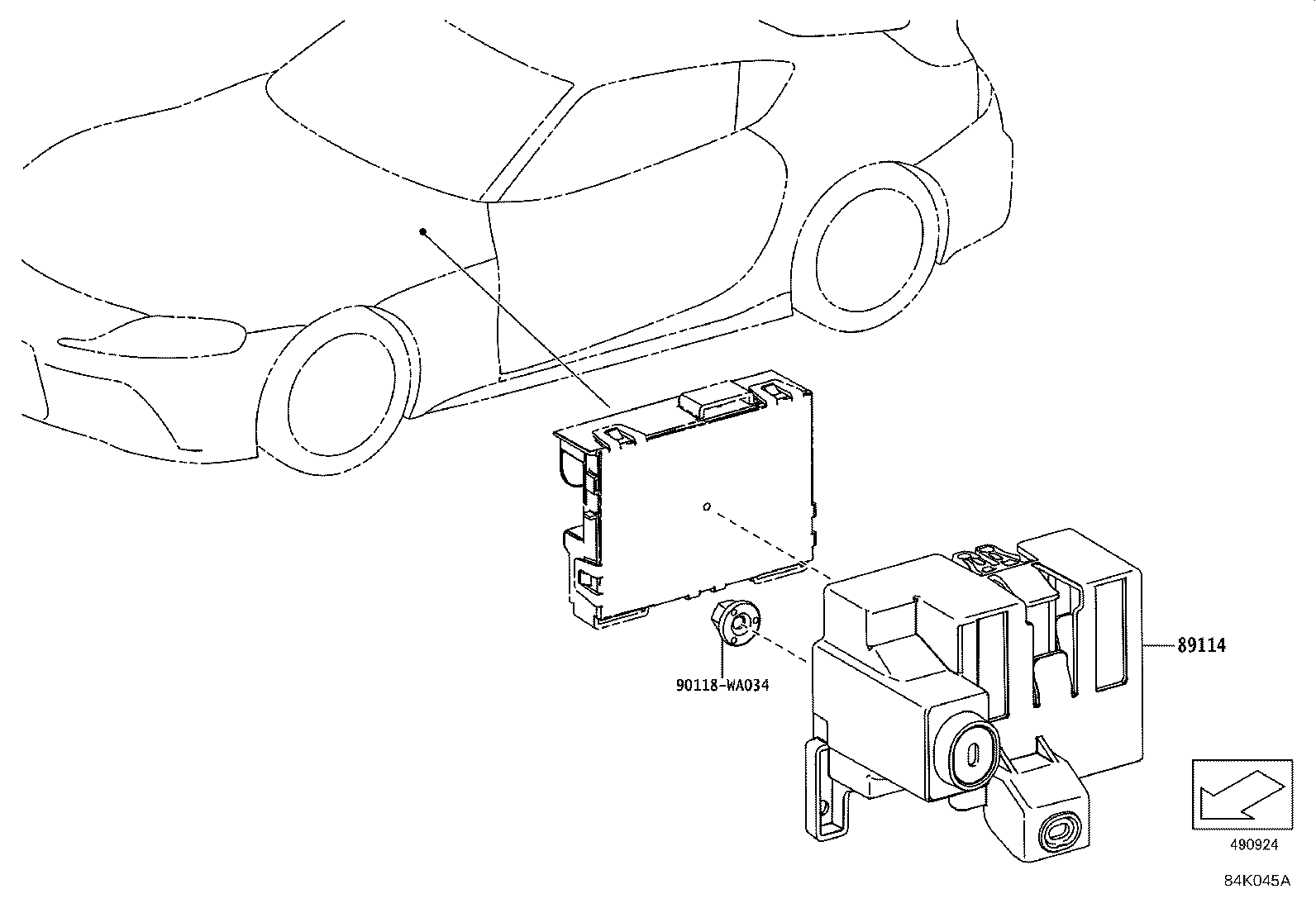

ILLUST NO.18 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89114 - HOLDER, ETHERNET SWITCH BOX | ||||
| 89114-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA034 | ||||

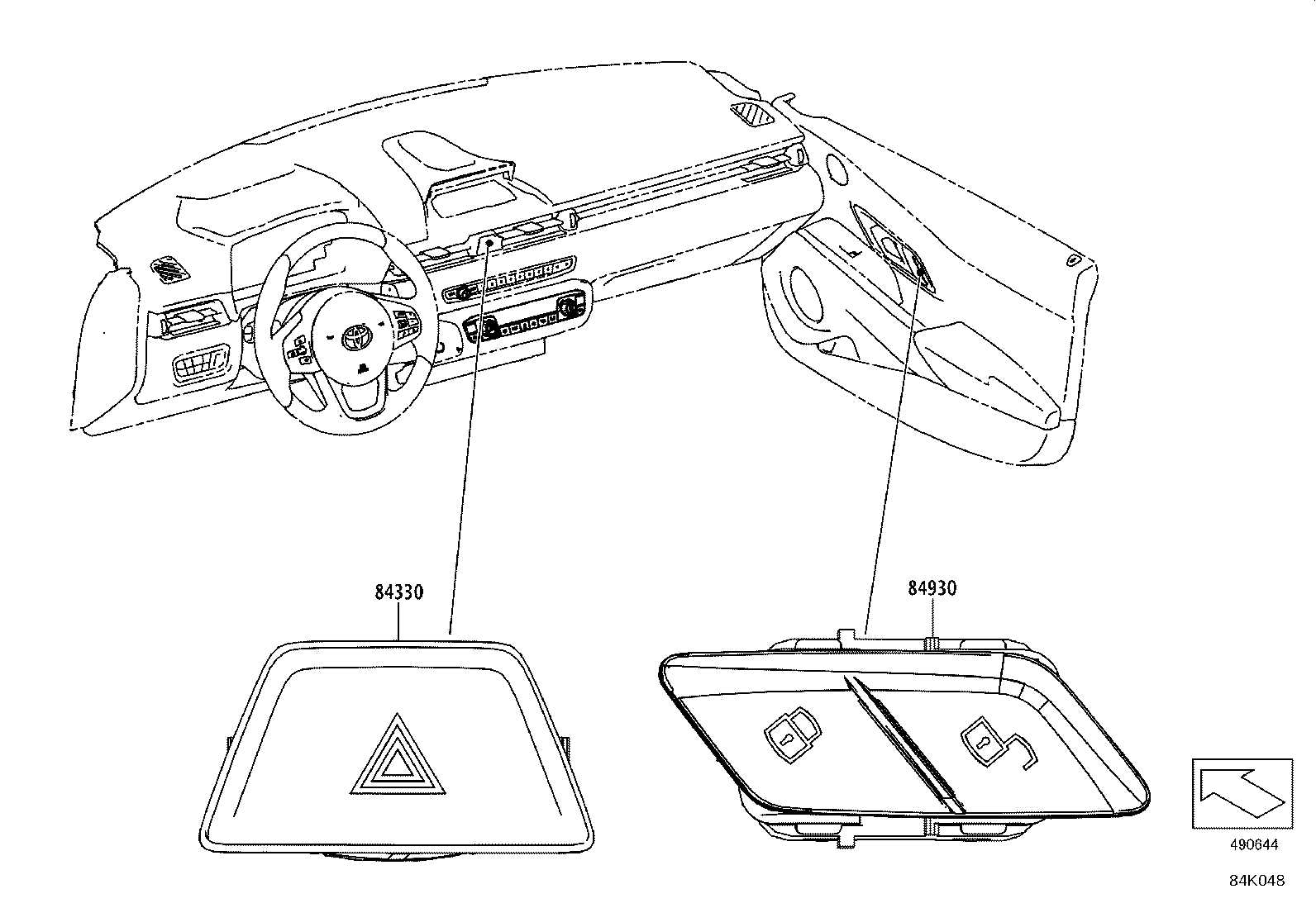

ILLUST NO.19 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-WAA01 |
DB2#,4#,81 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-WAA02 |
DB22,42 |
1 | ||

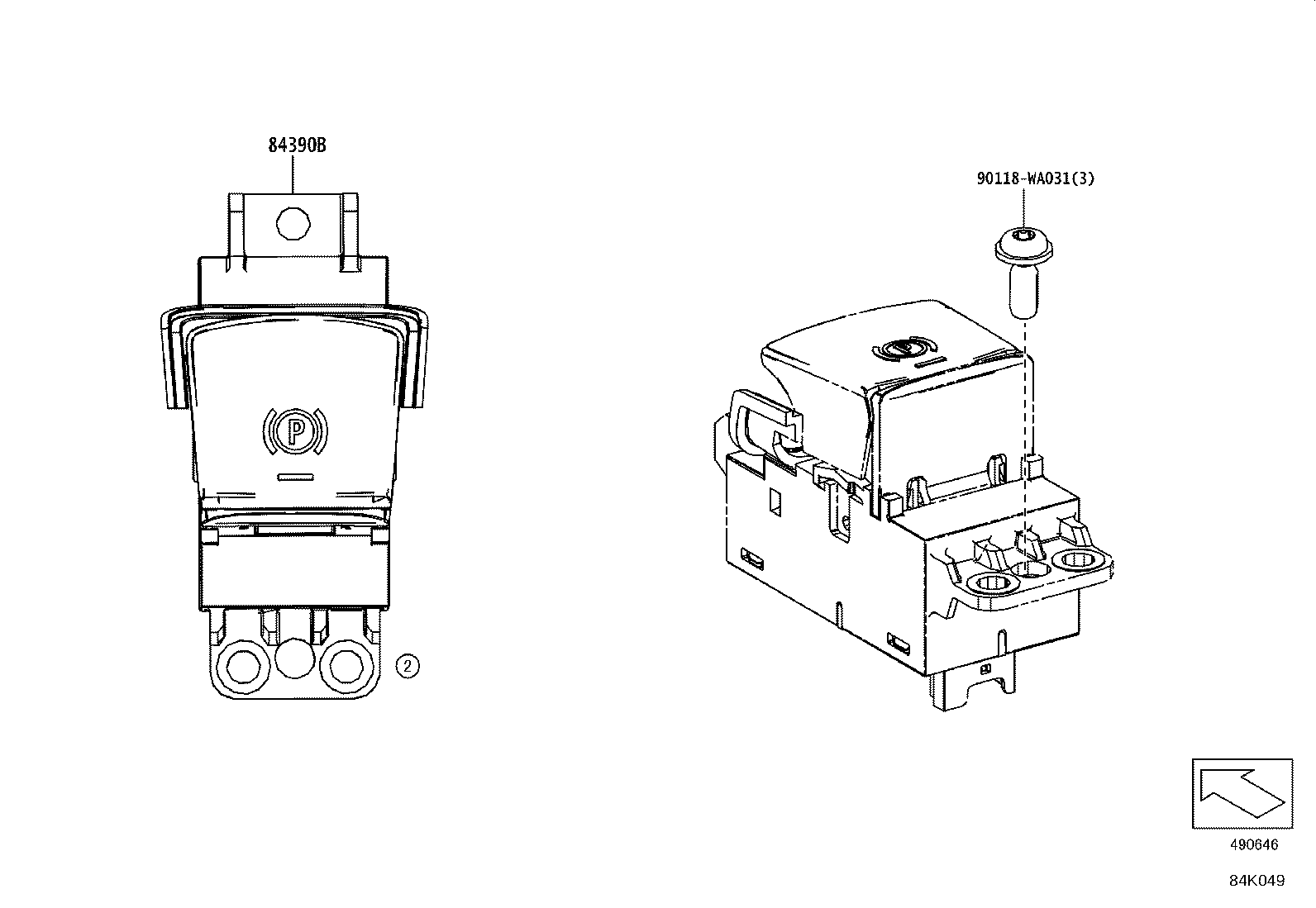

ILLUST NO.20 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA031 | ||||

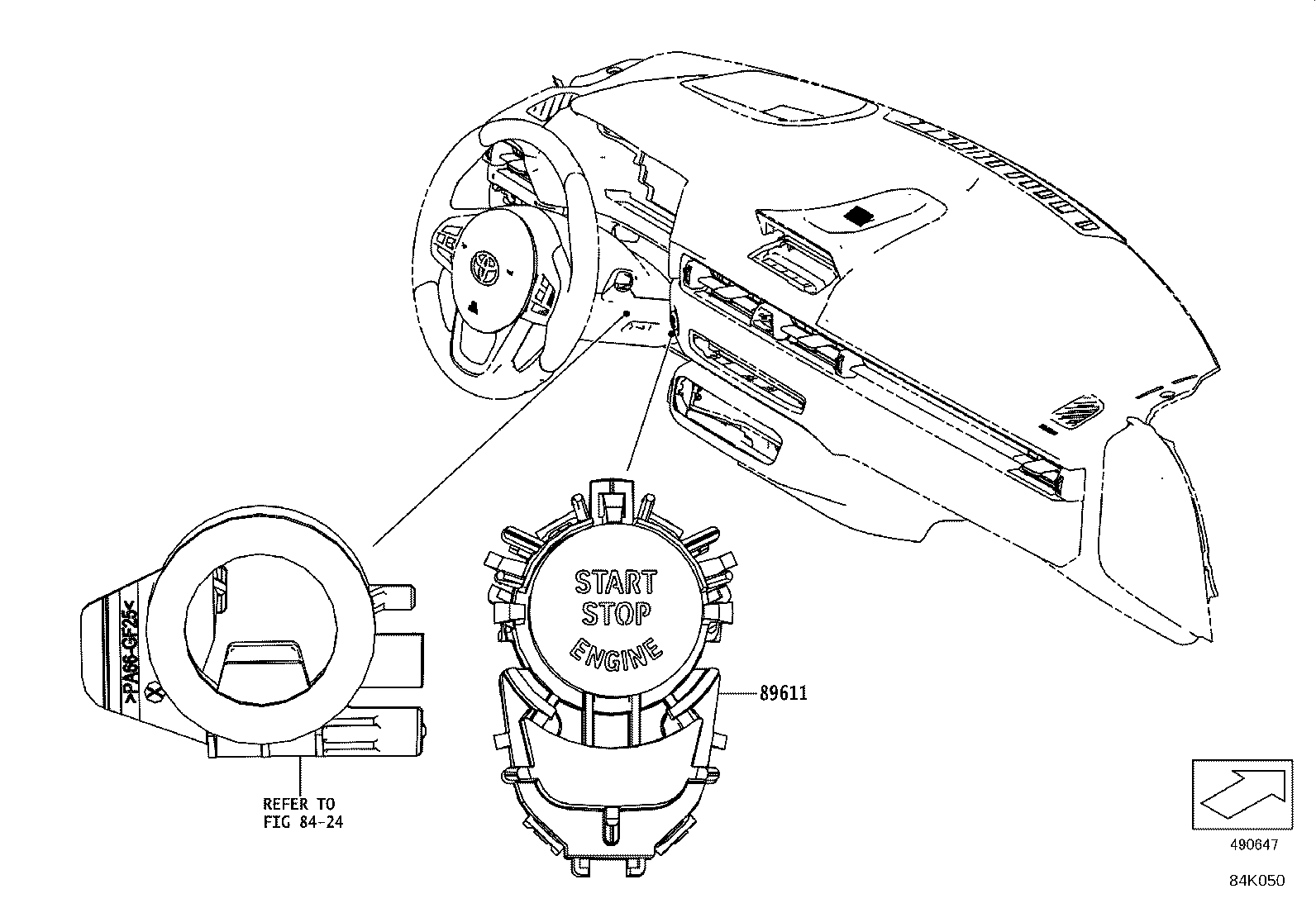

ILLUST NO.21 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89611 - SWITCH, PUSH START | ||||
| 89611-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 8424 | ||||

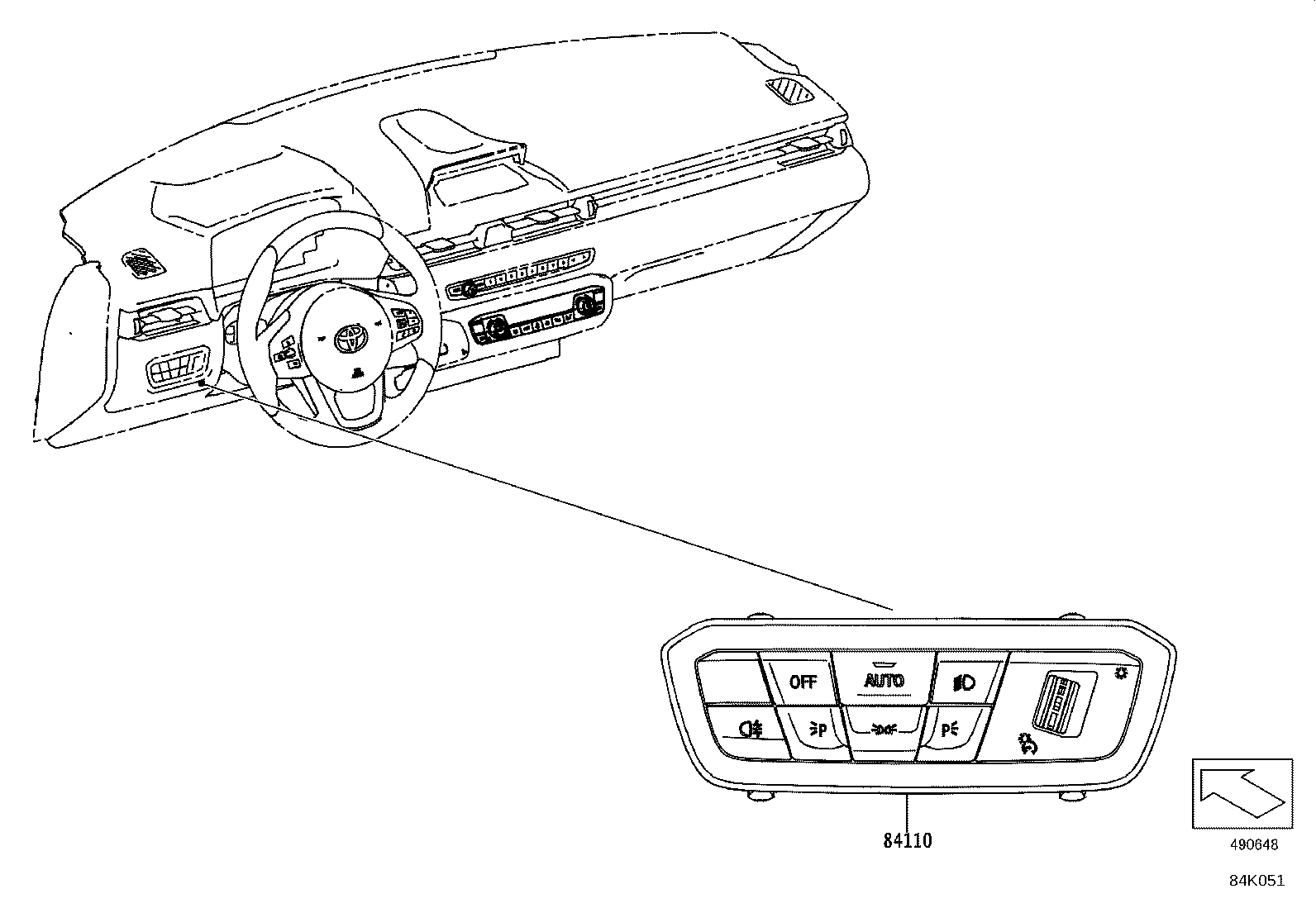

ILLUST NO.22 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84110-WAA04 |
DB2#,4#,81 |
1 | ||
ILLUST NO.23 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

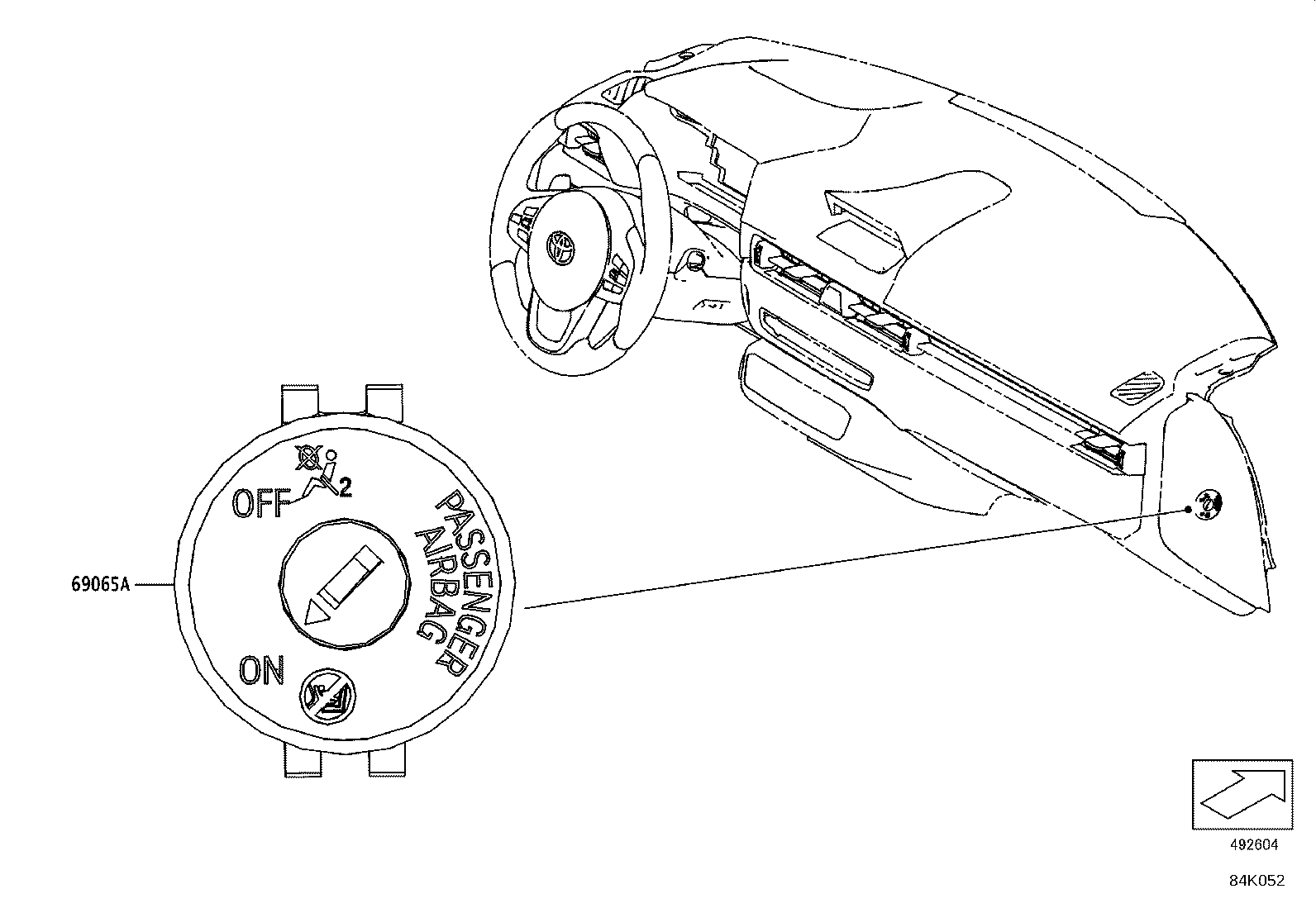

| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-WAA01 |
DB2#,4#,81 CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 69065-WAA01 |
DB2#,4#,81 CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||

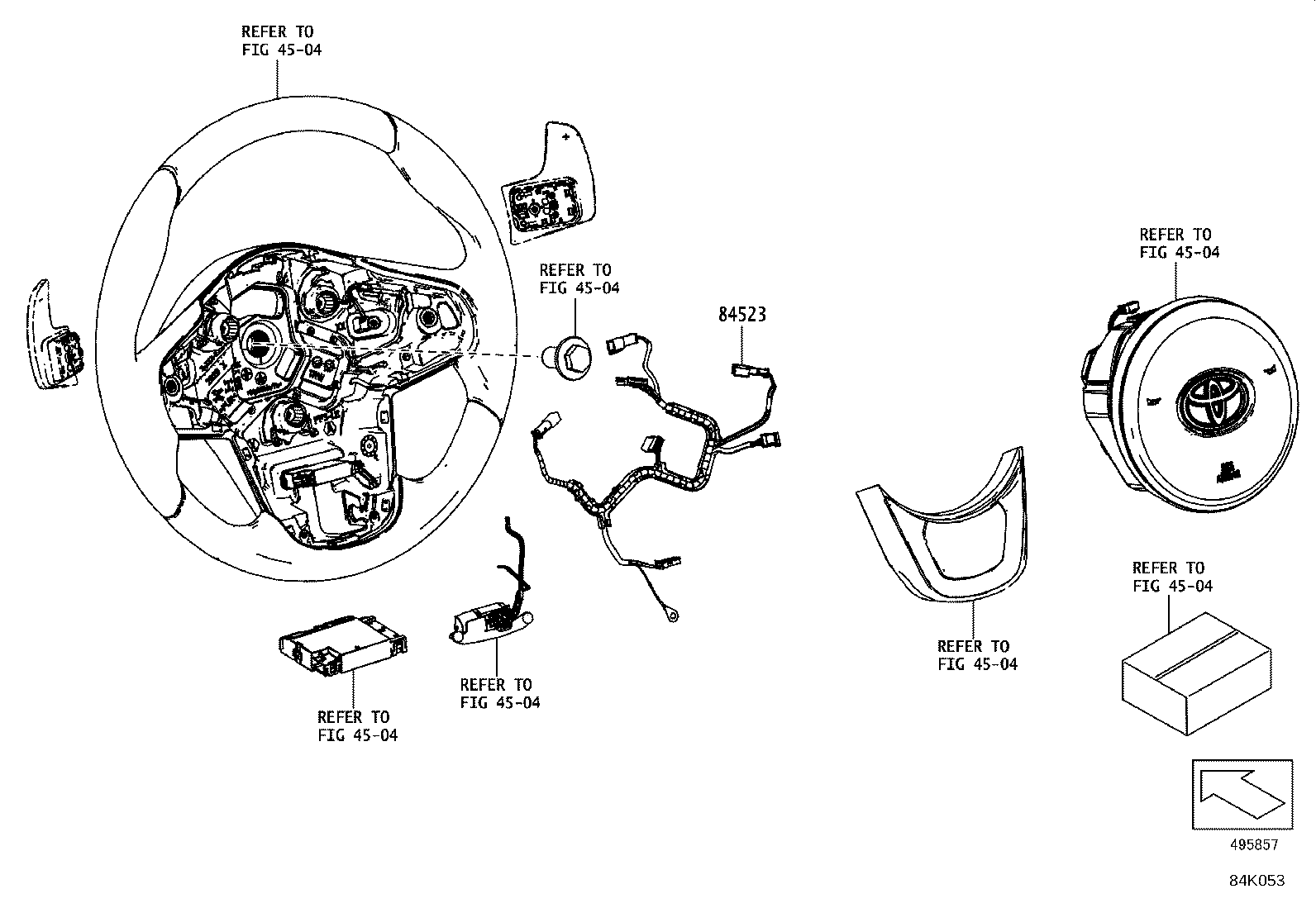

ILLUST NO.24 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-WAA02 |
DB2#,4#,81 ACTIVE GUARD PACKAGE |
1 | ||
| 84523-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 4504 | ||||

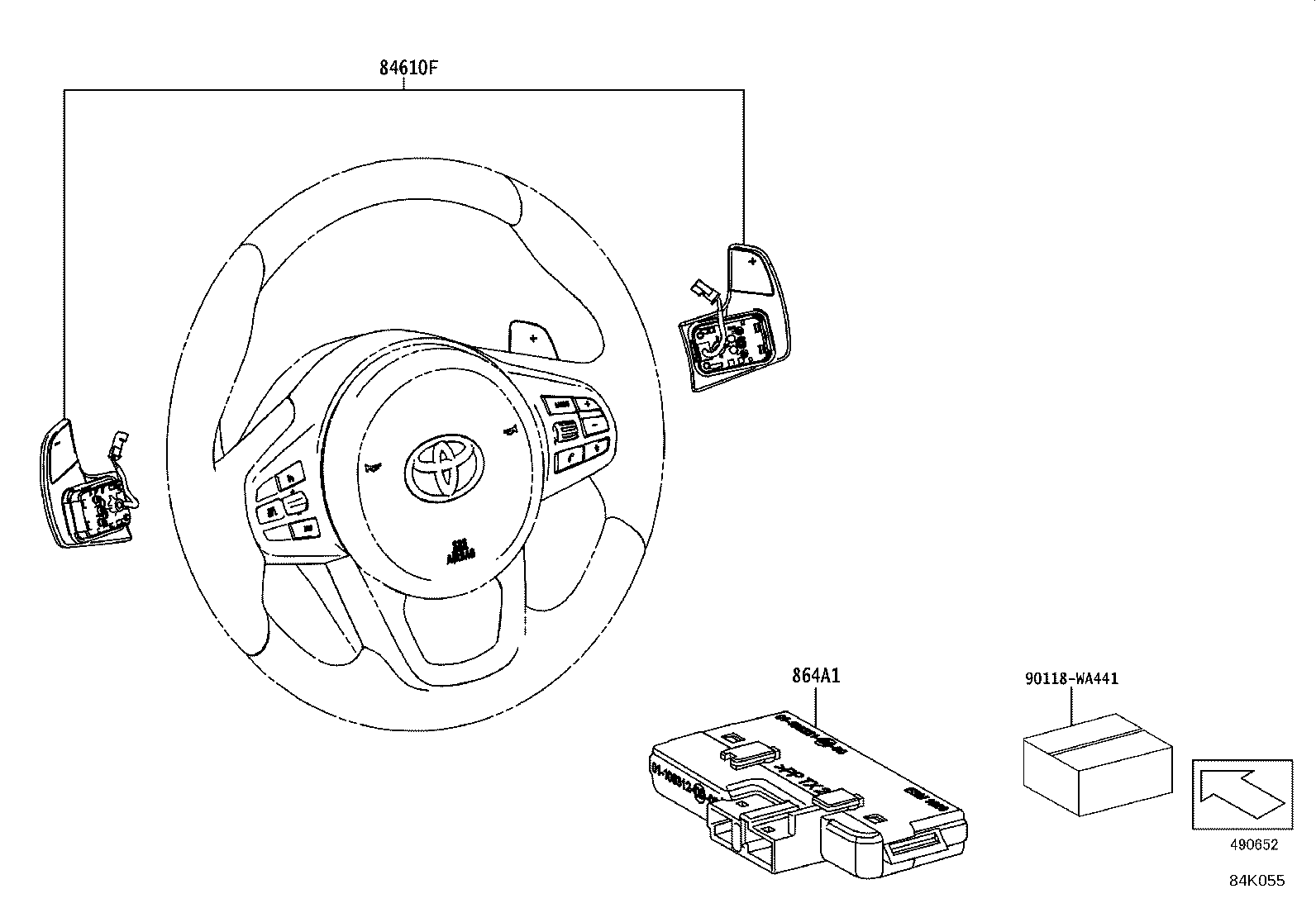

ILLUST NO.26 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-WAA01 |
DB2#,4#,81 |
1 | ||
| 864A1 - COMPUTER, STEERING VIBRATION & HEATER | ||||
| 864A1-WAA02 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA441 | ||||

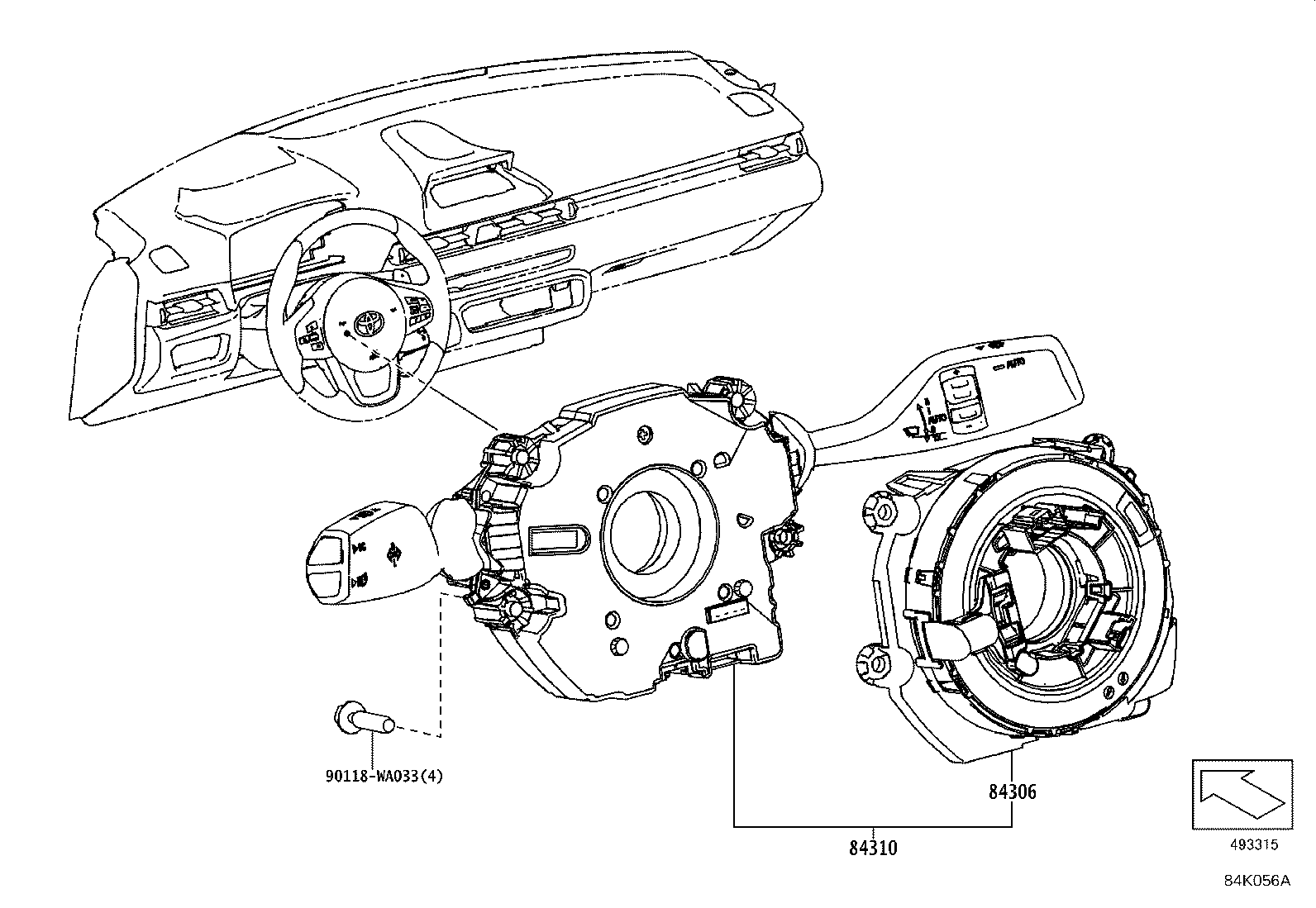

ILLUST NO.27 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-WAA02 |
DB2#,4#,81 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-WAA05 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 84310-WAA04 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 84310-WAA05 |
DB2#,4#,81 ACTIVE GUARD PACKAGE |
1 | ||
| Common parts | ||||
| 90118-WA033 | ||||

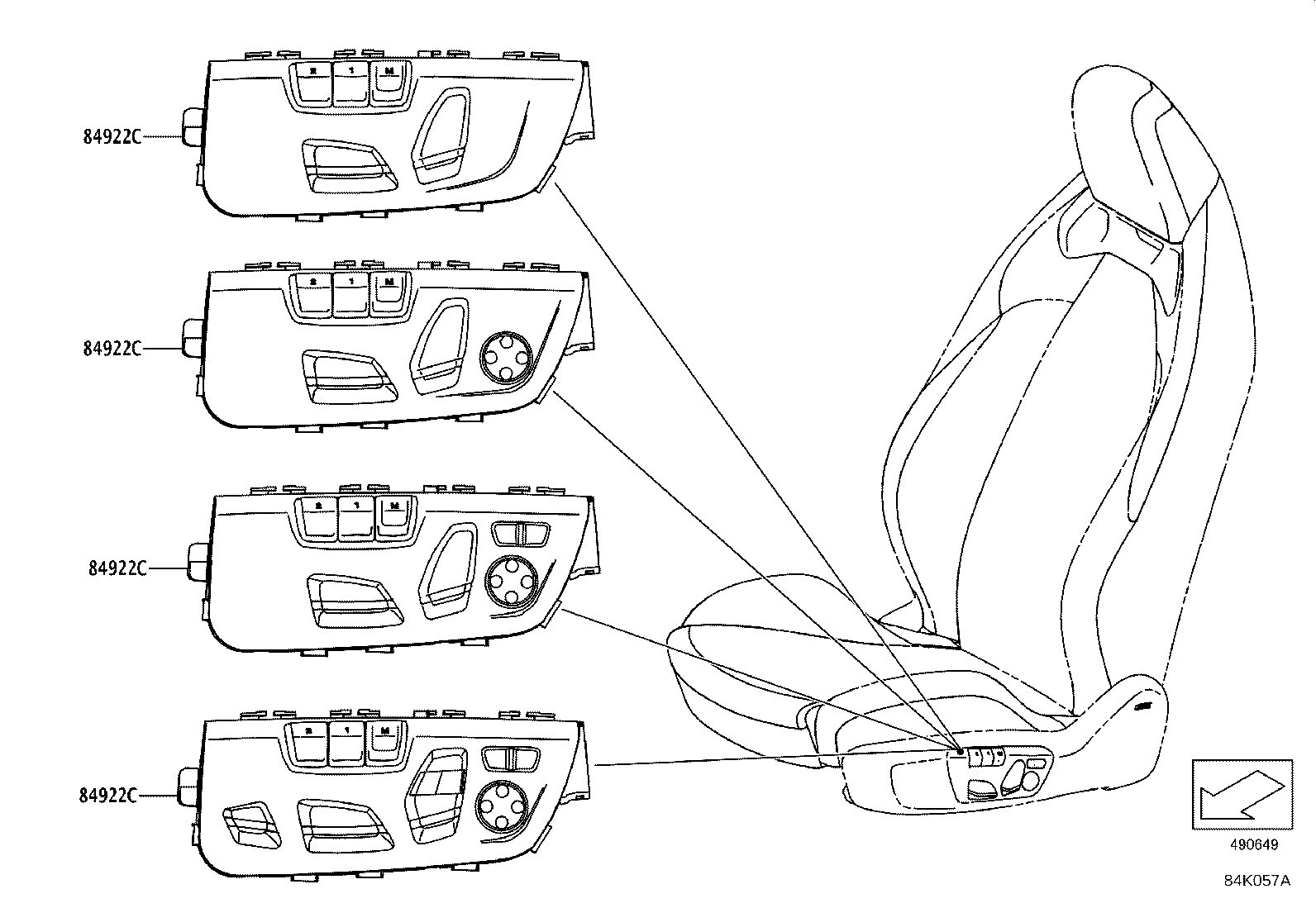

ILLUST NO.28 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-WAA09 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA09 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITHOUT |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITHOUT |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-WAA09 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA09 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITHOUT |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITHOUT |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-WAA09 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA09 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITHOUT |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITHOUT |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-WAA09 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA09 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX) |
1 | ||
| 84070-WAA13 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINT SYSTEM-WITHOUT |
1 | ||
| 84070-WAA11 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84070-WAA15 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE&CHILD RESTRAINTSYSTEM-WITHOUT |
1 | ||

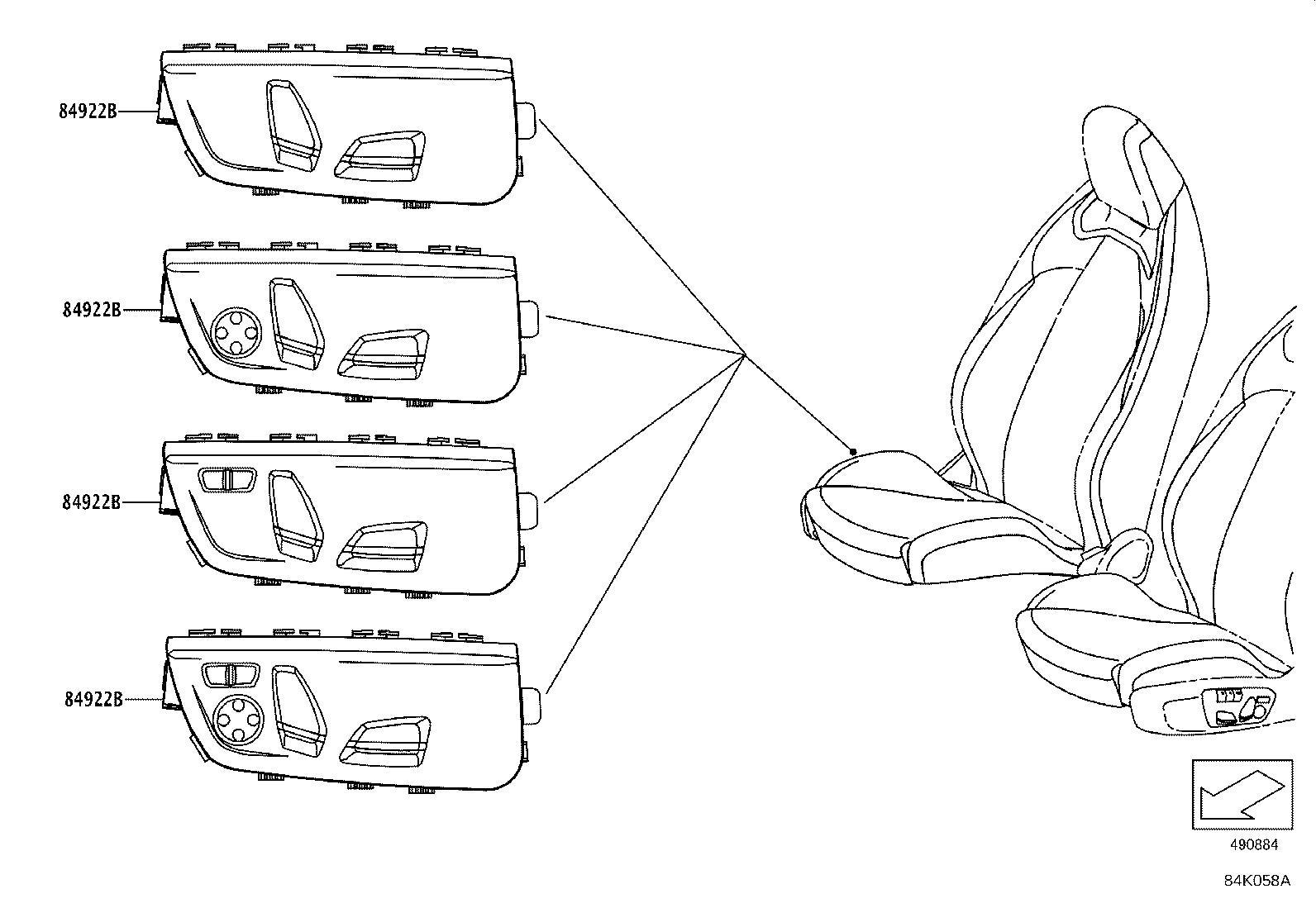

ILLUST NO.29 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-WAA06 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA04 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA02 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA08 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-WAA06 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA04 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA02 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA08 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-WAA06 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA04 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA02 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA08 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-WAA06 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA04 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA02 |
DB22,42 SEAT-BASIC TYPE&SEAT LUMBAR SUPPORT-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 84070-WAA08 |
DB22,42 SEAT-SPORT TYPE&SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-POWER TYPE |
1 | ||

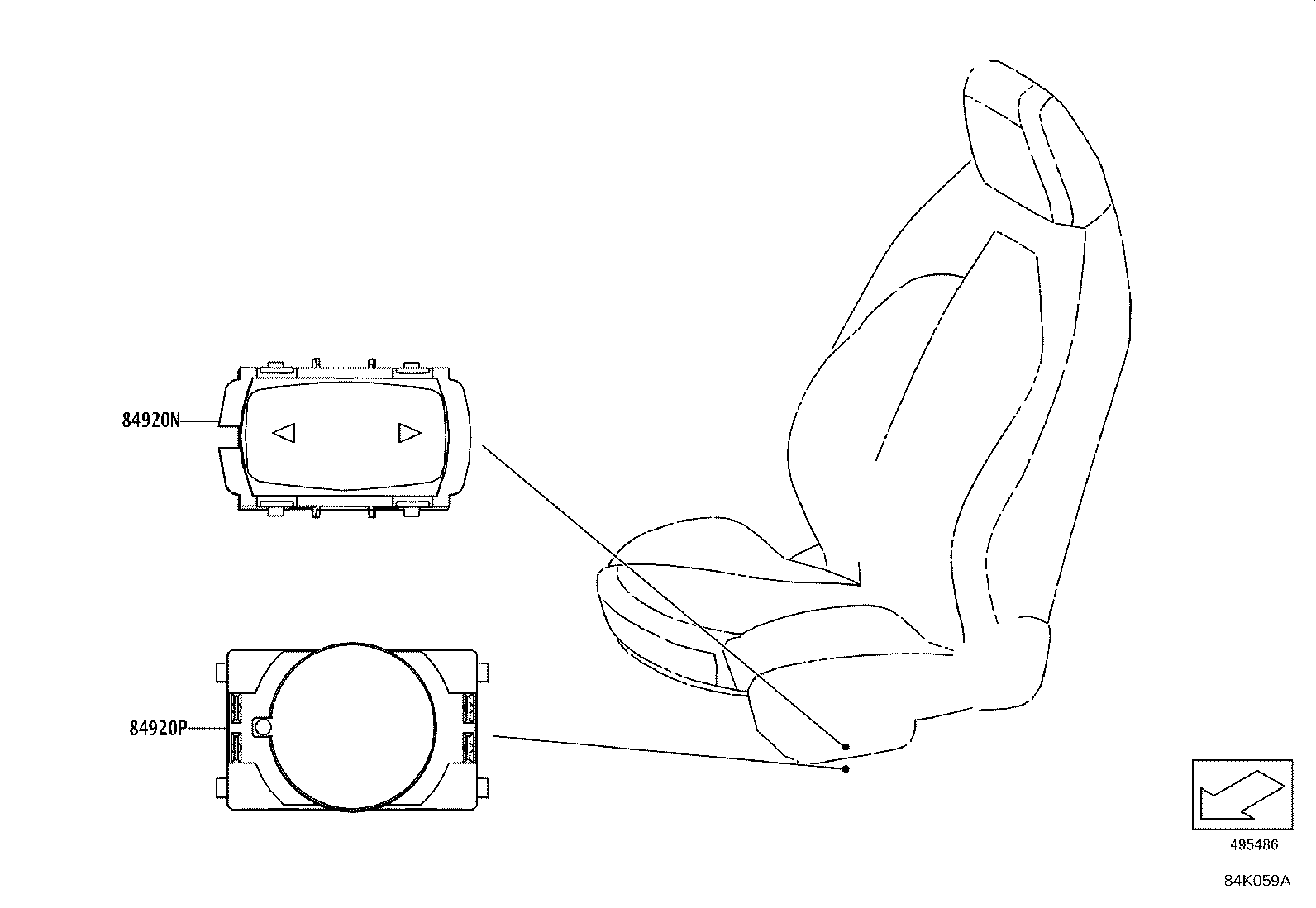

ILLUST NO.30 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920N - SWITCH, FRONT SEAT BACK SUPPORT POWER SEAT | ||||
| 84920-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE&CHILD RESTRAINT SYSTEM-WITH(ISO FIX & I-SIZE) |
1 | ||
| 84920-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE&SRS AIR BAG-WITH(KNEE(*DRP) |
2 | ||
| 84920-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE&SRS AIR BAG-WITH(KNEE(DRIVER SIDE)) |
2 | ||
| 84920P - SWITCH, FRONT LUMBAR SUPPORT POWER SEAT | ||||
| 84920-WAA02 |
DB2#,4#,81 SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 84920-WAA01 |
DB2#,4#,81 SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
ILLUST NO.31 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87501 - CONTROL SUB-ASSY, SEAT HEATER | ||||
| 89710-WAA01 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-MANUAL TYPE |
2 | ||
| 89710-WAA01 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-WAA07 |
DB2#,4#,81 SEAT HEATER-WITHOUT&SEAT ADJUSTER-POWER TYPE |
1 | ||
| 89710-WAA07 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-POWER TYPE |
1 | ||

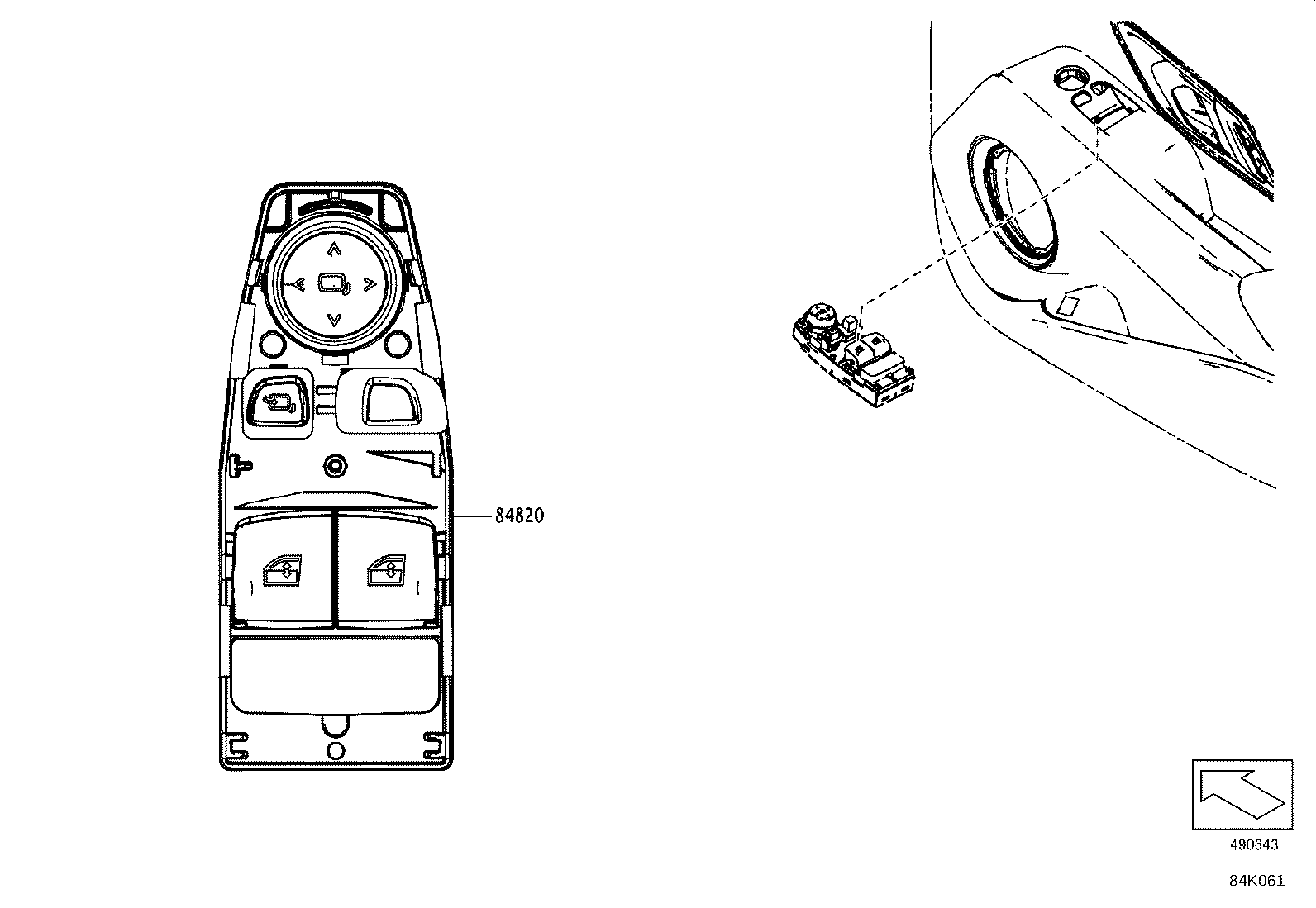

ILLUST NO.32 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-WAA01 |
DB2#,4#,81 |
1 | ||

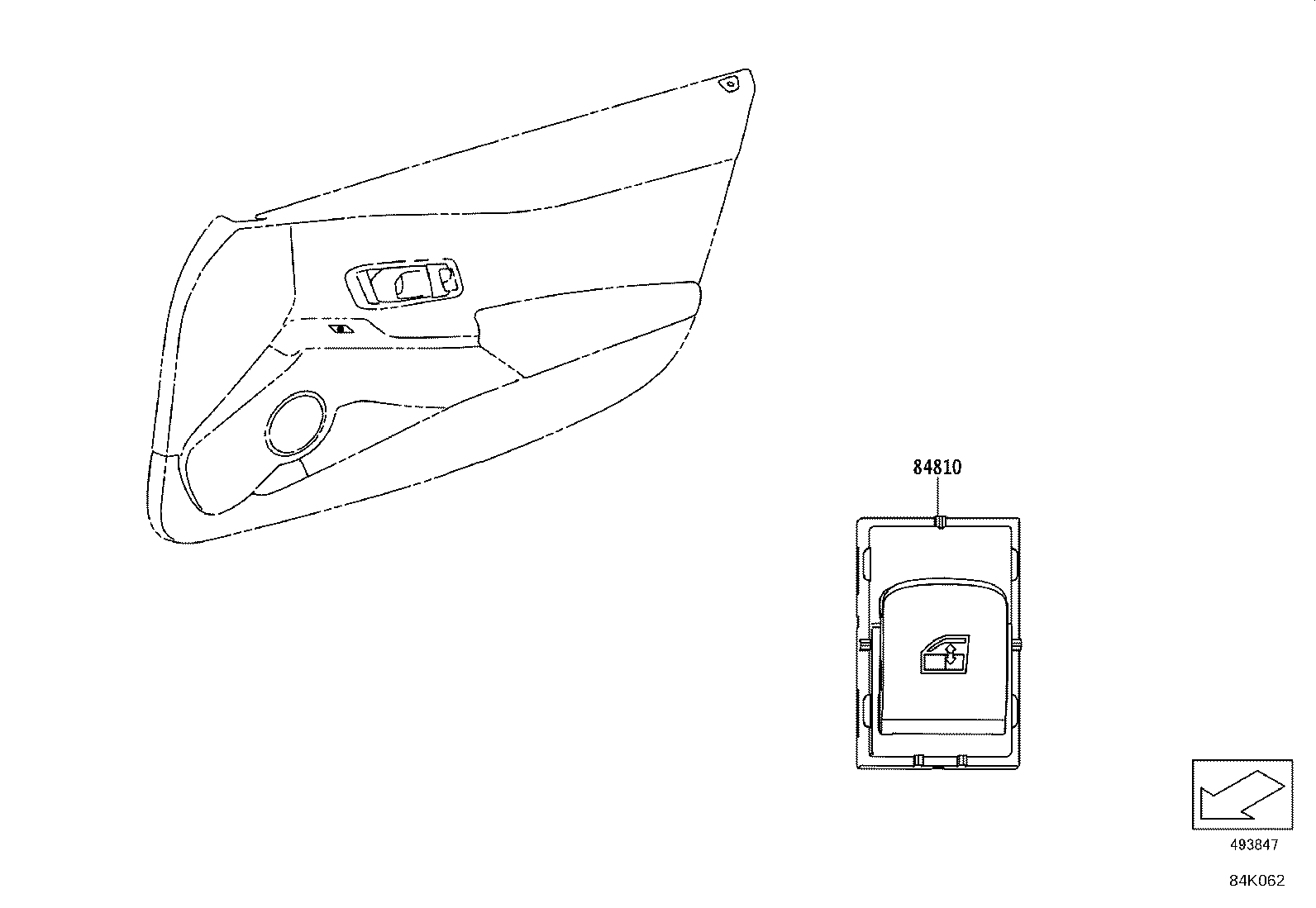

ILLUST NO.33 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-WAA01 |
DB2#,4#,81 |
1 | ||

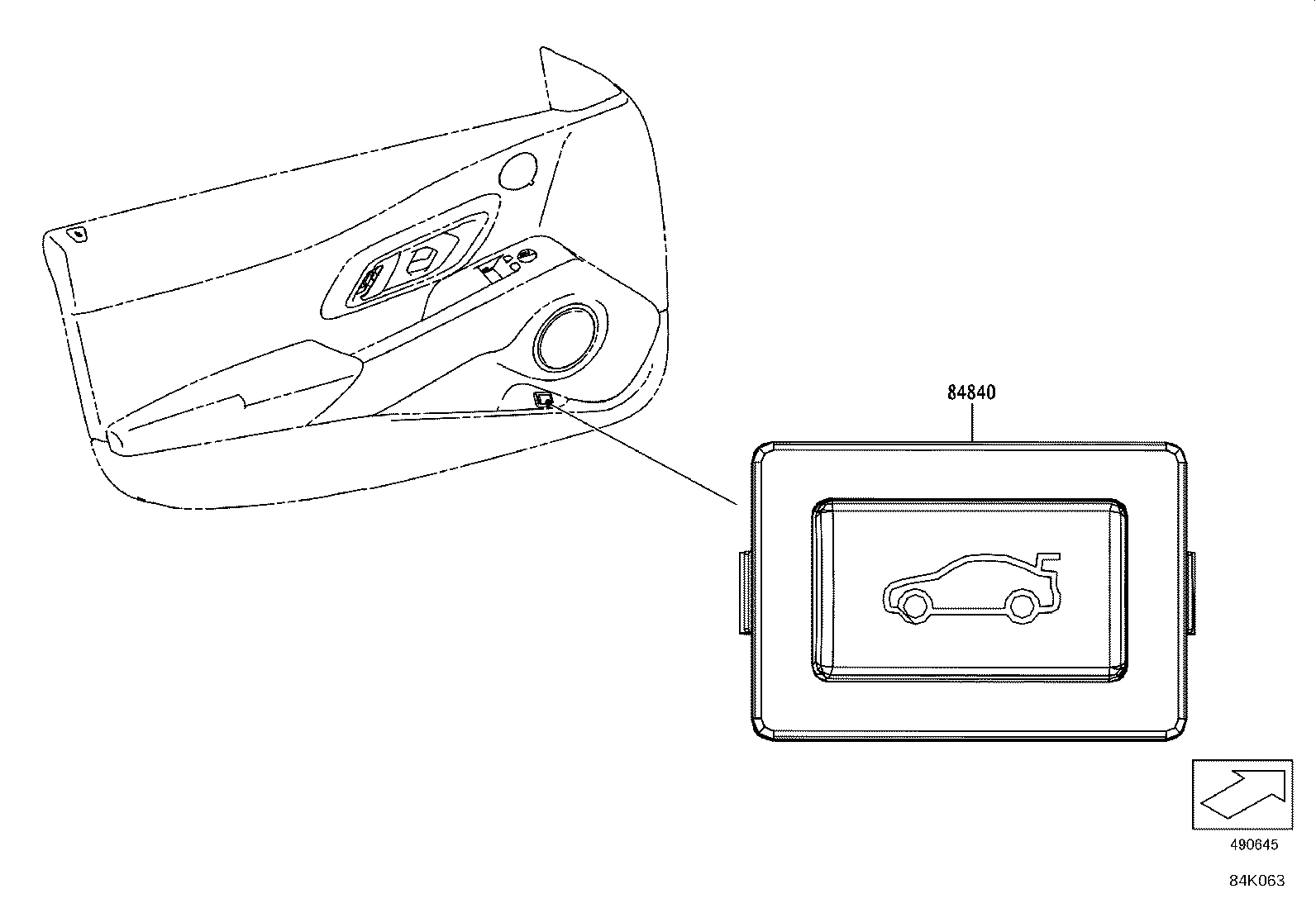

ILLUST NO.34 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-WAA01 |
DB2#,4#,81 |
1 | ||
ILLUST NO.35 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84970-WAA05 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-WAA03 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 84970-WAA05 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-WAA04 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84970-WAA05 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-WAA03 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 84970-WAA05 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-WAA04 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84970-WAA05 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-WAA03 |
DB2#,4#,81 WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 84970-WAA05 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84970-WAA04 |
DB2#,4#,81 ACTIVE GUARD PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| Common parts | ||||
| 90118-WA031 | ||||

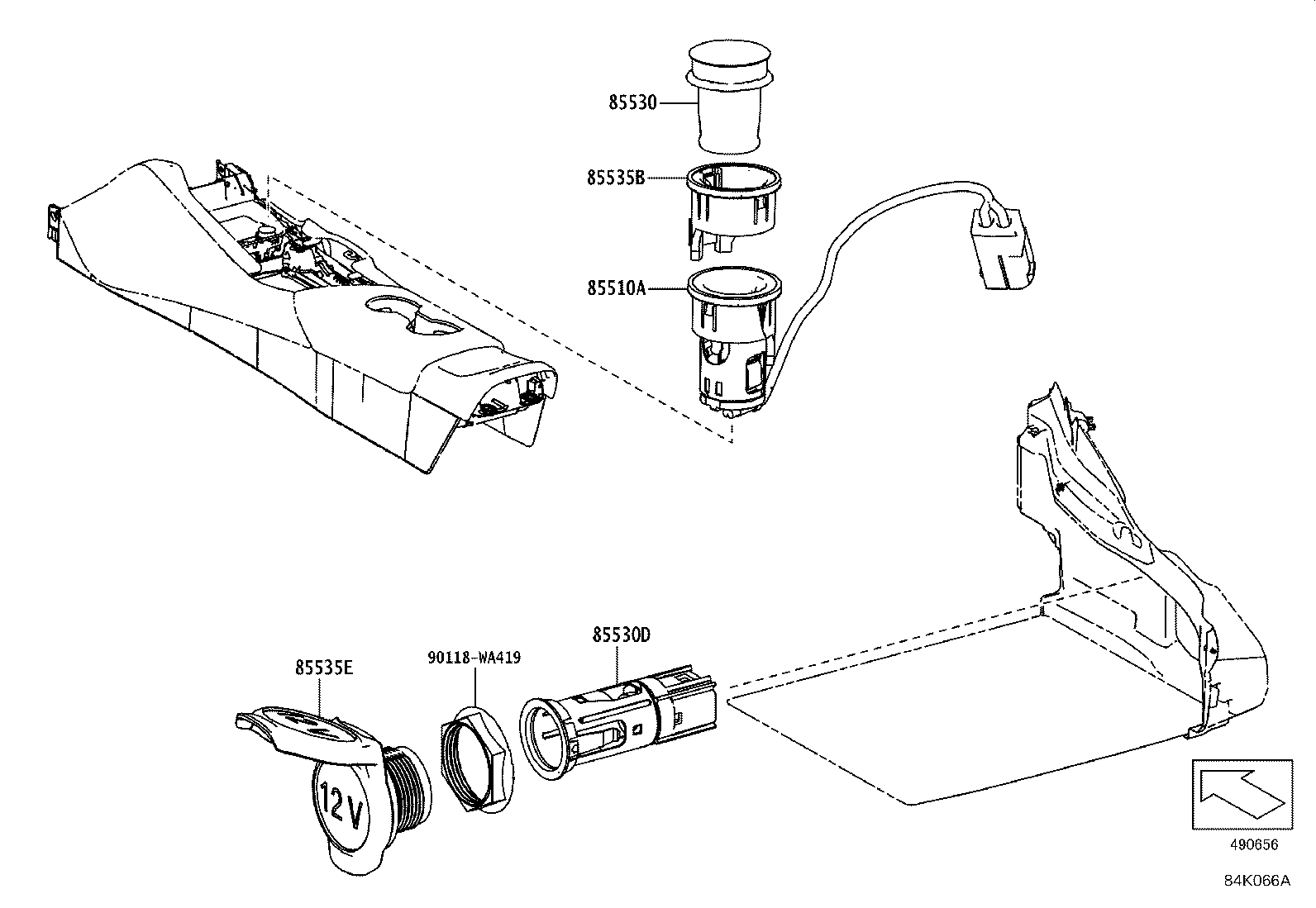

ILLUST NO.36 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85510A - RETAINER, POWER OUTLET SOCKET | ||||
| 85510-WAA01 |
DB2#,4#,81 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85520-WAA01 |
DB2#,4#,81 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-WAA01 |
DB2#,4#,81 STORAGE COMPARTMENT PACKAGE |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85515-WAA01 |
DB2#,4#,81 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-WAA01 |
DB2#,4#,81 STORAGE COMPARTMENT PACKAGE |
1 | ||
| Common parts | ||||
| 90118-WA419 | ||||

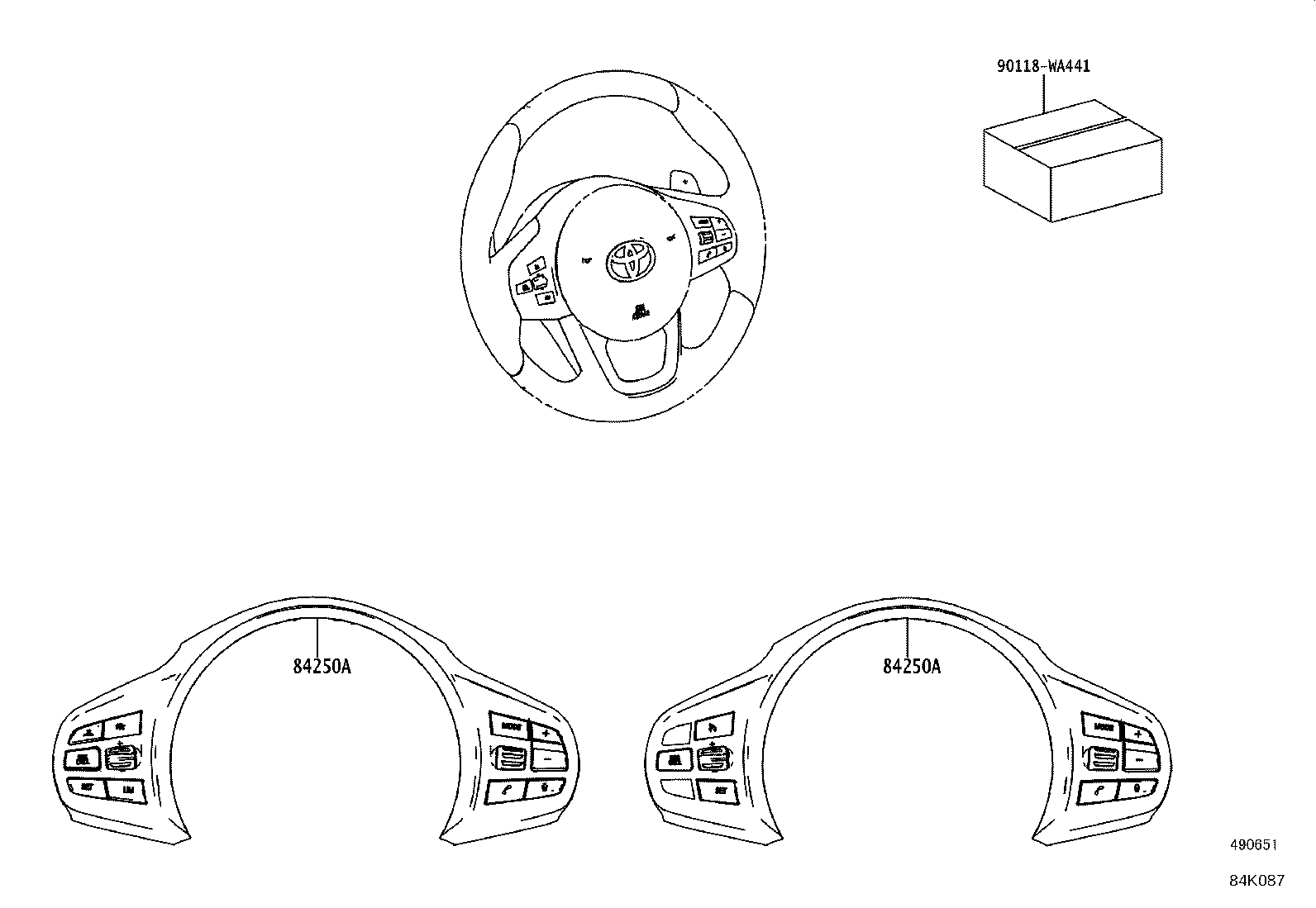

ILLUST NO.25 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-WAA04 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC) |
1 | ||
| 84250-WAA02 |
DB2#,4#,81 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-WAA04 |
DB2#,4#,81 CRUISE CONTROL-WITH(ALL-SPEED *ACC) |
1 | ||
| 84250-WAA02 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA441 | ||||

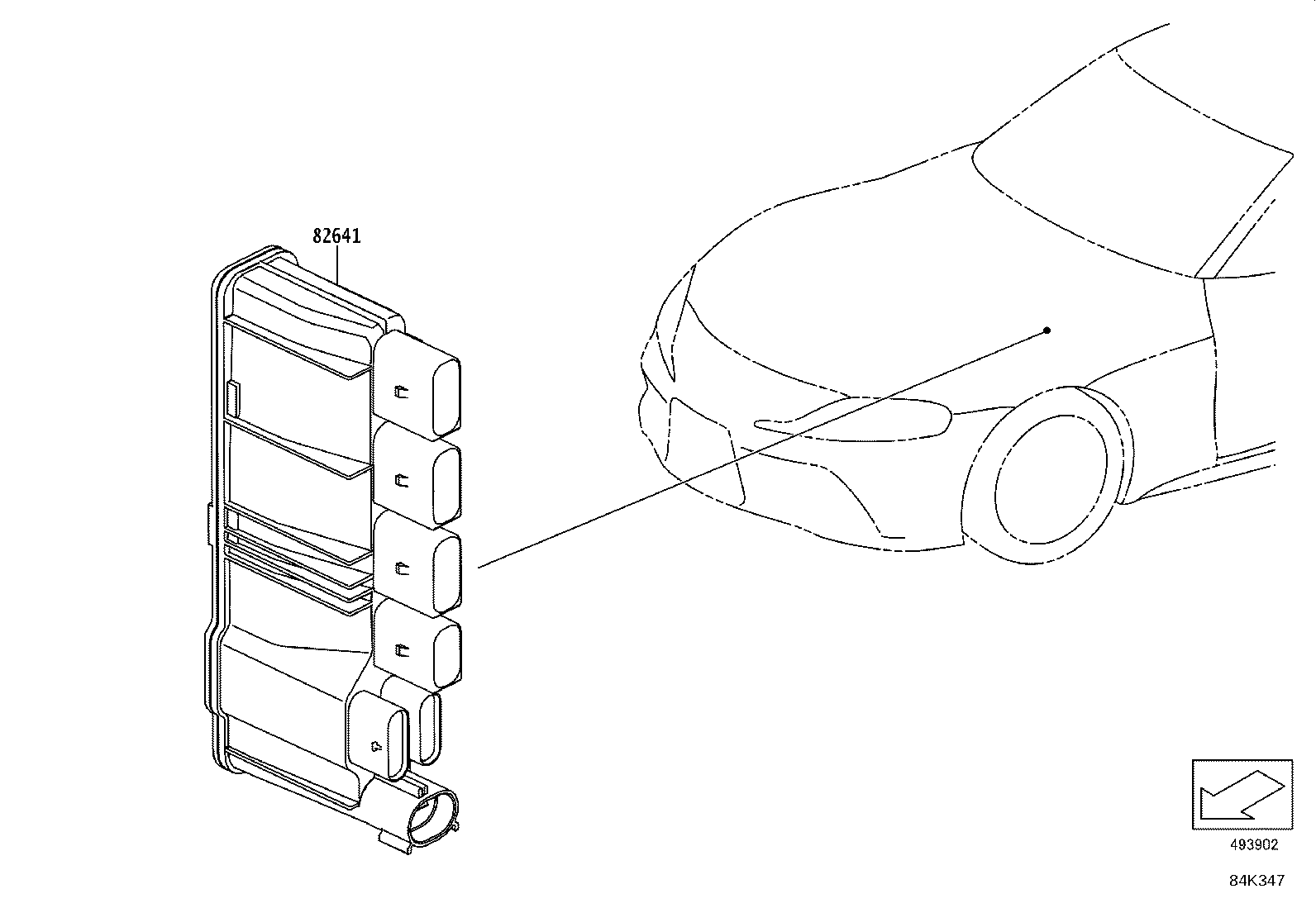

ILLUST NO.12 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-WAA01 |
DB2#,4#,81 |
1 | ||

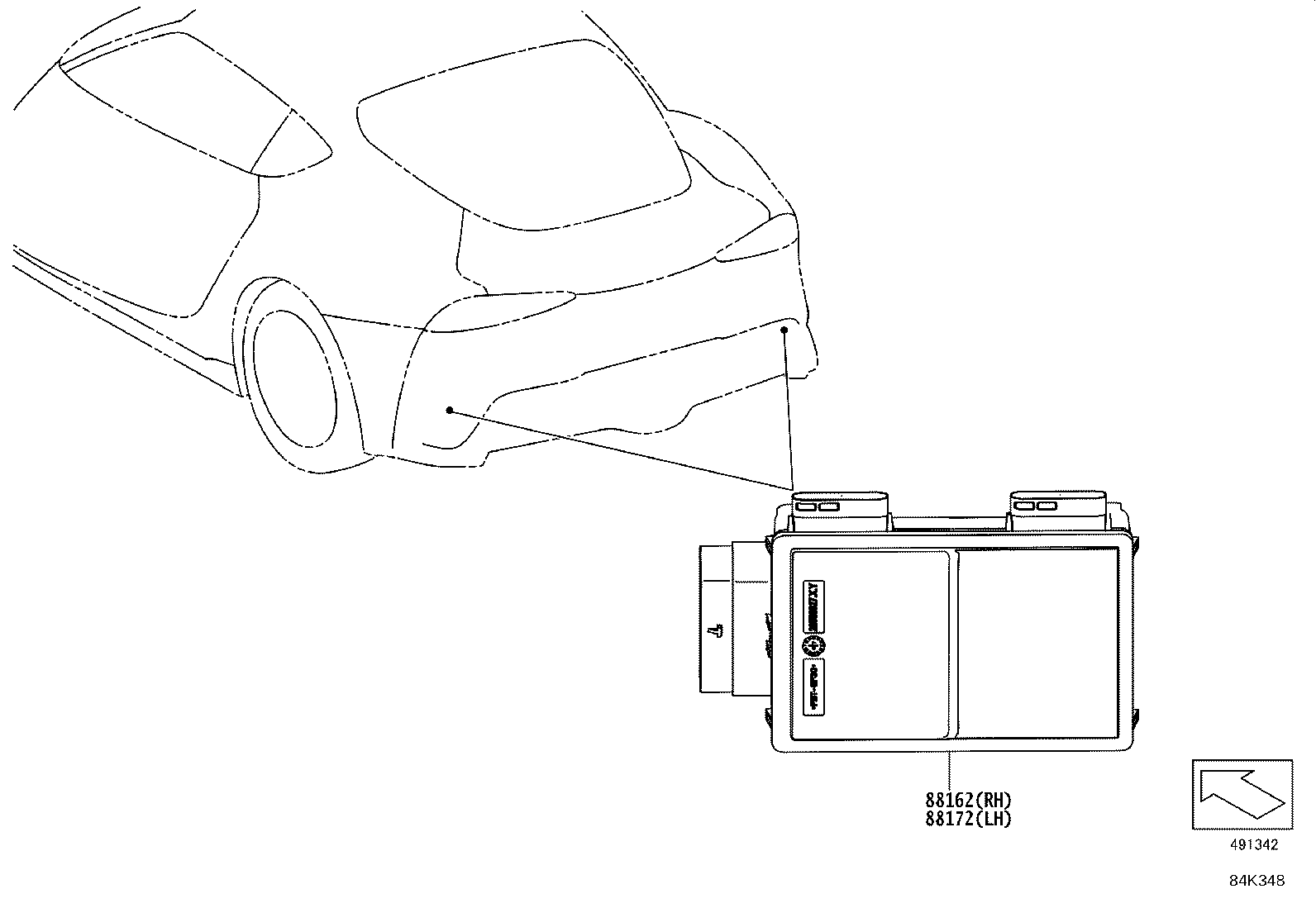

ILLUST NO.37 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-WAA08 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-WAA08 |
DB2#,4#,81 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT) |
1 | ||

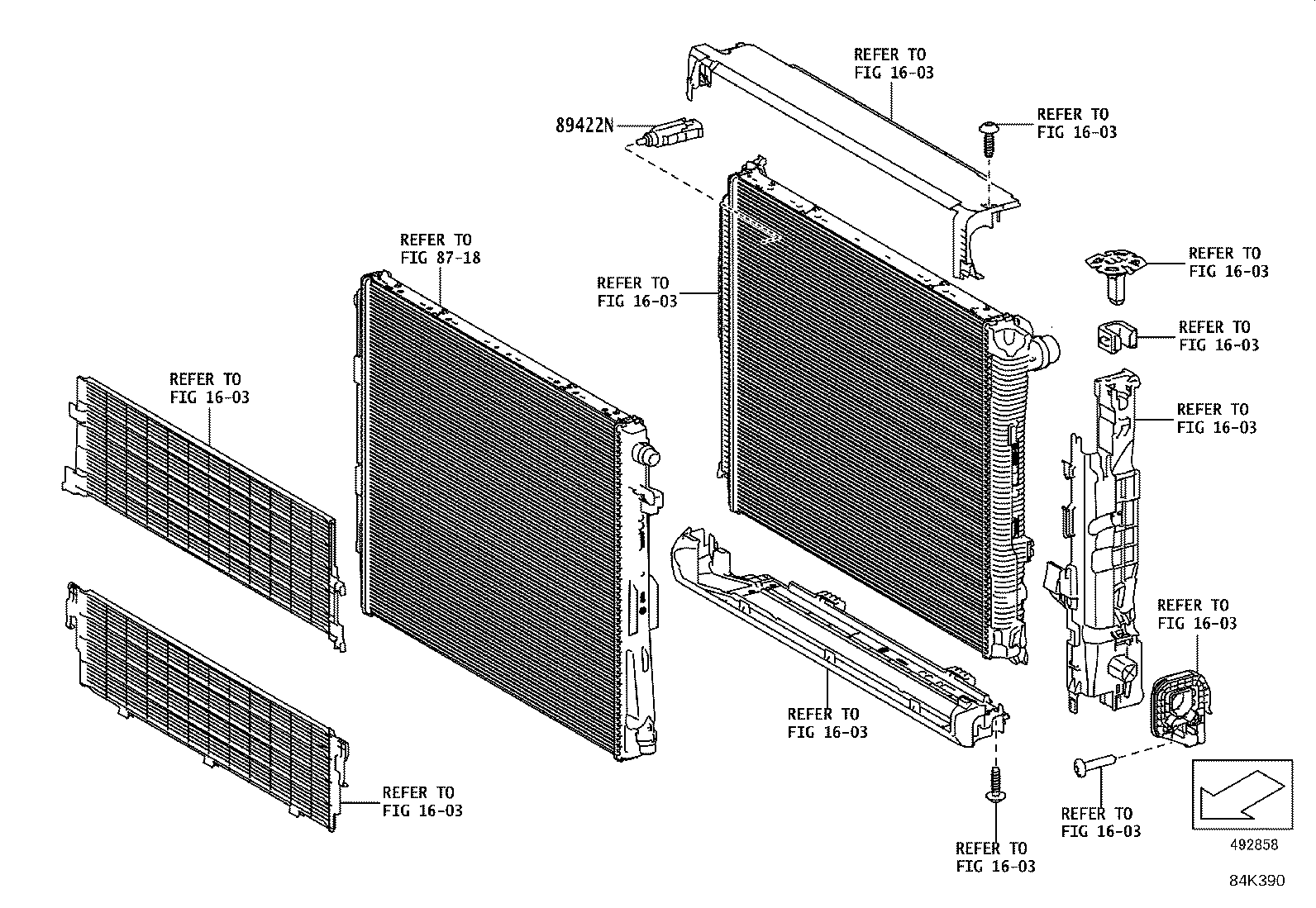

ILLUST NO. 2 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422N - SENSOR, WATER TEMPERATURE, NO.2 | ||||
| 89422-WAA02 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 8718 | ||||

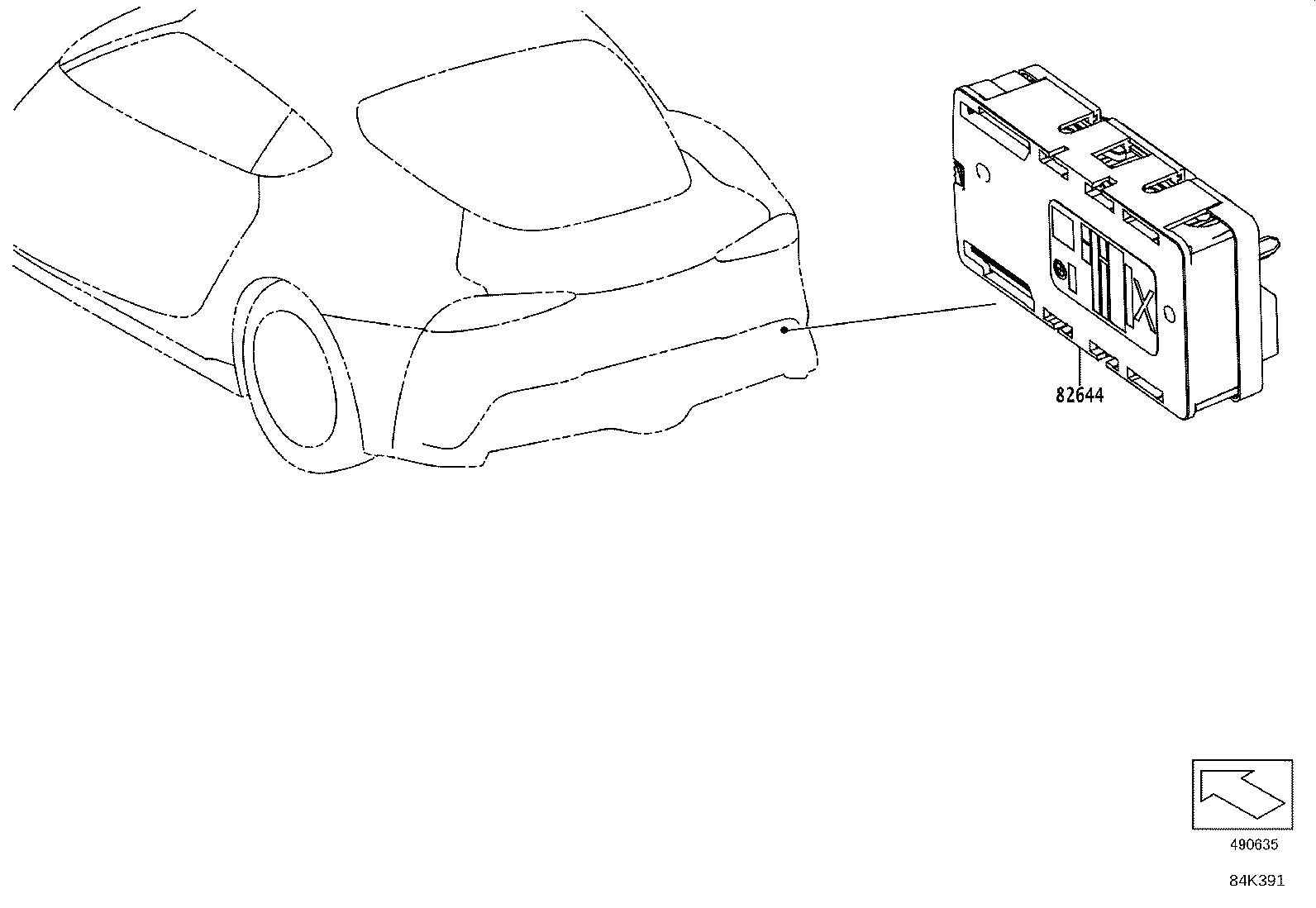

ILLUST NO.38 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-WAA02 |
DB2#,4#,81 |
1 | ||

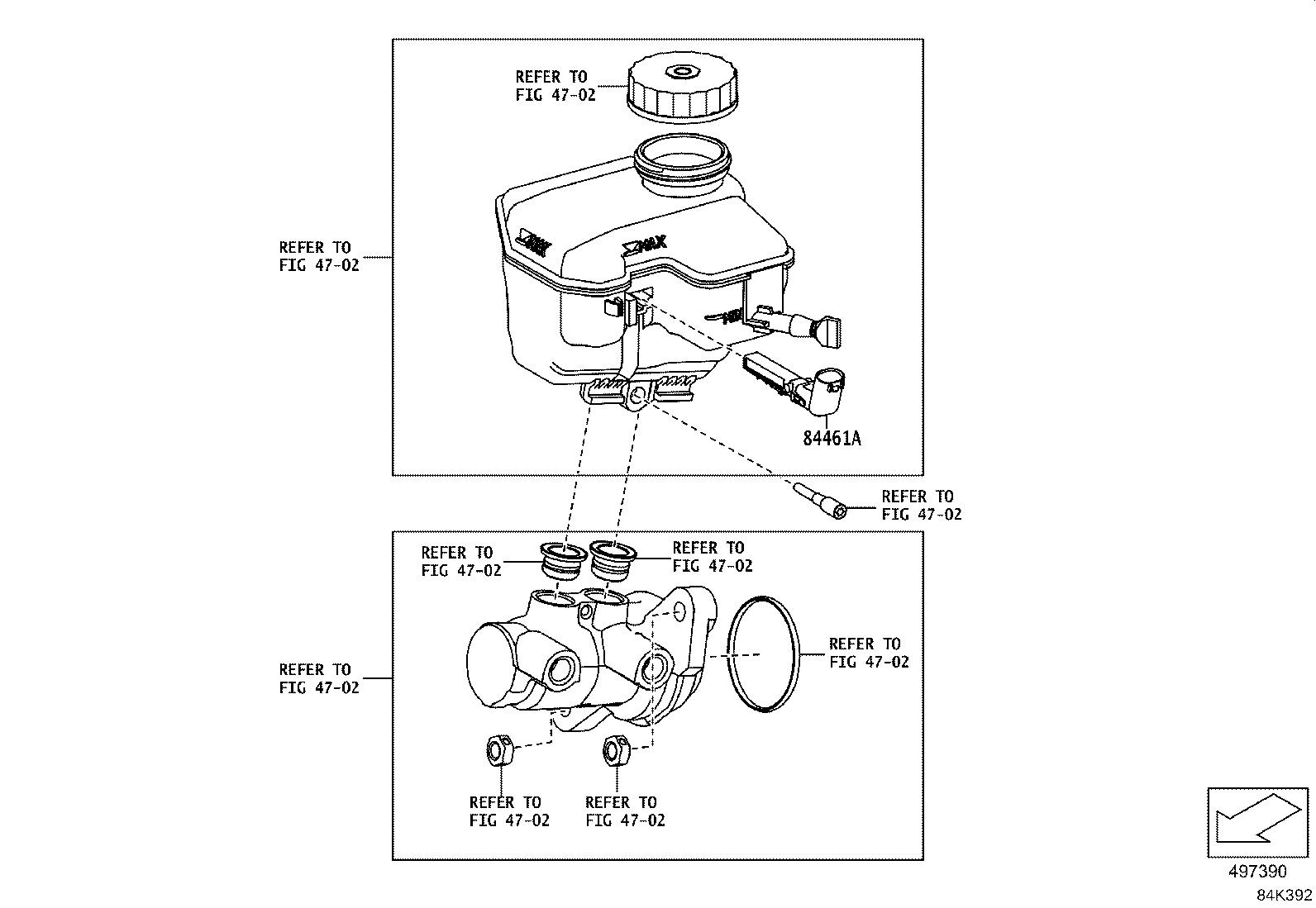

ILLUST NO. 3 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING | ||||
| 84461-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 4702 | ||||

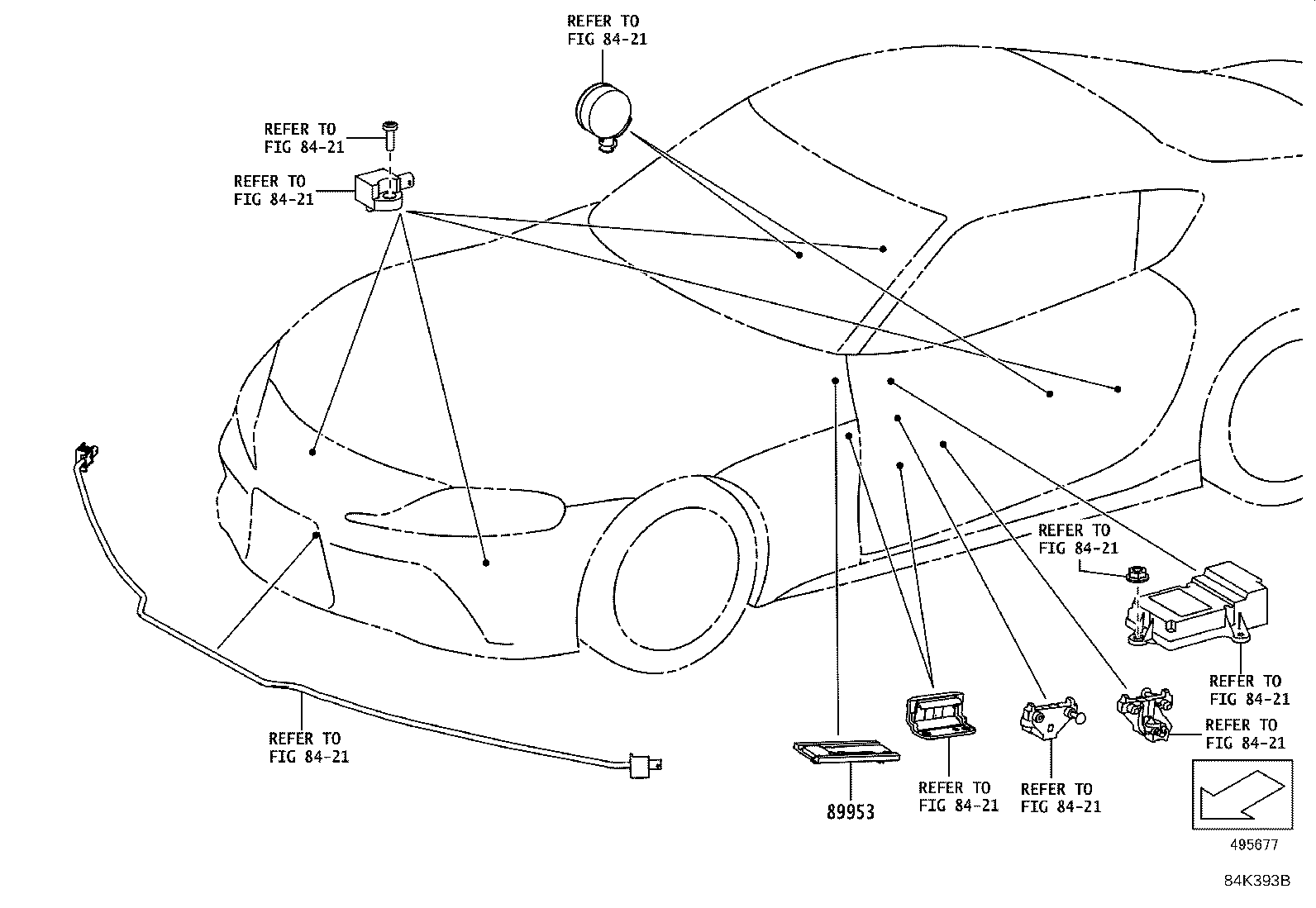

ILLUST NO. 1 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89953 - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-WAA02 |
DB2#,4#,81 SRS AIR BAG-WITH |
1 | ||
| 89953-WAA02 |
DB2#,4#,81 MEXICO SPEC |
1 | ||
| 89953-WAA02 |
DB2#,4#,81 JAPAN SPEC |
1 | ||
| Linked diagrams | ||||
| 8421 | ||||

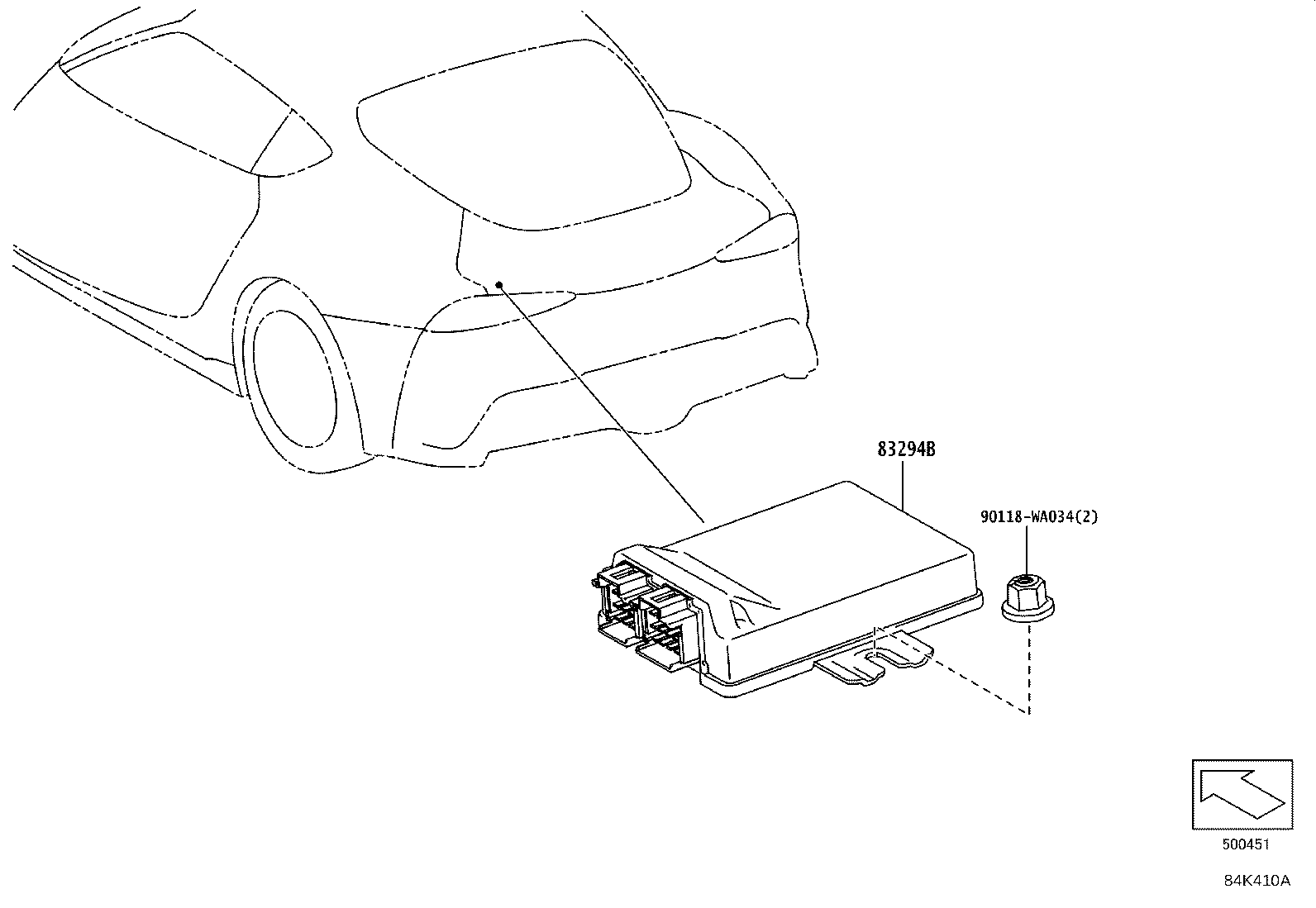

ILLUST NO.39 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83294B - COMPUTER, DIFFERENTIAL LOCK | ||||
| 83294-WAA02 |
DB2#,4#,8# |
1 | ||
| Common parts | ||||
| 90118-WA034 | ||||
ILLUST NO.40 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90118-WA363 |
DB2#,4#,81 20A |
1 | ||
| 90118-WA783 |
DB2#,4#,81 15A |
1 | ||
| 90118-WA362 |
DB2#,4#,81 7.5A |
1 | ||
| 90118-WA782 |
DB2#,4#,81 10A |
1 | ||
| 90118-WA361 |
DB2#,4#,81 5A |
1 | ||
| 82600N - FUSE | ||||
| 90118-WA777 |
DB2#,4#,81 7.5A |
1 | ||
| 90118-WA769 |
DB2#,4#,81 30A GREEN |
1 | ||
| 90118-WA785 |
DB2#,4#,81 20A |
1 | ||
| 90118-WA778 |
DB2#,4#,81 10A |
1 | ||
| 90118-WA788 |
DB2#,4#,81 40A |
1 | ||
| 90118-WA776 |
DB2#,4#,81 5A |
1 | ||
| 90118-WA779 |
DB2#,4#,81 20A YELLOW |
1 | ||
| 90118-WA786 |
DB2#,4#,81 30A |
1 | ||
| 82600P - MAP, FUSE GROUPING | ||||
| 90118-WA789 |
DB2#,4#,8# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-WAA01 |
DB2#,4#,81 |
1 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 90118-WA793 |
DB2#,4#,81 150A |
1 | ||
| 82824L - PIN, SHORT | ||||
| 90118-WA790 |
DB2#,4#,81 |
1 | ||
ILLUST NO.41 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82611 - COVER, FUSE BLOCK | ||||
| 90118-WA794 |
DB2#,4#,81 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-WAA01 |
DB2#,4#,81 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-WAA05 |
DB2#,4#,81 |
1 | ||
| 82660-WAA04 |
DB2#,4#,8# |
1 | ||
| 82741E - BLOCK, LUGGAGE ROOM RELAY, NO.1 | ||||
| 82741-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||

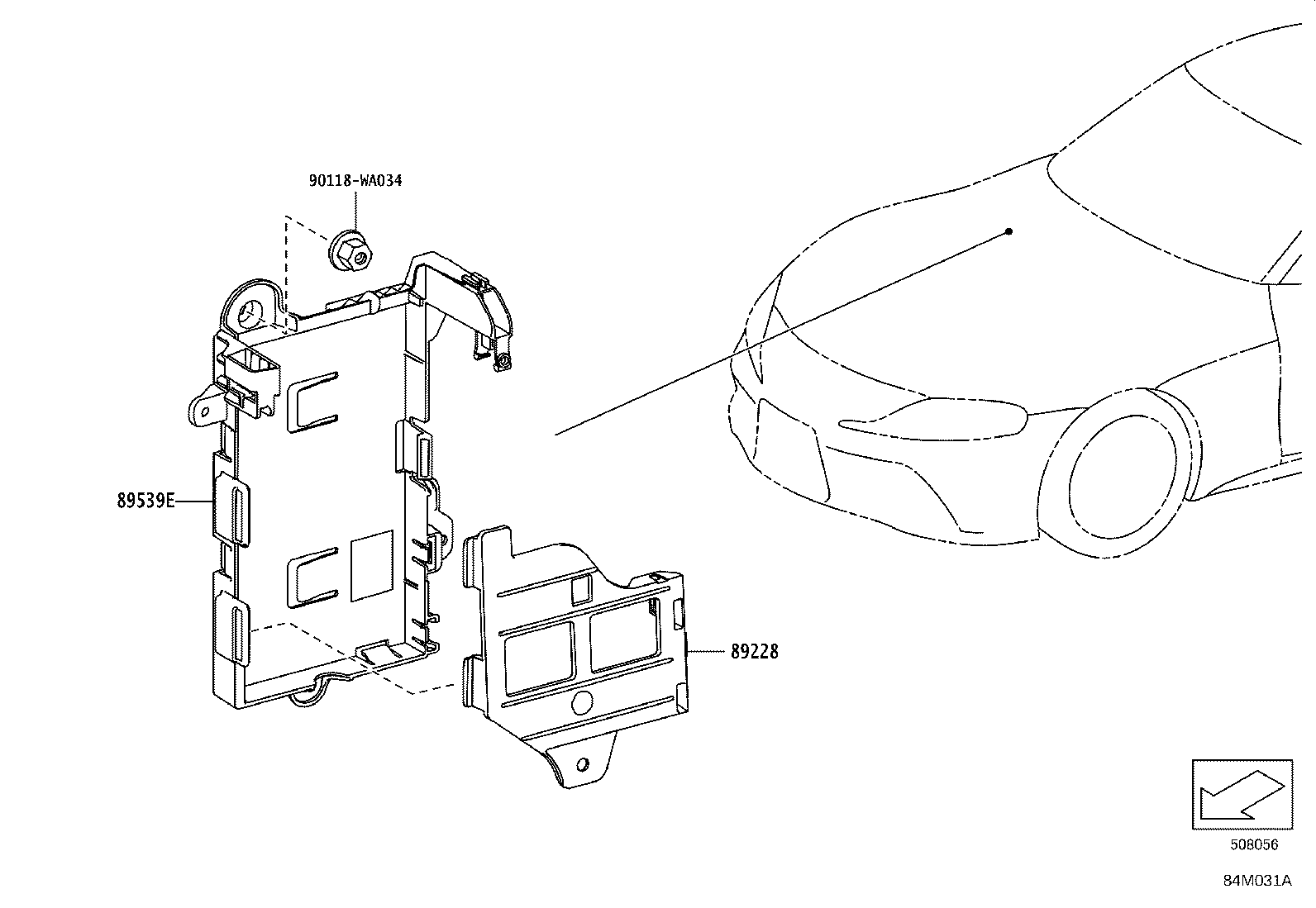

ILLUST NO.14 OF41(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89228 - COVER, MULTIPLEX NETWORK | ||||
| 89228-WAA01 |
DB2#,4#,81 |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
