DB22R-ZTRW (2019)
Toyota Supra

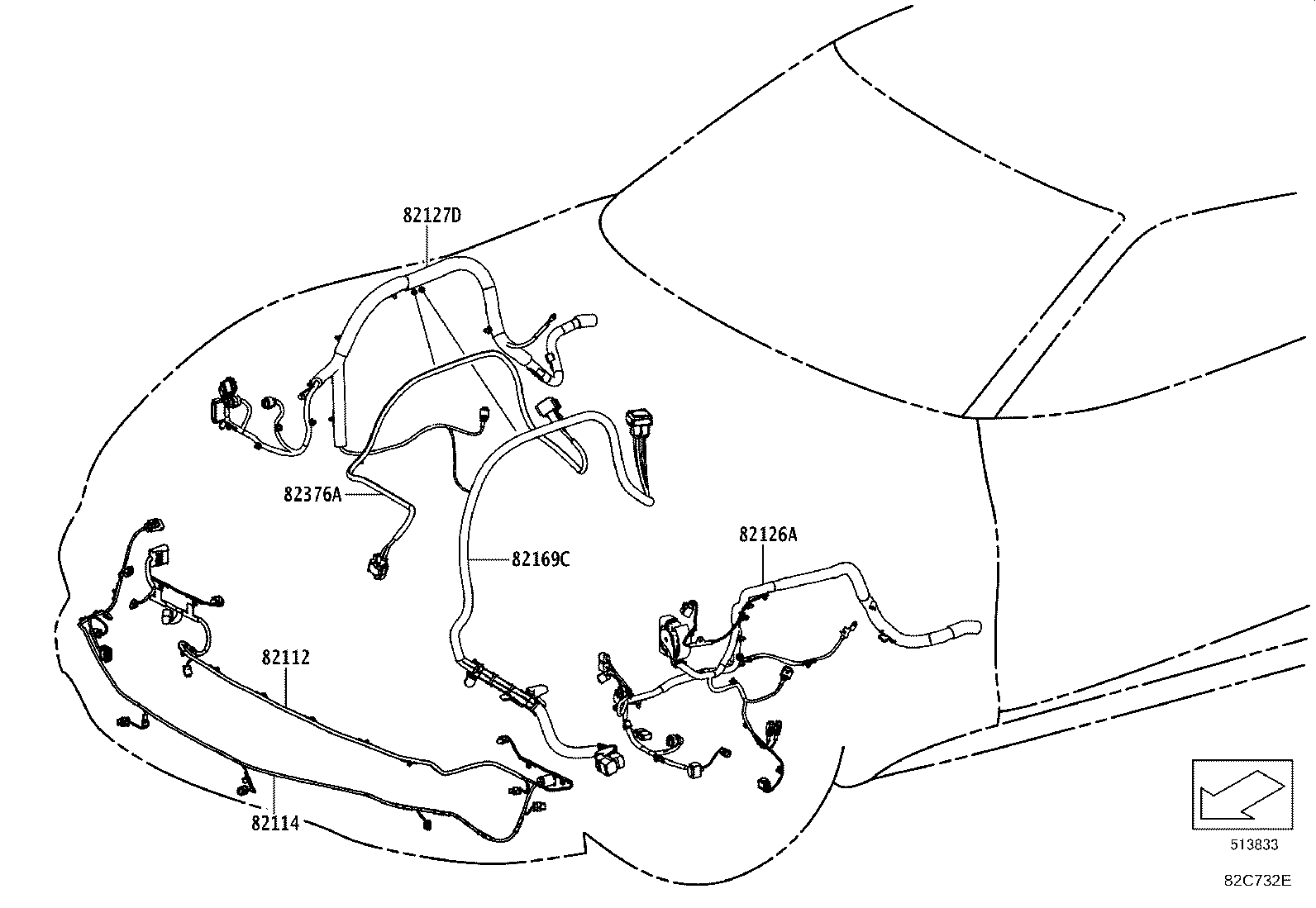

ILLUST NO. 1 OF28(1903- )
ENGINE ROOM 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82126-WAA01 |
DB2#,4#,81 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-WAA01 |
DB2#,4#,81 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82127-WAA03 |
DB22,42 |
1 | ||
| 82127-WAA07 |
DB22,42 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-WAA08 |
DB22,42 |
1 | ||
| 82127-WAA04 |
DB22,42 |
1 | ||
| 82169C - WIRE, FLOOR, NO.31 | ||||
| 82169-WAA72 |
DB22,42 |
1 | ||
| 82376A - WIRE, AUTO FAN | ||||
| 82376-WAA02 |
DB2#,81 |
1 | ||

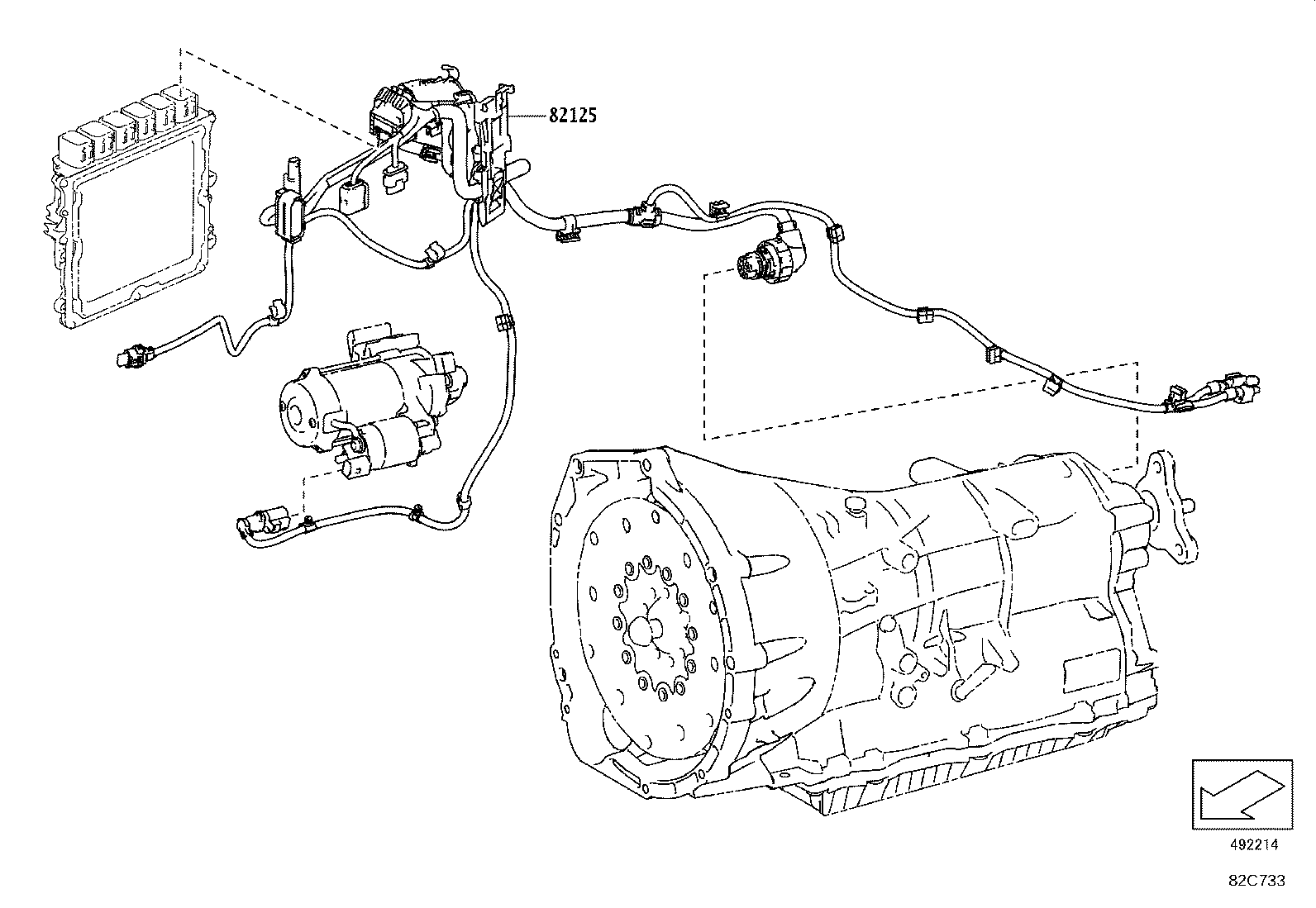

ILLUST NO. 2 OF28(1903- )DB0#,4#
ENGINE ROOM 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-WAA01 |
DB2#,81 |
1 | ||

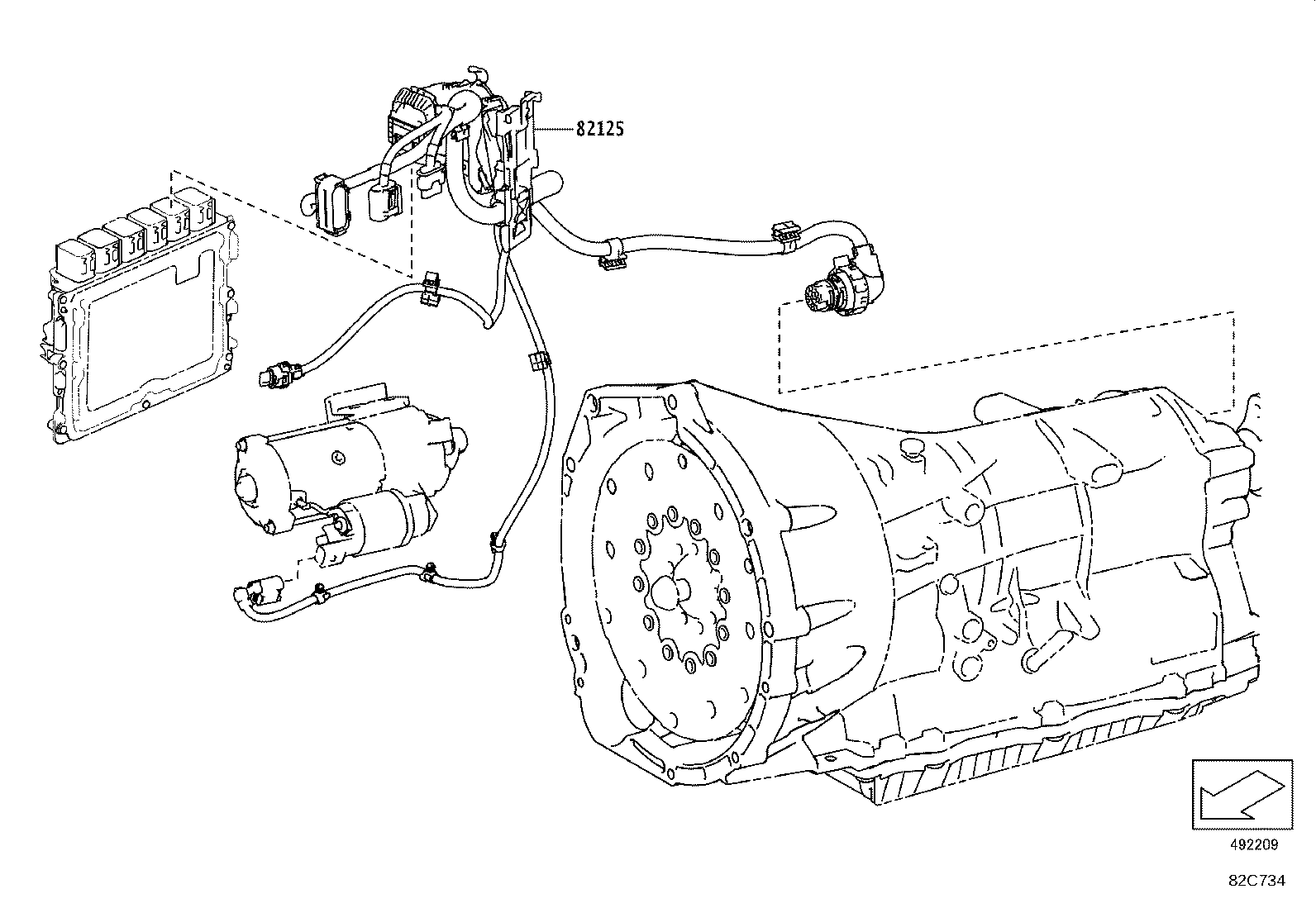

ILLUST NO. 2 OF28(1903- )DB2#,8#
ENGINE ROOM 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-WAA01 |
DB2#,81 |
1 | ||

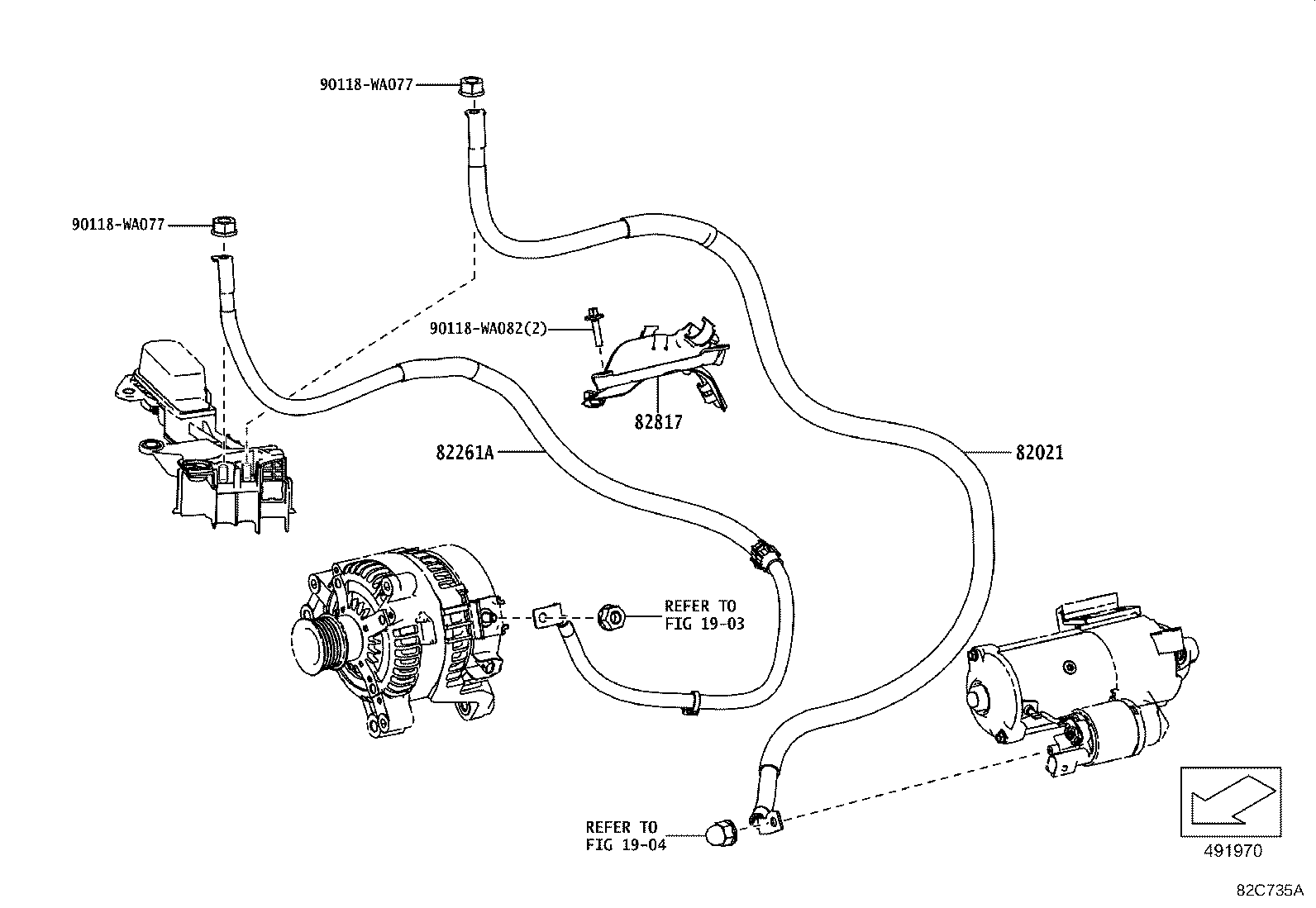

ILLUST NO. 3 OF28(1903- )
ENGINE ROOM 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82021 - WIRING ASSY, STARTER | ||||
| 82022-WAA01 |
DB2#,4#,81 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-WAA01 |
DB2#,81 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA077 | ||||
| 90118-WA082 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 1904 | ||||

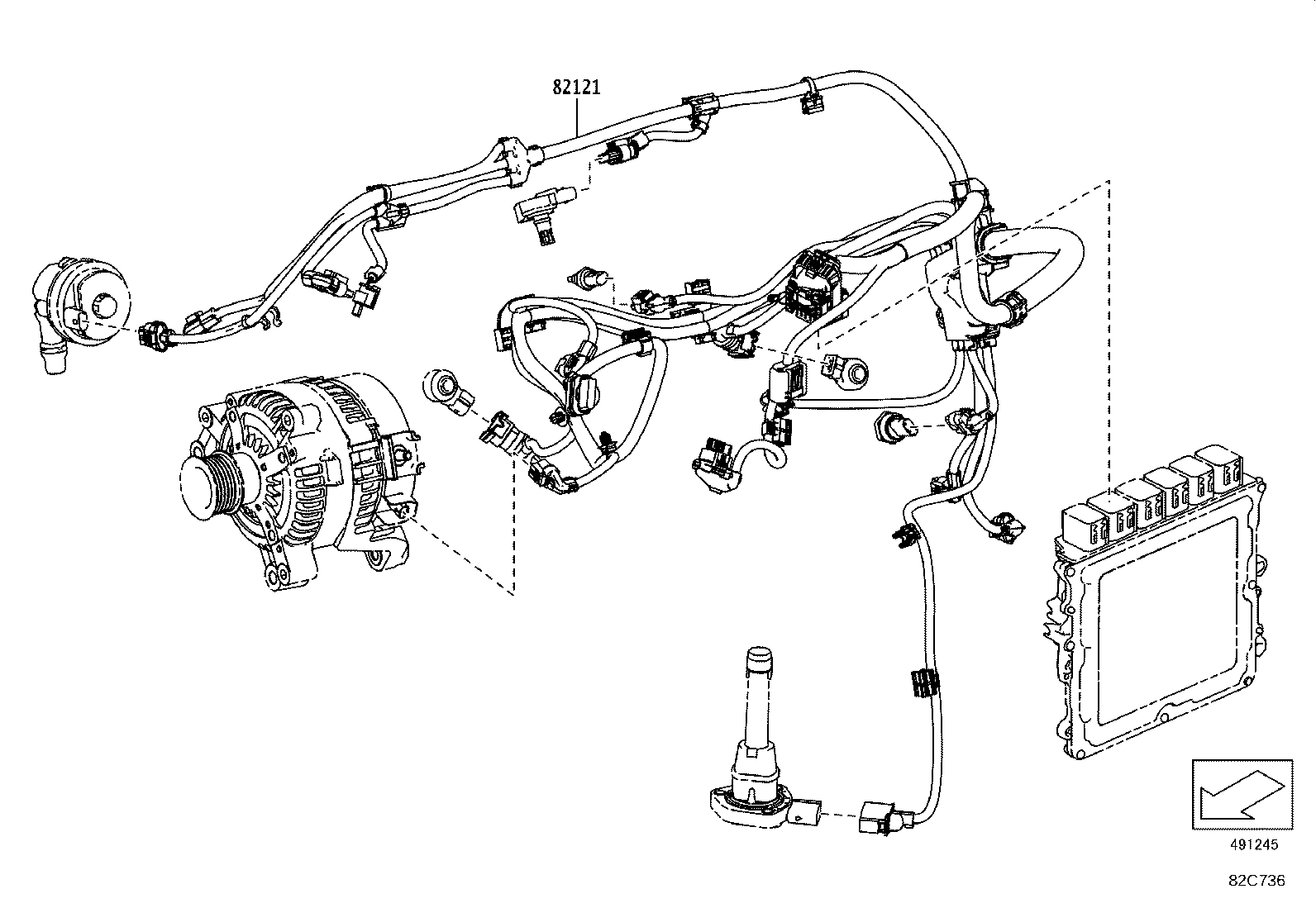

ILLUST NO. 4 OF28(1903- )DB0#,4#
ENGINE 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-WAA03 |
DB2#,81 |
1 | ||
| 82121-WAA01 |
DB2#,81 CHINA SPEC |
1 | ||
| 82121-WAA01 |
DB2#,81 |
1 | ||
| 82121-WAA04 |
DB2#,81 |
1 | ||

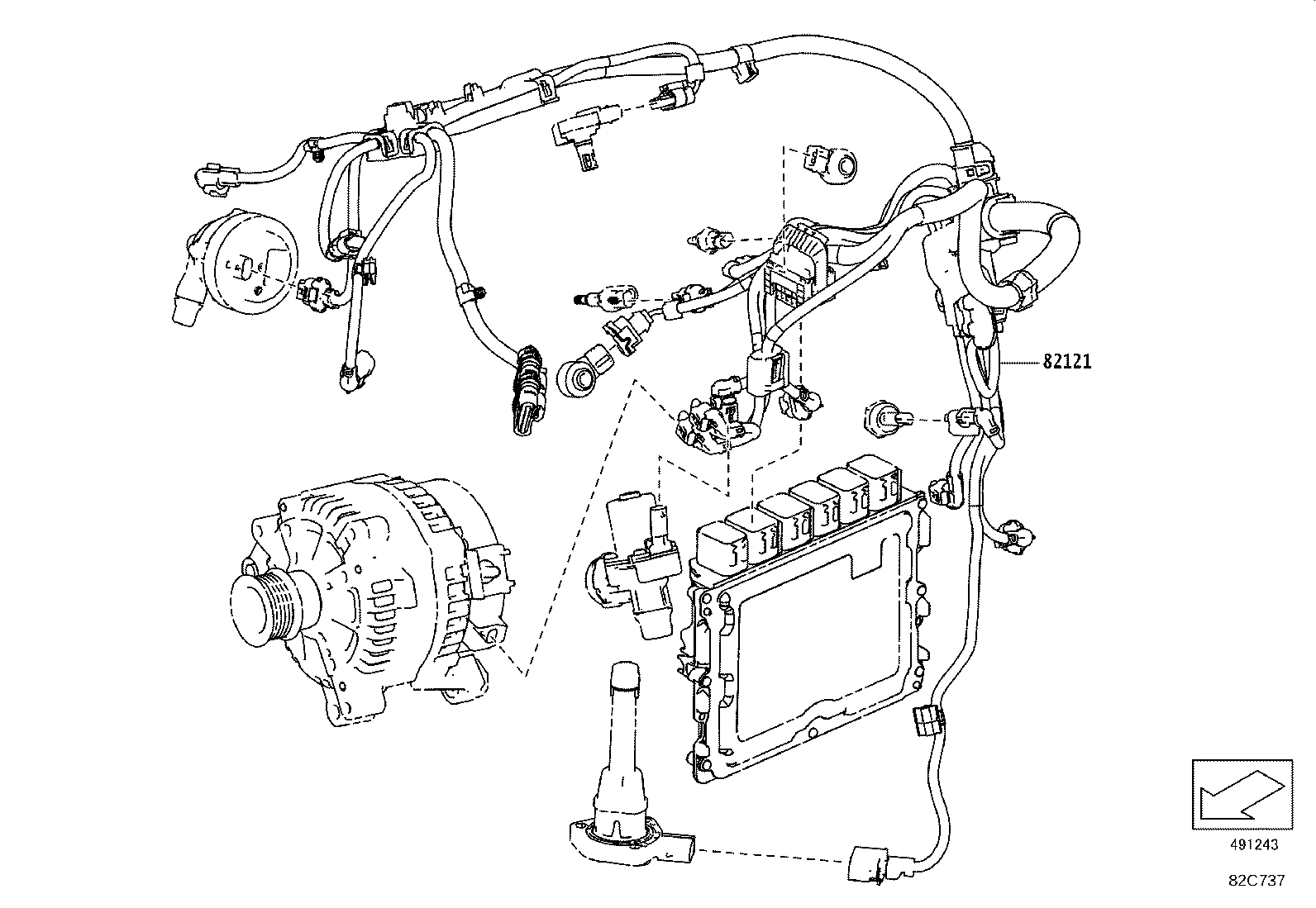

ILLUST NO. 4 OF28(1903- )DB2#,8#
ENGINE 1/4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-WAA03 |
DB2#,81 |
1 | ||
| 82121-WAA01 |
DB2#,81 CHINA SPEC |
1 | ||
| 82121-WAA01 |
DB2#,81 |
1 | ||
| 82121-WAA04 |
DB2#,81 |
1 | ||

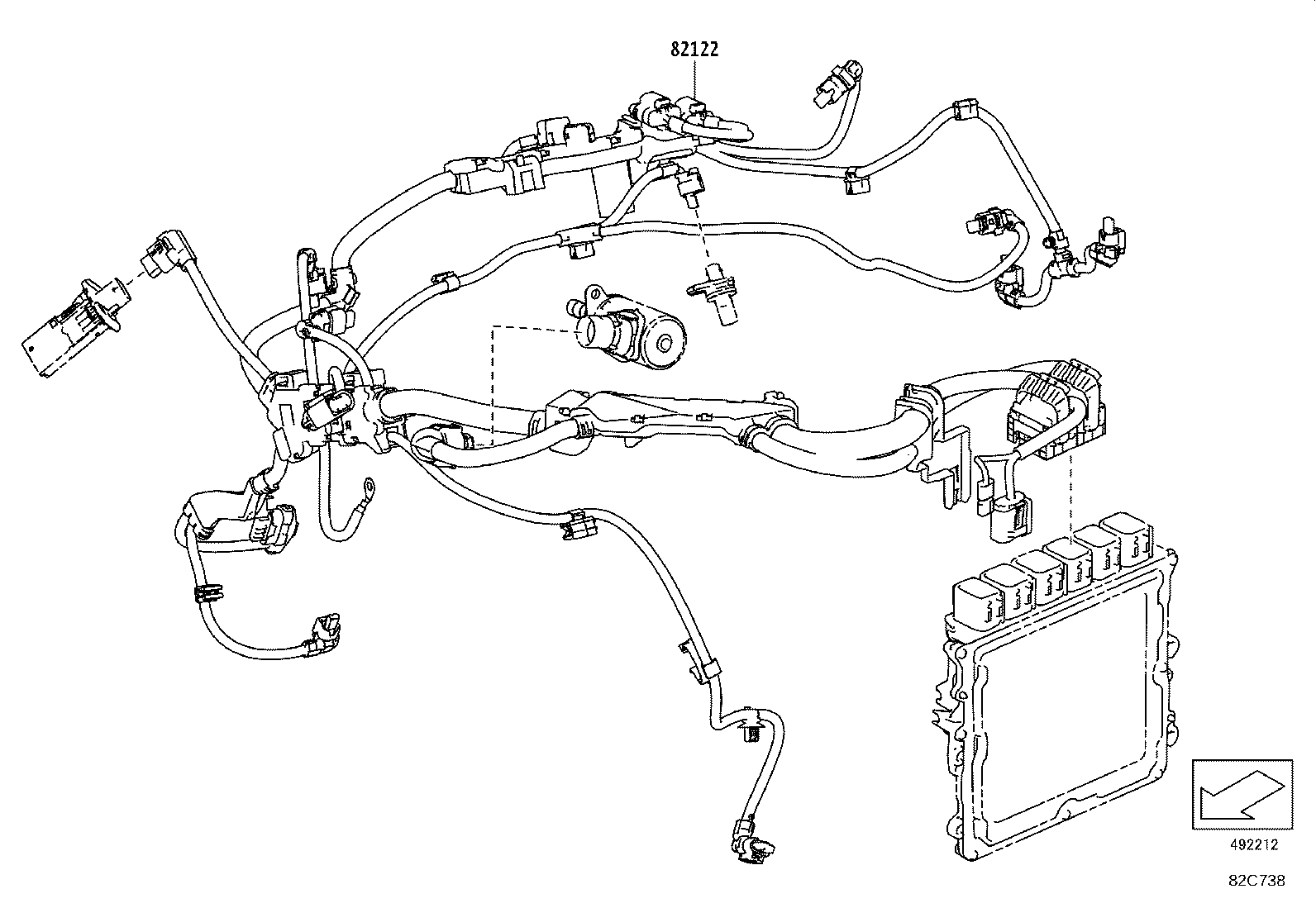

ILLUST NO. 5 OF28(1903- )DB0#,4#
ENGINE 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-WAA02 |
DB2#,8# |
1 | ||
| 82122-WAA06 |
DB2# CHINA SPEC |
1 | ||
| 82122-WAA06 |
DB2#,81 |
1 | ||
ILLUST NO. 5 OF28(1903- )DB2#,8#
ENGINE 2/4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-WAA02 |
DB2#,8# |
1 | ||
| 82122-WAA06 |
DB2# CHINA SPEC |
1 | ||
| 82122-WAA06 |
DB2#,81 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 90118-WA835 |
DB2#,81 |
1 | ||
| 89515 - CLIP | ||||
| 90118-WA836 |
DB2#,81 |
1 | ||

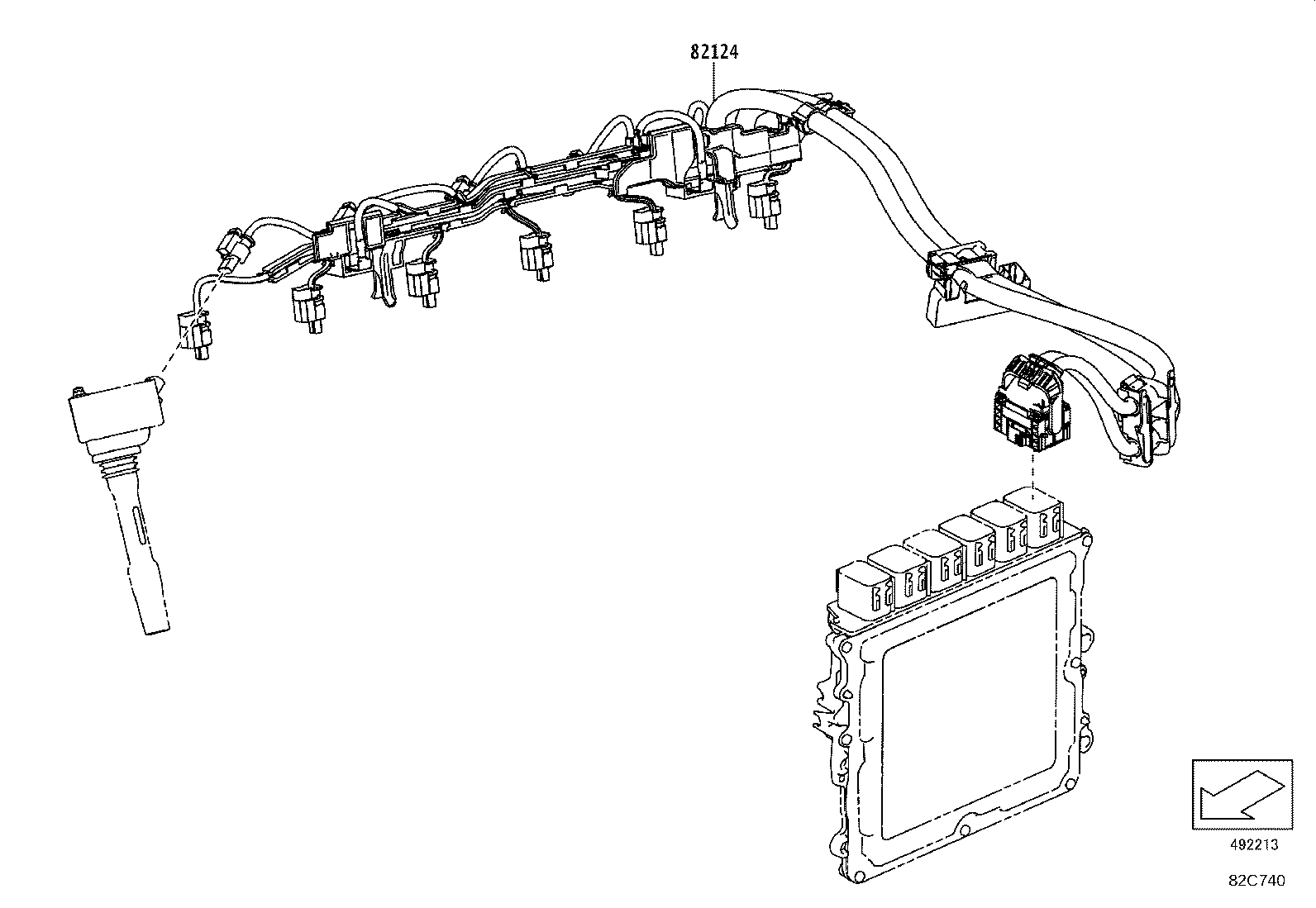

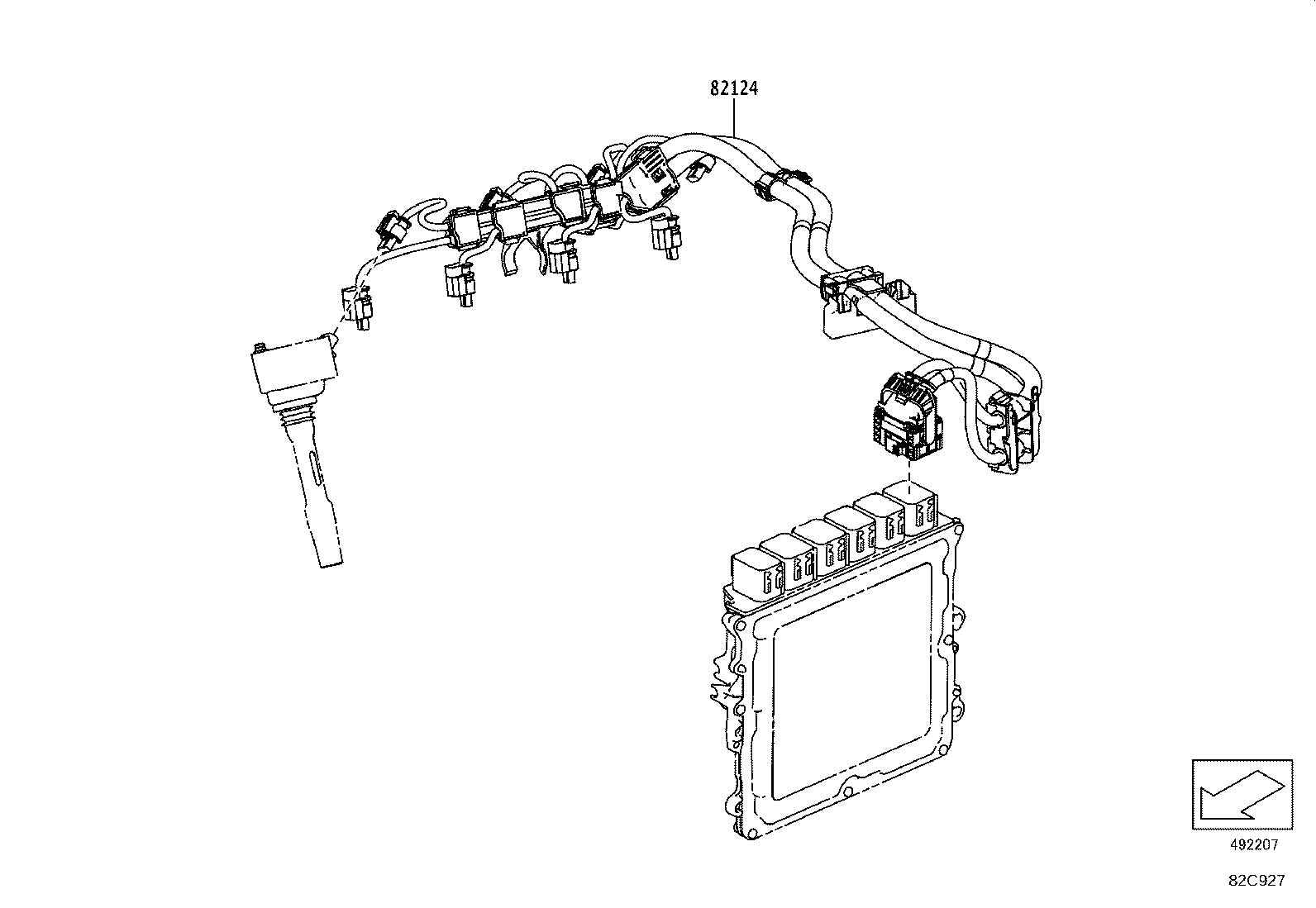

ILLUST NO. 6 OF28(1903- )DB0#,4#
ENGINE 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-WAA02 |
DB2#,81 |
1 | ||

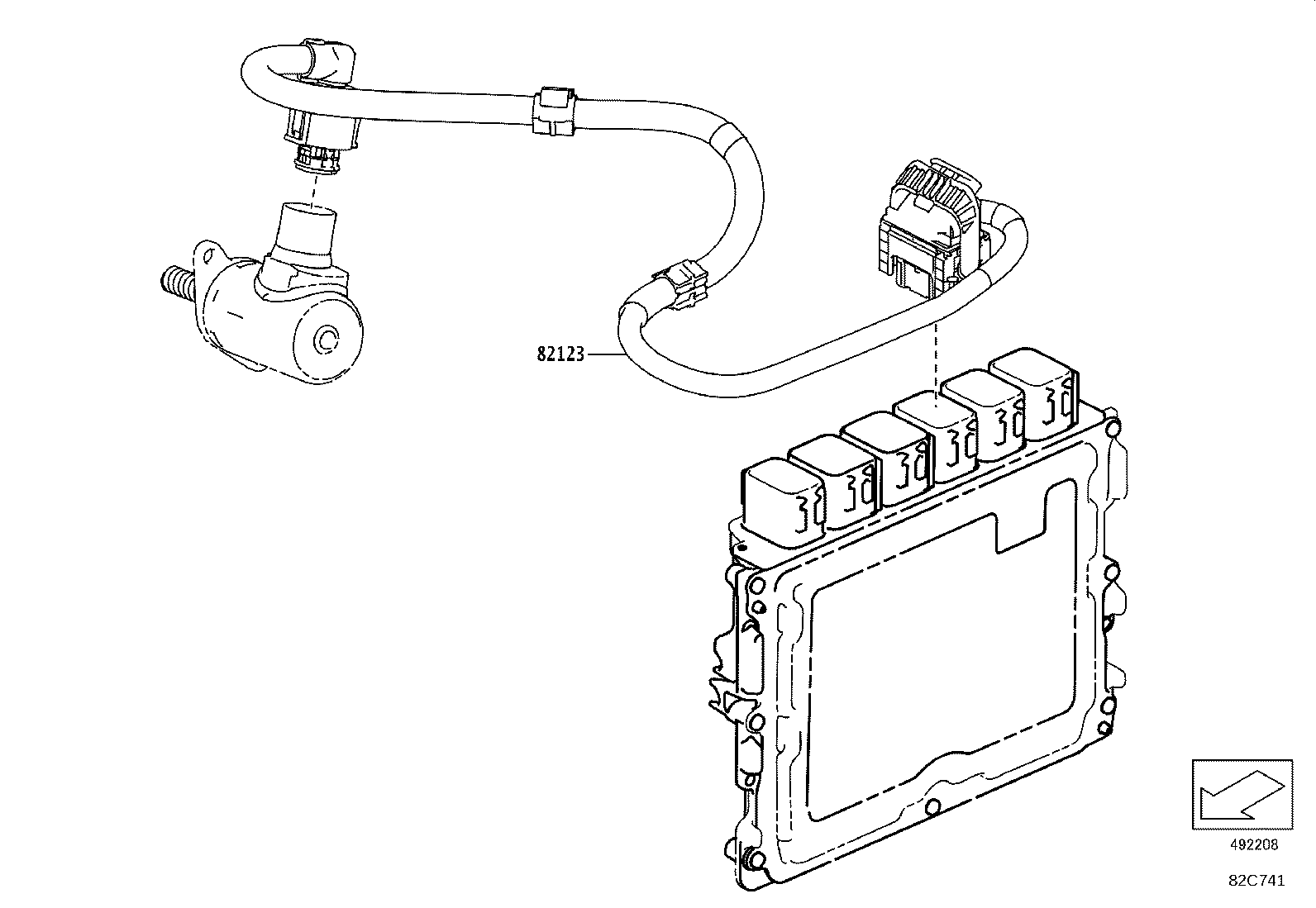

ILLUST NO. 7 OF28(1903- )DB2#,8#
ENGINE 4/4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-WAA01 |
DB2#,81 |
1 | ||

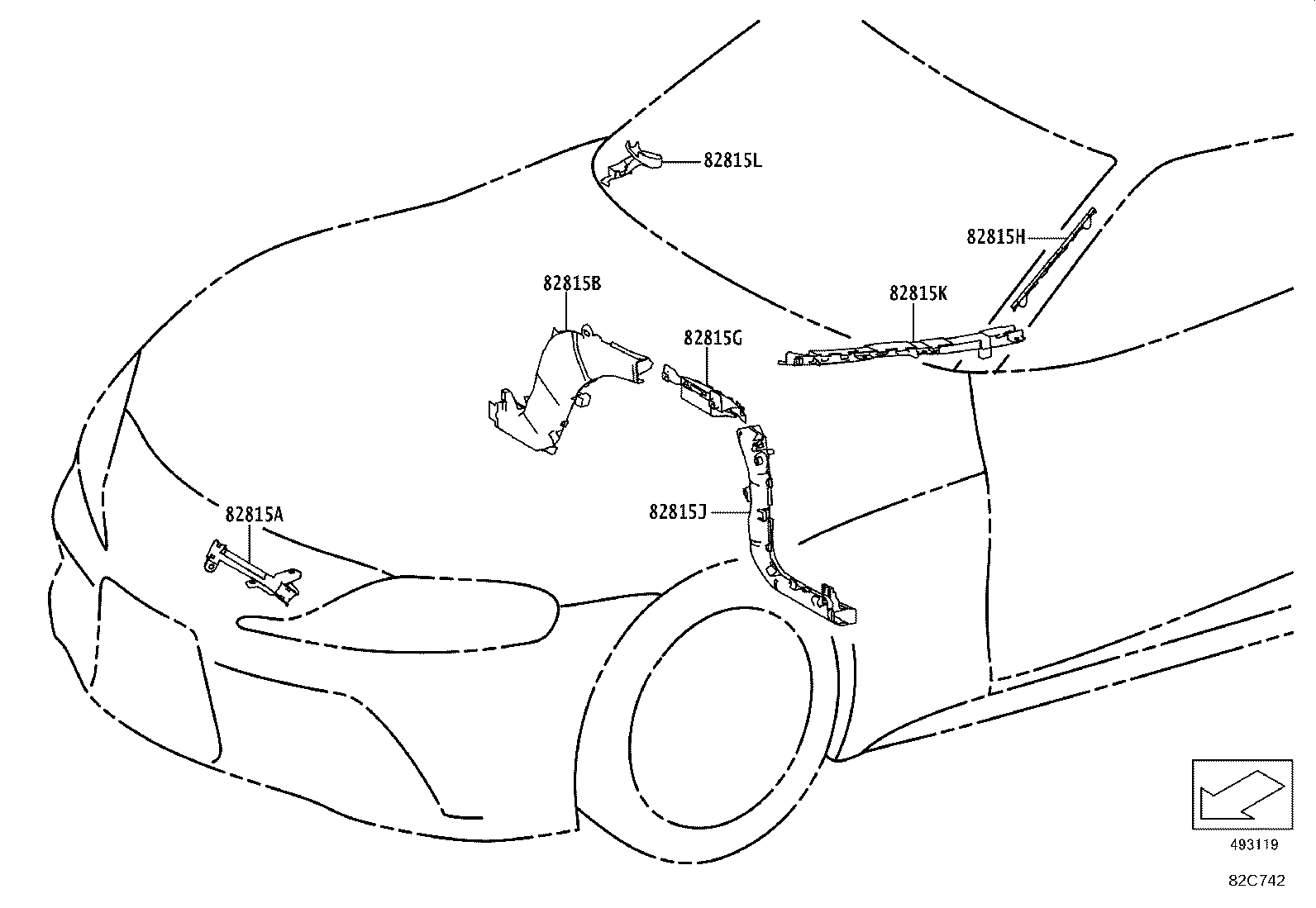

ILLUST NO. 9 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-WAA05 |
DB2#,4#,81 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-WAA01 |
DB2#,4#,81 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-WAA02 |
DB2#,4#,81 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-WAA07 |
DB2#,4#,81 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-WAA03 |
DB2#,4#,81 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-WAA04 |
DB2#,4#,81 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-WAA06 |
DB2#,4#,81 |
1 | ||

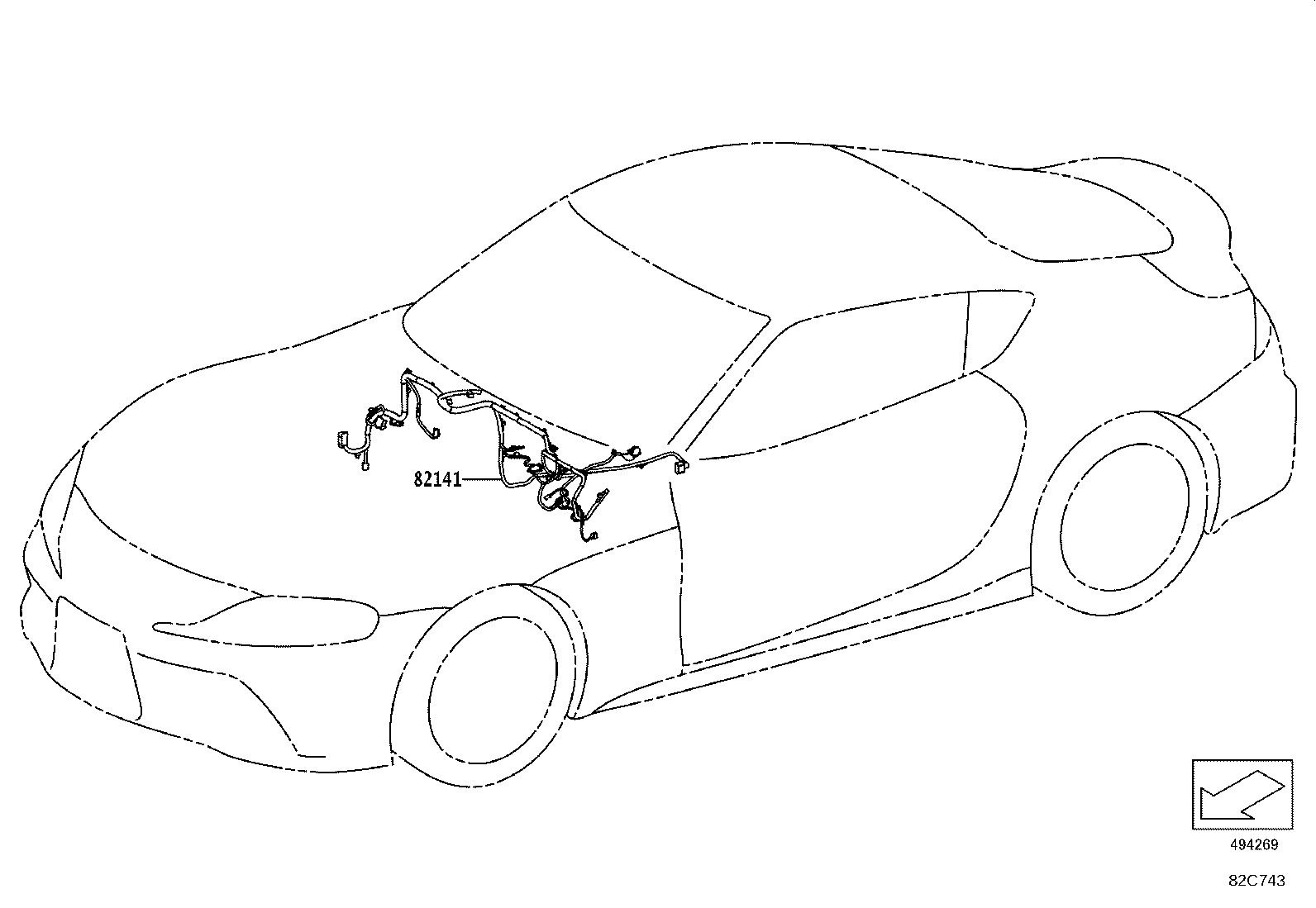

ILLUST NO.10 OF28(1903- )
INSTRUMENT PANEL 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-WAA01 |
DB2#,4#,81 |
1 | ||
ILLUST NO.12 OF28(1903- )
INSTRUMENT PANEL 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82162B - WIRE, FLOOR, NO.3 | ||||
| 81944-WAA05 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82163E - WIRE, FLOOR, NO.4 | ||||
| 81944-WAA04 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 81944-WAA06 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||

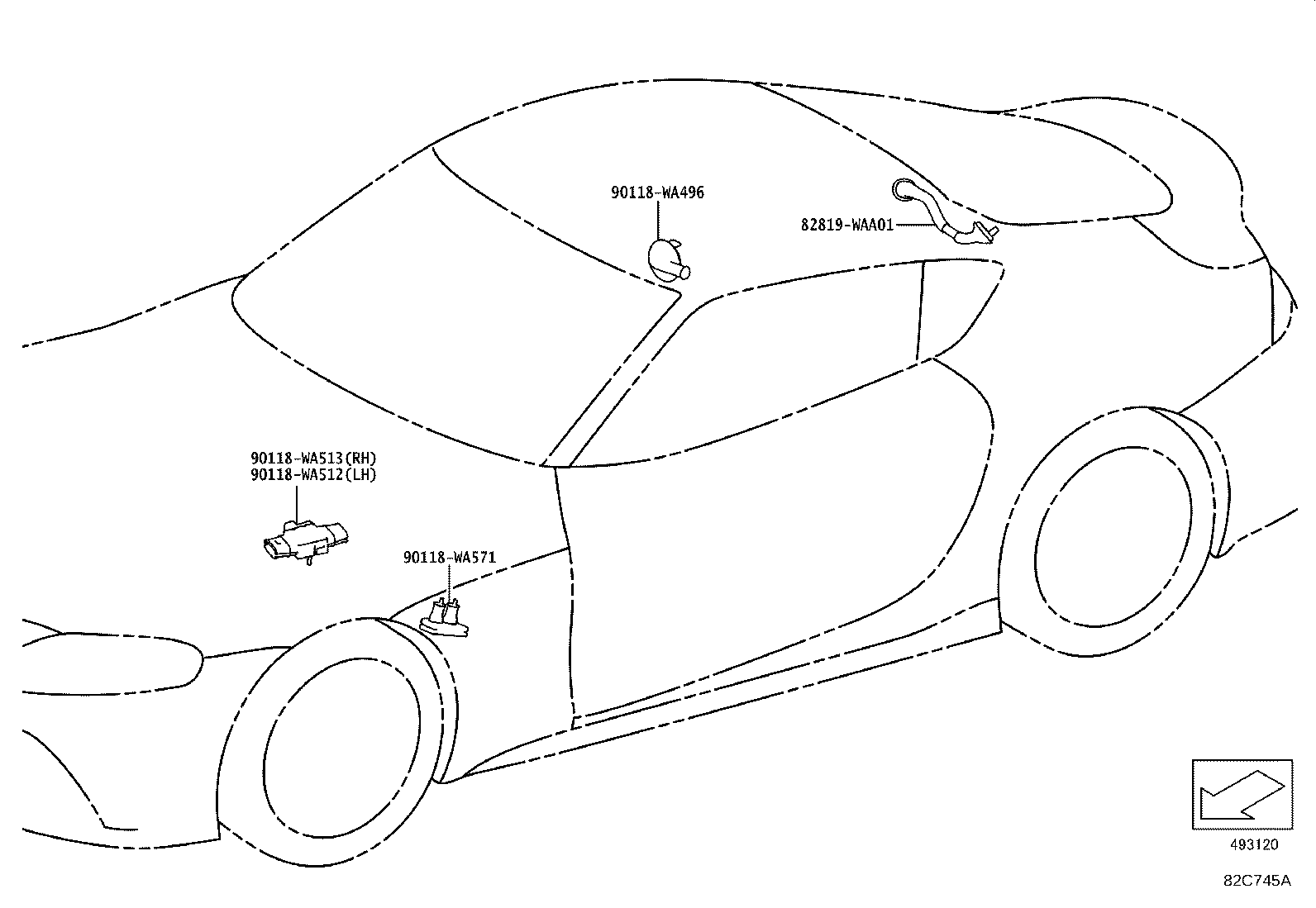

ILLUST NO.13 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82819-WAA01 | ||||
| 90118-WA496 | ||||
| 90118-WA512 | ||||
| 90118-WA513 | ||||
| 90118-WA571 | ||||
ILLUST NO.14 OF28(1903- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-WAA01 |
DB22,42 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-WAA01 |
DB22,42 |
1 | ||

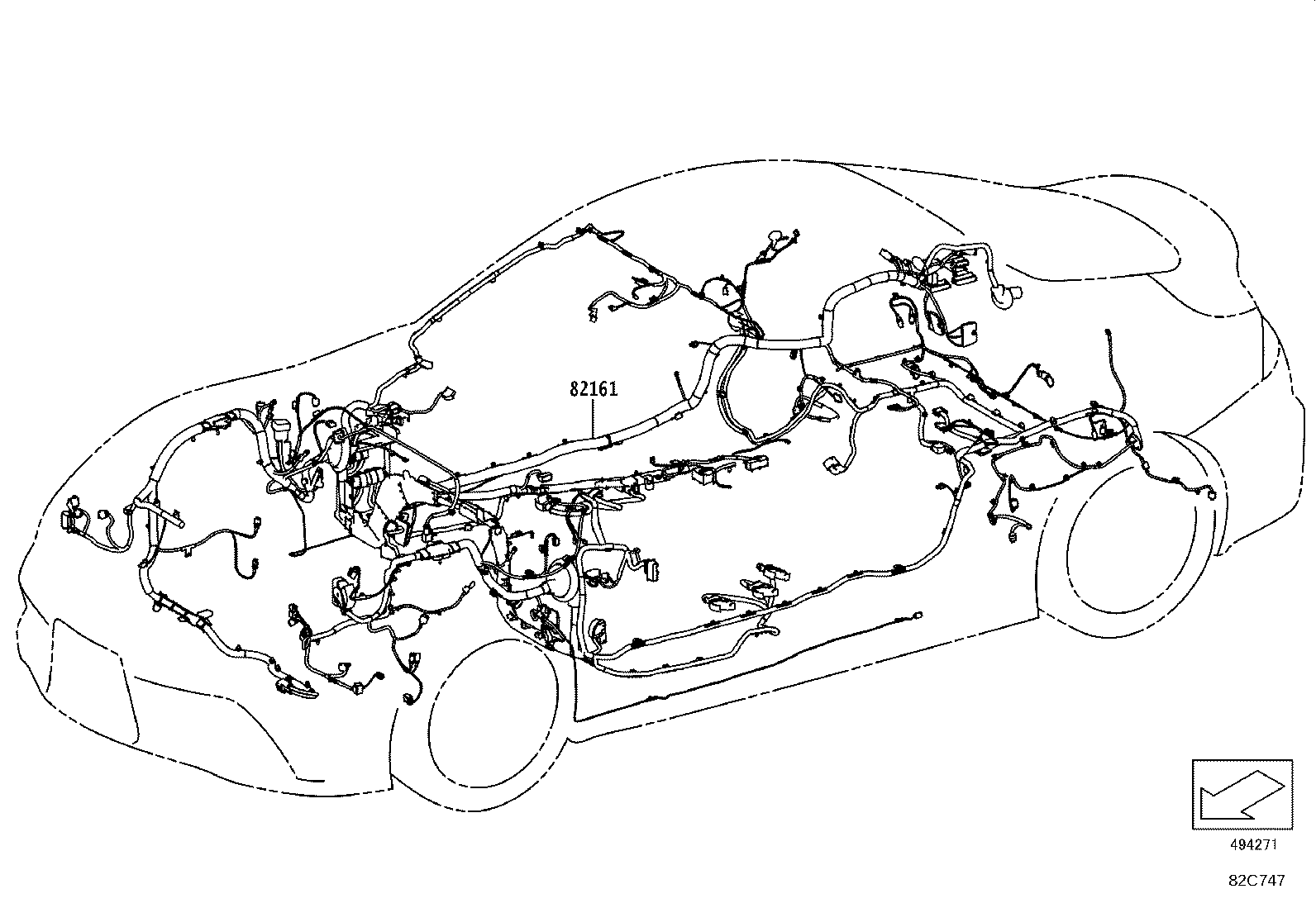

ILLUST NO.15 OF28(1903- )
FLOOR 1/6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-WAA01 |
DB2#,4#,81 |
1 | ||

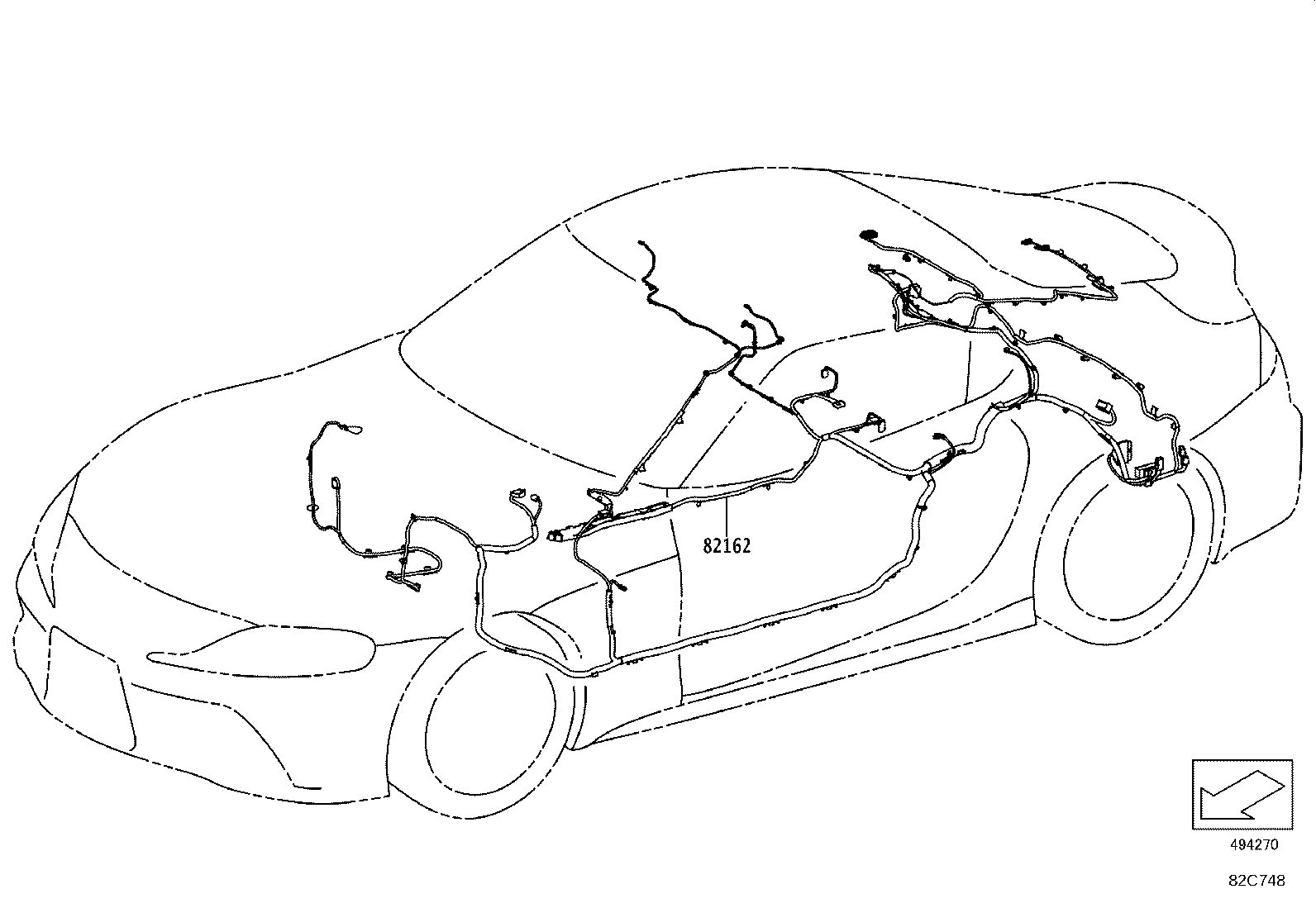

ILLUST NO.16 OF28(1903- )
FLOOR 2/6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-WAA01 |
DB2#,4#,81 |
1 | ||

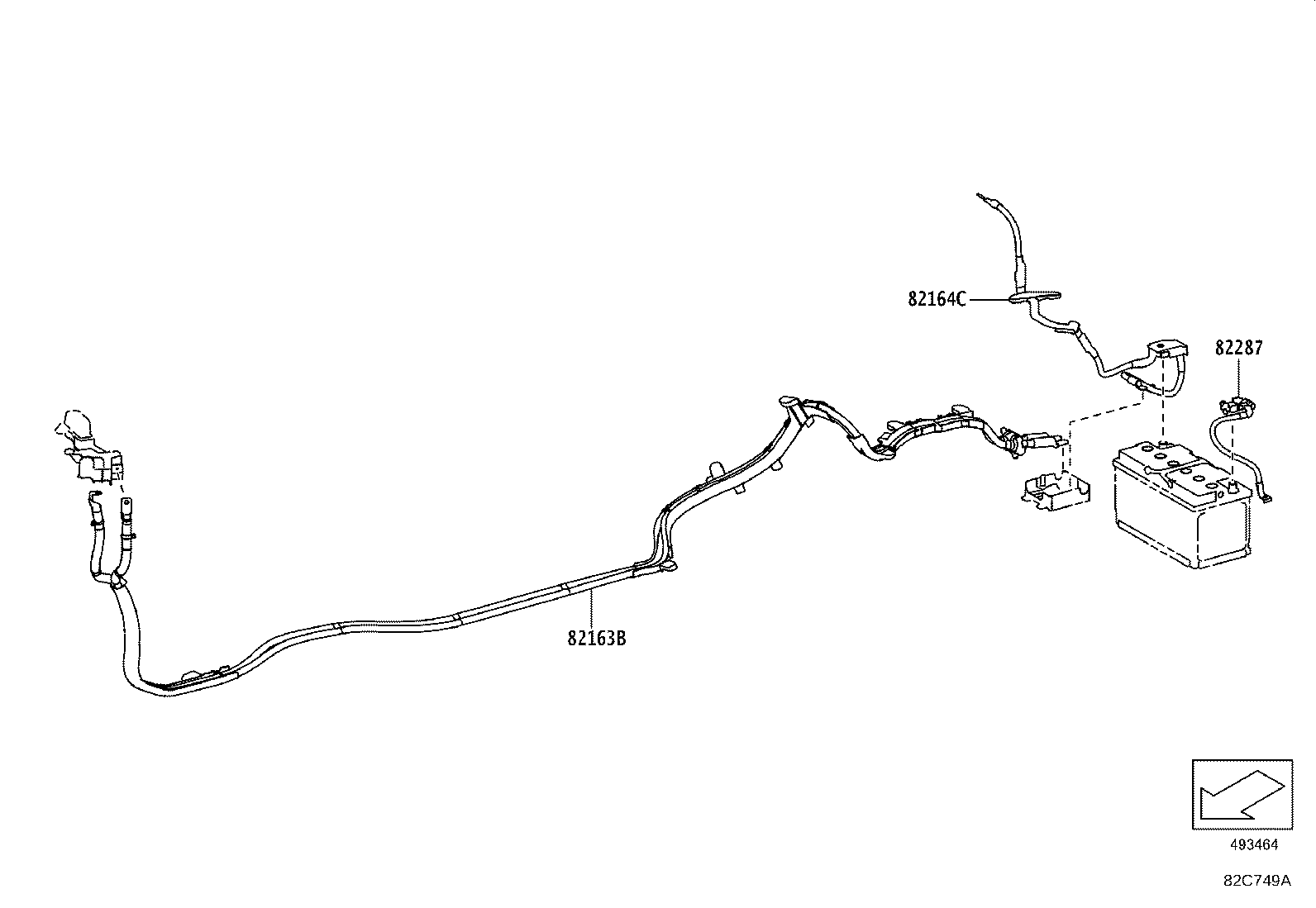

ILLUST NO.20 OF28(1903- )DB0#,2#,4#
FLOOR 6/6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82163-WAA01 |
DB2#,4# |
1 | ||
| 82163-WAA03 |
DB2#,4# |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-WAA01 |
DB2#,4# |
1 | ||
| 82287 - WIRE, EARTH, NO.3 | ||||
| 82284-WAA04 |
DB2#,4# |
1 | ||

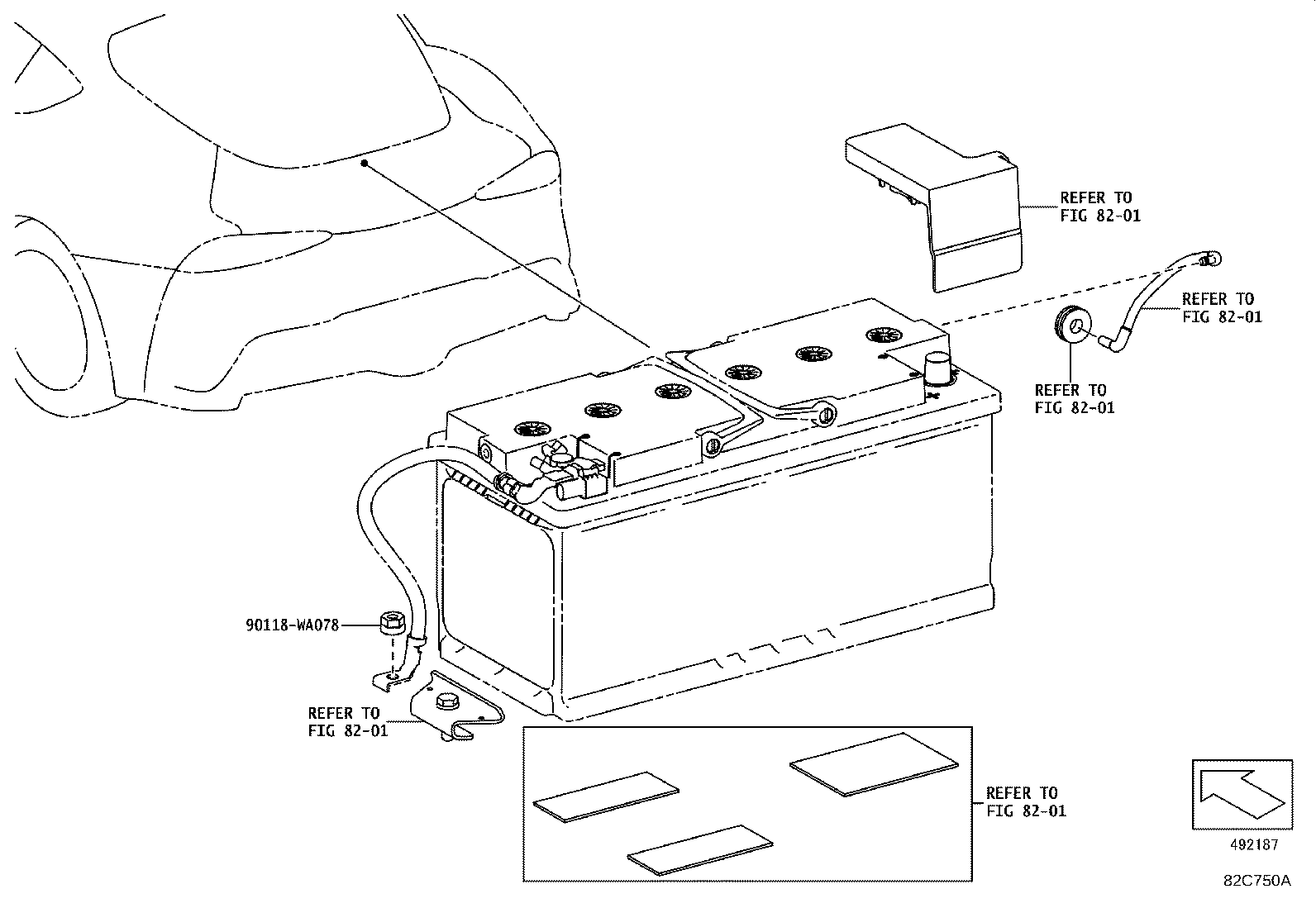

ILLUST NO.22 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA078 | ||||
| Linked diagrams | ||||
| 8201 | ||||

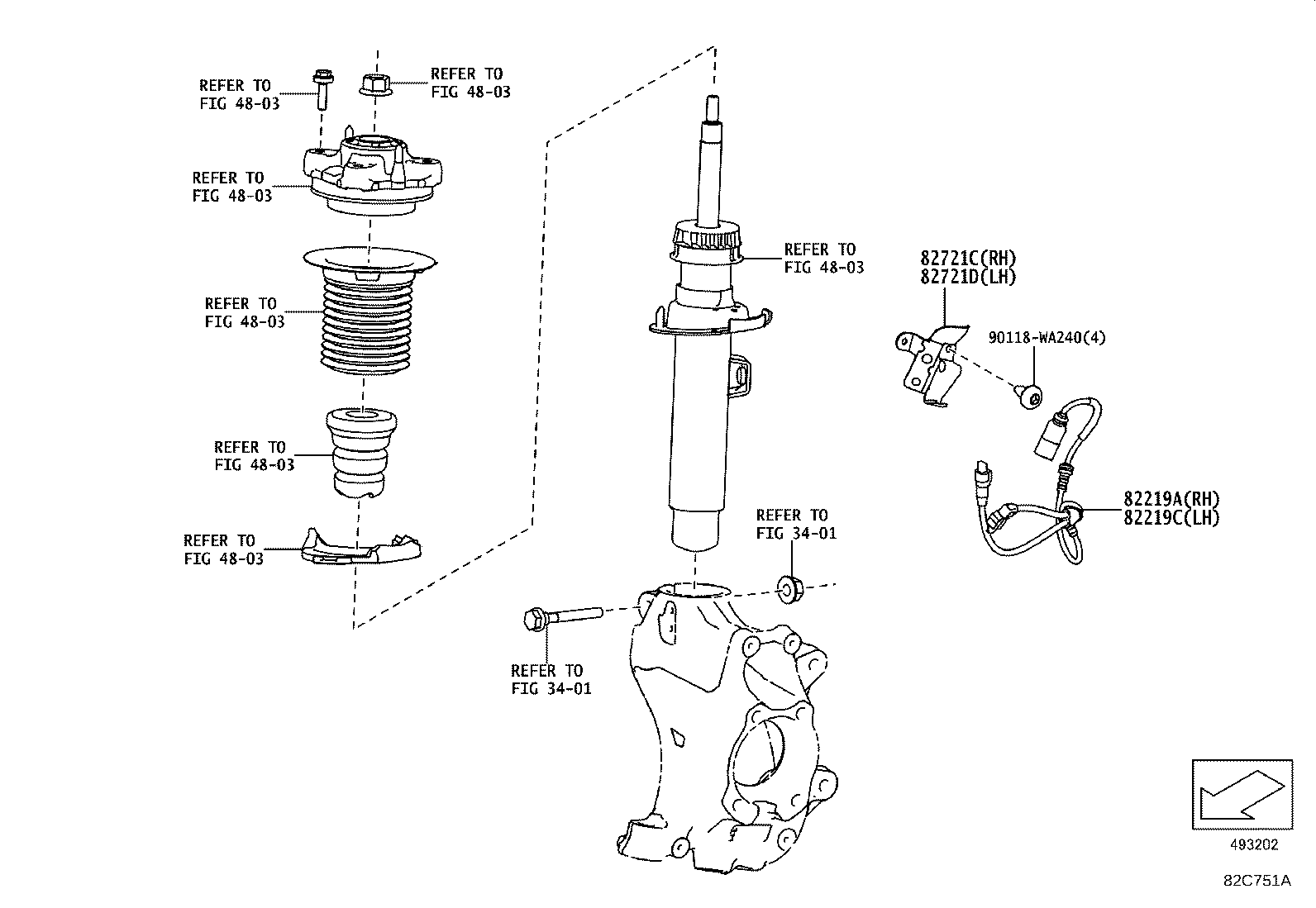

ILLUST NO.23 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219A - WIRE, SENSOR | ||||
| 90118-WA505 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 90118-WA505 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 82721C - BRACKET, WIRING HARNESS, RH | ||||
| 82715-WAA03 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 82721D - BRACKET, WIRING HARNESS, LH | ||||
| 82715-WAA02 |
DB2#,4#,81 AVS-WITH |
1 | ||
| Common parts | ||||
| 90118-WA240 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 4803 | ||||

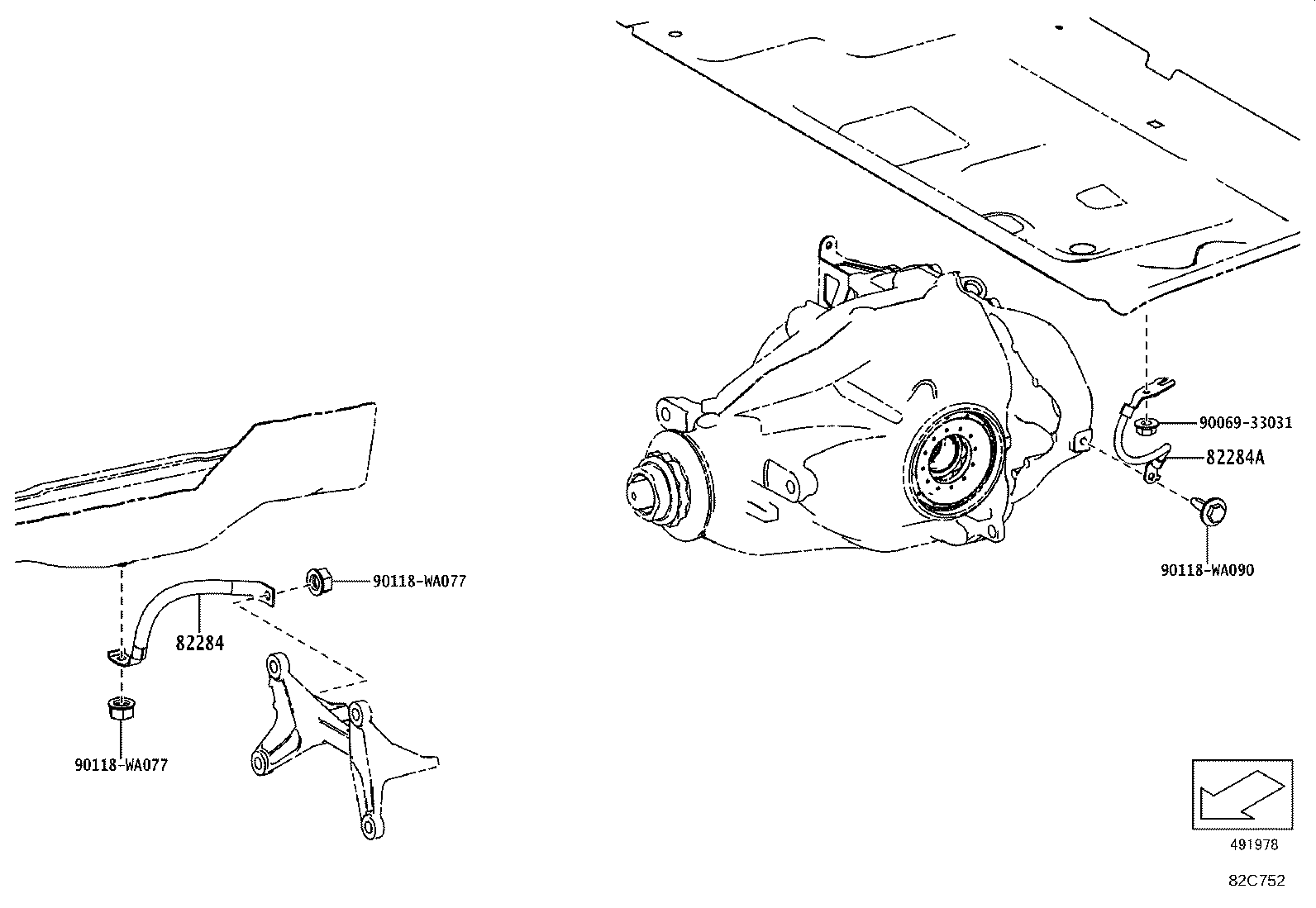

ILLUST NO.24 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82284 - WIRE, EARTH | ||||
| 82286-WAA01 |
DB2#,4#,81 |
1 | ||
| 82284A - WIRE, EARTH NO.2 | ||||
| 82284-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90069-33031 | ||||
| 90118-WA077 | ||||
| 90118-WA090 | ||||

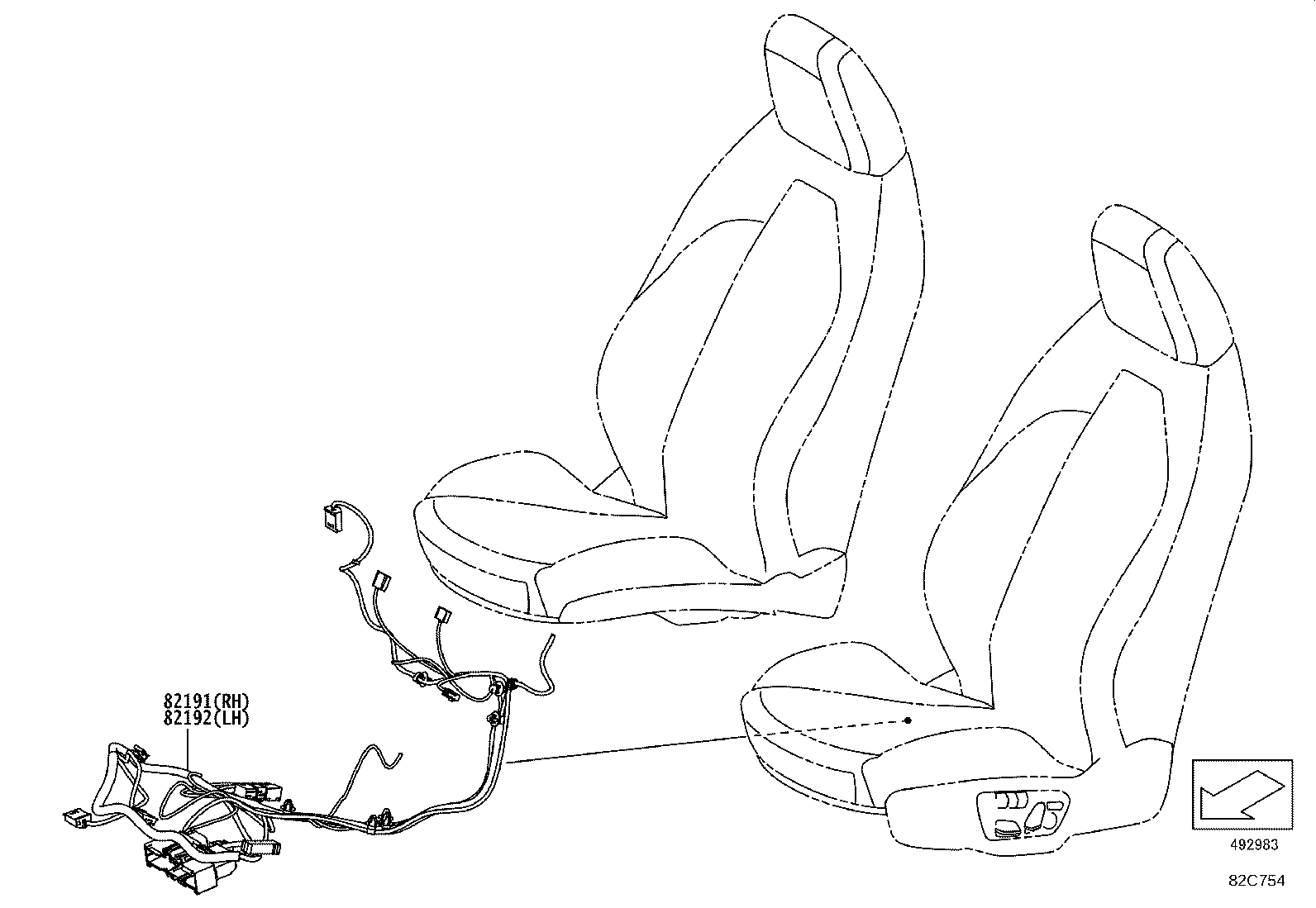

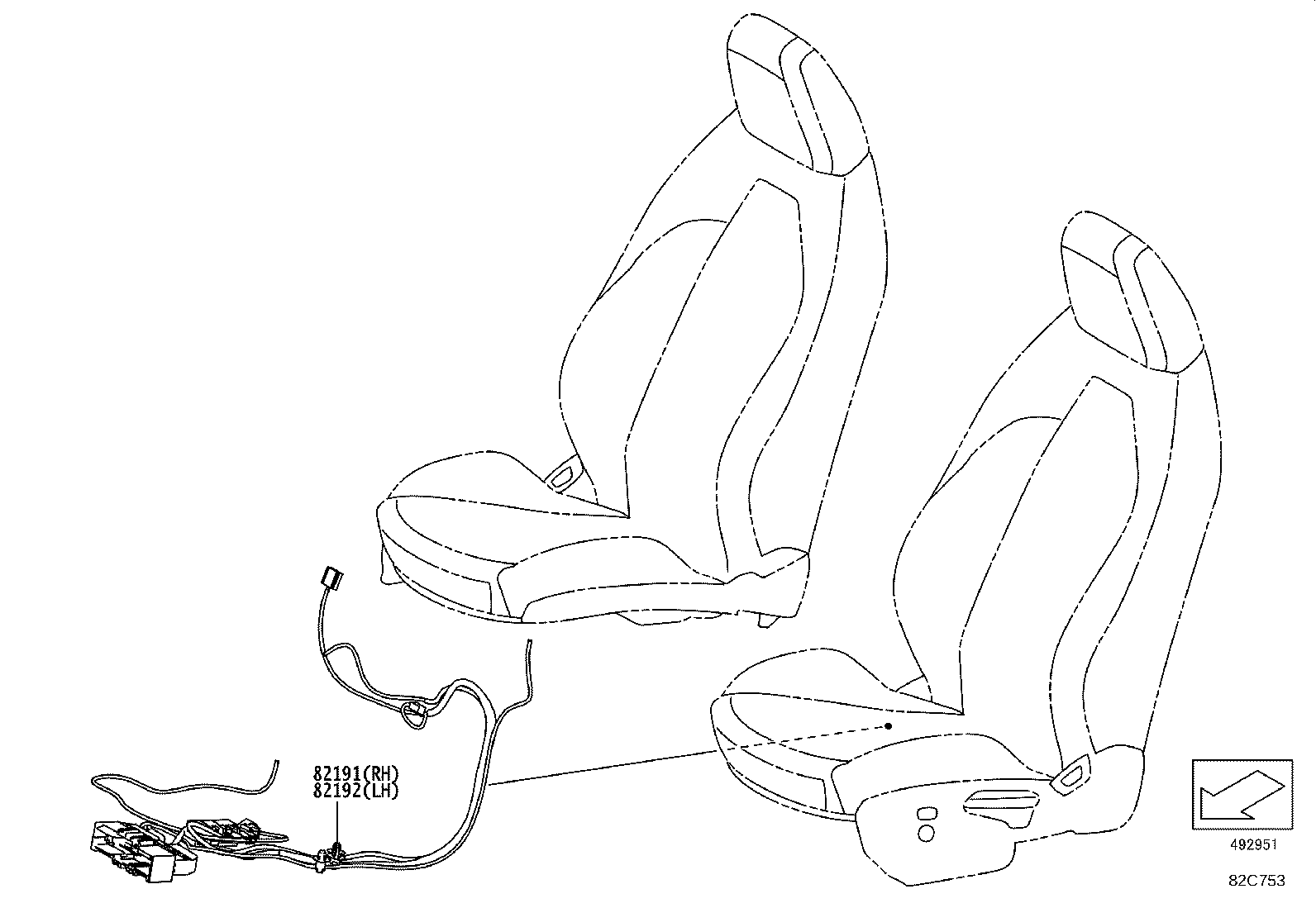

ILLUST NO.25 OF28(1903- )
SEAT (MANUAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-WAA03 |
DB2#,4#,81 SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA04 |
DB22,42 SEAT ADJUSTER-POWER TYPE |
1 | ||
| 82191-WAA02 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82191-WAA03 |
DB2#,4#,81 SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA01 |
DB22,42 SEAT ADJUSTER-POWER TYPE |
1 | ||
| 82191-WAA02 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
ILLUST NO.26 OF28(1903- )
SEAT (POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-WAA03 |
DB2#,4#,81 SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA04 |
DB22,42 SEAT ADJUSTER-POWER TYPE |
1 | ||
| 82191-WAA02 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82191-WAA03 |
DB2#,4#,81 SEAT LUMBAR SUPPORT-WIHT&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA01 |
DB22,42 SEAT ADJUSTER-POWER TYPE |
1 | ||
| 82191-WAA02 |
DB2#,4#,81 SEAT HEATER-WITH&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
| 82191-WAA03 |
DB2#,4#,81 SEAT-SPORT TYPE&SEAT ADJUSTER-MANUAL TYPE |
1 | ||
ILLUST NO. 6 OF28(1903- )DB2#,8#
ENGINE 3/4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-WAA02 |
DB2#,81 |
1 | ||

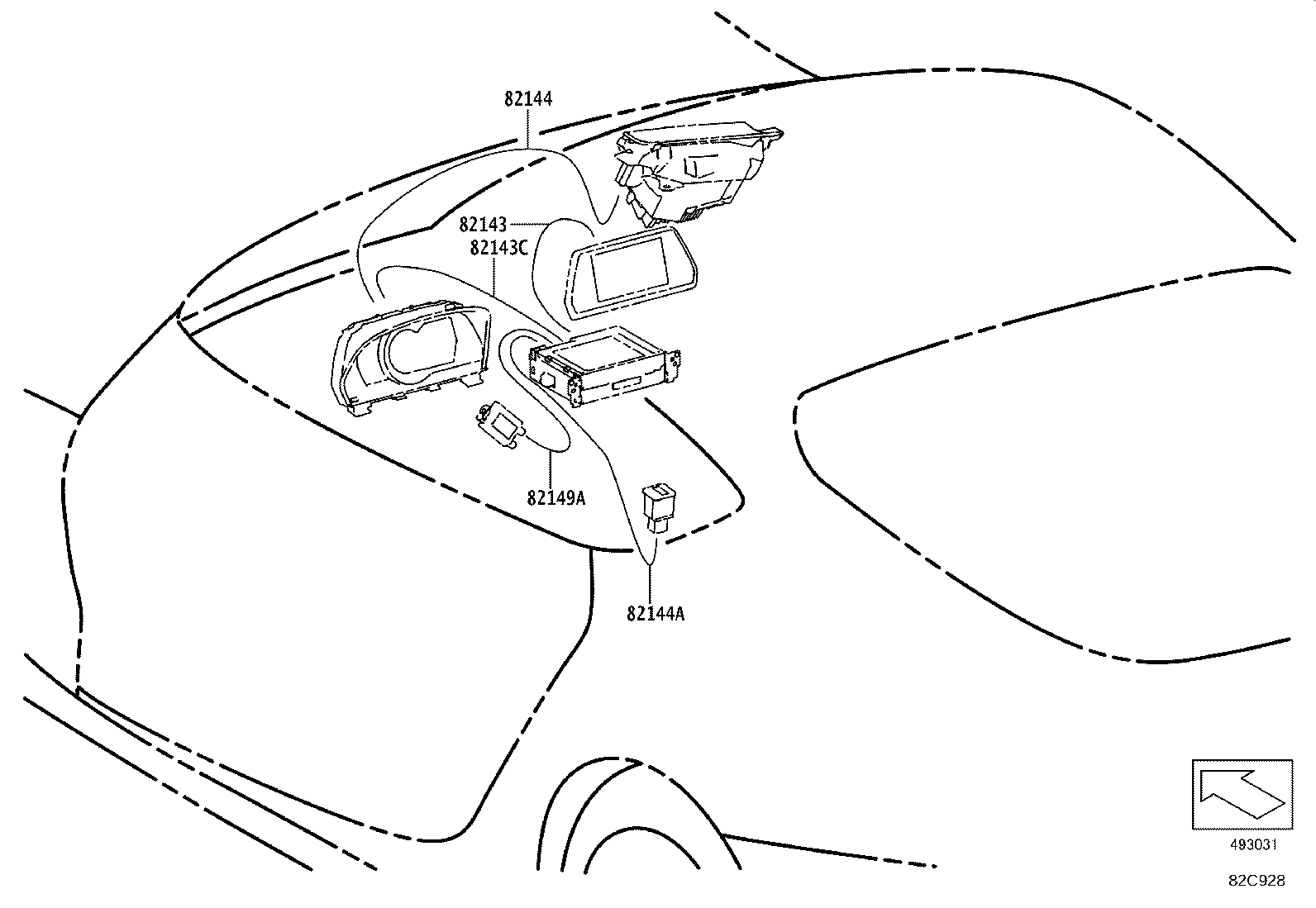

ILLUST NO.11 OF28(1903- )
INSTRUMENT PANEL 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82169-WAA63 |
DB22,42 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA62 |
DB22,42 |
1 | ||
| 82169-WAA63 |
DB22,42 EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82169-WAA64 |
DB22,42 |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82169-WAA97 |
DB22,42 |
1 | ||
| 82144A - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82169-WAA95 |
DB2#,4#,81 |
1 | ||
| 82169-WAA96 |
DB2#,4#,81 |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA66 |
DB22,42 WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA66 |
DB22,42 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA65 |
DB22,42 WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 82169-WAA66 |
DB22,42 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||

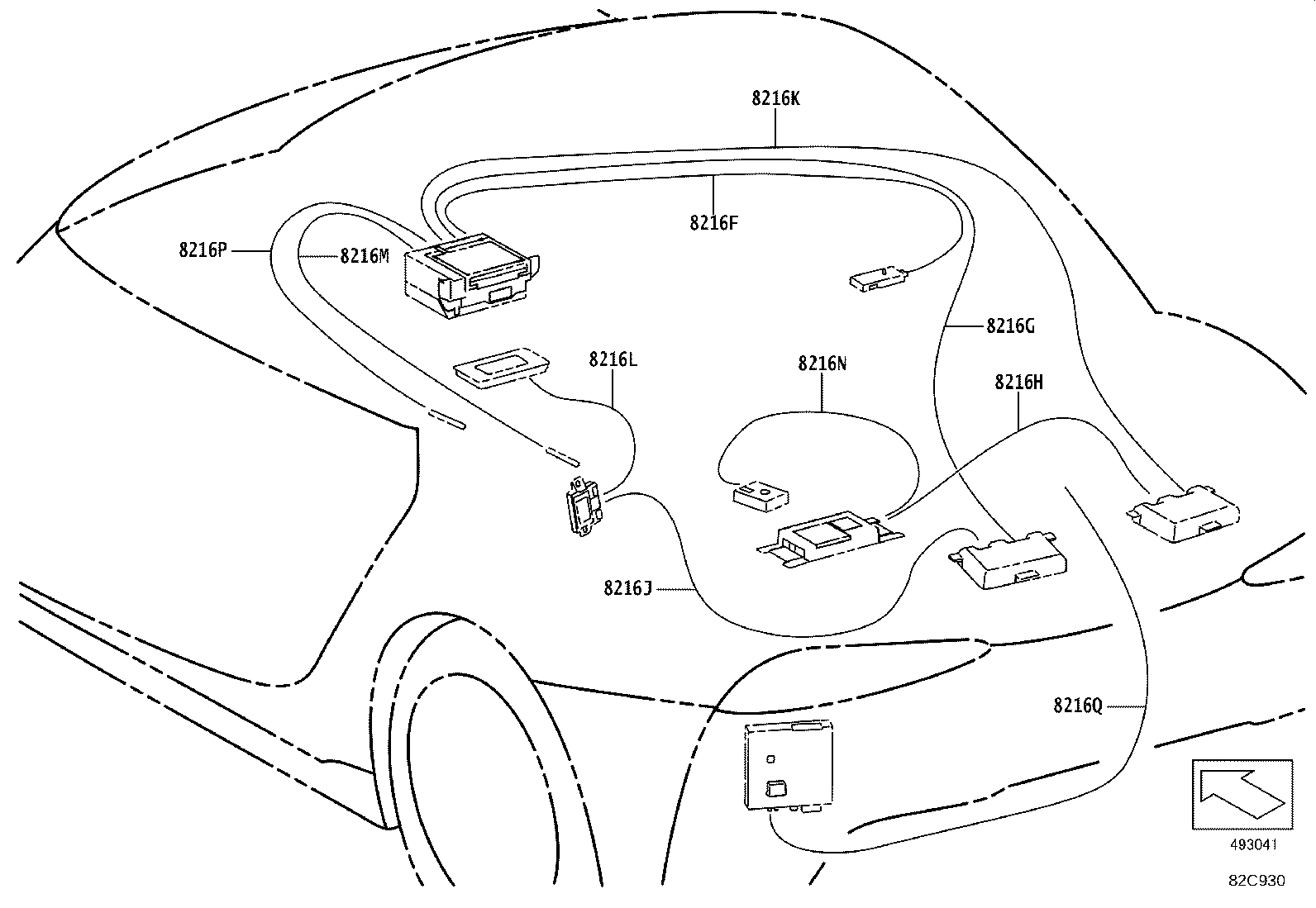

ILLUST NO.18 OF28(1903- )
FLOOR 4/6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8216F - WIRE, FLOOR, NO.12 | ||||
| 82169-WAA89 |
DB2#,4# EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA79 |
DB2#,4# SATELLITE RADIO-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA88 |
DB2#,4#,81 |
1 | ||
| 82169-WAA78 |
DB2#,4#,81 SATELLITE RADIO-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA89 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA78 |
DB2#,4#,81 SATELLITE RADIO-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA79 |
DB2#,4#,81 SATELLITE RADIO-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA78 |
DB2#,4#,81 SATELLITE RADIO-WITH(DAB)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 8216G - WIRE, FLOOR, NO.13 | ||||
| 82169-WAA82 |
DB2#,4#,81 SATELLITE RADIO-WITH(SDARS)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 82169-WAA82 |
DB2#,4#,81 SATELLITE RADIO-WITH(SDARS)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA82 |
DB2#,4#,81 SATELLITE RADIO-WITH(SDARS)&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA83 |
DB2#,4#,81 SATELLITE RADIO-WITH(SDARS)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA82 |
DB2#,4#,81 SATELLITE RADIO-WITH(SDARS)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 8216H - WIRE, FLOOR, NO.14 | ||||
| 82169-WAA86 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA86 |
DB2#,4#,81 DATA COMMUNICATION MODULE-WITH |
1 | ||
| 82169-WAA80 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA80 |
DB2#,4#,81 DATA COMMUNICATION MODULE-WITH |
1 | ||
| 8216J - WIRE, FLOOR, NO.15 | ||||
| 82169-WAA84 |
DB2#,4#,81 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 8216K - WIRE, FLOOR, NO.16 | ||||
| 82169-WAA81 |
DB2#,4# EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA81 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 8216L - WIRE, FLOOR, NO.17 | ||||
| 82169-WAA85 |
DB2#,4#,81 MEXICO SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 KUWAIT SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 DUBAI, SHARJAH SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 CANADA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 ABU DHABI SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 BAHRAIN SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 GUAM SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 EAST AFRICAN COMMUNITY SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 OMAN SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 LEBANON SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 ISRAEL, PALESTINE SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 RUSSIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 MIDDLE & NEAR EAST SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 USA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 TURKEY SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 QATAR SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 SAUDI ARABIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 MALAYSIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 THAILAND SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 EAST EUROPE 1 SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 SRI LANKA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 EAST EUROPE 2 SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 BELGIUM, LUXEMBOURG SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 GERMANY SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 FRANCE SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 NETHERLAND SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 NORDIC SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 SWITZERLAND SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 AUSTRIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 UNITED KINGDOM SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 SPAIN SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 KOREA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 REST EUROPE SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 PORTUGAL SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 EU MEDITERRANEAN SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 INDONESIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(ERP))&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 BALTIC SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 SOUTH AFRICA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 ICELAND SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 SINGAPORE SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 PHILIPPINES SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 REST ASIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 ITALY SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 AUSTRALIA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 NEW ZEALAND SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 HONG KONG, MACAU SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 CHINA SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 CENTRAL EAST EU SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 82169-WAA85 |
DB2#,4#,81 TAIWAN SPEC&WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA) |
1 | ||
| 8216M - WIRE, FLOOR, NO.18 | ||||
| 82169-WAA87 |
DB2#,4#,81 WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA87 |
DB2#,4#,81 WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA87 |
DB2#,4# WIRELESS CHARGER-WITH & WITH(ACTIVE ANTENNA)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA87 |
DB2#,4# WIRELESS CHARGER-WITH&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 8216N - WIRE, FLOOR, NO.19 | ||||
| 82169-WAA75 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA75 |
DB2#,4#,81 DATA COMMUNICATION MODULE-WITH |
1 | ||
| 8216P - WIRE, FLOOR, NO.20 | ||||
| 82169-WAA77 |
DB2#,4# EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA77 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA76 |
DB2#,4#,81 |
1 | ||
| 8216Q - WIRE, FLOOR, NO.21 | ||||
| 82169-WAA90 |
DB2#,4#,81 JAPAN SPEC&DIGITAL TV TUNER-WITH&EMV & NAVIGATION SYSTEM-WITH |
1 | ||

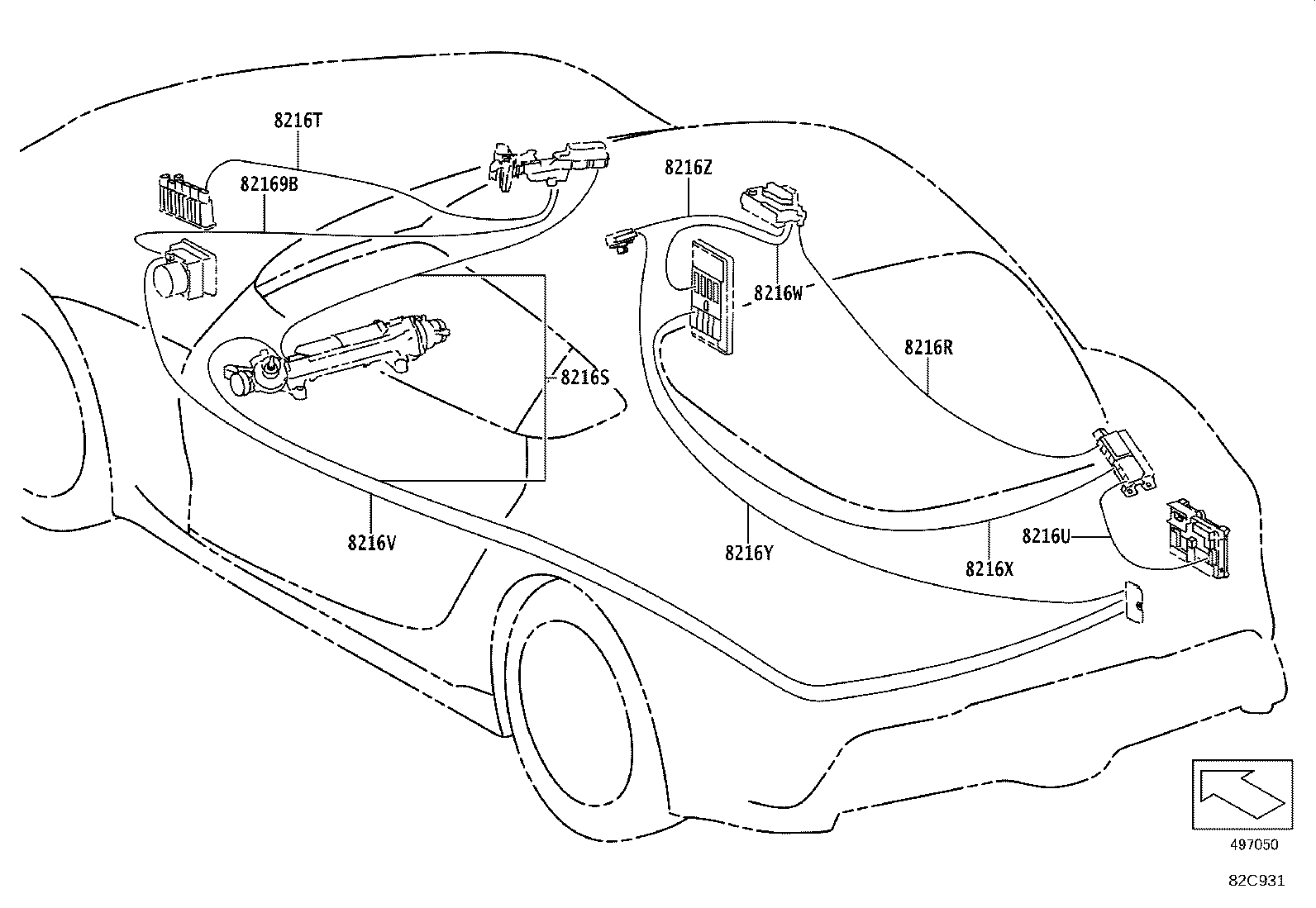

ILLUST NO.19 OF28(1903- )
FLOOR 5/6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82169B - WIRE, FLOOR, NO.7 | ||||
| 82169-WAA52 |
DB2#,4#,81 |
1 | ||
| 8216R - WIRE, FLOOR, NO.22 | ||||
| 82169-WAA71 |
DB22,42 |
1 | ||
| 8216S - WIRE, FLOOR, NO.23 | ||||
| 82169-WAA72 |
DB22,42 |
1 | ||
| 8216T - WIRE, FLOOR, NO.24 | ||||
| 82169-WAA53 |
DB2#,4#,81 |
1 | ||
| 8216U - WIRE, FLOOR, NO.25 | ||||
| 82169-WAA51 |
DB2#,4#,81 |
1 | ||
| 8216V - WIRE, FLOOR, NO.26 | ||||
| 82169-WAA48 |
DB2#,4#,81 |
1 | ||
| 8216W - WIRE, FLOOR, NO.27 | ||||
| 82169-WAA54 |
DB2#,4#,81 |
1 | ||
| 8216X - WIRE, FLOOR, NO.28 | ||||
| 82169-WAA50 |
DB2#,4#,81 |
1 | ||
| 8216Y - WIRE, FLOOR, NO.29 | ||||
| 82169-WAA49 |
DB2#,4#,81 |
1 | ||
| 8216Z - WIRE, FLOOR, NO.30 | ||||
| 82169-WAA55 |
DB2#,4#,81 |
1 | ||
ILLUST NO.17 OF28(1903- )
FLOOR 3/6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82169-WAA40 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE GUARD PACKAGE&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 82169-WAA40 |
DB22,42 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA) |
1 | ||
| 82169-WAA40 |
DB22,42 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA40 |
DB22,42 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE GUARD PACKAGE&EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE GUARD PACKAGE&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82169-WAA40 |
DB22,42 ACTIVE GUARD PACKAGE&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 82169-WAA40 |
DB22,42 CRUISE CONTROL-WITH(ALL-SPEED *ACC)&EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82163A - WIRE, FLOOR, NO.4 | ||||
| 82169-WAA94 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA94 |
DB2#,4# EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 82163C - WIRE, FLOOR NO.3 RH | ||||
| 82169-WAA99 |
DB2#,4#,81 |
1 | ||
| 82169-WAA43 |
DB2#,4#,81 |
1 | ||
| 82169-WAA98 |
DB2#,4#,81 ## |
1 | ||
| 82164D - WIRE, FLOOR, NO.5 | ||||
| 82169-WAA74 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA41 |
DB2#,4#,81 |
1 | ||
| 82169-WAA74 |
DB2#,4# EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO) |
1 | ||
| 8216A - WIRE, FLOOR NO.7 | ||||
| 82169-WAA91 |
DB2#,4#,81 |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 82169-WAA92 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 8216C - WIRE, FLOOR, NO.9 | ||||
| 82169-WAA68 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(EURO)&DATA COMMUNICATION MODULE-WITH |
1 | ||
| 82169-WAA68 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(USA)&DATA COMMUNICATION MODULE-WITH |
1 | ||
| 82169-WAA68 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITHOUT&DATA COMMUNICATION MODULE-WITH |
1 | ||
| 82169-WAA68 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN)&DATA COMMUNICATION MODULE-WITH |
1 | ||
| 82169-WAA70 |
DB2#,4#,81 |
1 | ||
| 82169-WAA70 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA68 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH & CONNECT(JAPAN) |
1 | ||
| 8216D - WIRE, FLOOR, NO.10 | ||||
| 82169-WAA93 |
DB2#,4#,81 EMV & NAVIGATION SYSTEM-WITH |
1 | ||
| 82169-WAA93 |
DB2#,4#,81 |
1 | ||
| 8216E - WIRE, FLOOR, NO.11 | ||||
| 82169-WAA04 |
DB2#,4#,81 |
1 | ||

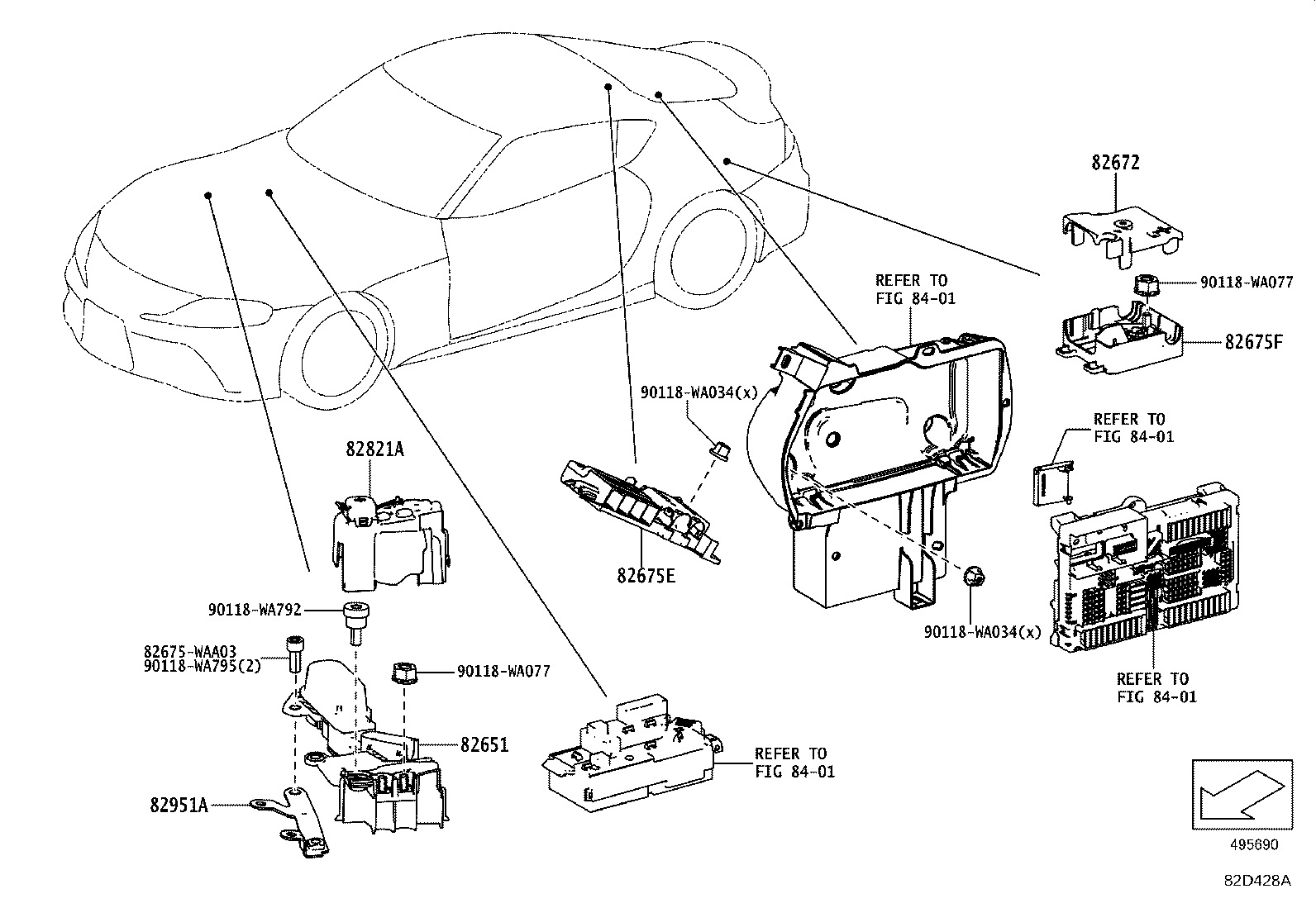

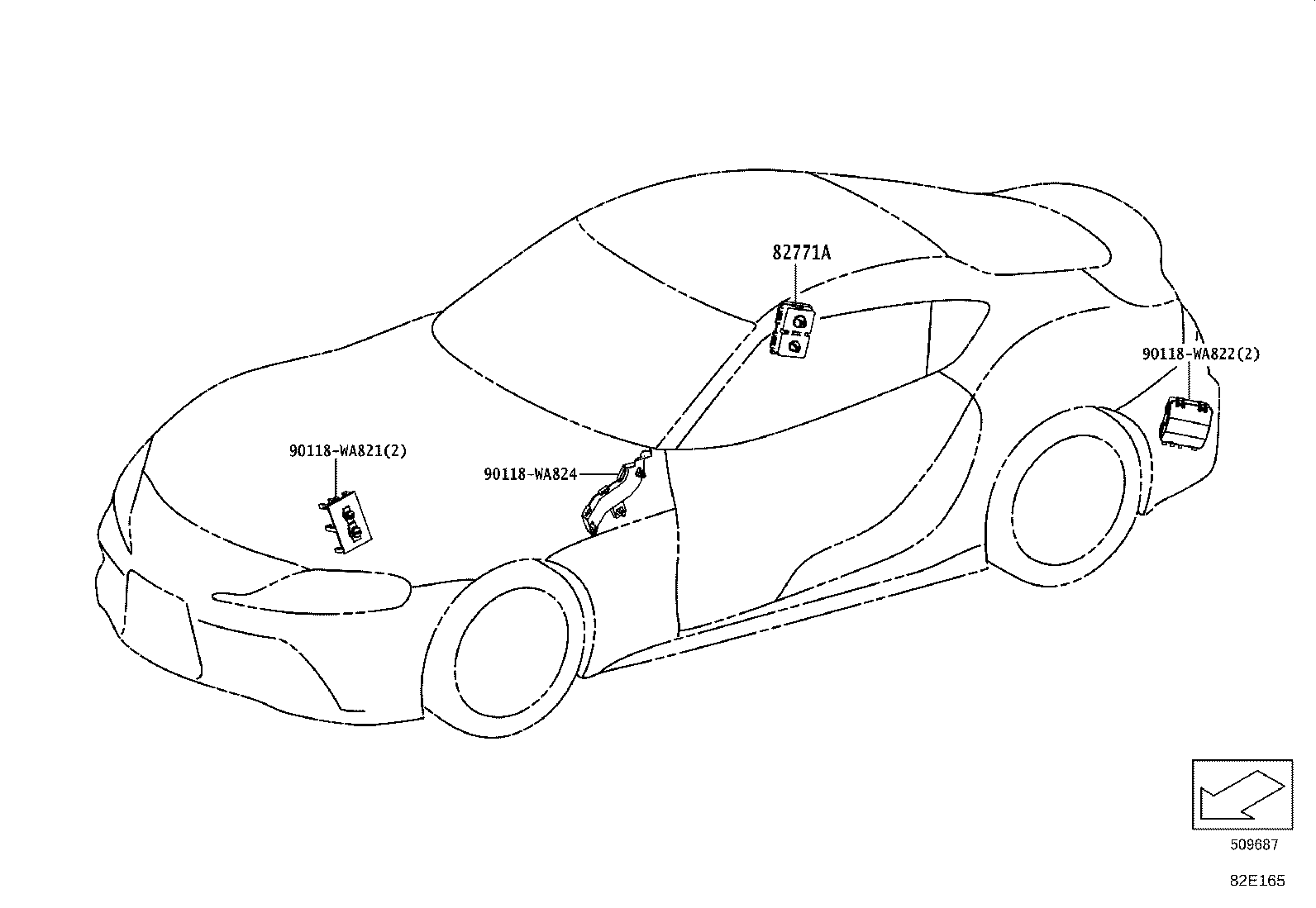

ILLUST NO.27 OF28(1903- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA691 | ||||
| 90118-WA718 | ||||
| 90118-WA719 | ||||
| 90118-WA720 | ||||
| 90118-WA721 | ||||
| 90118-WA722 | ||||
| 90118-WA723 | ||||
| 90118-WA724 | ||||
| 90118-WA725 | ||||
| 90118-WA727 | ||||
| 90118-WA728 | ||||
| 90118-WA729 | ||||
| 90118-WA730 | ||||
| 90118-WA731 | ||||
| 90118-WA732 | ||||
| 90118-WA734 | ||||
| 90118-WA736 | ||||
| 90118-WA737 | ||||
| 90118-WA738 | ||||
| 90118-WA739 | ||||
| 90118-WA740 | ||||
| 90118-WA741 | ||||
| 90118-WA742 | ||||
| 90118-WA743 | ||||
| 90118-WA744 | ||||
| 90118-WA745 | ||||
| 90118-WA746 | ||||
| 90118-WA747 | ||||
| 90118-WA748 | ||||
| 90118-WA749 | ||||
| 90118-WA750 | ||||
| 90118-WA751 | ||||
| 90118-WA752 | ||||
ILLUST NO. 8 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82651 - BLOCK, TERMINAL | ||||
| 82651-WAA01 |
DB2#,81 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-WAA01 |
DB2#,4#,81 |
1 | ||
| 82675E - TERMINAL, JUNCTION, NO.1 | ||||
| 82675-WAA03 |
DB2#,4#,81 |
1 | ||
| 82675F - TERMINAL, JUNCTION, NO.2 | ||||
| 82675-WAA01 |
DB2#,4#,81 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-WAA03 |
DB2#,4#,81 |
1 | ||
| 82951A - BRACKET, TERMINAL | ||||
| 82951-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 82675-WAA03 | ||||
| 90118-WA034 | ||||
| 90118-WA077 | ||||
| 90118-WA792 | ||||
| 90118-WA795 | ||||
| Linked diagrams | ||||
| 8401 | ||||

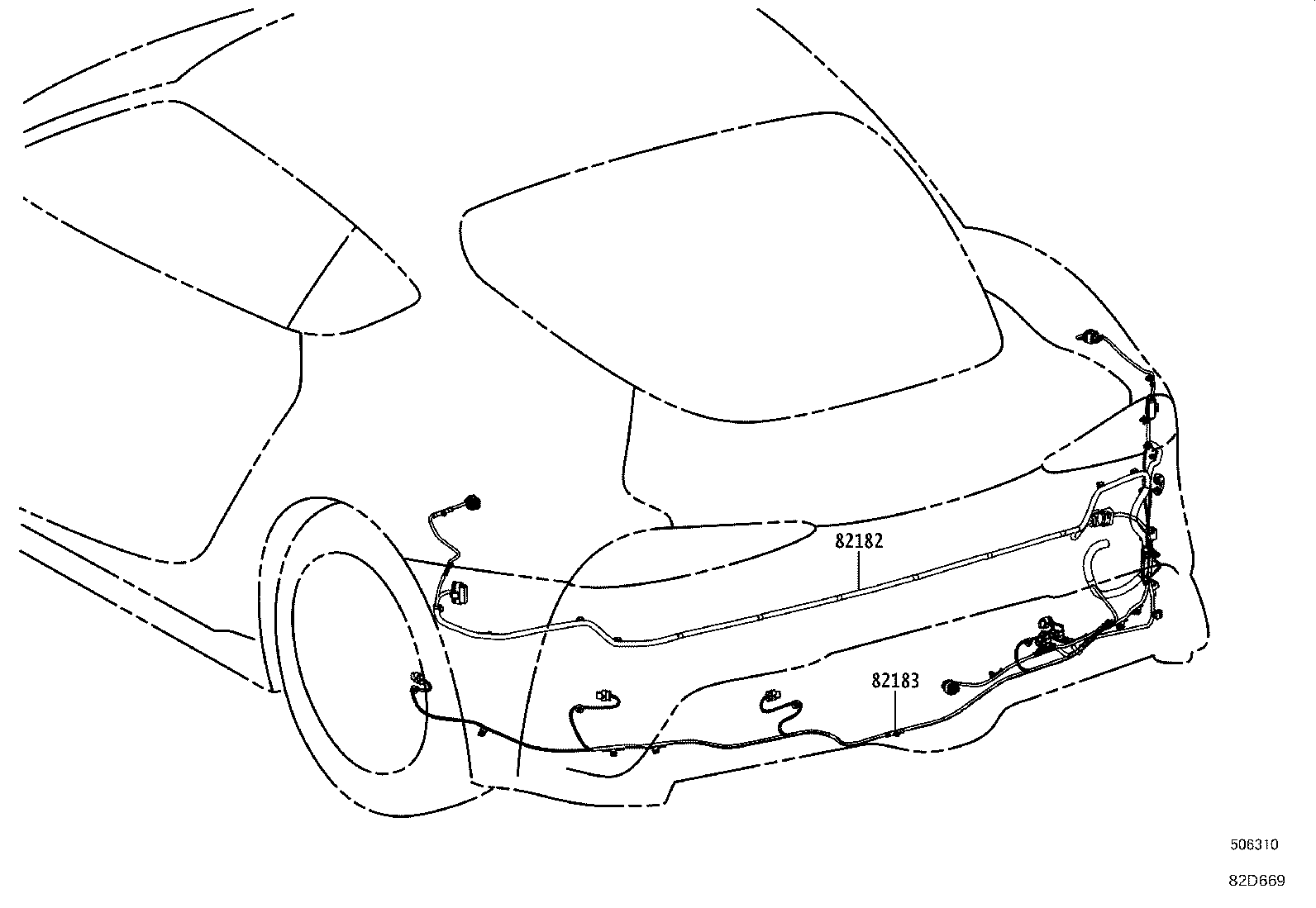

ILLUST NO.21 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-WAA02 |
DB22,42 |
1 | ||
| 82182-WAA04 |
DB22,42 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-WAA01 |
DB2#,4#,81 |
1 | ||
ILLUST NO.28 OF28(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82771A - BOX, CONNECTION | ||||
| 90118-WA817 |
DB2#,4#,81 FRONT=RH/LH,REAR=RH |
3 | ||
| 90118-WA823 |
DB2#,4#,81 REAR=LH |
1 | ||
| Common parts | ||||
| 90118-WA821 | ||||
| 90118-WA822 | ||||
| 90118-WA824 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
