DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

Click highlighted areas on diagram

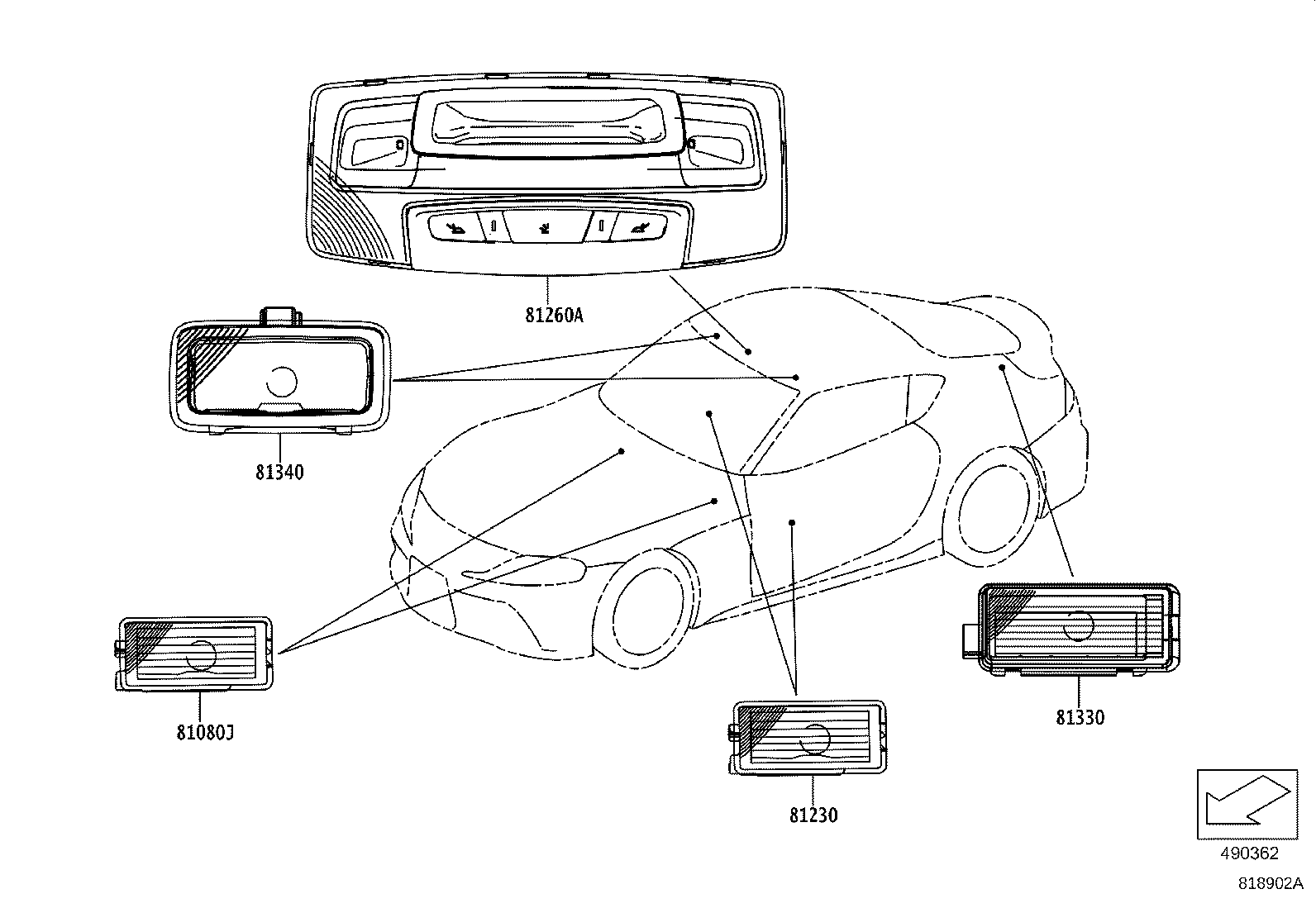

diagram 81080J 81230 81260A 81330 81340
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-WAA01

DB2#,4#,81

LIGHTS PACKAGE

 2
81230 - LAMP ASSY, COURTESY
81080-WAA02

DB2#,4#,81

LIGHTS PACKAGE

 3
81260A - LAMP ASSY, MAP
81260-WAA02

DB2#,4#,81

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-WAA01

DB2#,4#,81

 1
81340 - LAMP ASSY, VANITY
81340-WAA01

DB2#,4#,81

 2
