DB22R-ZTRW (2019)
Toyota Supra
Production
Mar 2019
-
Sep 9999
Engine
B48H
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

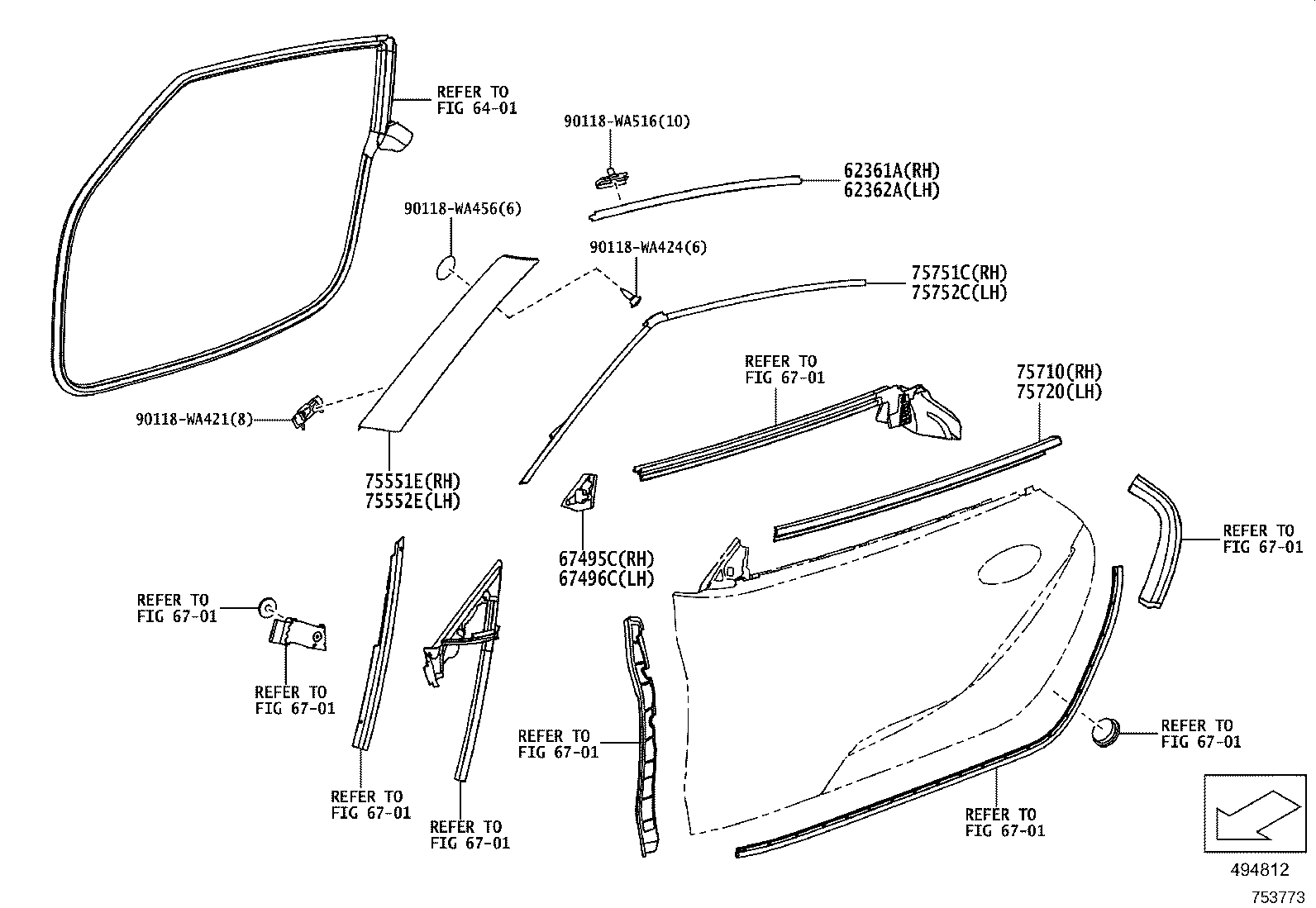

ILLUST NO. 1 OF 4(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62361A - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH | ||||
| 75753-WAA01 |
DB2#,4#,81 |
1 | ||
| 62362A - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH | ||||
| 75754-WAA01 |
DB2#,4#,81 |
1 | ||
| 67495C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67533-WAA01 |
DB2#,4#,81 |
1 | ||
| 67496C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67534-WAA01 |
DB2#,4#,81 |
1 | ||
| 75551E - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75755-WAA01 |
DB2#,4#,81 |
1 | ||
| 75552E - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75756-WAA01 |
DB2#,4#,81 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 67743-WAA01 |
DB2#,4#,81 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 67744-WAA01 |
DB2#,4#,81 |
1 | ||
| 75751C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH | ||||
| 67863-WAA01 |
DB2#,4#,81 |
1 | ||
| 75752C - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH | ||||
| 67864-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA421 | ||||
| 90118-WA424 | ||||
| 90118-WA456 | ||||
| 90118-WA516 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 6701 | ||||

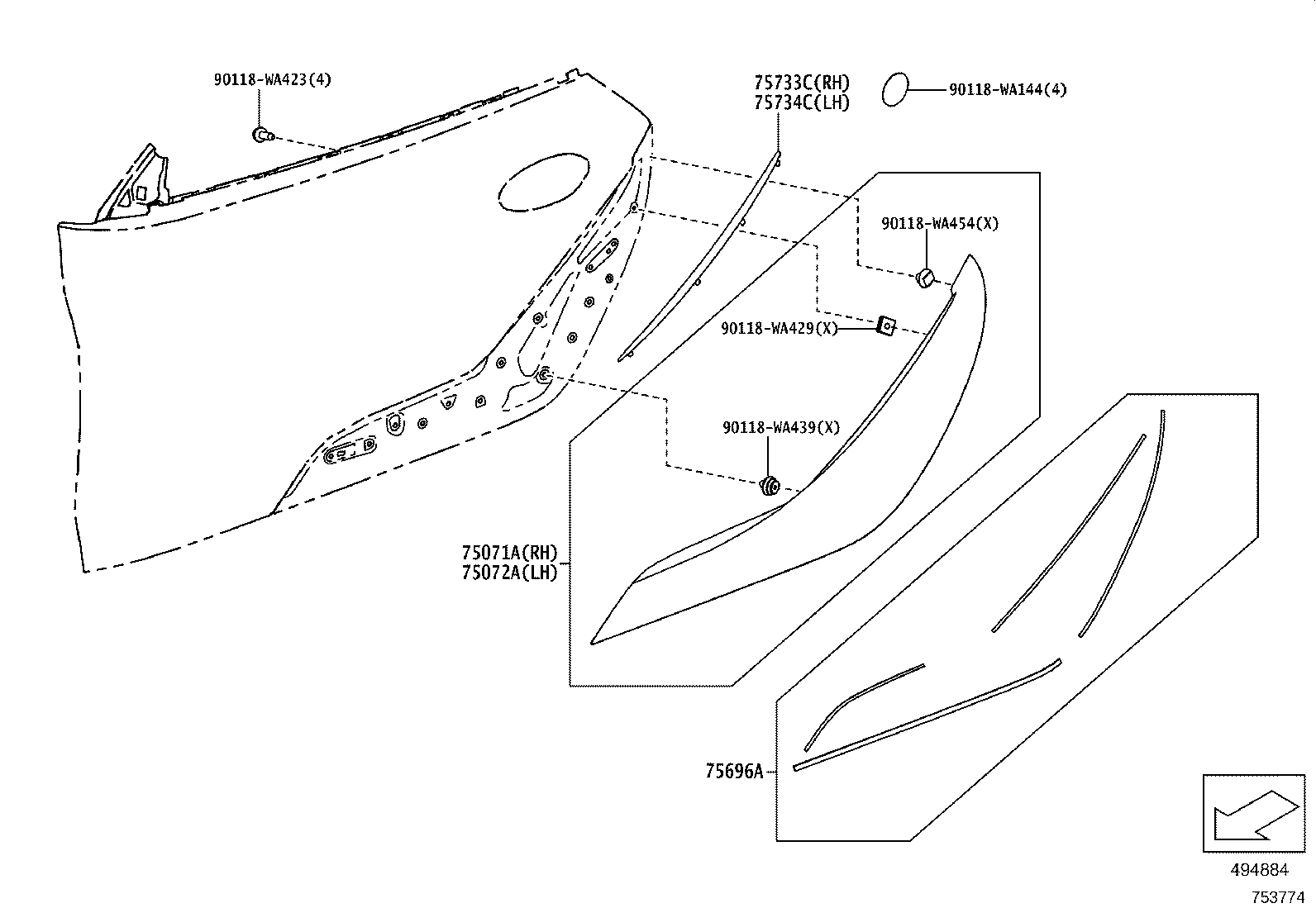

ILLUST NO. 2 OF 4(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75071A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 75731-WAA01 |
DB2#,4#,81 |
1 | ||
| 75072A - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 75732-WAA01 |
DB2#,4#,81 |
1 | ||
| 75696A - PAD, BODY OUTSIDE MOULDING | ||||
| 75696-WAA01 |
DB2#,4#,81 |
2 | ||
| 75733C - MOULDING, FRONT DOOR, OUTSIDE REAR RH | ||||
| 75733-WAA01 |
DB2#,4#,81 |
1 | ||
| 75734C - MOULDING, FRONT DOOR, OUTSIDE REAR LH | ||||
| 75734-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA144 | ||||
| 90118-WA423 | ||||
| 90118-WA429 | ||||
| 90118-WA439 | ||||
| 90118-WA454 | ||||

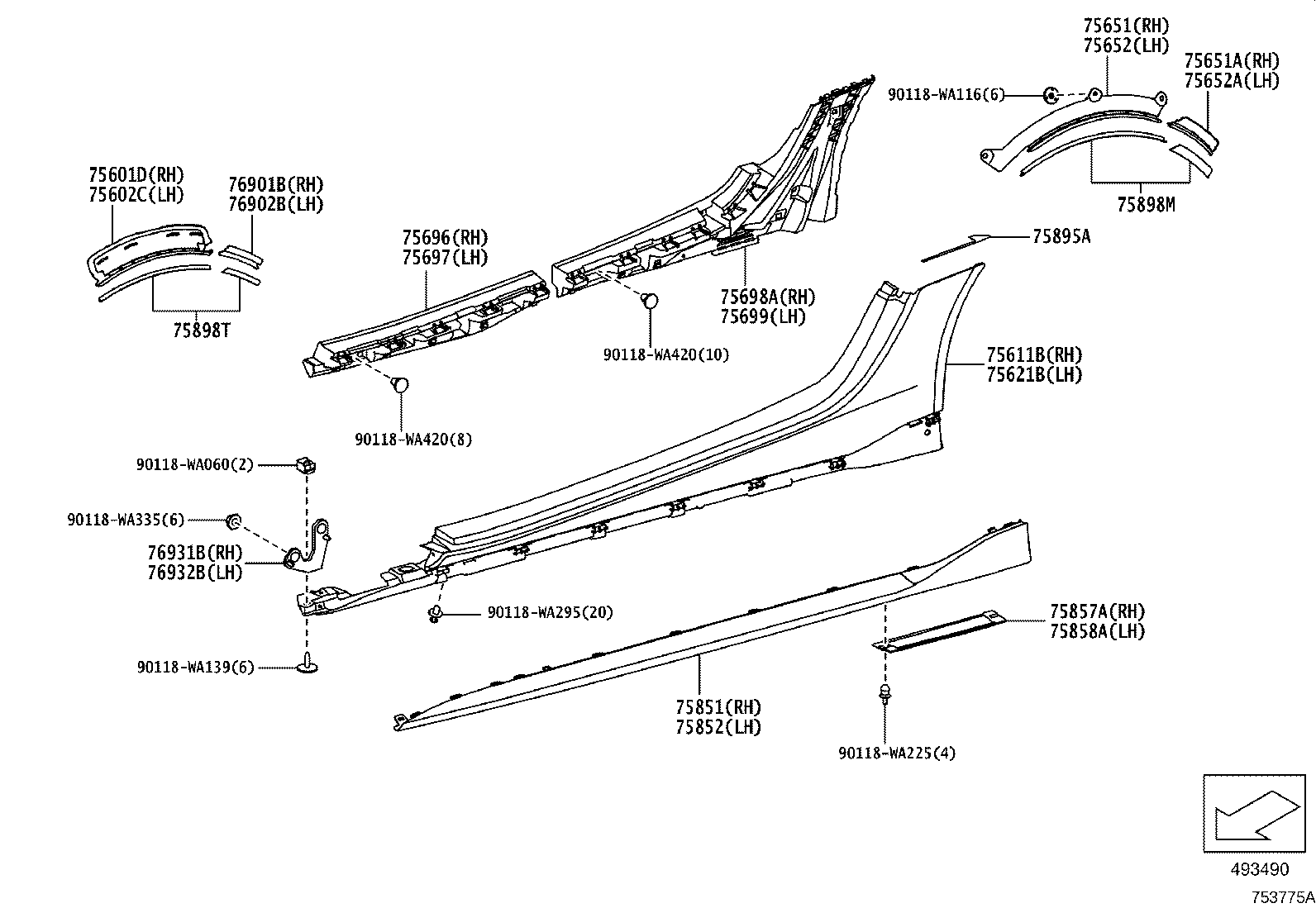

ILLUST NO. 3 OF 4(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75601D - MOULDING, HOOD, RH | ||||
| 75601-WAA01 |
DB2#,4#,81 |
1 | ||
| 75602C - MOULDING, HOOD, LH | ||||
| 75602-WAA01 |
DB2#,4#,81 |
1 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75850-WAA01 |
DB2#,4#,81 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75860-WAA01 |
DB2#,4#,81 |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75605-WAA01 |
DB2#,4#,81 |
1 | ||
| 75651A - MOULDING, QUARTER OUTSIDE, REAR RH, NO.1 | ||||
| 75873-WAA01 |
DB2#,4#,81 |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75606-WAA01 |
DB2#,4#,81 |
1 | ||
| 75652A - MOULDING, QUARTER OUTSIDE, REAR LH, NO.1 | ||||
| 75874-WAA01 |
DB2#,4#,81 |
1 | ||
| 75696 - PAD, BODY OUTSIDE MOULDING, NO.1 | ||||
| 76853-WAA02 |
DB2#,4#,81 |
1 | ||
| 75697 - PAD, BODY OUTSIDE MOULDING, NO.2 | ||||
| 76854-WAA02 |
DB2#,4#,81 |
1 | ||
| 75698A - PAD, BODY OUTSIDE MOULDING, NO.3 | ||||
| 75857-WAA01 |
DB2#,4#,81 |
1 | ||
| 75699 - PAD, BODY OUTSIDE MOULDING, NO.4 | ||||
| 75856-WAA01 |
DB2#,4#,81 |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75853-WAA01 |
DB2#,4#,81 NO PAINT REQ. |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75854-WAA01 |
DB2#,4#,81 NO PAINT REQ. |
1 | ||
| 75857A - COVER, ROCKER PANEL MOULDING, RH | ||||
| 75865-WAA01 |
DB2#,4#,81 |
1 | ||
| 75858A - COVER, ROCKER PANEL MOULDING, LH | ||||
| 75866-WAA01 |
DB2#,4#,81 |
1 | ||
| 75895A - TAPE, MOULDING, NO.1 | ||||
| 75863-WAA01 |
DB2#,4#,81 LH |
1 | ||
| 75864-WAA01 |
DB2#,4#,81 RH |
1 | ||
| 75898M - TAPE, QUARTER OUTSIDE MOULDING, NO.1 | ||||
| 75862-WAA01 |
DB2#,4#,81 |
1 | ||
| 75898T - TAPE, FRONT FENDER MOULDING, NO.1 | ||||
| 75861-WAA01 |
DB2#,4#,81 |
1 | ||
| 76901B - MUDGUARD SUB-ASSY, FENDER PANEL, RH | ||||
| 76901-WAA01 |
DB2#,4#,81 |
1 | ||
| 76902B - MUDGUARD SUB-ASSY, FENDER PANEL, LH | ||||
| 76902-WAA01 |
DB2#,4#,81 |
1 | ||
| 76931B - BRACKET, SIDE MUDGUARD, NO.1 RH | ||||
| 76931-WAA01 |
DB2#,4#,81 |
1 | ||
| 76932B - BRACKET, SIDE MUDGUARD, NO.1 RH | ||||
| 76932-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA060 | ||||
| 90118-WA116 | ||||
| 90118-WA139 | ||||
| 90118-WA225 | ||||
| 90118-WA295 | ||||
| 90118-WA335 | ||||
| 90118-WA420 | ||||

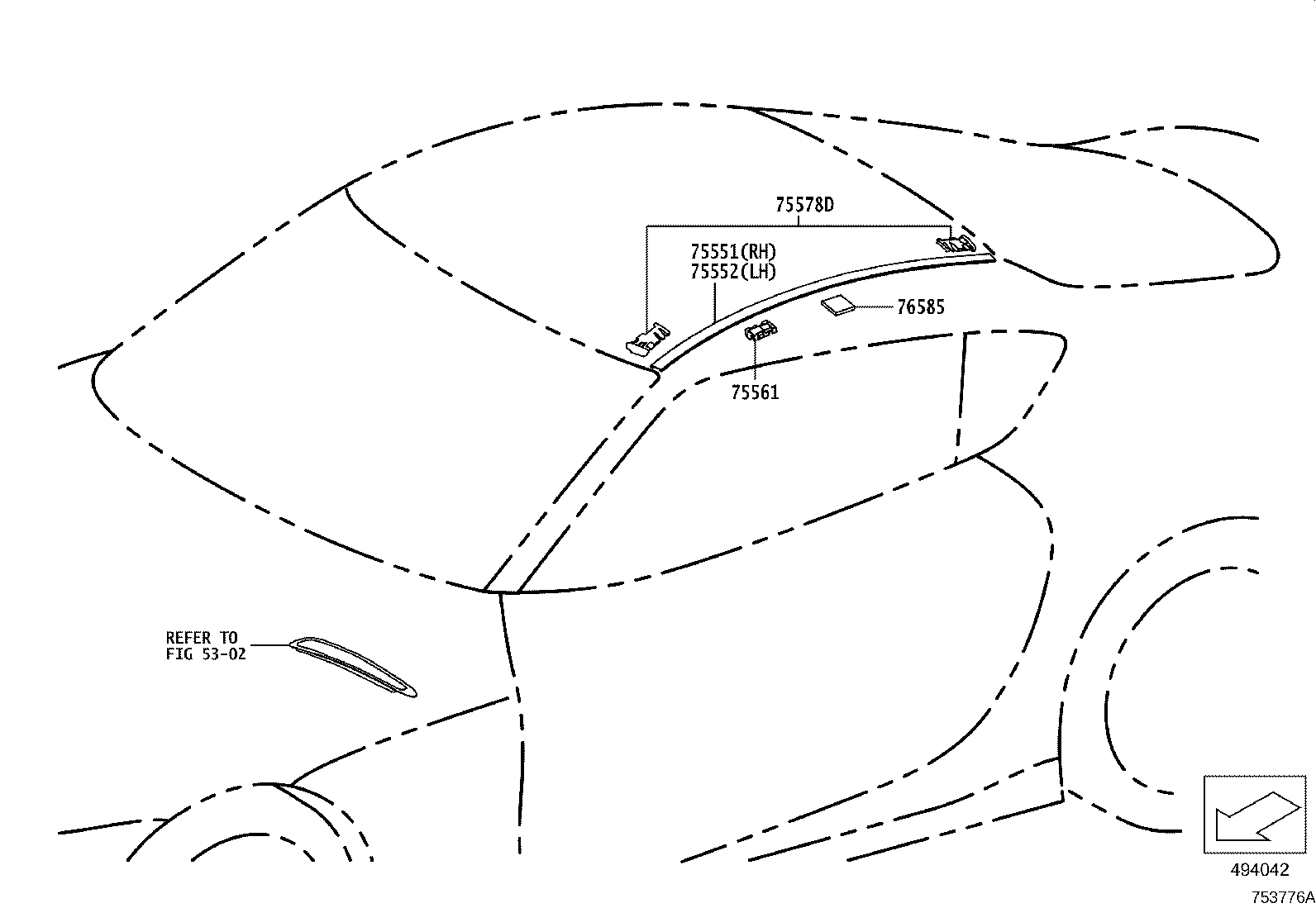

ILLUST NO. 4 OF 4(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-WAA01 |
DB2#,4#,81 |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-WAA01 |
DB2#,4#,81 |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 90118-WA516 |
DB2#,4#,81 |
10 | ||
| 75578D - COVER, ROOF DRIP MOULDING END | ||||
| 75505-WAA01 |
DB2#,4#,81 |
1 | ||
| 76585 - PAD, ROOF DRIP SIDE FINISH MOULDING, FRONT | ||||
| 63484-WAA01 |
DB2#,4#,81 |
2 | ||
| Linked diagrams | ||||
| 5302 | ||||
