DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(1903- )

Click highlighted areas on diagram

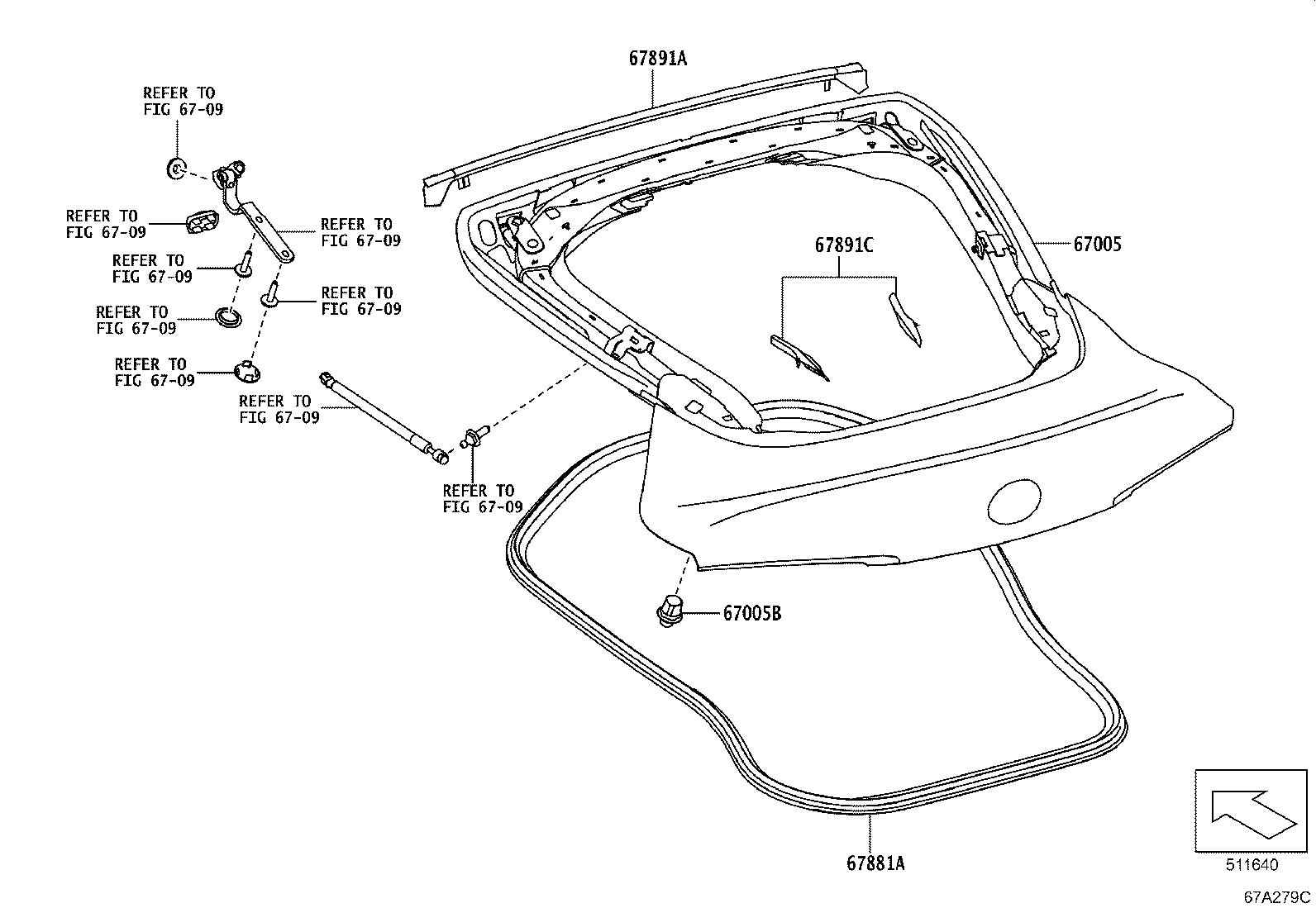

BACK DOOR PANEL

diagram 67005 67005B 6709 6709 6709 6709 6709 6709 6709 6709 6709 67881A 67891A 67891C
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
64401-WAA01

DB2#,4#,81

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
69478-WAA01

DB2#,4#,81

 2
67881A - WEATHERSTRIP, BACK DOOR
64461-WAA01

DB2#,4#,81

 1
67891A - SEAL, BACK DOOR
56117-WAA02

DB2#,4#,81

 1
67891C - SEAL, BACK DOOR
90118-WA827

DB2#,4#,81

 1
Linked diagrams
6709

ILLUST NO. 2 OF 5(1903- )

Click highlighted areas on diagram

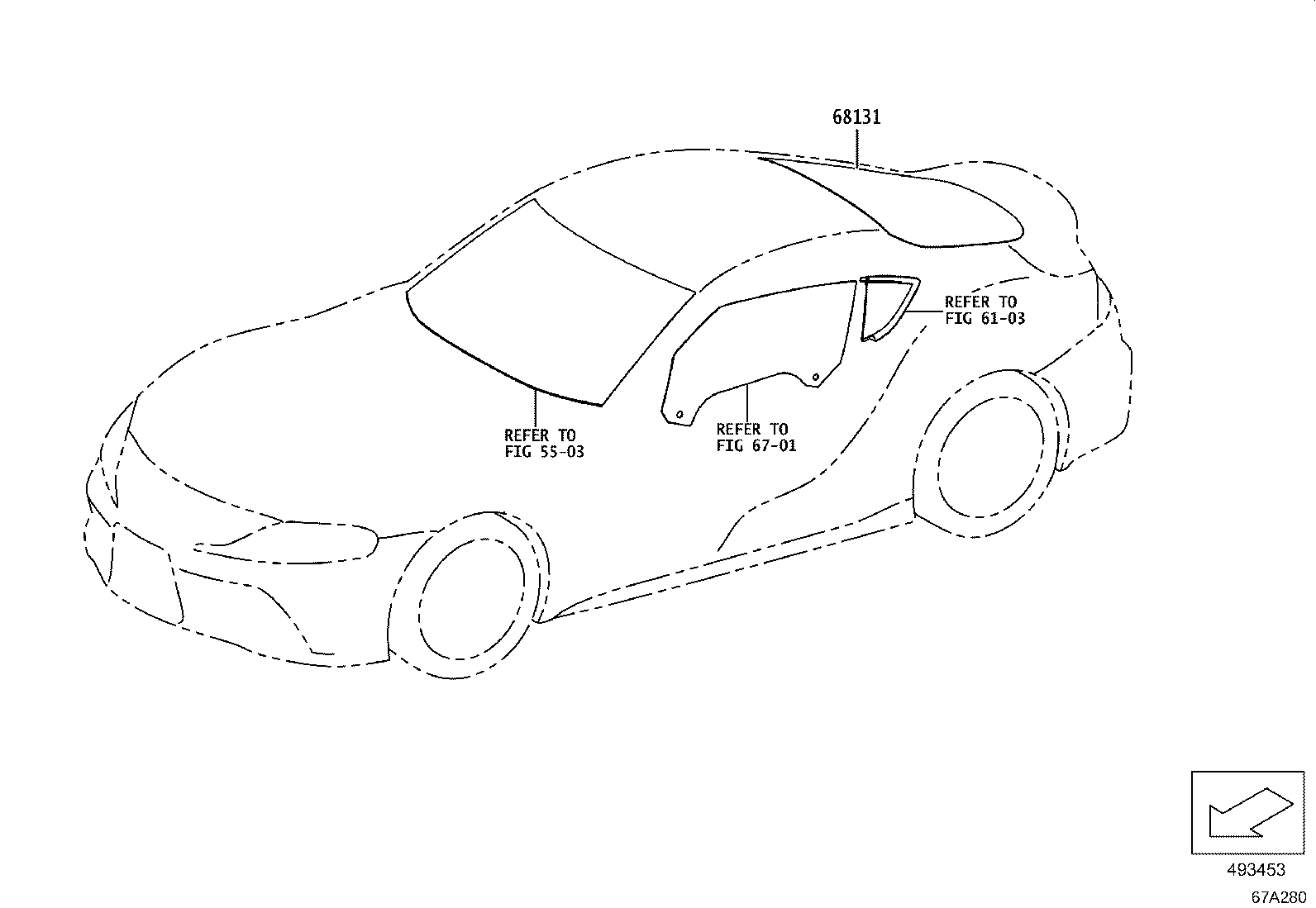

BACK DOOR GLASS

diagram 5503 6103 6701 68131
Part # Description Qty Price
68131 - GLASS, BACK DOOR
64810-WAA01

DB2#,4#,81

 1
Linked diagrams
5503
6103
6701

ILLUST NO. 3 OF 5(1903- )

Click highlighted areas on diagram

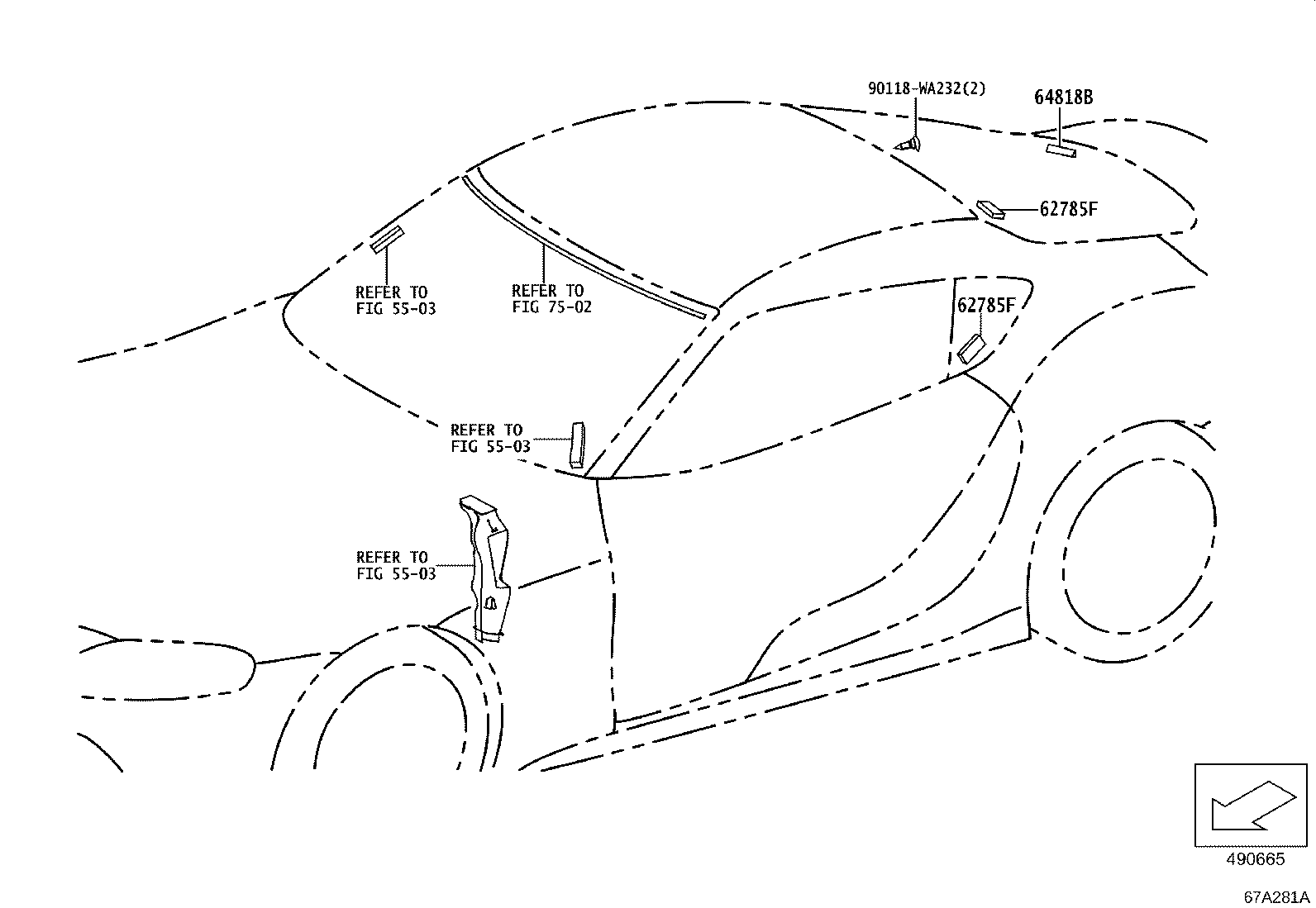

BACK DOOR GLASS SPACER

diagram 5503 5503 5503 62785F 62785F 64818B 7502 90118WA232
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
56116-WAA01

DB2#,4#,81

 6
62785F - SPACER, BACK DOOR GLASS
56116-WAA01

DB2#,4#,81

 6
64818B - SPACER, BACK DOOR GLASS, NO.1
56117-WAA01

DB2#,4#,81

 10
Common parts
90118-WA232
Linked diagrams
5503
7502

ILLUST NO. 4 OF 5(1903- )

Click highlighted areas on diagram

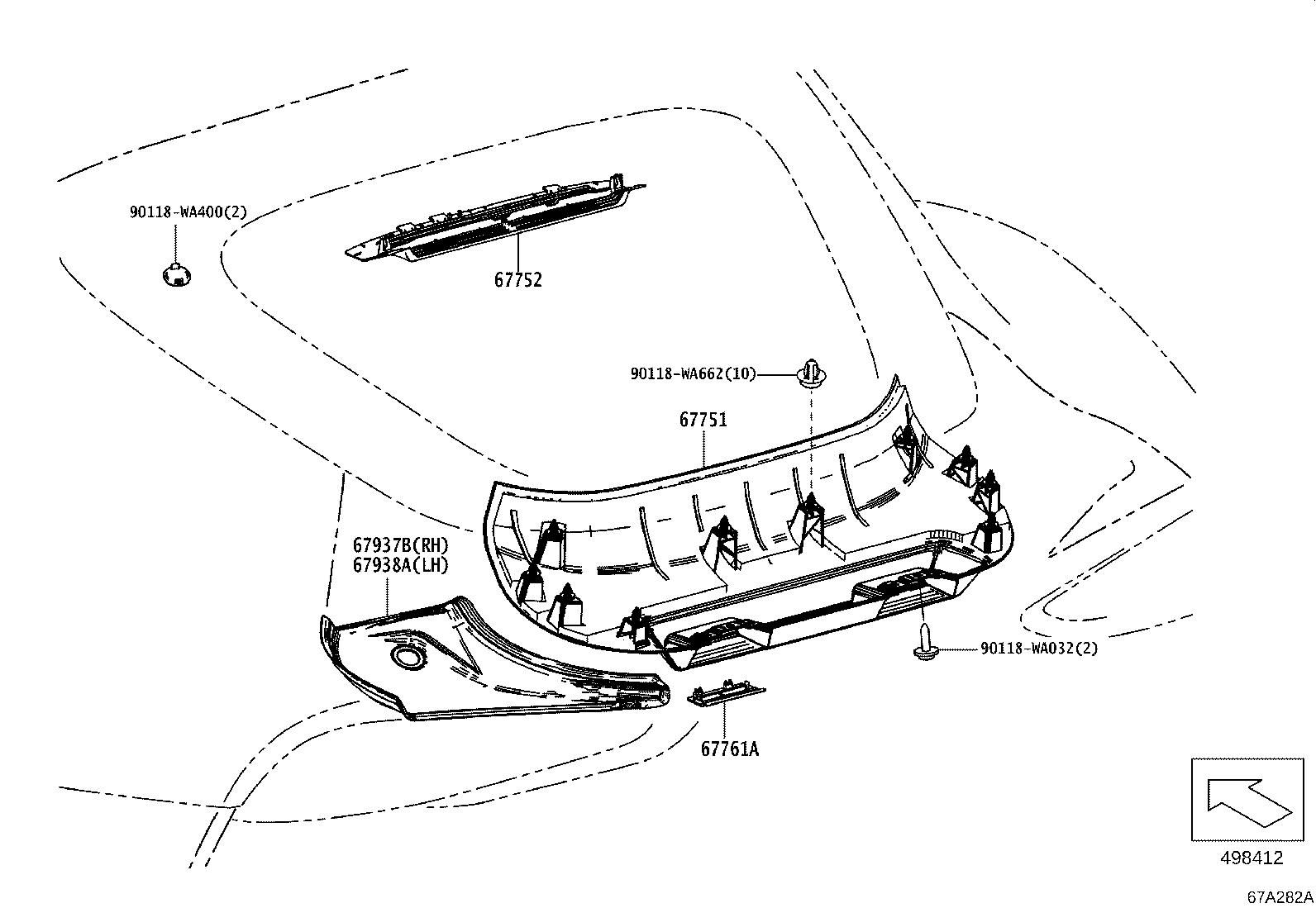

BACK DOOR TRIM

diagram 67751 67752 67761A 67937B 67938A 90118WA032 90118WA400 90118WA662
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
64781-WAA02

DB2#,4#,81

LUG & BACK DR.RELEASE-ELECTRIC & EMERGENCY UNLOCK

 1
64781-WAA01

DB2#,4#,81

 1
67752 - TRIM, BACK DOOR, UPPER
64790-WAA01

DB2#,4#,81

 1
67761A - COVER, BACK DOOR TRIM
64718-WAA01

DB2#,4#,81

LH

 1
64718-WAA02

DB2#,4#,81

RH

 1
67937B - GARNISH, BACK DOOR SIDE, RH
67937-WAA01

DB2#,4#,81

 1
67938A - GARNISH, BACK DOOR SIDE, LH
67938-WAA01

DB2#,4#,81

 1
Common parts
90118-WA032
90118-WA400
90118-WA662

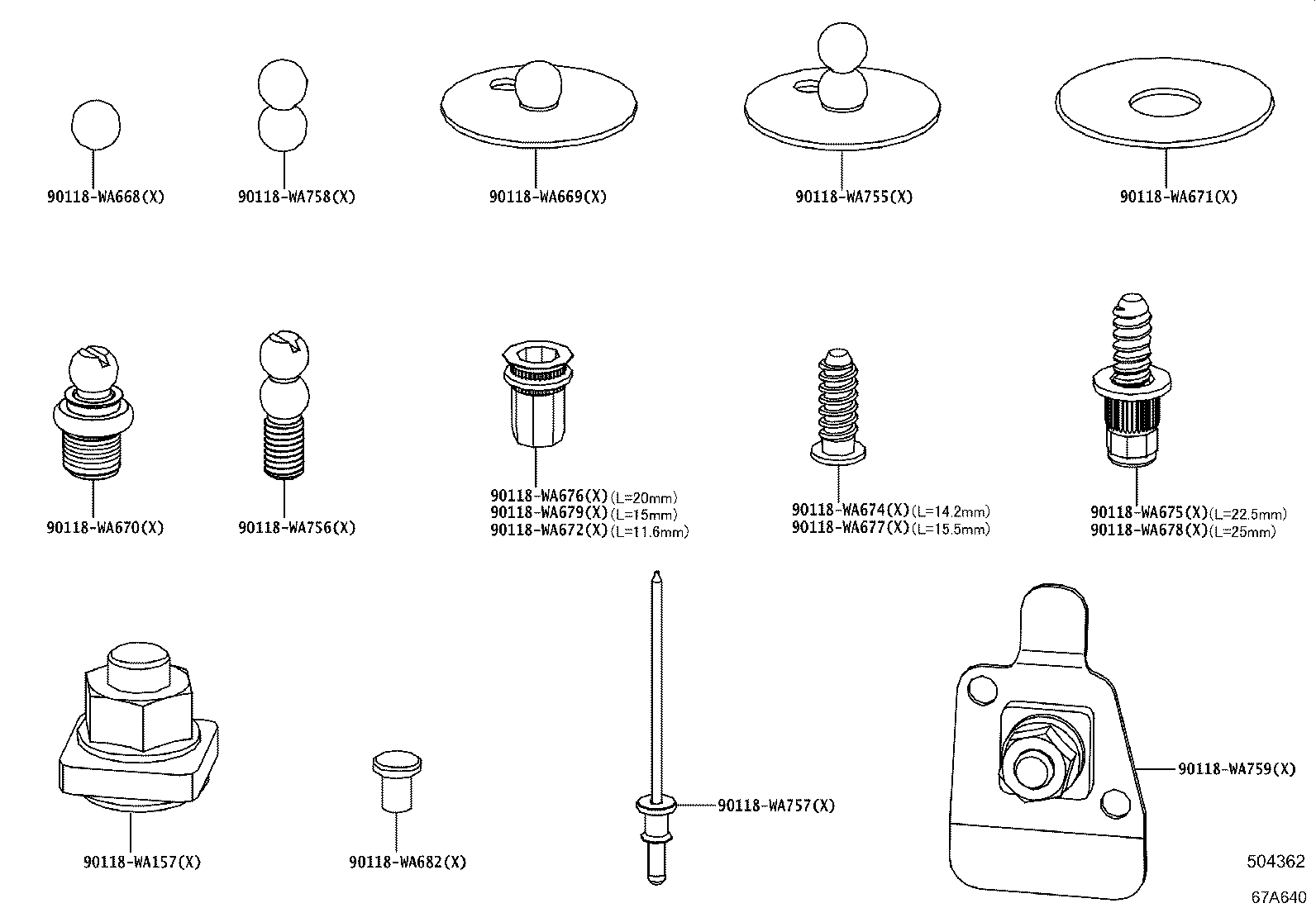

ILLUST NO. 5 OF 5(1903- )

Click highlighted areas on diagram

diagram 90118WA157 90118WA668 90118WA669 90118WA670 90118WA671 90118WA672 90118WA674 90118WA675 90118WA676 90118WA677 90118WA678 90118WA679 90118WA682 90118WA755 90118WA756 90118WA757 90118WA758 90118WA759
Part # Description Qty Price
Common parts
90118-WA157
90118-WA668
90118-WA669
90118-WA670
90118-WA671
90118-WA672
90118-WA674
90118-WA675
90118-WA676
90118-WA677
90118-WA678
90118-WA679
90118-WA682
90118-WA755
90118-WA756
90118-WA757
90118-WA758
90118-WA759
