DB22R-ZTRW (2019)
Toyota Supra

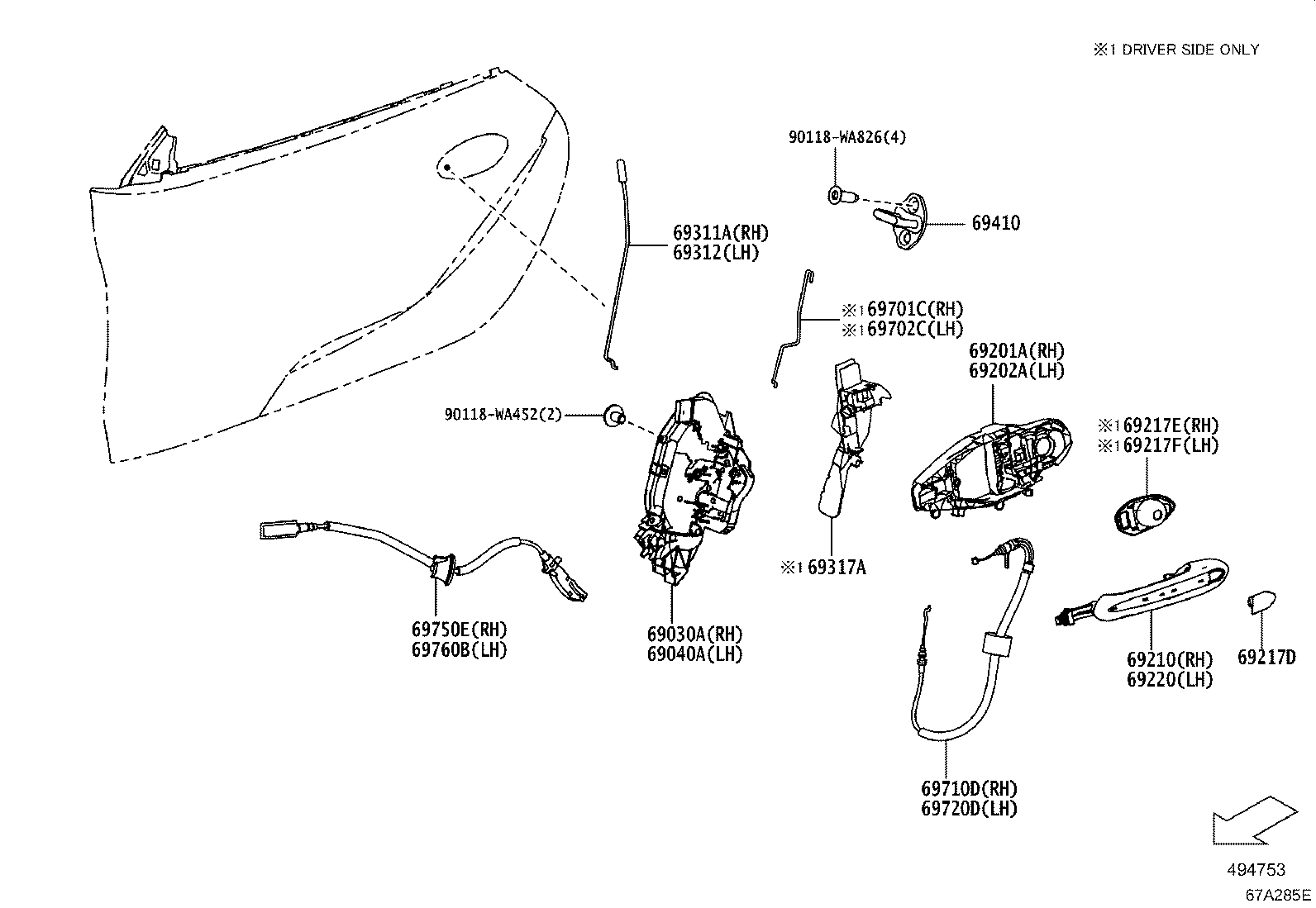

ILLUST NO. 1 OF 2(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-WAA01 |
DB22,42 |
1 | ||
| 69030-WAA03 |
DB22,42 ANTI-THEFT SYSTEM-WITH |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-WAA04 |
DB22,42 ANTI-THEFT SYSTEM-WITH |
1 | ||
| 69040-WAA02 |
DB22,42 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-WAA02 |
DB2#,4#,81 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-WAA02 |
DB2#,4#,81 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-WAA17 |
DB22,42,82 D04 |
1 | ||
| 69210-WAA20 |
DB22,42,82 D07 |
1 | ||
| 69210-WAA19 |
DB22,42,82 D01 |
1 | ||
| 69210-WAA24 |
DB22,42,82 D06 |
1 | ||
| 69210-WAA22 |
DB22,42,82 D08 |
1 | ||
| 69210-WAA21 |
DB22,42,82 D03 |
1 | ||
| 69210-WAA18 |
DB22,42,82 D02 |
1 | ||
| 69210-WAA23 |
DB22,42,82 D05 |
1 | ||
| 69210-WAA37 |
DB22,42 D09 |
1 | ||
| 69210-WAA34 |
DB22,42 D01 |
1 | ||
| 69210-WAA33 |
DB22,42 D02 |
1 | ||
| 69210-WAA35 |
DB22,42 D07 |
1 | ||
| 69210-WAA38 |
DB22,42 D08 |
1 | ||
| 69210-WAA32 |
DB22,42 D04 |
1 | ||
| 69210-WAA39 |
DB22,42 D05 |
1 | ||
| 69210-WAA36 |
DB22,42 D03 |
1 | ||
| 69210-WAA40 |
DB22,42 D06 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-WAA01 |
DB2#,4#,81 |
2 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-WAA01 |
DB22,42 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-WAA02 |
DB22,42 D06 |
1 | ||
| 69220-WAA03 |
DB22,42 D04 |
1 | ||
| 69220-WAA04 |
DB22,42 D02 |
1 | ||
| 69220-WAA31 |
DB22,42 D09 |
1 | ||
| 69220-WAA05 |
DB22,42 D01 |
1 | ||
| 69220-WAA07 |
DB22,42 D03 |
1 | ||
| 69220-WAA06 |
DB22,42 D07 |
1 | ||
| 69220-WAA08 |
DB22,42 D08 |
1 | ||
| 69220-WAA01 |
DB22,42 D05 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69711-WAA01 |
DB2#,4#,81 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69712-WAA01 |
DB2#,4#,81 |
1 | ||
| 69317A - SPACER, DOOR LOCK | ||||
| 69293-WAA02 |
DB22,42 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-WAA01 |
DB2#,4#,81 |
2 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69311-WAA01 |
DB22,42 |
1 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69750-WAA01 |
DB2#,4#,81 |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69750-WAA01 |
DB2#,4#,81 |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69710-WAA01 |
DB2#,4#,81 |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69710-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA452 | ||||
| 90118-WA826 | ||||

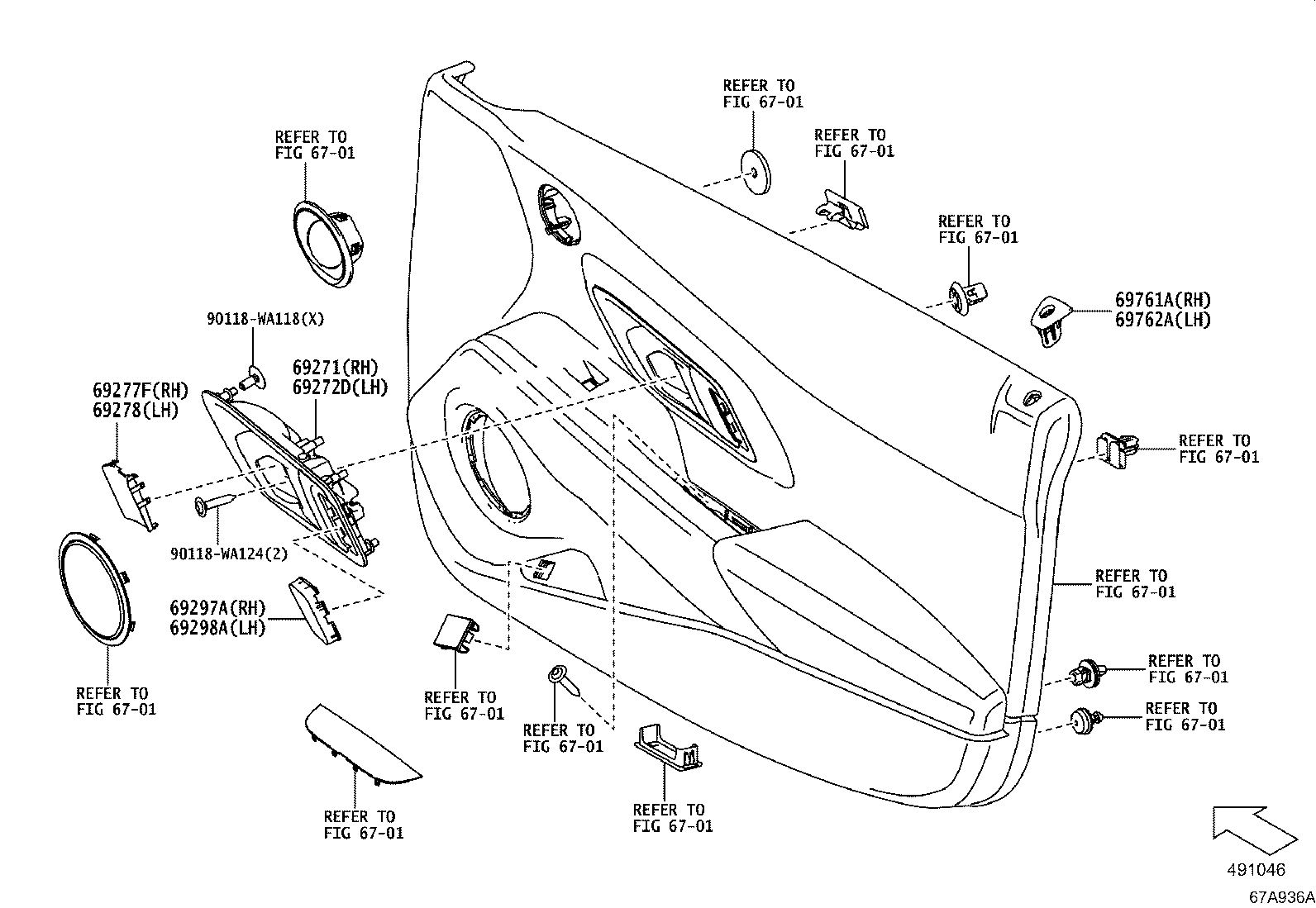

ILLUST NO. 2 OF 2(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69271 - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69270-WAA01 |
DB2#,4#,81 |
1 | ||
| 69272D - HANDLE, FRONT DOOR INSIDE, LH | ||||
| 69280-WAA01 |
DB2#,4#,81 |
1 | ||
| 69277F - BEZEL, DOOR INSIDE HANDLE, NO.1 RH | ||||
| 69277-WAA01 |
DB2#,4#,81 |
1 | ||
| 69278 - BEZEL, DOOR INSIDE HANDLE, NO.1 LH | ||||
| 69278-WAA01 |
DB2#,4#,81 |
1 | ||
| 69298A - BEZEL, DOOR INSIDE HANDLE, NO.2 LH | ||||
| 69298-WAA01 |
DB22,42 |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-WAA01 |
DB2#,4#,81 |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA118 | ||||
| 90118-WA124 | ||||
| Linked diagrams | ||||
| 6701 | ||||
