DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

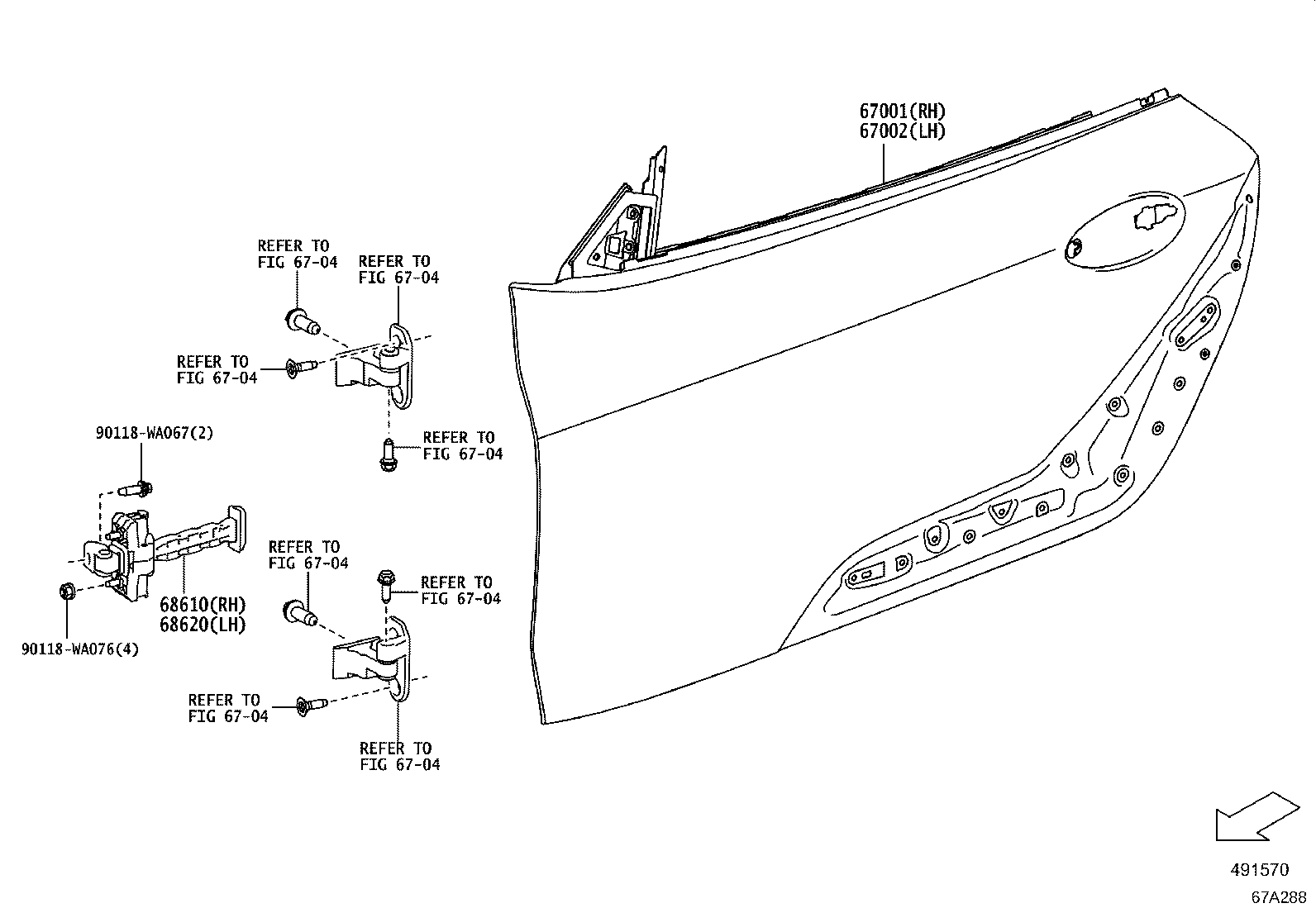

ILLUST NO. 1 OF 4(1903- )

Click highlighted areas on diagram

diagram 67001 67002 6704 6704 6704 6704 6704 6704 6704 6704 68610 68620 90118WA067 90118WA076
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-WAA01

DB2#,4#,81

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-WAA01

DB2#,4#,81

 1
68610 - CHECK ASSY, FRONT DOOR
68610-WAA01

DB2#,4#,81

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-WAA01

DB2#,4#,81

 1
Common parts
90118-WA067
90118-WA076
Linked diagrams
6704

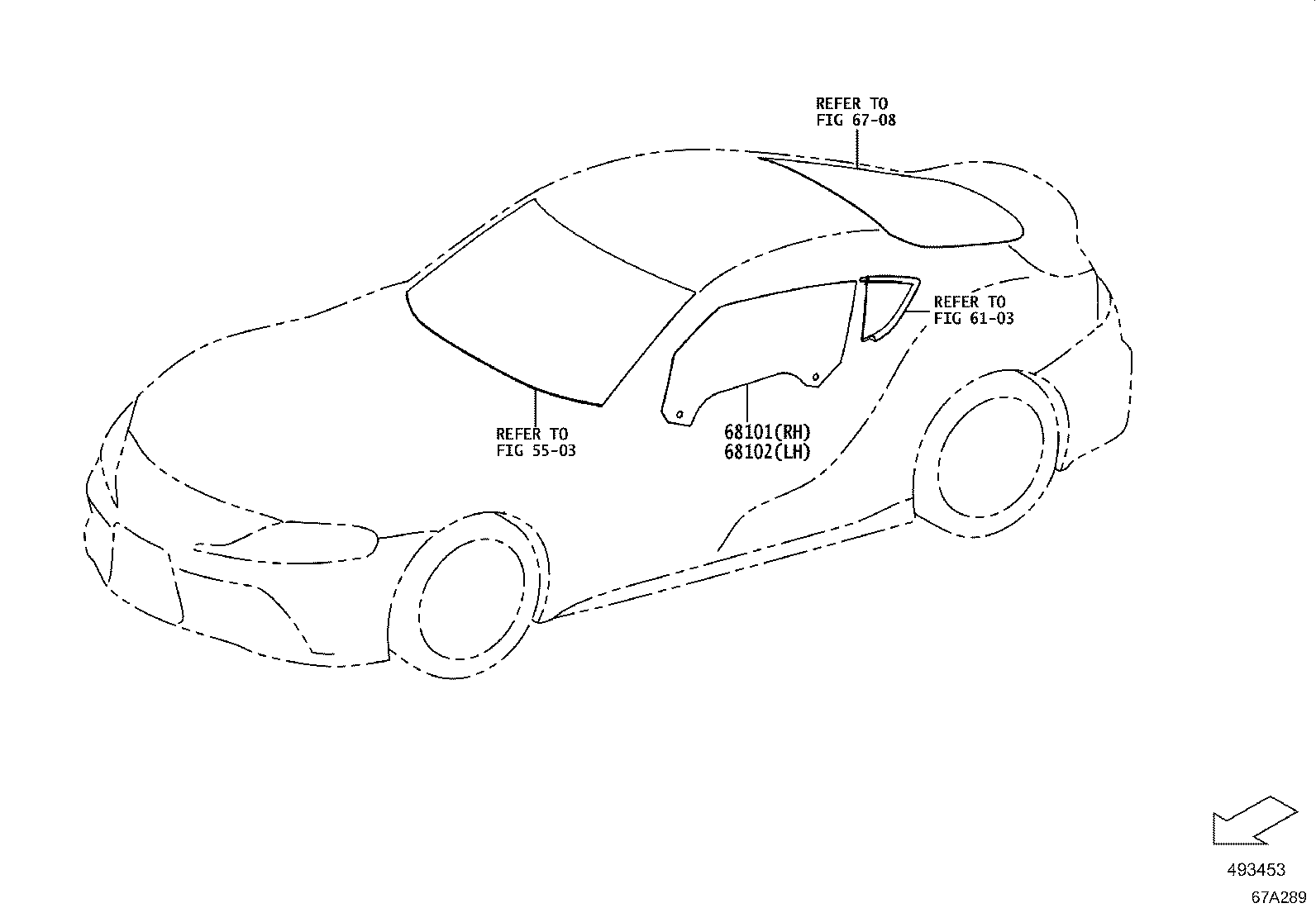

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

diagram 5503 6103 6708 68101 68102
Part # Description Qty Price
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-WAA01

DB2#,4#,81

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-WAA01

DB2#,4#,81

 1
Linked diagrams
5503
6103
6708

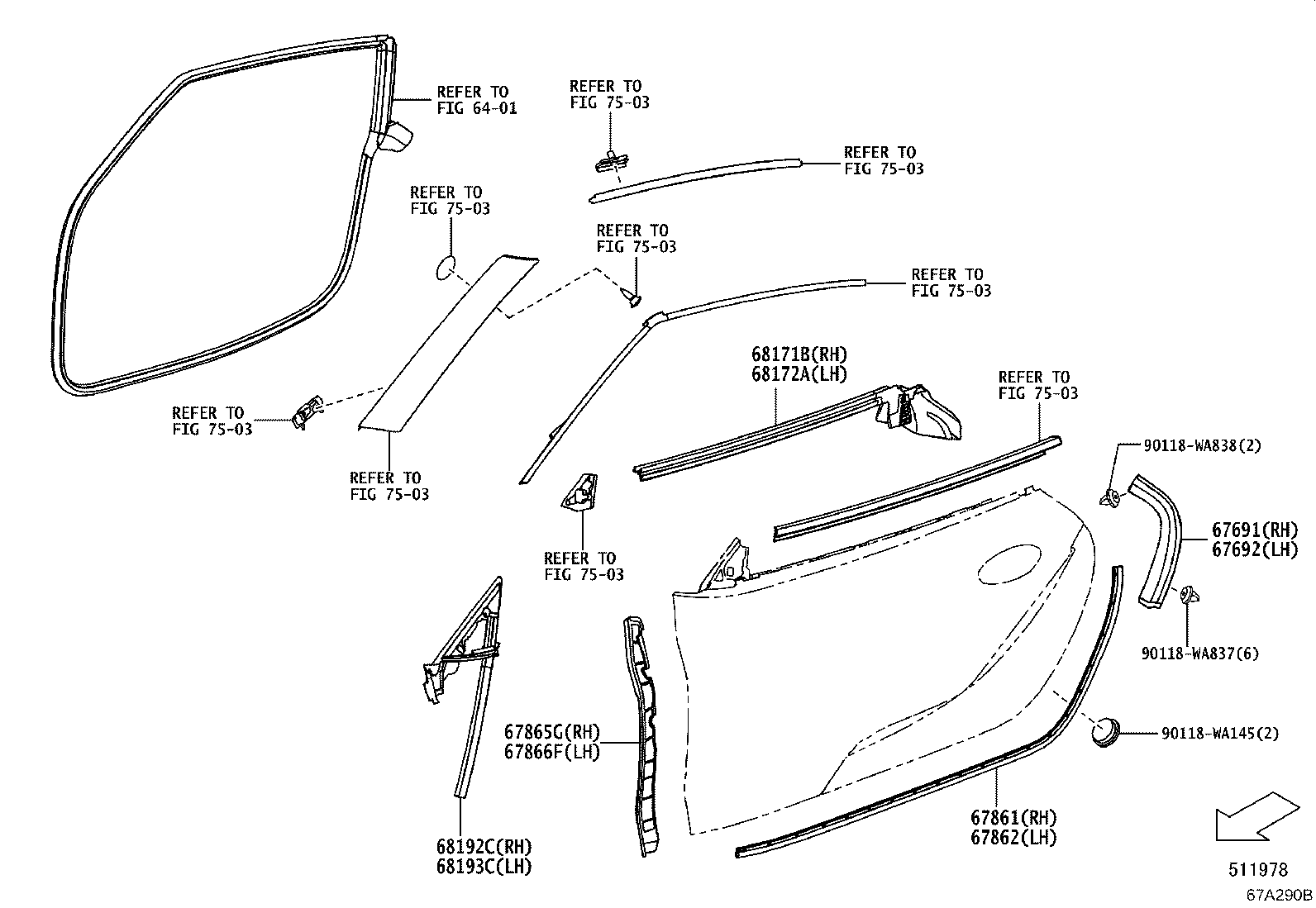

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

diagram 6401 67691 67692 67861 67862 67865G 67866F 68171B 68172A 68192C 68193C 7503 7503 7503 7503 7503 7503 7503 7503 7503 90118WA145 90118WA837 90118WA838
Part # Description Qty Price
67691 - COVER, FRONT DOOR INNER TRIM, RH
67873-WAA01

DB2#,4#,81

 1
67692 - COVER, FRONT DOOR INNER TRIM, LH
67874-WAA01

DB2#,4#,81

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-WAA01

DB2#,4#,81

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-WAA01

DB2#,4#,81

 1
67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH
67865-WAA01

DB2#,4#,81

 1
67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-WAA01

DB2#,4#,81

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-WAA01

DB2#,4#,81

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-WAA01

DB2#,4#,81

 1
68192C - SEAL, FRONT DOOR BELT, FRONT RH
67863-WAA02

DB2#,4#,81

 1
68193C - SEAL, FRONT DOOR BELT, FRONT LH
67864-WAA02

DB2#,4#,81

 1
Common parts
90118-WA145
90118-WA837
90118-WA838
Linked diagrams
6401
7503

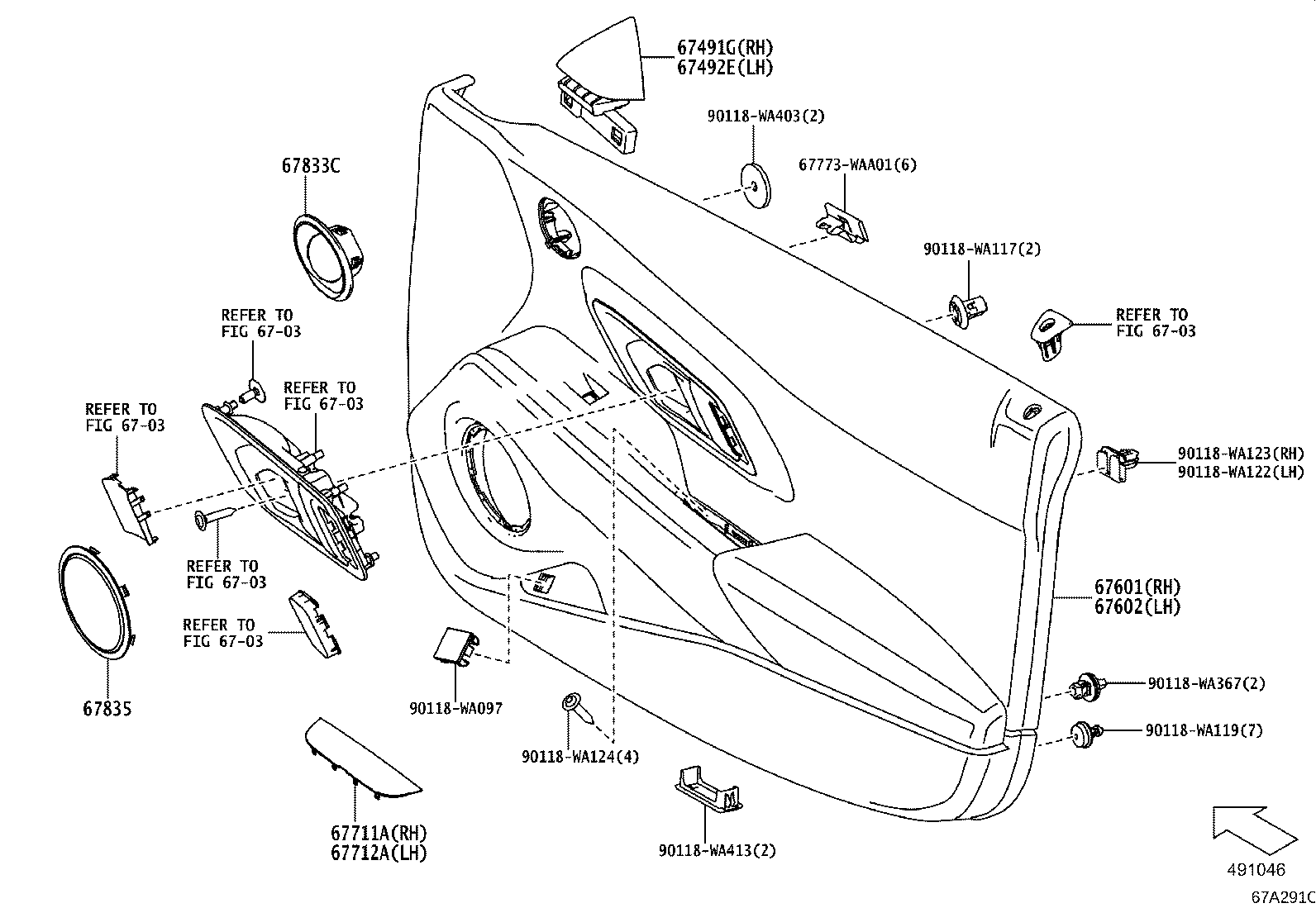

ILLUST NO. 4 OF 4(1903- )

Click highlighted areas on diagram

diagram 6703 6703 6703 6703 6703 6703 67491G 67492E 67601 67602 67711A 67712A 67773WAA01 67833C 67835 90118WA097 90118WA117 90118WA119 90118WA122 90118WA123 90118WA124 90118WA367 90118WA403 90118WA413
Part # Description Qty Price
67491G - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-WAA01

DB2#,4#,81

 1
67492E - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-WAA01

DB2#,4#,81

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-WAA02

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM20

 1
67610-WAA04

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM30

 1
67610-WAA07

DB22,42

TRIM20

 1
67610-WAA05

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM20

 1
67610-WAA05

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM20

 1
67610-WAA09

DB22,42

TRIM30

 1
67610-WAA02

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM20

 1
67610-WAA10

DB22,42

TRIM20

 1
67610-WAA12

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM21

 1
67610-WAA04

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM30

 1
67610-WAA12

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM21

 1
67610-WAA14

DB22,42

TRIM21

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-WAA05

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM30

 1
67620-WAA02

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM20

 1
67620-WAA02

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM20

 1
67620-WAA07

DB22,42

TRIM20

 1
67620-WAA05

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM30

 1
67620-WAA05

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM20

 1
67620-WAA05

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM20

 1
67620-WAA10

DB22,42

TRIM20

 1
67620-WAA10

DB22,42

TRIM30

 1
67620-WAA12

DB22,42

AUDIO-AM/FM & 10SPEAKER,TRIM21

 1
67620-WAA14

DB22,42

TRIM21

 1
67620-WAA12

DB22,42

AUDIO-AM/FM & 12SPEAKER & JBL,TRIM21

 1
67711A - COVER, DOOR TRIM, RH
90118-WA397

DB2#,4#,81

 1
67712A - COVER, DOOR TRIM, LH
90118-WA397

DB2#,4#,81

 1
67833C - COVER, FRONT DOOR SPEAKER HOLE
67688-WAA02

DB2#,4#,81

RH

 1
67688-WAA01

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL,RH

 1
67689-WAA02

DB2#,4#,81

LH

 1
67689-WAA01

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL,LH

 1
67835 - COVER, FRONT DOOR SPEAKER HOLE
67651-WAA01

DB2#,4#,81

AUDIO-AM/FM & 12SPEAKER & JBL

 2
67651-WAA02

DB2#,4#,81

 2
Common parts
67773-WAA01
90118-WA097
90118-WA117
90118-WA119
90118-WA122
90118-WA123
90118-WA124
90118-WA367
90118-WA403
90118-WA413
Linked diagrams
6703
