DB22R-ZTRW (2019)
Toyota Supra
Production
Mar 2019
-
Sep 9999
Engine
B48H
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

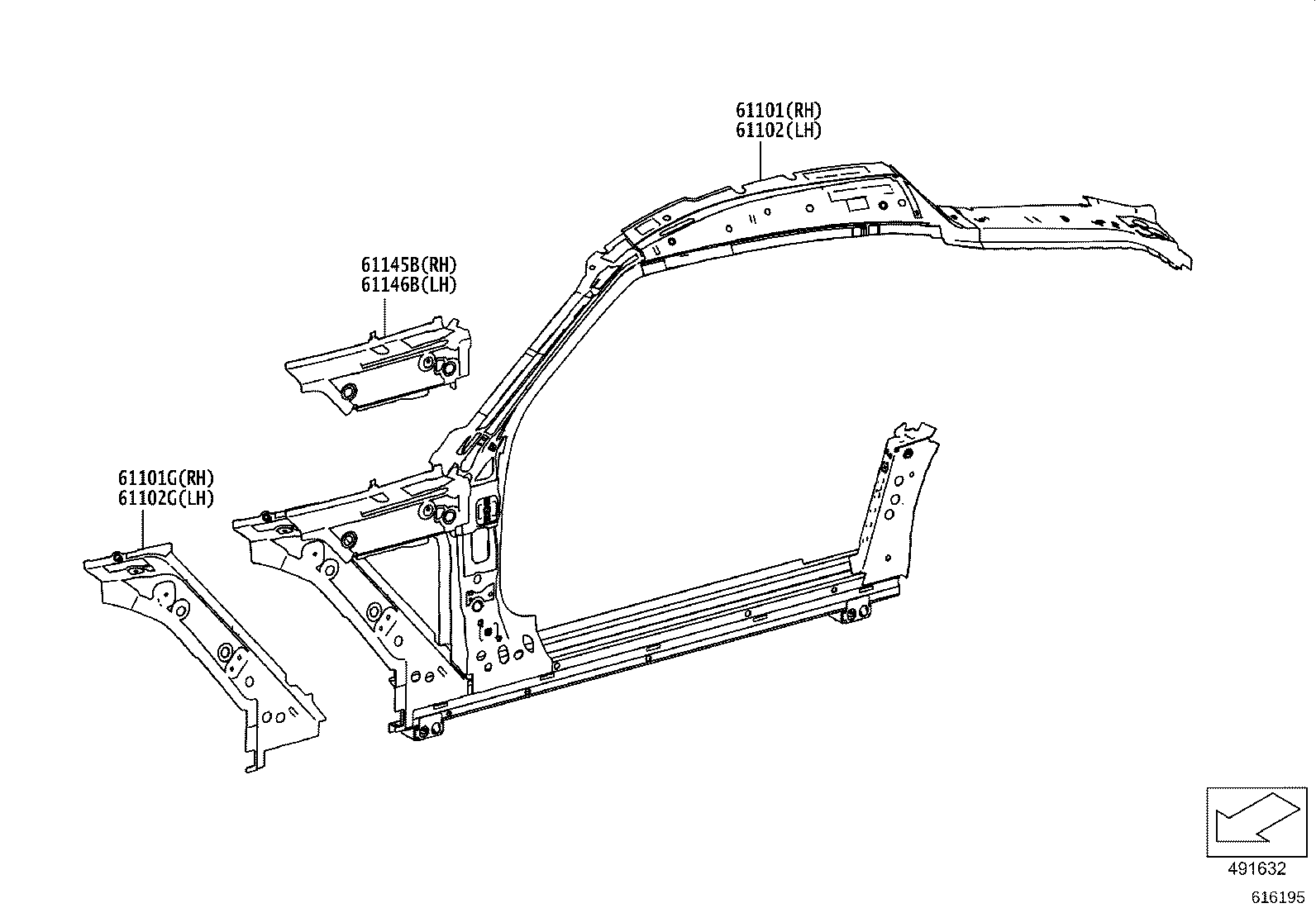

ILLUST NO. 1 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-WAA01 |
DB2#,4#,81 |
1 | ||
| 61101G - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 53733-WAA01 |
DB2#,4#,81 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-WAA01 |
DB2#,4#,81 |
1 | ||
| 61102G - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 53734-WAA01 |
DB2#,4#,81 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 53731-WAA01 |
DB2#,4#,81 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 53732-WAA01 |
DB2#,4#,81 |
1 | ||

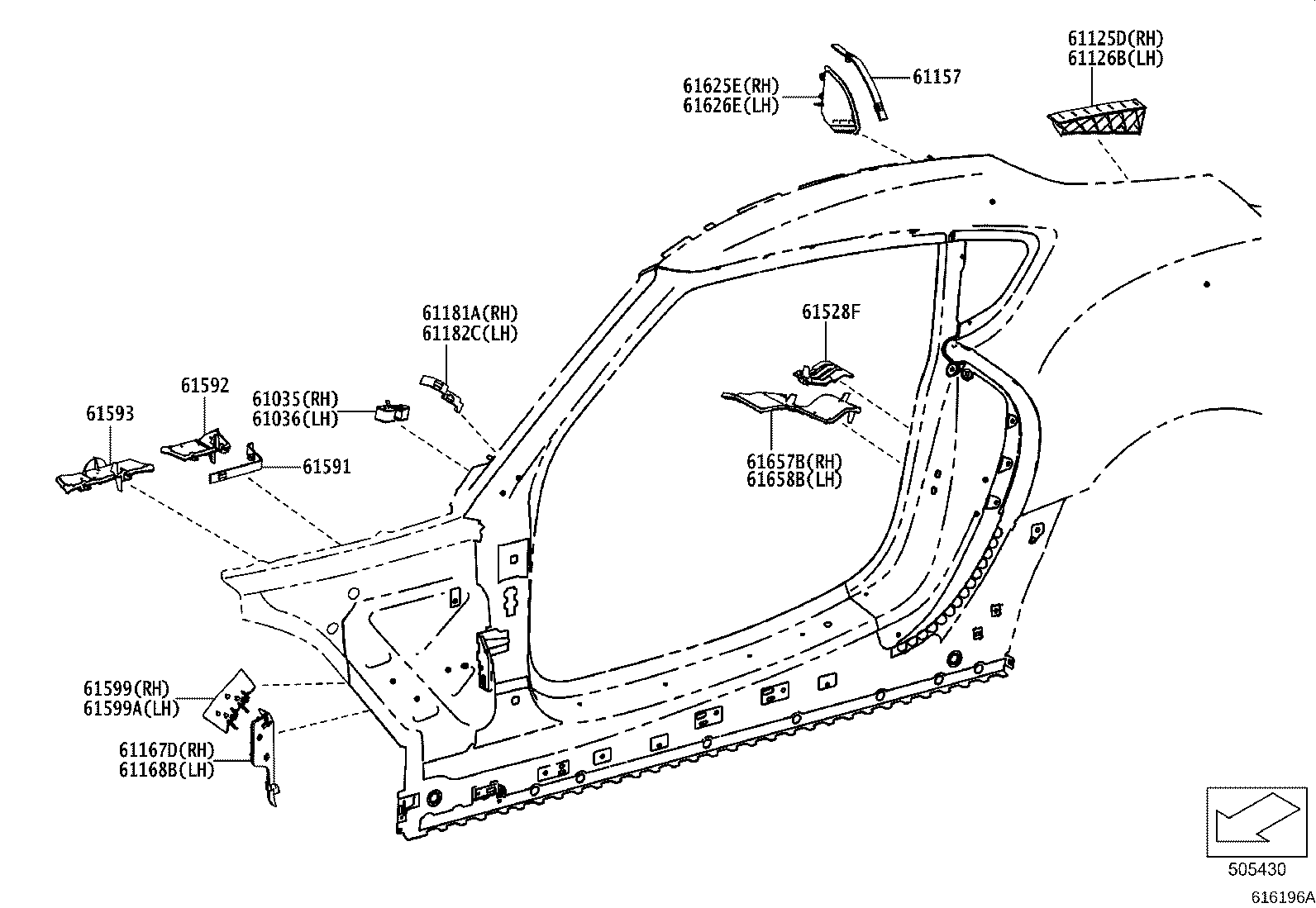

ILLUST NO. 2 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 90118-WA517 |
DB2#,4#,81 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 90118-WA517 |
DB2#,4#,81 |
1 | ||
| 61125D - GUSSET, SIDE PANEL | ||||
| 90118-WA774 |
DB2#,4#,81 |
1 | ||
| 61126B - GUSSET, SIDE PANEL | ||||
| 90118-WA773 |
DB2#,4#,81 |
1 | ||
| 61157 - BRACKET, NO.2 SIDE PANEL | ||||
| 90118-WA451 |
DB2#,4#,81 |
2 | ||
| 61167D - BRACE, FRONT BODY PILLAR, INNER RH | ||||
| 90118-WA519 |
DB2#,4#,81 |
1 | ||
| 61168B - BRACE, FRONT BODY PILLAR, INNER LH | ||||
| 90118-WA518 |
DB2#,4#,81 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 90118-WA556 |
DB2#,4#,81 |
1 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 90118-WA556 |
DB2#,4#,81 |
1 | ||
| 61528F - EXTENSION, QUARTER OUTER PANEL, FRONT | ||||
| 90118-WA564 |
DB2#,4#,81 LH |
1 | ||
| 90118-WA565 |
DB2#,4#,81 RH |
1 | ||
| 61591 - BRACKET, STIFFENER, NO.1 | ||||
| 90118-WA451 |
DB2#,4#,81 |
2 | ||
| 61592 - BRACKET, STIFFENER, NO.2 | ||||
| 90118-WA559 |
DB2#,4#,81 RH |
1 | ||
| 90118-WA558 |
DB2#,4#,81 LH |
1 | ||
| 61593 - BRACKET, STIFFENER, NO.3 | ||||
| 90118-WA560 |
DB2#,4#,81 LH |
1 | ||
| 90118-WA561 |
DB2#,4#,81 RH |
1 | ||
| 61599 - BRACKET, STIFFENER, NO.6, RH | ||||
| 90118-WA557 |
DB2#,4#,81 |
1 | ||
| 61599A - BRACKET, STIFFENER, NO.6, LH | ||||
| 90118-WA557 |
DB2#,4#,81 |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 90118-WA567 |
DB2#,4#,81 |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 90118-WA566 |
DB2#,4#,81 |
1 | ||
| 61657B - HOUSING, QUARTER PANEL END, LOWER RH | ||||
| 90118-WA563 |
DB2#,4#,81 |
1 | ||
| 61658B - HOUSING, QUARTER PANEL END, LOWER LH | ||||
| 90118-WA562 |
DB2#,4#,81 |
1 | ||

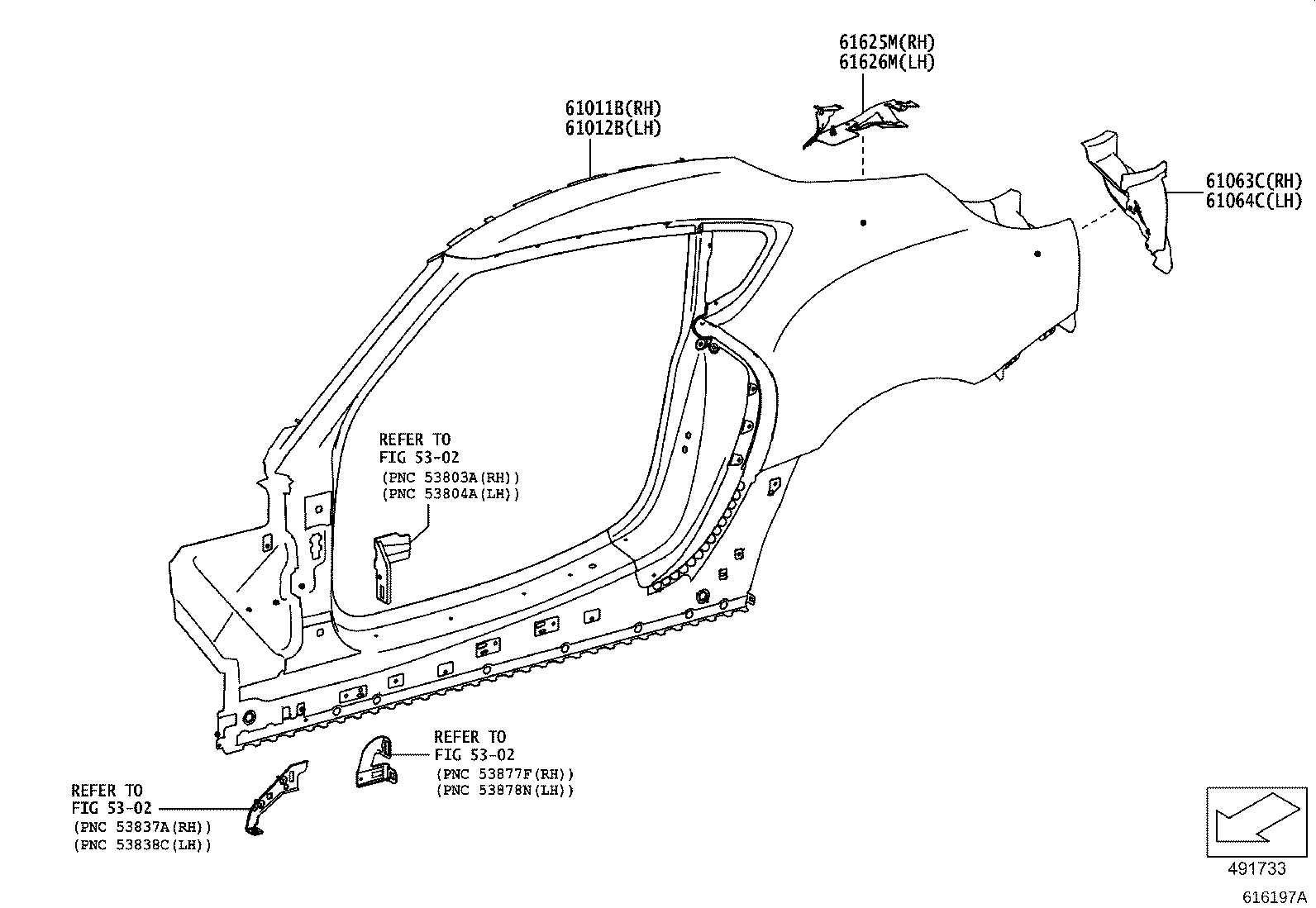

ILLUST NO. 3 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011B - PANEL SUB-ASSY, SIDE, OUTER RH | ||||
| 61111-WAA01 |
DB2#,4#,81 |
1 | ||
| 61012B - PANEL SUB-ASSY, SIDE, OUTER LH | ||||
| 61112-WAA01 |
DB2#,4#,81 |
1 | ||
| 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH | ||||
| 61621-WAA01 |
DB2#,4#,81 |
1 | ||
| 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH | ||||
| 61622-WAA01 |
DB2#,4#,81 |
1 | ||
| 61625M - BRACKET, QUARTER PANEL REINFORCEMENT,RH | ||||
| 61063-WAA01 |
DB2#,4#,81 |
1 | ||
| 61626M - BRACKET, QUARTER PANEL REINFORCEMENT,LH | ||||
| 61064-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 5302 | ||||

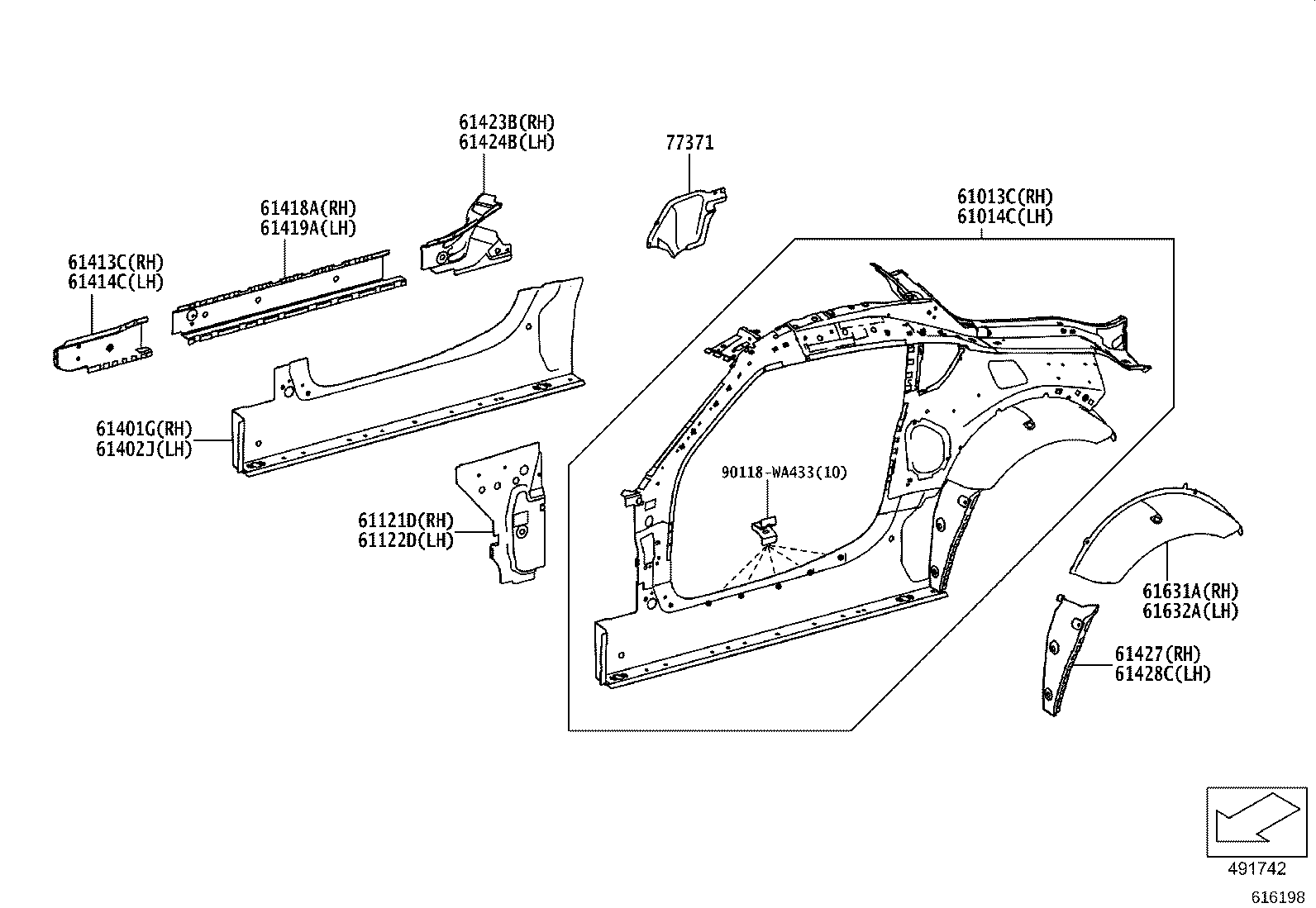

ILLUST NO. 4 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013C - PANEL SUB-ASSY, SIDE, INNER RH | ||||
| 61013-WAA01 |
DB2#,4#,81 |
1 | ||
| 61014C - PANEL SUB-ASSY, SIDE, INNER LH | ||||
| 61014-WAA01 |
DB2#,4#,81 |
1 | ||
| 61121D - PANEL, COWL SIDE, RH | ||||
| 61121-WAA01 |
DB2#,4#,81 |
1 | ||
| 61122D - PANEL, COWL SIDE, LH | ||||
| 61122-WAA01 |
DB2#,4#,81 |
1 | ||
| 61401G - PANEL SUB-ASSY, ROCKER, INNER RH | ||||
| 61401-WAA01 |
DB2#,4#,81 |
1 | ||
| 61402J - PANEL SUB-ASSY, ROCKER, INNER LH | ||||
| 61402-WAA01 |
DB2#,4#,81 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-WAA01 |
DB2#,4#,81 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-WAA01 |
DB2#,4#,81 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-WAA01 |
DB2#,4#,81 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-WAA01 |
DB2#,4#,81 |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-WAA01 |
DB2#,4#,81 |
1 | ||
| 61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH | ||||
| 61424-WAA01 |
DB2#,4#,81 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61065-WAA01 |
DB2#,4#,81 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61066-WAA01 |
DB2#,4#,81 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61607-WAA01 |
DB2#,4#,81 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61608-WAA01 |
DB2#,4#,81 |
1 | ||
| 77371 - BRACKET, FUEL FILLER OPENING LID LOCK | ||||
| 77277-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA433 | ||||

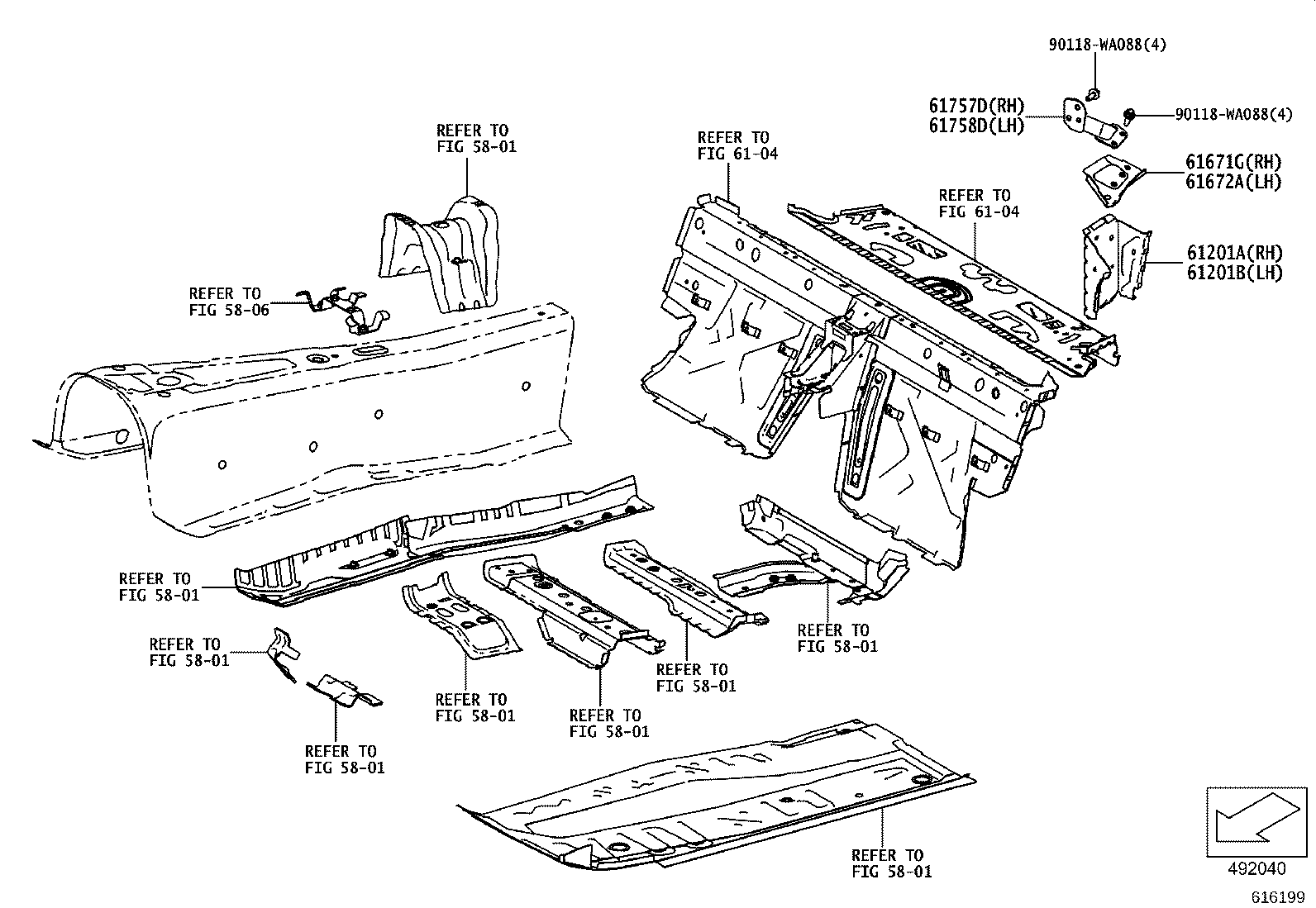

ILLUST NO. 5 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61395-WAA01 |
DB2#,4#,81 |
1 | ||
| 61201B - STIFFENER SUB-ASSY, SIDE PANEL, LH NO.1 | ||||
| 61396-WAA01 |
DB2#,4#,81 |
1 | ||
| 61671G - SUPPORT, REAR SUSPENSION SPRING, RH | ||||
| 61427-WAA01 |
DB2#,4#,81 |
1 | ||
| 61672A - SUPPORT, REAR SUSPENSION SPRING, LH | ||||
| 61428-WAA01 |
DB2#,4#,81 |
1 | ||
| 61757D - SUPPORT, PIVOT MOUNTING, RH | ||||
| 67298-WAA01 |
DB2#,4#,81 |
1 | ||
| 61758D - SUPPORT, PIVOT MOUNTING, LH | ||||
| 67299-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA088 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 5806 | ||||
| 6104 | ||||

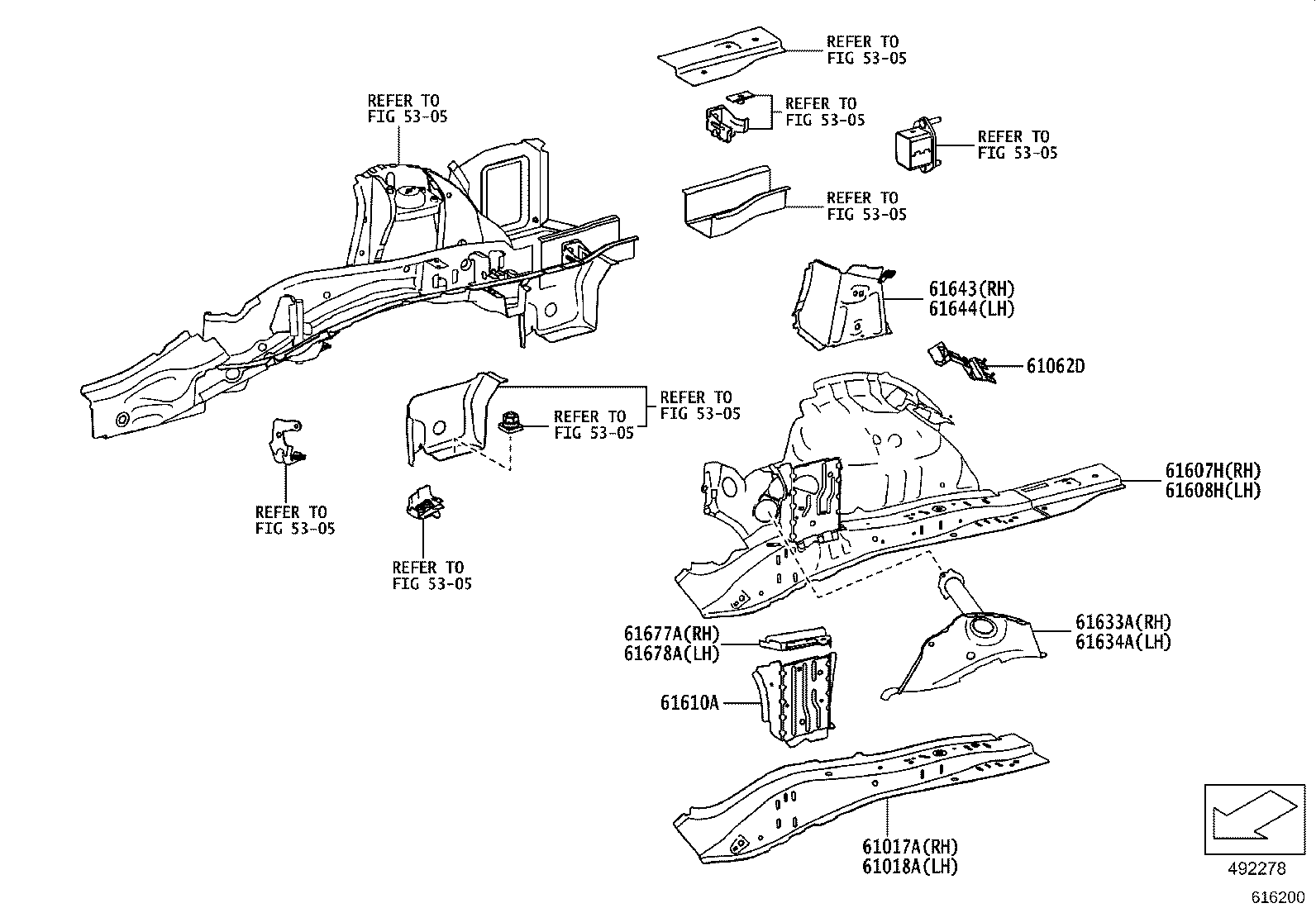

ILLUST NO. 6 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61017A - MEMBER SUB-ASSY, SIDE, REAR RH | ||||
| 58305-WAA01 |
DB2#,4#,81 |
1 | ||
| 61018A - MEMBER SUB-ASSY, SIDE, REAR LH | ||||
| 58306-WAA03 |
DB2#,4#,81 |
1 | ||
| 61062D - GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2 | ||||
| 61715-WAA01 |
DB2#,4#,81 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-WAA02 |
DB2#,4#,81 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-WAA02 |
DB2#,4#,81 |
1 | ||
| 61610A - SUPPORT, REAR SIDE PANEL | ||||
| 61395-WAA01 |
DB2#,4#,81 RH |
1 | ||
| 61396-WAA01 |
DB2#,4#,81 LH |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61605-WAA01 |
DB2#,4#,81 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61606-WAA01 |
DB2#,4#,81 |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61711-WAA01 |
DB2#,4#,81 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61712-WAA01 |
DB2#,4#,81 |
1 | ||
| 61677A - PLATE, REAR SPRING SUPPORT, RH | ||||
| 61427-WAA01 |
DB2#,4#,81 |
1 | ||
| 61678A - PLATE, REAR SPRING SUPPORT, LH | ||||
| 61428-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 5305 | ||||

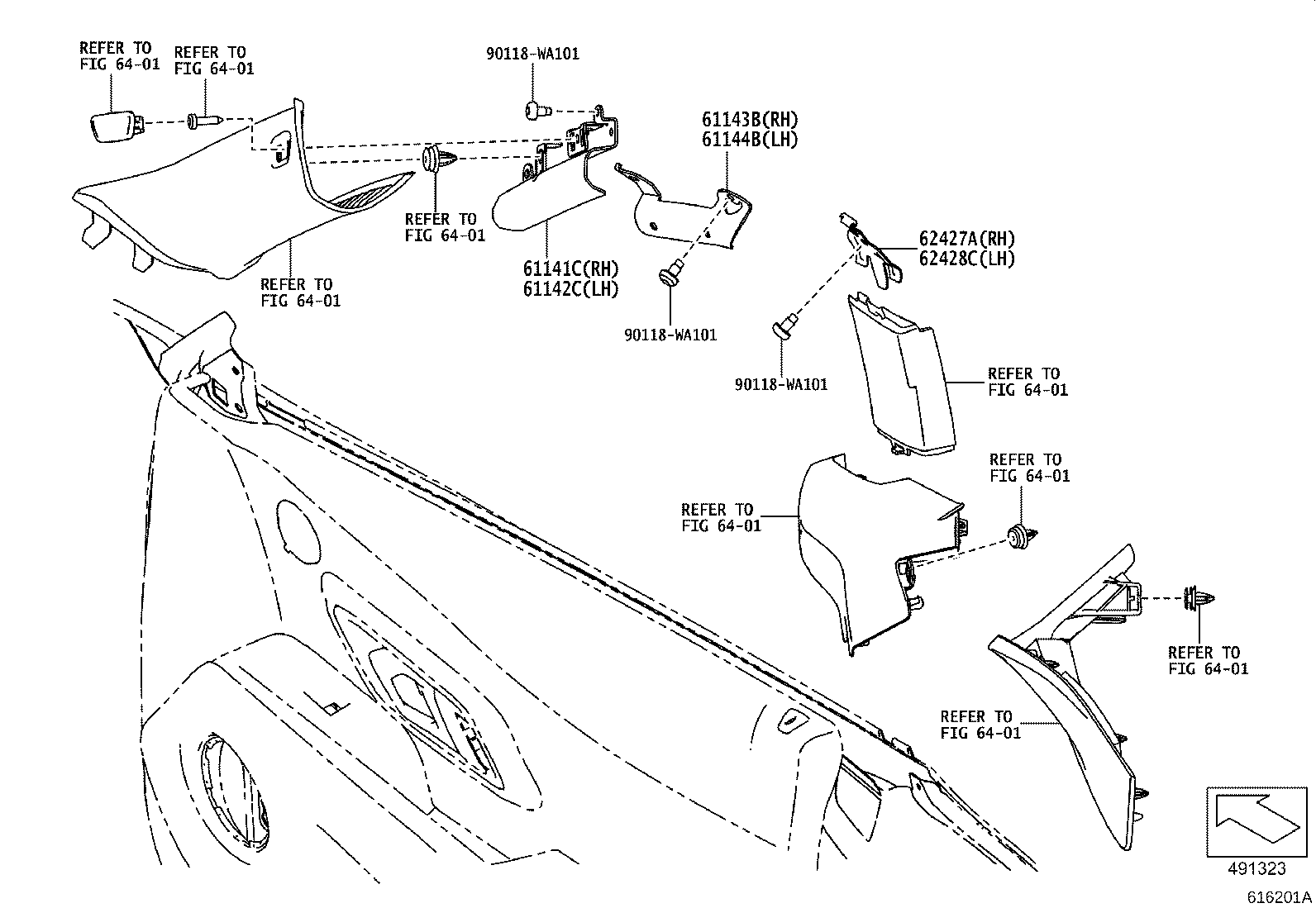

ILLUST NO. 7 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-WAA01 |
DB2#,4#,81 |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-WAA01 |
DB2#,4#,81 |
1 | ||
| 61143B - GUSSET, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61143-WAA01 |
DB2#,4#,81 |
1 | ||
| 61144B - GUSSET, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61144-WAA01 |
DB2#,4#,81 |
1 | ||
| 62427A - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 61341-WAA01 |
DB2#,4#,81 |
1 | ||
| 62428C - BRACKET, CENTER PILLAR GARNISH, LH | ||||
| 61342-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA101 | ||||
| Linked diagrams | ||||
| 6401 | ||||

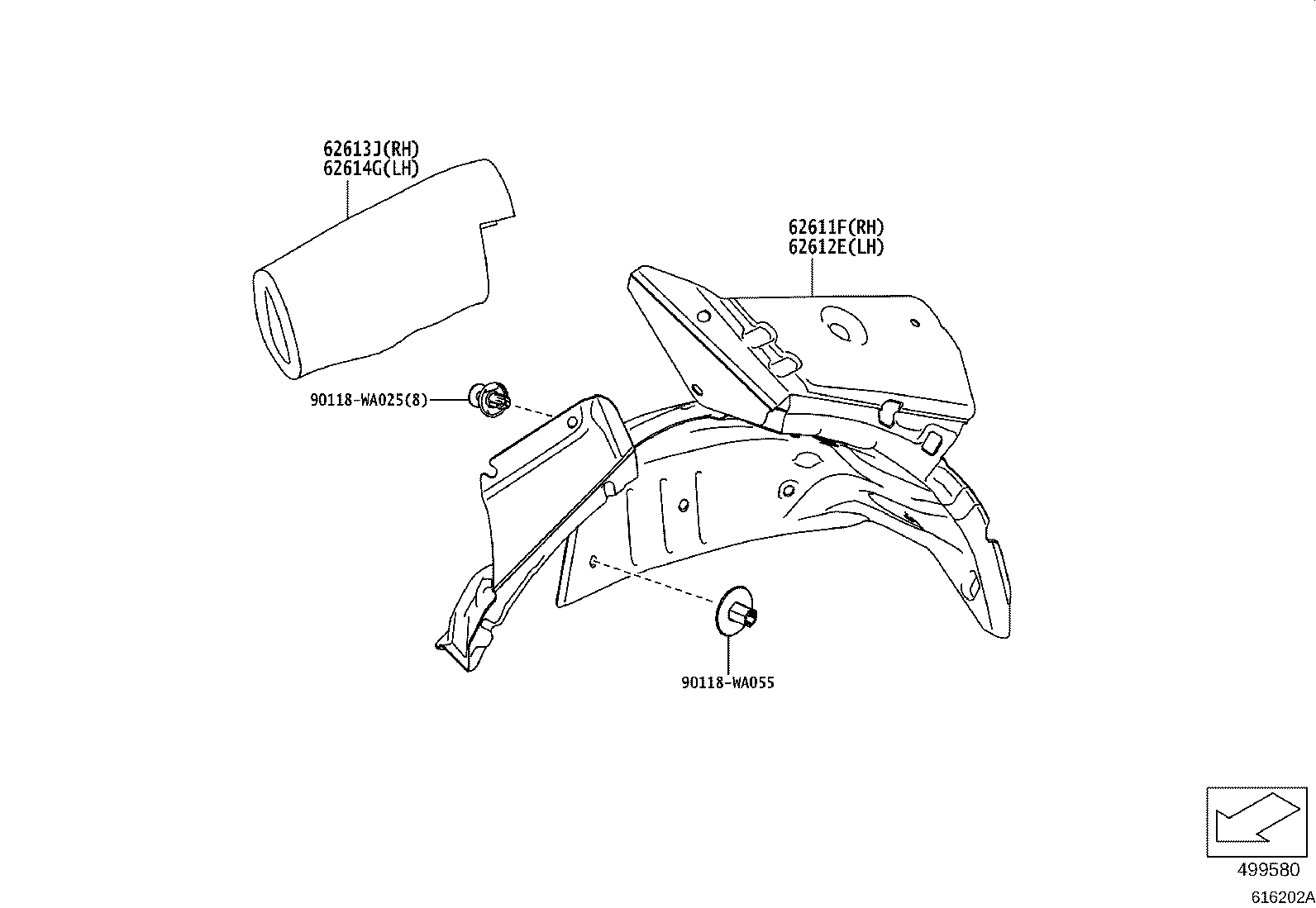

ILLUST NO. 8 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62611F - INSULATOR, QUARTER WHEEL HOUSE, RH | ||||
| 62611-WAA01 |
DB2#,4#,81 |
1 | ||
| 62612E - INSULATOR, QUARTER WHEEL HOUSE, LH | ||||
| 62612-WAA01 |
DB2#,4#,81 |
1 | ||
| 62613J - INSURATOR, QUARTER WHEEL HOUSE, NO.2 RH | ||||
| 62613-WAA01 |
DB2#,4#,81 |
1 | ||
| 62614G - INSURATOR, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 62613-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA025 | ||||
| 90118-WA055 | ||||

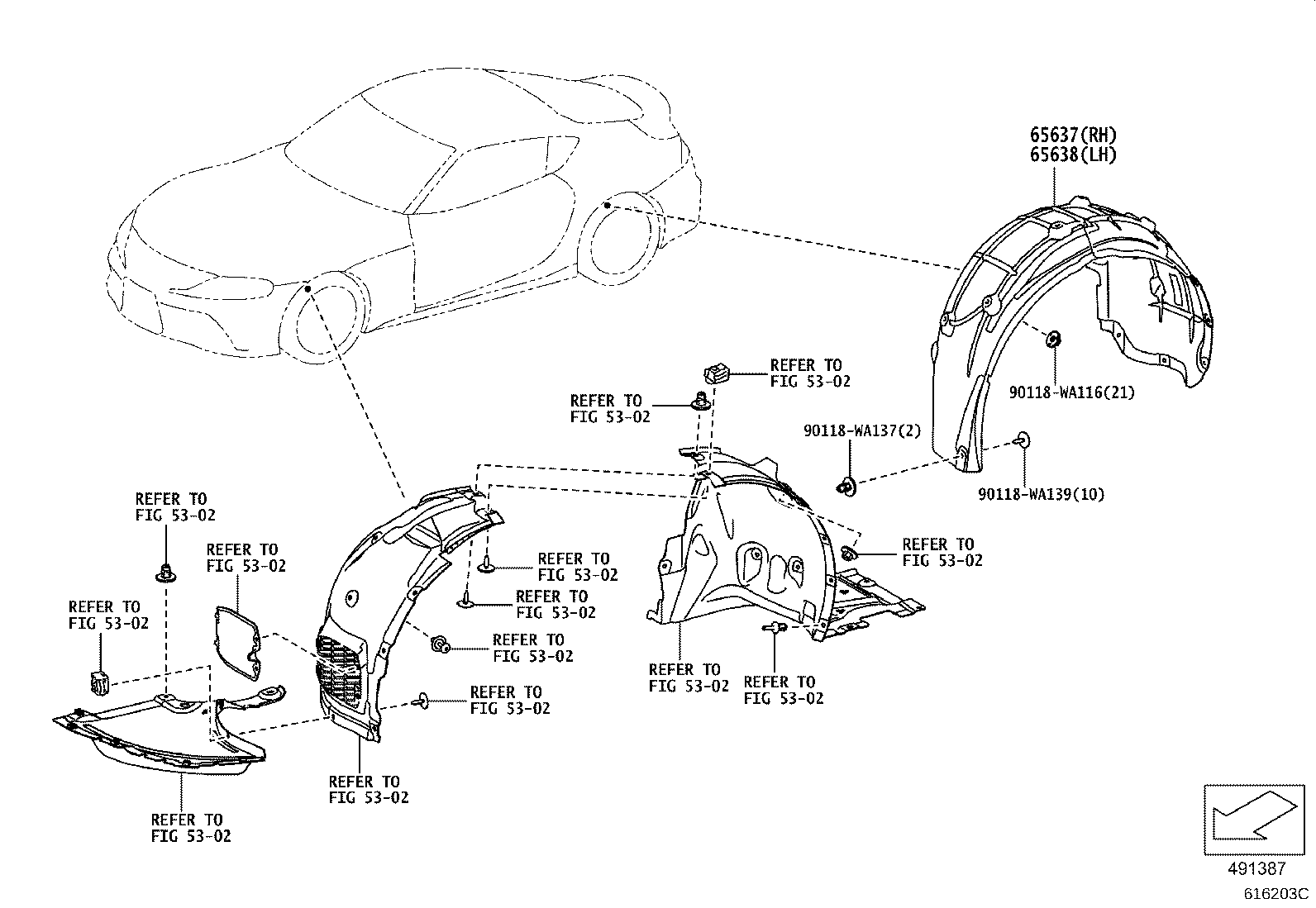

ILLUST NO. 9 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 53807-WAA02 |
DB2#,4#,81 |
1 | ||
| 53807-WAA05 |
DB02,22,42 JAPAN SPEC |
1 | ||
| 53807-WAA03 |
DB22,42 JAPAN SPEC |
1 | ||
| 53807-WAA04 |
DB0#,2#,4#,81 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 53808-WAA02 |
DB2#,4#,81 |
1 | ||
| 53808-WAA03 |
DB22,42 JAPAN SPEC |
1 | ||
| 53808-WAA04 |
DB0#,2#,4#,81 |
1 | ||
| 53808-WAA05 |
DB02,22,42 JAPAN SPEC |
1 | ||
| Common parts | ||||
| 90118-WA116 | ||||
| 90118-WA137 | ||||
| 90118-WA139 | ||||
| Linked diagrams | ||||
| 5302 | ||||

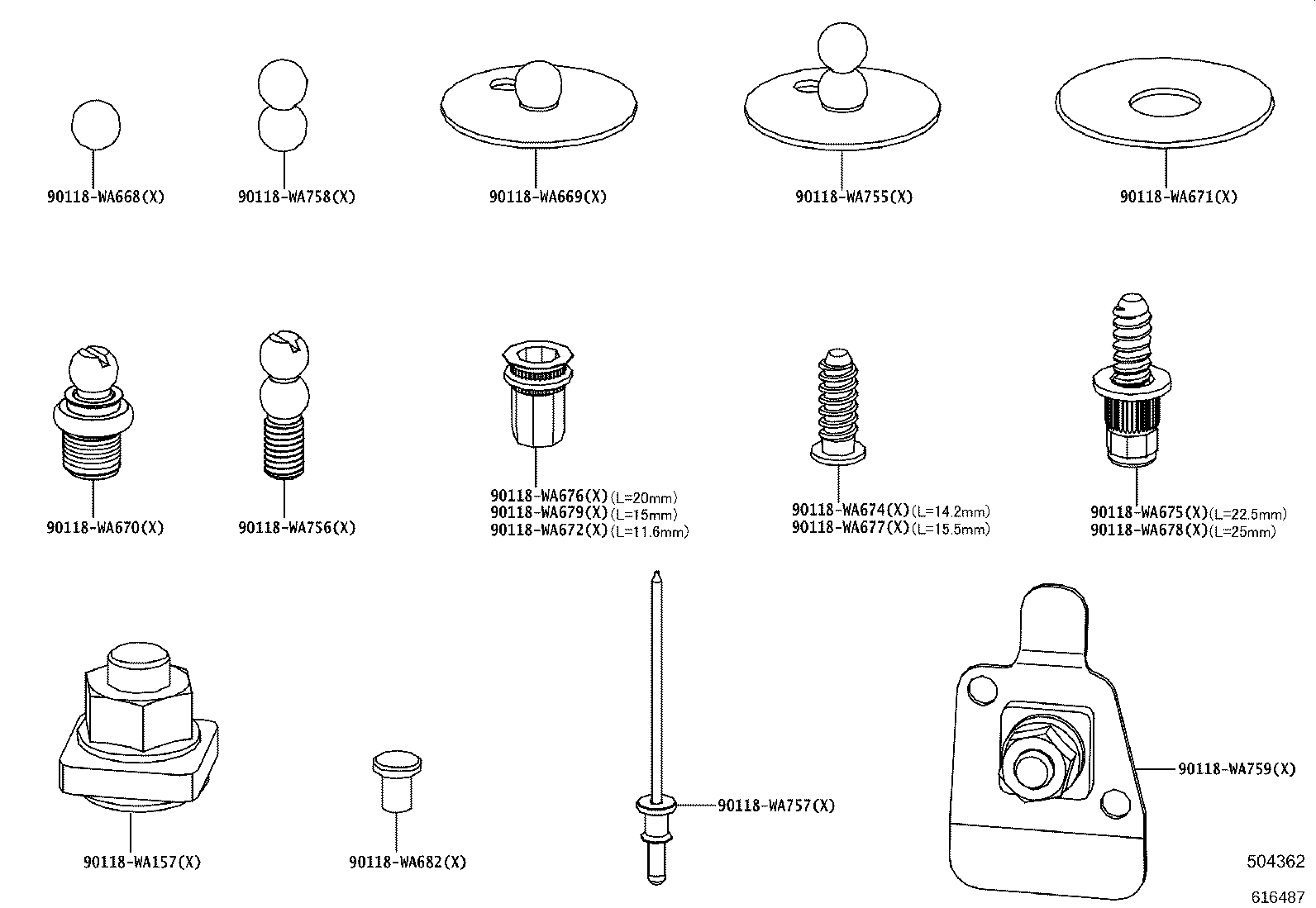

ILLUST NO.10 OF10(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA157 | ||||
| 90118-WA668 | ||||
| 90118-WA669 | ||||
| 90118-WA670 | ||||
| 90118-WA671 | ||||
| 90118-WA672 | ||||
| 90118-WA674 | ||||
| 90118-WA675 | ||||
| 90118-WA676 | ||||
| 90118-WA677 | ||||
| 90118-WA678 | ||||
| 90118-WA679 | ||||
| 90118-WA682 | ||||
| 90118-WA755 | ||||
| 90118-WA756 | ||||
| 90118-WA757 | ||||
| 90118-WA758 | ||||
| 90118-WA759 | ||||
