DB22R-ZTRW (2019)
Toyota Supra
Production
Mar 2019
-
Sep 9999
Engine
B48H
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-WAA01 |
DB2#,4#,81 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-WAA01 |
DB2#,4#,81 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57145-WAA01 |
DB2#,4#,81 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57146-WAA01 |
DB2#,4#,81 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-WAA01 |
DB2#,4#,81 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-WAA01 |
DB2#,4#,81 |
1 | ||
| 57119 - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57261-WAA02 |
DB2#,4#,81 |
1 | ||
| 57129C - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57261-WAA01 |
DB2#,4#,81 |
1 | ||
| 57183 - PLATE, FRONT SIDE MEMBER, NO.4 RH | ||||
| 57183-WAA01 |
DB2#,4#,81 |
1 | ||
| 57184A - PLATE, FRONT SIDE MEMBER, NO.4 LH | ||||
| 57184-WAA01 |
DB2#,4#,81 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-WAA01 |
DB2#,4#,81 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 5304 | ||||

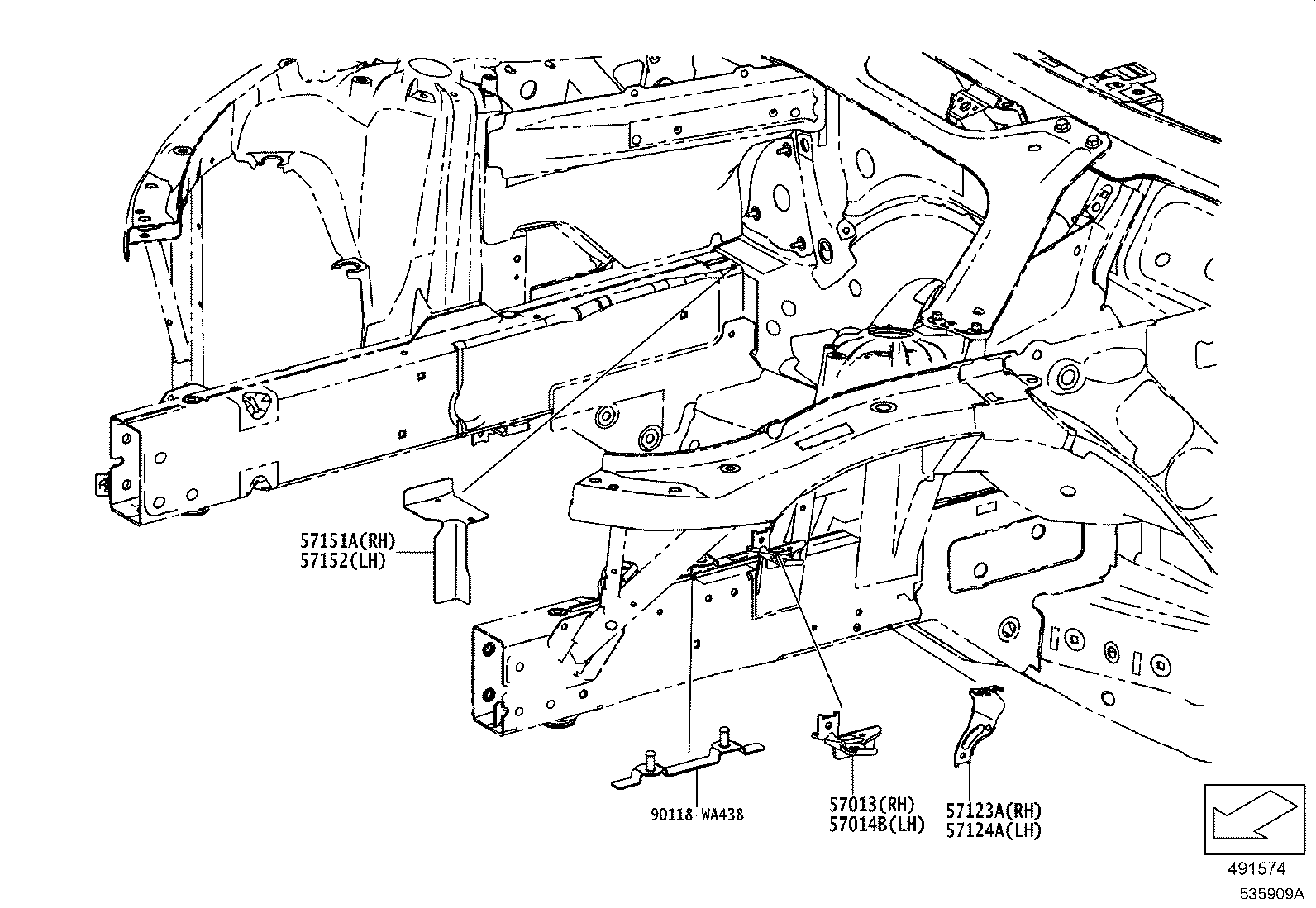

ILLUST NO. 2 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 90118-WA437 |
DB2#,4#,81 |
1 | ||
| 57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 90118-WA436 |
DB2#,4#,81 |
1 | ||
| 57123A - REINFORCEMENT, STRUT BAR BRACKET, RH | ||||
| 90118-WA432 |
DB2#,4#,81 |
1 | ||
| 57124A - REINFORCEMENT, STRUT BAR BRACKET, LH | ||||
| 90118-WA431 |
DB2#,4#,81 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57261-WAA02 |
DB2#,4#,81 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57261-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA438 | ||||

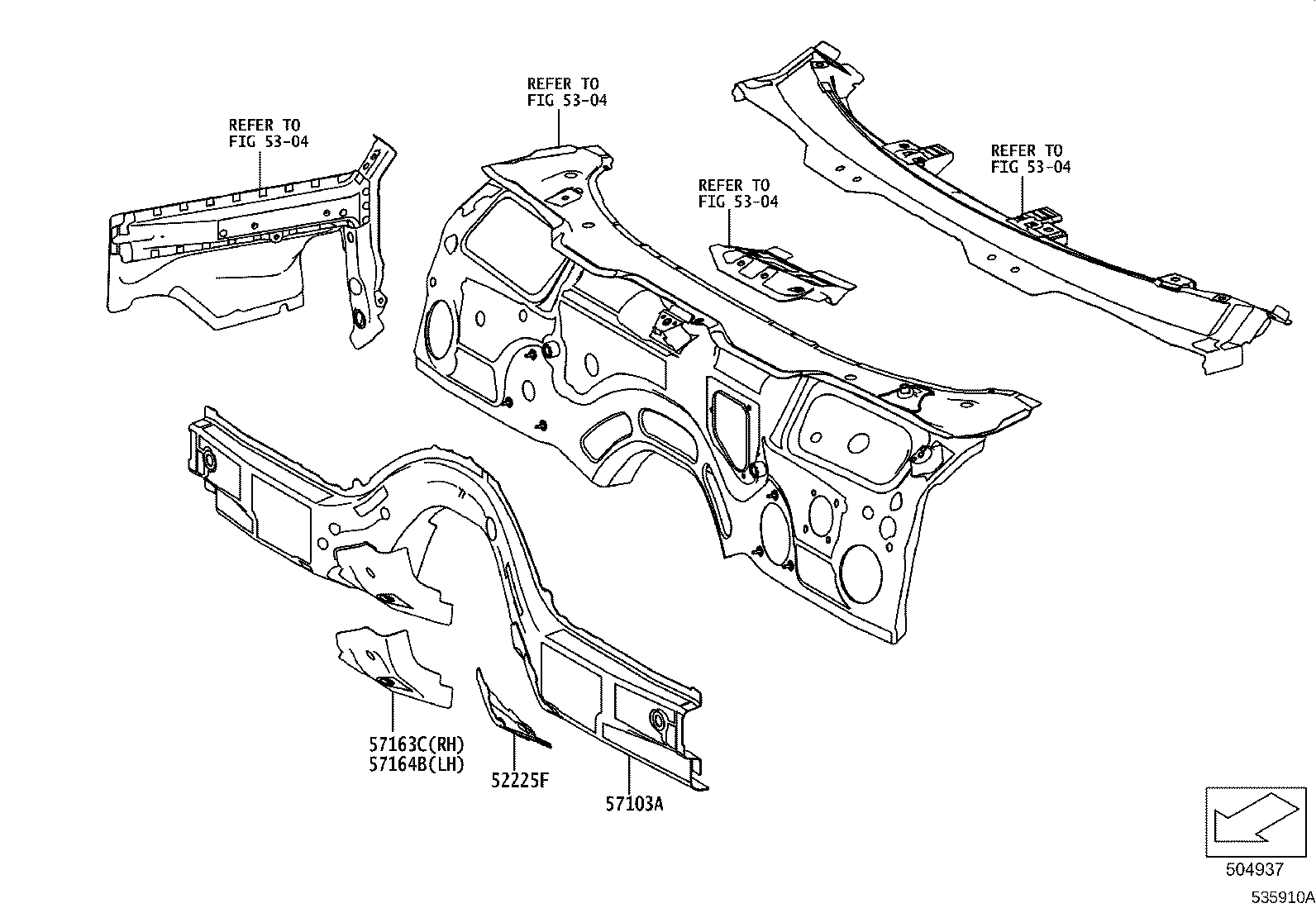

ILLUST NO. 3 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52225F - PLATE, FLOOR PANEL FRONT END | ||||
| 55113-WAA01 |
DB2#,4#,81 |
1 | ||
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 55114-WAA01 |
DB2#,4#,81 |
1 | ||
| 57163C - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||||
| 55133-WAA01 |
DB2#,4#,81 |
1 | ||
| 57164B - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||||
| 55134-WAA01 |
DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 5304 | ||||

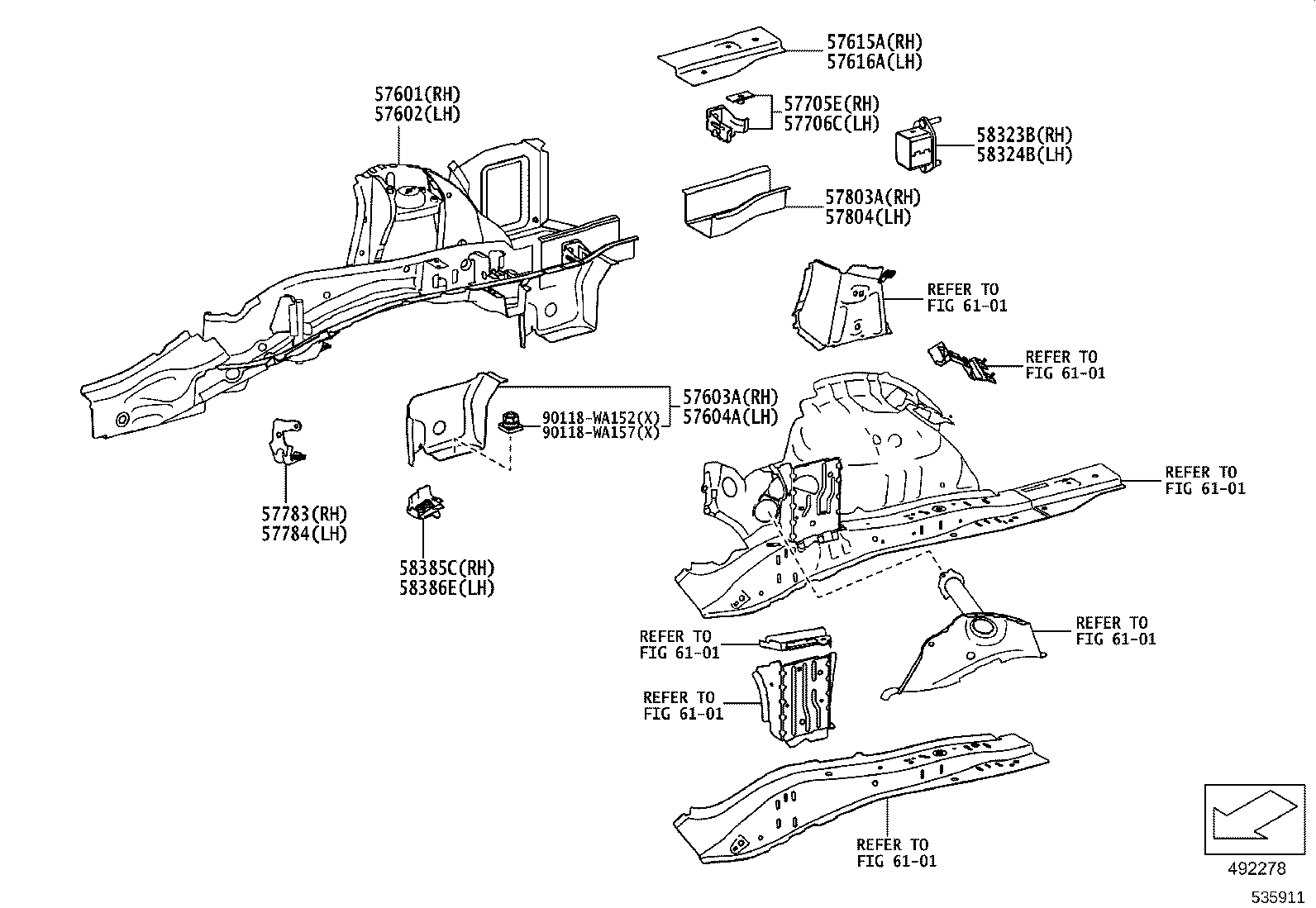

ILLUST NO. 4 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-WAA01 |
DB2#,4#,81 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-WAA01 |
DB2#,4#,81 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 58305-WAA02 |
DB2#,4#,81 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 58306-WAA01 |
DB2#,4#,81 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57801-WAA01 |
DB2#,4#,81 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57802-WAA01 |
DB2#,4#,81 |
1 | ||
| 57705E - BRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR | ||||
| 57615-WAA01 |
DB2#,4#,81 |
1 | ||
| 57706C - BRACKET SUB-ASSY, REAR SUSPENSION MEMBER MOUNTING, RR L | ||||
| 57616-WAA01 |
DB2#,4#,81 |
1 | ||
| 57783 - BRACKET, NO.8 BODY MOUNTING, RH | ||||
| 57631-WAA01 |
DB2#,4#,81 |
1 | ||
| 57784 - BRACKET, NO.8 BODY MOUNTING, LH | ||||
| 57632-WAA01 |
DB2#,4#,81 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-WAA01 |
DB2#,4#,81 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-WAA01 |
DB2#,4#,81 |
1 | ||
| 58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-WAA01 |
DB2#,4#,81 |
1 | ||
| 58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-WAA01 |
DB2#,4#,81 |
1 | ||
| 58385C - BRACKET, REAR BUMPER COVER, RH | ||||
| 58369-WAA02 |
DB2#,4#,81 |
1 | ||
| 58386E - BRACKET, REAR BUMPER COVER, LH | ||||
| 58369-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA152 | ||||
| 90118-WA157 | ||||
| Linked diagrams | ||||
| 6101 | ||||

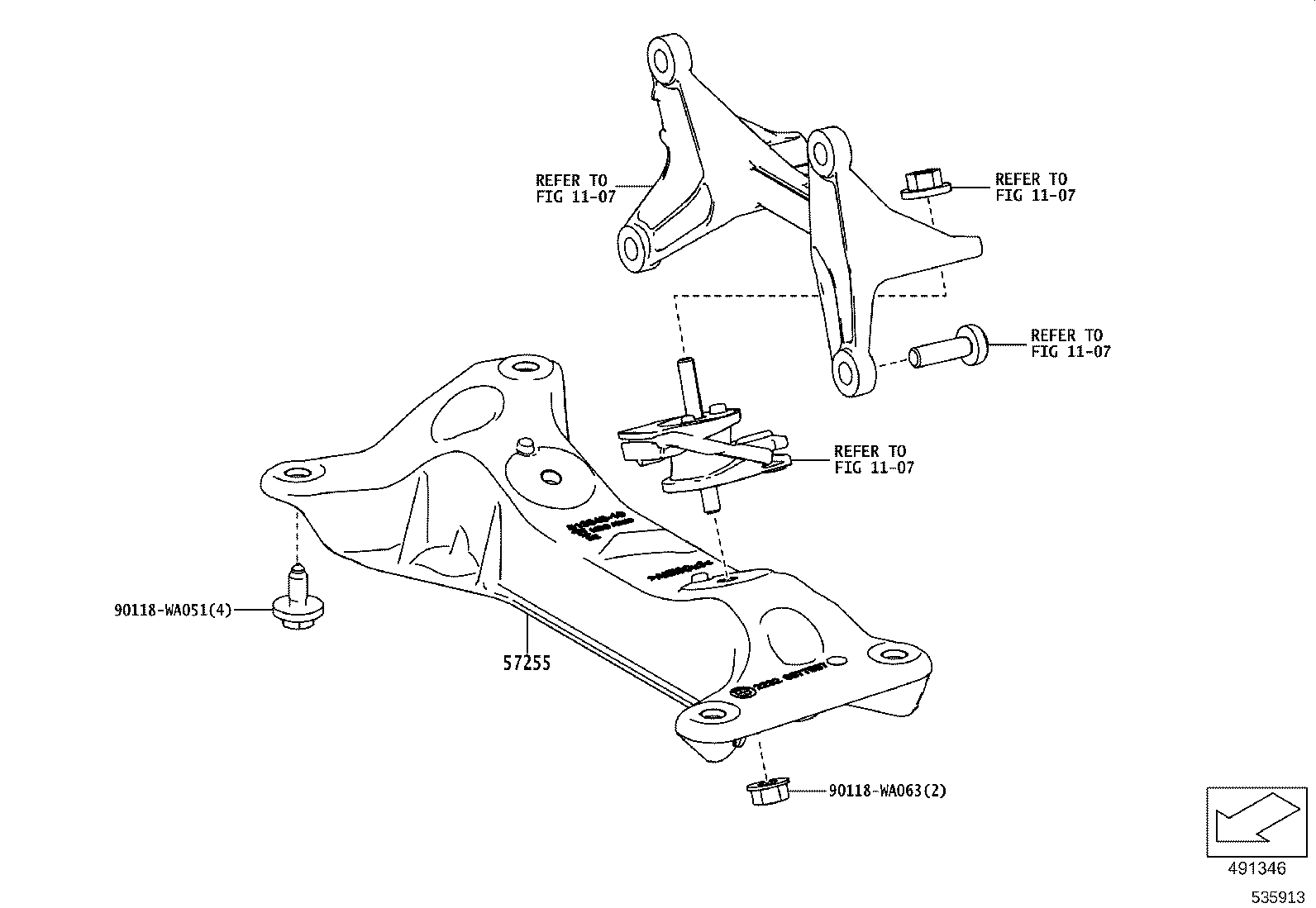

ILLUST NO. 6 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57255 - MEMBER, ENGINE REAR MOUNTING | ||||
| 57209-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA051 | ||||
| 90118-WA063 | ||||
| Linked diagrams | ||||
| 1107 | ||||

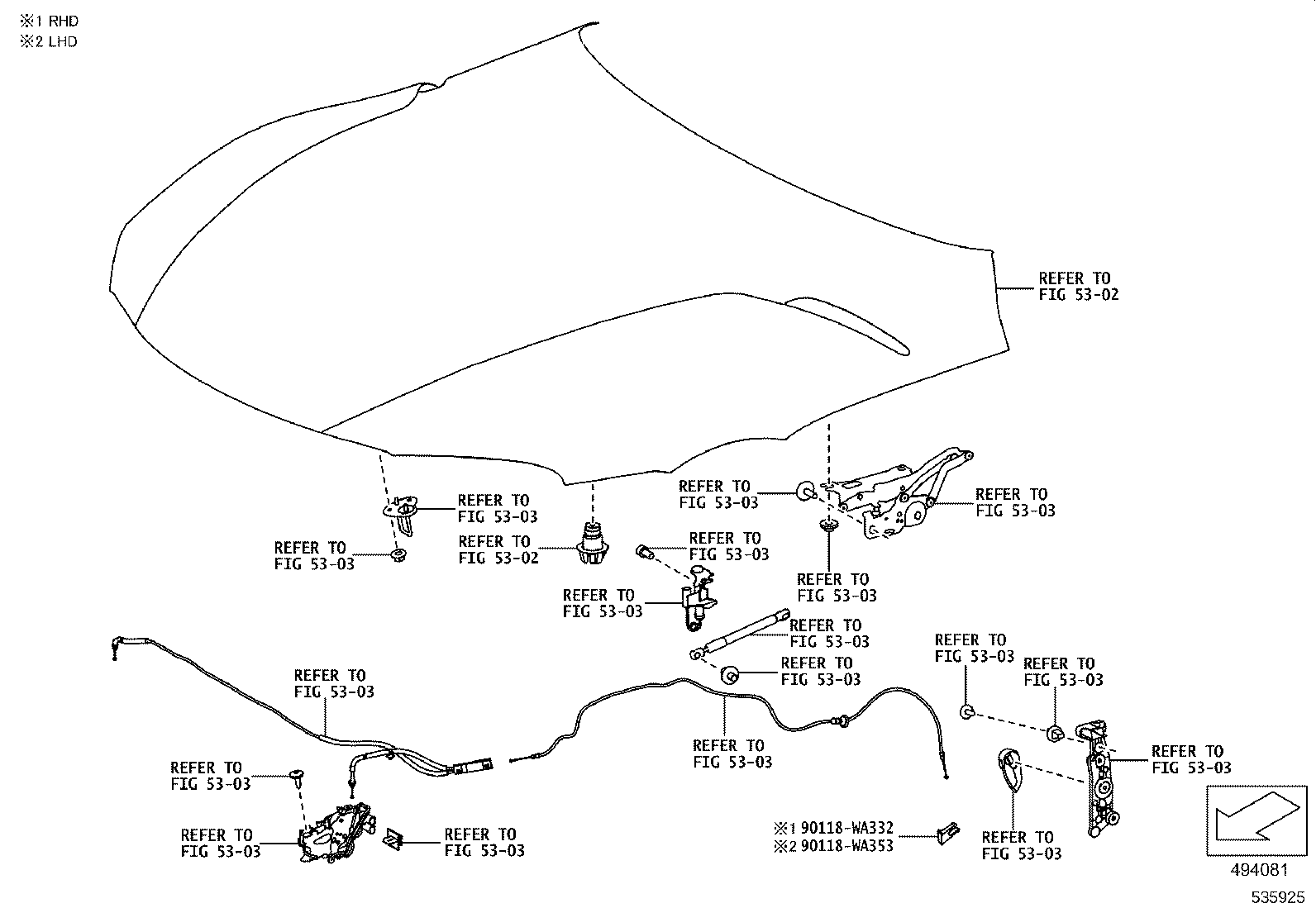

ILLUST NO. 5 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA332 | ||||
| 90118-WA353 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5303 | ||||

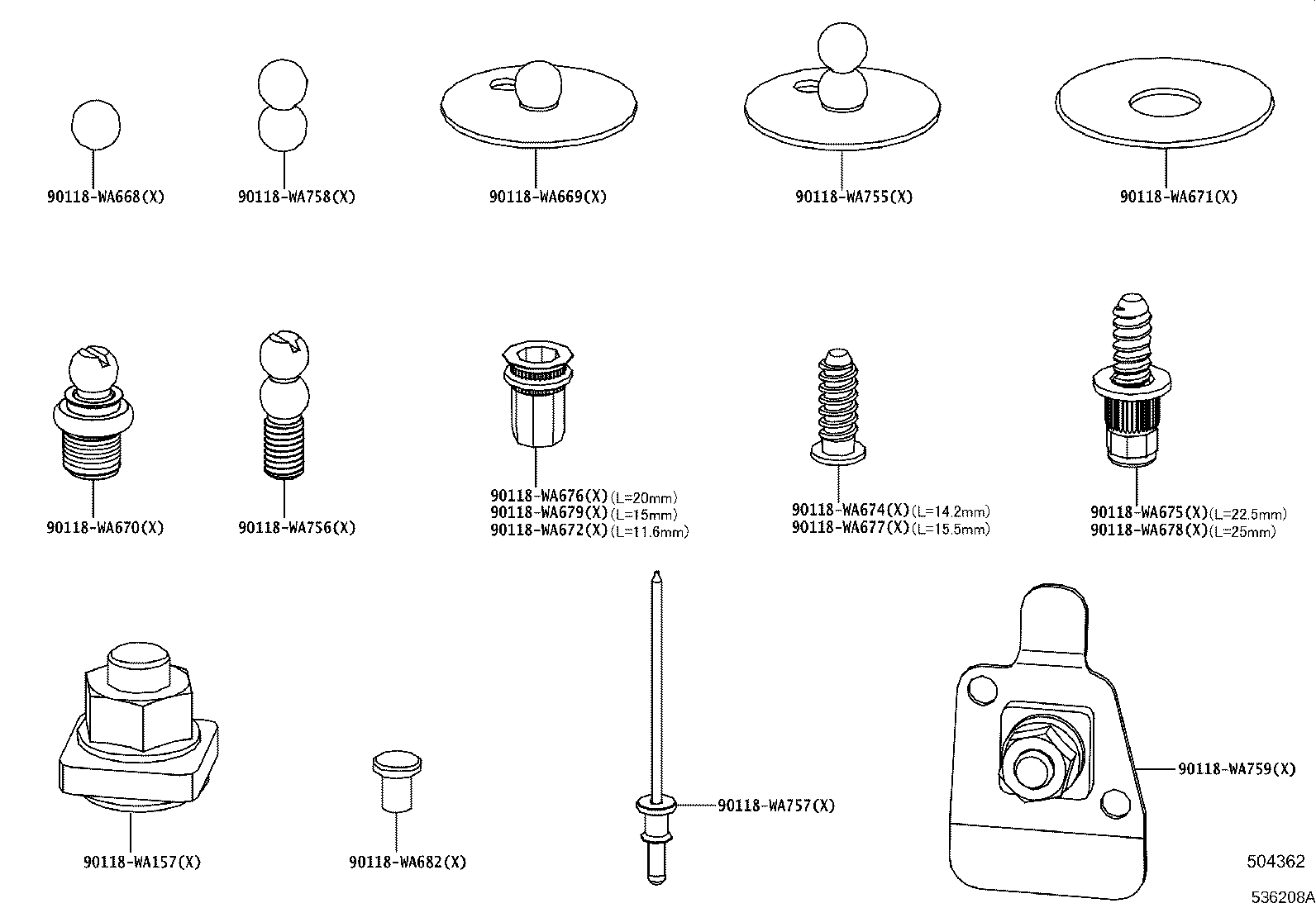

ILLUST NO. 7 OF 7(1903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90118-WA157 | ||||
| 90118-WA668 | ||||
| 90118-WA669 | ||||
| 90118-WA670 | ||||
| 90118-WA671 | ||||
| 90118-WA672 | ||||
| 90118-WA674 | ||||
| 90118-WA675 | ||||
| 90118-WA676 | ||||
| 90118-WA677 | ||||
| 90118-WA678 | ||||
| 90118-WA679 | ||||
| 90118-WA682 | ||||
| 90118-WA755 | ||||
| 90118-WA756 | ||||
| 90118-WA757 | ||||
| 90118-WA758 | ||||
| 90118-WA759 | ||||
