DB22R-ZTRW (2019)
Toyota Supra
(1903- )

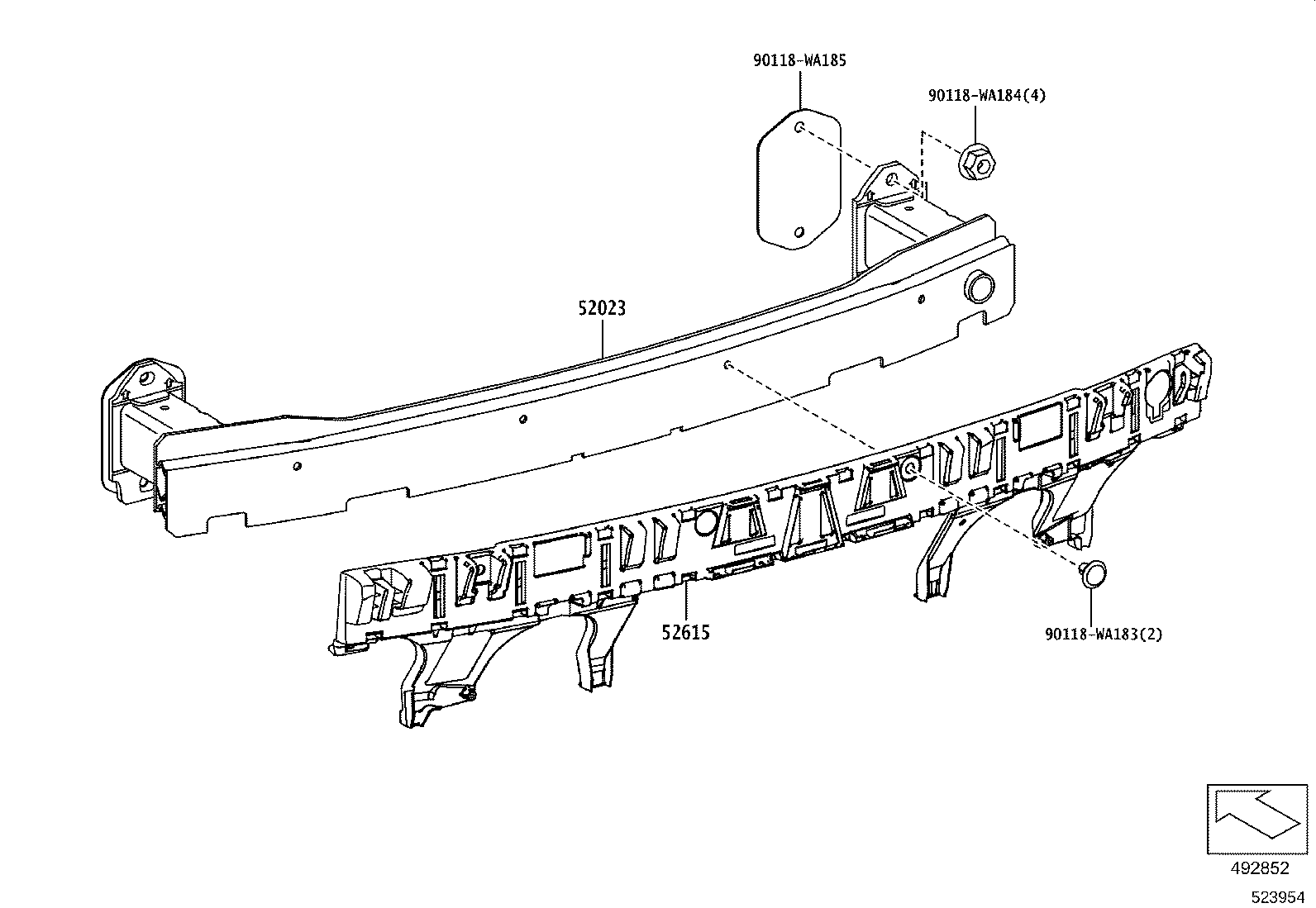

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-WAA01 |
DB2#,4#,81 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA183 | ||||
| 90118-WA184 | ||||
| 90118-WA185 | ||||

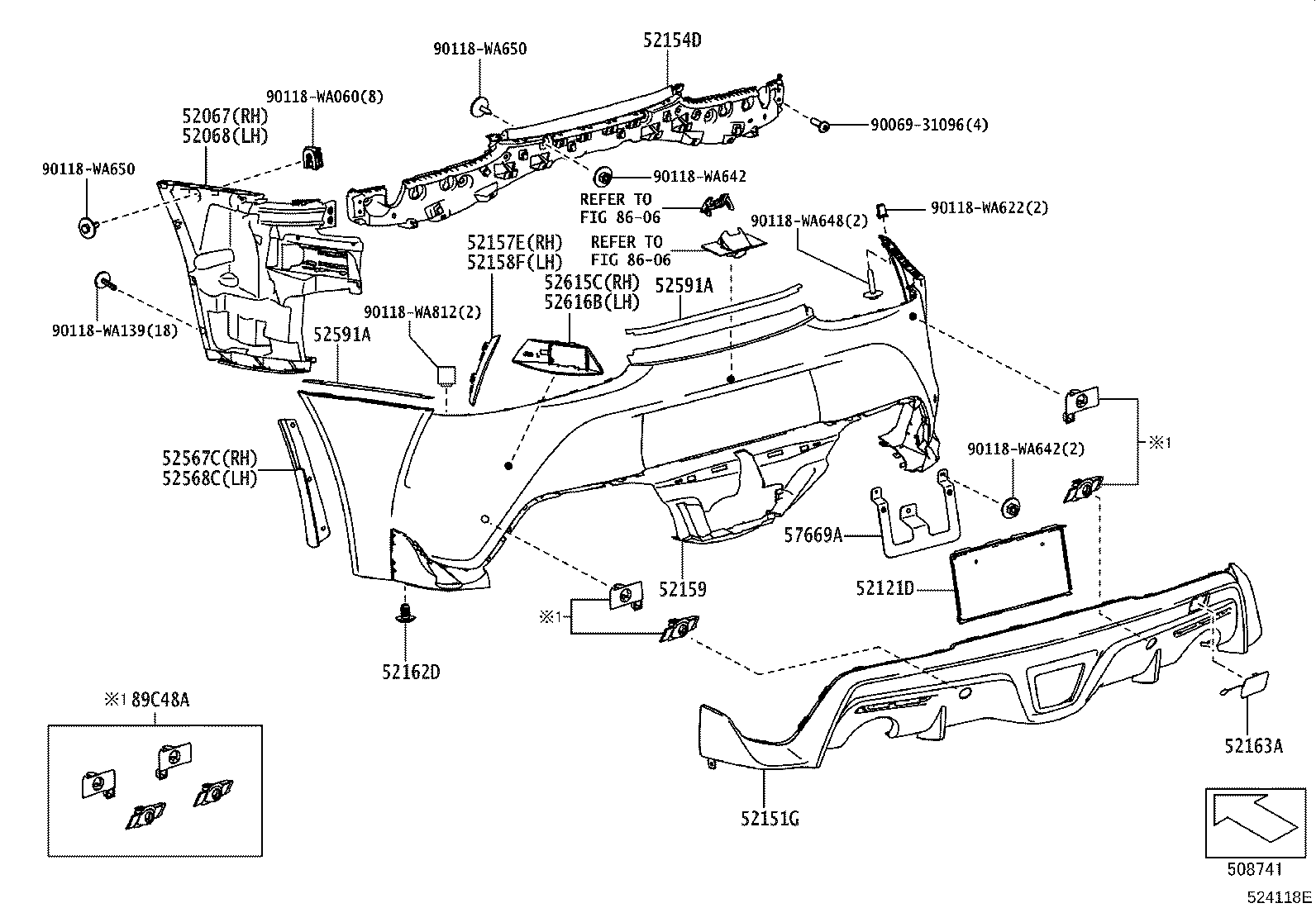

(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52155-WAA01 |
DB2#,4#,81 |
1 | ||
| 52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52156-WAA01 |
DB2#,4#,81 |
1 | ||
| 52121D - BRACKET, REAR LICENSE PLATE MOUNTING | ||||
| 52453-WAA01 |
DB22,42 JAPAN SPEC |
1 | ||
| 57669-WAA02 |
DB22,42 GERMANY SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 SPAIN SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 SWITZERLAND SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 PORTUGAL SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 AUSTRIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 WITHOUT(DESTINATION PACKAGE(ERP))&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 NORDIC SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 FRANCE SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 BELGIUM, LUXEMBOURG SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 NETHERLAND SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 ITALY SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 CENTRAL EAST EU SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 UNITED KINGDOM SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 REST EUROPE SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 USA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 ICELAND SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 BALTIC SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 MEXICO SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 SAUDI ARABIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 EU MEDITERRANEAN SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 GUAM SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 DUBAI, SHARJAH SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 OMAN SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 MIDDLE & NEAR EAST SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 CANADA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 KUWAIT SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 LEBANON SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 PHILIPPINES SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 EAST AFRICAN COMMUNITY SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 BAHRAIN SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 EAST EUROPE 1 SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 ISRAEL, PALESTINE SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 TURKEY SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 INDONESIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 RUSSIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 EAST EUROPE 2 SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 QATAR SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 THAILAND SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 KOREA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 SINGAPORE SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 SRI LANKA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 ABU DHABI SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 REST ASIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 TAIWAN SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 NEW ZEALAND SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 HONG KONG, MACAU SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 CHINA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 AUSTRALIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 MALAYSIA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 57669-WAA02 |
DB22,42 SOUTH AFRICA SPEC&LICENSE PLATE BRACKET-US SIZE ATTACHMENT |
1 | ||
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52108-WAA02 |
DB2#,4#,81 NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52108-WAA05 |
DB2#,4#,81 NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52108-WAA01 |
DB2#,4#,81 NO PAINT REQ.,CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52154D - SUPPORT, REAR BUMPER, NO.1 | ||||
| 52154-WAA01 |
DB2#,4#,81 |
1 | ||
| 52157E - TRIM, AIR INLET, RH | ||||
| 52157-WAA01 |
DB2#,4#,81 |
1 | ||
| 52158F - TRIM, AIR INLET, LH | ||||
| 52158-WAA01 |
DB2#,4#,81 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-WAA01 |
DB2#,4#,81 SWITZERLAND SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 AUSTRIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 NETHERLAND SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 SPAIN SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 PORTUGAL SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 CENTRAL EAST EU SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(ERP))&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 GUAM SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 FRANCE SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 ITALY SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 MEXICO SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 GERMANY SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 ICELAND SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 UNITED KINGDOM SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 BALTIC SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 NORDIC SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 BELGIUM, LUXEMBOURG SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 REST EUROPE SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 USA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 CANADA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 BAHRAIN SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 EU MEDITERRANEAN SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 DUBAI, SHARJAH SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 KUWAIT SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 QATAR SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 TURKEY SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 ABU DHABI SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 OMAN SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 ISRAEL, PALESTINE SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 MIDDLE & NEAR EAST SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 EAST AFRICAN COMMUNITY SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 THAILAND SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 EAST EUROPE 1 SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 EAST EUROPE 2 SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 INDONESIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 PHILIPPINES SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 REST ASIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 KOREA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 SAUDI ARABIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 AUSTRIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 SRI LANKA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 BELGIUM, LUXEMBOURG SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 GERMANY SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 SPAIN SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 FRANCE SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 LEBANON SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 TAIWAN SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(ERP))&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 UNITED KINGDOM SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 HONG KONG, MACAU SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 CENTRAL EAST EU SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 CHINA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 USA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA01 |
DB2#,4#,81 RUSSIA SPEC&CLEARANCE & BACK SONAR-WITHOUT |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 NORDIC SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 ITALY SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 EU MEDITERRANEAN SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 SWITZERLAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 NETHERLAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 CANADA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 GUAM SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 ICELAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 BALTIC SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 QATAR SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 ABU DHABI SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 REST EUROPE SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 ISRAEL, PALESTINE SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 EAST EUROPE 1 SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 TURKEY SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 SAUDI ARABIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 EAST EUROPE 2 SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 MEXICO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 PORTUGAL SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 OMAN SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 KUWAIT SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 DUBAI, SHARJAH SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 THAILAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 BAHRAIN SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 MIDDLE & NEAR EAST SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 LEBANON SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 INDONESIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 PHILIPPINES SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 EAST AFRICAN COMMUNITY SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 REST ASIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 HONG KONG, MACAU SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 SRI LANKA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-WAA03 |
DB2#,4#,81 CHINA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 90118-WA183 |
DB2#,4#,81 |
6 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52161-WAA02 |
DB2#,4#,81 |
1 | ||
| 52567C - RETAINER, REAR BUMPER LOWER SIDE, RH | ||||
| 52567-WAA01 |
DB2#,4#,81 |
1 | ||
| 52568C - RETAINER, REAR BUMPER LOWER SIDE, LH | ||||
| 52568-WAA01 |
DB2#,4#,81 |
1 | ||
| 52591A - SEAL, REAR BUMPER | ||||
| 90118-WA647 |
DB2#,4#,81 RH |
1 | ||
| 90118-WA768 |
DB2#,4#,81 CENTER |
1 | ||
| 90118-WA646 |
DB2#,4#,81 LH |
1 | ||
| 52591A - SEAL, REAR BUMPER | ||||
| 90118-WA647 |
DB2#,4#,81 RH |
1 | ||
| 90118-WA768 |
DB2#,4#,81 CENTER |
1 | ||
| 90118-WA646 |
DB2#,4#,81 LH |
1 | ||
| 52615C - ABSORBER FUNNEL, RH | ||||
| 52615-WAA02 |
DB2#,4#,81 |
1 | ||
| 52616B - ABSORBER FUNNEL, LH | ||||
| 52616-WAA02 |
DB2#,4#,81 |
1 | ||
| 57669A - BRACKET, REAR LICENSE PLATE SUPPORT | ||||
| 57669-WAA01 |
DB22,42 JAPAN SPEC |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-WAA03 |
DB2#,4#,81 CLEARANCE & BACK SONAR-WITH |
1 | ||
| Common parts | ||||
| 90069-31096 | ||||
| 90118-WA060 | ||||
| 90118-WA139 | ||||
| 90118-WA622 | ||||
| 90118-WA642 | ||||
| 90118-WA648 | ||||
| 90118-WA650 | ||||
| 90118-WA812 | ||||
| Linked diagrams | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
