DB22R-ZTRW (2019)
Toyota Supra

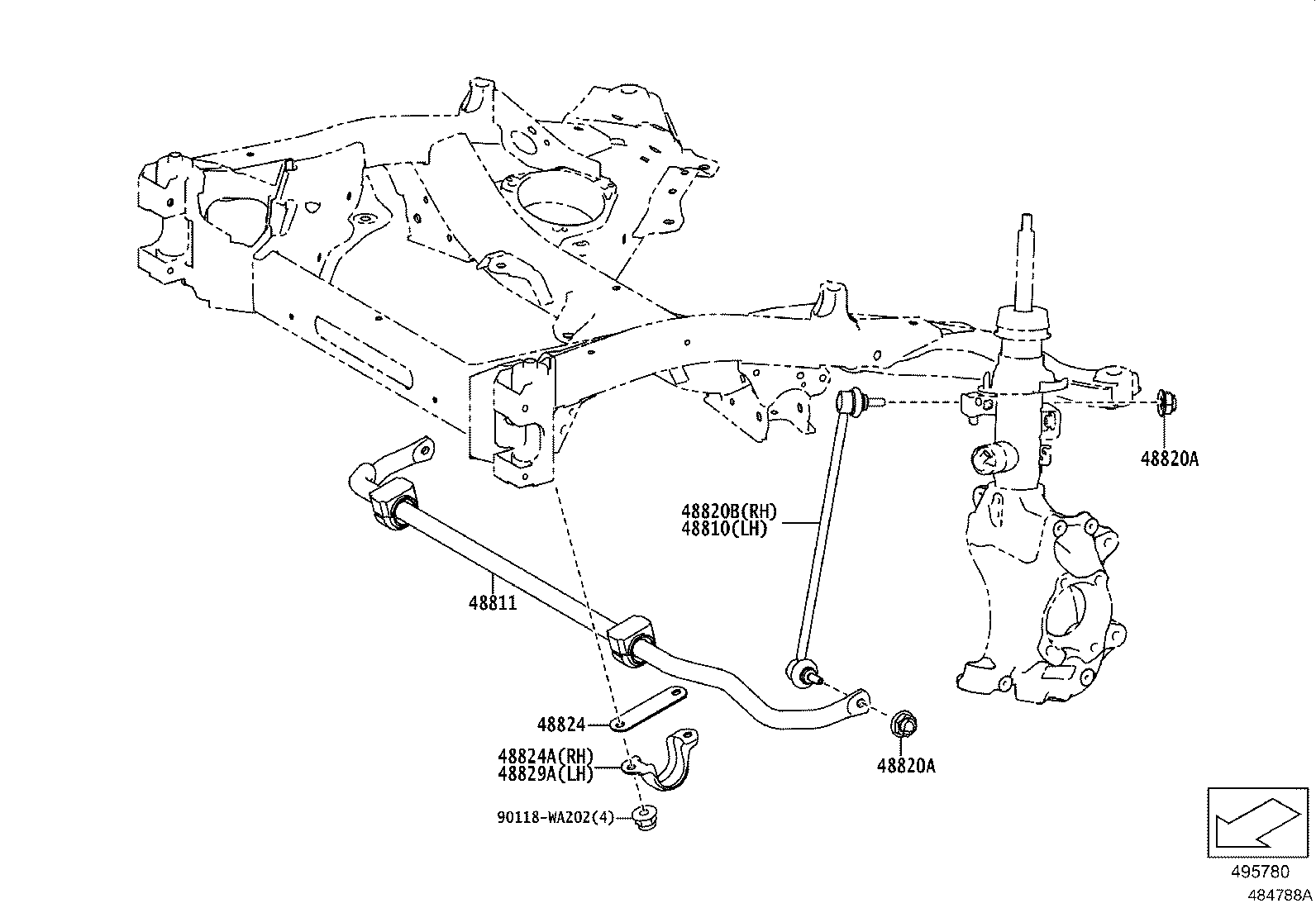

ILLUST NO. 1 OF 3(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-WAA01 |
DB2#,4#,81 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-WAA01 |
DB2#,4#,81 |
1 | ||
| 48804-WAA02 |
DB2#,4#,81 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90118-WA201 |
DB2#,4#,81 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90118-WA201 |
DB2#,4#,81 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-WAA02 |
DB2#,4#,81 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48827-WAA01 |
DB2#,4#,81 |
2 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-WAA01 |
DB2#,4#,81 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA202 | ||||

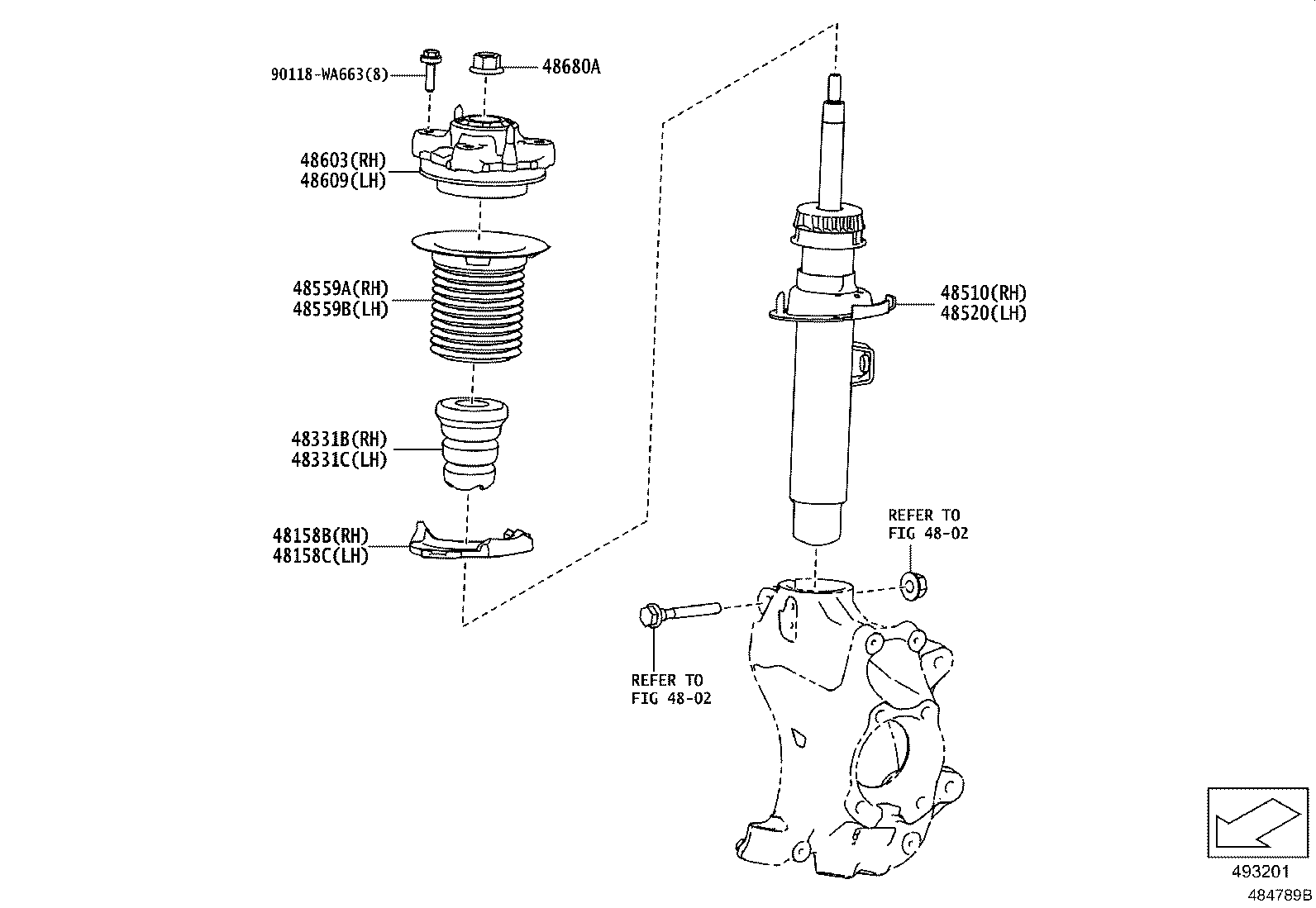

ILLUST NO. 2 OF 3(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48158-WAA01 |
DB2#,4#,81 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48158-WAA01 |
DB2#,4#,81 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-WAA02 |
DB2#,4#,81 |
1 | ||
| 48331-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-WAA02 |
DB2#,4#,81 |
1 | ||
| 48331-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-WAA03 |
DB2#,81 AVS-WITH |
1 | ||
| 48510-WAA01 |
DB2#,81 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-WAA01 |
DB2#,81 |
1 | ||
| 48520-WAA03 |
DB2#,81 AVS-WITH |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48157-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48157-WAA01 |
DB2#,4#,81 |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48157-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48157-WAA01 |
DB2#,4#,81 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-WAA01 |
DB2#,4#,81 AVS-WITH |
2 | ||
| 48609-WAA01 |
DB2#,4#,81 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-WAA01 |
DB2#,4#,81 |
1 | ||
| 48609-WAA01 |
DB2#,4#,81 AVS-WITH |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90118-WA197 |
DB2#,4#,81 AVS-WITH |
2 | ||
| 90118-WA197 |
DB2#,4#,81 |
2 | ||
| Common parts | ||||
| 90118-WA663 | ||||
| Linked diagrams | ||||
| 4802 | ||||

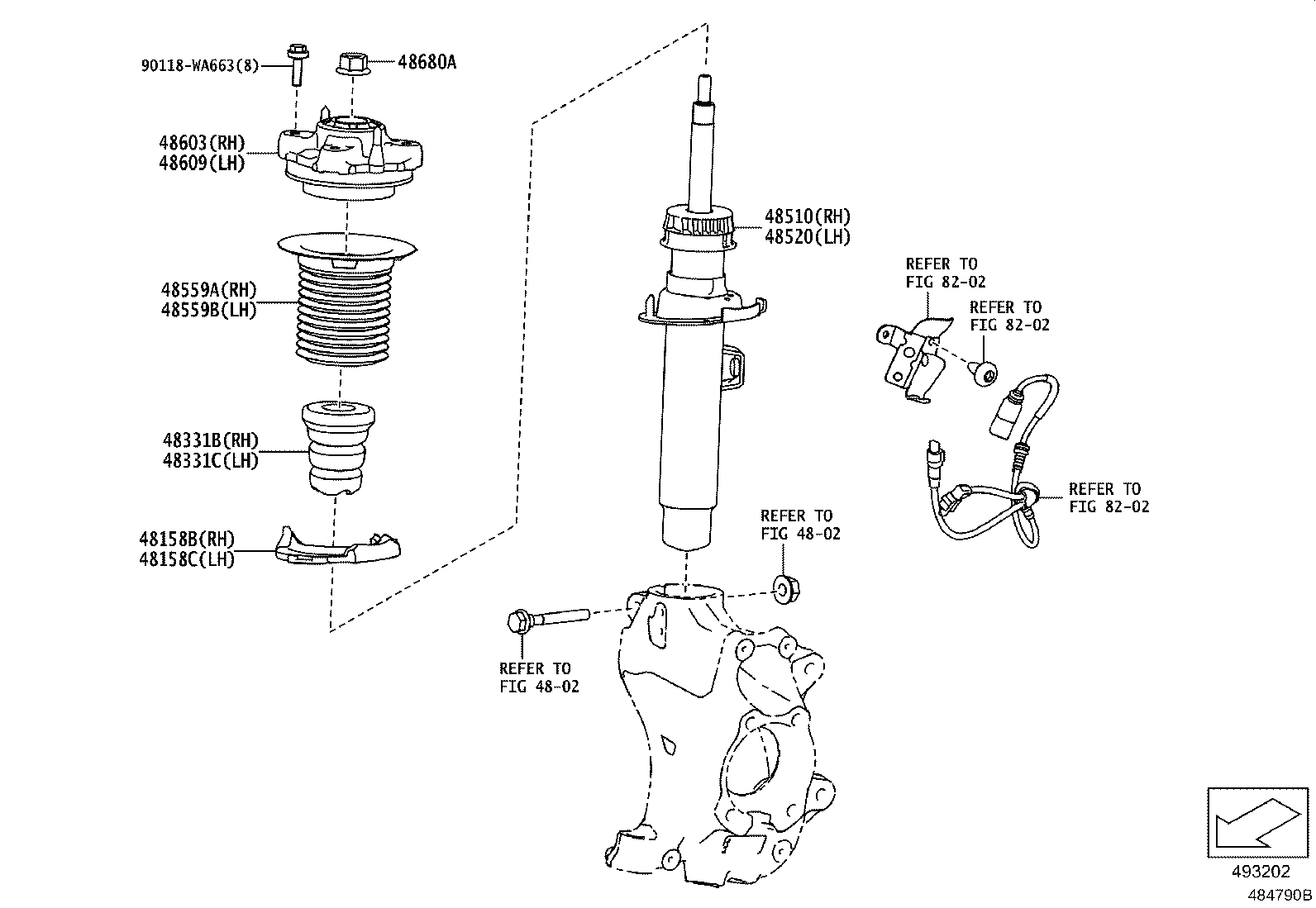

ILLUST NO. 2 OF 3(1903- )
W(AVS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48158-WAA01 |
DB2#,4#,81 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48158-WAA01 |
DB2#,4#,81 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-WAA02 |
DB2#,4#,81 |
1 | ||
| 48331-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-WAA02 |
DB2#,4#,81 |
1 | ||
| 48331-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-WAA03 |
DB2#,81 AVS-WITH |
1 | ||
| 48510-WAA01 |
DB2#,81 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-WAA01 |
DB2#,81 |
1 | ||
| 48520-WAA03 |
DB2#,81 AVS-WITH |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48157-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48157-WAA01 |
DB2#,4#,81 |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48157-WAA01 |
DB2#,4#,81 AVS-WITH |
1 | ||
| 48157-WAA01 |
DB2#,4#,81 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-WAA01 |
DB2#,4#,81 AVS-WITH |
2 | ||
| 48609-WAA01 |
DB2#,4#,81 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-WAA01 |
DB2#,4#,81 |
1 | ||
| 48609-WAA01 |
DB2#,4#,81 AVS-WITH |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90118-WA197 |
DB2#,4#,81 AVS-WITH |
2 | ||
| 90118-WA197 |
DB2#,4#,81 |
2 | ||
| Common parts | ||||
| 90118-WA663 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 8202 | ||||

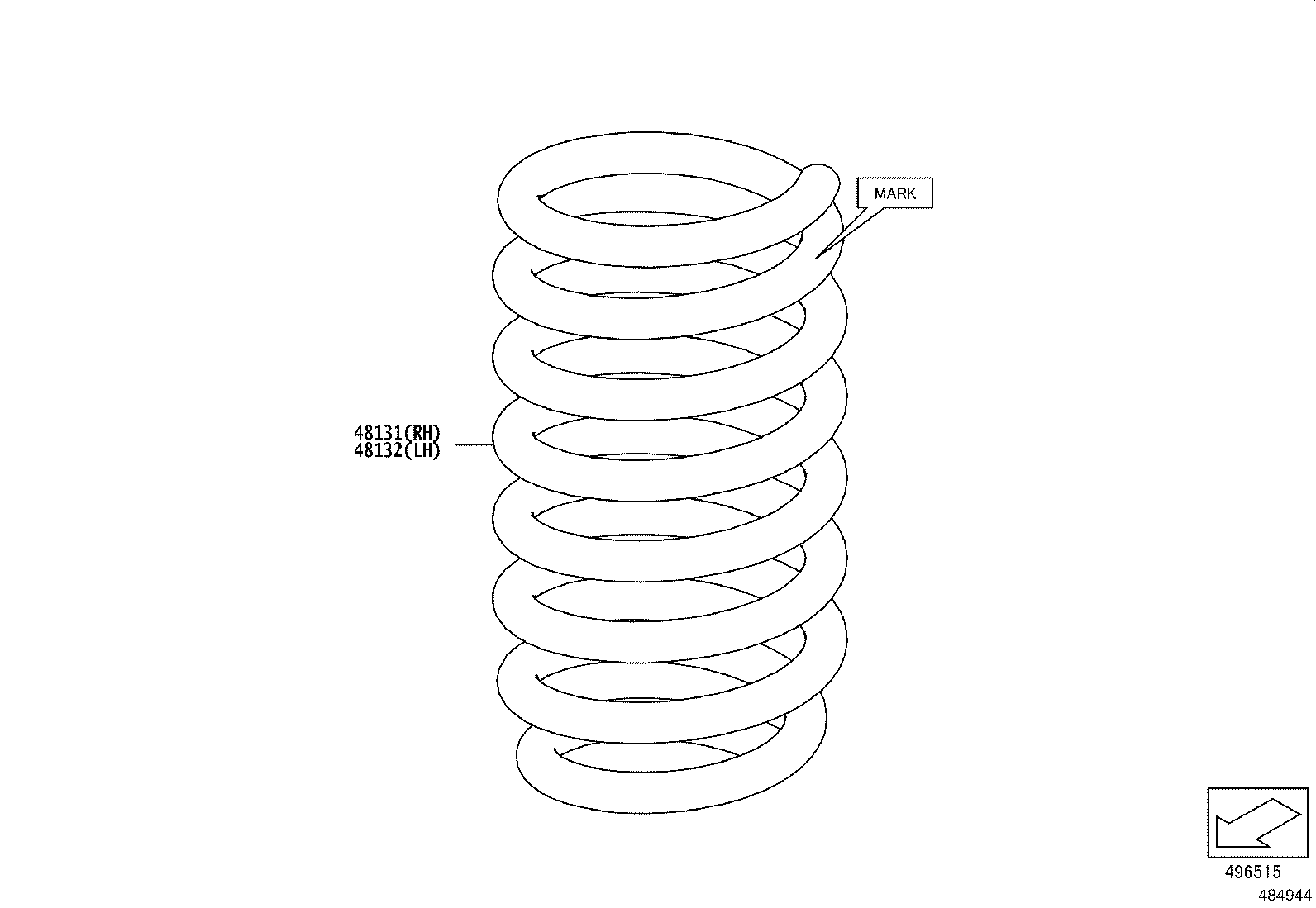

ILLUST NO. 3 OF 3(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-WAA01 |
DB2#,4#,8# AVS-WITHOUT,MARK=01 |
1 | ||
| 48131-WAA04 |
DB2#,4#,8# AVS-WITH,MARK=D4 |
1 | ||
| 48131-WAA02 |
DB2#,4#,8# AVS-WITHOUT,MARK=02 |
1 | ||
| 48131-WAA06 |
DB2#,4#,8# AVS-WITH,MARK=D6 |
1 | ||
| 48131-WAA03 |
DB2#,4#,8# AVS-WITHOUT,MARK=03 |
1 | ||
| 48131-WAA05 |
DB2#,4#,8# AVS-WITH,MARK=D5 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-WAA01 |
DB2#,4#,8# AVS-WITHOUT,MARK=01 |
1 | ||
| 48131-WAA03 |
DB2#,4#,8# AVS-WITHOUT,MARK=03 |
1 | ||
| 48131-WAA06 |
DB2#,4#,8# AVS-WITH,MARK=D6 |
1 | ||
| 48131-WAA05 |
DB2#,4#,8# AVS-WITH,MARK=D5 |
1 | ||
| 48131-WAA02 |
DB2#,4#,8# AVS-WITHOUT,MARK=02 |
1 | ||
| 48131-WAA04 |
DB2#,4#,8# AVS-WITH,MARK=D4 |
1 | ||
