DB22R-ZTRW (2019)
Toyota Supra
Production
Mar 2019
-
Sep 9999
Engine
B48H
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

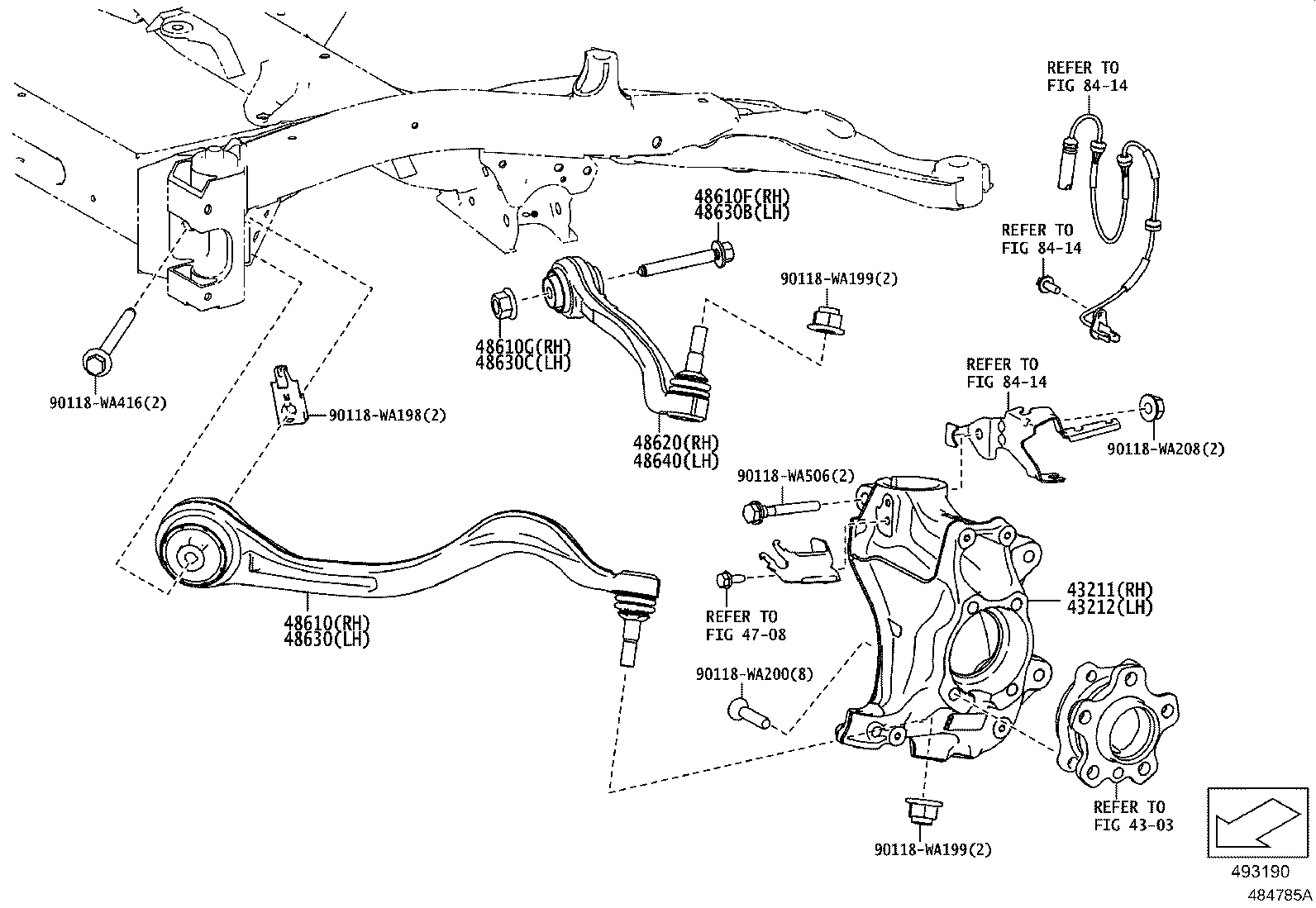

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-WAA02 |
DB2#,4#,81 -30',REFER R/M |
1 | ||
| 43211-WAA01 |
DB2#,4#,81 STD,REFER R/M |
1 | ||
| 43211-WAA03 |
DB2#,4#,81 +30',REFER R/M |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-WAA02 |
DB2#,4#,81 -30',REFER R/M |
1 | ||
| 43212-WAA01 |
DB2#,4#,81 STD,REFER R/M |
1 | ||
| 43212-WAA03 |
DB2#,4#,81 +30',REFER R/M |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48620-WAA02 |
DB2#,4#,81 |
1 | ||
| 48620-WAA03 |
DB2#,4#,81 |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90118-WA196 |
DB2#,4#,81 |
1 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90118-WA197 |
DB2#,4#,81 |
1 | ||
| 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH | ||||
| 48610-WAA01 |
DB2#,4#,81 |
1 | ||
| 48610-WAA02 |
DB2#,4#,81 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48640-WAA02 |
DB2#,4#,81 |
1 | ||
| 48640-WAA03 |
DB2#,4#,81 |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90118-WA196 |
DB2#,4#,81 |
1 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90118-WA197 |
DB2#,4#,81 |
1 | ||
| 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH | ||||
| 48630-WAA02 |
DB2#,4#,81 |
1 | ||
| 48630-WAA01 |
DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90118-WA198 | ||||
| 90118-WA199 | ||||
| 90118-WA200 | ||||
| 90118-WA208 | ||||
| 90118-WA416 | ||||
| 90118-WA506 | ||||
| Linked diagrams | ||||
| 4303 | ||||
| 4708 | ||||
| 8414 | ||||
