DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(1903- )

Click highlighted areas on diagram

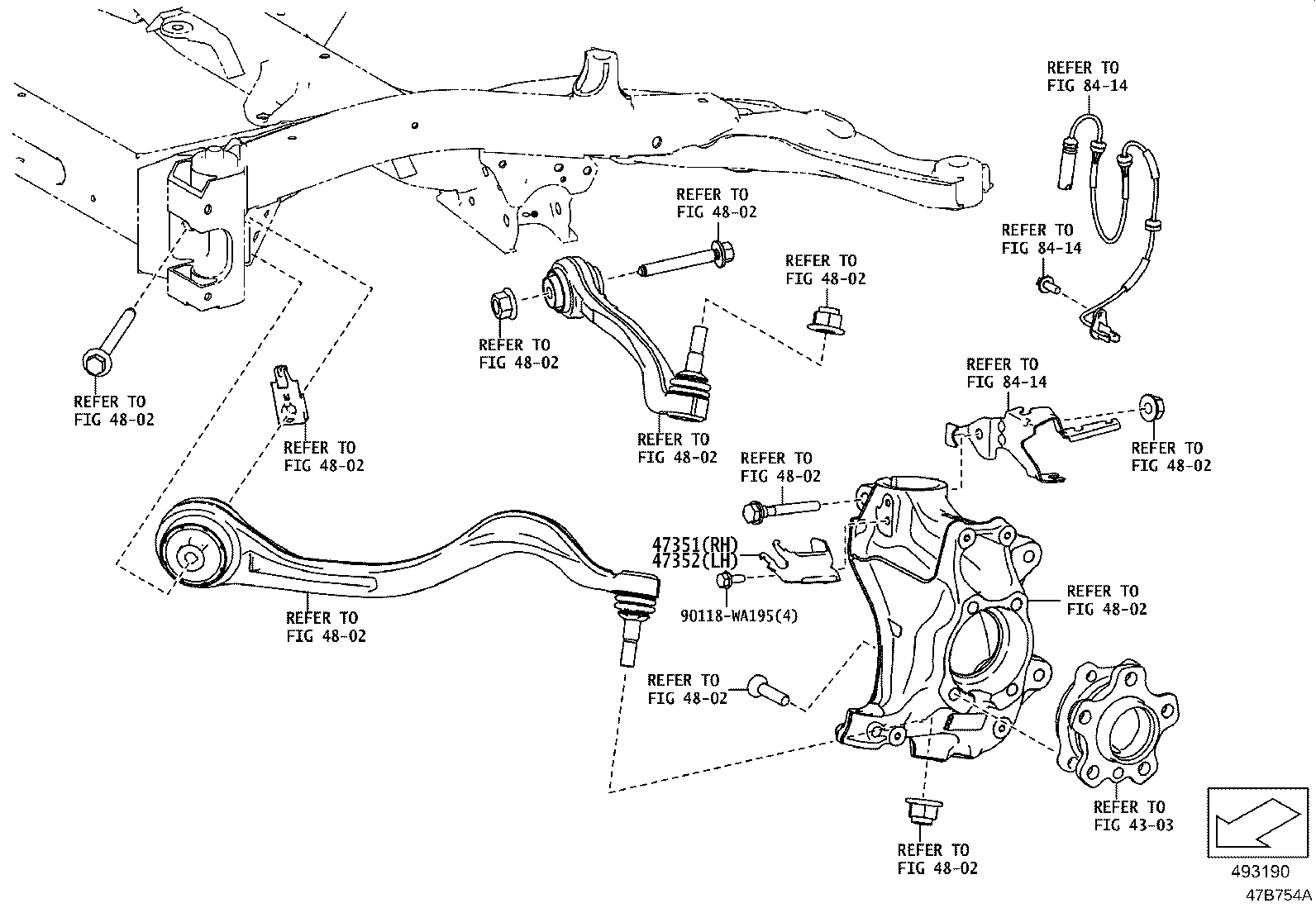

diagram 4303 47351 47352 4802 4802 4802 4802 4802 4802 4802 4802 4802 4802 4802 4802 8414 8414 8414 90118WA195
Part # Description Qty Price
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-WAA01

DB2#,4#,81

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-WAA01

DB2#,4#,81

 1
Common parts
90118-WA195
Linked diagrams
4303
4802
8414

ILLUST NO. 3 OF 4(1903- )

Click highlighted areas on diagram

diagram 44510 44590 89541A 90118WA653 90118WA654 90118WA655
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-WAA14

DB2#,4#,8#

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT,##

 1
44050-WAA17

DB2#,4#,8#

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT,###

 1
44050-WAA18

DB2#,4#,8#

CLEARANCE & BACK SONAR-WITH,###

 1
44050-WAA19

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
44050-WAA22

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
44050-WAA24

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
44050-WAA16

DB2#,4#,8#

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT,###

 1
44050-WAA18

DB2#,4#,8#

CRUISE CONTROL-WITH(ALL-SPEED *ACC),###

 1
44050-WAA21

DB2#,4#,81

CLEARANCE & BACK SONAR-WITH

 1
44050-WAA23

DB2#,4#,81

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
44050-WAA20

DB2#,4#,81

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
44050-WAA25

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
44050-WAA24

DB2#,4#,81

CLEARANCE & BACK SONAR-WITH

 1
44050-WAA21

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
44050-WAA27

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
44050-WAA26

DB2#,4#,81

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
44050-WAA27

DB2#,4#,81

CLEARANCE & BACK SONAR-WITH

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-WAA01

DB2#,4#,81

 1
89541A - COMPUTER, SKID CONTROL
89541-WAA16

DB2#,4#,8#

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA18

DB2#,4#,8#

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
89541-WAA18

DB2#,4#,8#

CLEARANCE & BACK SONAR-WITH

 1
89541-WAA20

DB2#,4#,81

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA21

DB2#,4#,81

CLEARANCE & BACK SONAR-WITH

 1
89541-WAA17

DB2#,4#,8#

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA22

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA19

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA21

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
89541-WAA27

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
89541-WAA24

DB2#,4#,81

CRUISE CONTROL-WITH(ALL-SPEED *ACC)

 1
89541-WAA26

DB2#,4#,81

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA23

DB2#,4#,81

ACTIVE GUARD PACKAGE&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA25

DB2#,4#,81

WITHOUT(PACKAGE OPTION 6)&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&CLEARANCE & BACK SONAR-WITHOUT

 1
89541-WAA24

DB2#,4#,81

CLEARANCE & BACK SONAR-WITH

 1
89541-WAA27

DB2#,4#,81

CLEARANCE & BACK SONAR-WITH

 1
Common parts
90118-WA653
90118-WA654
90118-WA655

ILLUST NO. 1 OF 4(1903- )DB02,22,42,82

Click highlighted areas on diagram

diagram 47311 47311C 47311C 47311J 47312 47313 47313A 47313J 47314 47315 47316 47351 47352 47371A 47372 47373B 90118WA195 90118WA195 90118WA620 90118WA620 90118WA621 90118WA634
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-WAA02

DB2#,4#,81

 1
47311C - UNION(FOR FRONT BRAKE TUBE)
90118-WA638

DB22,42

 2
47311C - UNION(FOR FRONT BRAKE TUBE)
90118-WA638

DB22,42

 2
47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE)
90118-WA639

DB2#,4#,81

 1
90118-WA640

DB2#,4#,81

###

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-WAA02

DB2#,4#,81

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-WAA03

DB22,42

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90118-WA635

DB2#,4#,81

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90118-WA635

DB2#,4#,81

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-WAA03

DB22,42

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-WAA02

DB22,42

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-WAA02

DB22,42

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-WAA01

DB2#,4#,81

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-WAA01

DB2#,4#,81

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90118-WA637

DB22,42

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90118-WA623

DB2#,4#,81

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90118-WA641

DB2#,4#,81

 1
Common parts
90118-WA195
90118-WA620
90118-WA621
90118-WA634

ILLUST NO. 2 OF 4(1903- )

Click highlighted areas on diagram

diagram 47318F 47319F 47321 47322 47374B 47375 47375 47381 90118WA620 90118WA620
Part # Description Qty Price
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90118-WA636

DB2#,4#,8#

 1
90118-WA839

DB2#,4#,81

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90118-WA839

DB2#,4#,81

 1
90118-WA636

DB2#,4#,81

 1
47321 - TUBE, REAR BRAKE, NO.1
47324-WAA02

DB2#,4#,81

 1
47322 - TUBE, REAR BRAKE, NO.2
47325-WAA02

DB2#,4#,81

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90118-WA629

DB2#,4#,81

 3
47375 - CLAMP, BRAKE TUBE, NO.5
90118-WA633

DB2#,4#,81

 7
47375 - CLAMP, BRAKE TUBE, NO.5
90118-WA633

DB2#,4#,81

 7
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
90118-WA628

DB2#,4#,81

 7
Common parts
90118-WA620
