DB22R-ZTRW (2019)
Toyota Supra
(1903- )
1POD TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 04465-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 04465-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 04465-WAA02 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47547-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47547-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
2 | ||
| 47547-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
4 | ||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-17OL RED WITH LOGO |
4 | ||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
4 | ||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-RED PAINTED |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90118-WA627 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
4 | ||
| 90118-WA627 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90118-WA627 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
4 | ||
| 90118-WA627 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47721-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47722-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-WAA02 |
DB0#,4# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47730-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47713-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47713-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47730-WAA05 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47730-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47730-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON | ||||
| 47737-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47737-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47750-WAA02 |
DB0#,4# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47723-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47723-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47750-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47750-WAA05 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47750-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47771C - WIRE, PAD WEAR INDICATOR LH | ||||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47775-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47781-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47781-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47781-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47782-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47782-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47782-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| Common parts | ||||
| 90118-WA632 | ||||

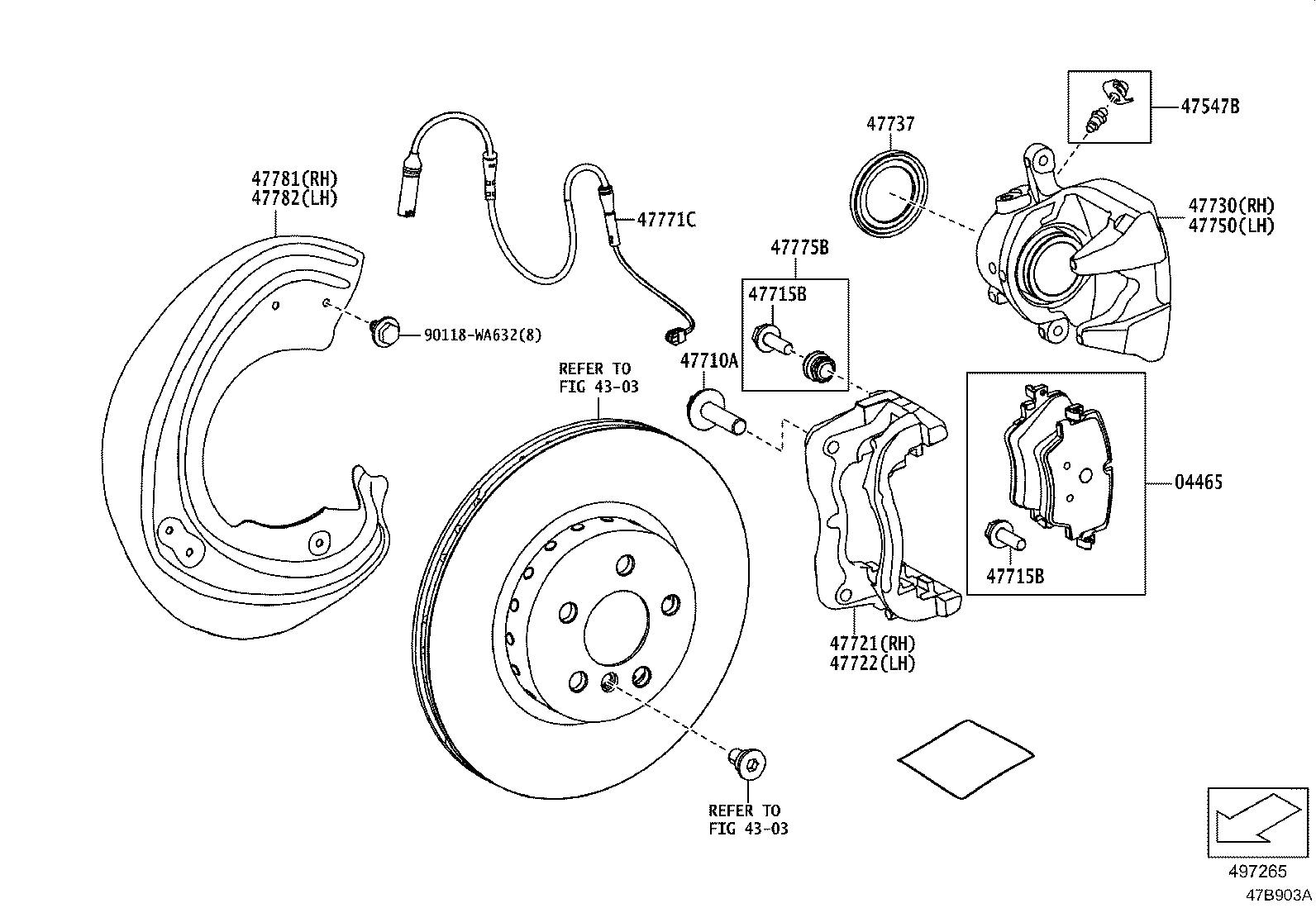

| Linked diagrams | ||||
| 4303 | ||||
(1903- )
4POD TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 04465-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 04465-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 04465-WAA02 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
2 | ||
| 31478-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47547-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47547-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
2 | ||
| 47547-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
4 | ||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-17OL RED WITH LOGO |
4 | ||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
4 | ||
| 90118-WA630 |
DB2# M12X1.5X43,FRONT WHEEL BRAKE-RED PAINTED |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-WAA02 |
DB0#,4# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47730-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47713-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47713-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47730-WAA05 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47730-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47730-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47735A - PIN, TORQUE | ||||
| 47735-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
2 | ||
| 47735-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
2 | ||
| 47741 - BOOT, FRONT DISC BRAKE CYLINDER | ||||
| 47741-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
2 | ||
| 47741-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
2 | ||
| 47748-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47750-WAA02 |
DB0#,4# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47723-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47723-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47750-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47750-WAA05 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47750-WAA05 |
DB0#,4# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47771C - WIRE, PAD WEAR INDICATOR LH | ||||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47770-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47781-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47781-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47781-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-WAA01 |
DB2# FRONT WHEEL BRAKE-17OL NO COLOR 348X36 |
1 | ||
| 47782-WAA02 |
DB2# FRONT WHEEL BRAKE-RED PAINTED |
1 | ||
| 47782-WAA01 |
DB2# FRONT WHEEL BRAKE-17UL NO COLOR 330X24 |
1 | ||
| 47782-WAA02 |
DB2# FRONT WHEEL BRAKE-17OL RED WITH LOGO |
1 | ||
| Common parts | ||||
| 90118-WA632 | ||||
| Linked diagrams | ||||
| 4303 | ||||
