DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

Click highlighted areas on diagram

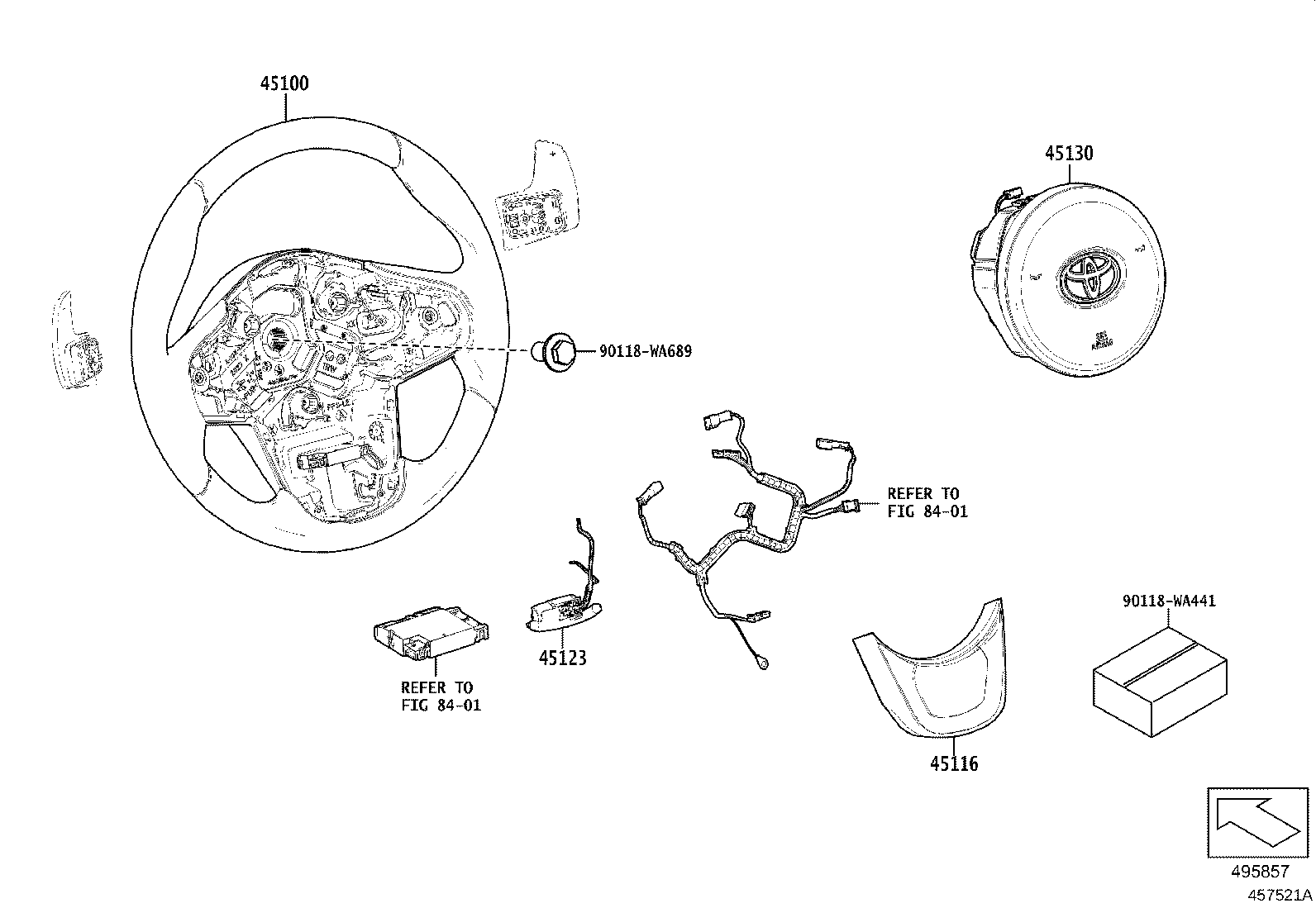

diagram 45100 45116 45123 45130 8401 8401 90118WA441 90118WA689
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-WAA01

DB2#,4#,81

3-SPOKE

 1
45100-WAA02

DB2#,4#,81

3-SPOKE,TRIM30

 1
45100-WAA03

DB2#,4#,81

3-SPOKE,TRIM21

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45186-WAA01

DB2#,4#,81

 1
45123 - MOTOR, STEERING WHEEL
45123-WAA01

DB2#,4#,81

 1
45130 - BUTTON ASSY, HORN
45130-WAA01

DB2#,42,81

 1
45130-WAA02

DB2#,4#,81

SRS AIR BAG-WITH

 1
Common parts
90118-WA441
90118-WA689
Linked diagrams
8401
