DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1903- )

Click highlighted areas on diagram

diagram 41110 90118WA257 90118WA258 90118WA259 90118WA261
Part # Description Qty Price
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-WAA05

DB2#,4#

*FGR=41:13=3.154,REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
41110-WAA03

DB2#,8#

*FGR=41:13=3.154

 1
41110-WAA07

DB2#,81

*FGR=41:13=3.154

 1
Common parts
90118-WA257
90118-WA258
90118-WA259
90118-WA261

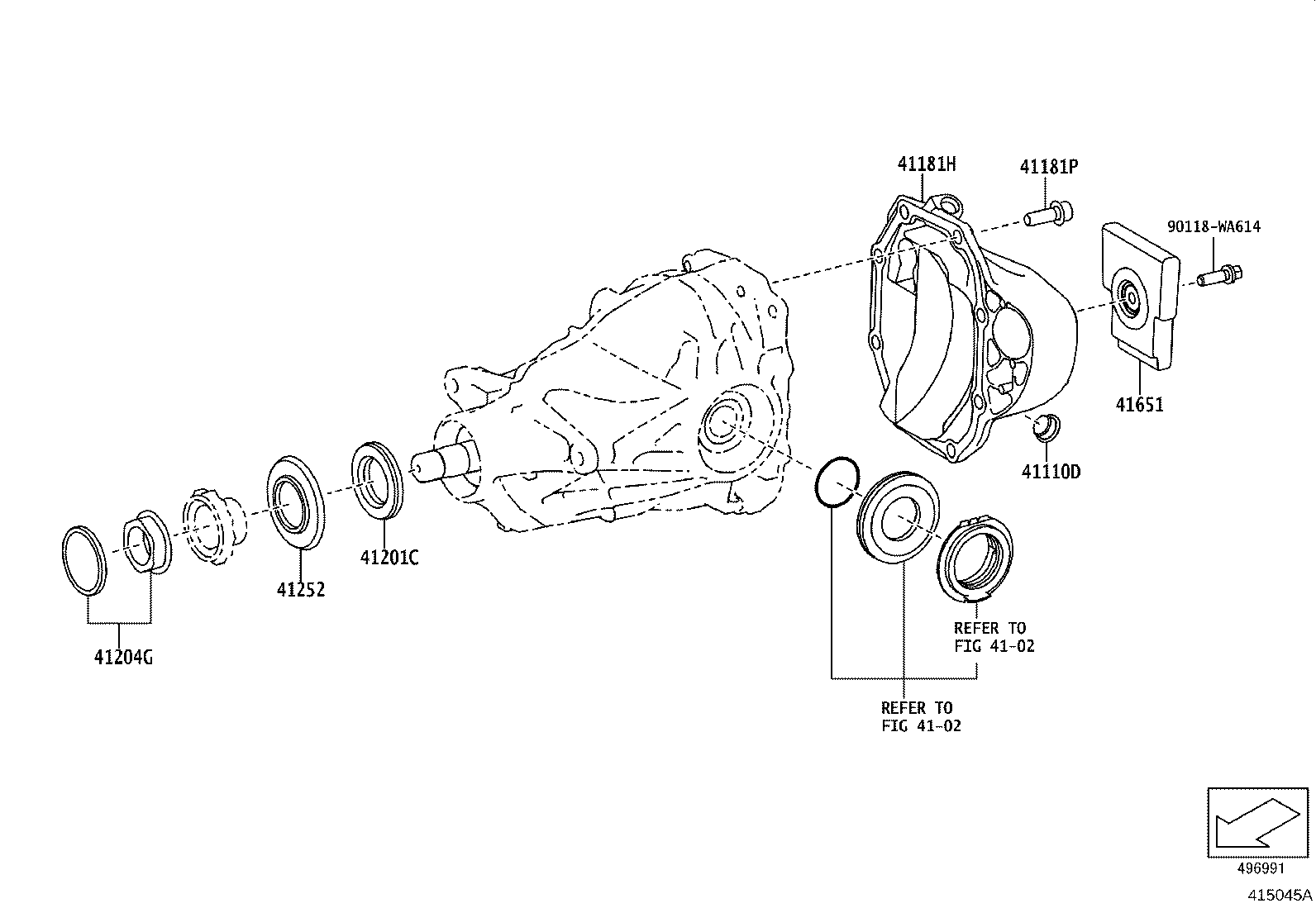

ILLUST NO. 2 OF 3(1903- )

Click highlighted areas on diagram

W/O(LSD)

diagram 4102 4102 41110D 41181H 41181P 41201C 41204G 41252 41651 90118WA614
Part # Description Qty Price
41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN)
90118-WA263

DB2#,4#,81

 1
41181H - COVER, REAR DIFFERENTIAL CARRIER
41108-WAA01

DB2#,8#

 1
41108-WAA02

DB2#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
41108-WAA03

DB2#,81

 1
41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
90118-WA266

DB2#,81

 8
90118-WA287

DB2#,4#

 8
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90118-WA284

DB2#,81

 1
90118-WA285

DB2#,4#

 1
41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41204-WAA01

DB2#,4#,81

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-WAA01

DB2#,81

 1
41252-WAA03

DB2#,4#

##

 1
41252-WAA02

DB2#,4#

 1
Common parts
90118-WA614
Linked diagrams
4102

ILLUST NO. 2 OF 3(1903- )DB0#,2#,4#

Click highlighted areas on diagram

W(LSD)

diagram 4102 4102 41110D 41171 41181H 41181P 41201C 41204G 41252 41252 41331K 41338 41403A 41651 8401 90118WA286 90118WA288 90118WA292 90118WA600 90118WA614
Part # Description Qty Price
41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN)
90118-WA263

DB2#,4#,81

 1
41171 - PROTECTOR, DIFFERENTIAL, REAR
41171-WAA01

DB2#,4#

 1
41181H - COVER, REAR DIFFERENTIAL CARRIER
41108-WAA01

DB2#,8#

 1
41108-WAA02

DB2#

REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.154, WITH(LSD)

 1
41108-WAA03

DB2#,81

 1
41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
90118-WA266

DB2#,81

 8
90118-WA287

DB2#,4#

 8
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90118-WA284

DB2#,81

 1
90118-WA285

DB2#,4#

 1
41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41204-WAA01

DB2#,4#,81

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-WAA01

DB2#,81

 1
41252-WAA03

DB2#,4#

##

 1
41252-WAA02

DB2#,4#

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-WAA01

DB2#,81

 1
41252-WAA03

DB2#,4#

##

 1
41252-WAA02

DB2#,4#

 1
41331K - GEAR SET, DIFFERENTIAL
41221-WAA01

DB2#,4#

 1
41338 - BRACKET, CONNECTOR CLAMP
82715-WAA04

DB2#,4#

 1
41403A - MOTOR SUB-ASSY, TORQUE TRANSFER MODULE
41400-WAA01

DB2#,4#

 1
Common parts
90118-WA286
90118-WA288
90118-WA292
90118-WA600
90118-WA614
Linked diagrams
4102
8401

ILLUST NO. 3 OF 3(1903- )

Click highlighted areas on diagram

diagram 41651A 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102 5102
Part # Description Qty Price
41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2
52272-WAA02

DB2#,81

 2
Linked diagrams
5102
