DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

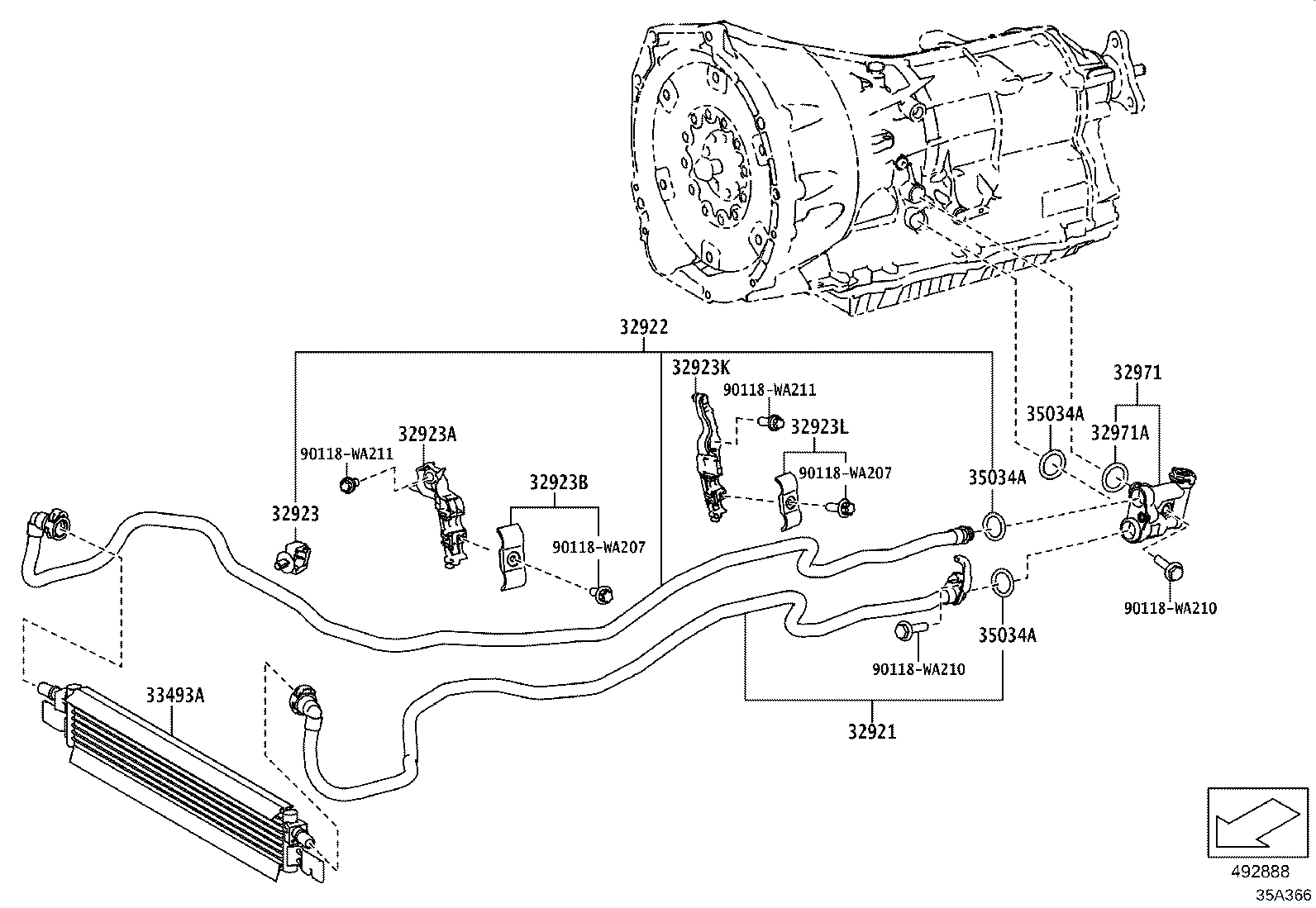

Click highlighted areas on diagram

diagram 32921 32922 32923 32923A 32923B 32923K 32923L 32971 32971A 33493A 35034A 35034A 35034A 90118WA207 90118WA207 90118WA210 90118WA210 90118WA211 90118WA211
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-WAA01

DB2#,4#,81

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-WAA01

DB2#,4#,81

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90118-WA602

DB2#,4#,81

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32924-WAA01

DB2#,4#,81

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-WAA01

DB2#,4#,81

 1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32924-WAA02

DB2#,4#,81

 1
32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32929-WAA01

DB2#,4#,81

 1
32971 - THERMOSTAT, TRANSMISSION OIL
32971-WAA01

DB2#,4#,81

 1
32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT)
90118-WA599

DB2#,4#,81

 1
33493A - COOLER, TRANSMISSION OIL
32910-WAA01

DB2#,81

 1
35034A - RING, O
90118-WA599

DB2#,4#,81

 3
35034A - RING, O
90118-WA599

DB2#,4#,81

 3
35034A - RING, O
90118-WA599

DB2#,4#,81

 3
Common parts
90118-WA207
90118-WA210
90118-WA211
