DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

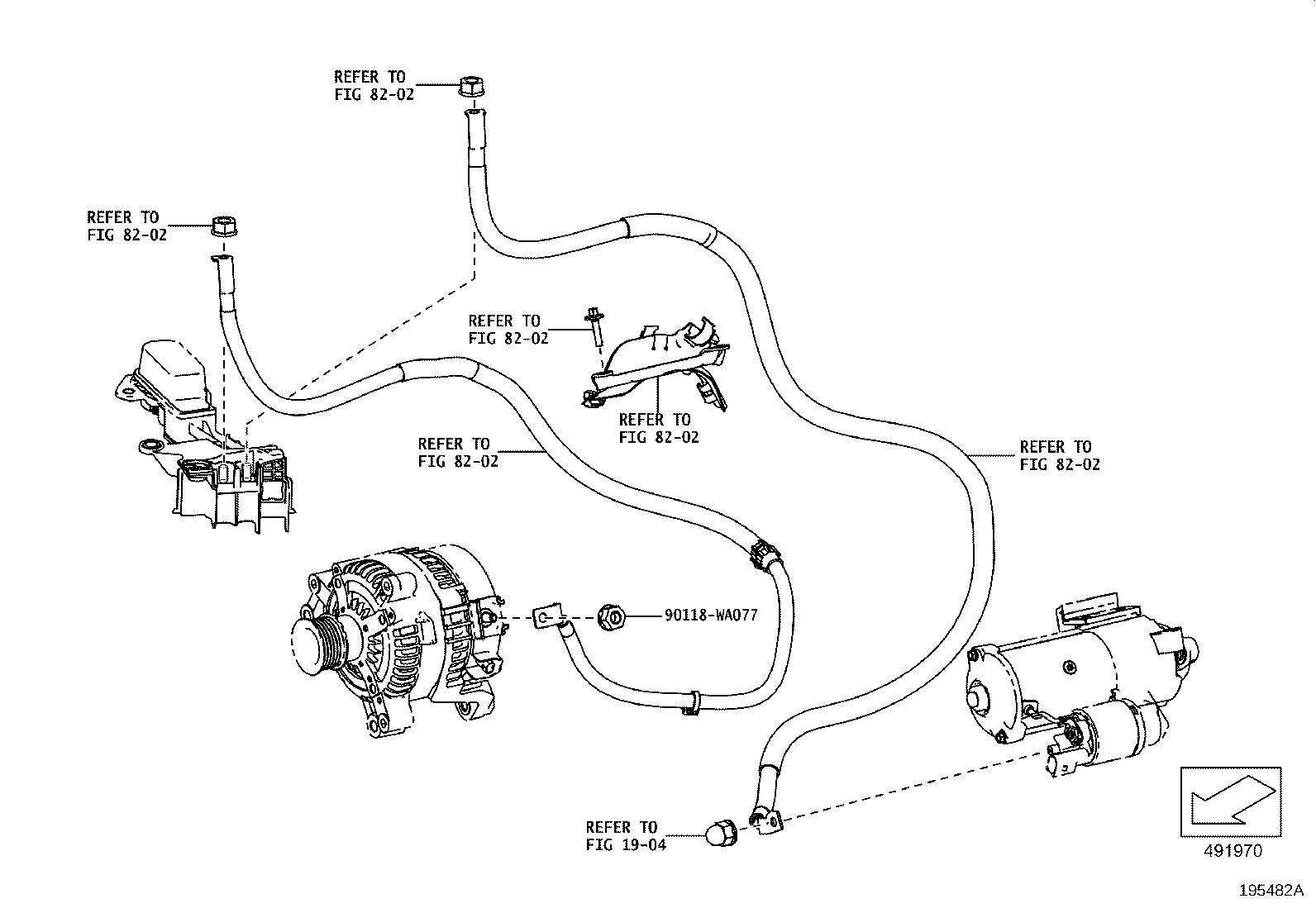

ILLUST NO. 2 OF 2(1903- )

Click highlighted areas on diagram

diagram 1904 8202 8202 8202 8202 8202 8202 90118WA077
Part # Description Qty Price
Common parts
90118-WA077
Linked diagrams
1904
8202

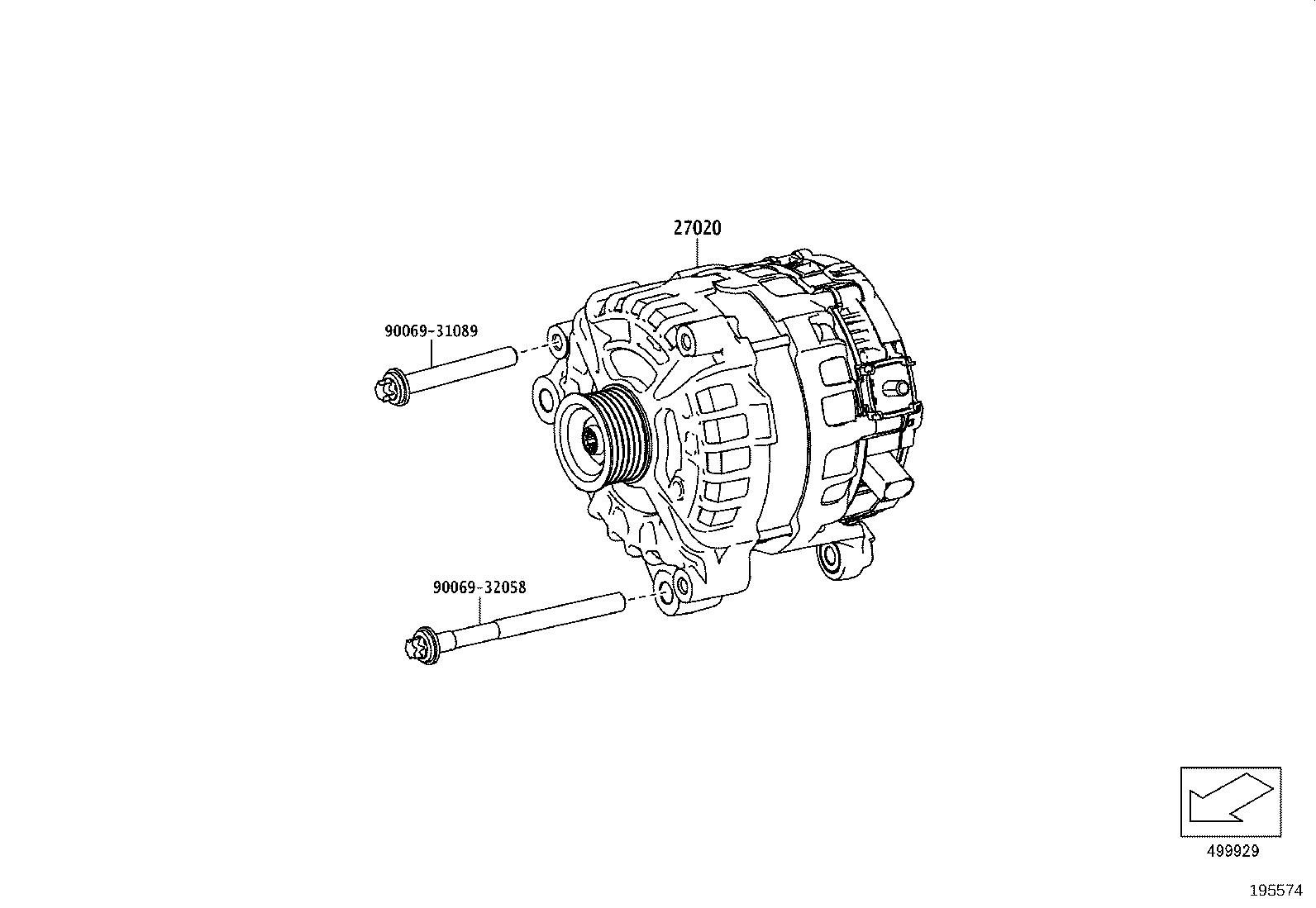

ILLUST NO. 1 OF 2(1903- )

Click highlighted areas on diagram

diagram 27020 9006931089 9006932058
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-WAA04

B48#,B58..DB2#,4#,81

12V 180A

 1
27060-WAA05

B48#,B58..DB2#,4#,81

12V 250A

 1
27060-WAA06

B48#,B58..DB2#,4#,81

12V 150A

 1
Common parts
90069-31089
90069-32058
