DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

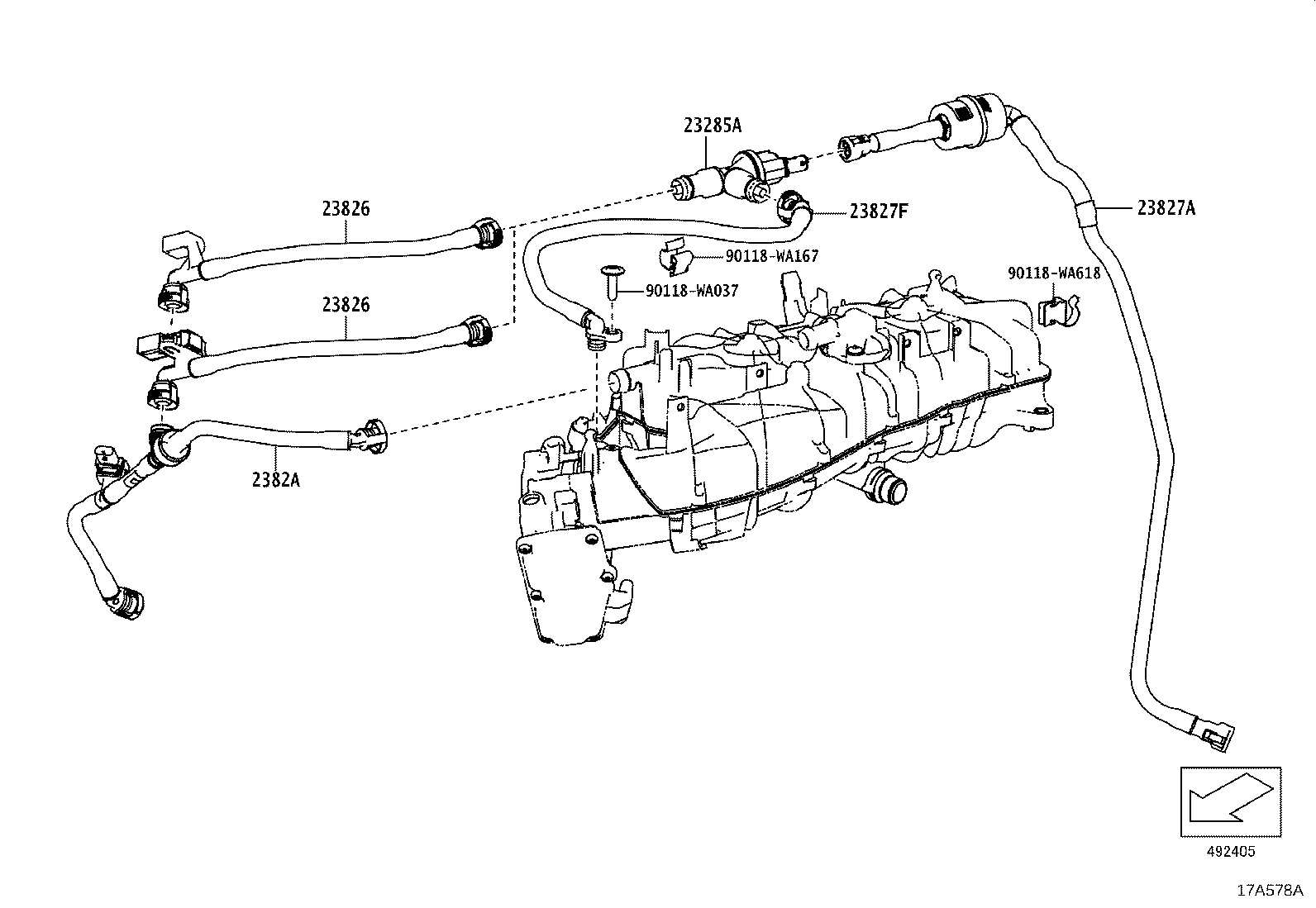

ILLUST NO. 1 OF 2(1903- )B48#

Click highlighted areas on diagram

diagram 23285A 23826 23826 23827A 23827F 2382A 90118WA037 90118WA167 90118WA618
Part # Description Qty Price
23285A - VALVE, CHECK, NO.1
25748-WAA01

B48#,B58..DB2#,4#,81

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-WAA02

B48H..DB2#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-WAA02

B48H..DB2#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23828-WAA01

B48#,B58..DB2#,4#,81

 1
23827F - HOSE, FUEL VAPOR FEED, NO.3
23826-WAA01

B48#..DB2#,81

 1
2382A - HOSE, FUEL VAPOR FEED, NO.4
23826-WAA04

B48H..DB2#

 1
Common parts
90118-WA037
90118-WA167
90118-WA618

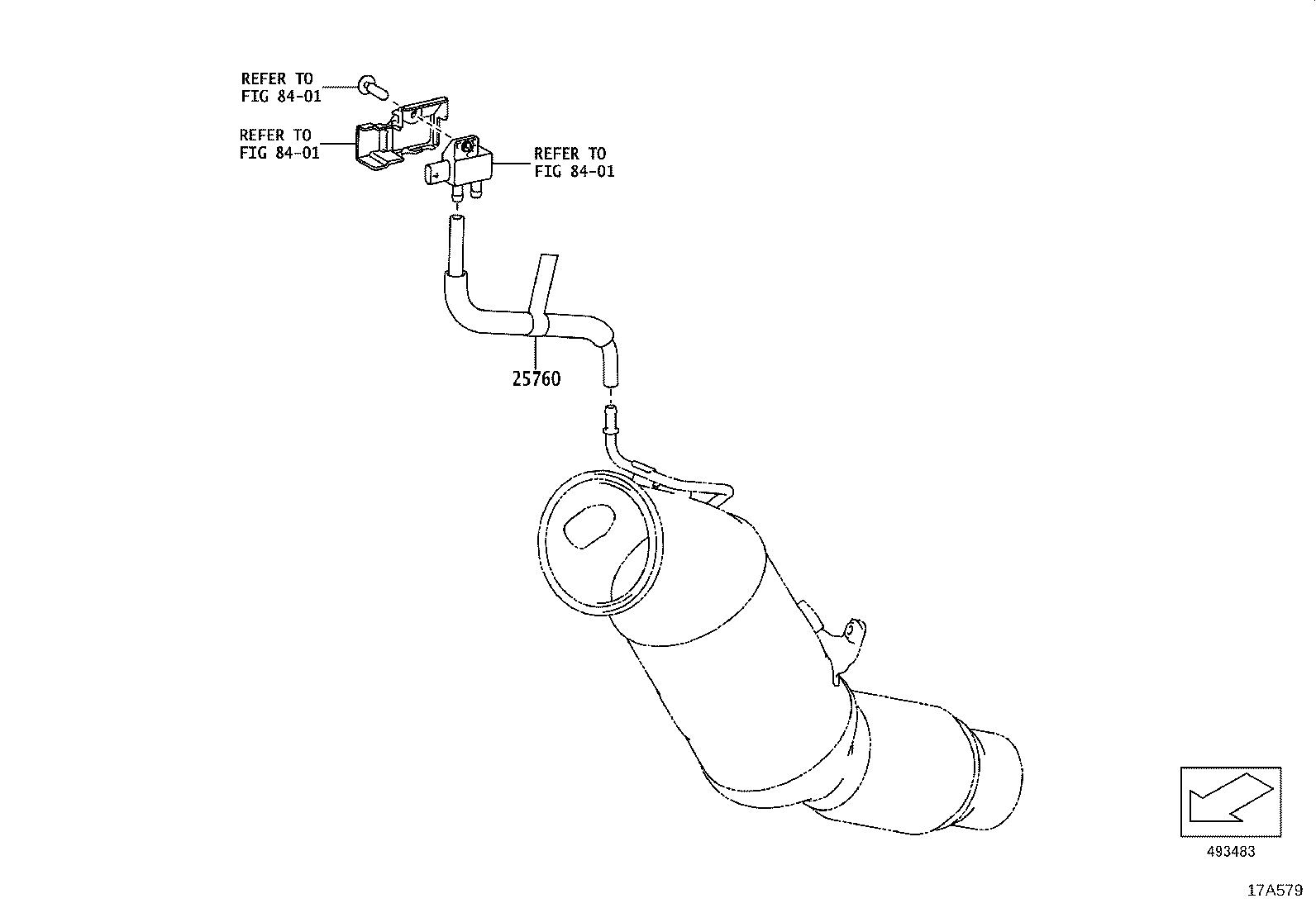

ILLUST NO. 2 OF 2(1903- )B48#

Click highlighted areas on diagram

diagram 25760 8401 8401 8401
Part # Description Qty Price
25760 - HOSE ASSY, VACUUM TRANSMITTING
17341-WAA01

B48#..DB2#,81

 1
Linked diagrams
8401
