DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

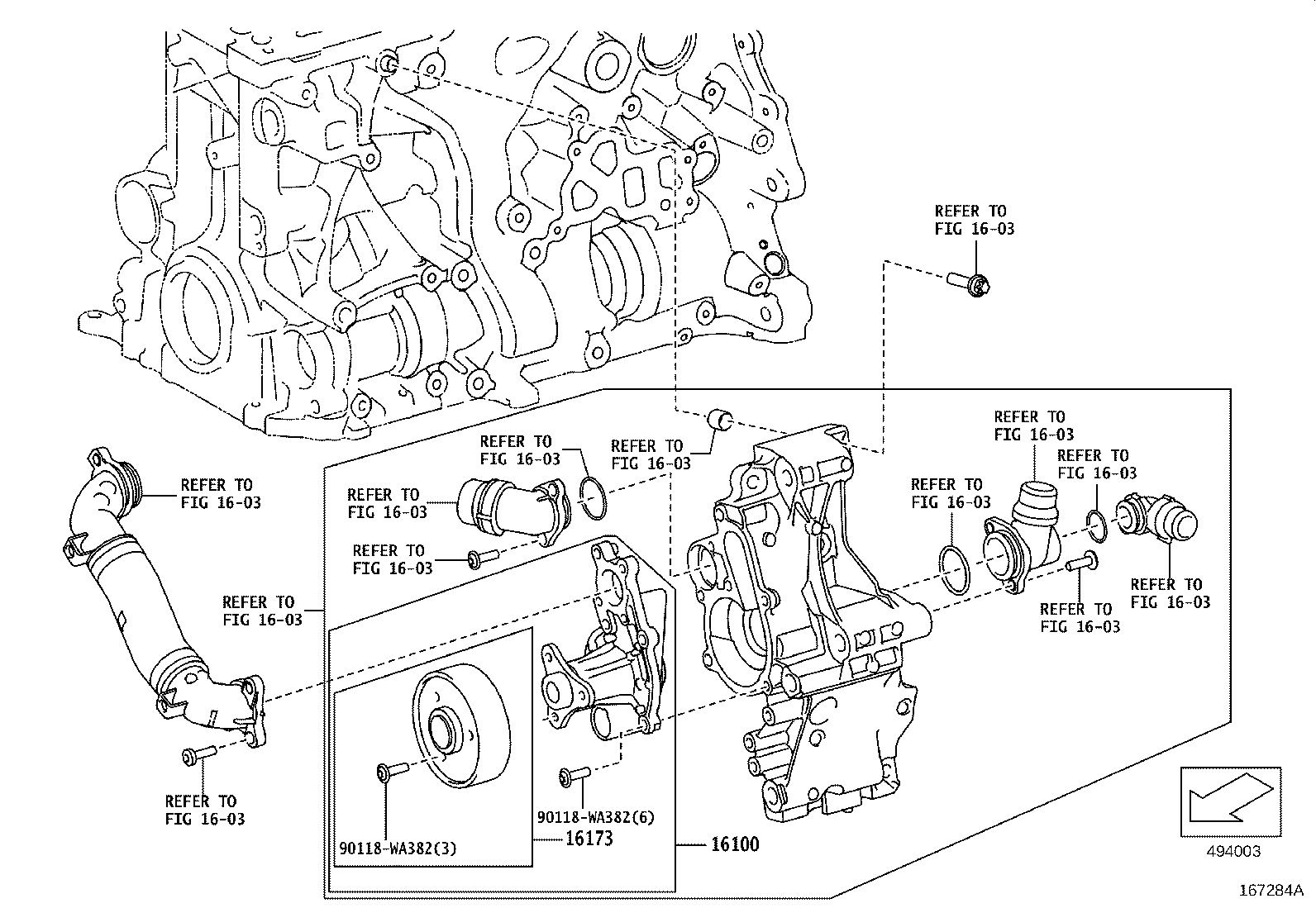

ILLUST NO. 1 OF 2(1903- )B48#

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 16100 16173 90118WA382 90118WA382
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-WAA03

B48#..DB2#,81

 1
16173 - PULLEY, WATER PUMP
16371-WAA01

B48#..DB2#,81

 1
Common parts
90118-WA382
Linked diagrams
1603

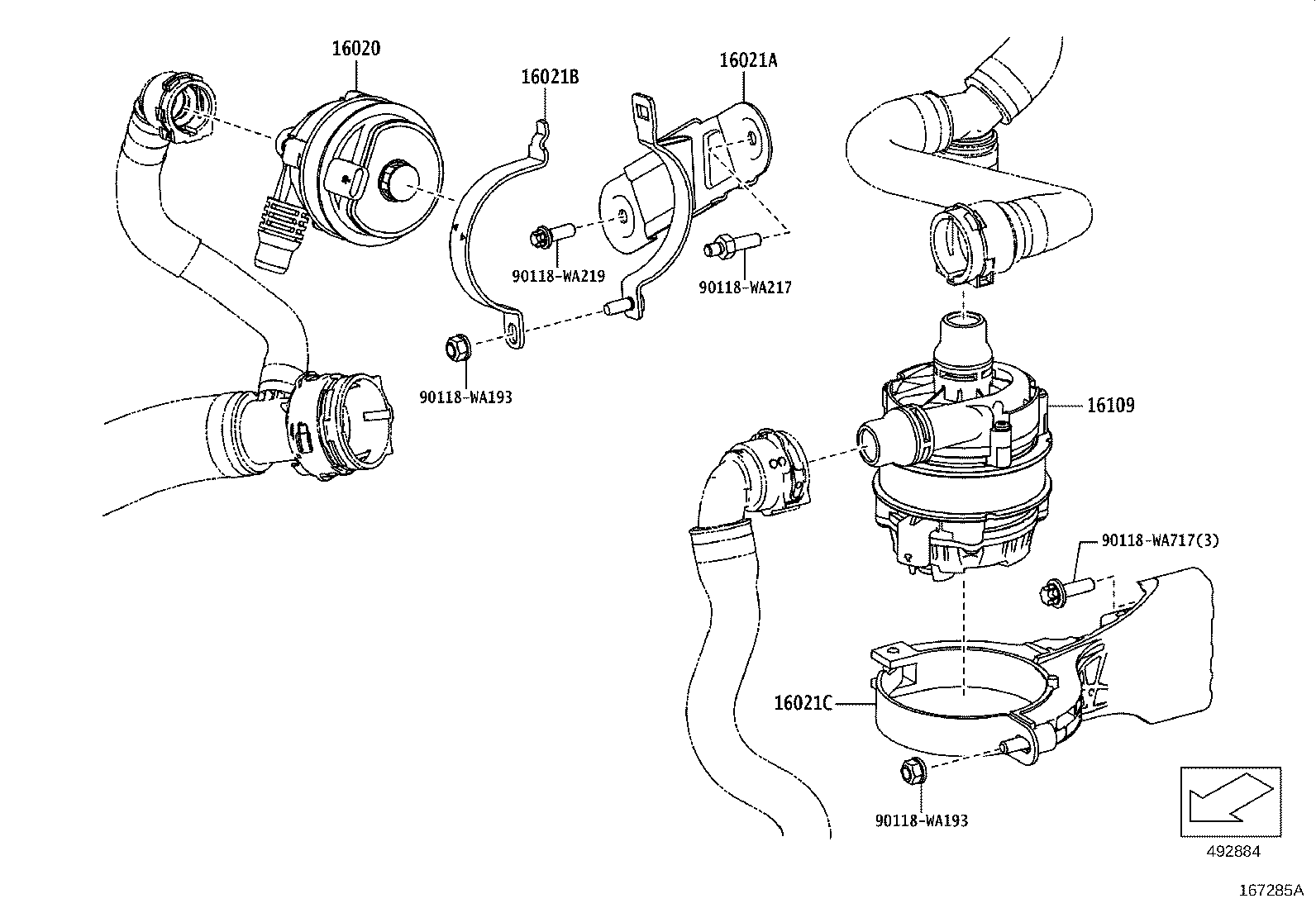

ILLUST NO. 2 OF 2(1903- )B48#

Click highlighted areas on diagram

diagram 16020 16021A 16021B 16021C 16109 90118WA193 90118WA193 90118WA217 90118WA219 90118WA717
Part # Description Qty Price
16020 - PUMP ASSY, WATER
16100-WAA01

B48#,B58..DB2#,4#,81

 1
16021A - BRACKET SUB-ASSY, WATER PUMP, NO.1
16021-WAA02

B48#..DB2#,81

 1
16021B - BRACKET SUB-ASSY, WATER PUMP, NO.2
16021-WAA03

B48#..DB2#,81

 1
16021C - BRACKET SUB-ASSY, WATER PUMP, NO.3
16021-WAA04

B48#..DB2#,81

 1
16109 - PUMP SUB-ASSY, WATER
16100-WAA02

B48#,B58..DB2#,4#,81

 1
Common parts
90118-WA193
90118-WA217
90118-WA219
90118-WA717
