DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )B48#

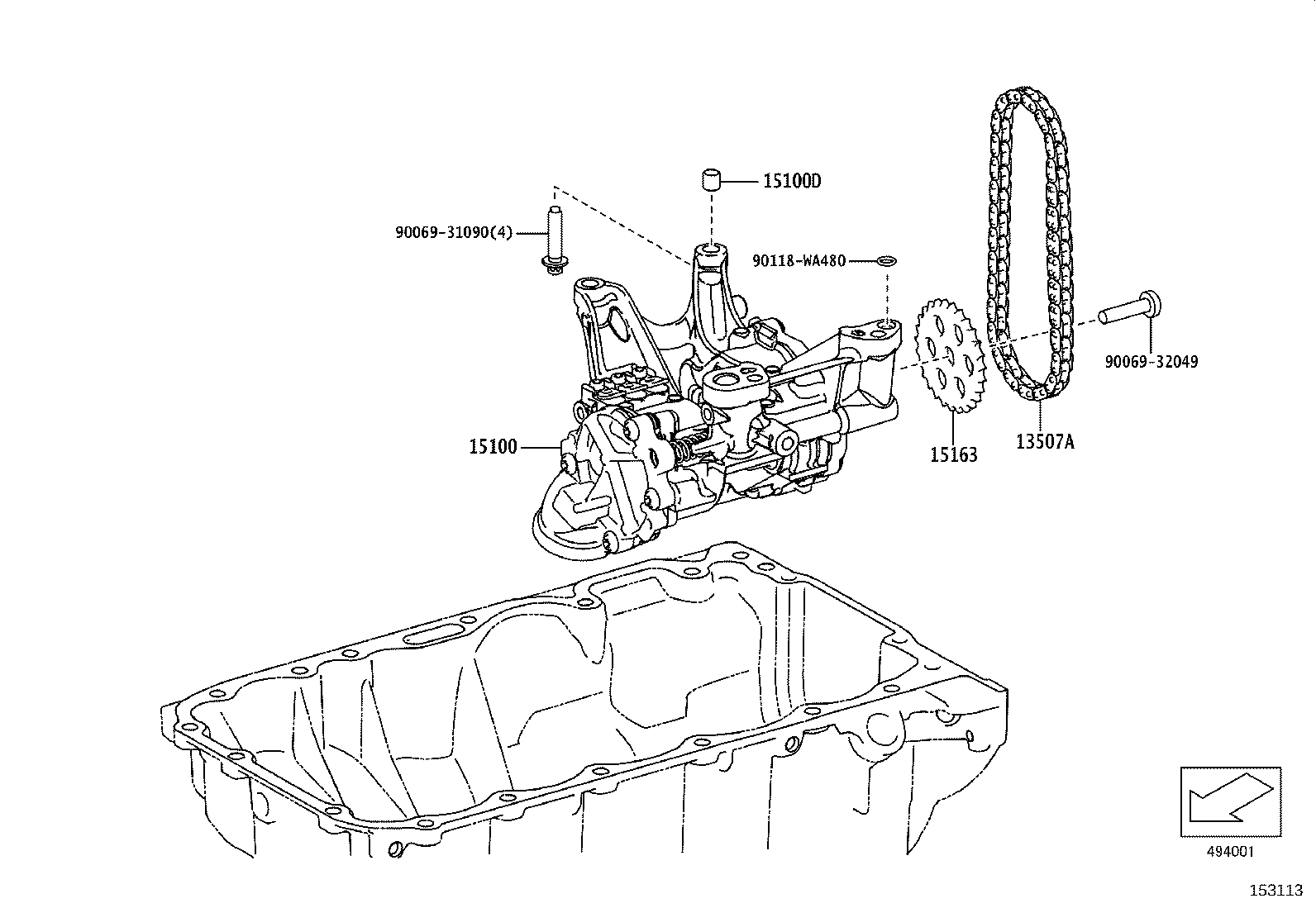

Click highlighted areas on diagram

diagram 13507A 15100 15100D 15163 9006931090 9006932049 90118WA480
Part # Description Qty Price
13507A - CHAIN SUB-ASSY, OIL PUMP DRIVE
13507-WAA02

B48#..DB2#,81

 1
15100 - PUMP ASSY, OIL
15100-WAA01

B48#..DB2#,81

 1
15100D - PIN(FOR OIL PUMP SET)
90069-35003

B48#,B58..DB2#,4#,81

 2
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-WAA01

B48#,B58..DB2#,4#,81

 1
Common parts
90069-31090
90069-32049
90118-WA480
