DB22R-ZTRW (2019)
Toyota Supra

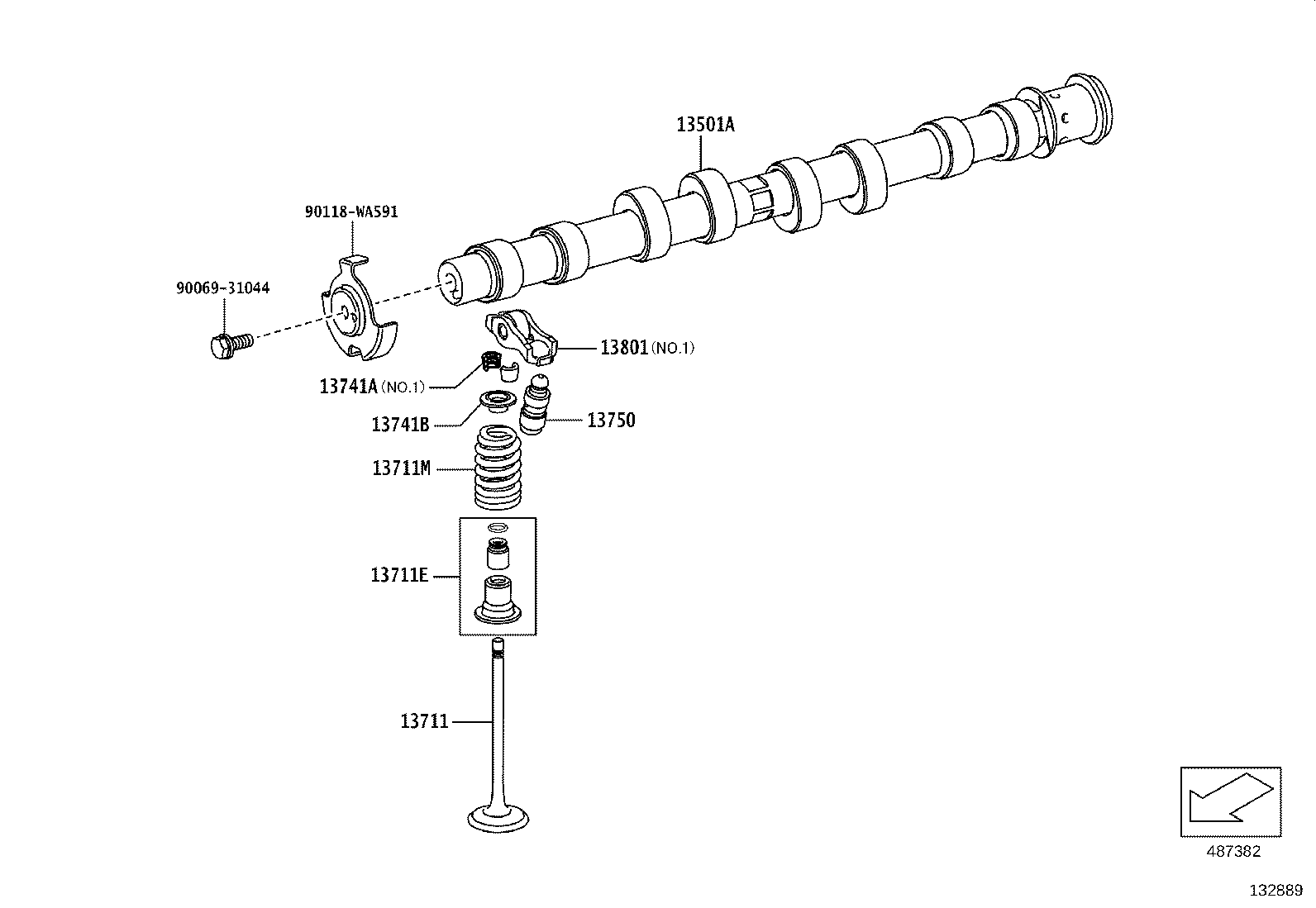

ILLUST NO. 1 OF 4(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13501A - CAMSHAFT SUB-ASSY, INTAKE | ||||
| 13501-WAA01 |
B48#..DB2#,81 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-WAA01 |
B48#..DB2#,81 |
8 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 13734-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13711M - SPRING, COMPRESSION(FOR INTAKE VALVE) | ||||
| 90118-WA772 |
B48#..DB2#,81 |
8 | ||
| 90118-WA010 |
B48#..DB2#,8# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90118-WA004 |
B48#..DB2#,81 NO.2:REFER ILLUST. |
16 | ||
| 90118-WA001 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
16 | ||
| 13741B - RETAINER, INTAKE VALVE SPRING | ||||
| 13741-WAA01 |
B48#..DB2#,81 |
8 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-WA012 |
B48#..DB2#,81 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-WAA01 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
8 | ||
| 13801-WAA02 |
B48#..DB2#,81 MARK1,NO.2,REFER R/M |
8 | ||
| 13801-WAA03 |
B48#..DB2#,81 MARK2,NO.2,REFER R/M |
8 | ||
| 13801-WAA04 |
B48#..DB2#,81 MARK3,NO.2,REFER R/M |
8 | ||
| 13801-WAA06 |
B48#..DB2#,81 MARK5,NO.2,REFER R/M |
8 | ||
| 13801-WAA05 |
B48#..DB2#,81 MARK4,NO.2,REFER R/M |
8 | ||
| Common parts | ||||
| 90069-31044 | ||||
| 90118-WA591 | ||||

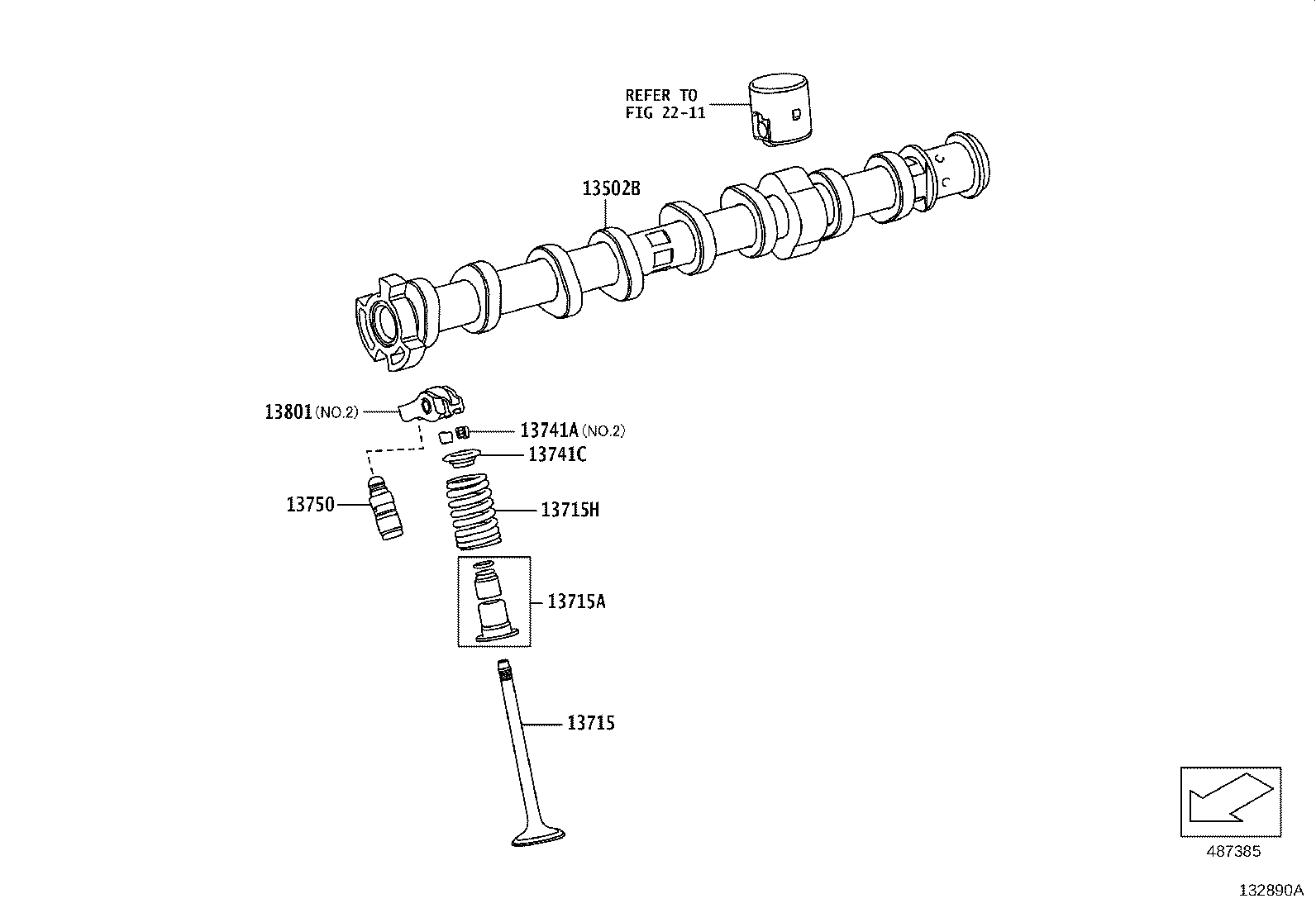

ILLUST NO. 2 OF 4(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502B - CAMSHAFT SUB-ASSY, EXHAUST | ||||
| 13502-WAA01 |
B48#..DB2#,81 |
1 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-WAA01 |
B48#..DB2#,81 |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 13734-WAA02 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE) | ||||
| 90118-WA009 |
B48#..DB2#,81 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90118-WA004 |
B48#..DB2#,81 NO.2:REFER ILLUST. |
16 | ||
| 90118-WA001 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
16 | ||
| 13741C - RETAINER, EXHAUST VALVE SPRING | ||||
| 13741-WAA02 |
B48#..DB2#,81 |
8 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-WA012 |
B48#..DB2#,81 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-WAA01 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
8 | ||
| 13801-WAA02 |
B48#..DB2#,81 MARK1,NO.2,REFER R/M |
8 | ||
| 13801-WAA03 |
B48#..DB2#,81 MARK2,NO.2,REFER R/M |
8 | ||
| 13801-WAA04 |
B48#..DB2#,81 MARK3,NO.2,REFER R/M |
8 | ||
| 13801-WAA06 |
B48#..DB2#,81 MARK5,NO.2,REFER R/M |
8 | ||
| 13801-WAA05 |
B48#..DB2#,81 MARK4,NO.2,REFER R/M |
8 | ||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13540H - BEARING JOURNAL | ||||
| 90118-WA831 |
B48#,B58..DB2#,4#,81 |
2 | ||
| 90118-WA395 |
B48#,B58..DB2#,4#,81 |
2 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13559-WAA02 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 13566 - GUIDE, CHAIN DAMPER | ||||
| 13566-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 135A0 - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE) | ||||
| 135A0-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 135A0A - BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST) | ||||
| 135A0-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90069-31072 | ||||
| 90069-31079 | ||||
| Linked diagrams | ||||
| 1104 | ||||

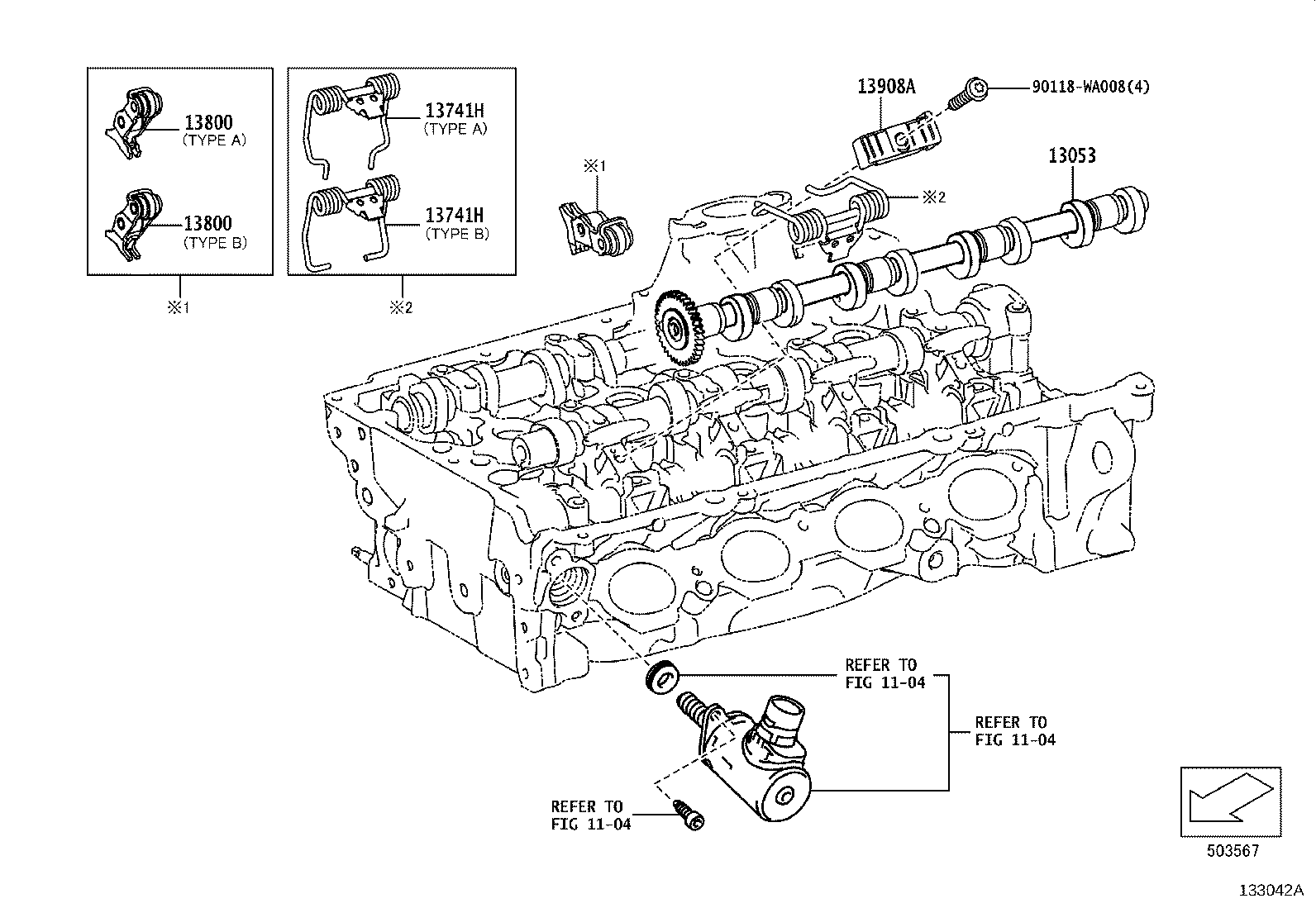

ILLUST NO. 3 OF 4(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13502-WAA02 |
B48#..DB2#,81 |
1 | ||
| 13741H - SPRING, TORSION | ||||
| 90118-WA524 |
B48#..DB2#,81 TYPE A:REFER ILLUST. |
4 | ||
| 90118-WA808 |
B48#..DB2#,81 TYPE B:REFER ILLUST. |
4 | ||
| 13741H - SPRING, TORSION | ||||
| 90118-WA524 |
B48#..DB2#,81 TYPE A:REFER ILLUST. |
4 | ||
| 90118-WA808 |
B48#..DB2#,81 TYPE B:REFER ILLUST. |
4 | ||
| 13800 - LEVER, INTERMEDIATE | ||||
| 13800-WAA04 |
B48#..DB2#,81 MARK3,T/P A,REF. R/M |
8 | ||
| 13800-WAA02 |
B48#..DB2#,81 MARK1,T/P A,REF. R/M |
8 | ||
| 13800-WAA05 |
B48#..DB2#,81 MARK4,T/P A,REF. R/M |
8 | ||
| 13800-WAA03 |
B48#..DB2#,81 MARK2,T/P A,REF. R/M |
8 | ||
| 13800-WAA09 |
B48#..DB2#,8# MARK2,T/P B,REF. R/M |
8 | ||
| 13800-WAA06 |
B48#..DB2#,81 MARK5,T/P A,REF. R/M |
8 | ||
| 13800-WAA11 |
B48#..DB2#,8# MARK4,T/P B,REF. R/M |
8 | ||
| 13800-WAA01 |
B48#..DB2#,81 MARK0,T/P A,REF. R/M |
8 | ||
| 13800-WAA10 |
B48#..DB2#,8# MARK3,T/P B,REF. R/M |
8 | ||
| 13800-WAA07 |
B48#..DB2#,8# MARK0,T/P B,REF. R/M |
8 | ||
| 13800-WAA12 |
B48#..DB2#,8# MARK5,T/P B,REF. R/M |
8 | ||
| 13800-WAA08 |
B48#..DB2#,8# MARK1,T/P B,REF. R/M |
8 | ||
| 13800 - LEVER, INTERMEDIATE | ||||
| 13800-WAA04 |
B48#..DB2#,81 MARK3,T/P A,REF. R/M |
8 | ||
| 13800-WAA02 |
B48#..DB2#,81 MARK1,T/P A,REF. R/M |
8 | ||
| 13800-WAA05 |
B48#..DB2#,81 MARK4,T/P A,REF. R/M |
8 | ||
| 13800-WAA03 |
B48#..DB2#,81 MARK2,T/P A,REF. R/M |
8 | ||
| 13800-WAA09 |
B48#..DB2#,8# MARK2,T/P B,REF. R/M |
8 | ||
| 13800-WAA06 |
B48#..DB2#,81 MARK5,T/P A,REF. R/M |
8 | ||
| 13800-WAA11 |
B48#..DB2#,8# MARK4,T/P B,REF. R/M |
8 | ||
| 13800-WAA01 |
B48#..DB2#,81 MARK0,T/P A,REF. R/M |
8 | ||
| 13800-WAA10 |
B48#..DB2#,8# MARK3,T/P B,REF. R/M |
8 | ||
| 13800-WAA07 |
B48#..DB2#,8# MARK0,T/P B,REF. R/M |
8 | ||
| 13800-WAA12 |
B48#..DB2#,8# MARK5,T/P B,REF. R/M |
8 | ||
| 13800-WAA08 |
B48#..DB2#,8# MARK1,T/P B,REF. R/M |
8 | ||
| 13908A - GATE | ||||
| 13908-WAA01 |
B48#..DB2#,81 |
4 | ||
| Common parts | ||||
| 90118-WA008 | ||||
| Linked diagrams | ||||
| 1104 | ||||
