DB22R-ZTRW (2019)
Toyota Supra

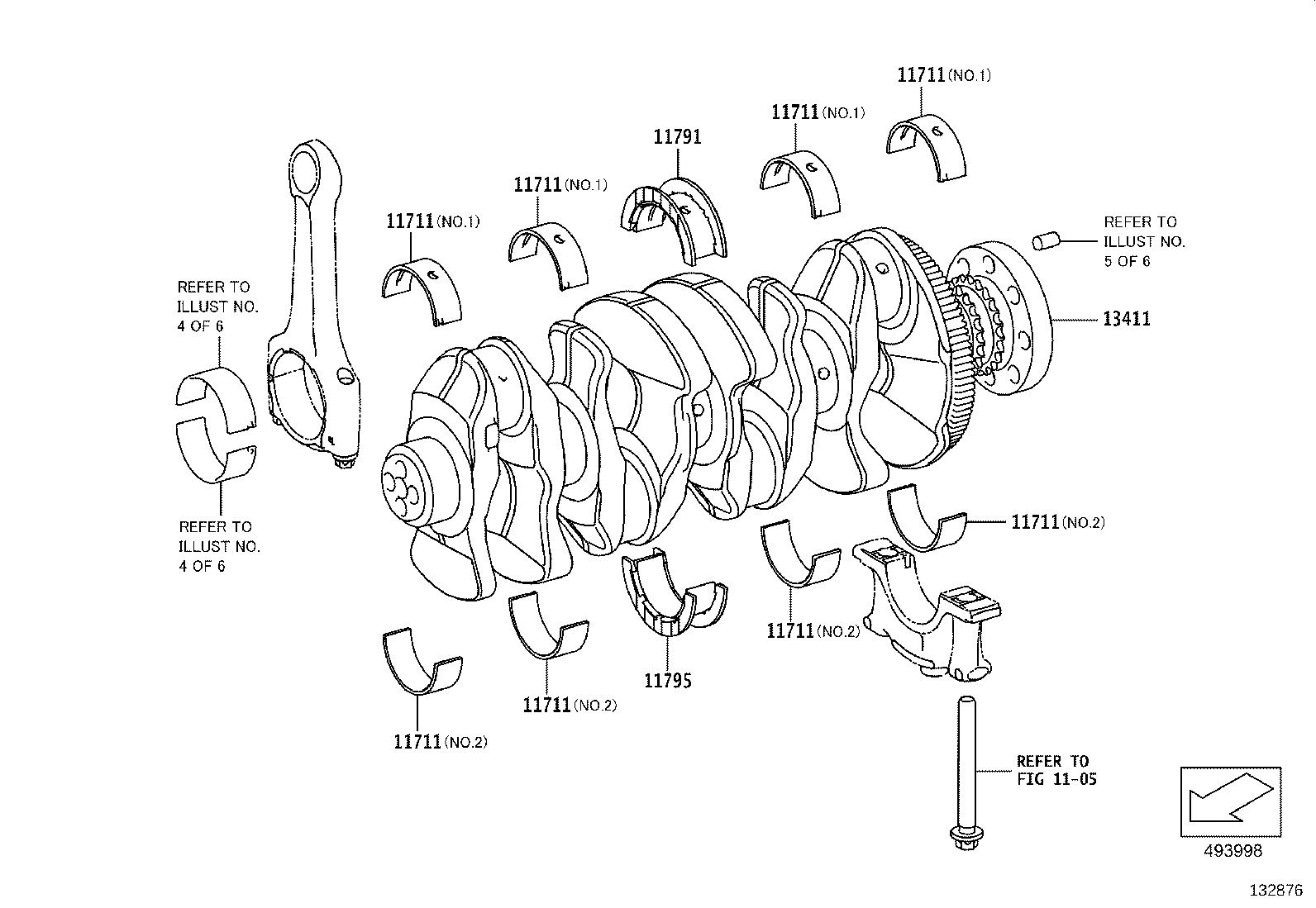

ILLUST NO. 1 OF 6(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11711-WAA04 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA02 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA06 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA01 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11721-WAA08 |
B48#..DB2#,8# NO.2,BLUE,REFER R/M |
4 | ||
| 11711-WAA05 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11711-WAA07 |
B48#..DB2#,8# NO.1,BLUE,REFER R/M |
4 | ||
| 11721-WAA03 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11711-WAA08 |
B48#..DB2#,8# NO.1,GREEN,REFER R/M |
4 | ||
| 11721-WAA09 |
B48#..DB2#,8# NO.2,GREEN,REFER R/M |
4 | ||
| 11711-WAA09 |
B48#..DB2#,8# NO.1,BROWN,REFER R/M |
4 | ||
| 11721-WAA10 |
B48#..DB2#,8# NO.2,BROWN,REFER R/M |
4 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-WAA02 |
B48#..DB2#,8# STD,GREEN,REFER R/M |
1 | ||
| 11791-WAA07 |
B48#..DB2#,81 STD,BLUE,REFER R/M |
1 | ||
| 11791-WAA09 |
B48#..DB2#,81 STD,BROWN,REFER R/M |
1 | ||
| 11791-WAA03 |
B48#..DB2#,8# STD,BROWN,REFER R/M |
1 | ||
| 11791-WAA01 |
B48#..DB2#,8# STD,BLUE,REFER R/M |
1 | ||
| 11791-WAA08 |
B48#..DB2#,81 STD,GREEN,REFER R/M |
1 | ||
| 11795 - WASHER, CRANKSHAFT THRUST, LOWER | ||||
| 11795-WAA02 |
B48#..DB2#,8# GREEN,REFER R/M |
1 | ||
| 11795-WAA03 |
B48#..DB2#,8# BROWN,REFER R/M |
1 | ||
| 11795-WAA01 |
B48#..DB2#,8# BLUE,REFER R/M |
1 | ||
| 11795-WAA08 |
B48#..DB2#,81 GREEN,REFER R/M |
1 | ||
| 11795-WAA09 |
B48#..DB2#,81 BROWN,REFER R/M |
1 | ||
| 11795-WAA07 |
B48#..DB2#,81 BLUE,REFER R/M |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-WAA01 |
B48#..DB2#,8# |
1 | ||
| 13401-WAA04 |
B48#..DB2#,81 |
1 | ||
| Linked diagrams | ||||
| 1105 | ||||

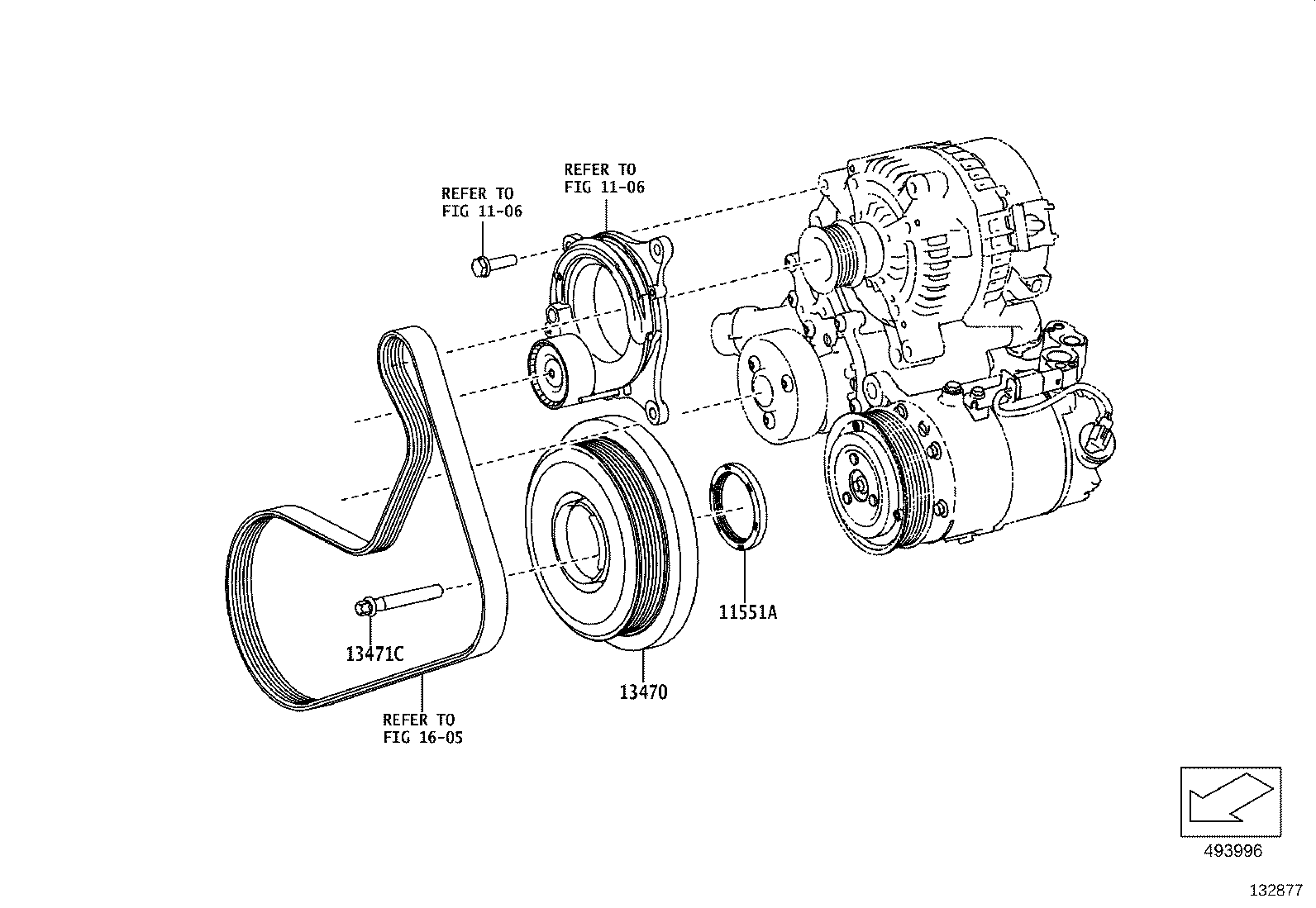

ILLUST NO. 2 OF 6(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11551A - SEAL, CRANKSHAFT OIL | ||||
| 90118-WA811 |
B48#,B58..DB2#,4#,8# |
1 | ||
| 90118-WA385 |
B48#,B58..DB2#,4#,8# |
1 | ||
| 13470 - PULLEY ASSY, CRANKSHAFT | ||||
| 13470-WAA01 |
B48#..DB2#,81 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90069-31411 |
B48#,B58..DB2#,4#,81 |
4 | ||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||

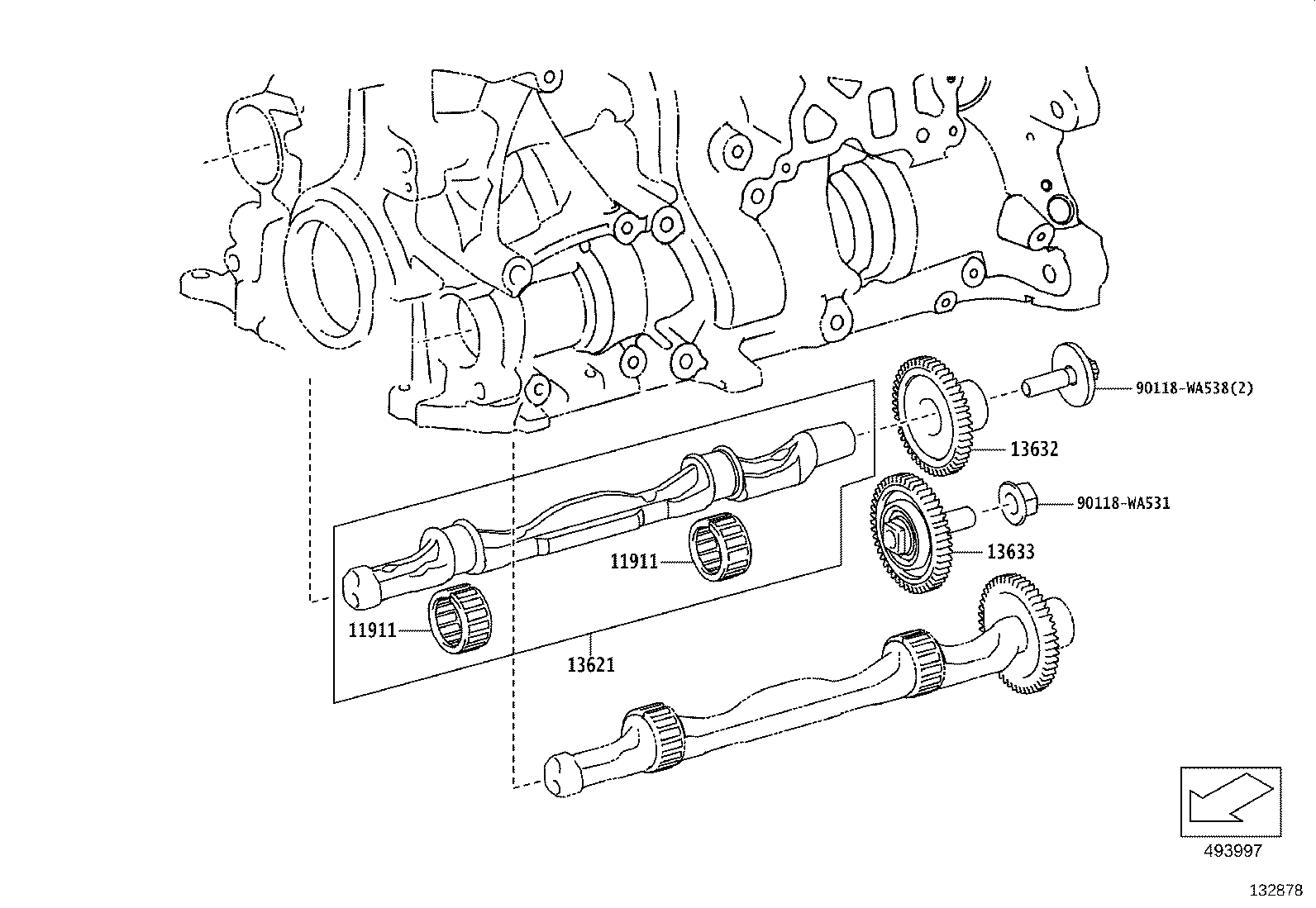

ILLUST NO. 3 OF 6(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11911 - BEARING, BALANCESHAFT, NO.1 | ||||
| 90118-WA548 |
B48#..DB2#,81 |
4 | ||
| 11911 - BEARING, BALANCESHAFT, NO.1 | ||||
| 90118-WA548 |
B48#..DB2#,81 |
4 | ||
| 13621 - BALANCESHAFT, NO.1 | ||||
| 13621-WAA01 |
B48#..DB2#,81 |
2 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-WAA02 |
B48#..DB2#,81 |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13632-WAA01 |
B48#..DB2#,81 |
1 | ||
| Common parts | ||||
| 90118-WA531 | ||||
| 90118-WA538 | ||||

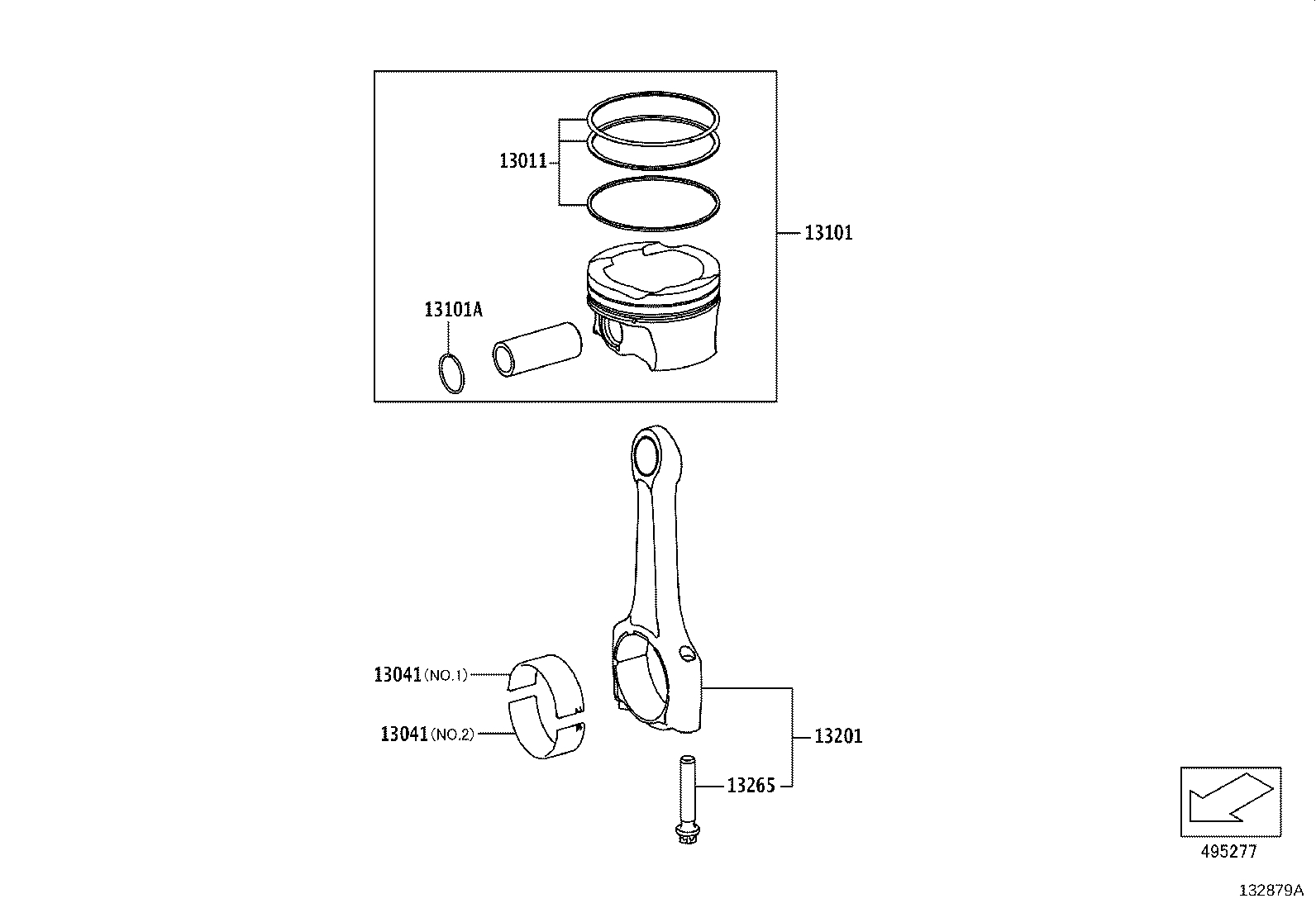

ILLUST NO. 4 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13011 - RING SET, PISTON | ||||
| 13011-WAA01 |
B48#..DB2#,81 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-WAA01 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
4 | ||
| 13291-WAA01 |
B48#..DB2#,81 NO.2:REFER ILLUST. |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13281-WAA01 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
4 | ||
| 13291-WAA01 |
B48#..DB2#,81 NO.2:REFER ILLUST. |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-WAA01 |
B48#..DB2#,81 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90118-WA374 |
B48#..DB2#,81 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-WAA01 |
B48#..DB2#,81 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-WAA01 |
B48#..DB2#,81 |
8 | ||

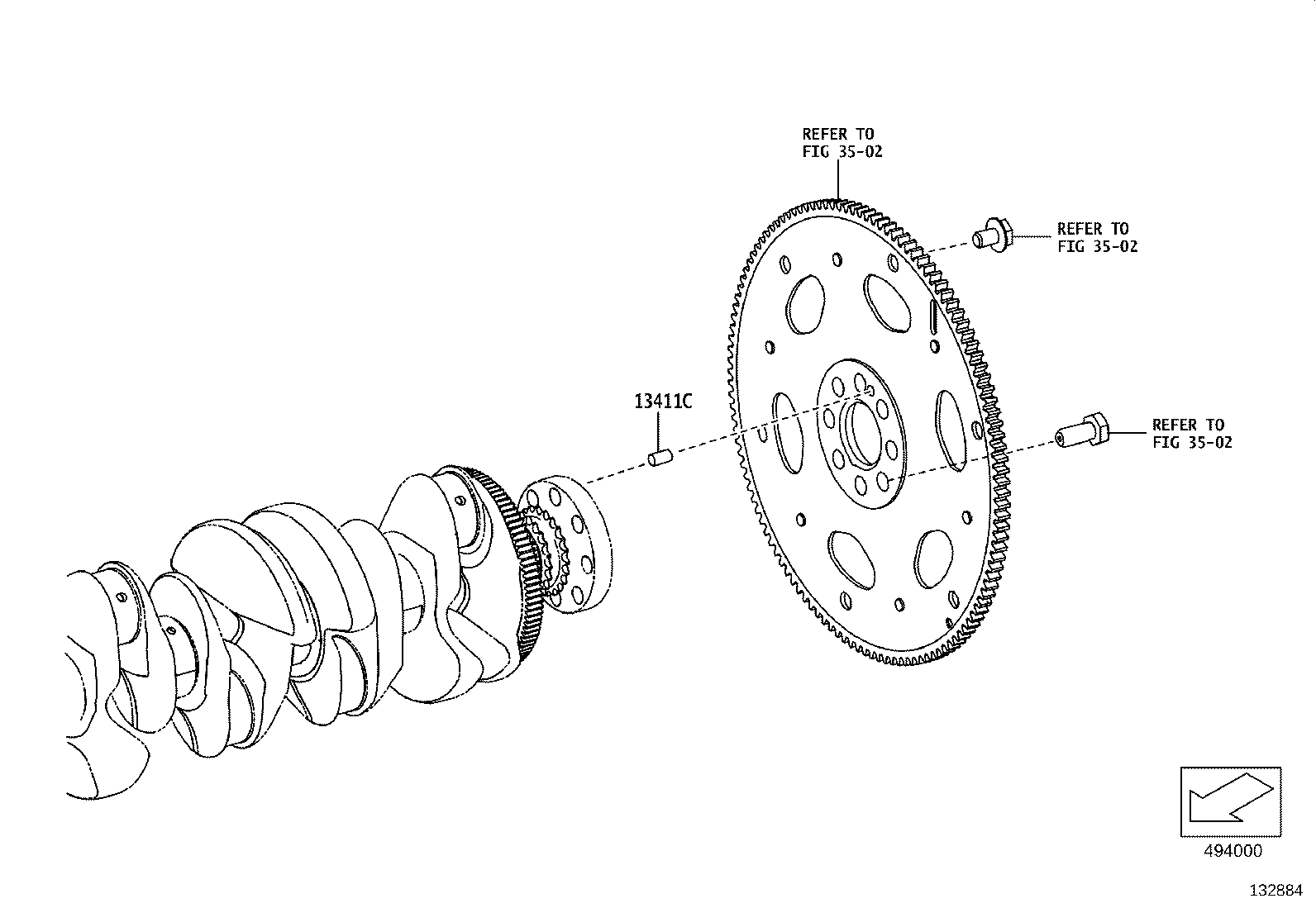

ILLUST NO. 5 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90069-35004 |
B48#,B58..DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 3502 | ||||

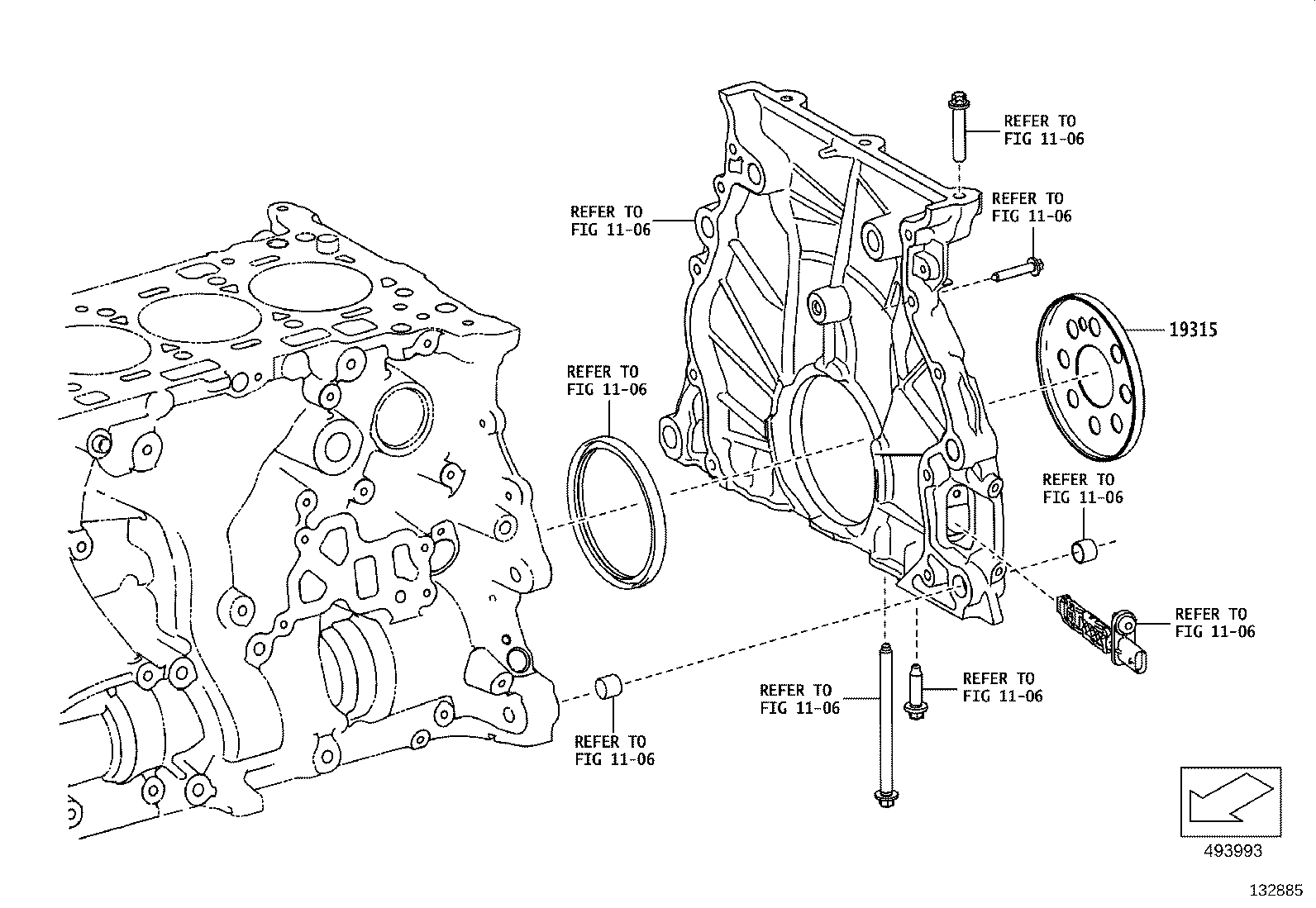

ILLUST NO. 6 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 11381-WA011 |
B48#,B58..DB2#,4#,81 |
1 | ||
| Linked diagrams | ||||
| 1106 | ||||
