DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1903- )

Click highlighted areas on diagram

diagram 11301C 11301K 11321 1301 9006931051 9006931067 9006931068 9006931409 9006935002 90118WA368
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90118-WA384

B48#,B58..DB2#,4#,8#

 1
90118-WA810

B48#,B58..DB2#,4#,8#

 1
11301K - SENSOR, CRANK POSITION
90118-WA390

B48#,B58..DB2#,4#,81

 1
11321 - CASE, TIMING GEAR
11321-WAA01

B48#,B58..DB2#,4#,81

 1
Common parts
90069-31051
90069-31067
90069-31068
90069-31409
90069-35002
90118-WA368
Linked diagrams
1301

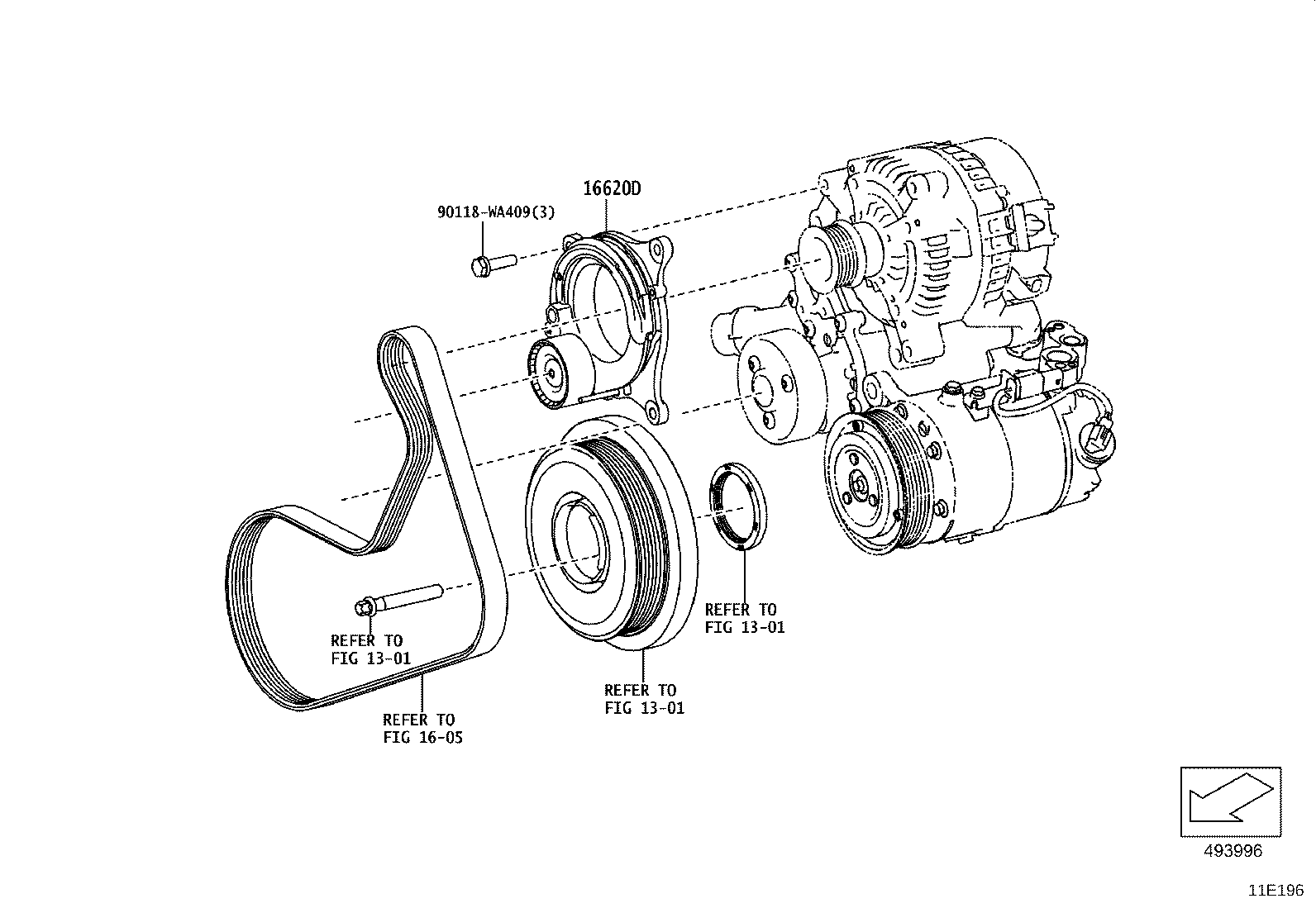

ILLUST NO. 2 OF 3(1903- )B48#

Click highlighted areas on diagram

diagram 1301 1301 1301 1605 16620D 90118WA409
Part # Description Qty Price
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-WAA01

B48#,B58..DB2#,4#,81

 1
Common parts
90118-WA409
Linked diagrams
1301
1605
