DB22R-ZTRW (2019)
Toyota Supra

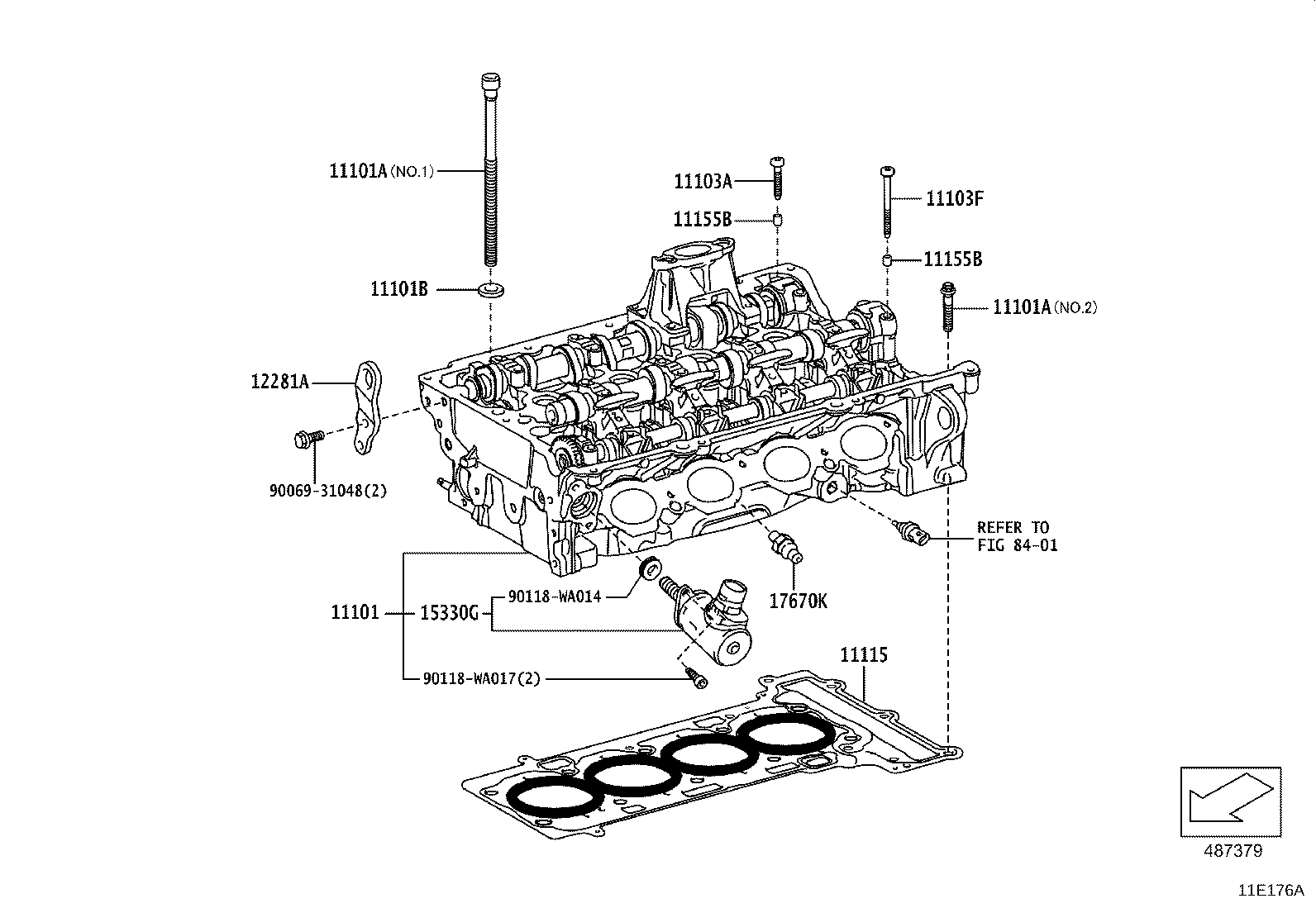

ILLUST NO. 1 OF 3(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11107-WAA04 |
B48#..DB2#,81 |
1 | ||
| 11107-WAA01 |
B48#..DB2#,8# |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90069-31051 |
B48#,B58..DB2#,4#,81 NO.2:REFER ILLUST. |
5 | ||
| 90118-WA011 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
10 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90069-31051 |
B48#,B58..DB2#,4#,81 NO.2:REFER ILLUST. |
5 | ||
| 90118-WA011 |
B48#..DB2#,81 NO.1:REFER ILLUST. |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90118-WA005 |
B48#..DB2#,81 |
10 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90118-WA212 |
B48#..DB2#,81 |
22 | ||
| 90118-WA766 |
B48#..DB2#,81 ## |
18 | ||
| 11103F - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90118-WA213 |
B48#..DB2#,8# |
5 | ||
| 90118-WA765 |
B48#..DB2#,8# ## |
9 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-WAA01 |
B48#..DB2#,81 T=0.80 |
1 | ||
| 11115-WAA02 |
B48#..DB2#,81 T=1.10 |
1 | ||
| 11155B - PIN, RING | ||||
| 90118-WA006 |
B48#..DB2#,81 |
17 | ||
| 11155B - PIN, RING | ||||
| 90118-WA006 |
B48#..DB2#,81 |
17 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 15330G - MOTOR, SERVO | ||||
| 15330-WAA01 |
B48#..DB2#,81 |
1 | ||
| 17670K - VALVE ASSY, AIR BY-PASS | ||||
| 17670-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| Common parts | ||||
| 90069-31048 | ||||
| 90118-WA014 | ||||
| 90118-WA017 | ||||
| Linked diagrams | ||||
| 8401 | ||||

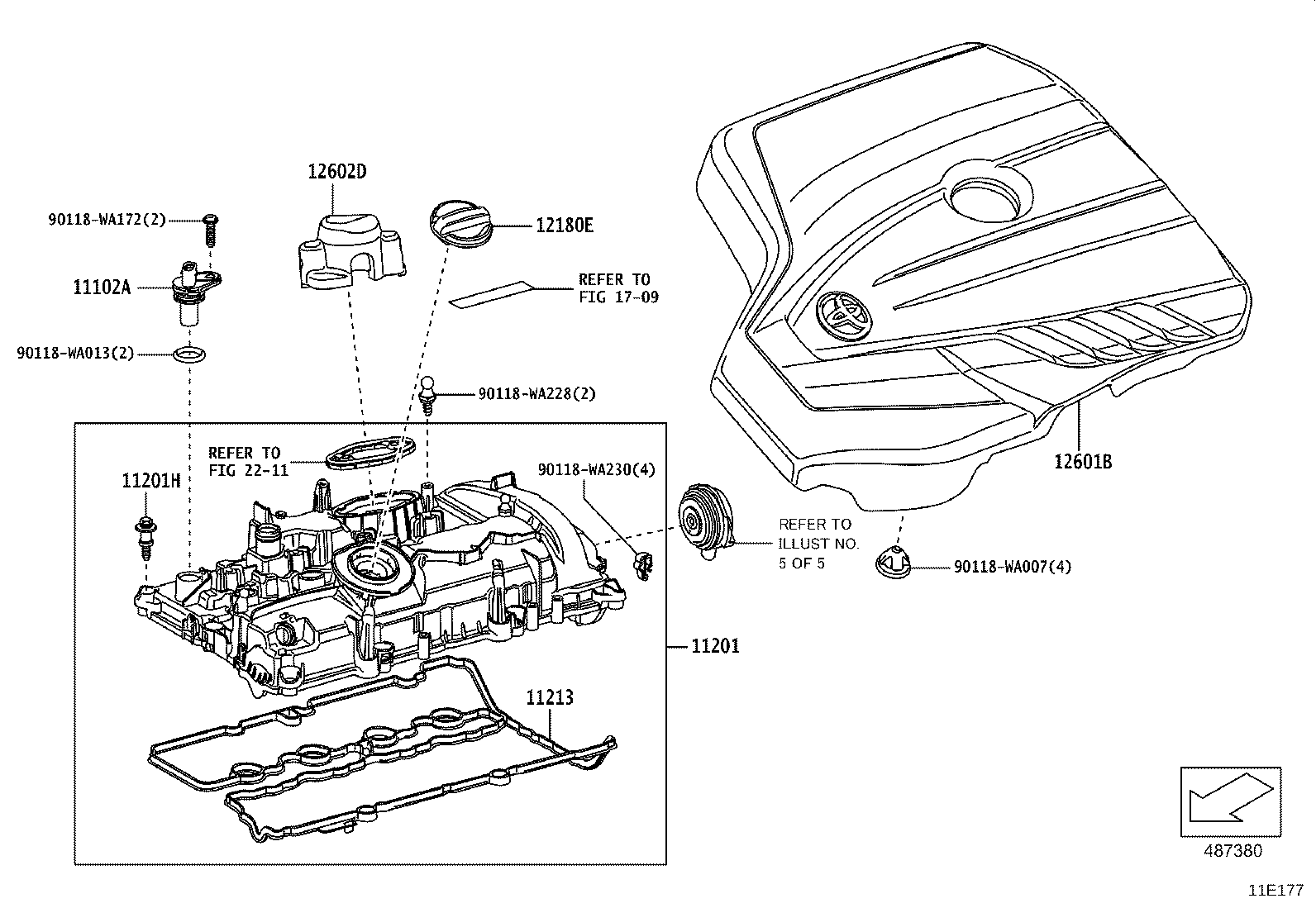

ILLUST NO. 2 OF 3(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 19300-WAA01 |
B48#,B58..DB2#,4#,81 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-WAA04 |
B48#..DB2#,8# |
1 | ||
| 11201-WAA05 |
B48#..DB2#,81 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90118-WA696 |
B48#..DB2#,81 |
14 | ||
| 90118-WA696 |
B48#..DB2#,8# |
15 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-WAA02 |
B48#..DB2#,81 |
1 | ||
| 11213-WAA04 |
B48#..DB2#,81 ## |
1 | ||
| 12180E - CAP ASSY, OIL FILLER | ||||
| 12180-WAA01 |
B48#,B58..DB2#,4#,81 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-WAA01 |
B48#..DB2#,81 |
1 | ||
| 12602D - COVER SUB-ASSY, ENGINE, NO.2 | ||||
| 12602-WAA01 |
B48#..DB2#,8# |
1 | ||
| 12602-WAA02 |
B48#..DB2#,81 |
1 | ||
| 12602-WAA03 |
B48#..DB2#,81 |
1 | ||
| Common parts | ||||
| 90118-WA007 | ||||
| 90118-WA013 | ||||
| 90118-WA172 | ||||
| 90118-WA228 | ||||
| 90118-WA230 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 2211 | ||||

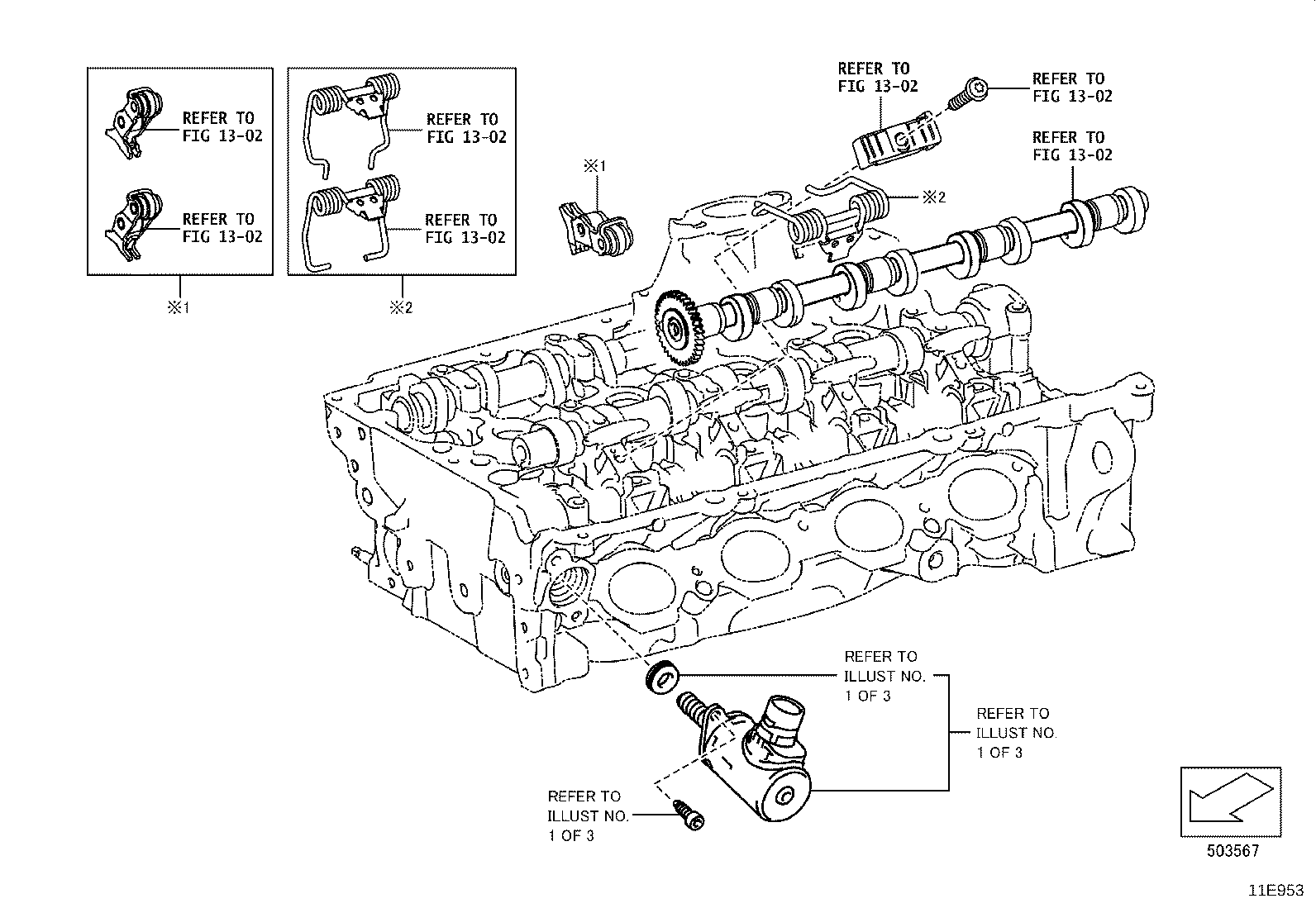

ILLUST NO. 6 OF 6(1903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15370J - ACTUATOR, VANOS | ||||
| 15370-WAA01 |
B48#,B58..DB2#,4#,81 |
2 | ||
| Linked diagrams | ||||
| 1302 | ||||

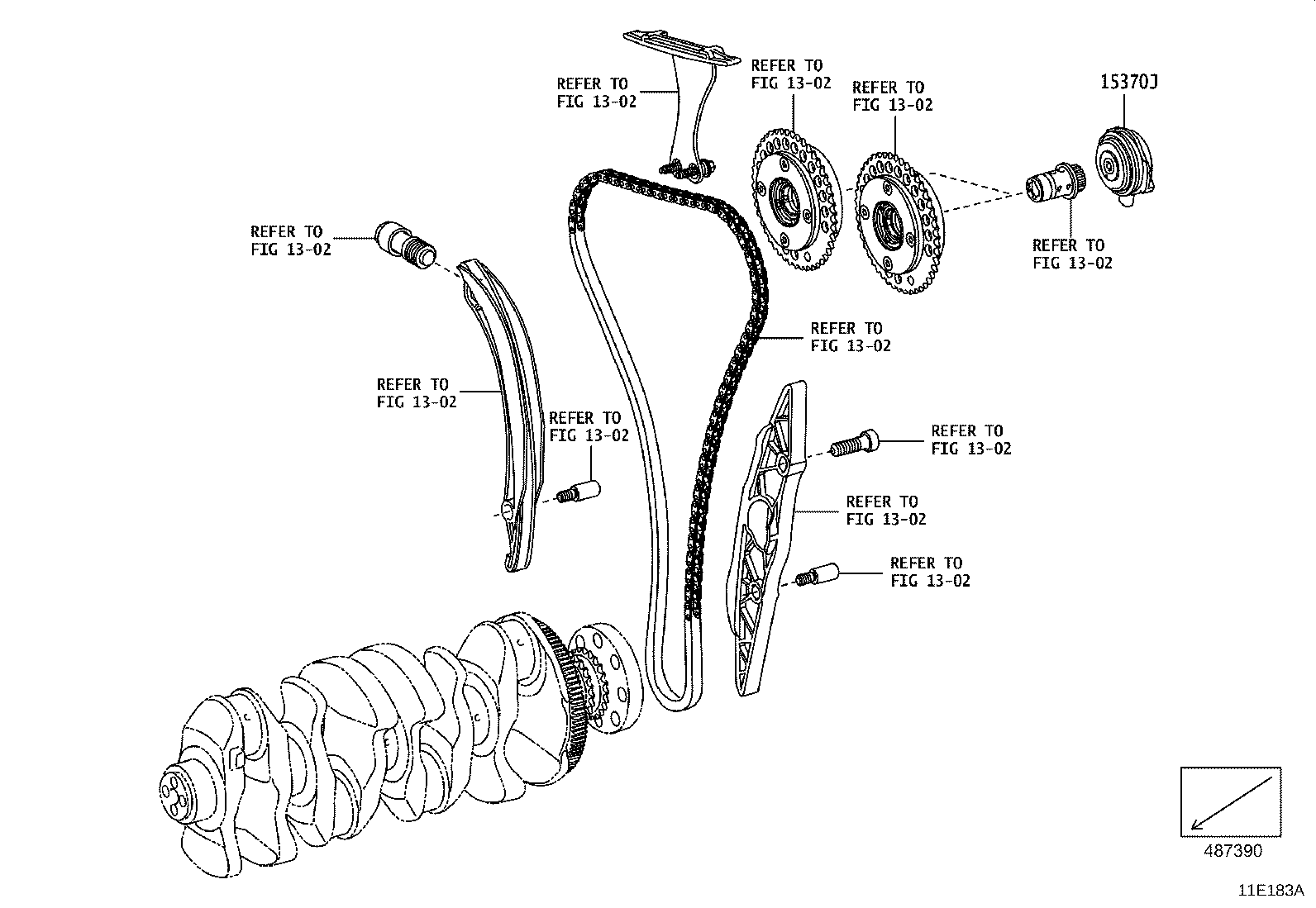

ILLUST NO. 3 OF 3(1903- )B48#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1302 | ||||
