DB22R-ZTRW (2019)

Toyota Supra

Production Mar 2019 - Sep 9999
Engine B48H
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1903- )

Click highlighted areas on diagram

diagram 09135 42606B 44890D 51961N 6404
Part # Description Qty Price
09135 - DRIVER, SCREW
90118-WA460

DB2#,4#,81

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-WAA01

DB2#,4#,81

SPARE TIRE-TIRE REPAIR KIT

 1
44890D - COMPRESSOR ASSY, AIR
44890-WAA01

DB2#,4#,81

SPARE TIRE-TIRE REPAIR KIT

 1
51961N - HOOK, TRANSPORT
90118-WA767

DB2#,4#,81

 1
Linked diagrams
6404

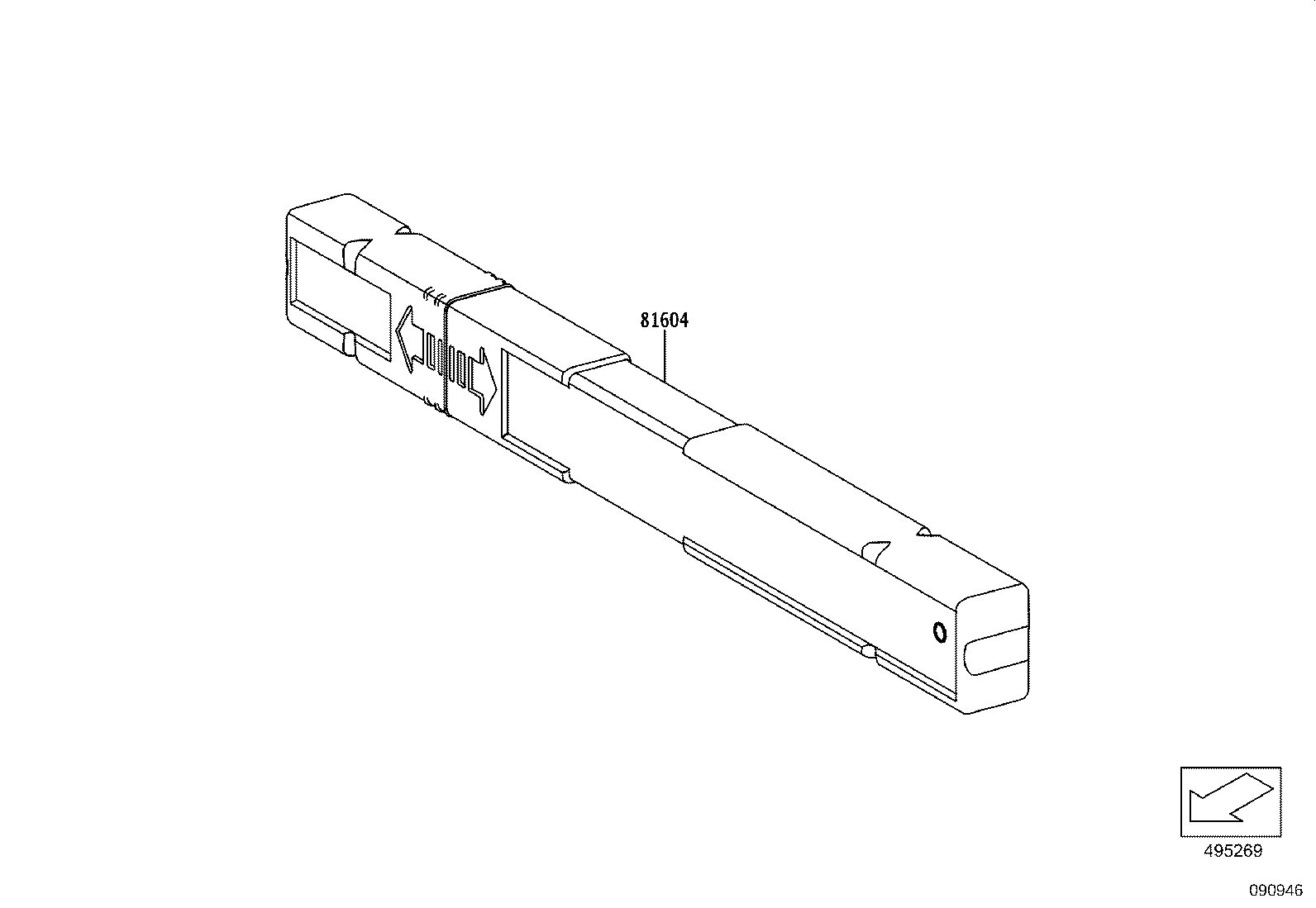

ILLUST NO. 2 OF 3(1903- )

Click highlighted areas on diagram

diagram 81604
Part # Description Qty Price
81604 - REFLECTOR SET, TRIANGLE
81604-WAA01

DB2#,4#,81

WARNING TRIANGLE-WITH

 1

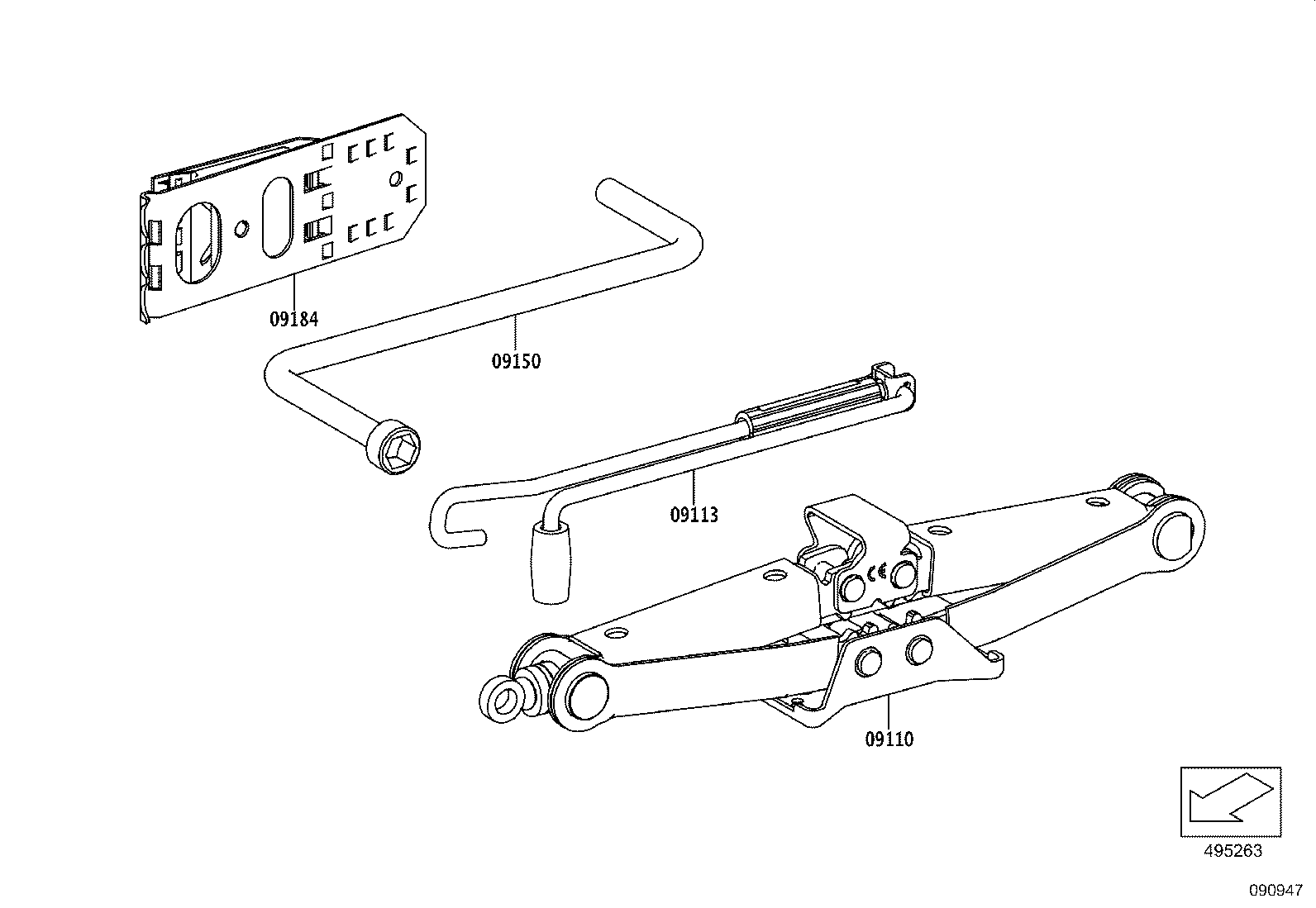

ILLUST NO. 3 OF 3(1903- )

Click highlighted areas on diagram

diagram 09110 09113 09150 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-WAA01

DB2#,4#

 1
09113 - HANDLE, JACK
09113-WAA01

DB2#,4#

 1
09150 - WRENCH, HUB NUT BOX
09150-WAA01

DB2#,4#

 1
09184 - STOPPER, WHEEL
09184-WAA01

DB2#,4#

 1

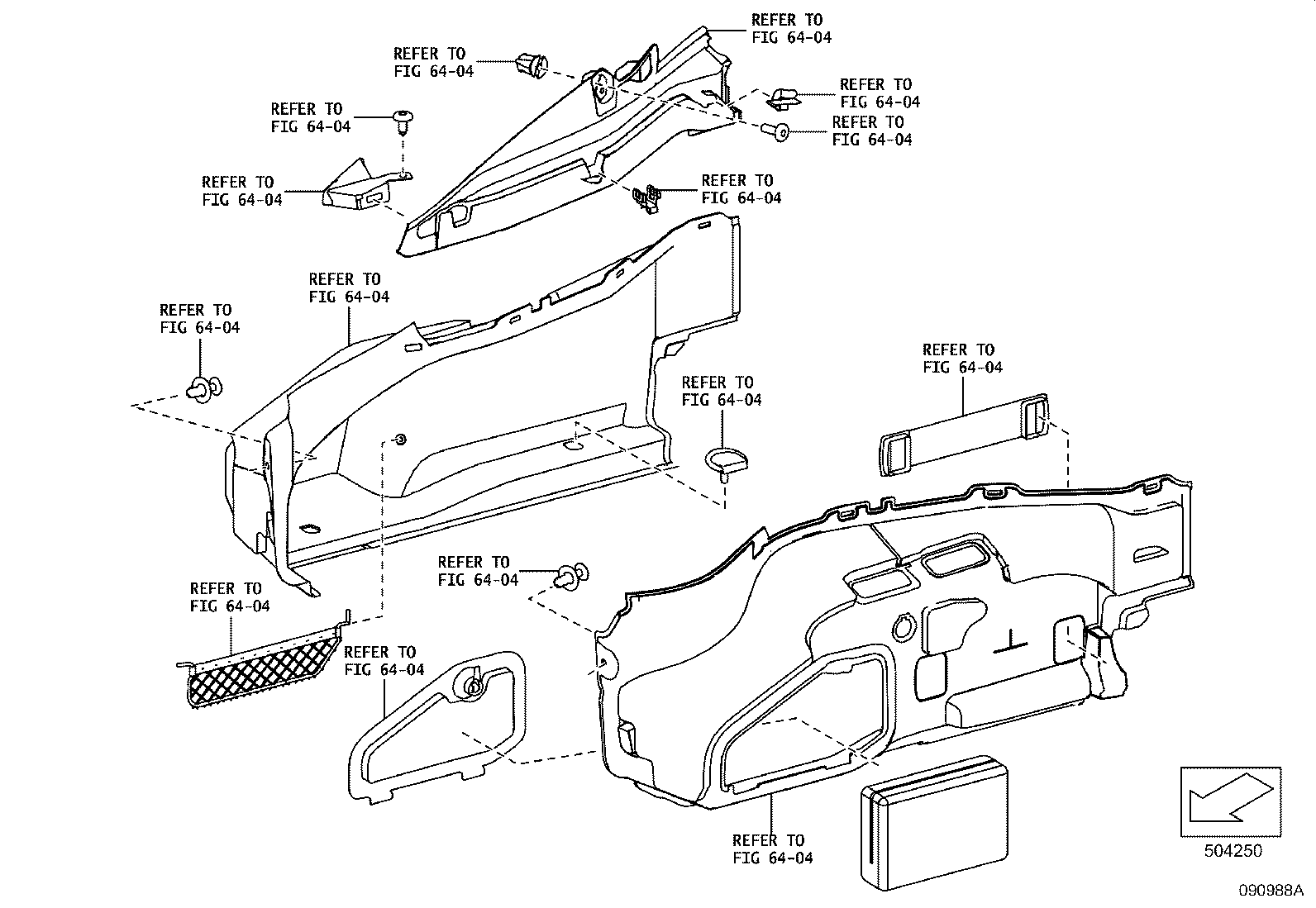

(1903- )

Click highlighted areas on diagram

diagram 6404 6404 6404 6404 6404 6404 6404 6404 6404 6404 6404 6404 6404 6404 6404
Part # Description Qty Price
Linked diagrams
6404
