RK110R-KRP (1979)
Toyota Stout
Production
Mar 1979
-
Sep 1986
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903-8609)4F

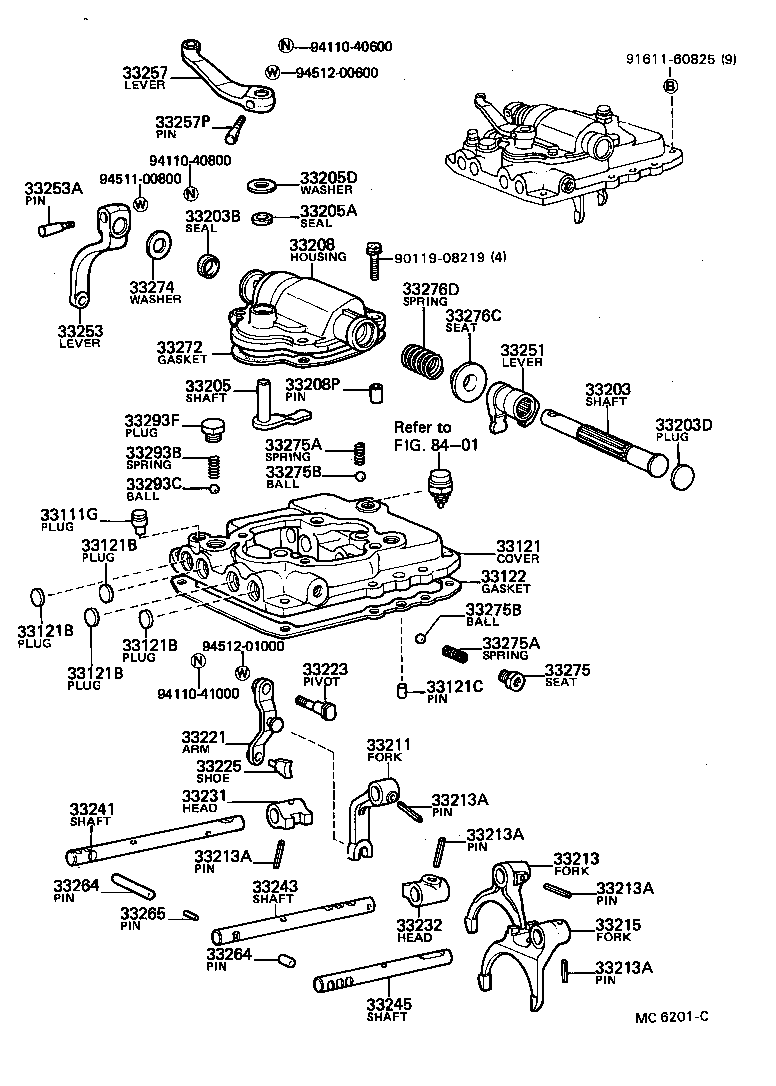

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03072 |
RK110 |
1 | ||
| 90930-03075 |
RK110 |
1 | ||
| 90930-03075 |
RK110 |
1 | ||
| 90930-03085 |
RK110 |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-25030 |
RK110 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-19003 |
RK110 |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-19003 |
RK110 |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-19003 |
RK110 |
4 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-19003 |
RK110 |
4 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
RK110 L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-25010 |
RK110 |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-35040 |
RK110 |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90312-17001 |
RK110 |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 96412-12800 |
RK110 |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-25010 |
RK110 |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
RK110 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13228 |
RK110 |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33271-25011 |
RK110 |
1 | ||
| 33208P - PIN, RING(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 90253-11001 |
RK110 |
2 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-25010 |
RK110 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33213-35011 |
RK110 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RK110 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RK110 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RK110 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RK110 |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RK110 |
5 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-25010 |
RK110 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-25011 |
RK110 |
1 | ||
| 33201-25010 |
RK110 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-35011 |
RK110 |
1 | ||
| 33223-35012 |
RK110 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36010 |
RK110 |
1 | ||
| 33225-36011 |
RK110 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-25010 |
RK110 |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33231-25010 |
RK110 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-25010 |
RK110 |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-25010 |
RK110 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-25010 |
RK110 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35030 |
RK110 |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-35040 |
RK110..4F |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-30010 |
RK110 |
1 | ||
| 33281-16020 |
RK110 |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-35040 |
RK110..4F |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
RK110 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
RK110 L=38.9,OD=9.5 |
1 | ||
| 90361-10008 |
RK110 L=15,OD=9.5 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10009 |
RK110 L=38.9,OD=9.5 |
1 | ||
| 90361-10008 |
RK110 L=15,OD=9.5 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90361-05001 |
RK110 L=13 |
1 | ||
| 90250-05034 |
RK110 |
1 | ||
| 33272 - GASKET, SHIFT LEVER SHAFT HOUSING | ||||
| 33272-25010 |
RK110 |
1 | ||
| 33274 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.2 | ||||
| 90201-17048 |
RK110 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12055 |
RK110 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14029 |
RK110 |
2 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14029 |
RK110 |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RK110 |
2 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
RK110 |
2 | ||
| 33276C - SEAT, SELECT SPRING | ||||
| 33276-25011 |
RK110 |
1 | ||
| 33276D - SPRING, COMPRESSION (FOR SELECT LEVER SHAFT) | ||||
| 90501-26012 |
RK110 |
1 | ||
| 33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL) | ||||
| 90501-14029 |
RK110 |
1 | ||
| 33293C - BALL (FOR REVERSE RESTRICT) | ||||
| 90360-10003 |
RK110 |
1 | ||
| 33293F - PLUG (FOR REVERSE RESTRICT BALL HOLDER) | ||||
| 90341-18005 |
RK110 |
1 | ||
| Common parts | ||||
| 90119-08219 | ||||
| 91611-60825 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
