RK110R-JRH3 (1979)
Toyota Stout
ILLUST NO. 2 OF 3(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10058 |
RK110 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10053 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 90413-10084 |
RK110..GEN,SA |
1 | ||
| 90412-10053 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90412-10115 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 90412-10115 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10040 |
RK110 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
RK110..175 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
RK110..175 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35090 |
RK110 |
1 | ||
| 47352-35060 |
RK110 W(LSPV) |
1 | ||
| 47352-35090 |
RK110..ARL,GEN |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35090 |
RK110 |
1 | ||
| 47352-35060 |
RK110 W(LSPV) |
1 | ||
| 47352-35090 |
RK110..ARL,GEN |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90461-06112 | ||||
| 90461-06487 | ||||
| 90461-08324 | ||||
| 90461-08779 | ||||
| 90480-01069 | ||||
| 90480-01071 | ||||
| 90480-01122 | ||||
| 90480-08343 | ||||
| 90949-01005 | ||||
| 91611-60812 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-61035 | ||||
| 91615-41040 | ||||
| 91616-40820 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
| 94110-70800 | ||||
| 96221-20905 | ||||
| 96221-30905 | ||||

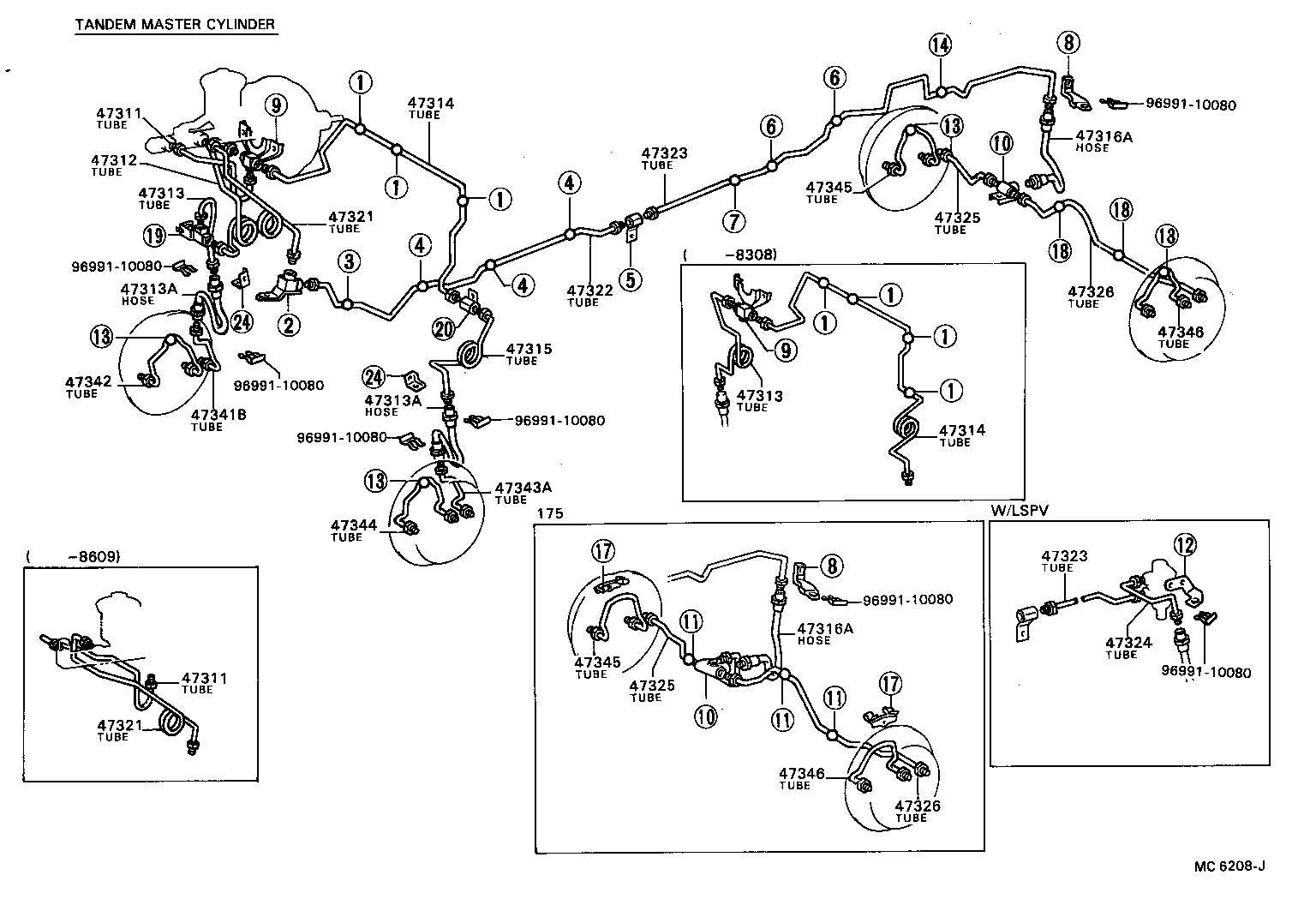

ILLUST NO. 1 OF 3(7903-7906)ARL ; (7906-8609)ARL,SA ; (8404-8409); (8409-8609)RHD..GEN ; (8609-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35280 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311-35260 |
RK110..GEN,SA |
1 | ||
| 47311-35280 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35280 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311-35260 |
RK110..GEN,SA |
1 | ||
| 47311-35280 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35520 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-35230 |
RK110..RHD..GEN |
1 | ||
| 47312-35520 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-35230 |
RK110..RHD..(GEN,SA) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-35160 |
RK110..GEN,SA |
1 | ||
| 47314-35160 |
RK110..GEN |
1 | ||
| 47314-35210 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47314-35210 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-35160 |
RK110..GEN,SA |
1 | ||
| 47314-35160 |
RK110..GEN |
1 | ||
| 47314-35210 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47314-35210 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33605 |
RK110 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33605 |
RK110 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-35160 |
RK110..RHD |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-35160 |
RK110..RHD |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-35220 |
RK110..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02388 |
RK110..175 L=470 |
1 | ||
| 90947-02430 |
RK110..175 L=450 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02388 |
RK110..175 L=470 |
1 | ||
| 90947-02430 |
RK110..175 L=450 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35070 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47321-35070 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35070 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47321-35070 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35110 |
RK110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35040 |
RK110..ARL,GEN |
1 | ||
| 47323-35050 |
RK110 W(LSPV) |
1 | ||
| 47323-35040 |
RK110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35040 |
RK110..ARL,GEN |
1 | ||
| 47323-35050 |
RK110 W(LSPV) |
1 | ||
| 47323-35040 |
RK110 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-35020 |
RK110 W(LSPV) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47329-36020 |
RK110..175 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47329-36020 |
RK110..175 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47331-36050 |
RK110..175 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47331-36050 |
RK110..175 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35050 |
RK110 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-25011 |
RK110 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35050 |
RK110 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
RK110 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
ILLUST NO. 3 OF 3(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-35010 |
RK110 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35090 |
RK110 |
1 | ||
| 47352-35060 |
RK110 W(LSPV) |
1 | ||
| 47352-35090 |
RK110..ARL,GEN |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-25050 |
RK110 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-35030 |
RK110 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RK110 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RK110 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
RK110 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RK110 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RK110 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35040 |
RK110 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36030 |
RK110 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
RK110 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
RK110 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
RK110 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
RK110 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
RK110 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
RK110 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
RK110 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
ILLUST NO. 1 OF 3(7903-7906)RHD..GEN,SA ; (7906- )RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35280 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47311-35260 |
RK110..GEN,SA |
1 | ||
| 47311-35280 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35520 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-35230 |
RK110..RHD..GEN |
1 | ||
| 47312-35520 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47312-35230 |
RK110..RHD..(GEN,SA) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-35160 |
RK110..GEN,SA |
1 | ||
| 47314-35160 |
RK110..GEN |
1 | ||
| 47314-35210 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47314-35210 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33605 |
RK110 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33605 |
RK110 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-35160 |
RK110..RHD |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-35160 |
RK110..RHD |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD..GEN TANDEM MASTER CYLINDER |
1 | ||
| 47313-35360 |
RK110..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47314-35220 |
RK110..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02388 |
RK110..175 L=470 |
1 | ||
| 90947-02430 |
RK110..175 L=450 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02388 |
RK110..175 L=470 |
1 | ||
| 90947-02430 |
RK110..175 L=450 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02388 |
RK110..175 L=470 |
1 | ||
| 90947-02430 |
RK110..175 L=450 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35110 |
RK110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35040 |
RK110..ARL,GEN |
1 | ||
| 47323-35050 |
RK110 W(LSPV) |
1 | ||
| 47323-35040 |
RK110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35040 |
RK110..ARL,GEN |
1 | ||
| 47323-35050 |
RK110 W(LSPV) |
1 | ||
| 47323-35040 |
RK110 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-35020 |
RK110 W(LSPV) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47329-36020 |
RK110..175 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47329-36020 |
RK110..175 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47329-36020 |
RK110..175 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47331-36050 |
RK110..175 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47331-36050 |
RK110..175 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47331-36050 |
RK110..175 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35050 |
RK110 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-25011 |
RK110 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35050 |
RK110 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
RK110 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
RK110..175 |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
