Toyota Stout RK110 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
STOUT
RK110L-KRP3 (1979)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

RK110L-KRP3 (1979)

Toyota Stout

Production Mar 1979 - Sep 1986

Engine 5R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7903-8308)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-89107	RK110..GEN	03/1979 - 08/1983	1
88460-95110	RK110..GEN W/BOOST VENTILATOR	01/1982 - 08/1983	1
88460-92300	RK110..GEN	08/1983 - 09/1986	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12030	RK110..LHD	03/1979 - 08/1981	1
88470-12031	RK110..LHD	08/1981 - 08/1983	1
88471-16010	RK110..LHD	08/1983 - 09/1986	1
88470B - BOLT, FUSE
90099-04579	RK110..GEN	03/1979 - 04/1988	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89105	RK110..LHD	12/1983 - 09/1986	1
88472-89104	RK110..LHD	03/1979 - 08/1981	2
88472-89108	RK110..LHD	08/1981 - 12/1983	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89105	RK110..LHD	12/1983 - 09/1986	1
88472-89104	RK110..LHD	03/1979 - 08/1981	2
88472-89108	RK110..LHD	08/1981 - 12/1983	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89105	RK110..LHD	12/1983 - 09/1986	1
88472-89104	RK110..LHD	03/1979 - 08/1981	2
88472-89108	RK110..LHD	08/1981 - 12/1983	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	RK110..GEN 400G	03/1979 - 04/1988	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95110	RK110..GEN	03/1979 - 08/1981	1
88711-89111	RK110..GEN	08/1981 - 08/1983	1
88711-89112	RK110..GEN	08/1983 - 09/1986	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-92301	RK110..LHD	08/1983 - 09/1986	1
88712-22181	RK110..LHD	03/1979 - 08/1983	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12420	RK110..LHD	08/1983 - 09/1986	1
88716-89120	RK110..LHD	03/1979 - 08/1983	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89122	RK110..LHD	03/1979 - 08/1983	1
88716-92303	RK110..LHD	08/1983 - 09/1986	1
88891A - PACKING A (FOR COOLER)
88893-89113	RK110..GEN	03/1979 - 04/1988	1
88891B - PACKING B (FOR COOLER)
88578-92300	RK110..GEN	08/1983 - 09/1986	2
88578-95110	RK110..GEN	03/1979 - 08/1983	2
88891B - PACKING B (FOR COOLER)
88578-92300	RK110..GEN	08/1983 - 09/1986	2
88578-95110	RK110..GEN	03/1979 - 08/1983	2
88891C - PACKING C (FOR COOLER)
88895-95111	RK110..GEN	01/1982 - 08/1983	1
Common parts
88467-22040
88469-22010
88569-22090
88714-22020
88714-30290
88714-89102
88718-89102
88718-89104
88718-95111
88895-12030
90099-32073
90463-15067
90467-07050
90480-26003
90480-36003
93385-16016
93385-16020
93385-18014
93385-18016
93385-18030
93540-15012
94110-40600
94110-40800
94120-40800

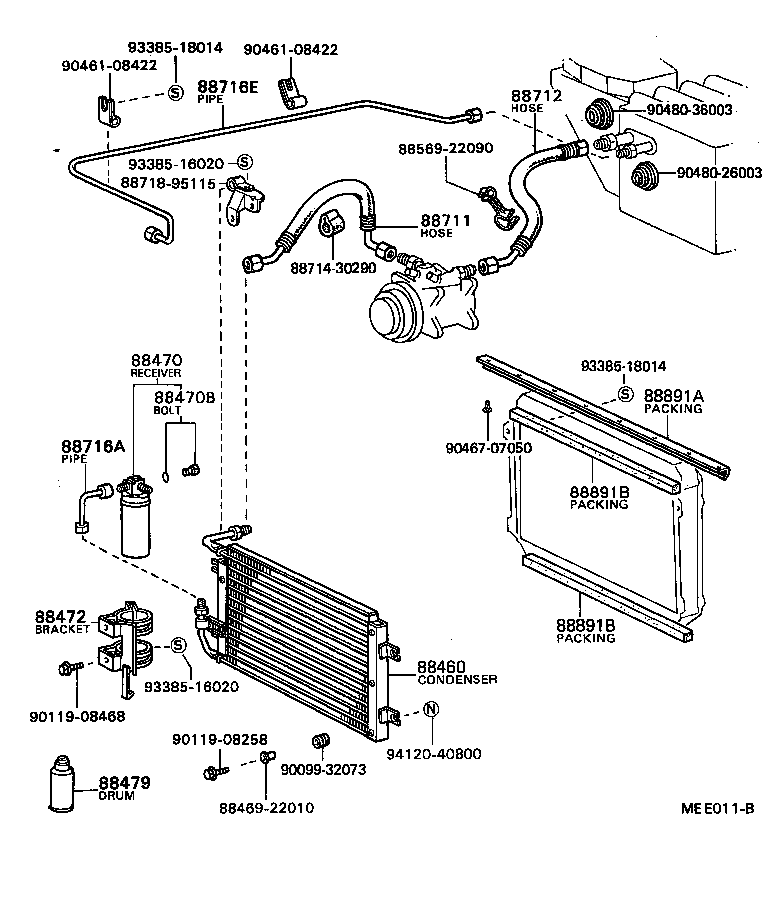

(8308-8609)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-89107	RK110..GEN	03/1979 - 08/1983	1
88460-95110	RK110..GEN W/BOOST VENTILATOR	01/1982 - 08/1983	1
88460-92300	RK110..GEN	08/1983 - 09/1986	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12030	RK110..LHD	03/1979 - 08/1981	1
88470-12031	RK110..LHD	08/1981 - 08/1983	1
88471-16010	RK110..LHD	08/1983 - 09/1986	1
88470B - BOLT, FUSE
90099-04579	RK110..GEN	03/1979 - 04/1988	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89105	RK110..LHD	12/1983 - 09/1986	1
88472-89104	RK110..LHD	03/1979 - 08/1981	2
88472-89108	RK110..LHD	08/1981 - 12/1983	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	RK110..GEN 400G	03/1979 - 04/1988	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95110	RK110..GEN	03/1979 - 08/1981	1
88711-89111	RK110..GEN	08/1981 - 08/1983	1
88711-89112	RK110..GEN	08/1983 - 09/1986	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-92301	RK110..LHD	08/1983 - 09/1986	1
88712-22181	RK110..LHD	03/1979 - 08/1983	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12420	RK110..LHD	08/1983 - 09/1986	1
88716-89120	RK110..LHD	03/1979 - 08/1983	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89122	RK110..LHD	03/1979 - 08/1983	1
88716-92303	RK110..LHD	08/1983 - 09/1986	1
88891A - PACKING A (FOR COOLER)
88893-89113	RK110..GEN	03/1979 - 04/1988	1
88891B - PACKING B (FOR COOLER)
88578-92300	RK110..GEN	08/1983 - 09/1986	2
88578-95110	RK110..GEN	03/1979 - 08/1983	2
88891B - PACKING B (FOR COOLER)
88578-92300	RK110..GEN	08/1983 - 09/1986	2
88578-95110	RK110..GEN	03/1979 - 08/1983	2
Common parts
88469-22010
88569-22090
88714-30290
88718-95115
90099-32073
90119-08258
90119-08468
90461-08422
90467-07050
90480-26003
90480-36003
93385-16020
93385-18014
94120-40800

RK110L-KRP3 (1979)

(7903-8308)LHD

(8308-8609)LHD
