NP80L-AGMRSW (1989)
Toyota Starlet

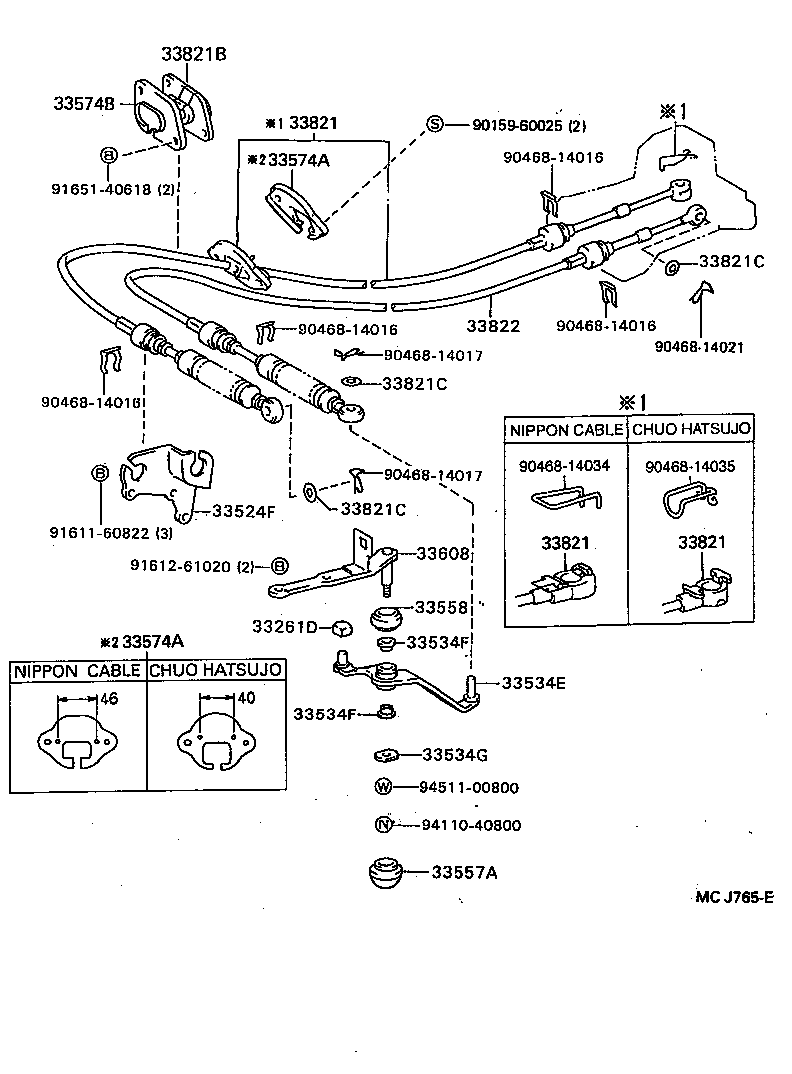

ILLUST NO. 2 OF 2(9012- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
EP8#,NP80..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-16020 |
NP80 |
1 | ||
| 33524-16040 |
EP8#,NP80..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16010 |
NP80 |
1 | ||
| 33534-16050 |
EP8#,NP80..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EP8#,NP80..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EP8#,NP80..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EP8#,NP80..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP8#,NP80 |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP8#,NP80 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EP8#,NP80 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10030 |
NP80 |
1 | ||
| 33608-10031 |
EP8#,NP80..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-10190 |
NP80 |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-10190 |
NP80 |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-10190 |
NP80 |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EP8#,NP80..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-10060 |
NP80 |
1 | ||
| 33822-18021 |
EP8#,NP80..MTM |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14021 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91651-40618 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

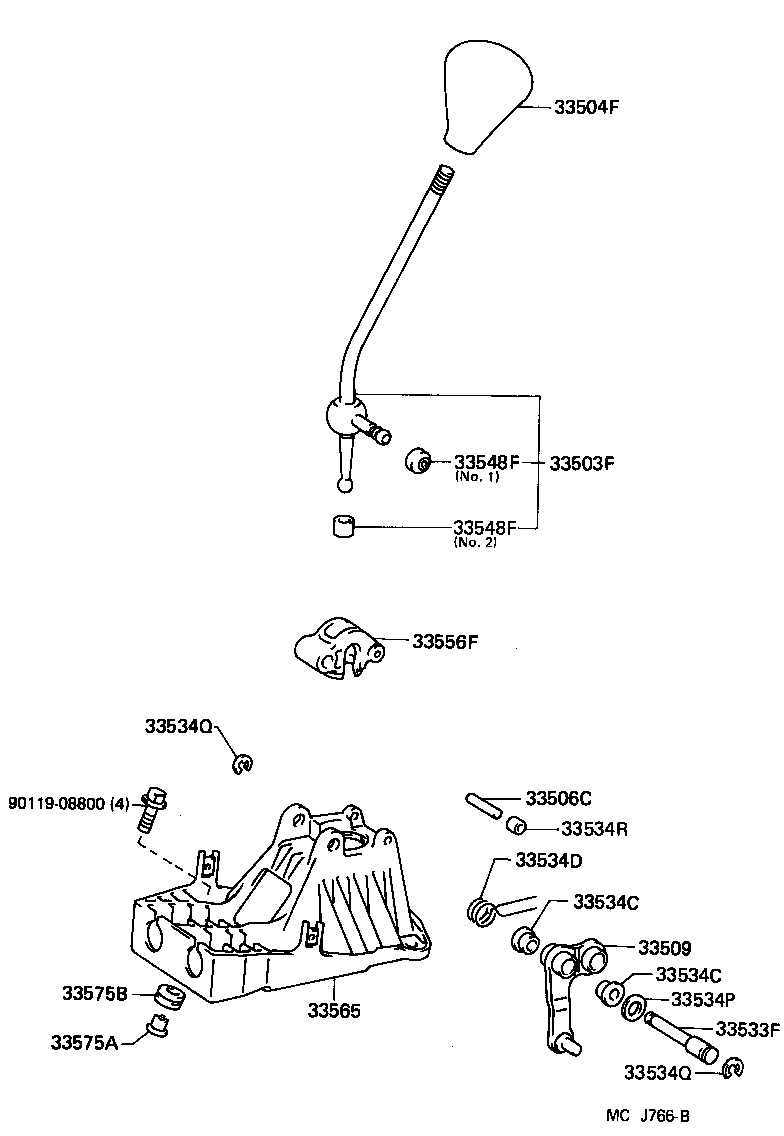

ILLUST NO. 1 OF 2(8912- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-10150 |
EP8#,NP80..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1405014 |
EP8#,NP80..5F BLUE,TRIM8# |
1 | ||
| 33504-1405043 |
EP8#,NP80..5F GRAY,TRIM1# |
1 | ||
| 33504-14050E2 |
EP8#,NP80..5F..(STD,XL,XLI) OAK,TRIM4# |
1 | ||
| 33504-14050B0 |
EP8#,NP80..5F SHADOW GRAY,TRIM1# |
1 | ||
| 33506C - PIN, SHIFT LEVER RETAINER RING | ||||
| 90253-06001 |
EP8#,NP80..MTM |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-10040 |
EP8#,NP80..MTM |
1 | ||
| 33533F - SHAFT, BELLCRANK (FOR FLOOR SHIFT) | ||||
| 33533-10020 |
EP8#,NP80..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
EP8#,NP80..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
EP8#,NP80..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20102 |
EP8#,NP80..MTM |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
EP8#,NP80..MTM |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00700 |
EP8#,NP80..MTM RH |
1 | ||
| 96160-00900 |
EP8#,NP80..MTM LH |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00700 |
EP8#,NP80..MTM RH |
1 | ||
| 96160-00900 |
EP8#,NP80..MTM LH |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
EP8#,NP80..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-10040 |
EP8#,NP80..MTM NO.2 |
1 | ||
| 33548-12021 |
EP8#,NP80..MTM NO.1 |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-10040 |
EP8#,NP80..MTM NO.2 |
1 | ||
| 33548-12021 |
EP8#,NP80..MTM NO.1 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-10020 |
EP8#,NP80..MTM |
1 | ||
| 33565 - PLATE, CONTROL SHIFT LEVER RETAINER | ||||
| 33565-10030 |
EP8#,NP80..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08059 |
EP8#,NP80..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-09022 |
EP8#,NP80..MTM |
4 | ||
| Common parts | ||||
| 90119-08800 | ||||
ILLUST NO. 2 OF 2(8912-9012)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
EP8#,NP80..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-16020 |
NP80 |
1 | ||
| 33524-16040 |
EP8#,NP80..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16010 |
NP80 |
1 | ||
| 33534-16050 |
EP8#,NP80..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP8#,NP80..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EP8#,NP80..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EP8#,NP80..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EP8#,NP80..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP8#,NP80 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EP8#,NP80 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10030 |
NP80 |
1 | ||
| 33608-10031 |
EP8#,NP80..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-10190 |
NP80 |
1 | ||
| 33821-10190 |
EP8#,NP80..MTM |
1 | ||
| 33821-16140 |
EP8#,NP80..MTM NIPPON CABLE |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EP8#,NP80..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08023 |
EP8#,NP80..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-10060 |
NP80 |
1 | ||
| 33822-18021 |
EP8#,NP80..MTM |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14021 | ||||
| 90468-14027 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91651-40618 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
