NP80L-AGMRSW (1989)

Toyota Starlet

Production Dec 1989 - May 1994
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1N

Click highlighted areas on diagram

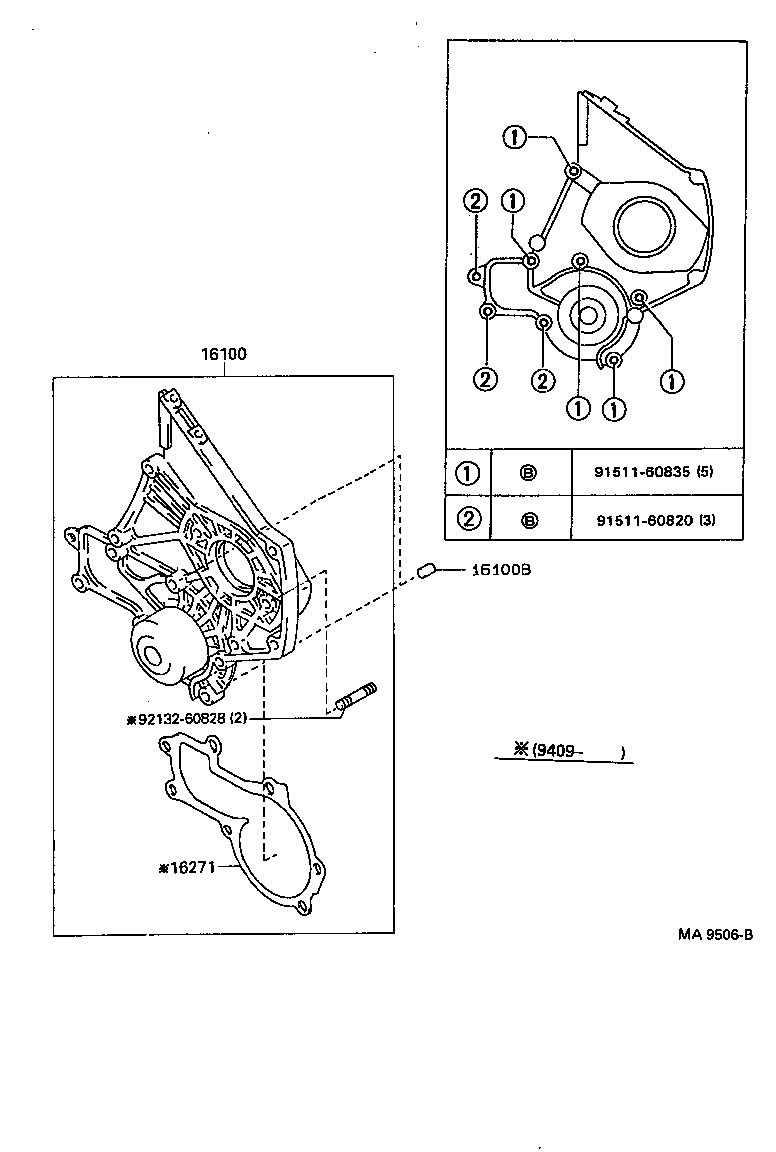

diagram 16100 16100B 16271 9151160820 9151160835 9213260828
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-55011

1N..NP80

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1N..NP80

 2
Common parts
91511-60820
91511-60835
92132-60828
