NP70R-PHMDSW (1986)
Toyota Starlet
Production
Dec 1986
-
Dec 1989
Engine
1N
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

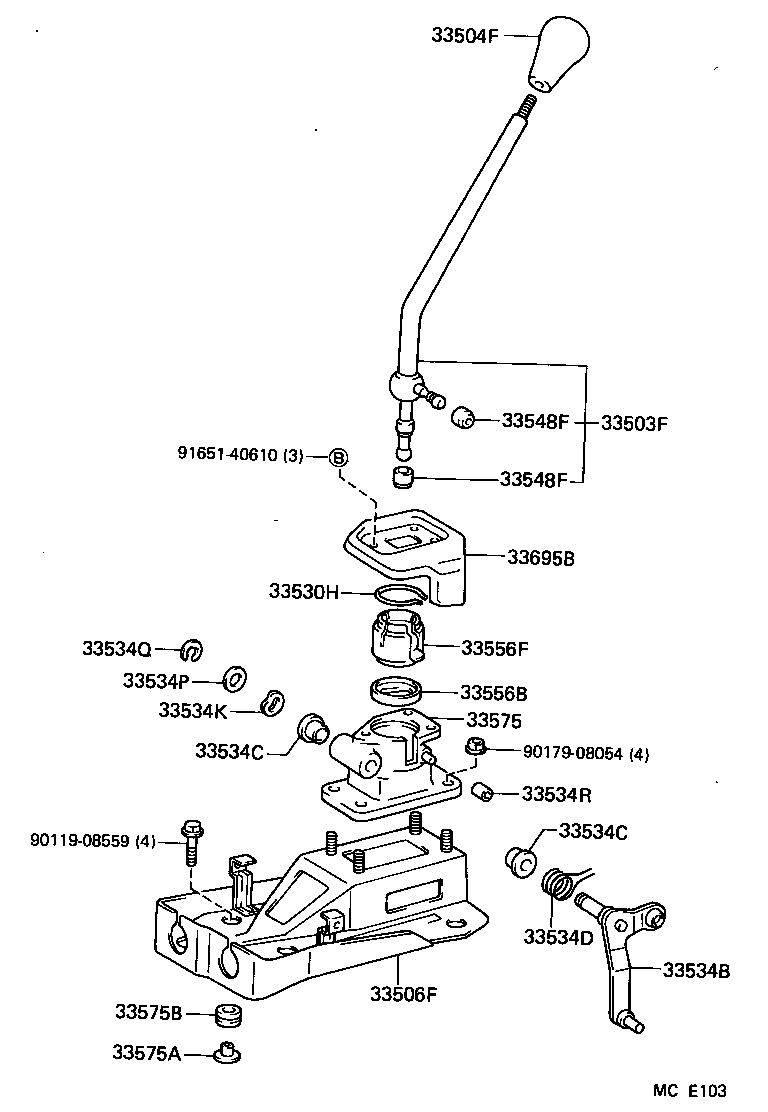

ILLUST NO. 1 OF 2(8612- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-16220 |
EP7#,NP70..MTM |
1 | ||
| 33503-16221 |
EP7#,NP70..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1405001 |
EP7#,NP70..5F BLACK,BLACK,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-10060 |
EP7#,NP70..MTM |
1 | ||
| 33530H - RING, SNAP (FOR SHIFT LEVER) | ||||
| 90520-36018 |
EP7#,NP70..MTM |
1 | ||
| 90520-34002 |
EP7#,NP70..MTM |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33509-16020 |
EP7#,NP70..MTM |
1 | ||
| 33509-12080 |
EP7#,NP70..MTM |
1 | ||
| 33509-12060 |
EP7#,NP70..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
EP7#,NP70..MTM |
2 | ||
| 90386-12034 |
EP7#,NP70..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
EP7#,NP70..MTM |
2 | ||
| 90386-12034 |
EP7#,NP70..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
EP7#,NP70..MTM |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
EP7#,NP70..MTM |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
EP7#,NP70..MTM |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
EP7#,NP70..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
EP7#,NP70..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EP7#,NP70..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EP7#,NP70..MTM |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
EP7#,NP70..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20020 |
EP7#,NP70..MTM |
1 | ||
| 33556-16040 |
EP7#,NP70..MTM |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-20390 |
EP7#,NP70..MTM |
1 | ||
| 33575-16040 |
EP7#,NP70..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
EP7#,NP70..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
EP7#,NP70..MTM |
4 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-16010 |
EP7#,NP70..MTM |
1 | ||
| 33695-20010 |
EP7#,NP70..MTM |
1 | ||
| Common parts | ||||
| 90119-08559 | ||||
| 90179-08054 | ||||
| 91651-40610 | ||||
