NP70R-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

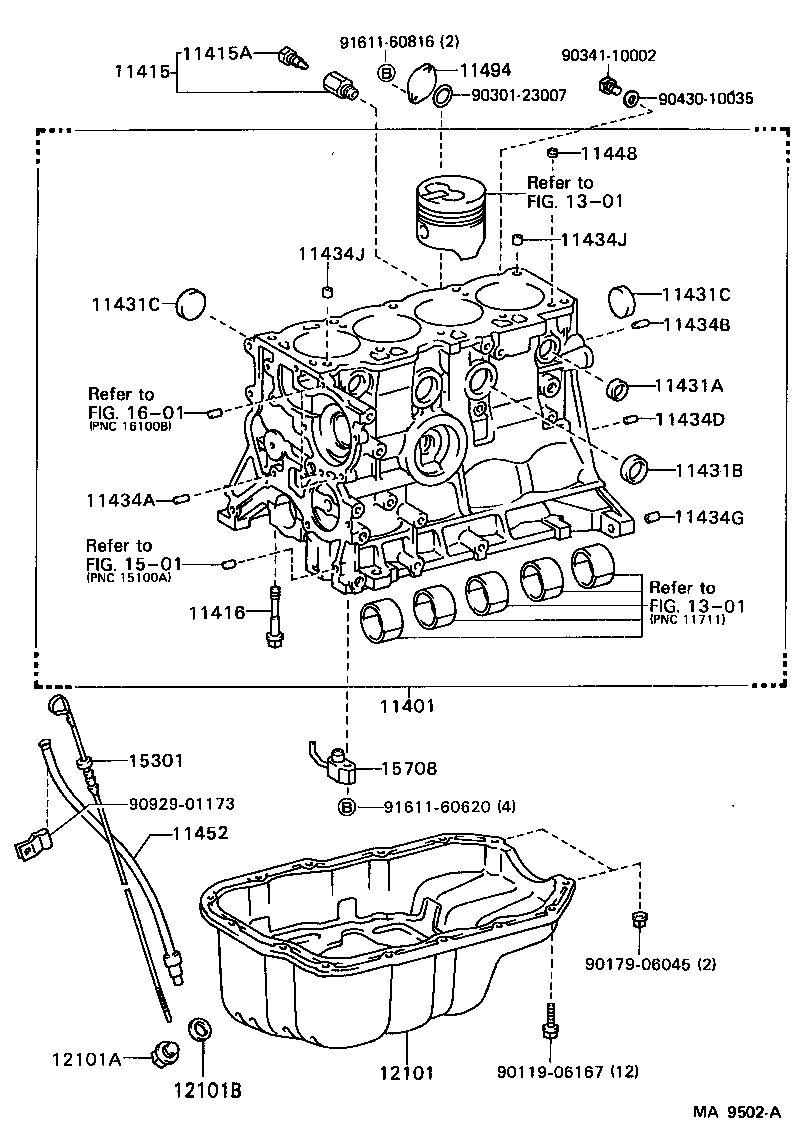

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11431C 11434A 11434B 11434D 11434G 11434J 11434J 11448 11452 11494 12101 12101A 12101B 1301 1301 1501 15301 15708 1601 9011906167 9017906045 9030123007 9034110002 9043010035 9092901173 9161160620 9161160816
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59335

1N..NP70

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09088

1N..NP70

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1N..NP70

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10153

1N..NP70

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42000

1N..NP70

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

1N..NP70

OD=30

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

1N..NP70

OD=35

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

1N..NP70

OD=35

 5
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06003

1N..NP70

L=14,OD=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10052

1N..NP70

L=20,OD=10,L=20,OD=10

 1
90250-10017

1N..NP70

L=20,OD=10

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90253-10005

1N..NP70

L=10,OD=10

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90253-15016

1N..NP70

 1
90253-15001

1N..NP70

 1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14001

1N..NP70

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14001

1N..NP70

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-55010

1N..NP70

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-55010

1N..NP70

 1
11494 - PLATE, OIL HOLE COVER
11494-55010

1N..NP70

 1
12101 - PAN SUB-ASSY, OIL
12101-55010

1N..NP70

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1N..NP70

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

1N..NP70

 1
90430-12011

1N..NP70

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-55010

1N..NP70

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-55010

1N..NP70

 4
Common parts
90119-06167
90179-06045
90301-23007
90341-10002
90430-10035
90929-01173
91611-60620
91611-60816
Linked diagrams
1301
1501
1601
