NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )NP70

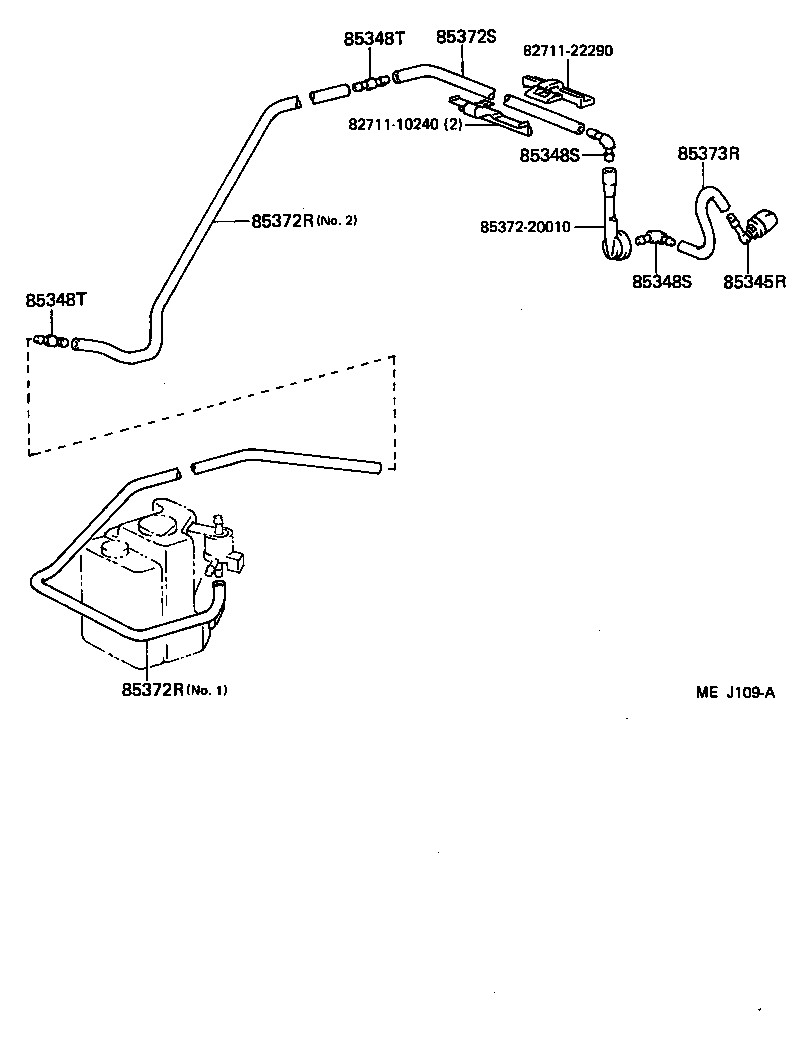

Click highlighted areas on diagram

diagram 8271110240 8271122290 85345R 85348S 85348S 85348T 85348T 8537220010 85372R 85372R 85372S 85373R
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-12160

EP7#,NP70

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

EP7#,NP70

 2
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

EP7#,NP70

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

EP7#,NP70

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

EP7#,NP70

 2
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85354-10230

EP7#,NP70

NO.2,L=2300

 1
85370-10230

NP70

NO.1,L=1400

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85354-10230

EP7#,NP70

NO.2,L=2300

 1
85370-10230

NP70

NO.1,L=1400

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-06013

NP70

*H,L=770

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85343-10100

EP7#,NP70

L=150

 1
Common parts
82711-10240
82711-22290
85372-20010
