NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(8612- )NP70

Click highlighted areas on diagram

diagram 28610 28610 28611 8202 82600F 82660 82661 8271112200 83390 83420 83530 84210 84461 85915 85916 85927 89428 9011906005 9011906171 9017906158 9043018007 91651F0616
Part # Description Qty Price
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-55040

1N..NP70

SUB

 1
28610-64050

1N..NP70

MAIN

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-55040

1N..NP70

SUB

 1
28610-64050

1N..NP70

MAIN

 1
28611 - COVER, GLOW PLUG RELAY
28611-55010

1N..NP70

 1
82600F - FUSE, FUSE BLOCK
90982-09002

EP7#,NP70

10A,10A

 33
90982-07011

EP7#,NP70

30A,GREEN,30A

 33
90982-09003

EP7#,NP70

15A,15A

 33
90982-09004

EP7#,NP70

20A,YELLOW,20A

 33
90982-09005

EP7#,NP70

7.5A,7.5A

 33
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-10021

EP7#,NP70

NO.1

 1
82660-10020

EP7#,NP70

NO.1

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-10020

NP70..LHD

*FRG

 1
82661-10010

EP7#,NP70

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-27120

NP70

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16020

EP7#,NP70

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14030

NP70

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

EP7#,NP70..MTM

 1
84461 - SWITCH, LEVEL WARNING
84461-14030

NP70

 1
85915 - RELAY, MAIN
90987-02006

EP7#,NP70

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

EP7#,NP70

TAIL

 1
90987-02006

EP7#,NP70

HEAD

 1
85927 - RELAY, COOLING FAN
90987-03001

EP7#,NP70

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-15011

NP70

 1
89428-20060

NP70

 1
Common parts
82711-12200
90119-06005
90119-06171
90179-06158
90430-18007
91651-F0616
Linked diagrams
8202

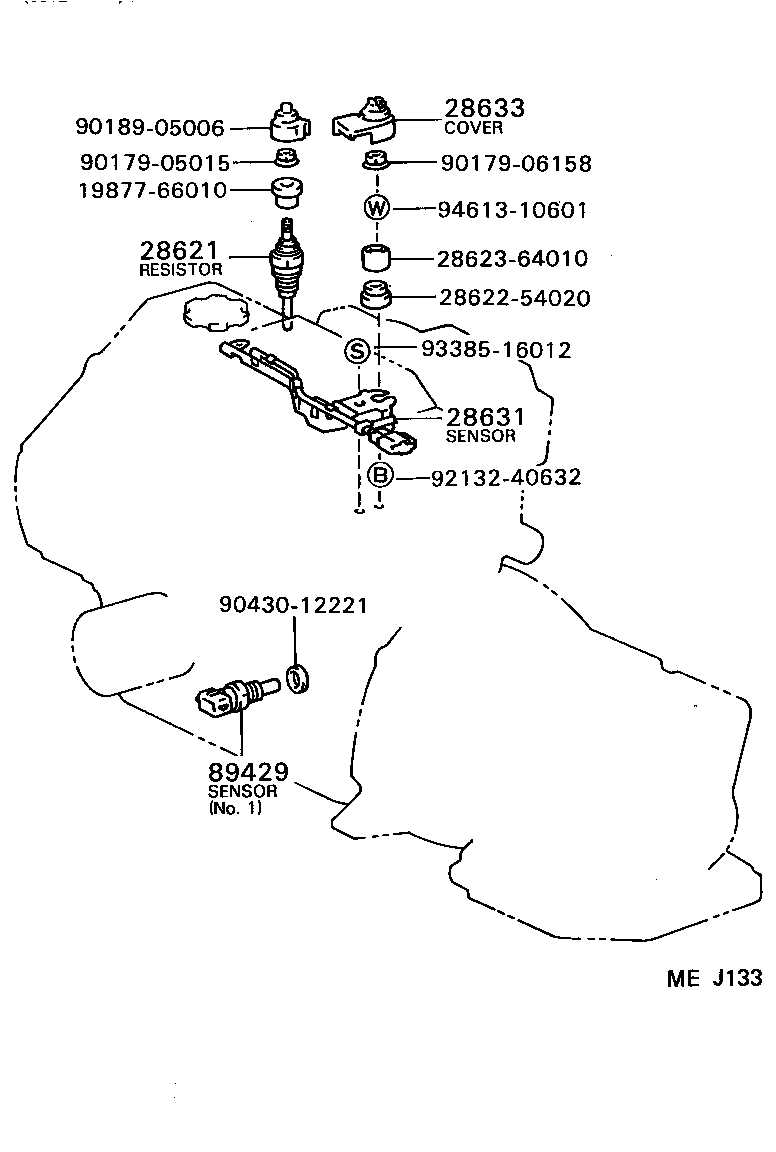

ILLUST NO. 2 OF 5(8612- )NP70

Click highlighted areas on diagram

diagram 1987766010 28621 2862254020 2862364010 28631 28633 89429 9017905015 9017906158 9018905006 9043012221 9213240632 9338516012 9461310601
Part # Description Qty Price
28621 - RESISTOR, GLOW PLUG
28621-64020

1N..NP70

 1
28631 - SENSOR, GLOW PLUG CURRENT
28631-55020

1N..NP70

 1
28633 - COVER, CURRENT SENSOR
28633-55010

1N..NP70

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

NP70

 1
Common parts
19877-66010
28622-54020
28623-64010
90179-05015
90179-06158
90189-05006
90430-12221
92132-40632
93385-16012
94613-10601

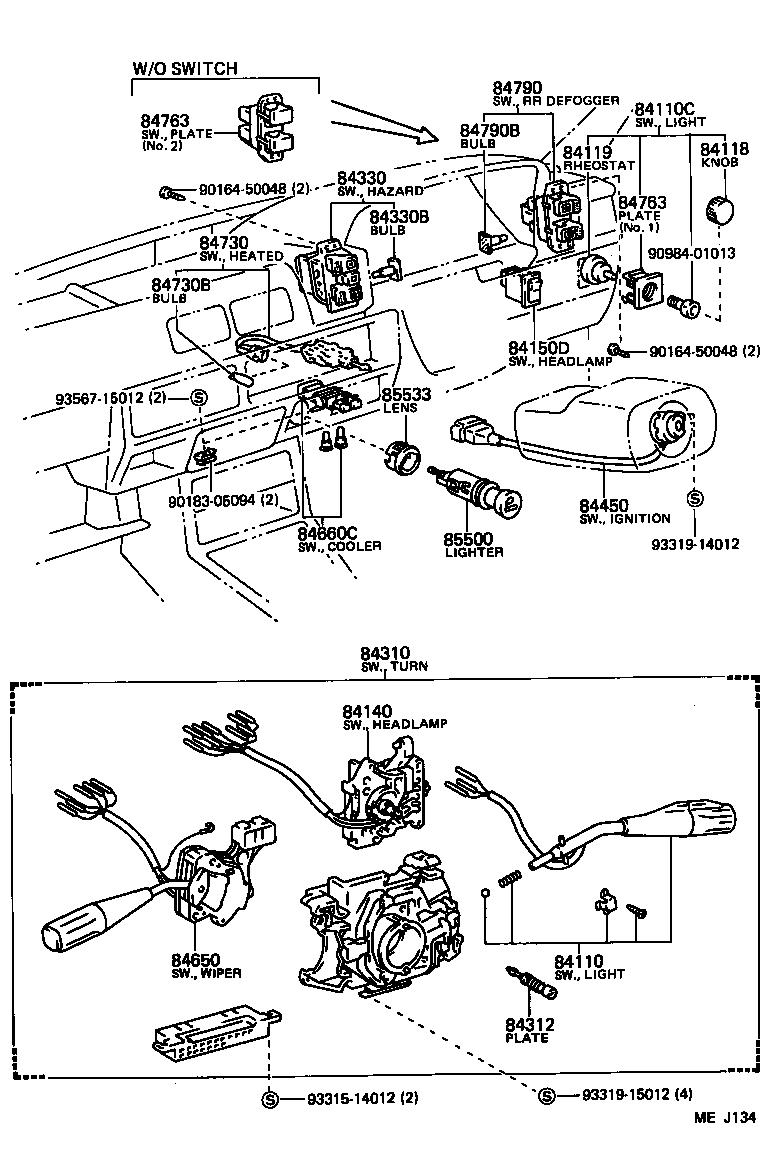

ILLUST NO. 3 OF 5(8612- )

Click highlighted areas on diagram

diagram 84110 84110C 84118 84119 84140 84150D 84310 84312 84330 84330B 84450 84650 84660C 84730 84730B 84763 84763 84790 84790B 85500 85533 9016450048 9016450048 9018305094 9098401013 9331514012 9331914012 9331915012 9356715012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19865

EP7#,NP70..LHD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-10110

EP7#,NP70..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10650

EP7#,NP70..LHD..(S,STD,XL)

 1
84310-10670

EP7#,NP70..LHD..(GL,S,XL)

W/INTERMITTENT WIPER

 1
84312 - PLATE, HORN CONTACT
84312-32020

EP7#,NP70

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-10120

EP7#,NP70..LHD

W/RR WIPER

 1
84332-10130

EP7#,NP70..LHD

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10180

EP7#,NP70

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16020

EP7#,NP70

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-10490

EP7#,NP70..LHD..(GL,S,XL)

W/INTERMITTENT WIPER

 1
84652-10470

EP7#,NP70..LHD..(S,STD,XL)

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10080

EP7#,NP70..DX,GL,STD,XL

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

EP7#,NP70

14V 1.4W,12V 1.4W

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-10140

EP7#,NP70..LHD

 1
84790-10130

EP7#,NP70..LHD

W/RR FOG LAMP

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10180

EP7#,NP70

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-10100

EP7#,NP70

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-10010

EP7#,NP70

 1
Common parts
90164-50048
90183-05094
90984-01013
93315-14012
93319-14012
93319-15012
93567-15012
