NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8612- )NP70

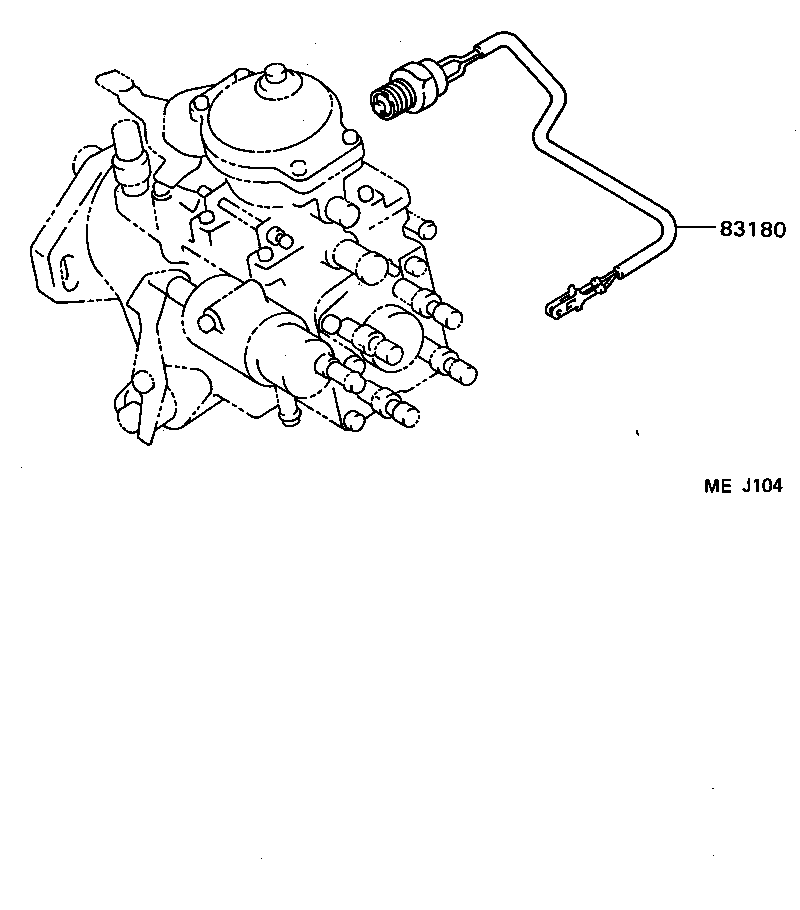

Click highlighted areas on diagram

diagram 83180
Part # Description Qty Price
83180 - DETECTOR ASSY, REVOLUTION
83180-16010

NP70

 1

ILLUST NO. 1 OF 3(8612- )

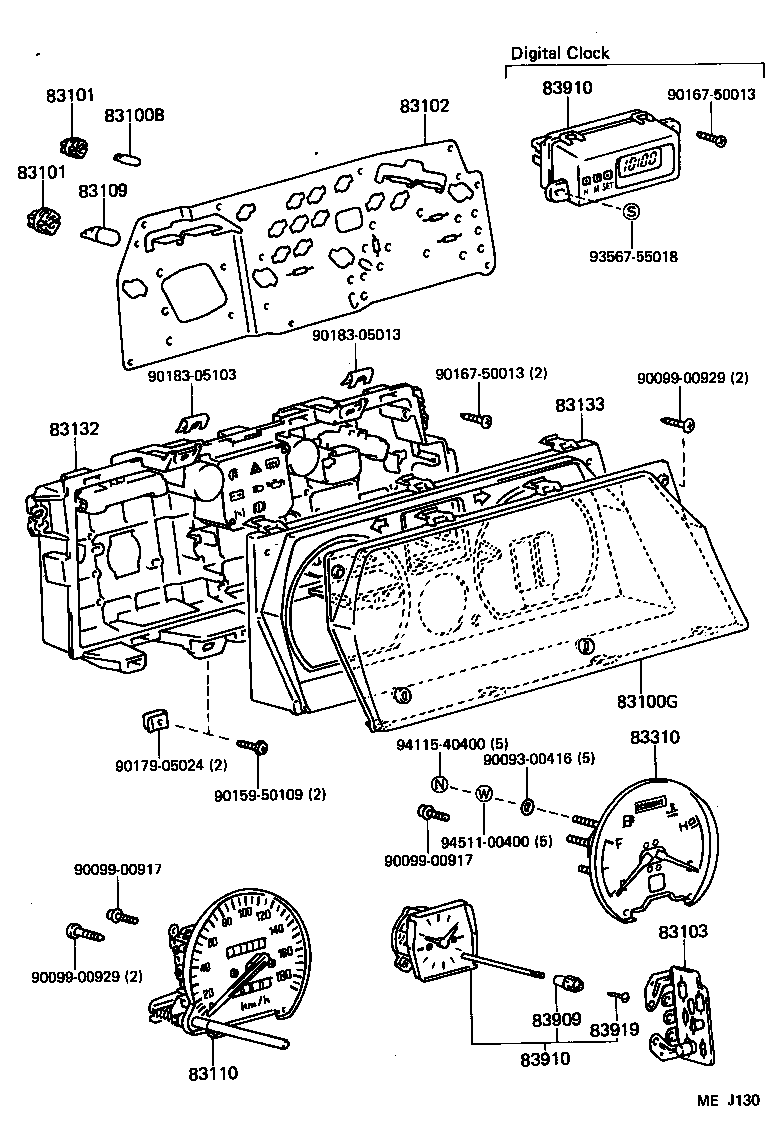

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83101 83102 83103 83109 83110 83132 83133 83310 83909 83910 83910 83919 9009300416 9009900917 9009900917 9009900929 9009900929 9015950109 9016750013 9016750013 9017905024 9018305013 9018305103 9356755018 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

EP7#,NP70

12V 3.4W

 8
90981-11018

EP7#,NP70

12V 1.2W W/O SOCKET

 11
83100G - GLASS, COMBINATION METER
83138-10390

EP7#,NP70..LHD

 1
83138-10410

EP7#,NP70..GL,XL

W/ANALOGUE CLOCK

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

EP7#,NP70

12V 1.4W

 11
83101-14030

EP7#,NP70

12V 3.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

EP7#,NP70

12V 1.4W

 11
83101-14030

EP7#,NP70

12V 3.4W

 11
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1C670

NP70

W/ANALOGUE CLOCK

 1
83247-1C650

NP70..LHD

 1
83247-1C690

NP70..LHD

W/*RHW

 1
83247-1C710

NP70..XL

W/ANALOGUE CLOCK & ECONOMETER

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

EP7#,NP70

12V3.4W W(GREEN CAP)

 4
83110 - SPEEDOMETER ASSY
83110-1C420

NP70..LHD

 1
83132 - CASE, COMBINATION METER
83132-10790

NP70

 1
83132-10810

NP70

W/*RHW

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10730

EP7#,NP70..LHD..(GL,STD,XL)

 1
83133-10750

EP7#,NP70..GL,XL

W/ANALOGUE CLOCK

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-10310

EP70..RHD..4F;EP7#,NP70..LHD..(GL,STD,XL)

 1
83910 - CLOCK ASSY
83910-10160

EP7#,NP70..GL,XL

ANALOGUE

 1
83910 - CLOCK ASSY
83910-10160

EP7#,NP70..GL,XL

ANALOGUE

 1
Common parts
90093-00416
90099-00917
90099-00929
90159-50109
90167-50013
90179-05024
90183-05013
90183-05103
93567-55018
94115-40400
94511-00400

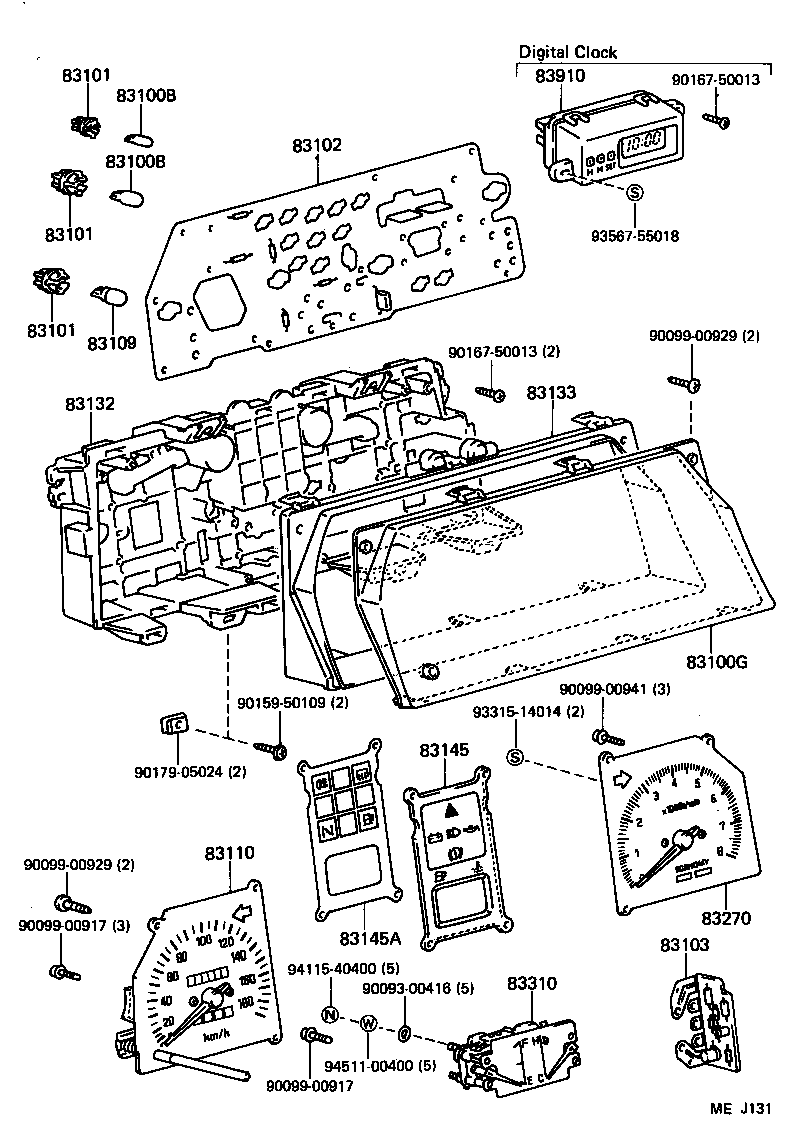

ILLUST NO. 1 OF 3(8612- )

Click highlighted areas on diagram

W/TACHOMETER

diagram 83100B 83100B 83100G 83101 83101 83101 83102 83103 83109 83110 83132 83133 83145 83145A 83270 83310 83910 9009300416 9009900917 9009900917 9009900929 9009900929 9009900941 9015950109 9016750013 9016750013 9017905024 9331514014 9356755018 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

EP7#,NP70

12V 3.4W

 8
90981-11018

EP7#,NP70

12V 1.2W W/O SOCKET

 11
83100B - BULB, COMBINATION METER, NO.1
99132-12034

EP7#,NP70

12V 3.4W

 8
90981-11018

EP7#,NP70

12V 1.2W W/O SOCKET

 11
83100G - GLASS, COMBINATION METER
83138-10390

EP7#,NP70..LHD

 1
83138-10410

EP7#,NP70..GL,XL

W/ANALOGUE CLOCK

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

EP7#,NP70

12V 1.4W

 11
83101-14030

EP7#,NP70

12V 3.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

EP7#,NP70

12V 1.4W

 11
83101-14030

EP7#,NP70

12V 3.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

EP7#,NP70

12V 1.4W

 11
83101-14030

EP7#,NP70

12V 3.4W

 11
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-1C690

NP70..LHD

W/*RHW

 1
83247-1C670

NP70

W/ANALOGUE CLOCK

 1
83247-1C650

NP70..LHD

 1
83247-1C710

NP70..XL

W/ANALOGUE CLOCK & ECONOMETER

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

EP7#,NP70

12V3.4W W(GREEN CAP)

 4
83110 - SPEEDOMETER ASSY
83110-1C420

NP70..LHD

 1
83132 - CASE, COMBINATION METER
83132-10790

NP70

 1
83132-10810

NP70

W/*RHW

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10730

EP7#,NP70..LHD..(GL,STD,XL)

 1
83133-10750

EP7#,NP70..GL,XL

W/ANALOGUE CLOCK

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-10310

EP70..RHD..4F;EP7#,NP70..LHD..(GL,STD,XL)

 1
83910 - CLOCK ASSY
83910-10160

EP7#,NP70..GL,XL

ANALOGUE

 1
Common parts
90093-00416
90099-00917
90099-00929
90099-00941
90159-50109
90167-50013
90179-05024
93315-14014
93567-55018
94115-40400
94511-00400
