Toyota Starlet NP70 WIRING & CLAMP

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-10040	EP7#,NP70..LHD..(EUG,SDZ)	10/1984 - 12/1989	1
82111-10050	NP70..LHD *FRG	12/1986 - 12/1989	1
82121 - WIRE, ENGINE
82121-10560	NP70..LHD	12/1986 - 12/1989	1
82123 - WIRE, ENGINE, NO.3
82123-10040	NP70	12/1986 - 12/1989	1
82131 - WIRE, COWL
82131-1C240	NP70..LHD FRG & W/RW;*FRG	12/1986 - 07/1987	1
82131-1C220	NP70..LHD	12/1986 - 12/1989	1
82131-1C230	NP70..LHD W/RW,W/RFL & *RW	12/1986 - 07/1987	1
82131-1C231	NP70..LHD W/RW,W/RFL & *RW;W/TURN-OFF WARNING	07/1987 - 12/1989	1
82131-1C240	NP70..LHD FRG & W/RW	07/1987 - 12/1989	1
82131-1C241	NP70..LHD *FRG	07/1987 - 12/1989	1
82210C - FUSIBLE LINK
90982-08190	EP7#,NP70 60A,TERM.:FEMALE,YEL,60A	10/1984 - 12/1989	1
90982-08188	EP7#,NP70 30A,TERM.:FEMALE,PNK,30A	10/1984 - 12/1989	2
82823 - CAP, TERMINAL, NO.1
82823-20030	NP70 STARTER	12/1986 - 12/1989	1
Common parts
90119-06067
91651-40816
91652-41016
93590-16014

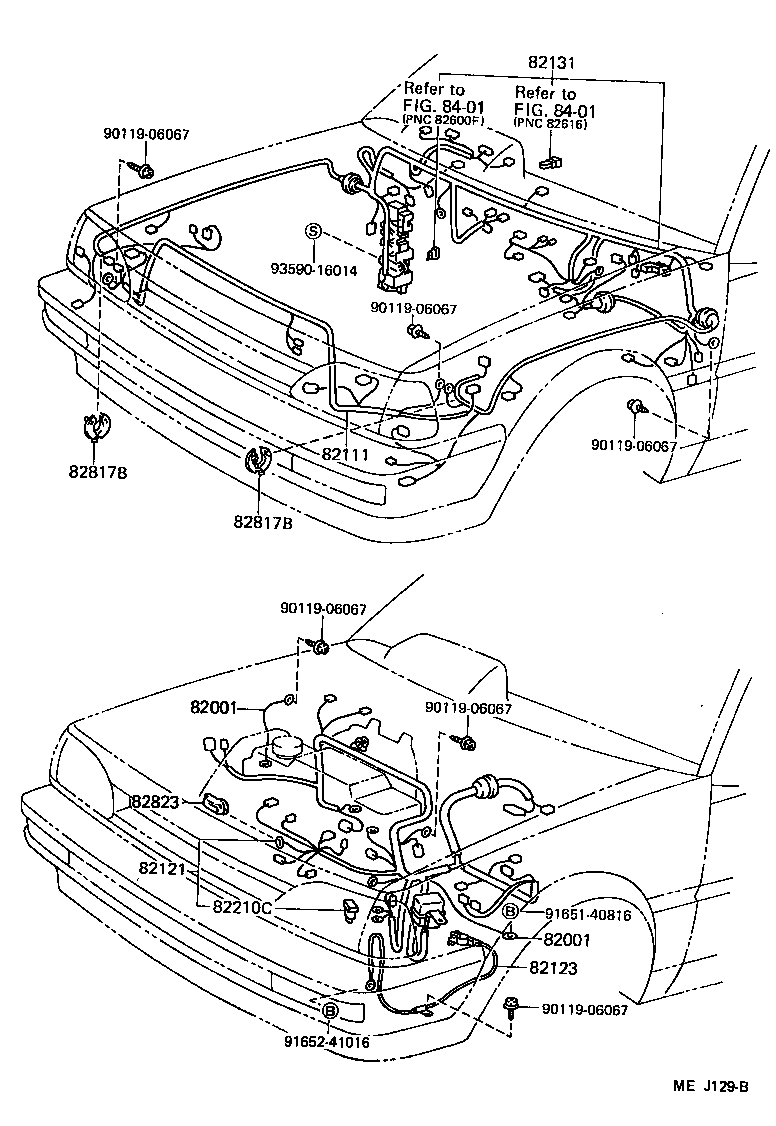

Linked diagrams
8401

NP70L-PHMDSW (1986)
